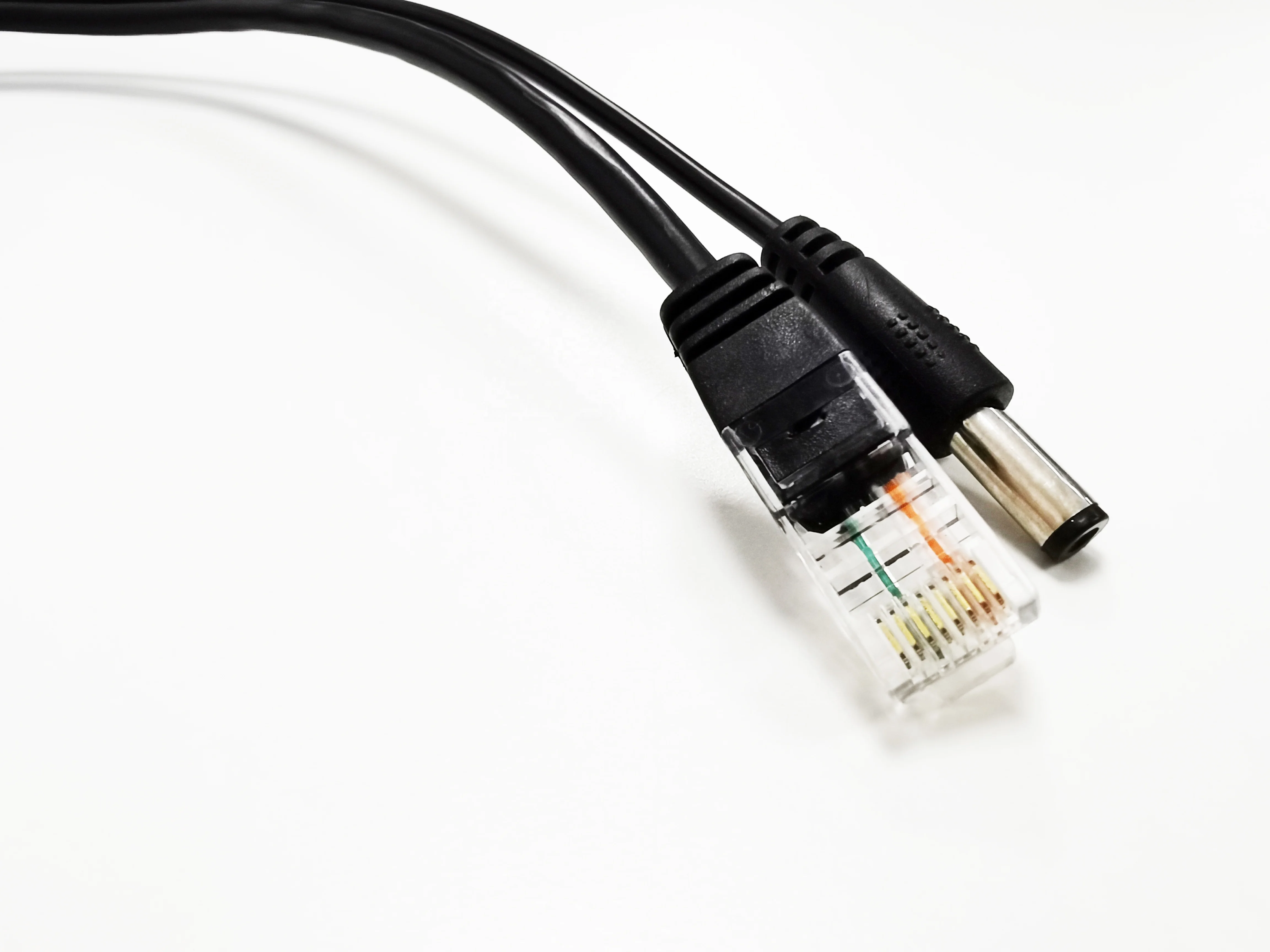

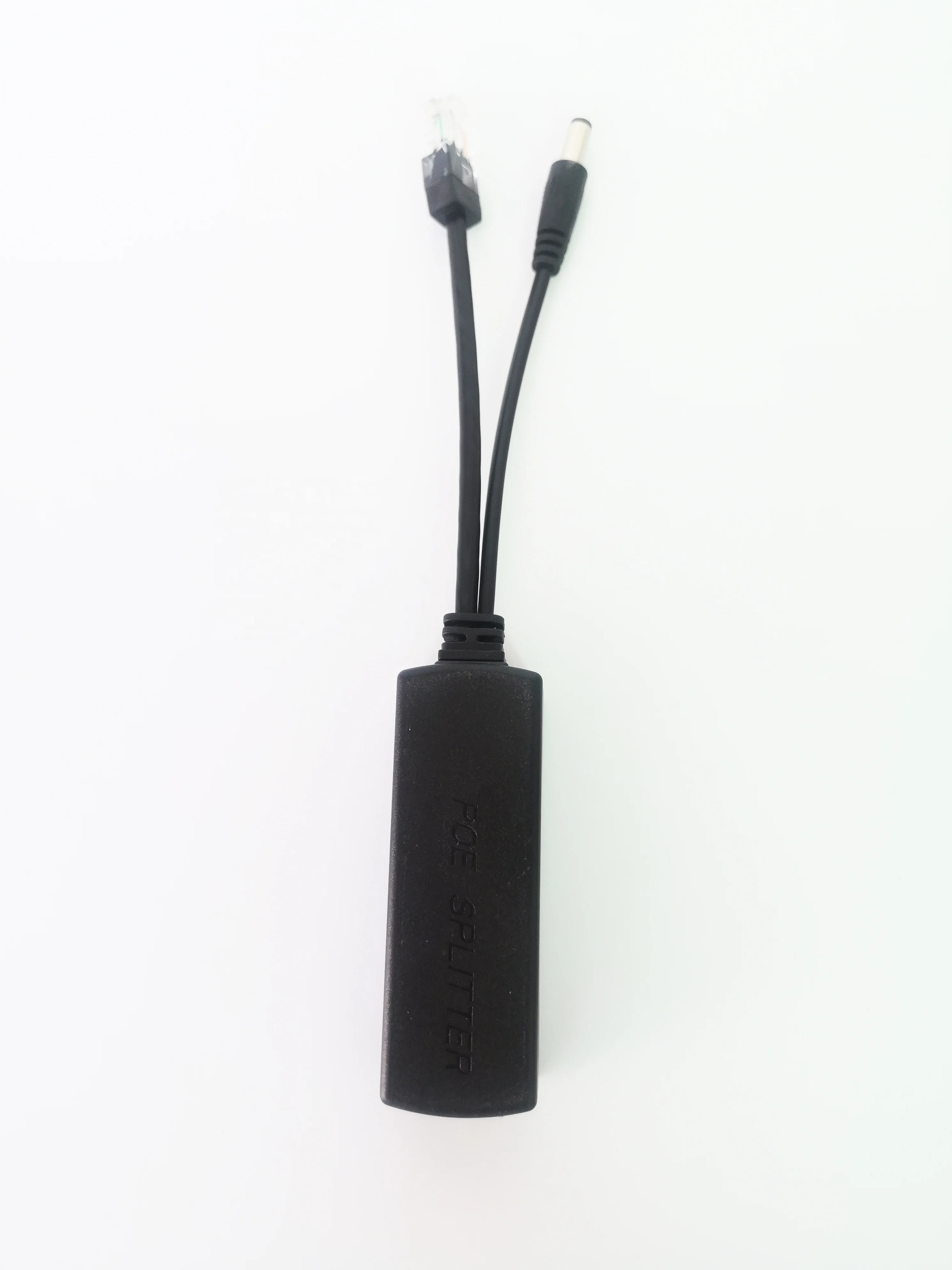

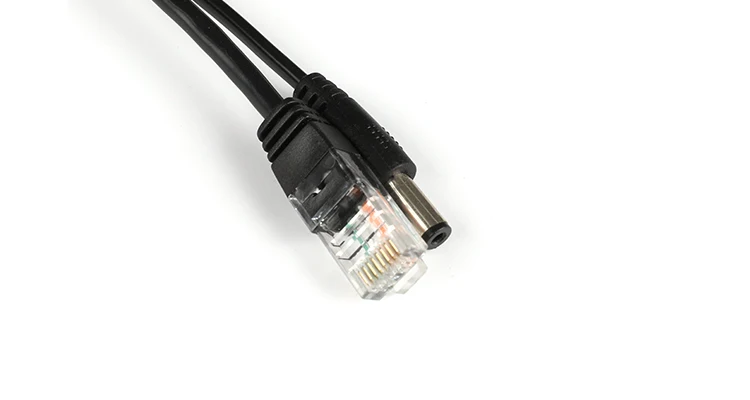

100M 802.3af/at Power Over Ethernet USB/DC Rj45 Plug Y Cable Adapter Active POE Splitter
- Category: >>>
- Supplier: Shenzhen Ewind Technology Co. Limited
Share on (1601015028449):
Product Overview
Description
Product Overview
100M POE Splitter Cable 25.5W
(Model: EW-PD101F-AT-12)
(Model: EW-PD101F-AT-12)
It is compatibility for mostly switches. Like that CISCO, HUAWEI, HP, ARUBO SWITCH etc. it is can working with these switches and AP wireless device; Because of our engineer put the protocol on the poe splitter;
1* 8-Pin RJ45 female input port + 1* RJ45 male output port + 1* DC (5.5*2.1mm) male output port;
Support IEEE802.3af/at. Be compatible with Mid Span and End Span;
Voltage Input Range: 44-57V, Power Output: 25.5W, with over 82% efficiency;
Support isolation function;
Default Voltage Output: 12V2A;
High Voltage Isolation: 1500V (Input Stage to Output Stage);
Support protection for Short Circuit, Over-current & Over-temperature;
1* 8-Pin RJ45 female input port + 1* RJ45 male output port + 1* DC (5.5*2.1mm) male output port;
Support IEEE802.3af/at. Be compatible with Mid Span and End Span;
Voltage Input Range: 44-57V, Power Output: 25.5W, with over 82% efficiency;
Support isolation function;
Default Voltage Output: 12V2A;
High Voltage Isolation: 1500V (Input Stage to Output Stage);
Support protection for Short Circuit, Over-current & Over-temperature;
Products Description
PRODUCT SPECIFICATIONS
Model | EW-PD101F-AT-12 |
Product Name | 10/100M POE splitter cable; |
Working Environment | Working Temperature:-20℃～+60℃; Working Humidity:20%～80%; |
Storage Temperature: -30℃～+60℃; Storage Humidity: 10%～90%; | |
PoE Voltage Input | 44-57V; |
DC Voltage Output | 12V2A; |
Power Output | 25.5W; |

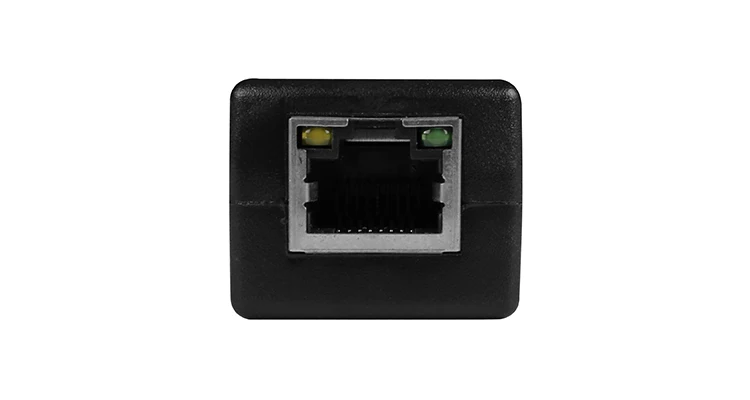

Connector | 1x RJ45 input port |
1x RJ45 output port | |
1x DC(5.5*2.1mm) output port | |
DC/DC Switching | Support protection for over current and over temperature; |
Transmission Bandwidth | 10/100M; |
Isolation function | Support; |
Length | 190(mm); |
Port Protection | Meet the IEC61000-4-2(ESD)±15KV(air), ±8KV (contact); Compatible with 8/20us,24A(12A) |
Certifications | CE, FCC, ROHS |
Warranty | 1-year warranty; |
