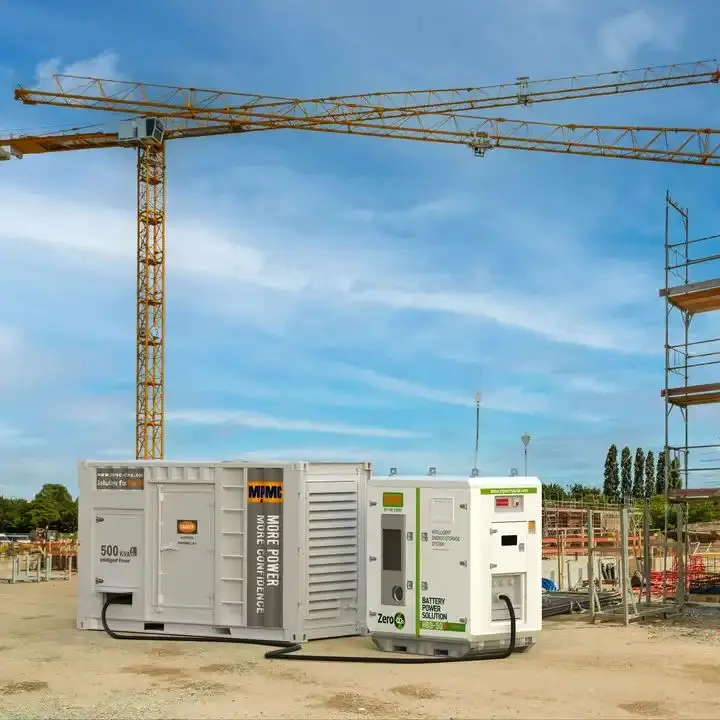

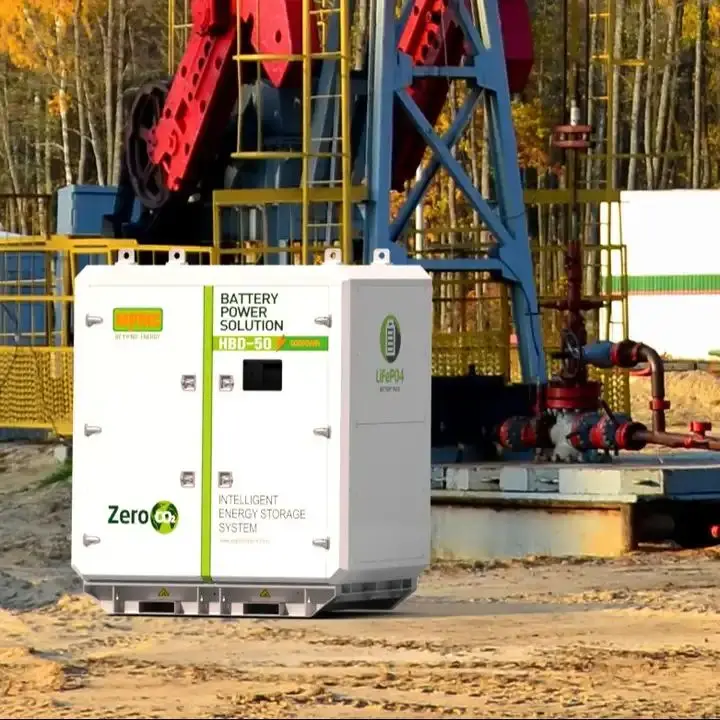

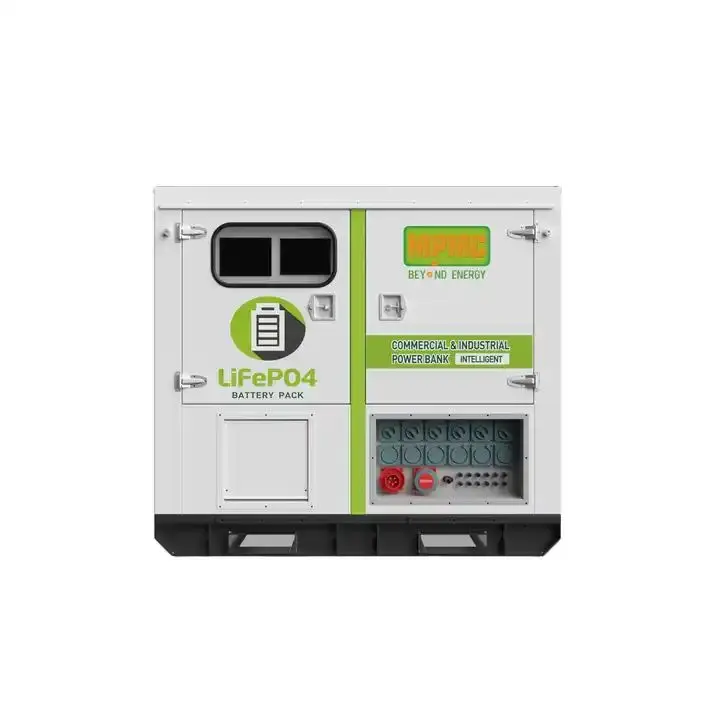

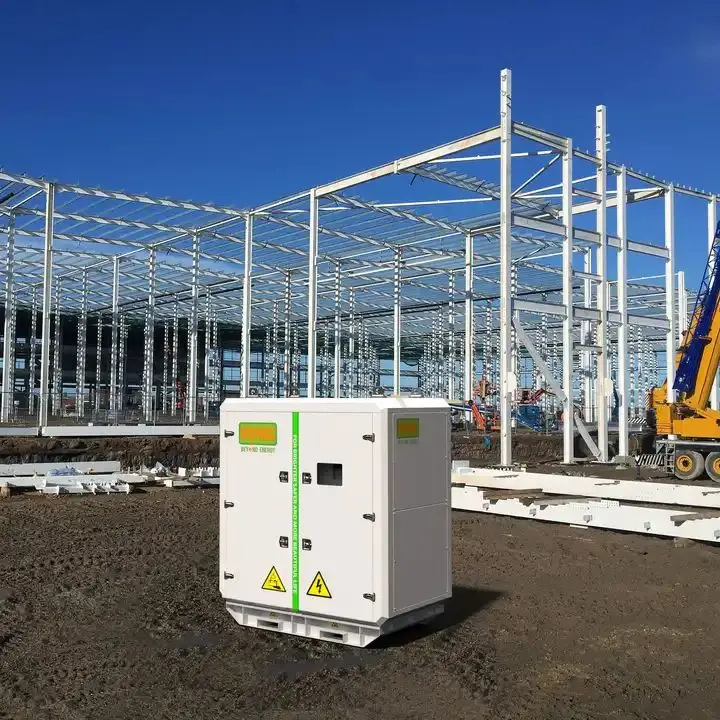

MPMC 60 kwh lithium ion batteries for solar storage industrial commercial solar energy storage systems 30kw BESS container
- Category: >>>
- Supplier: Mpmc Powertech Corp.
Share on (1601015077355):
Product Overview
Description
Product Description
HBD 30-60 A Series
COMMERCIAL ENERGY STORAGE SYSTEM
MPMC HBD BESS, Your Clean Energy Solutions
Expandable System Capacity: Small/Medium/Large power Customized roof from MPMC cabinet to ALL-SIZE container
MPMC HBD Series is a new range of secure integrated lithium-ion battery energy storage system. This compact,mobile and modular solution includes batteries,PCS,HVAC,fire-protection and auxiliary components, External PV power and AC generator are available foroption.
HBD is mainly developed for no emission and low noise,reducing the dependence on grid,improving power supply quality and ensuring the power consumption of emergency load.
According to various power demands，MPMC battery energy storage system is more compact,efficient and flexible. The system capacity of this HBD battery energy storage system is up to 3300kWh. And we also design a specific silent canopy for the BESS with a capacity below 100kWh. It integrates up-market battery system,battery management system and operation monitoring system in this small unit, with excellent lithium-ion battery consistency ensures more than 6000 times for 10 consecutive years, meeting the most demanding applications.

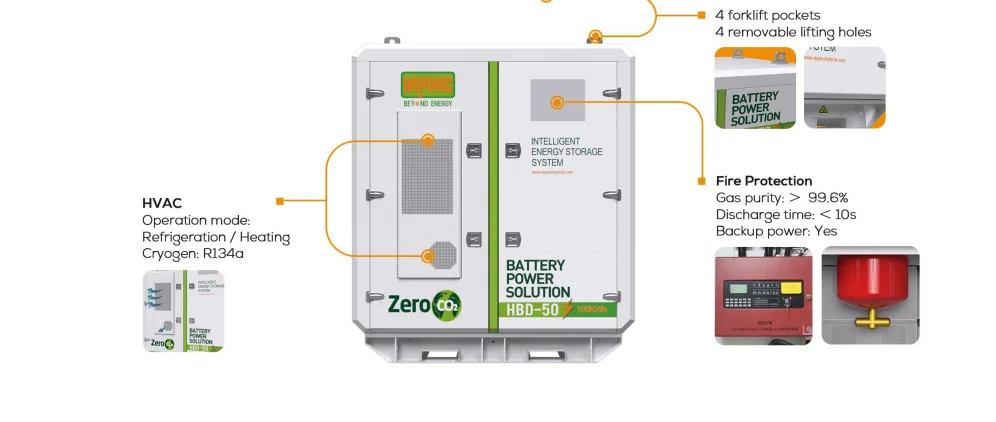

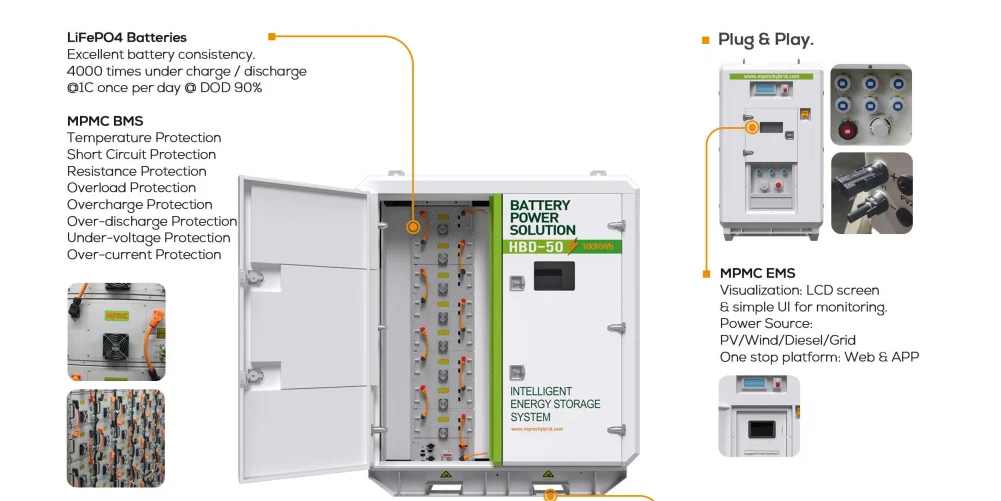

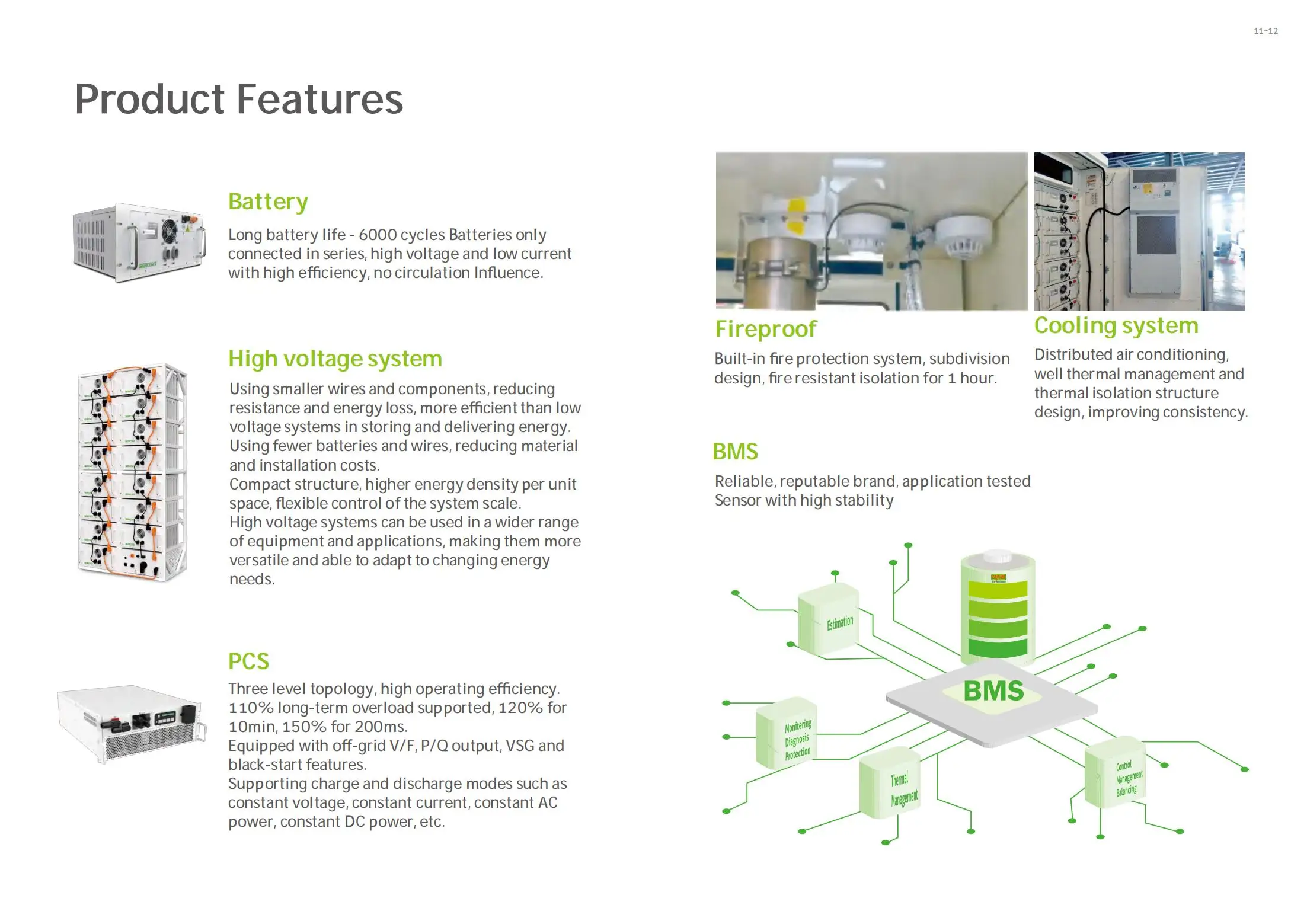

What would you expect in MPMC HBD BESS
Our products comply with MPMC self-owned sheet metal surface pre-treatment and coating technology.
adopting Akzo Nobel powder coating that ensures 3 years outdoor warranty.
adopting Akzo Nobel powder coating that ensures 3 years outdoor warranty.
Benefits of adding MPMC HBD BESS to Micro-grids solution
1. Efficient and flexible, suitable for any hybrid renewable energy generation systems
2. Realize self-supply power consumption to reduce dependence on utility grid
3. The energy storage system can realize the black start of the micro-grids
4. Reactive power compensation, APF improves power quality
5. Make up for the negative impact of distributed output randomness on grid security and economic operation, and can particlipate in auxliaryservices such as peak regulation, frequency regulation and voltage regulation of power grids.
3. The energy storage system can realize the black start of the micro-grids
4. Reactive power compensation, APF improves power quality
5. Make up for the negative impact of distributed output randomness on grid security and economic operation, and can particlipate in auxliaryservices such as peak regulation, frequency regulation and voltage regulation of power grids.
Specification
Model | HBD-30-60 | HBD-50-100 | HBD-100-200 | HBD-250-400 | |||
Rated Power(AC Output) | 30KW | 50kW | 100kW | 250kW | |||
Rated Voltage/Phase | 400Vac/3P | 400Vac/3P | 400Vac/3P | 400Vac/3P | |||
Frequency | 50Hz | 50Hz | 50Hz | 50Hz | |||
BESS Engery@25℃ | 61.44kWh | 100.3kWh | 200.7kWh | 401.4kWh | |||
Battery Pack Capacity | 100Ah | 280Ah | 280Ah | 280Ah | |||
Cycle Life@90%DOD | 6000times | 6000times | 6000times | 6000times | |||
Control System | Local EMS( Remote for option) | ||||||
Cooling System | HVAC | ||||||
Fire Fighting System | Aerosol ( CE) | ||||||
Operating Temp. | -20~50℃ (> 45℃ derating) | -20~50℃ (> 45℃ derating) | -20~50℃ (> 45℃ derating) | -20~50℃ (> 45℃ derating) | |||
Altitude | ≤3000m (> 2000m derating) | ≤3000m (> 2000m derating) | ≤3000m (> 2000m derating) | ≤3000m (> 2000m derating) | |||
Dimensions (L x W x H) | 1800*1150*1800mm | 1550*1250*2250mm | 2200*1250*2250mm | 2950*2250*2250mm | |||
The loading capacity | 6units/20'GP 12units/40'GP | 4units/20'GP 9units/40'GP | 4units/20'GP 9units/40'GP | 2units/20'GP 4units/40'GP | |||
Weight | 1.4t | 2.1t | 2.9t | 7.4t | |||
Model | HBD-250-500 | HBD-300-600 | HBD-400-800 | HBD-500-1000 | |||
Rated Power(AC Output) | 250kW | 300kW | 400kW | 500kW | |||
Rated Voltage/Phase | 400Vac/3P | 400Vac/3P | 400Vac/3P | 400Vac/3P | |||
Frequency | 50Hz | 50Hz | 50Hz | 50Hz | |||
BESS Engery@25℃ | 492kWh | 602kWh | 802.8kWh | 1003.5kWh | |||
Battery Pack Capacity | 320Ah | 280Ah | 280Ah | 280Ah | |||
Cycle Life@90%DOD | 6000times | 6000times | 6000times | 6000times | |||
Control System | Local EMS( Remote for option) | ||||||
Cooling System | HVAC | ||||||
Operating Temp. | -20~50℃ (> 45℃ derating) | ||||||
Altitude | ≤3000m (> 2000m derating) | ||||||
Dimensions (L x W x H) | 20'GP | ||||||
The loading capacity | NA | ||||||
Weight | 12t | 14t | 16t | 18t | |||
Model | HBD-500-1500 | HBD-1000-1500 | HBD-1000-2000 | HBD-1500-2500 | HBD-1500-3000 | ||||
Rated Power (AC Output) | 500kW | 1000kW | 1000kW | 1500kW | 1500kW | ||||
Rated Voltage/Phase | 400Vac/3P | 400Vac/3P | 400Vac/3P | 400Vac/3P | 400Vac/3P | ||||
Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | ||||
BESS Engery@25℃ | 1505.3kWh | 1505.3kWh | 2007kWh | 2580kWh | 2580kWh | ||||
Battery Pack Capacity | 280Ah | 280Ah | 280Ah | 280Ah | 280Ah | ||||
Cycle Life@90%DOD | 6000times | 6000times | 6000times | 6000times | 6000times | ||||
Control System | Local EMS( Remote for option) | ||||||||
Cooling System | HVAC | ||||||||
Operating Temp. | -20~50℃ (> 45℃ derating) | ||||||||
Altitude | ≤3000m (> 2000m derating) | ||||||||
Dimensions (L x W x H) | 40'GP | 40‘HQ | |||||||
The loading capacity | NA | NA | |||||||
Weight | 25.3t | 26t | 30t | 36t | 41t | ||||

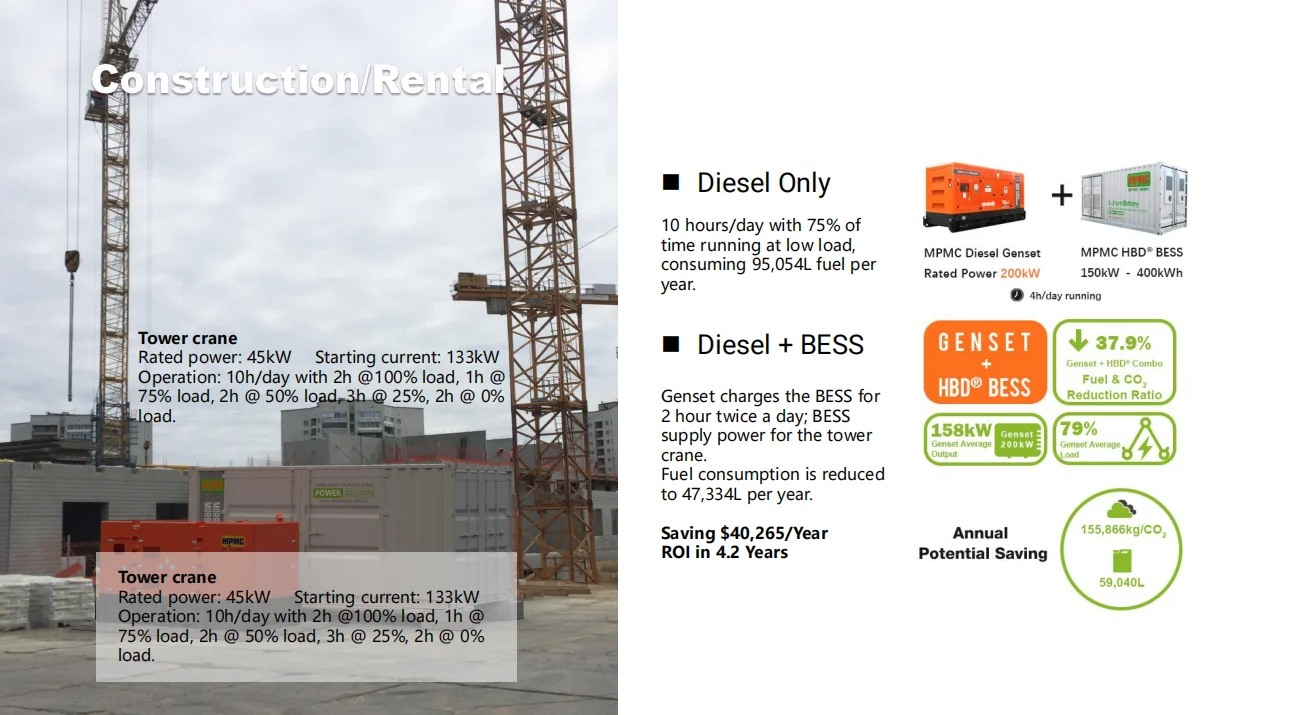

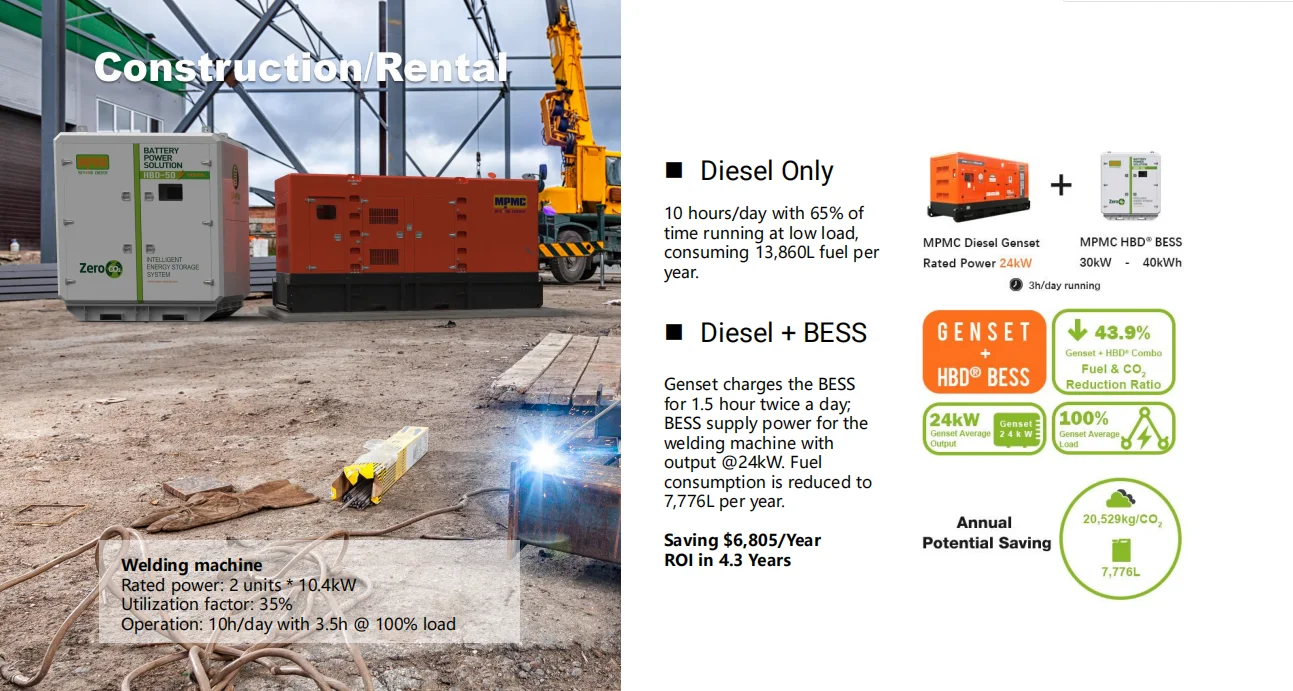

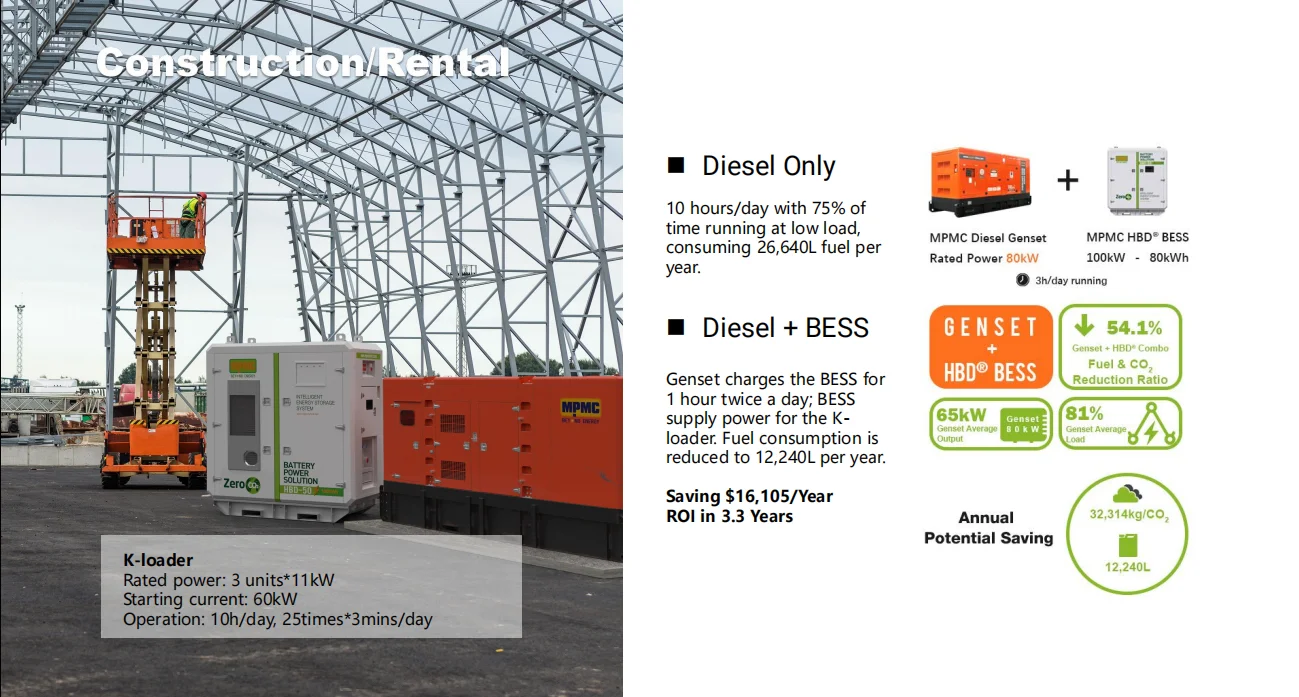

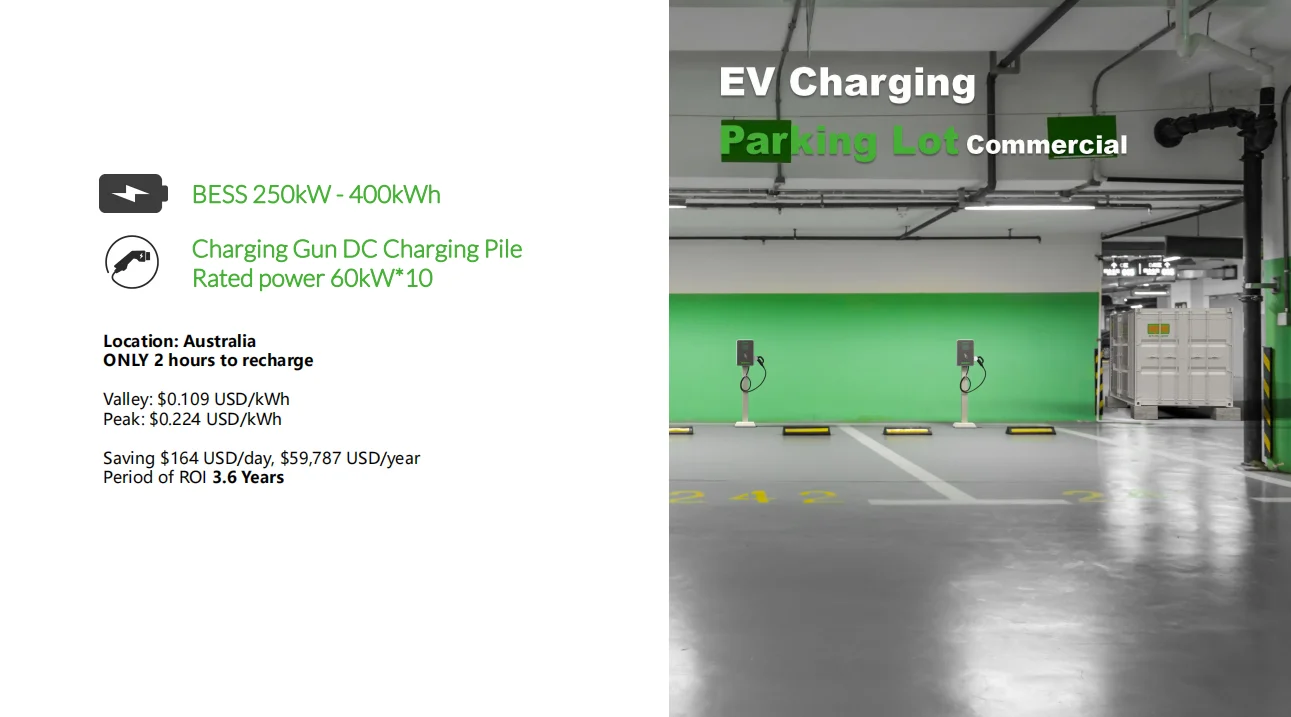

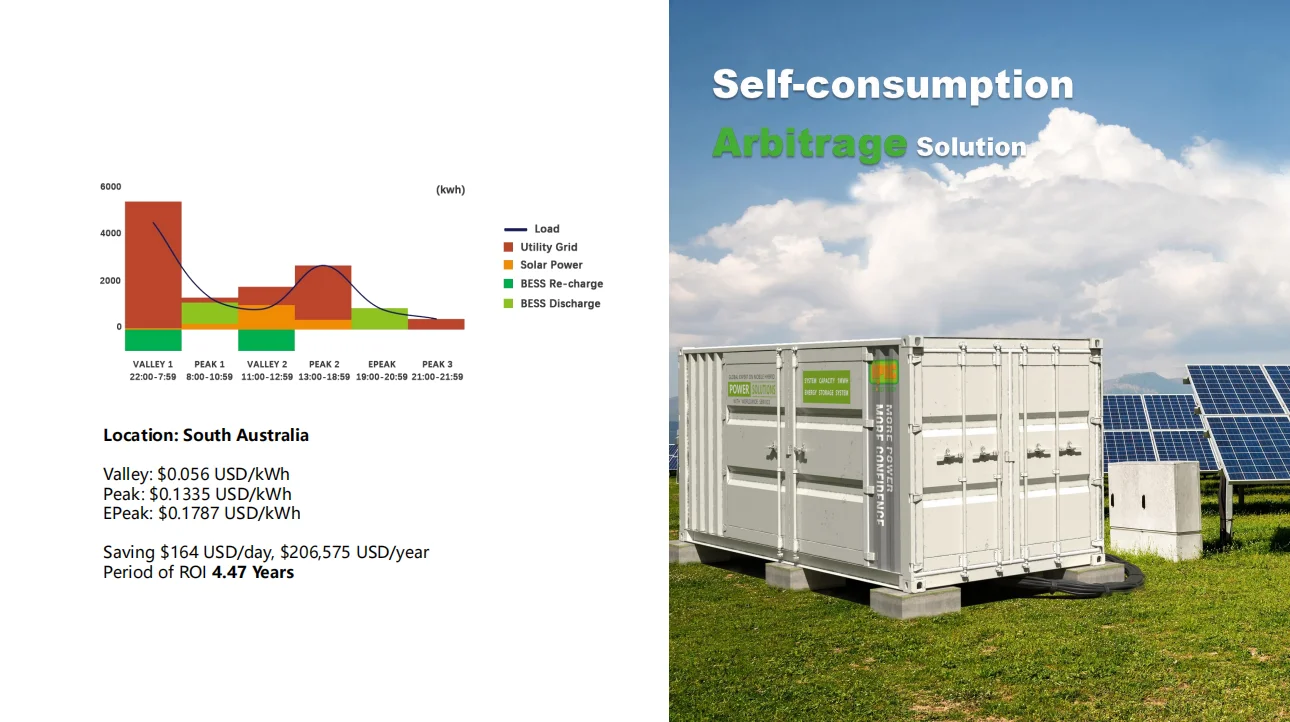

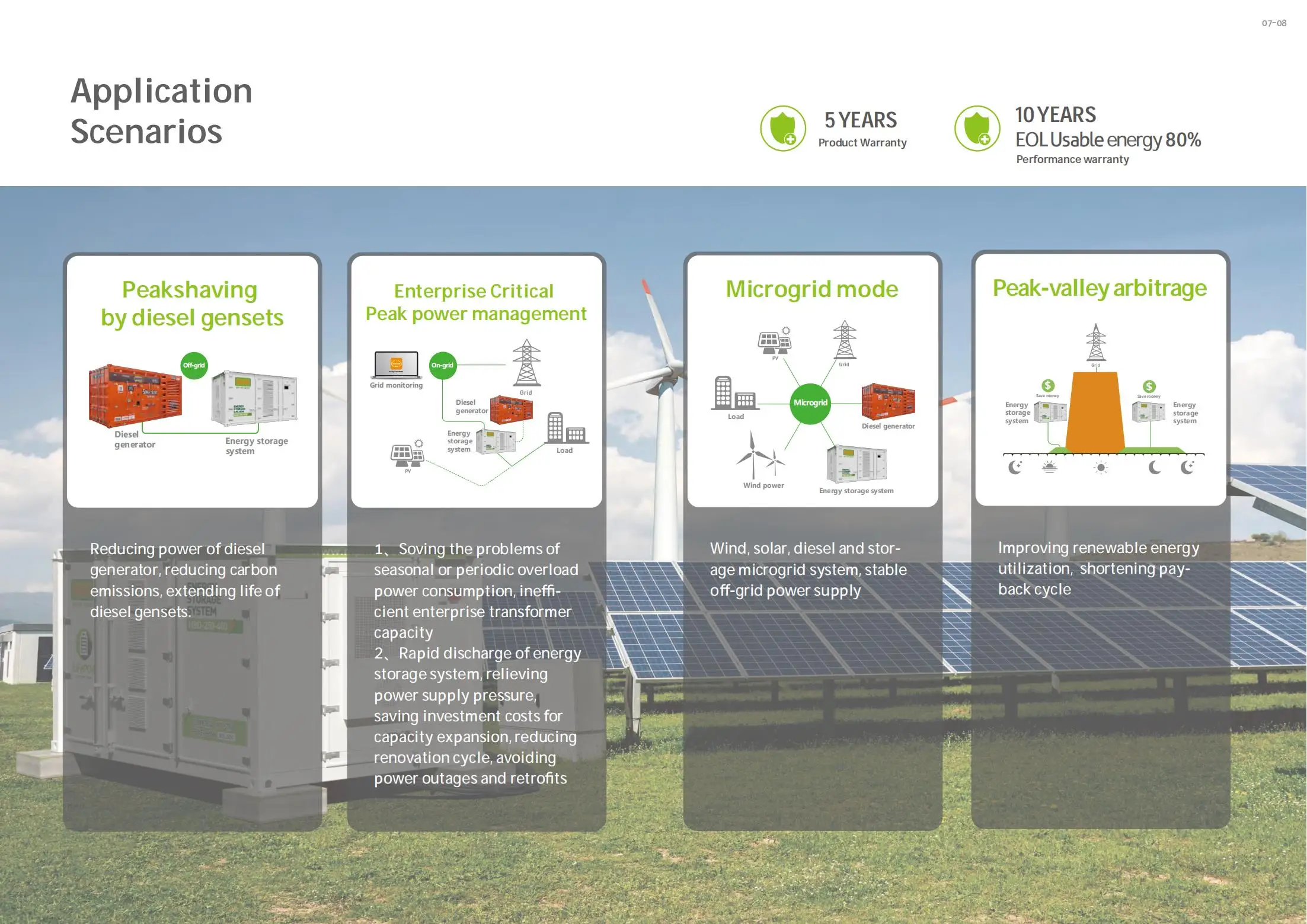

Application
Certifications
Exhibition
FAQ
Q1: Are you a factory or a trader?
A: MPMC, one of the Largest World Class Manufacturer of Generator Set, Light Tower, Renewable Energy Storage Solution and Hybrid Power Station, with our head quarter location in Shanghai China, and sold to more than 120 countries.
Q2: What certificates do you have?
A: We have certificates for ,Grid-tied, Safety and EMC. Please contact us for more details
Q3: How about safety of this battery?
A: We integrates fire protection in this unit, what we apply is a fire extinguisher with aerosol in the whole system. Once the BMS senses the fire signal, it will report to EMS. EMS send command to fire suppression system and trigger it. The fire suppression system is CE certified.

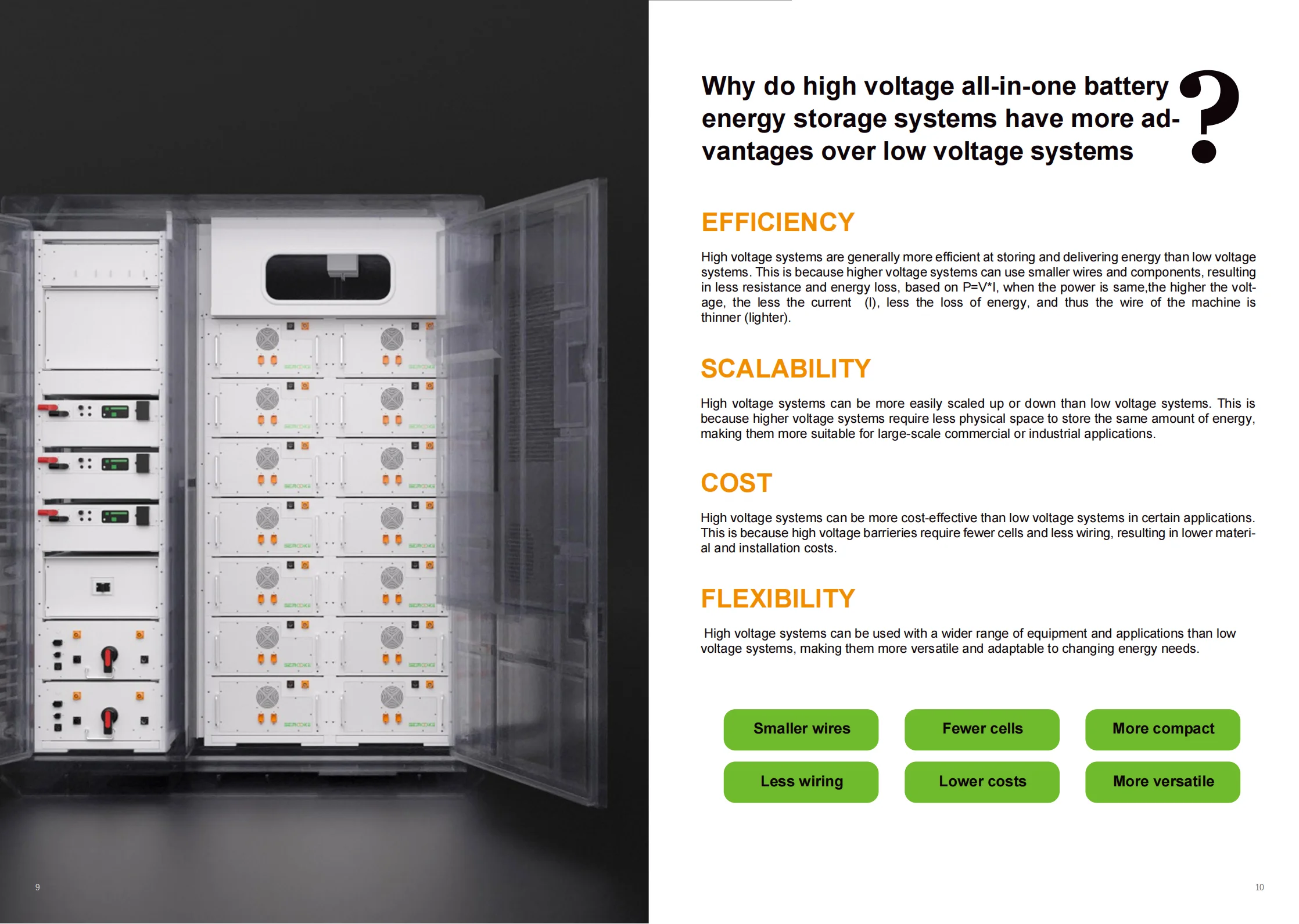

Q4: Why do I need a High Voltage commercial energy storage system?
A: MPMC, one of the Largest World Class Manufacturer of Generator Set, Light Tower, Renewable Energy Storage Solution and Hybrid Power Station, with our head quarter location in Shanghai China, and sold to more than 120 countries.
Q2: What certificates do you have?
A: We have certificates for ,Grid-tied, Safety and EMC. Please contact us for more details
Q3: How about safety of this battery?
A: We integrates fire protection in this unit, what we apply is a fire extinguisher with aerosol in the whole system. Once the BMS senses the fire signal, it will report to EMS. EMS send command to fire suppression system and trigger it. The fire suppression system is CE certified.
Q4: Why do I need a High Voltage commercial energy storage system?
