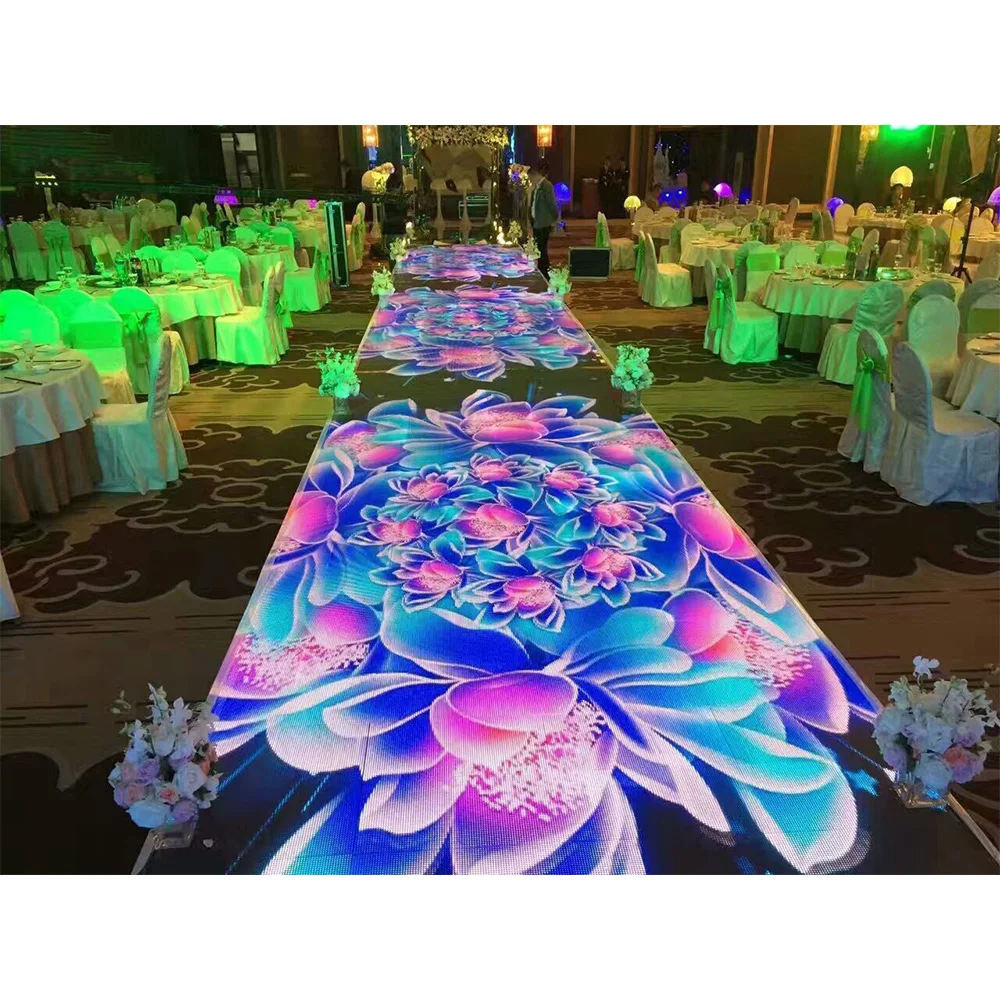

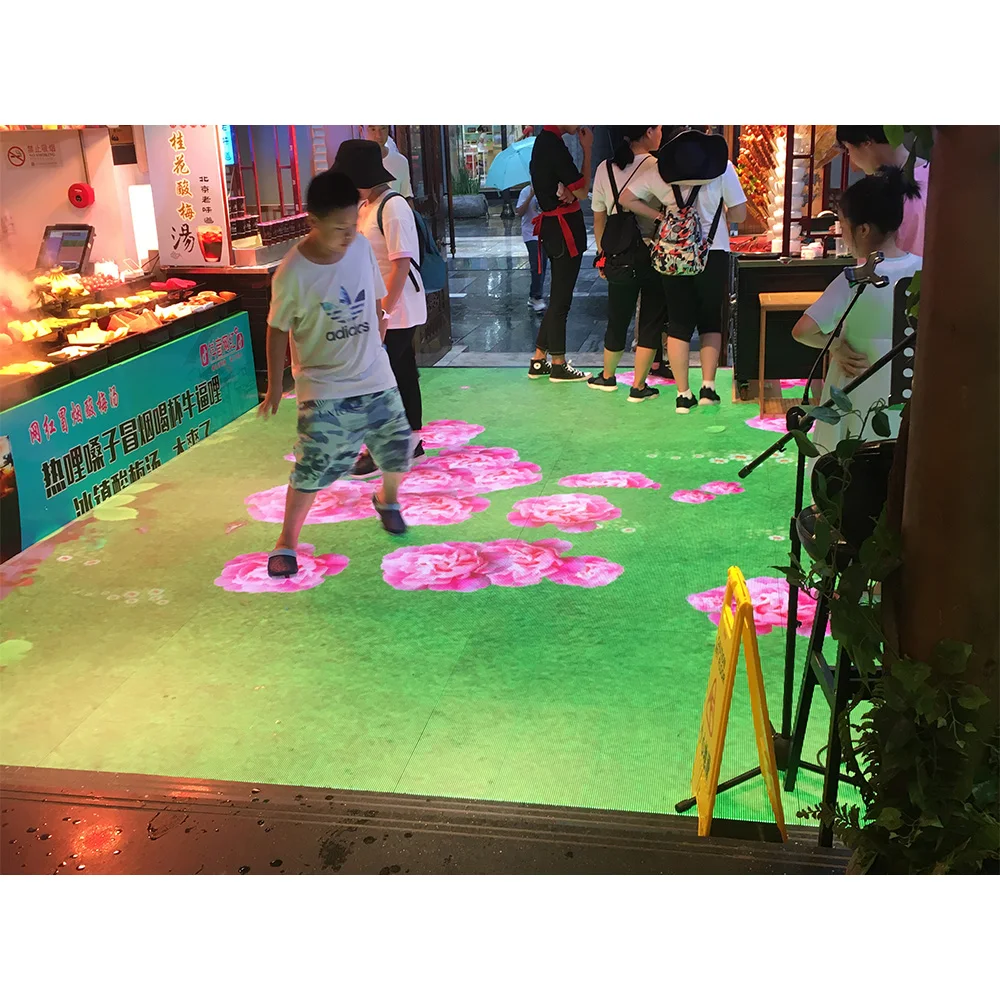

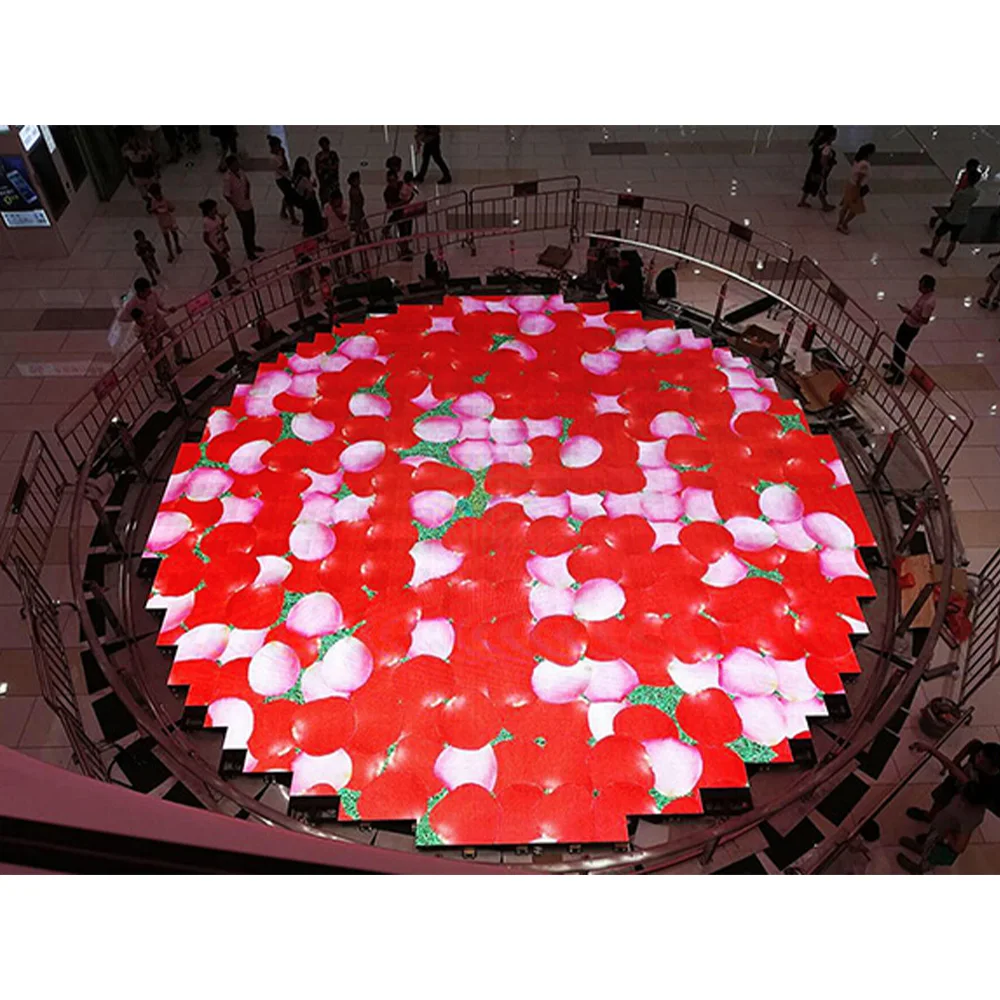

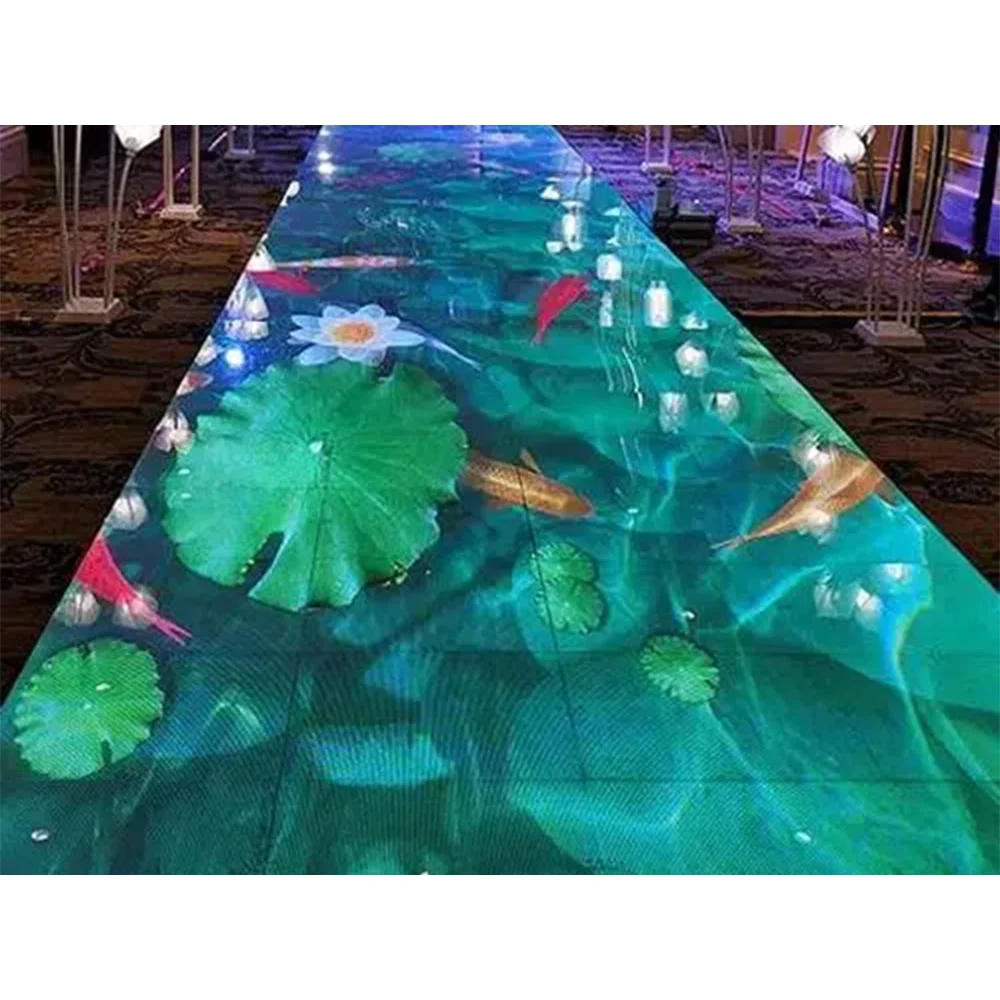

P3.9 3.9 3.9Mm Indoor Ip65 Commercial Interactive 3D Led Dance Floor Tiles Display Screen Panels In 50X50Cm For Dj Restaurant
- Category: >>>
- Supplier: Canbest Opto-Electrical Science & Technology Co. Ltd.
Share on (1601015199875):
Product Overview
Description
Warranty
Product Description
Technical Parameter
Model | LDF191-A | LDF251-A | LDF261-A | LDF291-A | LDF391-A | ||||
Pixel pitch | 1.95mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm | ||||
LED Density | 262984pixels/m² | 160000pixels/m² | 147456pixels/m² | 112910pixels/m² | 65536pixels/m² | ||||
LED Arrangement | GOB | SMD3in1 | SMD3in1 | SMD3in1 | SMD3in1 | ||||
Module dimensions | 250*250*16mm | 250*250*16mm | 250*250*16mm | 250*250*16mm | 250*250*16mm | ||||
Module resolution | 128*128 | 100*100 | 96*96 | 84*84 | 64*64 | ||||
Cabinet resolution | 256*256 | 200*400 | 192*192 | 168*168 | 128*128 | ||||
Cabinet dimensions | 500*500*78 | 500*500*78 | 500*500*78 | 500*500*78 | 500*500*78 | ||||
Cabinet material | Die Casting aluminum | Die Casting aluminum | Die Casting aluminum | Die Casting aluminum | Die Casting aluminum | ||||
Cabinet weight | 40kg/㎡ | 40kg/㎡ | 40kg/㎡ | 40kg/㎡ | 40kg/㎡ | ||||
Brightness | 800 | 1500 | 1500 | 1500 | 1500 | ||||
Max power consumption | 800W/m2 | 800W/m2 | 800W/m2 | 800W/m2 | 800W/m2 | ||||
Ave.power consumption | 400W/m2 | 400W/m2 | 400W/m2 | 400W/m2 | 400W/m2 | ||||
Viewing angle | 120°/120° | 120°/120° | 120°/120° | 120°/120° | 120°/120° | ||||
Driving mode | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | ||||
Refresh rate | 3840 | 3840 | 3840 | 3840 | 3840 | ||||
Max loading bearing | 3 tons /㎡ | 3 tons /㎡ | 3 tons /㎡ | 3 tons /㎡ | 3 tons /㎡ | ||||
Work temperature | -20 — 55℃ | -20 — 55℃ | -20 — 55℃ | -20 — 55℃ | -20 — 55℃ | ||||
Storage temperature | -30 — 60℃ | -30 — 60℃ | -30 — 60℃ | -30 — 60℃ | -30 — 60℃ | ||||
Protection level | Indoor ( Front：IP54,Back:IP43) | ||||||||
