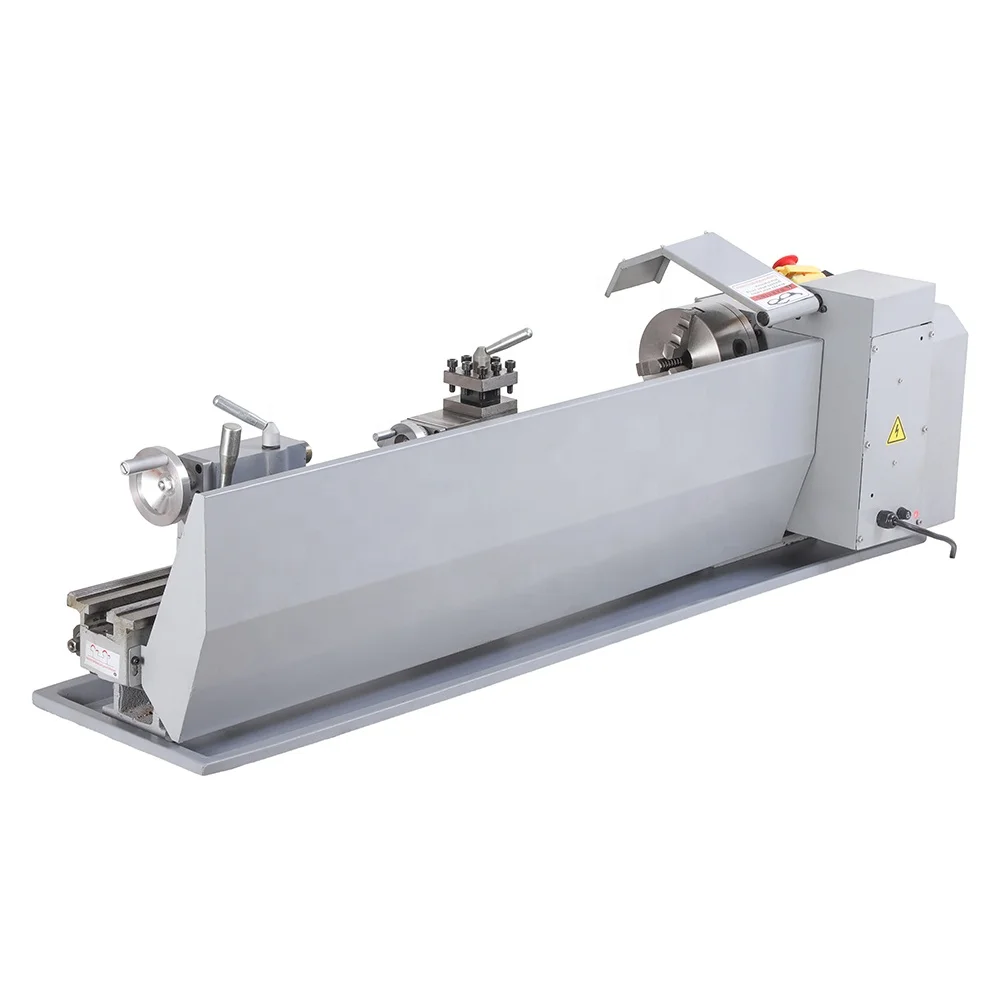

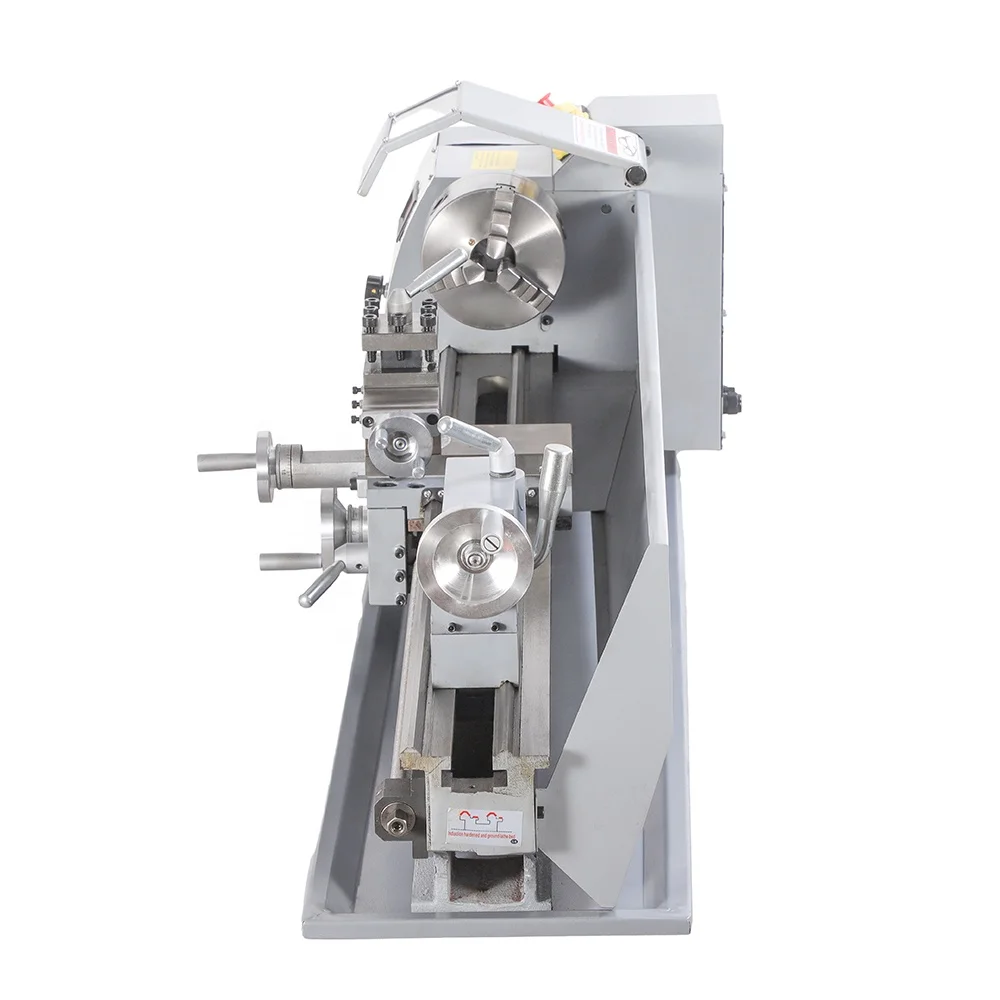

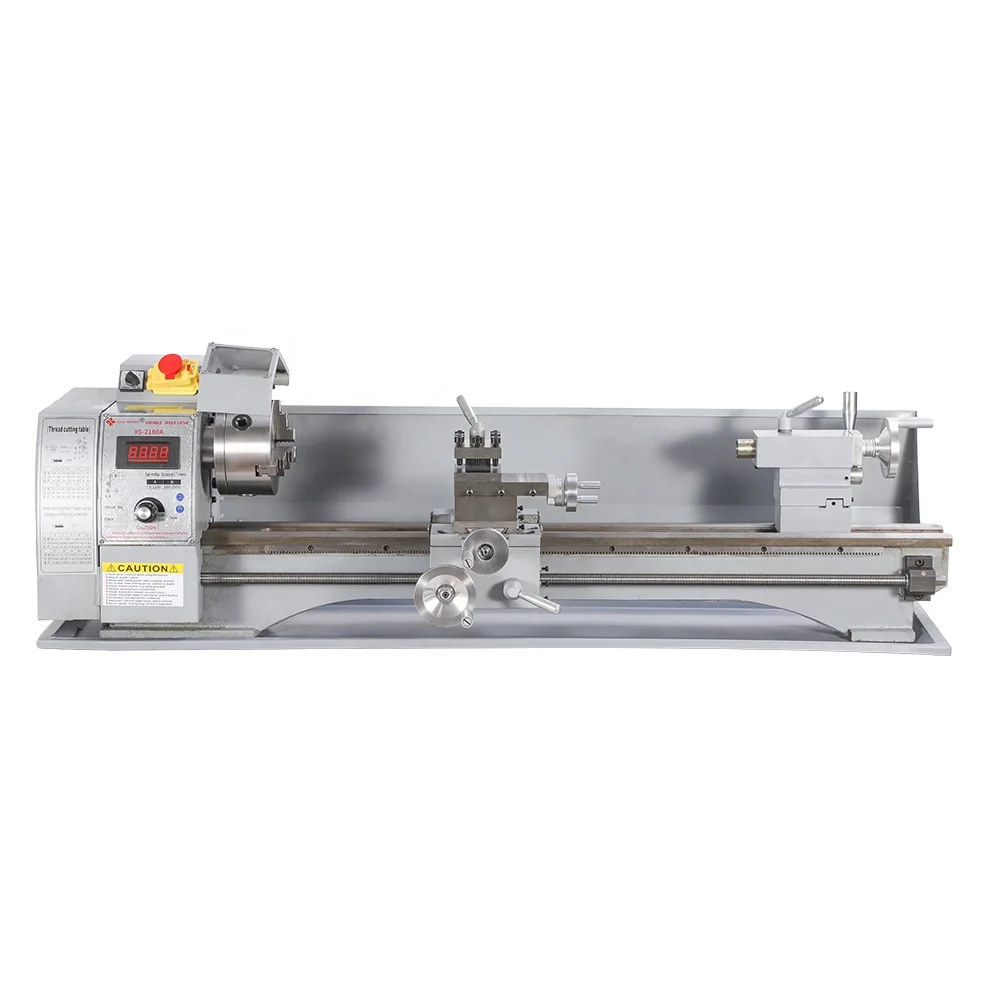

Humanized Design 4 Way Tool Post Metal Work 220v Mini Metal Manual Lathe 800mm Machine
- Category: >>>
- Supplier: Jiangsu Yishou Machinery Technology Co. Ltd.
Share on (1601015239529):
Product Overview
Description
Products Description
This precision mini lathe is designed to perform various types of metal turning.
With 10 types inch threads 10-44 T.P.I. and 8 types metric threads 0.5-2.5mm ,
This mini lathe is ideal for use in labs, workshops,engineering and educational settings.
By adjusting the speed switch can control the spindle speed 0 to 2500RPM.
Automatic feeding,infinitely variable,professional tool post.
750w power,720mm processing distance,DIY processing of metal,wood..
With 10 types inch threads 10-44 T.P.I. and 8 types metric threads 0.5-2.5mm ,
This mini lathe is ideal for use in labs, workshops,engineering and educational settings.
By adjusting the speed switch can control the spindle speed 0 to 2500RPM.
Automatic feeding,infinitely variable,professional tool post.
750w power,720mm processing distance,DIY processing of metal,wood..
Type number | YS-2180 | |
Capacities | ||
Swing over Bed | 210mm | |
Swing over Cross Side | 110mm | |
Height of spindle center | 105mm | |
Distance Between Centers | 720mm | |
Width of Bed | 100mm | |
Headstock | ||
Spindler Bore | 38mm | |
Spindle Taper | MT5 | |
Chuck Diameter | 125mm | |
Number of Spindle Speeds | 2-Variable | |
Range of Spindle Speeds | 0-1250, 100-2500 RPM | |
Feeding and Threading | ||
Number of Metric Threads | 8 | |
Range of Metric Threads | 0.5-2.5mm | |
Number of lmperial Threads | 10 | |
Range of Imperial Threads | 10-44T.P.I | |
Range of Longitudinal Feed | 0.1-0.20mm/r | |
Lead screw | Φ16-1.5mm | |
Compound and Carriage | ||
Tool Post Type | 4way | |
Maximum Compound Slide Travel | 80mm | |
Maximum Cross Slide Travel | 80mm | |
Maximum Carriage Travel | 740mm | |
tail stock | ||
Tail Stock Spindle Travel | 50mm | |
Taper in Tail stock Spindle | MT2 | |
Miscellaneous | ||
Main Motor | 110V~60Hz/220-240V~50Hz/ brushed 750W, | |

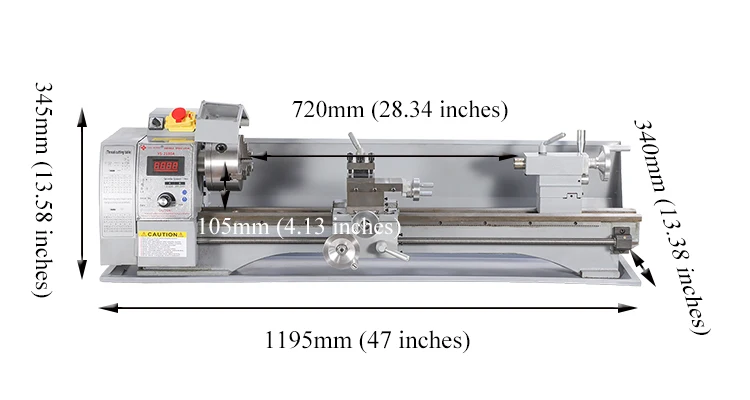

Length, Width and Height | 1195x340x345(mm) | |
Product Weight | N.W:70.8Kg;GW:85.6Kg | |
Package Size | 1300*490*510mm | |

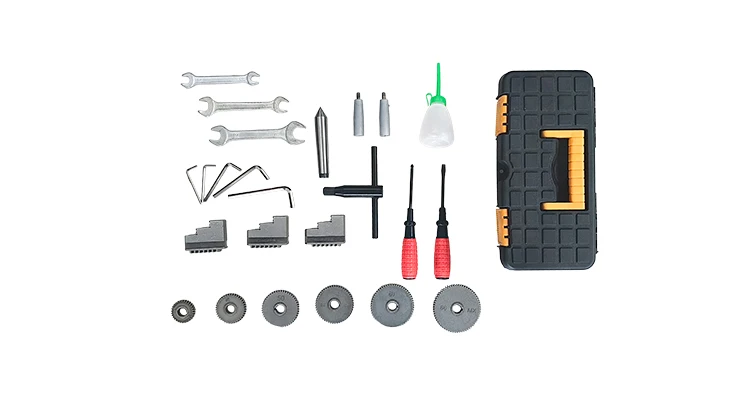

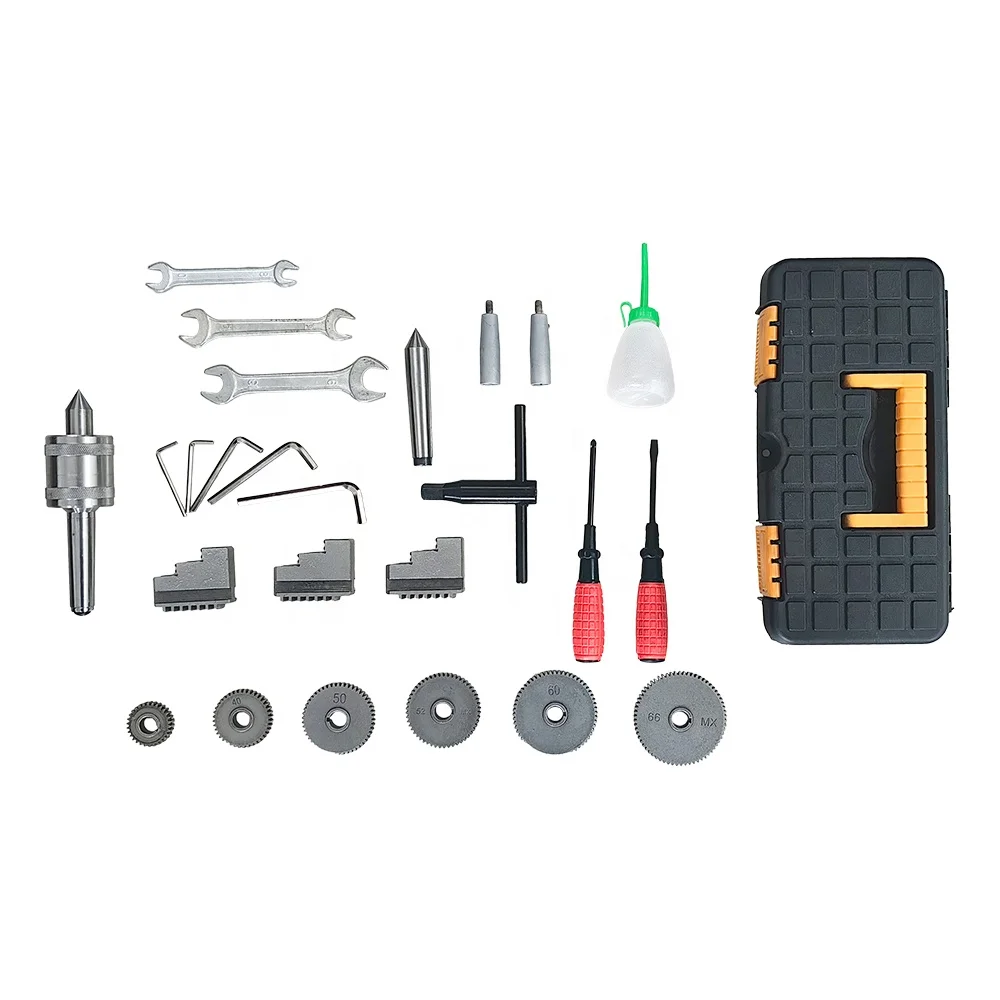

Standard accessories
5 Hex Wrenches Sets 2.5/3/4/5/6 | 3 Double End Head Wrenches (8/10,12/14,13/16) | ||||
1 Dead Center MT2 | 3 Hand Wheel Lever | 1 Oil Bottle | |||
1 Chuck key for the 3-jaw chuck | 3 Outside Jaws for the 3-jaw Chuck | ||||
6 Change Gear (30T,40T,50T,52T,60T,66T ) | 1 Dead Center MT2 | 2 Hand Wheel Lever | |||
1 Flat Head Screwdriver | 1 Philips Screwdriver | ||||

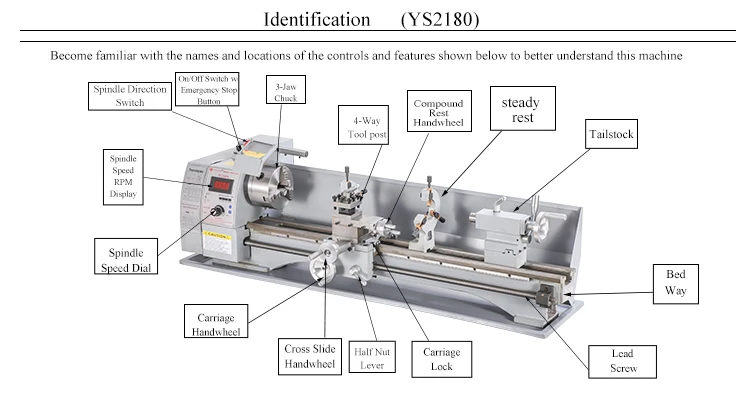

Product Details
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily.
Up to 4 tools can be installed for a quick, easy change, The compound angle is changed loosening the two socket screws under the topslide.
Digital tachometer

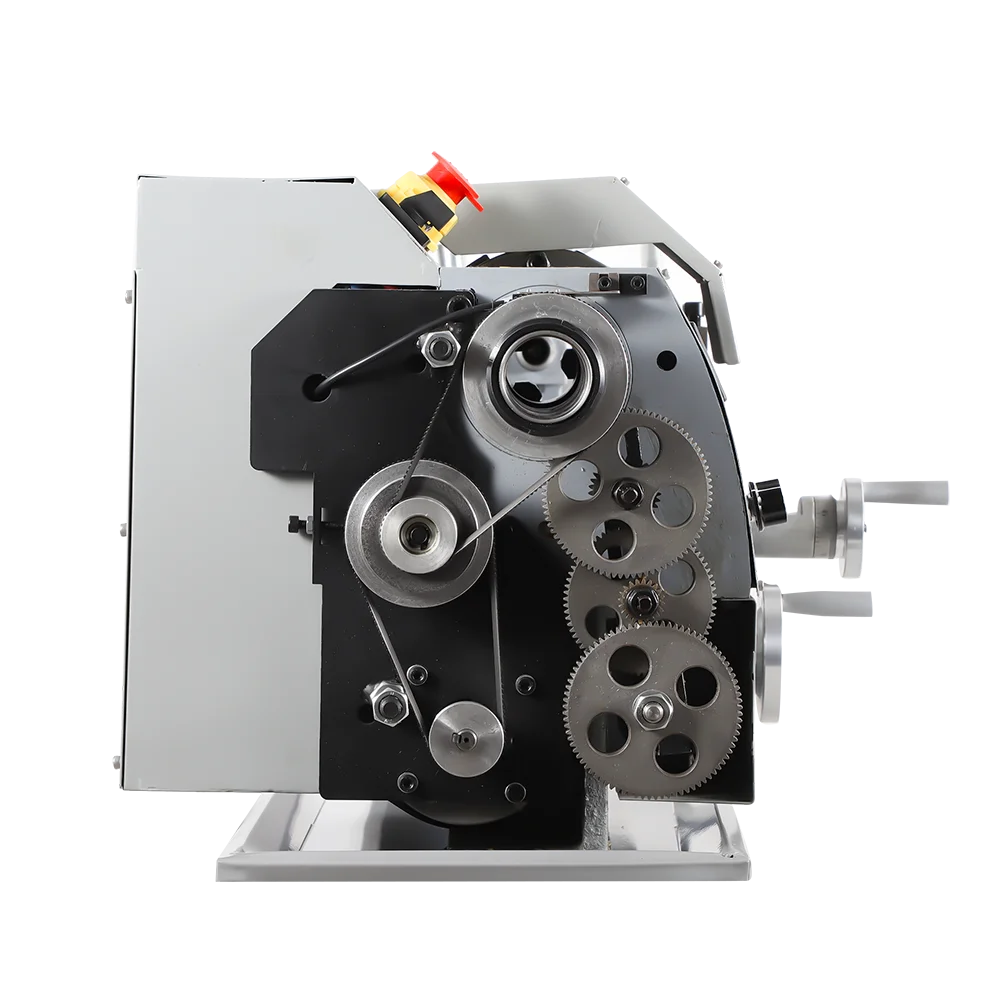

2-steps pulleys system + variable mortor speed. 0-1250, 100-2500 RPM
Smooth movement of compound rest, cross and carriage slide
2-steps pulleys system，can finish 10 types inch threads 10-44 T.P.I. and 8 types metric threads 0.5-2.5mm
The tailstock can be offset align with spindle centerline
Product Processing
Rough Milling
Rough Milling
Boring
Finish Milling
Grinding
Inspection
Drilling
Assembley
Inspection
Company Profile
Jiangsu Yishou Machinery Technology Co., Ltd. a professional factory that produces small household lathes, drilling and milling machines, drilling machines, hollow chisel mortiser machines, and manual arbor presses, Can produce more 10000 units of various types of machinery per month.

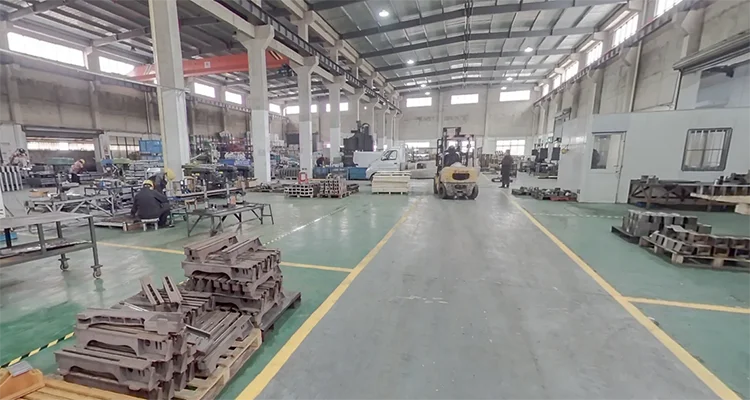

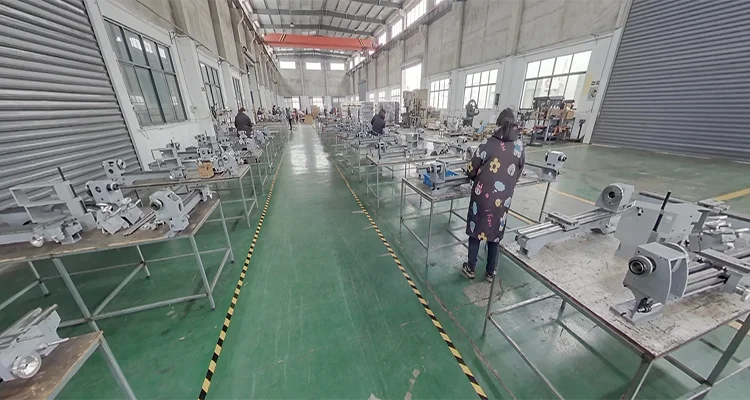

The factory workshop covers an area of 7000 square meters, We have dozens of professional processing equipment, including laser cutting machines, sheet metal bending machines, welding robots, CNC machining centers, CNC lathes, vertical milling machines, etc.
We have a comprehensive quality control system and CE and UKCA certificates,can ensure that our products meet national and customer standards. Our product development team releases new mechanical products every quarter and has applied for patent protection, These patented products have a clear competitive advantage over existing products on the market and have reasonable price, Our sales team have good English communication skills and are able to communicate production and product issues with foreign customers without barriers
After years of development, our products have not only been exported to the North American and European markets, but also achieved good sales performance in the domestic market
Our motto is to always pursue quality, product innovation, and serve customers. We hope that customers from all over the world can visit our factory and establish business relationships with us to create a better future together
We have a comprehensive quality control system and CE and UKCA certificates,can ensure that our products meet national and customer standards. Our product development team releases new mechanical products every quarter and has applied for patent protection, These patented products have a clear competitive advantage over existing products on the market and have reasonable price, Our sales team have good English communication skills and are able to communicate production and product issues with foreign customers without barriers
After years of development, our products have not only been exported to the North American and European markets, but also achieved good sales performance in the domestic market
Our motto is to always pursue quality, product innovation, and serve customers. We hope that customers from all over the world can visit our factory and establish business relationships with us to create a better future together
Certifications

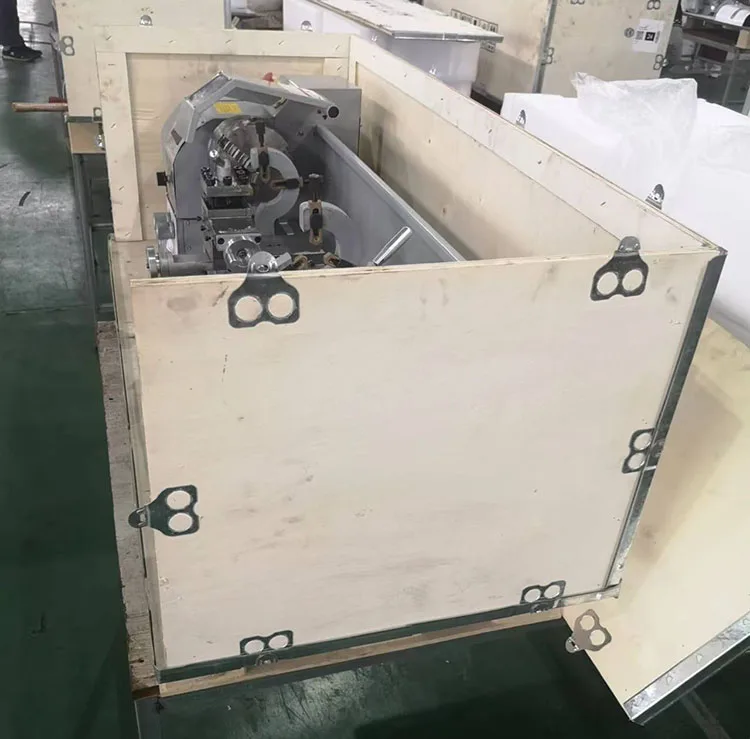

Packing & Shipping
FAQ
Q1. Are you a factory or trading company?
A1. We are a factory, factory direct sales, the price will be more favorable .
Q2. How can I choose the most suitable machines ?
Q2. How can I choose the most suitable machines ?
A2. Please tell me your specifications ,we can choose the best model for you
Q3. What's your main products of your company?
A3. small household lathes, drilling and milling machines, drilling machines, hollow chisel mortiser machines, and manual arbor presses
Q4. What is your minimum order quantity and warranty?
A4. MOQ is one set, and warranty is one year.
Q5. What kind of package do you offer?
A5. Normally in wood case to make sure all goods in good condition.
Q6. What are your normal lead times?
A6. Our company typical lead times range from 3-4weeks after receipt of order.
Q7. What are the terms of payments you offer?
A7. We accept payment of T/T and L/C.
A4. MOQ is one set, and warranty is one year.
Q5. What kind of package do you offer?
A5. Normally in wood case to make sure all goods in good condition.
Q6. What are your normal lead times?
A6. Our company typical lead times range from 3-4weeks after receipt of order.
Q7. What are the terms of payments you offer?
A7. We accept payment of T/T and L/C.
