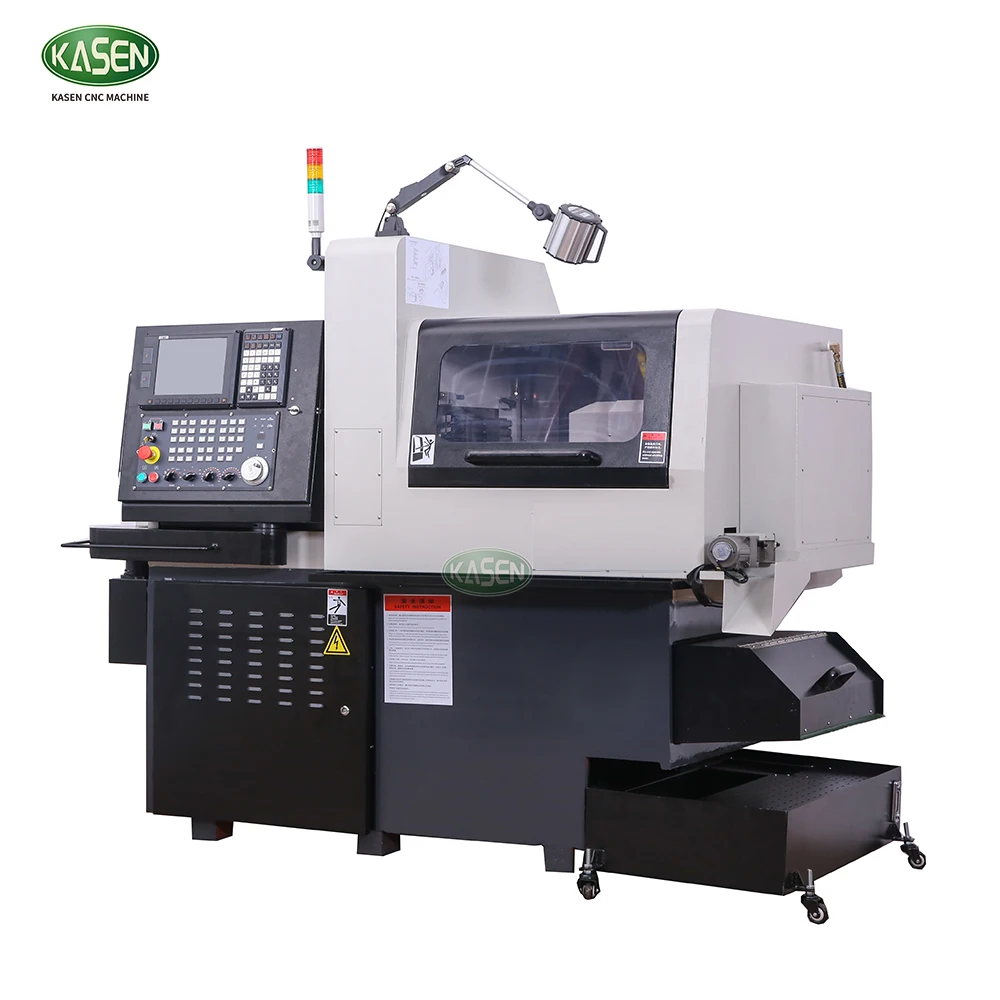

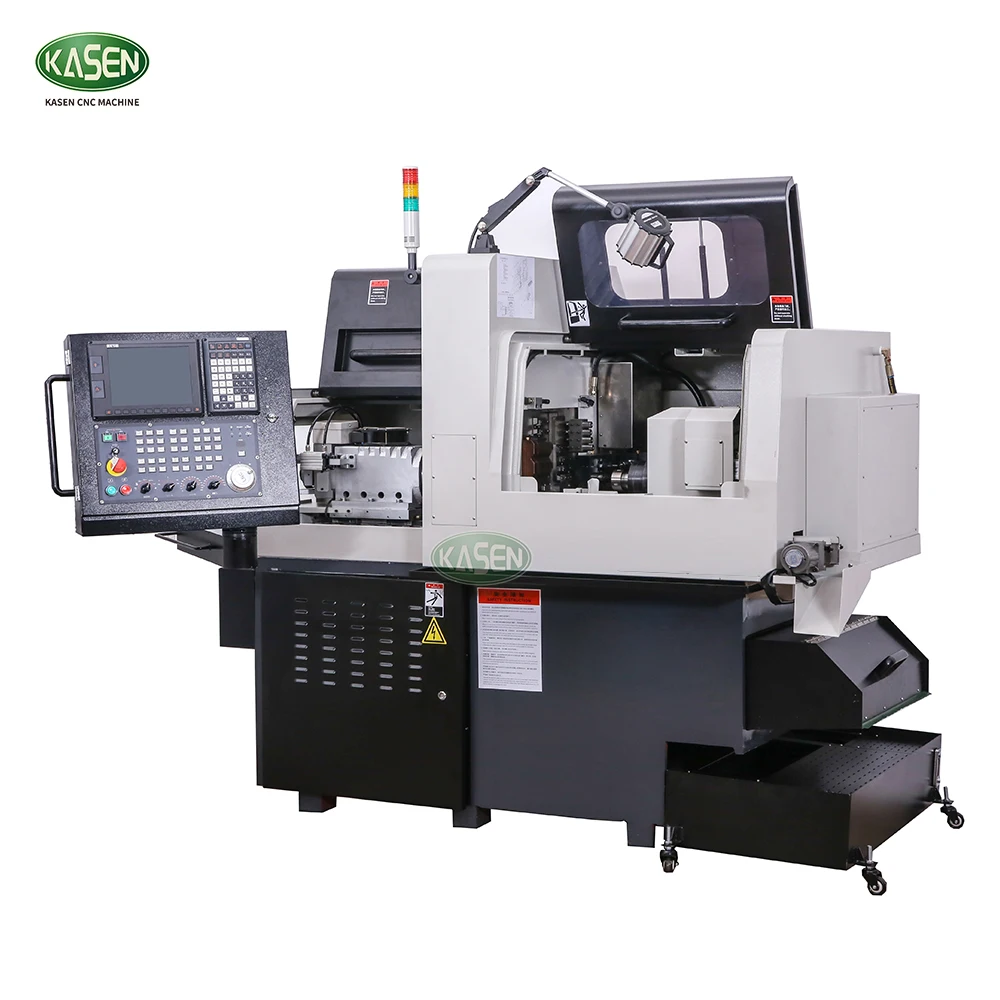

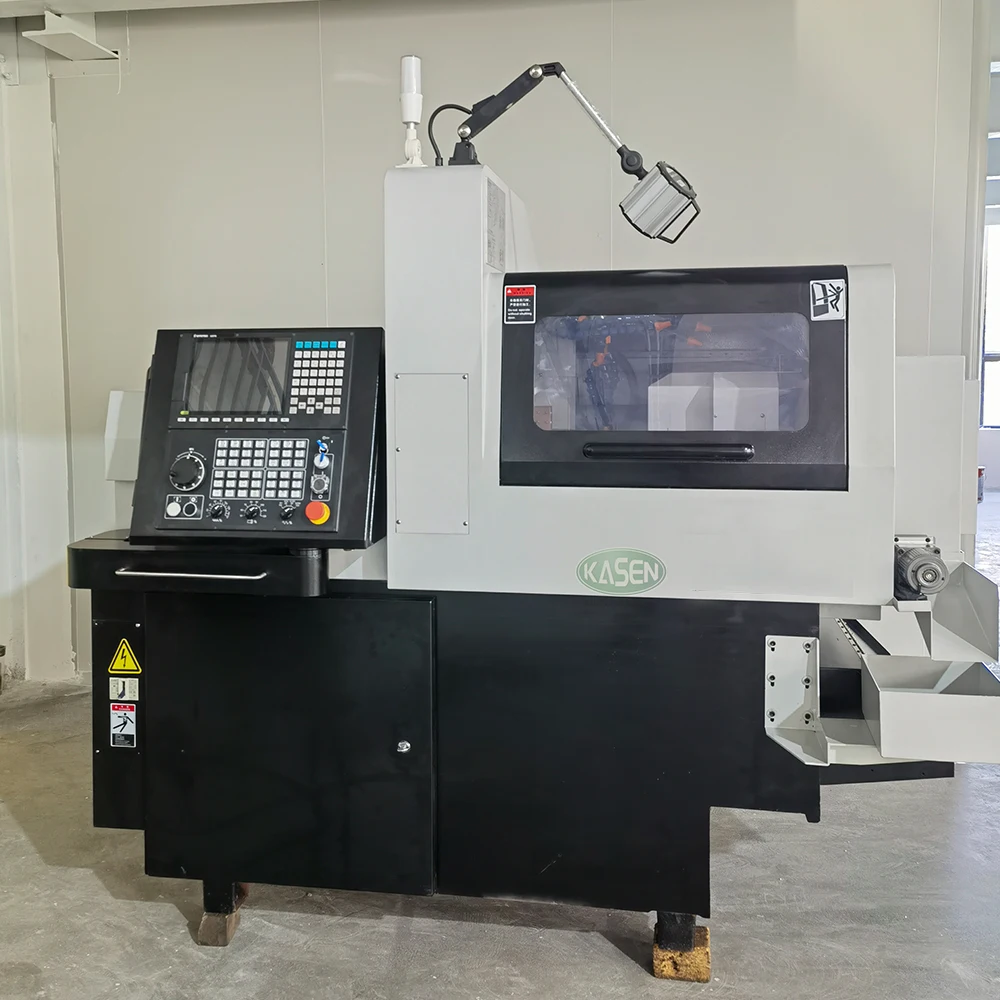

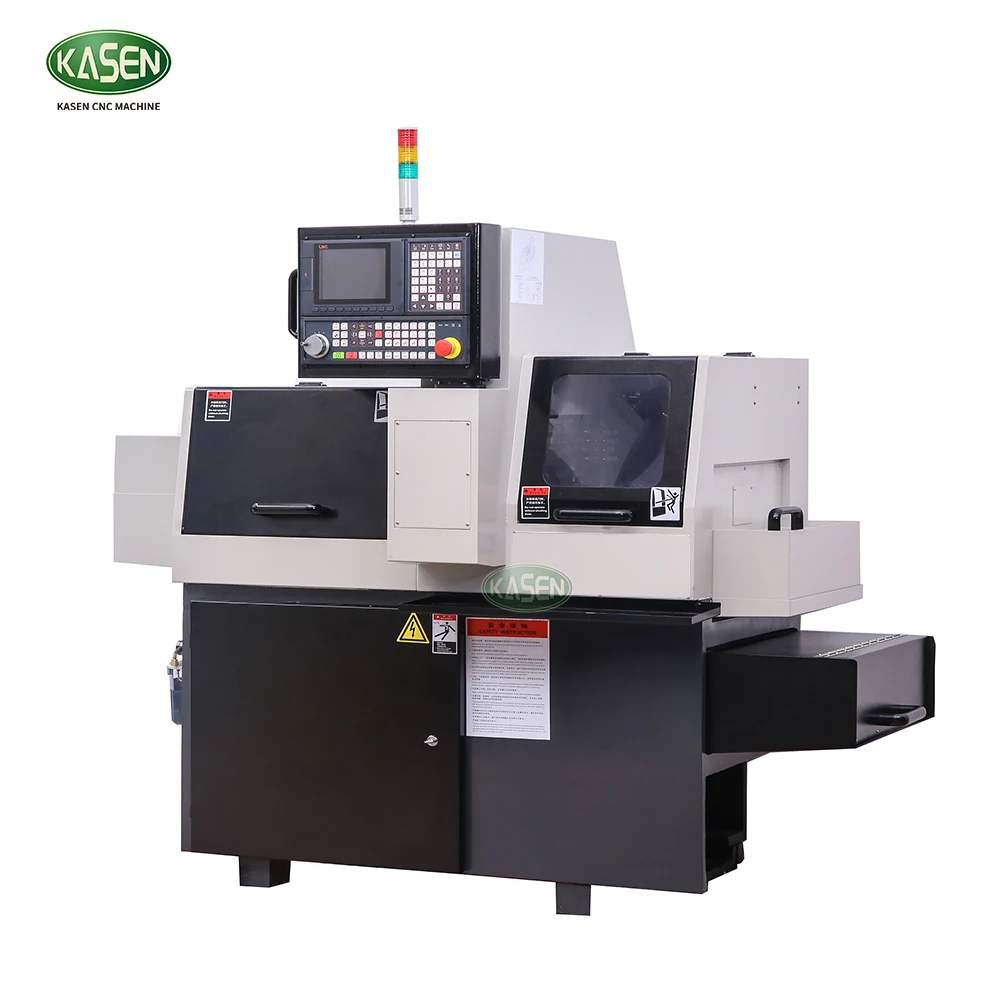

High precision Swiss type one Spindle Swiss Type G205 CNC Lathe CNC Automatic Lathe
- Category: >>>
- Supplier: Jinan Kasen Cnc Equipment Co. Ltd.
Share on (1601015246769):
Product Overview
Description
Application:
G205 Swiss type longitudinal cutting automatic lathe is a 5-axis control and 3-axis linkage integrated product of machinery, electricity, and gas. It adopts a user-friendly design and can complete precision and efficient processing of small and slender rotating parts such as shaft sleeves, outer circles, end faces, threading, cutting grooves, front/back drilling, front/back boring, front/back tapping, etc. When equipped with an automatic feeding machine, Continuous automatic cycle processing can be performed on cold drawn round bars and polished bars.
This machine tool is widely used in the processing of parts in industries such as clocks, instruments and meters, cameras, household appliances, medical equipment, locks, hardware, communication electronics, automobiles, aviation, military, hydraulic, handicrafts, etc.
G205 Swiss type longitudinal cutting automatic lathe is a 5-axis control and 3-axis linkage integrated product of machinery, electricity, and gas. It adopts a user-friendly design and can complete precision and efficient processing of small and slender rotating parts such as shaft sleeves, outer circles, end faces, threading, cutting grooves, front/back drilling, front/back boring, front/back tapping, etc. When equipped with an automatic feeding machine, Continuous automatic cycle processing can be performed on cold drawn round bars and polished bars.
This machine tool is widely used in the processing of parts in industries such as clocks, instruments and meters, cameras, household appliances, medical equipment, locks, hardware, communication electronics, automobiles, aviation, military, hydraulic, handicrafts, etc.
Main technical parameters：
Specifications | G206E | |||||
Main axis (MAIN) configuration | Inner diameter 22 | |||||
Max Processing material diameter | 21mm | |||||
Feeding length at one time | 140mm | |||||
Spindle setting working speed | 8000 Rpm | |||||

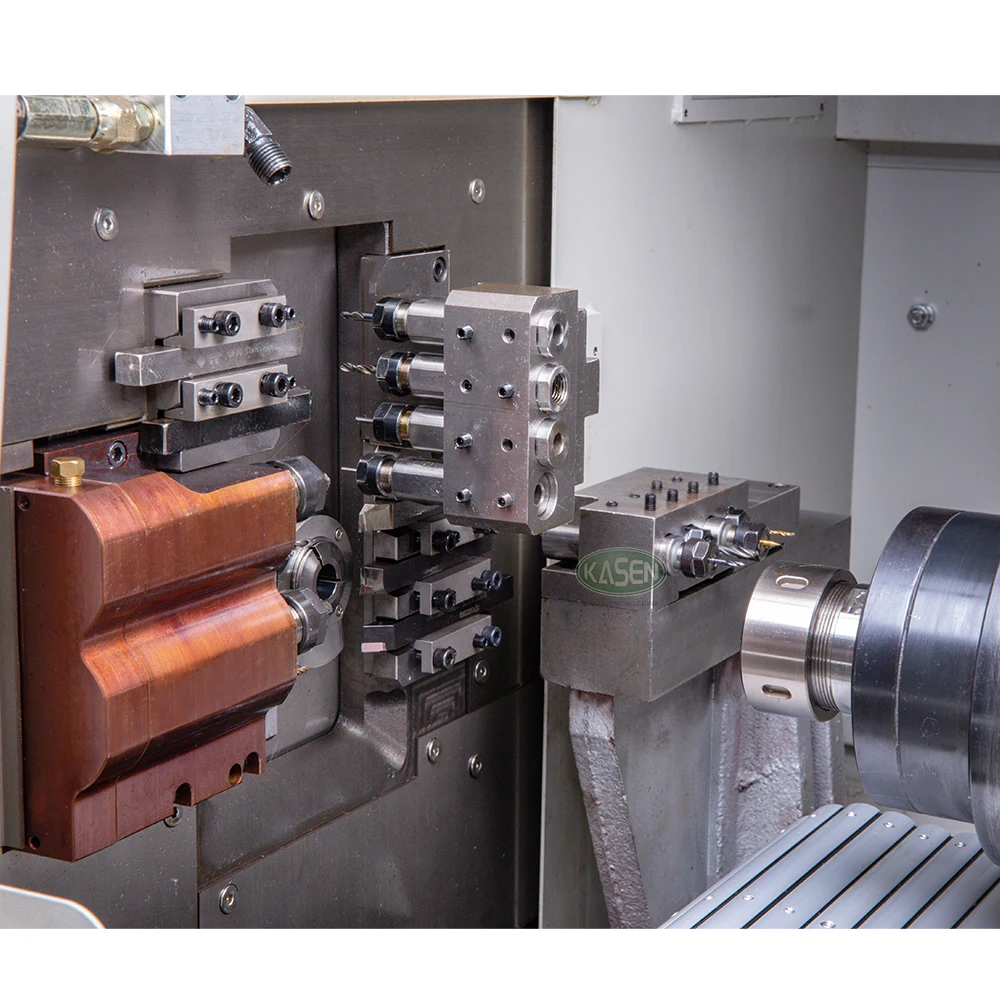

Turning tool | Number of tools | 5pcs | ||||
Tool Specifications | □12x12mm | |||||
End processing | Number of tools | Front Fixing Tool | 4pcs | |||
drilling capacity | Fixed Tool | Φ7mm | ||||
Maximum cutting and tapping capacity | Fixed Tool | M6 | ||||
Lateral Rotation Tool | Number of tools | 4pcs | ||||
Tool Specifications | ER16*2+ER11*2 | |||||
Drilling Capacity | φ8mm | |||||
Tapping Capacity | M6 | |||||
Milling Capacity | φ10mm | |||||
Max. saw blade milling cutter diameter | 30 mm | |||||
Max. speed | 5000min-1 | |||||
power | 0.75Kw | |||||
Rapid speed | Z1 | 24m/min | ||||
X1 | 30m/min | |||||
Y1 | 30m/min | |||||
Spindle maximum working revolutions | 8000min-1 | |||||
Spindle positioning accuracy | C-axis control (0.001º) | |||||
Spindle power | 3.7/2.2kw | |||||
Spindle through hole diameter | φ22mm | |||||
Coolant capacity | 100L | |||||
Cooling motor power | 0.85kw | |||||
Dimensions (L*W*H) | 2100＊1100＊1780mm | |||||
Machine weight | 2800kg | |||||
Sub-spindle (SUB) configuration | ||||||
Max. machining diameter | φ20mm | |||||
Max. discharge part length | 80mm (the rear discharge length is not limited) | |||||
Max. clamping protrusion length | 50mm | |||||
Fixed processing tool holder and driven tool holder | ER11/ER16 | 5 pieces (2 power knives and 3 fixed knives can be selected) or 4 power knives | ||||
Rapid speed | Z2 | 24m/min | ||||
X2 | 30m/min | |||||
Max. number of revolutions of the second spindle | 8,000min-1 | |||||
Positioning accuracy of the second spindle | C-axis control (0.001º) | |||||
Second spindle power | 2.2/1.1kw | |||||
Product Description

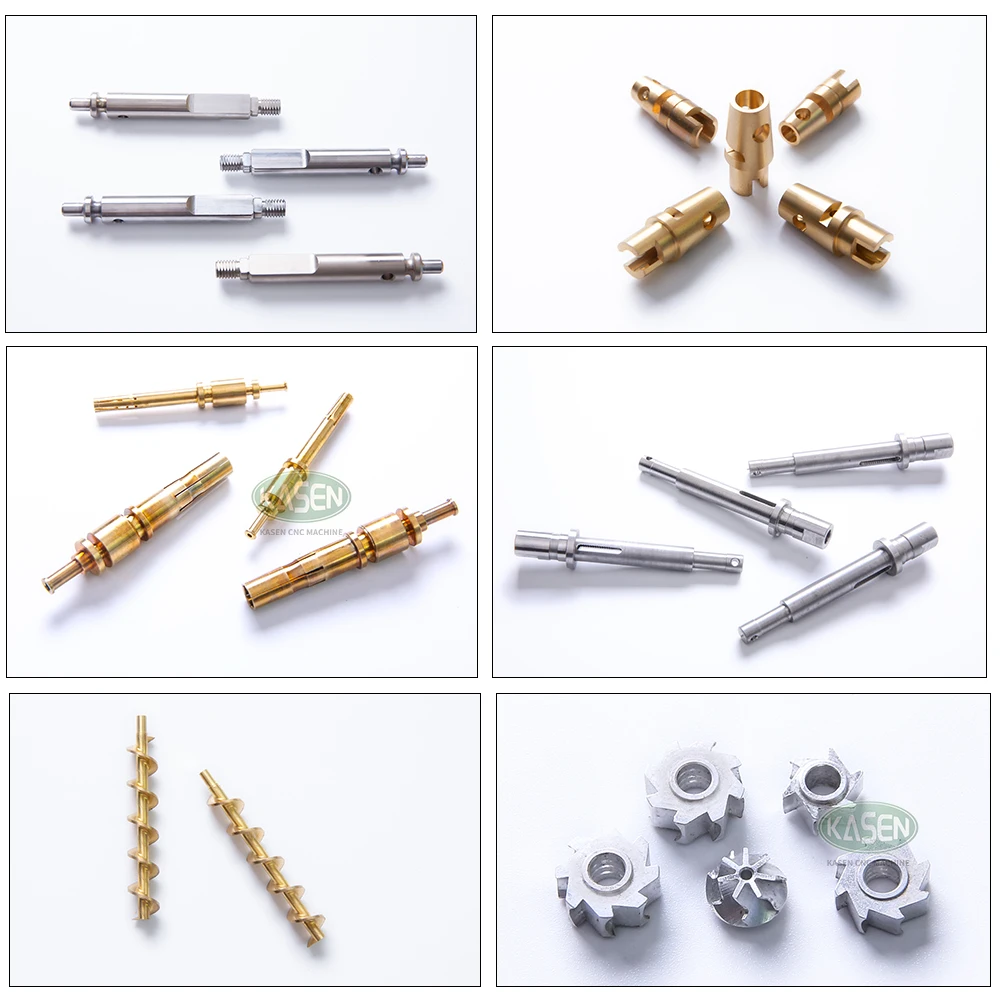

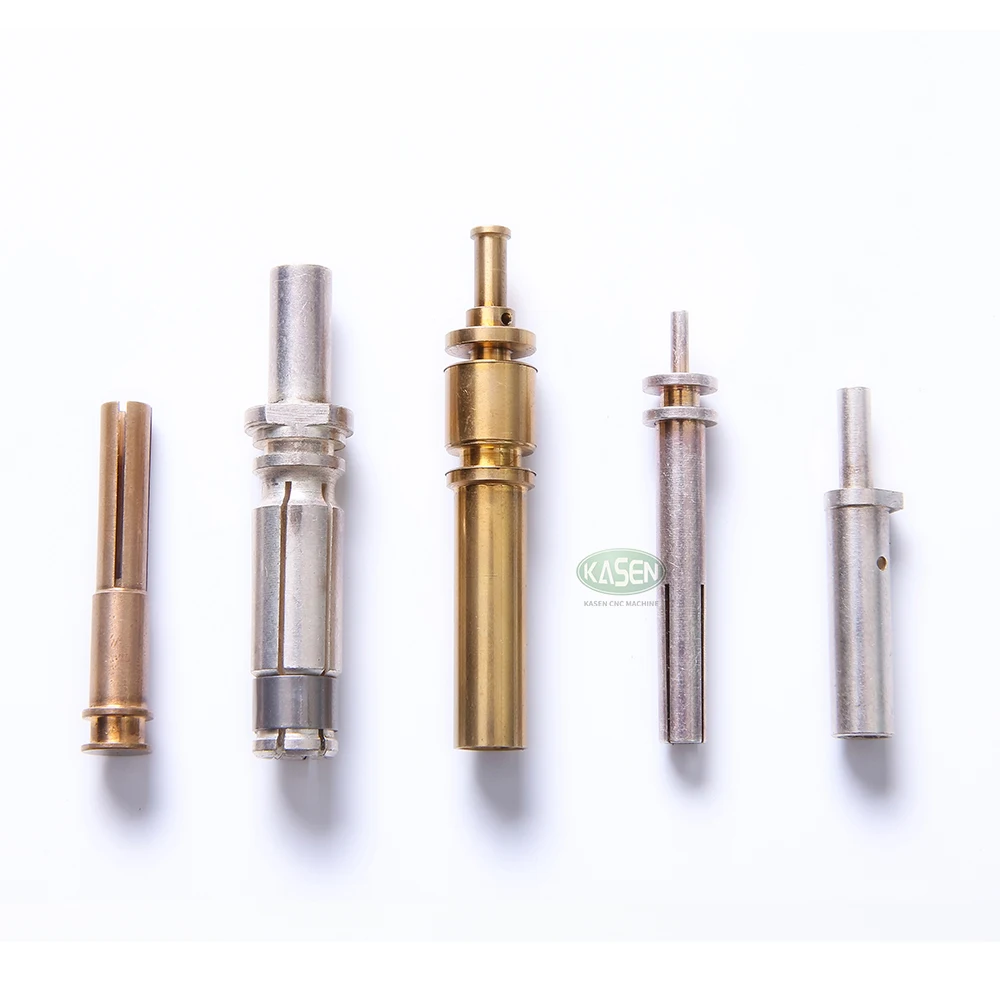

Finished product display
Company Profile
Certifications

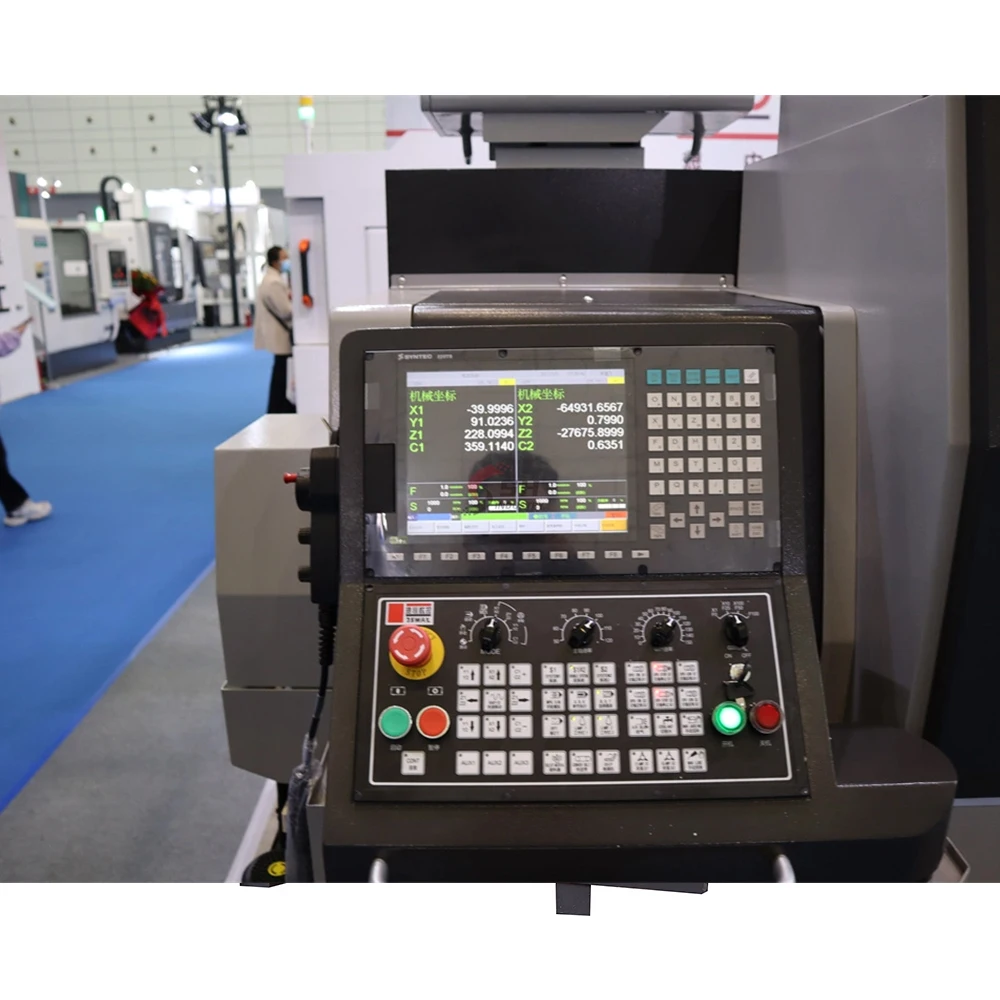

Exhibition
Customer visiting
Packing & Delivery
FAQ
1: Where is your company
A: Our company is located in JInan City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.se
A: Our company is located in JInan City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.se
