Hot sale grade h5 h6 h7 tungsten carbide solder composite rod tungsten carbide punch rod with bushing for drill bits
Hot sale grade h5 h6 h7 tungsten carbide solder composite rod tungsten carbide punch rod with bushing for drill bits
Hot sale grade h5 h6 h7 tungsten carbide solder composite rod tungsten carbide punch rod with bushing for drill bits
Hot sale grade h5 h6 h7 tungsten carbide solder composite rod tungsten carbide punch rod with bushing for drill bits
Hot sale grade h5 h6 h7 tungsten carbide solder composite rod tungsten carbide punch rod with bushing for drill bits
Hot sale grade h5 h6 h7 tungsten carbide solder composite rod tungsten carbide punch rod with bushing for drill bits
Hot sale grade h5 h6 h7 tungsten carbide solder composite rod tungsten carbide punch rod with bushing for drill bits

Hot sale grade h5 h6 h7 tungsten carbide solder composite rod tungsten carbide punch rod with bushing for drill bits

Share on (1601015301568):


Price:$40.00 - $60.00

Quantity:


Product Overview

Description





Products Description

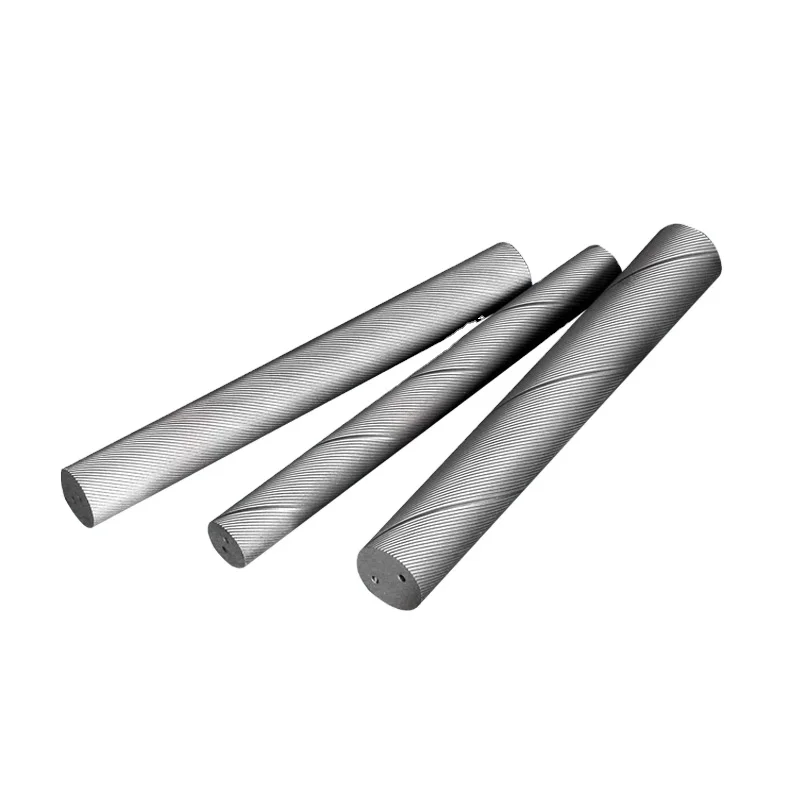

K30 K40 helical carbide rods carbide core rod for end mill making with high 100% raw materials
The Shengdike Cemented Carbide made tungsten carbide rod which is hard and tough, is the raw material of producing the alloy cutting tools such as end milling cutter, drill and reamer. These cutting tools are widely used for metal processing.

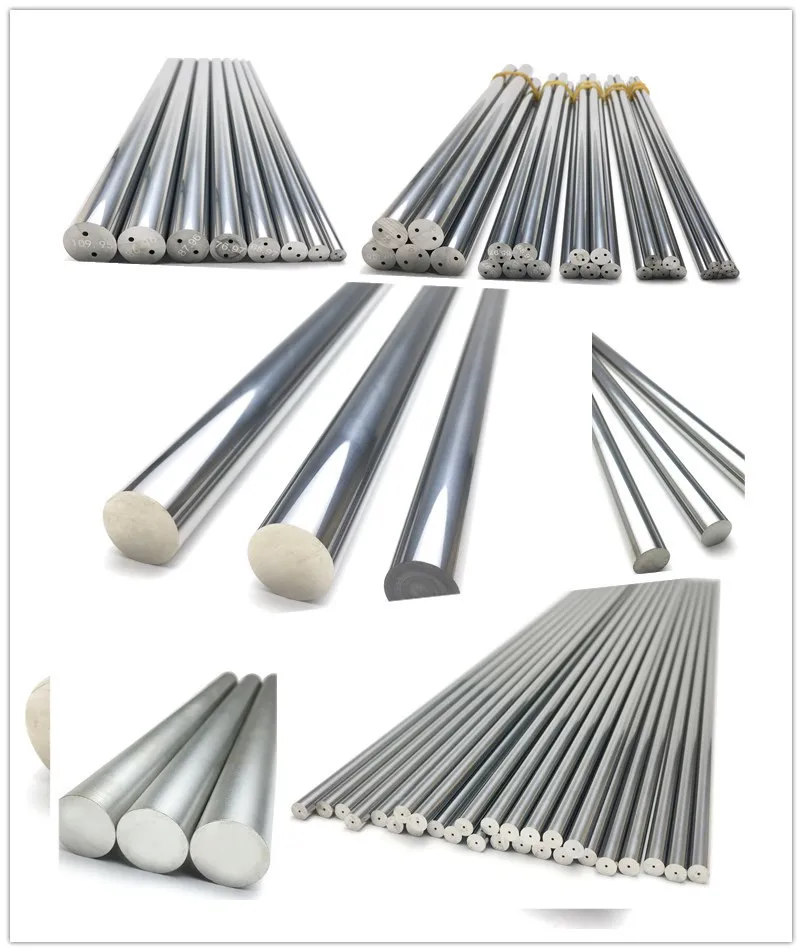

Shengdike Carbide Rods Include:
1. Tungsten Carbide long Rod unground and grouned h5/h6

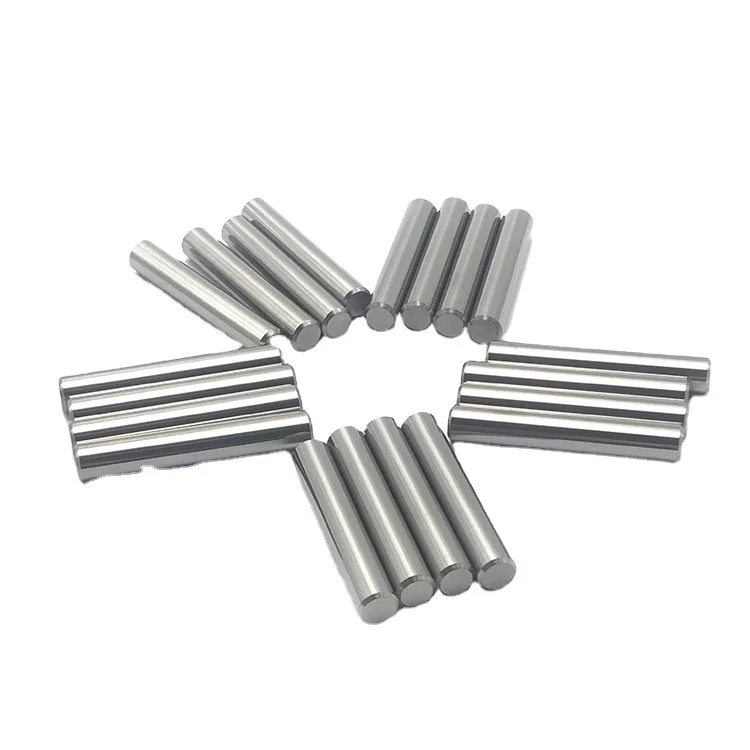

2. Tungsten Carbide short Rod in h4/h5/h6/h7
3. Tungsten Carbide rod in Inch size in h4/h5/h6/h7
4. Tungsten Carbide PCB rod




Specification of Carbide rods and bars
GRADE
YL06C
YL10.2
YL10A
YF06
XF20S
XF30S
XT30S
XU30
Drilling
*
*
*
*
*
Milling
*
*
*
*
*
*
*
Reaming
*
*
P
General carbon steel
^
#
^
^
#
M
Stainless steel

#
^
K
Cast Iron
^
#
^
^
#
S
Ti

#
^
HRSA

#
N
Al-Mg
^
#
^
^
^
#
H
Hard steel
Others
Plastic
#

#
CFRP
^(coated)
Wood
^

#
Ceramic
^(coated)


Cemented Carbide Rods for PCB Tools
Type
Diameter(mm)
Tolerance(mm)
Length(mm)
Tolerance(mm)
BΦ3.21×38.5
3.21
0/+0.02
38.5
-0.10/+0.2
BΦ3.22×40
3.22
0/+0.04
40
0/+0.5
BΦ3.22×45
3.22
0/+0.04
45
0/+0.5
BΦ3.25×50
3.25
0/+0.05
50
0/+0.5
BΦ3.25×38.7
3.25
0/+0.05
38.7
-0.20/+0.3
BΦ3.5×38.5
3.5
+0.05/0.25
38.5
±0.20
BΦ4.0×38.5
4.0
+0.05/0.25
38.5
±0.20
BΦ4.5×38.5
4.5
+0.05/0.25
38.5
±0.20
BΦ5.0×38.5
5.0
+0.05/0.25
38.5
±0.20
BΦ5.5×38.5
5.5
+0.05/0.25
38.5
±0.20
BΦ6.0×38.5
6.0
+0.05/0.25
38.5
±0.20
BΦ6.5×38.5
6.5
+0.05/0.25
38.5
±0.20
BΦ1.2×110
1.2
0/+0.2
110
0/+2
BΦ1.35×110
1.35
0/+0.2
110
0/+2
BΦ1.5×110
1.5
0/+0.2
110
0/+2
BΦ1.8×110
1.8
0/+0.2
110
0/+2
BΦ2.0×110
2.0
0/+0.2
110
0/+2
Other types
BΦ3.5*12.5
BΦ3.5*13.0
BΦ3.5*13.2
BΦ2.0*24.5
BΦ3.25*12.5
BΦ4.0*12.5
BΦ4.0*13.0
BΦ4.0*13.2
BΦ2.0*25.5
BΦ3.25*12.7
BΦ4.5*12.5
BΦ4.5*13.0
BΦ4.5*13.2
BΦ2.0*26
BΦ3.25*13.1
BΦ5.0*12.5
BΦ5.0*13.0
BΦ5.0*13.2
BΦ2.0*28
BΦ3.25*14.5
BΦ5.5*12.5
BΦ5.5*13.0
BΦ5.5*13.2
BΦ2.0*31
BΦ3.3*13.1
BΦ6.0*12.5
BΦ6.0*13.0
BΦ6.0*13.2
BΦ3.26*14.0
BΦ4.0*46
BΦ6.5*12.5
BΦ6.5*13.0
BΦ6.5*13.2
BΦ3.25*11.5
BΦ6.0*40
BΦ7.0*12.5
BΦ7.0*13.0
BΦ7.0*13.2
BΦ3.25*12.0
BΦ6.0*50




Application of Carbide rods and bars

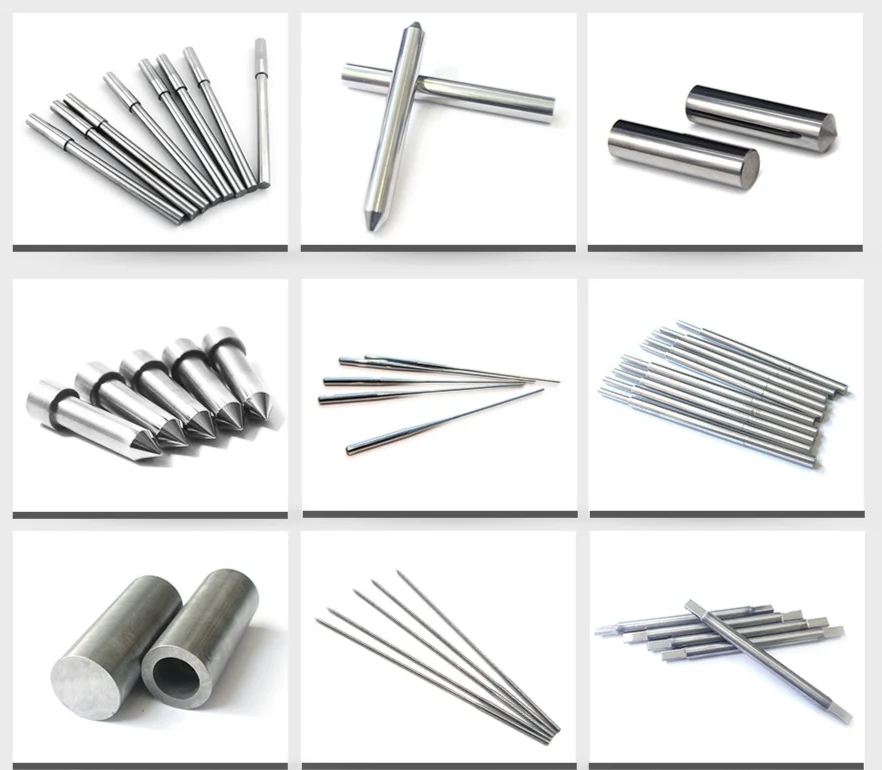

The Shengdike tungsten carbide round rod is mainly applied in making drills, end mills and reamers. And it is also used for cutting, punching and measuring tools. It is used in the industries of paper making, package, printing, non-ferrous metal processing.

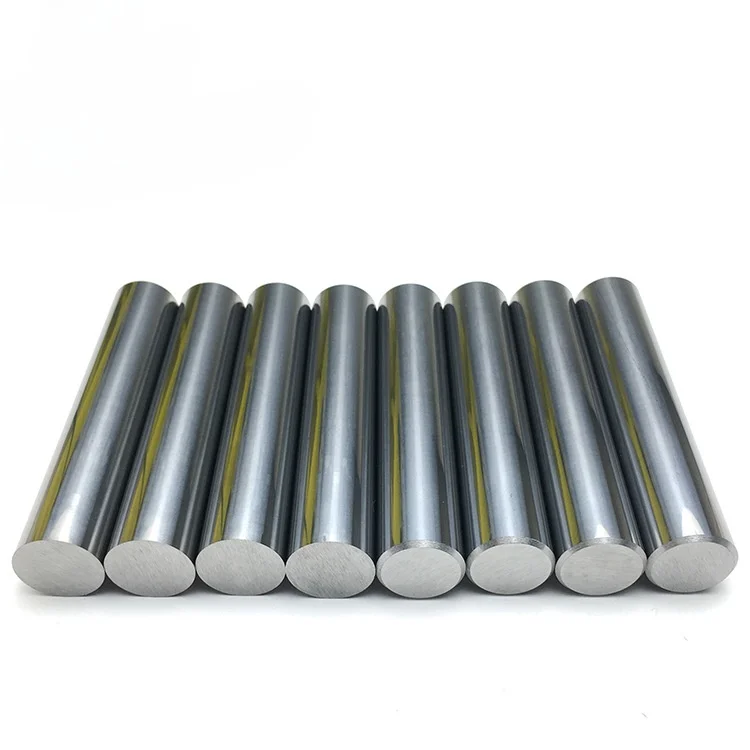

Details Images




Our Advantage
1. 100% raw material
2. With strict tolerance extent control
3. Excellent wear resistance & high toughness
4. Have very good thermal & chemical stability
5. Anti-deformation & deflection
6. A special Hot Isostatic Press (HIP) process
7. OEM/ODM order is welcomed
8. Will provide free samples.
