EPS Wire Mesh Panel Welding Machine Expanded Polystyrene 3D Panel Machine EPS 3D Panel Machine
- Category: >>>
- Supplier: Eishi Shanghai Industry Technology Co. Ltd.
Share on (1601015434083):
Product Overview
Description
Products Description
AUTOMATIC EPS 3D WIRE MESH PANEL WELDING MACHINE
EISHI automatic EPS 3D wire mesh panel welding machine can make insulated EPS 3D wire mesh panel with steel wire mesh and EPS core panel. Vertical welding model, less welding missing rate, high production capacity.

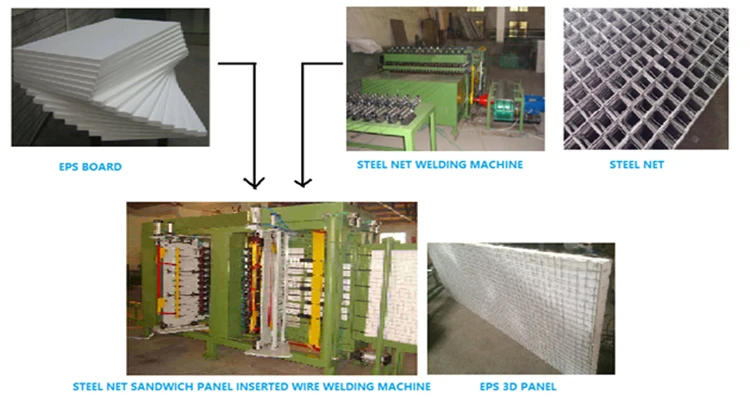

Whole machine line process

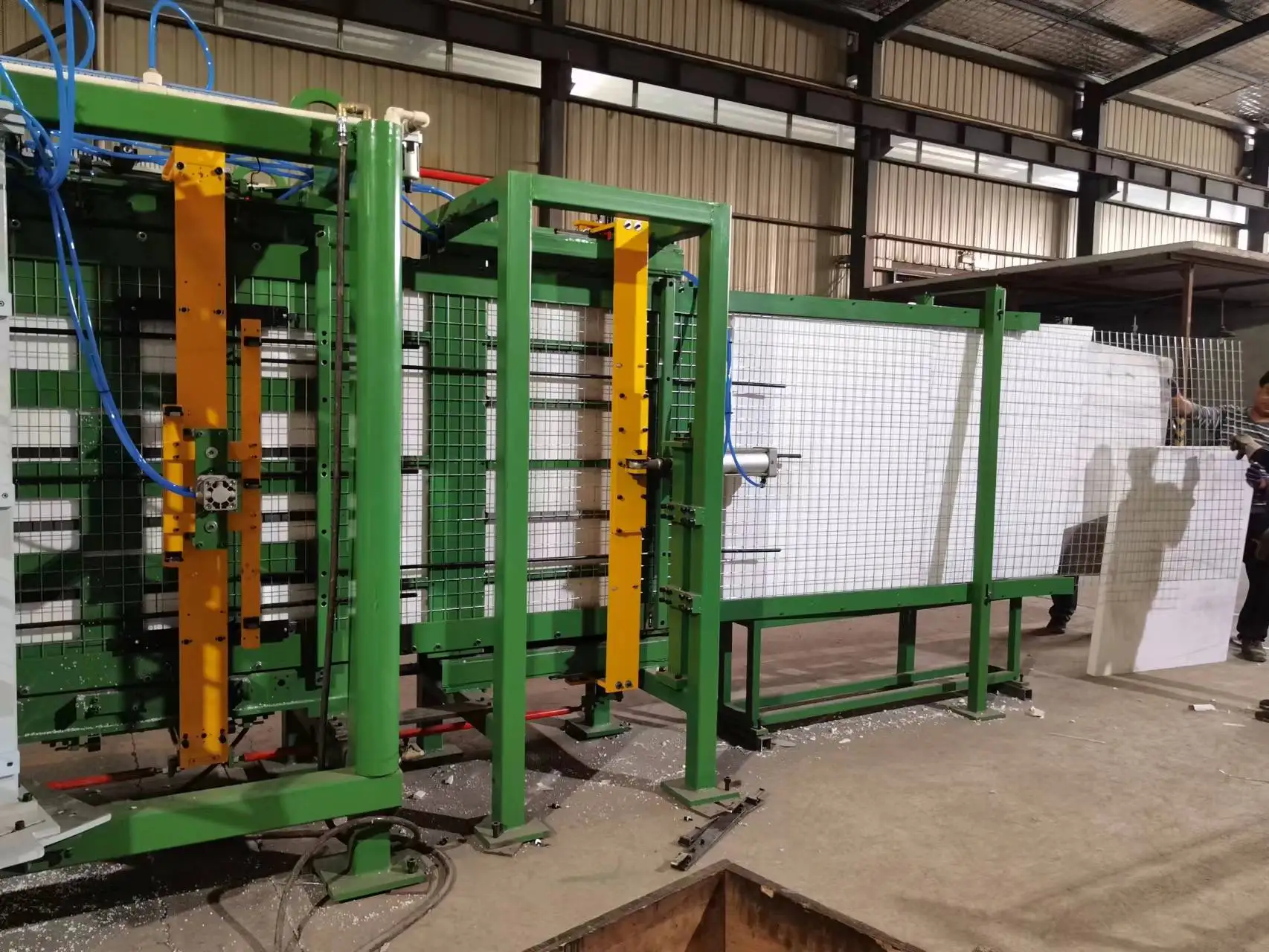

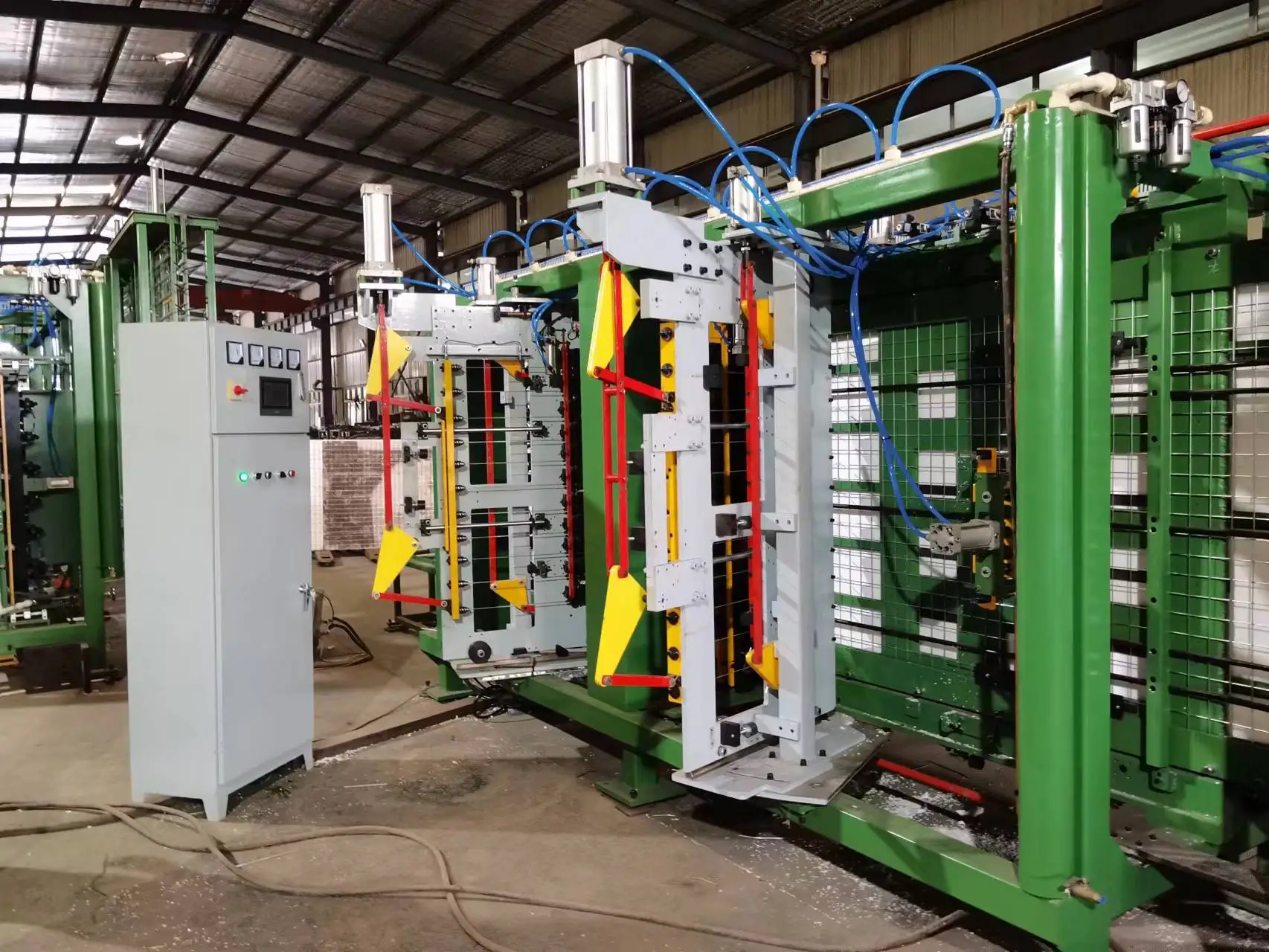

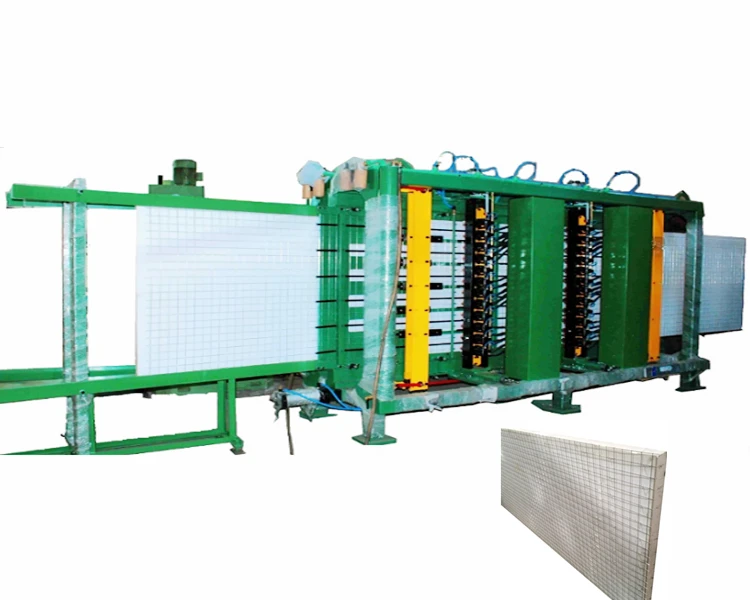

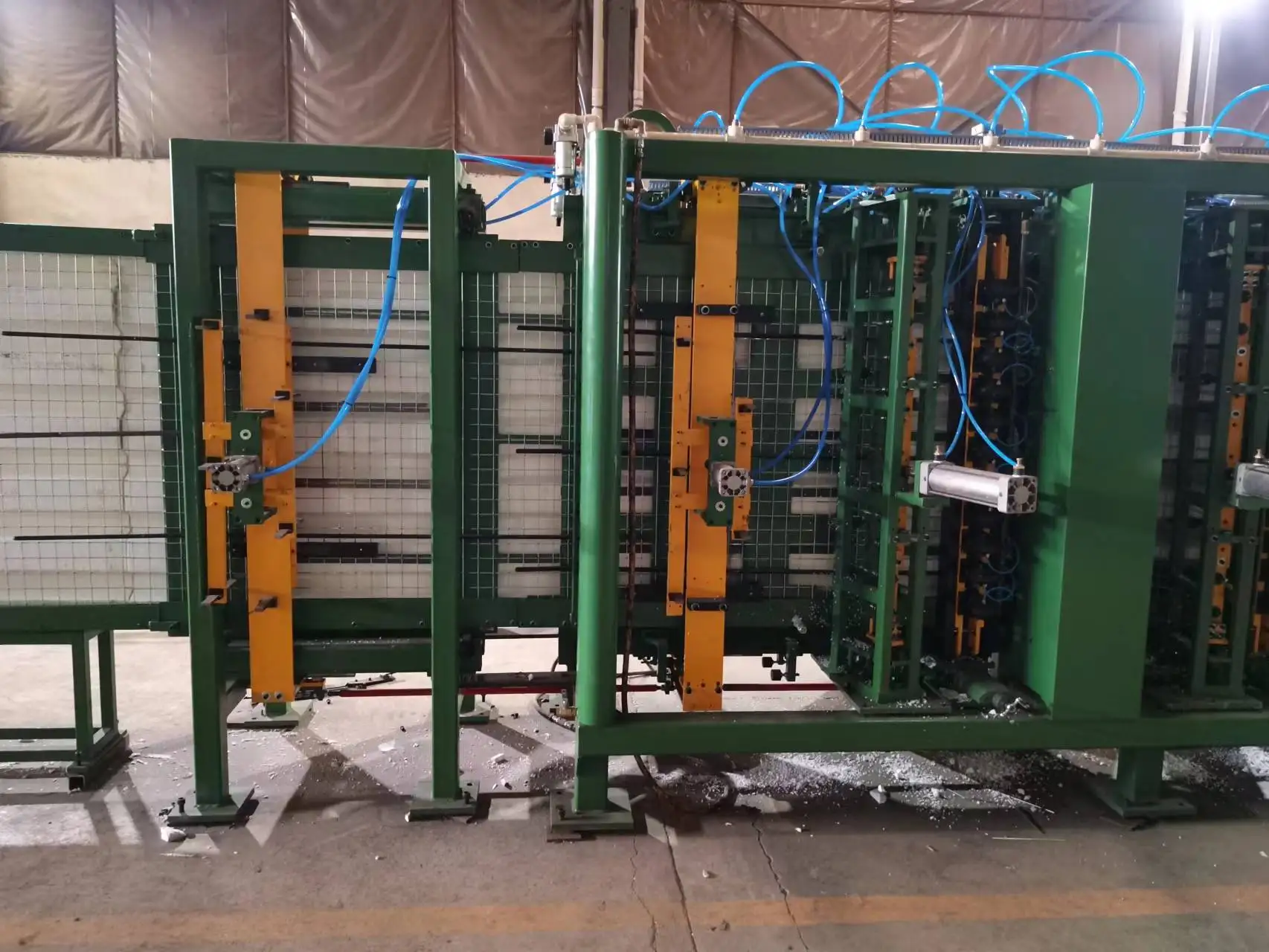

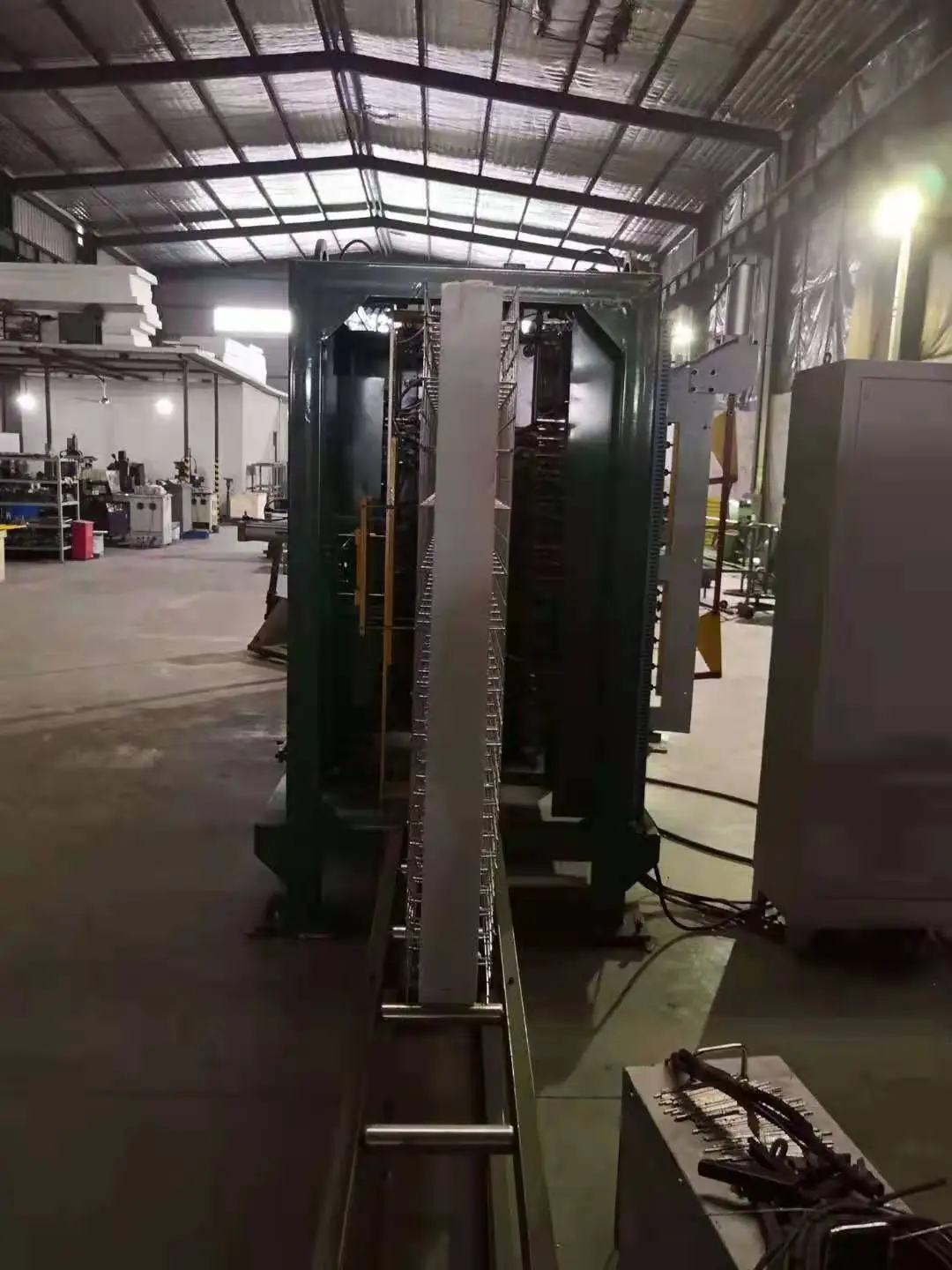

Machine Pictures
Vertical Welding Advantage compared with Horizontal Welding
Welding Panel length can be unlimited.
Wire inserted position is accurate, Welding directly after inserting wire, without shearing mechanism.
Continuous production, non-stop, high output.
Missing welding rate Less than 5 %.
Vertical Welding structure is most advanced and popular in the world, like Austria EVG (top 1), Italy MONOLITE (top 2) these famous factory in the 3D panel machine industry.
Technical Date
ITEM | ESCH-I | |
EPS core panel length | 2400-4000mm (length can be unlimited ) | |
EPS core pane width | 1200±2mm | |
EPS core thickness | 50mm/ 70mm/80mm/100mm/120mm | |
Distance between wire mesh and EPS core | 10 mm | |
Diameter of inclined insert wire | Φ1.5/2.0/2.5 (can be customized) | |
Inserted steel wire adjustable angle | 16° | |
Inserted wire length | 85mm―150mm (can be customized) | |
Quantity of inserted steel wire | ≤200pcs/m² | |
Horizontal distance between inserted wires | 100mm and 200mm | |
Vertical distance between inserted wires | 100mm | |
Welding missing rate | ≤5％ | |
Welding joint strength | ≥ 1000-2000n / point | |
Production capacity | Min. 120-150M2/hour | |
Other models and customized are available | ||

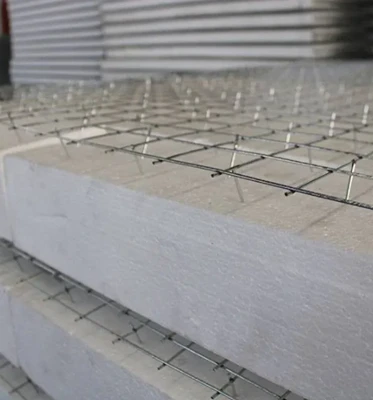

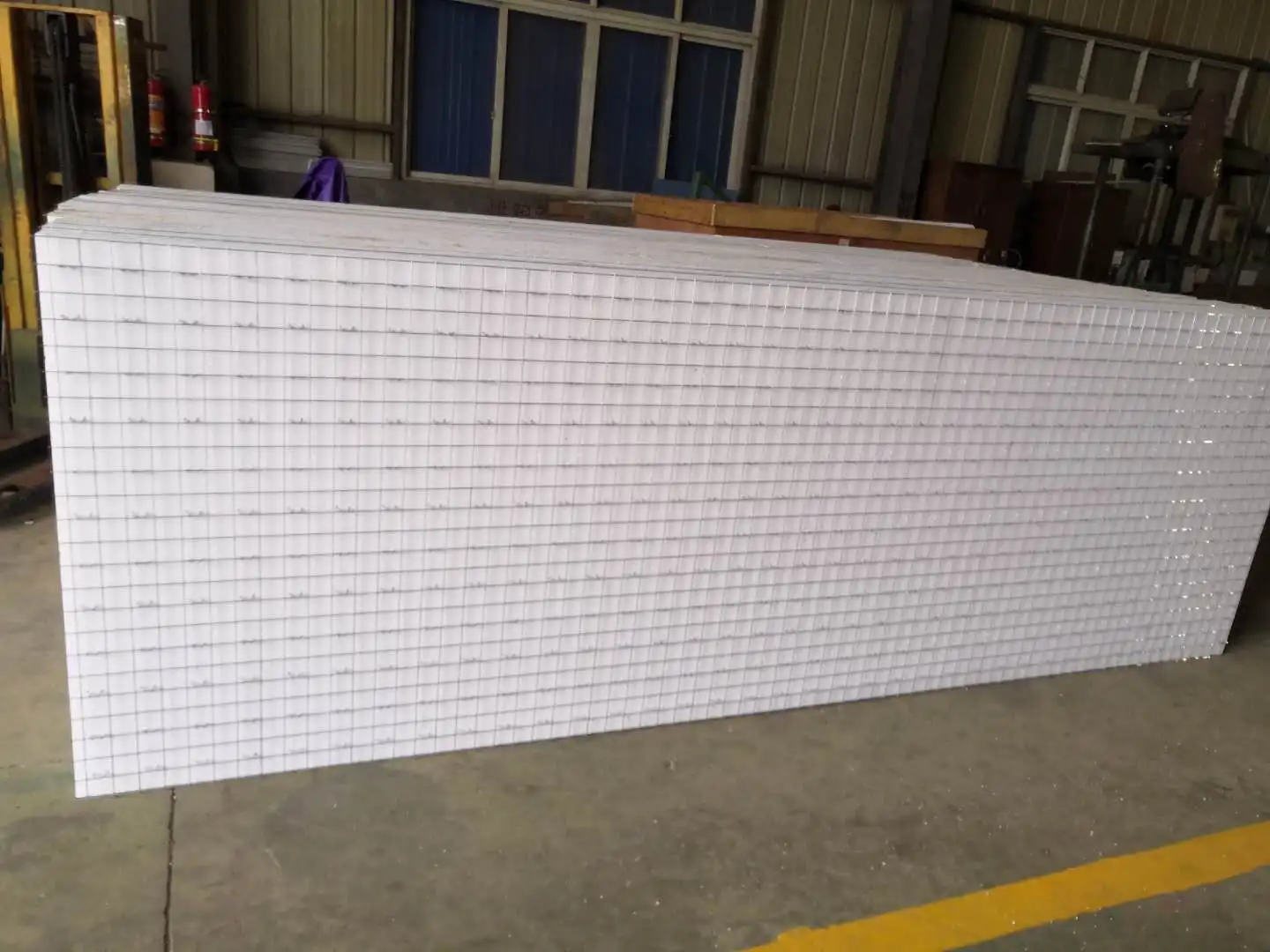

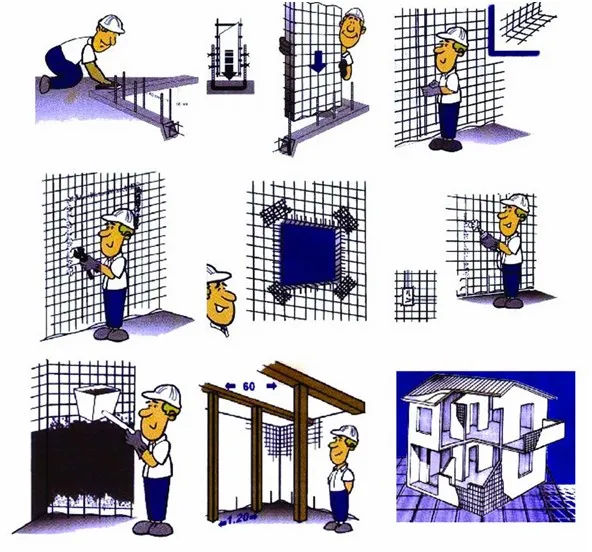

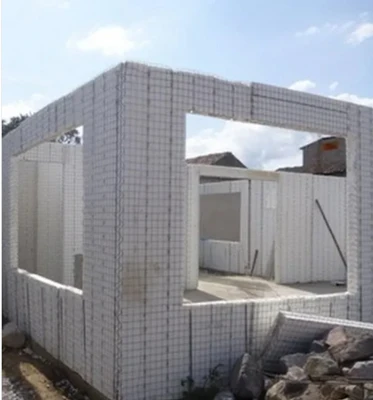

Application

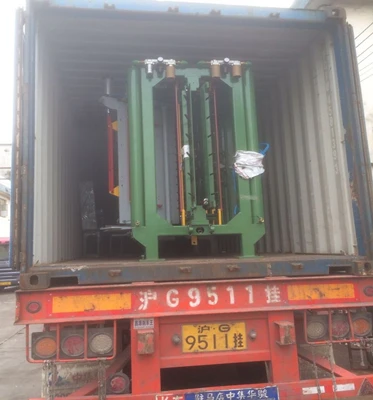

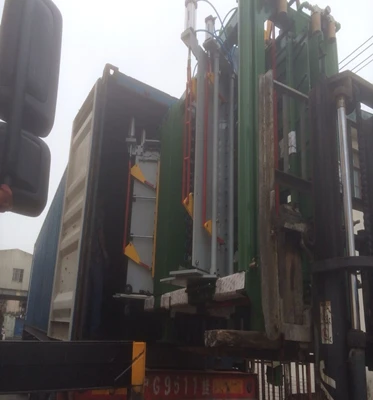

Packing and Delivery

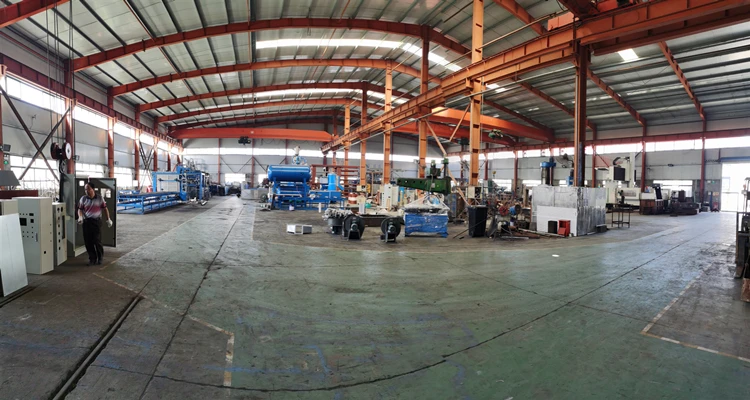

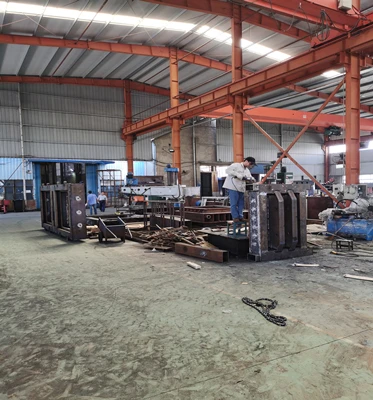

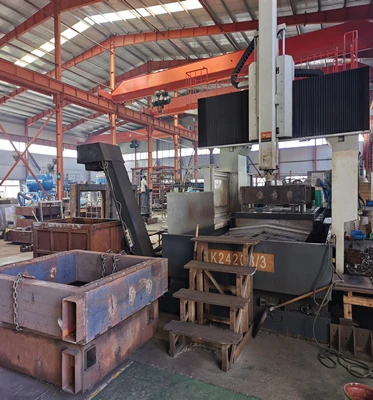

Company Profile

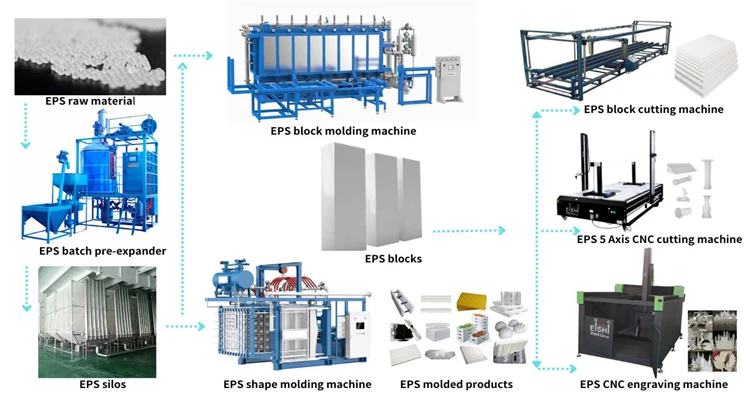

EISHI Shanghai Industry Technology Co.,Ltd is mostly experienced EPS (expanded polystyrene / styrofoam) & EPP (expanded polypropylene) machine manufacturer and supplier in China. With professional engineers and vocational team-workers , we are always ready to meet any of our customers’ requirements. We supply all kinds of EPS & EPP machines and spare parts, Customerized equipment, Turnkey machinery installation, Test, Technical solution and In time after-sale service.
Our Advantages
FAQ
Q. What is your terms of payment?
A: 30% T/T as deposit, 70% after machine test inspection before shipment. We sypply Free machine test and product sample making for customer inspection. LC and Other payment terms can be negotiated.
Q. What is your delivery time?
A: It normally takes 20 to 40 days after receiving advance payment. The exact delivery time depends on machine model and quantity.
Q. Can you supply picture/video/sample of your machine and products?
A: We can supply picture/video/sample as customer need.
Q. Do you have any agent office outside China?
A: 30% T/T as deposit, 70% after machine test inspection before shipment. We sypply Free machine test and product sample making for customer inspection. LC and Other payment terms can be negotiated.
Q. What is your delivery time?
A: It normally takes 20 to 40 days after receiving advance payment. The exact delivery time depends on machine model and quantity.
Q. Can you supply picture/video/sample of your machine and products?
A: We can supply picture/video/sample as customer need.
Q. Do you have any agent office outside China?
A: Now we have agent in Qatar for Middle East market service support. The agent in America will open soon.
Q: What is your after-sale service?
A: We supply 24 hours online service and Free update and replacement during machine warrianty time.
Q: What is your after-sale service?
A: We supply 24 hours online service and Free update and replacement during machine warrianty time.
