Full Color Customized Size P16 Indoor Outdoor Led Screen Video Wall Rgb Screen 256mm*256mm Outdoor Led Display Panel Module
- Category: >>>
- Supplier: Guangdong Zhongzhou Color Optoelectronic Technology Co. Ltd.
Share on (1601015438910):
Product Overview
Description
Features.
2.1 × 2.1mm surface mount light-emitting diodesGel color: glossy
Luminous color: RGB tri-color
Half power angle :110°
Chip material: AlGaInP2&InGaN
Stent black housing, inner wrapped foot structure, high contrast
Product Paramenters
Total number of pixels on the screen | oem |
Total number of screen display | oem |
LED drive/scanning mode | Dynamic constant current 2037 drive, 1/32 scan, refresh 1920 |
Optimal viewing distance | 3M |
Blind spot rate | ＜1/10000 (discrete distribution) |
Working environment temperature | -20℃～50℃ |
Input working voltage | AC220V/380V±10％, 50Hz (three-phase five-wire system) |
Weight of screen body | ＜55kg/ m2 |
Average trouble-free time | ≥5000 hours |
Electricity resistance strength | 50HZ/1500V(AC rms)/1min |
Temperature rise | After thermal equilibrium, metal ≤ 40K, insulation ≤ 65K |
Electricity resistance | 50HZ/1500V(AC RMS)/1min |
Leakage current to ground | < 3mA |
Input signal | S-Video; VGA; RGB; Composite Video; SDI, etc. |
Control method | WIN, XP computer + control software hardware + playback software and hardware |
Grayscale level | Red, green, 4096 levels each |
Brightness | ≥700cd |
Viewing angle | Horizontal 160º/vertical 120º |
Frame change frequency | 60HZ |
Refresh frequency | ≥300HZ |
Maximum power consumption | 700W/m2 |
Average power consumption | 300W/m2 |
Screen life | ≥100,000 hours |
Applications
Displays, indoor lighting and outdoor lighting, LCD backlighting, decorative lighting Automotive instrument indicator

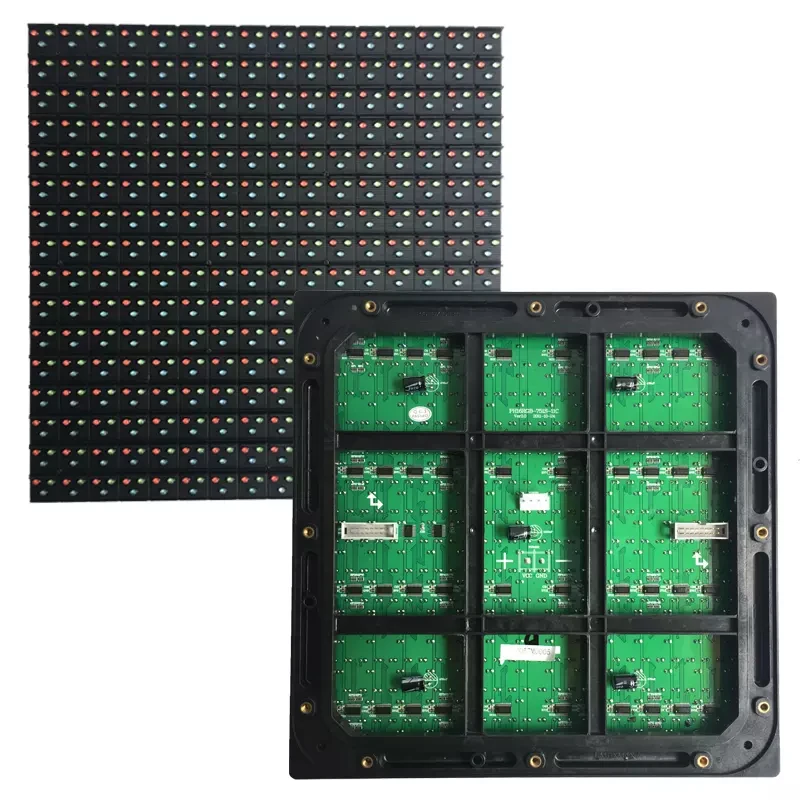

LED Module
Different pixel pitch, module size, LED size, and module capability can be selected according to customer needs
