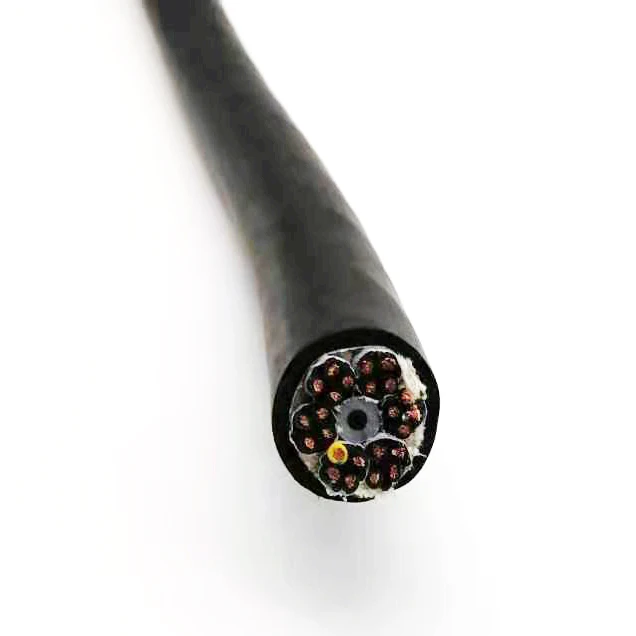

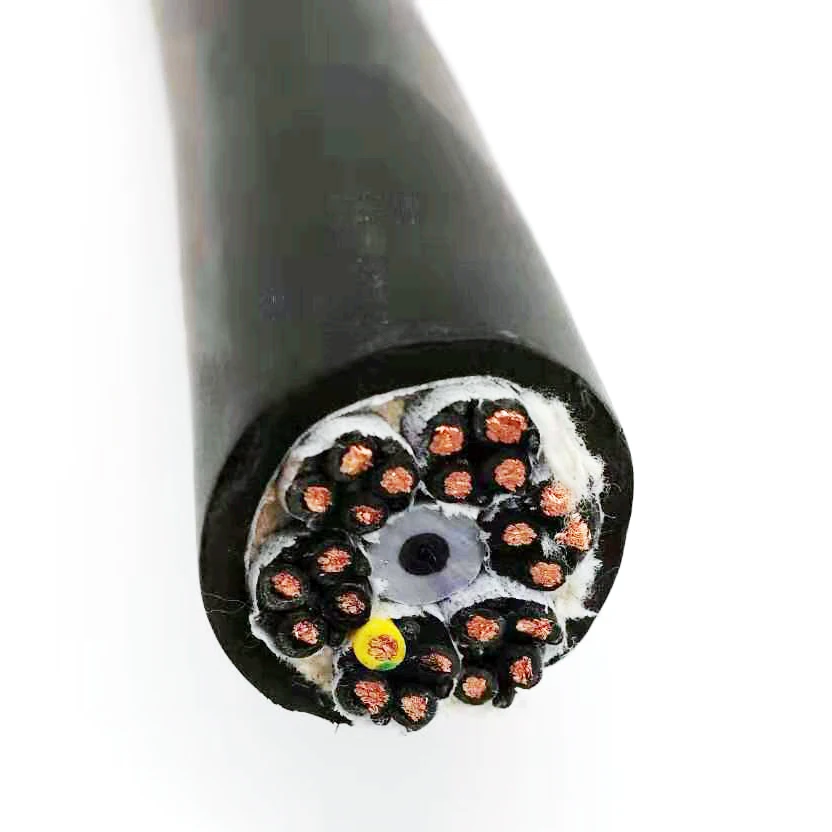

RVV 2/3/4/5 Cores Pins Copper wires 2/3/4/5/6/7/8/10/12/14/16/18 Cores Pins Copper Wire Conductor Electric RVV Cable Black
- Category: >>>
- Supplier: Shanghai Fengy Cable Technology Co. Ltd.
Share on (1601015480802):
Product Overview
Description

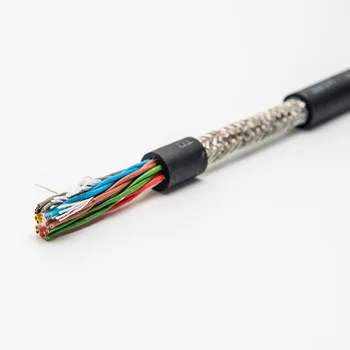

Product Structure
Conductor | Fine strands of oxygen-free copper wire, according to VDE0295 CLASS 6 standard |
Conductor insulation | High quality mixed PVC |
Conductor colors | Optional |
Core wire structure | Anti twist layered, or grouping with divided gap filling by high strength core |
Inner sheath | PE belt or non-woven belt(Optional) |
Shield | Tinned copper mesh braided shield,coverage more than 70% |
Outer jacket material | Special nitrile mixed PVC |
Outer jacket color | Black Grey Orange |
Technical Specification
Rated voltage | ＜0.5mm²:300/300V ≥0.5mm²:300/500V |
Test voltage | 2000V |
Minimum bending radius | Fixed installation:6×D Moveable installation:distance of travel <10m，minimum bending radius 6×D， distance of travel ≥10m，minimum bending radius 10×D |
Operating temperature | Fixed installation: -30℃~+70℃ Movable installation: -20℃~+70℃ |
Oil resistance | See the attached oil resistance list |
Chemical resistance | See the attached chemical resistance list |
Flame resistance | Following IEC60332-1 or 2 |
Product Features
Special Characteristic
1. Installtion travel distance: 50m,accelerator 20m/s²,moving speed 5m/s.
2.Bending lifetime: 30 times/min,＞3 million times.
3.Water resistance,oil resistance,UV resistance and weatherability.
4.Cold resistance,abrasion resistance,can afford some mechanical force.
2.Bending lifetime: 30 times/min,＞3 million times.
3.Water resistance,oil resistance,UV resistance and weatherability.
4.Cold resistance,abrasion resistance,can afford some mechanical force.
5.Good EMC performance(anti-interference).
Approvals And Standards
ROHS CE
Application
Installation under continuous reciprocation, especially industrial frequent bending environments. such as drag chains of modern machinery and logistics systems, control systems, automatic machinery systems,ect. CNC machines, electronic equipments, hardware rammings, wood and stone machinery, glass and windows machinery, injection molding machiney, robots and manipulators, construction machinery, heavy-duty machinery, automobile manufacturing, lifting transport equipments, automated warehouses, docks, fire engines and other indoor and outdoor shielded environments.
FAQ
Q 1: I didn't find my needed model in this page.
Answer: Dear Friends, ecatalog will emailed to you asap when you contact with us. Also, we supply customization service.
Q 2: What's your Minimum Order Quantity?
Answer: Normally, 300m, but we also accept 100m order.
Q 3: When can I get the price and what's the validity?
Answer: usually within one day.Validity is 30 days
Q 4: What's your payment terms?
Answer: By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.
Q 5: What's your delivery time?
Answer: It depends on whether we just have the stock for your type. Or, it takes about 10 - 30 days for normal orders.
Q 6: What's your package method ?
Answer: Usually, it's cartons, and for big cable, we use wooden drum.
Answer: Dear Friends, ecatalog will emailed to you asap when you contact with us. Also, we supply customization service.
Q 2: What's your Minimum Order Quantity?
Answer: Normally, 300m, but we also accept 100m order.
Q 3: When can I get the price and what's the validity?
Answer: usually within one day.Validity is 30 days
Q 4: What's your payment terms?
Answer: By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.
Q 5: What's your delivery time?
Answer: It depends on whether we just have the stock for your type. Or, it takes about 10 - 30 days for normal orders.
Q 6: What's your package method ?
Answer: Usually, it's cartons, and for big cable, we use wooden drum.
