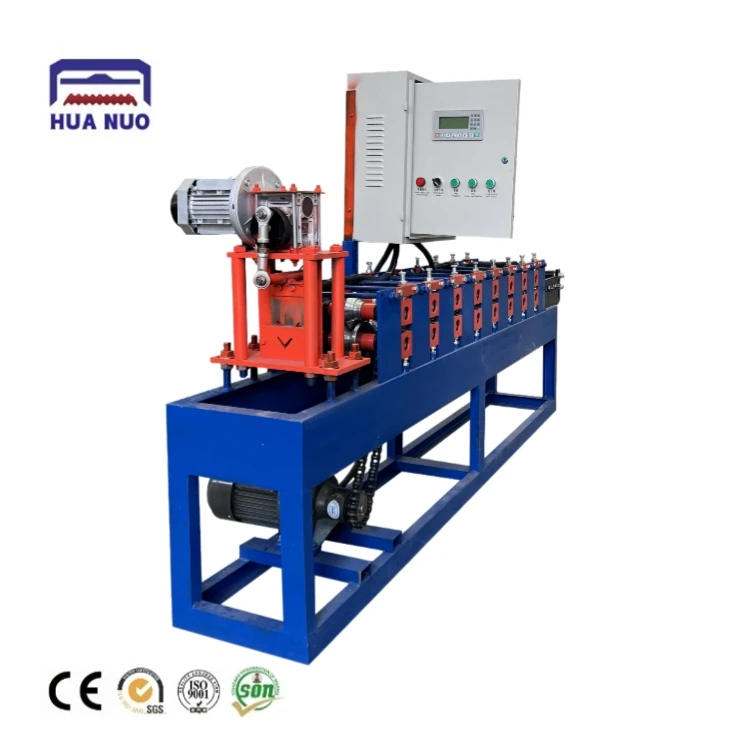

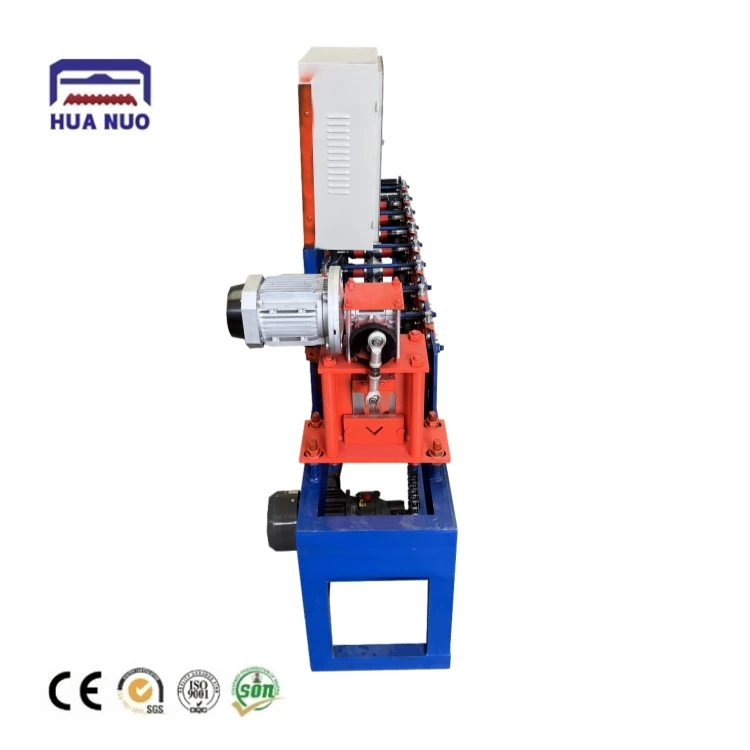

Angle channel production machine steel purline production line machine to manufacture metal profiles
- Category: >>>
- Supplier: Cangzhou Huanuo Cold Bending Machine Co. Ltd.
Share on (1601015539243):
Product Overview
Description
Product Description
Three layers roof tiled roll floor press forming machie manufacturer
This producing line uses galvanized steel sheet,colored armor plate or aluminum plate as the material plate.The products are used as the roof tile and wall panel outside of building,as well asdecorative sheet and ceiling board inside of building,to increase the beauty and durability of the roof tile and wall panel.
Flow Chart
Manual Decoiler-Roll Forming Machine-Computer Control System-Hydraulic Cutting System-Receive Table
Machine Specificatio
1 | Coil Type | Pre-painted coil,Galvanized steel |
2 | Width | 914/1000/1200/1220mm |
3 | Thickness range | 0.3-0.8mm |
4 | Yield stress(mm) | Q235 |
5 | Effective width | 760/1000mm |
1 |
Power Requirement
| Voltage | (380V 50HZ),or according client require |
Main Motor power | 5.5kw | ||
Cutter power | 5.5kw | ||
2 | Forming speed | 0-3m/min | |

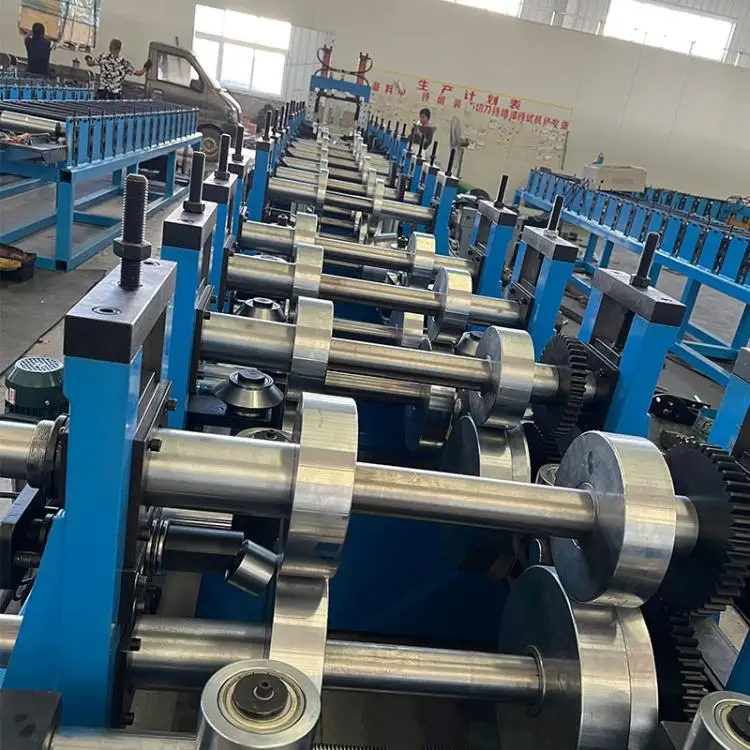

3 | Forming stations | 16 rows | |
4 | Main Frame | 350H beam | |
5 | Sidewall thickness | 16mm | |
6 | Forming shaft diameter | 70mm 0.01mm-0.03mm(Grinding) | |

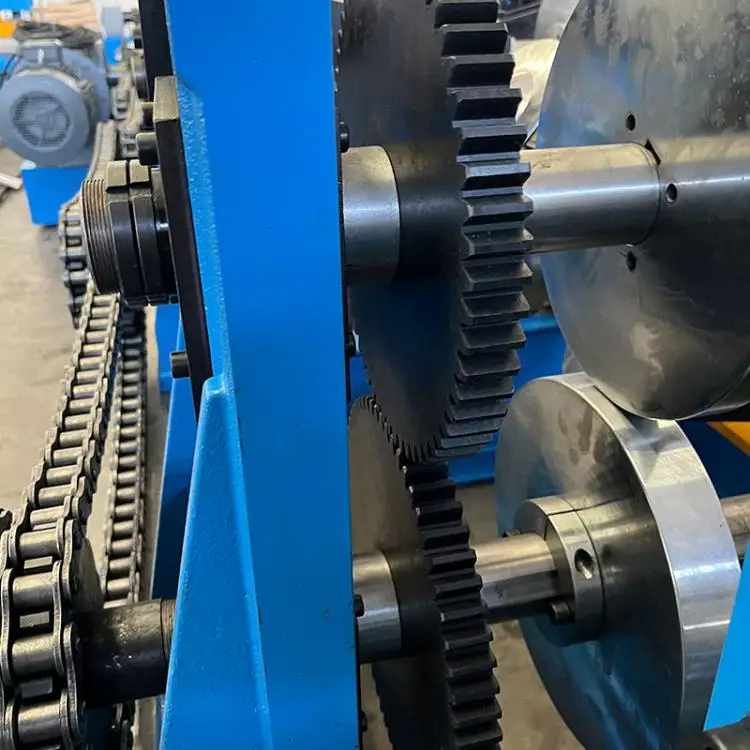

7 | Chains | 1inch chain drive | |

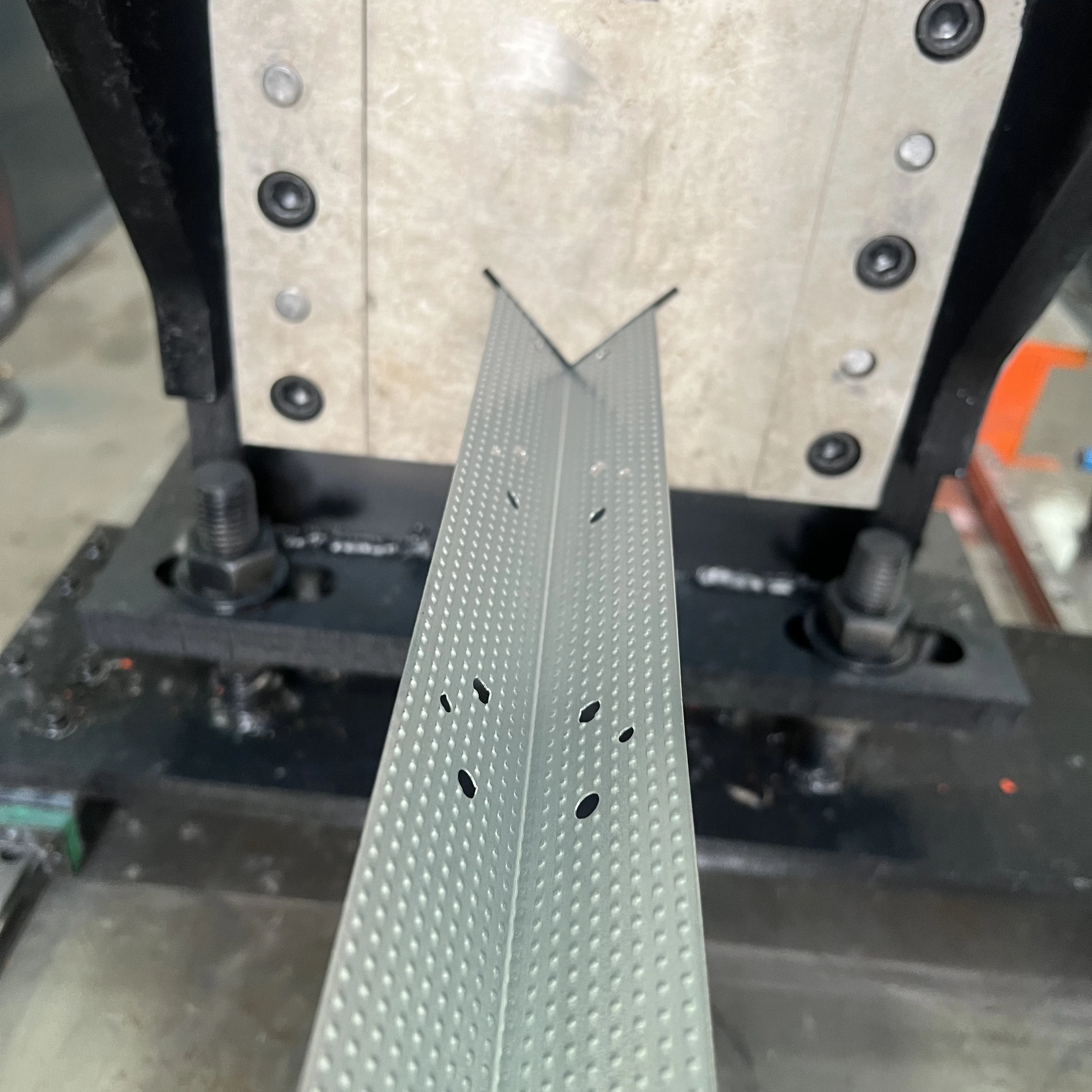

8 | Type of cutting | Roll formed and length-set cutting | |
9 | Control system | PLC control | |
10 | Install dimension(depend on the final design) | 8.6m×1.5m×1.4m | |
11 | Total weight (Approx) | 4.6T | |
12 | Roller | High grade 45# steel, hard chrome plated | |
13 | Feeding system | Guide type | |
14 | Cutting blade | Cr12Mov | |
15 | Frequency changer | Delta | |
