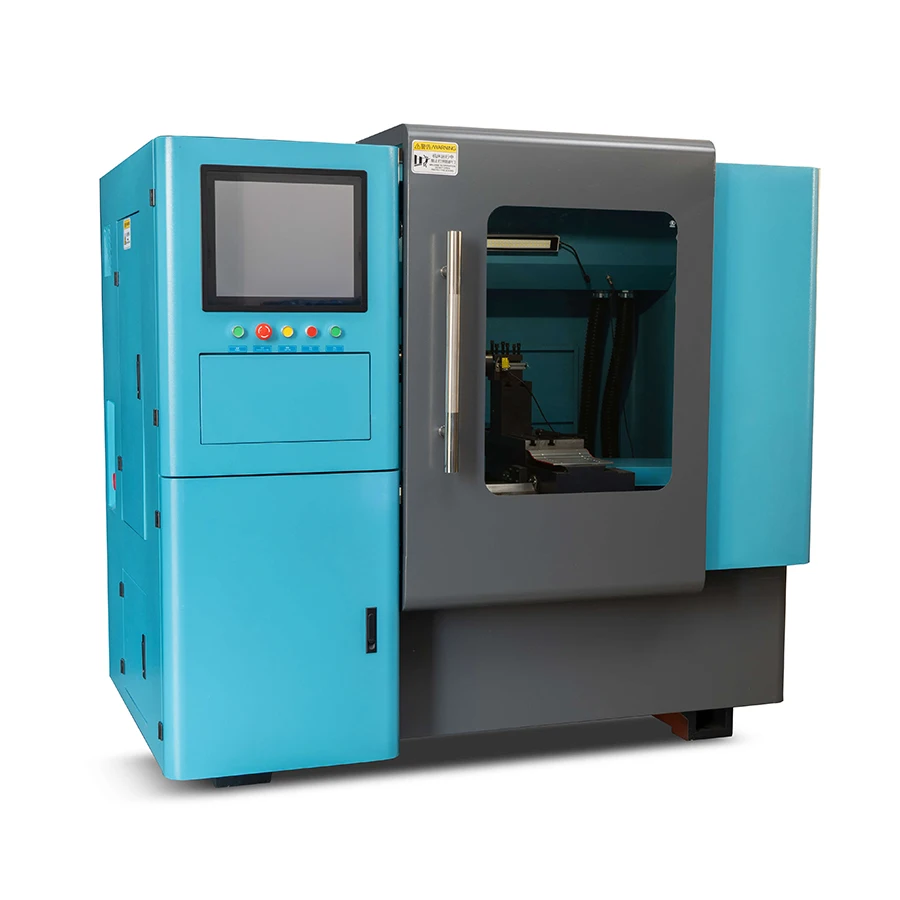

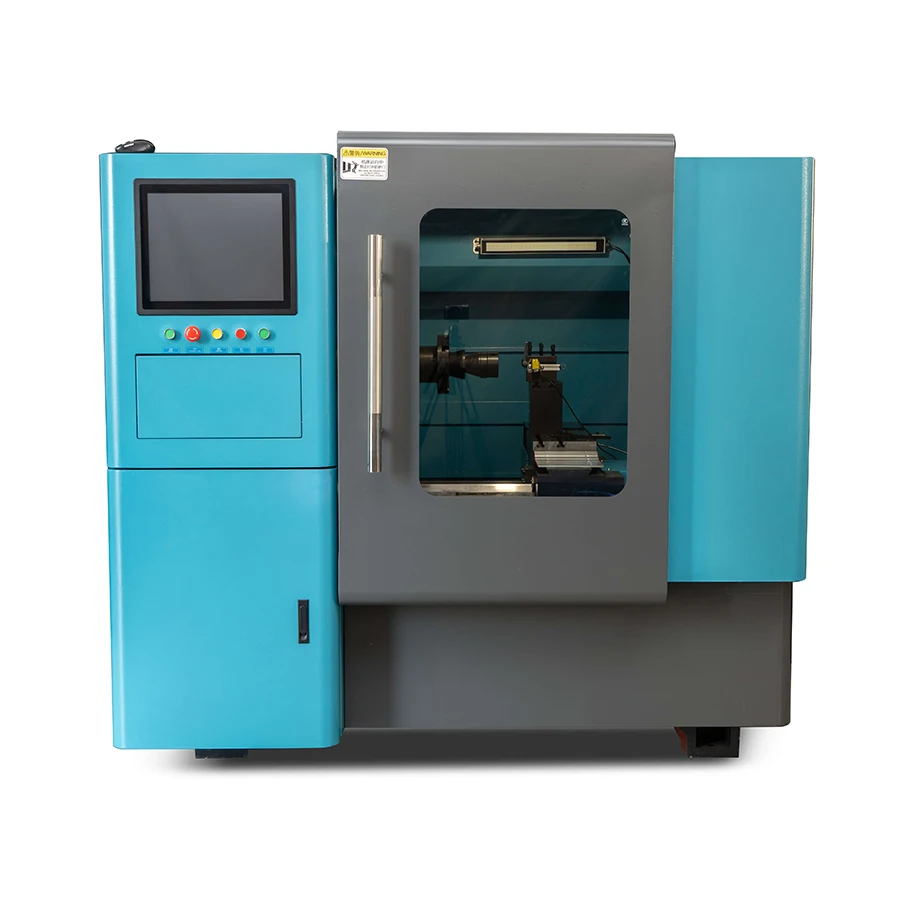

Gubot New year full automatic small Gubot CNC wheel diamond for curing alloy wheel in stock
- Category: >>>
- Supplier: Anhui Gubot Tianji Intelligent Technology Co. Ltd.
Share on (1601015604196):
Product Overview
Description
Product Description

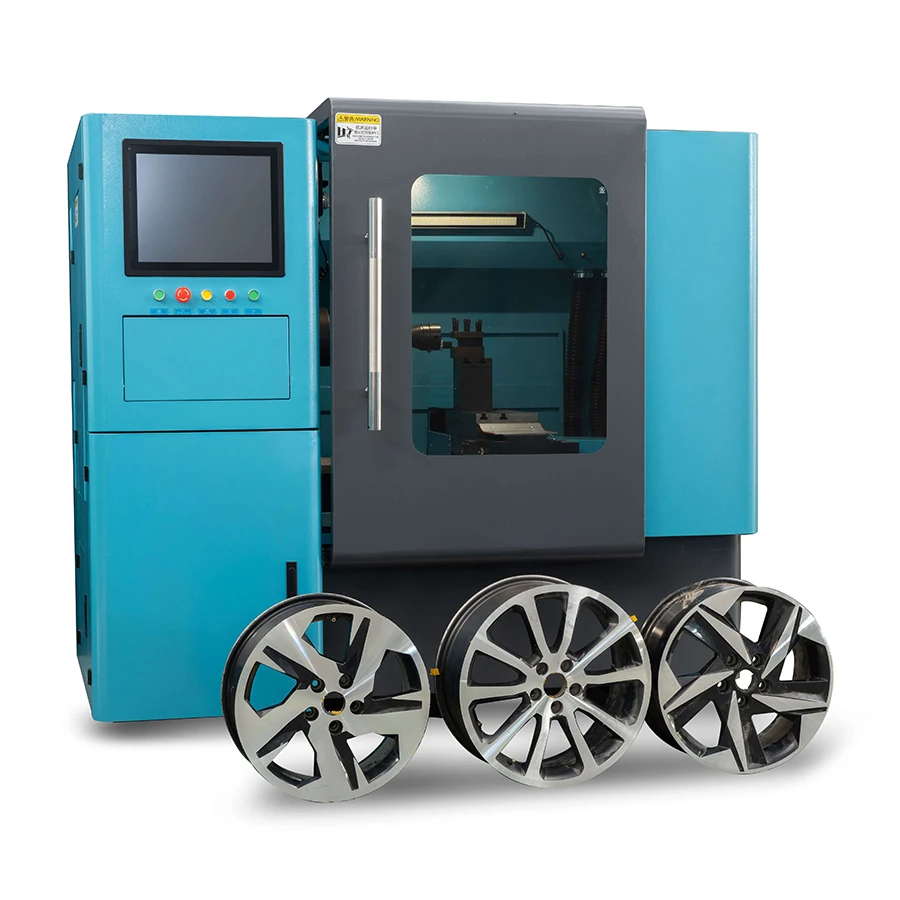

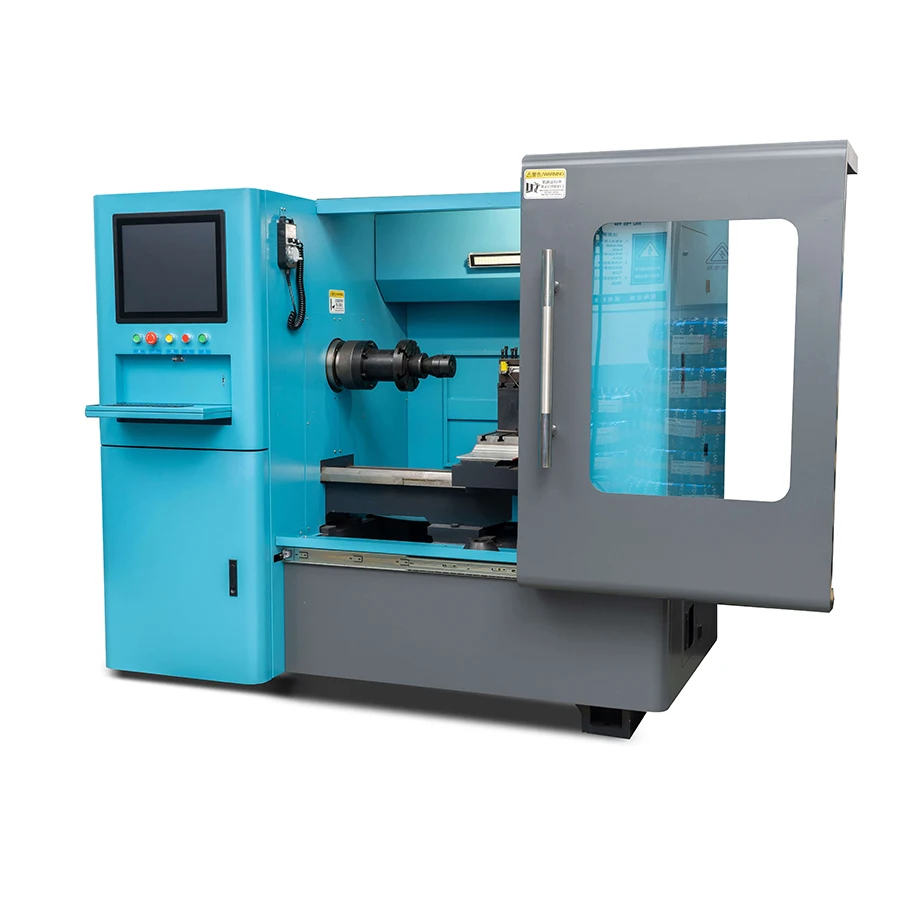

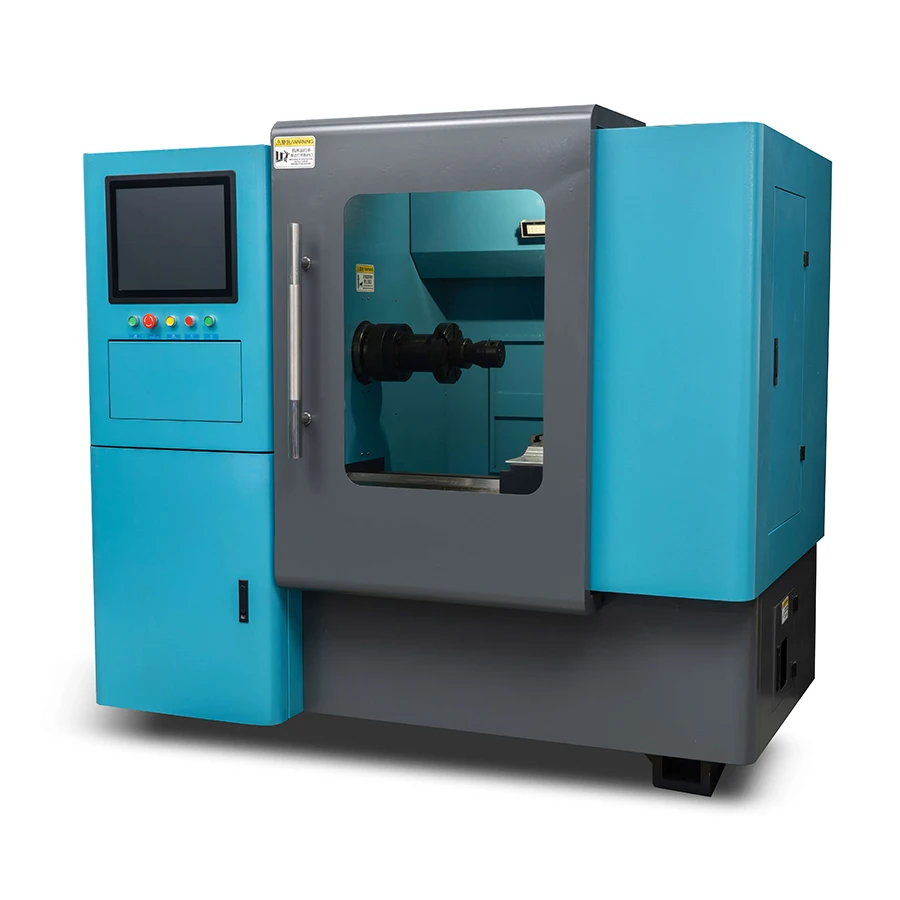

Gubot alloy wheel repair machine:
1.The fixed central shaft mode is very stable during the high-speed rotation of the wheel.
2.It can repair not only the wheel , but also the brake disc.
3.Three jaw chuck is also available.
2.It can repair not only the wheel , but also the brake disc.
3.Three jaw chuck is also available.

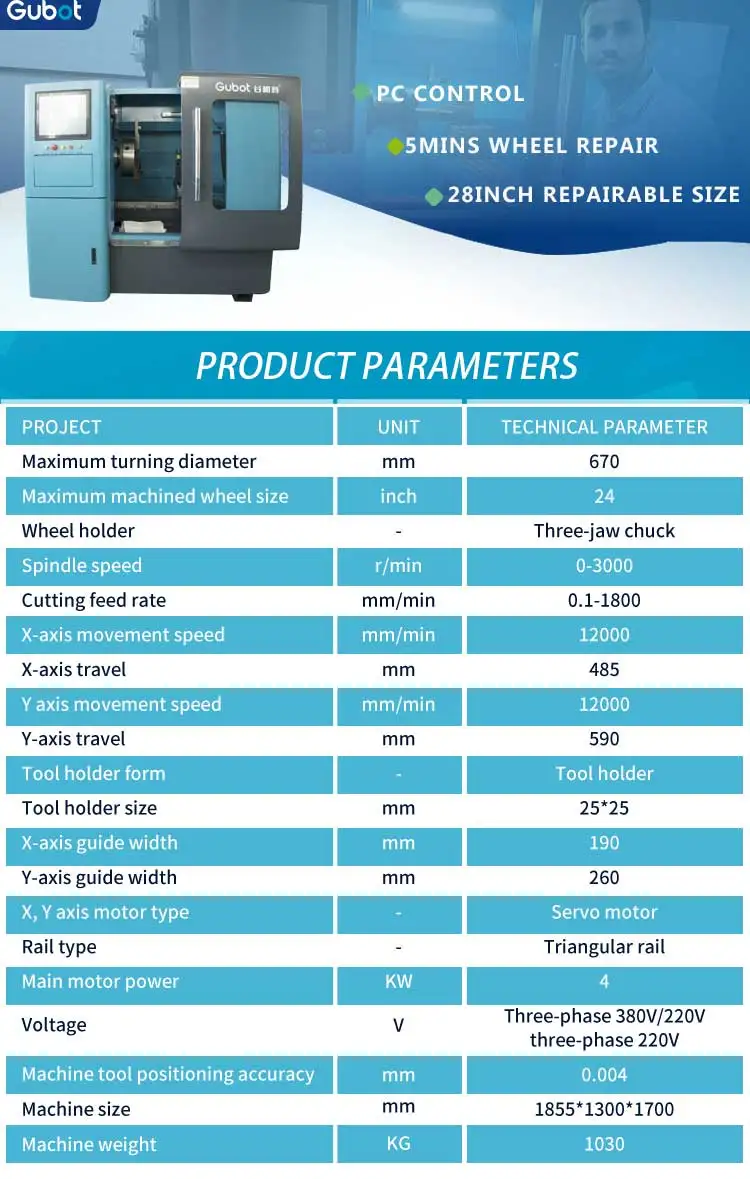

Specification
Items | Unit | Specifications |
Maximum turning diameter | Mm | 670 |
Max. Size of alloy wheel | Inch | 24 |
Cutting feed speed (mm) | mm/min | 0.1-1800 |
Wheel holder | - | Three-jaw chuck |
Spindle speed control | - | Automatic |
X-axis movement speed | mm | 12000 |
Y axis movement speed | mm/min | 12000 |
Main motor power | KW | 4 |
Moving track | Hign quality | Import rails |
Motor | Servo motor | |
Wheel positioning accuracy | mm | 0.004 |
Wheel positioning repeatedaccuracy | mm | 0.004 |
Weight | Kg | 1030 |
Size(L*W*H) | mm | 1855*1300*1700 |
Recommend Products
Company Profile
Adhering to Gubot's concept of excellent quality, Shanghai Gubot always regards high technology as the foundation of its founding, and continuously strengthens its technology research and development, providing customized production solutions and supporting services for nearly 2,000 domestic and overseas automotive aftermarket partners . As a high-tech enterprise, the company has nearly one hundred patents, and its products have covered most of China's provinces and cities, and have entered Europe, North America, Oceania and other countries and regions, and have been highly recognized and trusted by customers.
FAQ
Q: What size wheels can fit in the wheel diamond cut machine LSB300 Pro？
A: It can cut 10-24 inch wheels.
Q: How long does it take to repair a wheel?
A: It need 5-10 mins.
Q:What voltage is the wheel diamond cut machine LSB300 Pro?
A:We have 220V (single phase),380V(three phase). We also have 220V(three phase).
Q: How do you provide train?
A: We will send one video that will teach you how to operate the machine, and you also can come to china and we will have
professional engineer who teach you for free.
Q：If the wheel diamond cut machine has problems, what should i do?
A: We have a engineer team who will provide 24 hours service, if you meet any problems, our engineer will help you solve it by video call or phone.
A: It can cut 10-24 inch wheels.
Q: How long does it take to repair a wheel?
A: It need 5-10 mins.
Q:What voltage is the wheel diamond cut machine LSB300 Pro?
A:We have 220V (single phase),380V(three phase). We also have 220V(three phase).
Q: How do you provide train?
A: We will send one video that will teach you how to operate the machine, and you also can come to china and we will have
professional engineer who teach you for free.
Q：If the wheel diamond cut machine has problems, what should i do?
A: We have a engineer team who will provide 24 hours service, if you meet any problems, our engineer will help you solve it by video call or phone.
