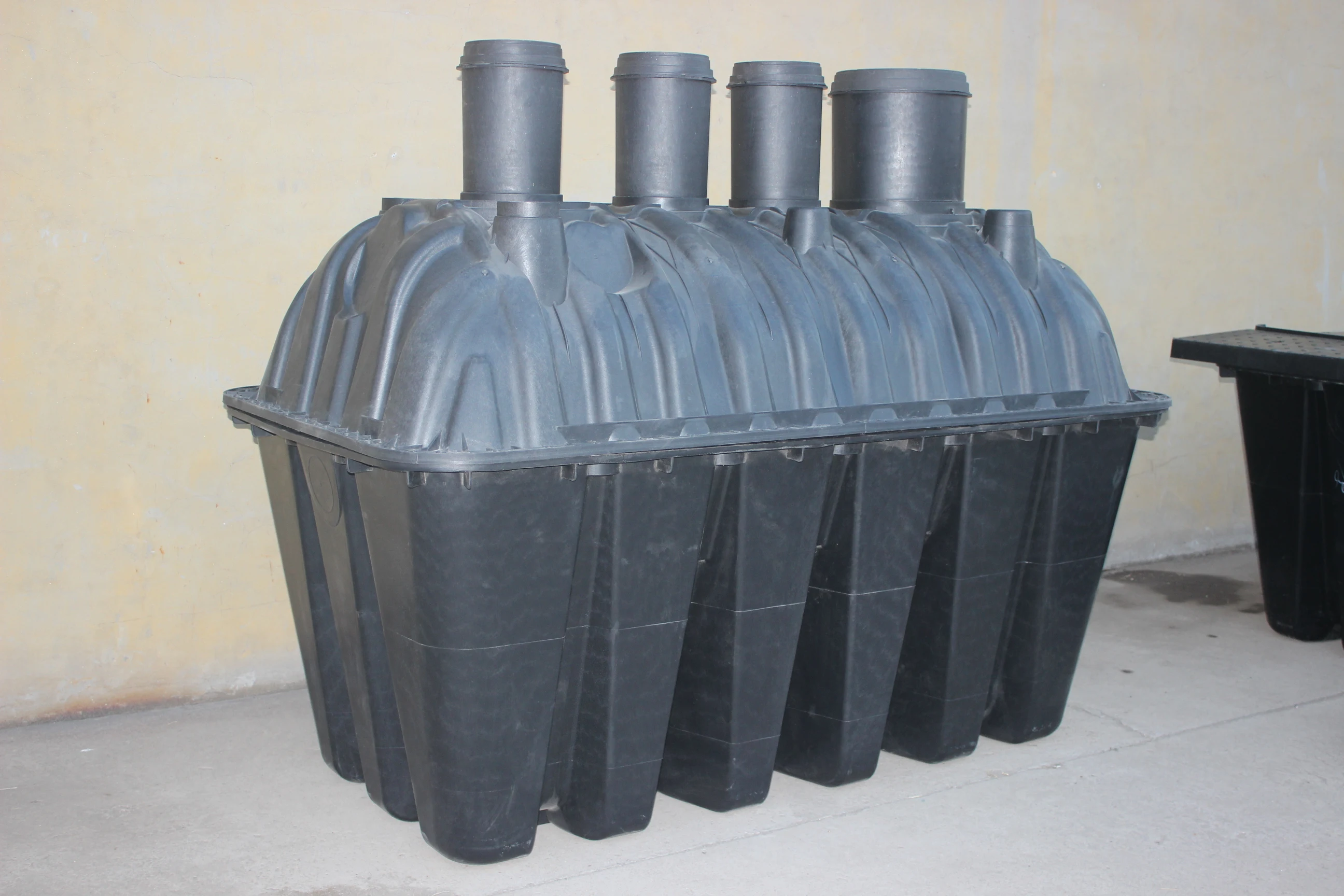

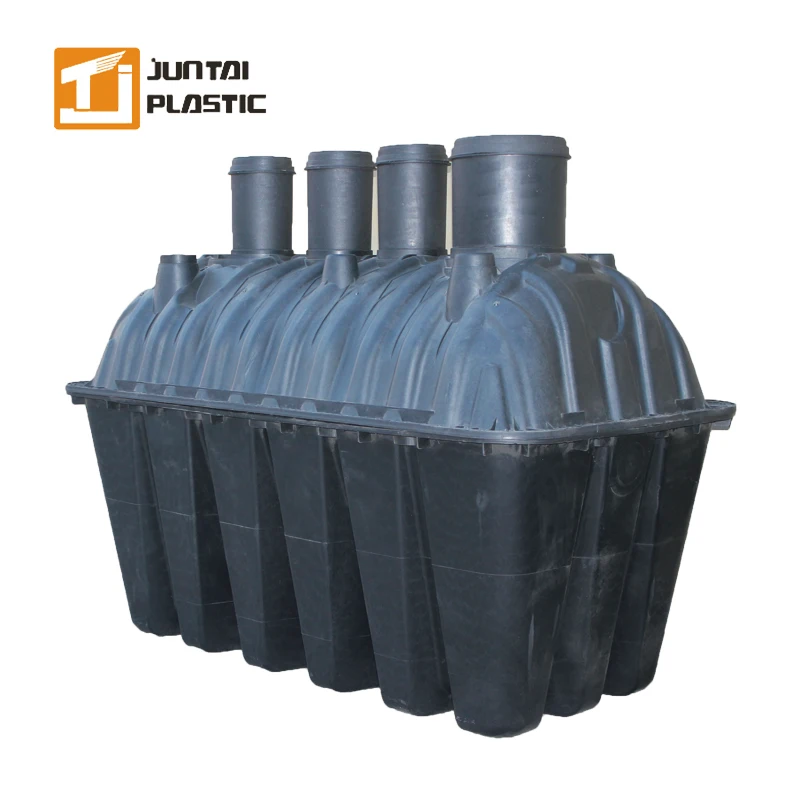

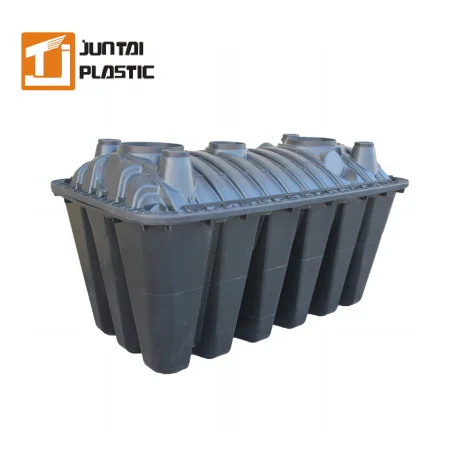

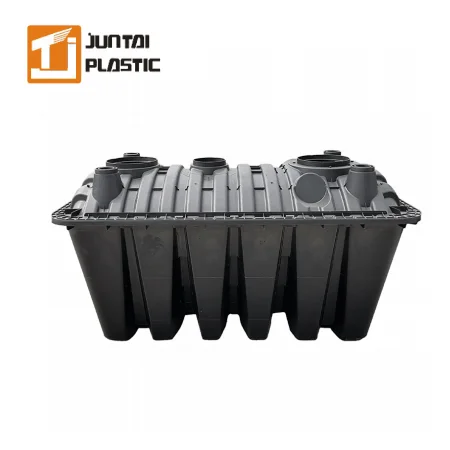

Durable and Long Lasting Plastic Septic Tank Square for Construction Sites
- Category: >>>
- Supplier: Hangzhou Juntai Plastic Products Co. Ltd.
Share on (1601015608181):
Product Overview
Description
Septic Tank
A septic tank refers to a small-scale treatment facility that separates and settles domestic wastewater while anaerobically digesting sludge.
JunTai integrated septic tank optimizes and improves upon traditional septic tanks by facilitating the decomposition of solid matter at the tank's bottom, the upper layer of organic material enters the pipes to prevent blockages, allowing solid waste (such as feces and other debris) sufficient time for hydrolysis.

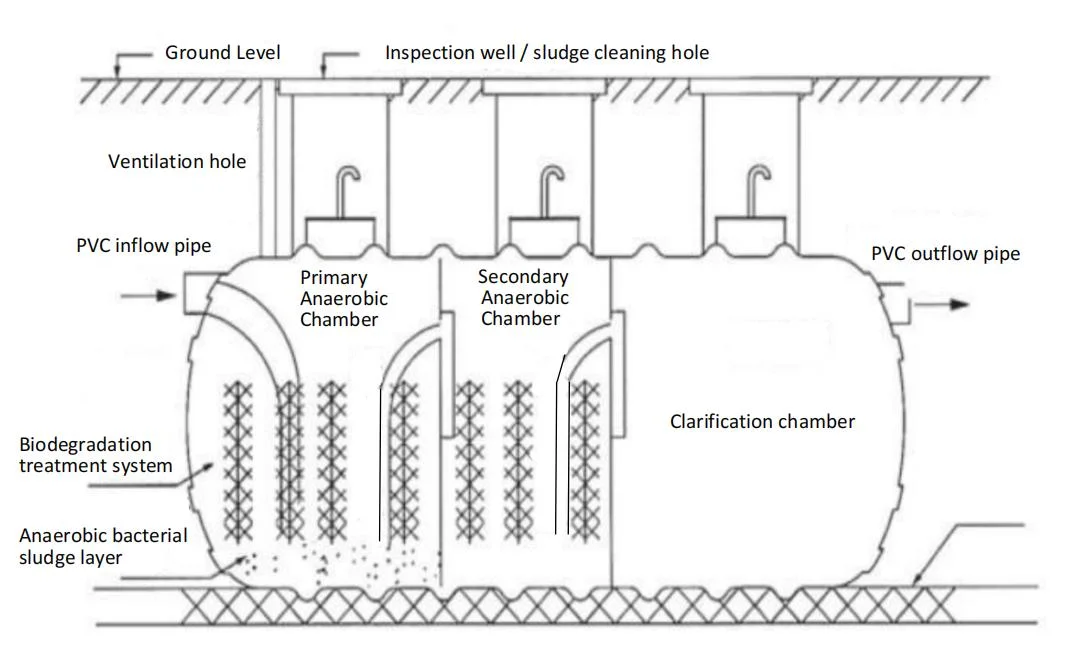

Product Structure and Operating Process
Operating Process:
The primary anaerobic chamber serves to accept fresh feces, anaerobically ferment, decompose, and separate the layers, consisting of top scum, middle liquid, and bottom sludge. It also captures and settles parasitic eggs.
The secondary anaerobic chamber continues to capture and settle parasitic eggs, facilitates deeper anaerobic fermentation, and increases the concentration of free ammonia.
The disinfection and egg-killing clarification tank primarily serves the purpose of clarification, ensuring that the discharged wastewater is environmentally safe.
The disinfection and egg-killing clarification tank primarily serves the purpose of clarification, ensuring that the discharged wastewater is environmentally safe.
Domestic wastewater enters the septic tank through the upper inlet, settling within the tank. As the wastewater flows through the baffles in the septic tank and is treated using the principles of septic tank theory, and filtration, it extends the retention time in the tank. The contact and degradation time between the wastewater and settled sludge are prolonged, and the wastewater comes into contact with the microorganisms in the filter. The organic pollutants in the wastewater are biologically broken down and digested, effectively achieving the purification and treatment of the wastewater.
Septic Tank Parameters
Model | Material | Unit Weight（kg） | Thickness(mm) | Height(mm) | Valid Volume(m3) |
600L | PE | 33 | 4.5 | 785 | 0.6 |
1000L | PE | 42 | 4.5 | 1000 | 1 |
1500L | PE | 56 | 4.5 | 1030 | 1.5 |
Product Features

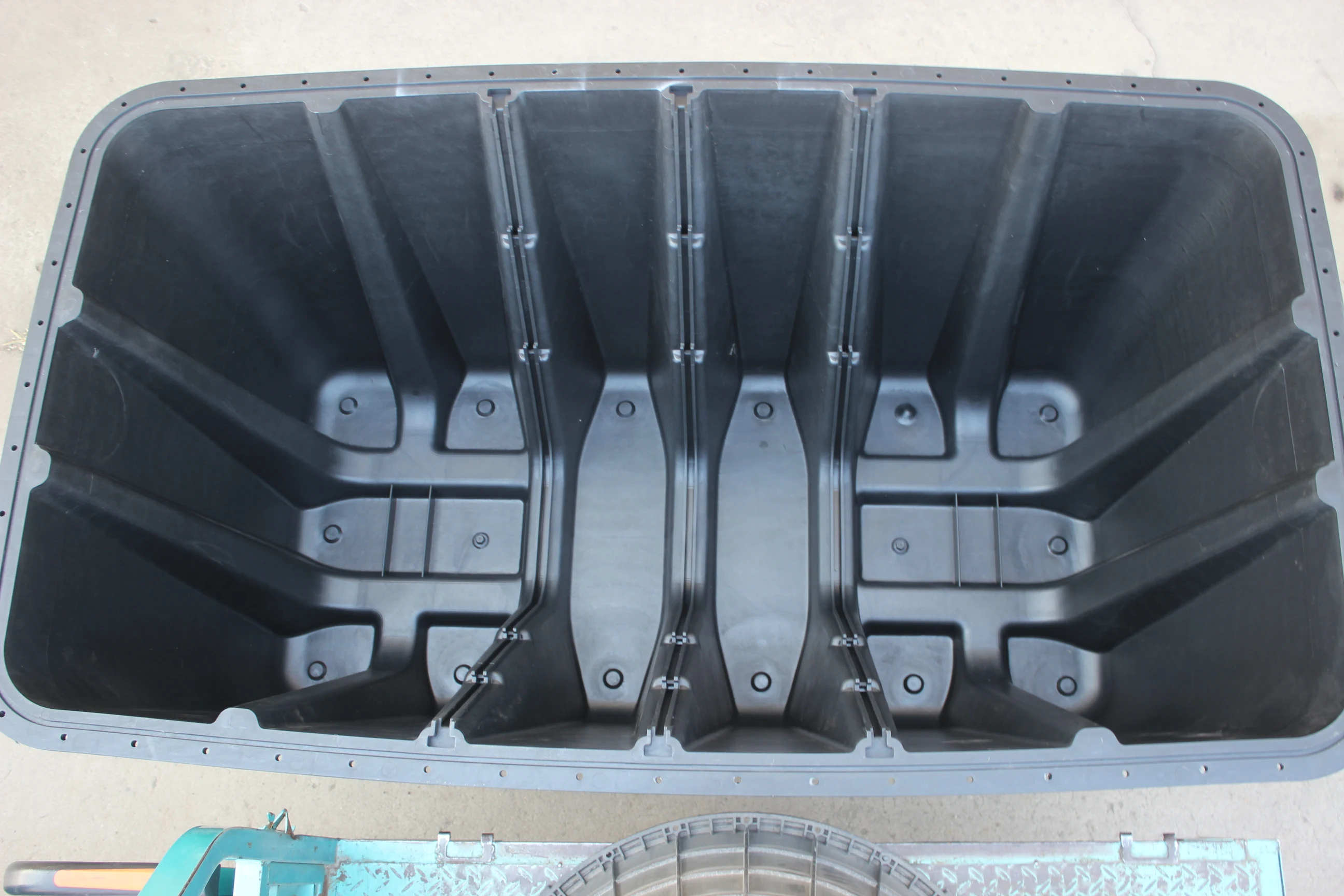

Internal Structure
Innovative Structure:
primary anaerobic chamber, andsecondary anaerobic chamber
Internal Structure
14 vertical columns for three-dimensional support, providinggreater stability and resistance tocollapsing
Load-bearing Capacity
Square structure with load-bearingfeet extending outwards, offeringstronger weight-bearing capacityand suitability for deep burial.
Load-bearing Capacity
Sector-shaped baffles the greater the pressure, the tighter the seal, and less susceptible to deformation

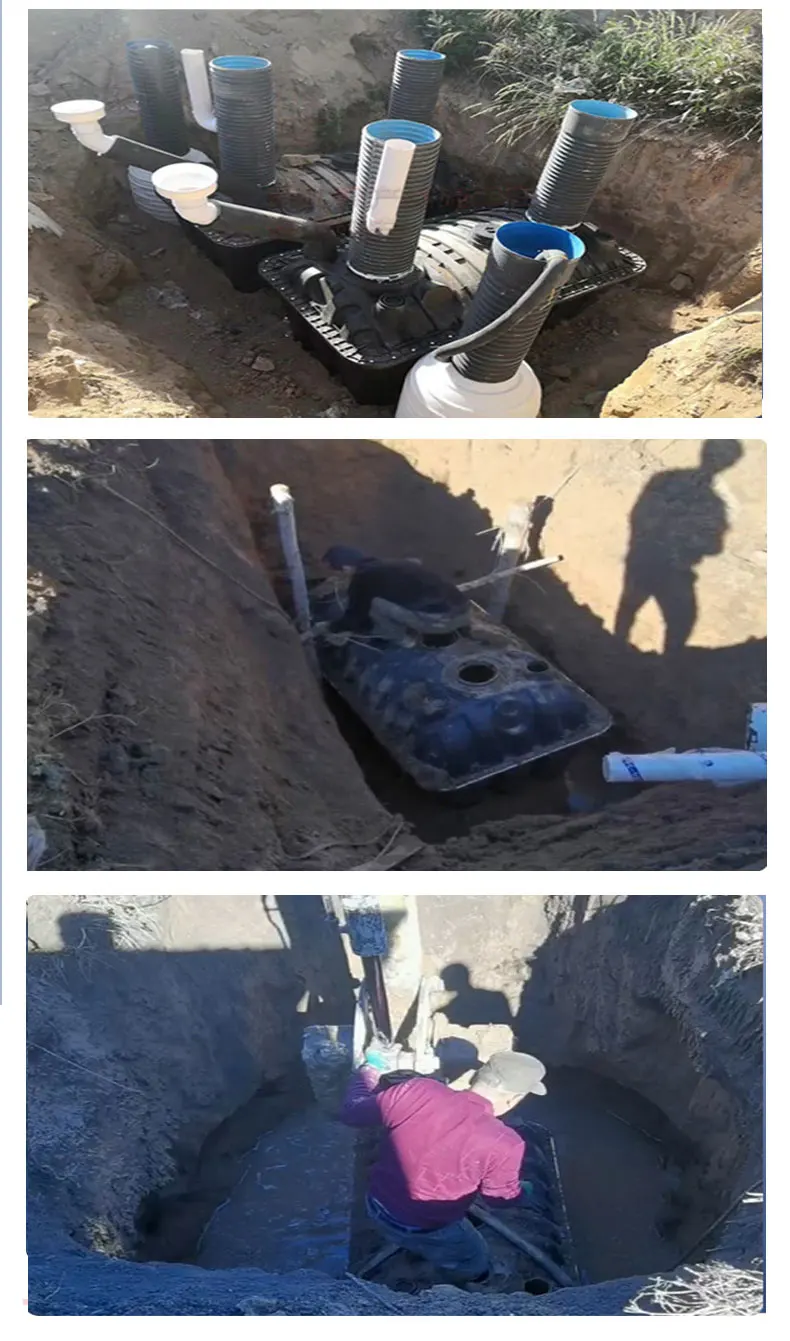

Construction Cases

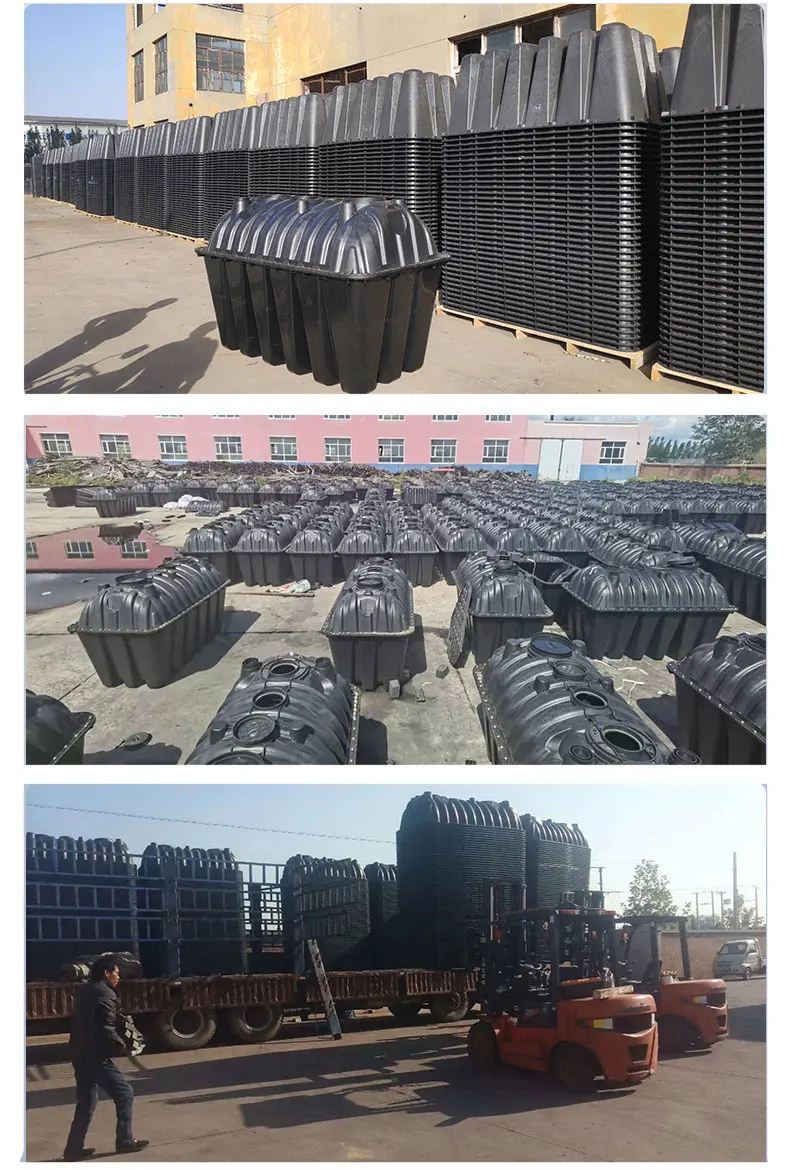

Juntai Company Strength
