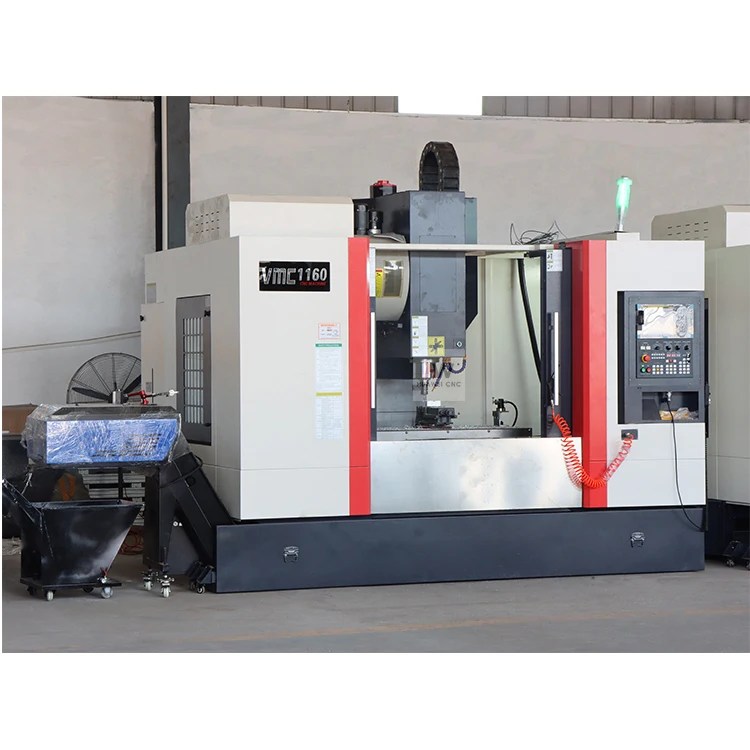

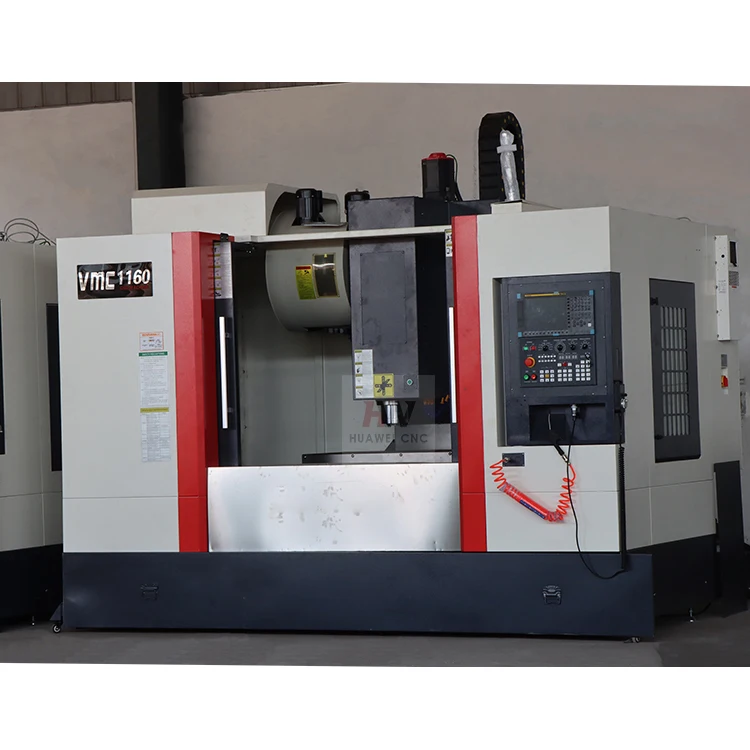

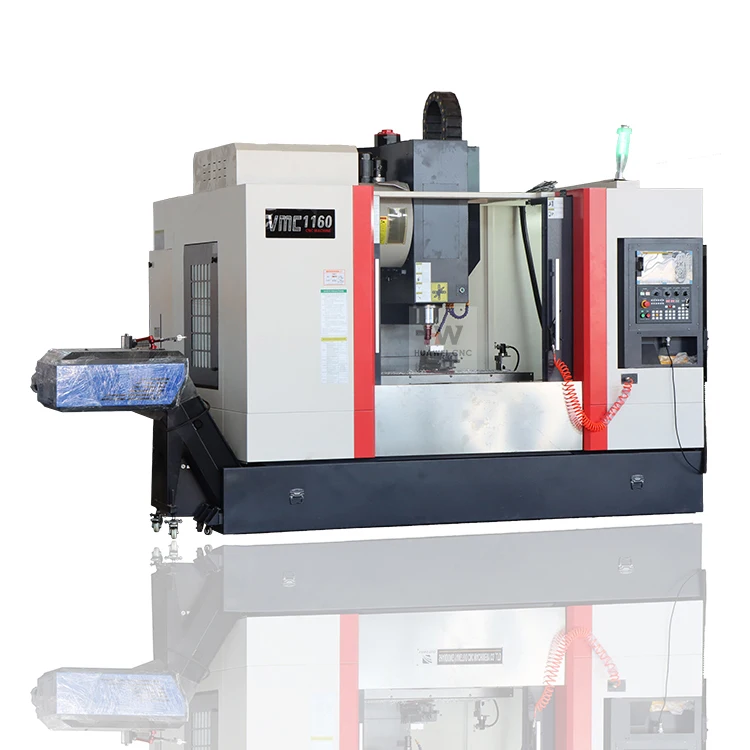

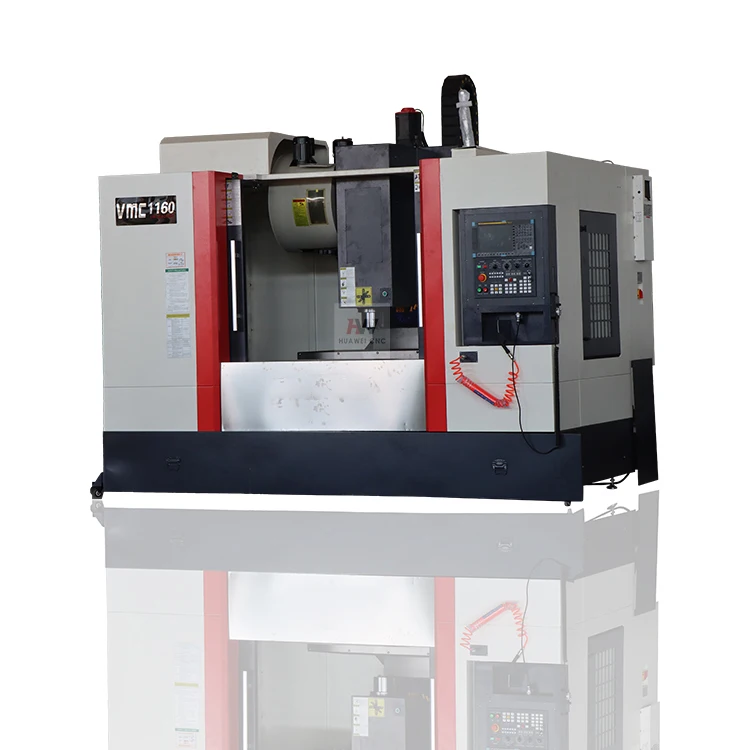

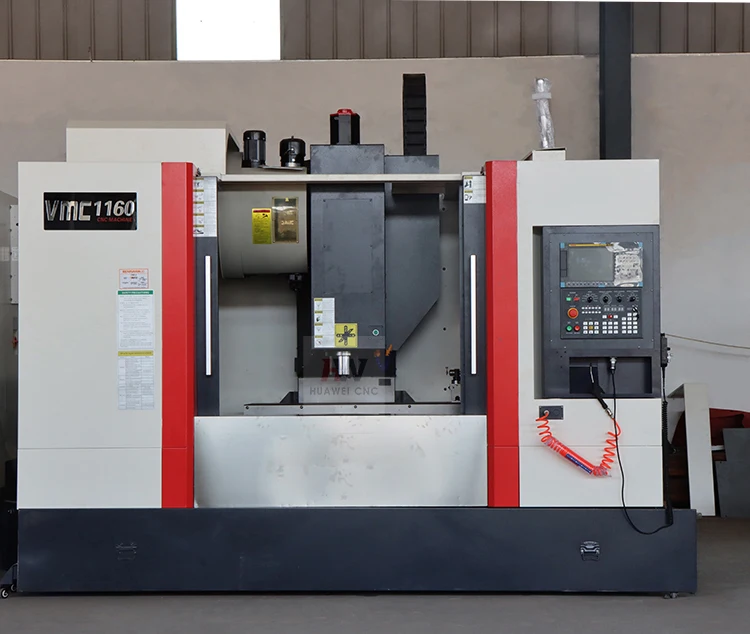

5 axis milling machine vertical cnc milling machine 5 axis VMC1160
- Category: >>>
- Supplier: Shandong Huawei Intelligent Equipment Co. Ltd.
Share on (1601015664154):
Product Overview
Description
Product Description
Good quality factory directly vmc 5 axis vmc 1160 taiwan vertical machining center
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Specifications | Units | VMC1160 |
Table size | mm | 1200x600 |
X axis travel | mm | 1100 |
Y axis travel | mm | 600 |
Z axis travel | mm | 600 |
Max. worktable load | kg | 850 |
T slot(number-width-pitch) | 5-18x100 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) |
Spindle taper | mm | BT40/150 |
Main motor power | kw | 11 |
X/Y/Z rapid traverse speed | m/min | 48/48/36 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | Linear rail | |
Distance from spindle axis to column surface | mm | 650 |
Distance between spindle nose and worktable surface | mm | 120-720 |
Positioning accuracy | mm | ±0.01 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | Arm 24 | |
Max.tool weight | kg | 15 |
Machine weight | kg | 6800 |
Overall dimension | mm | 3260*2450*2700mm |
Related Products
FAQ
1.How to send my enquiry? You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype)
. 2 . How can I choose the most suitable machines? Please tell us your requirement of the machine, or you can also send us the
products drawing, our engineer can help to choose the best model for you.
3: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling
Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine,Radial Drilling Machine ,Sawing Machine ,Shaper machine and
so on .
4: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at
sight .
5.Check the acceptance When receiving the goods, please check product carefully: Whether there is packing damage, leakage and
whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine
If there is any problem about machine, please take pictures and contact us immediately.
6.OEM Service We accept purchase orders with customers' brand or trade mark.
. 2 . How can I choose the most suitable machines? Please tell us your requirement of the machine, or you can also send us the
products drawing, our engineer can help to choose the best model for you.
3: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling
Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine,Radial Drilling Machine ,Sawing Machine ,Shaper machine and
so on .
4: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at
sight .
5.Check the acceptance When receiving the goods, please check product carefully: Whether there is packing damage, leakage and
whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine
If there is any problem about machine, please take pictures and contact us immediately.
6.OEM Service We accept purchase orders with customers' brand or trade mark.
