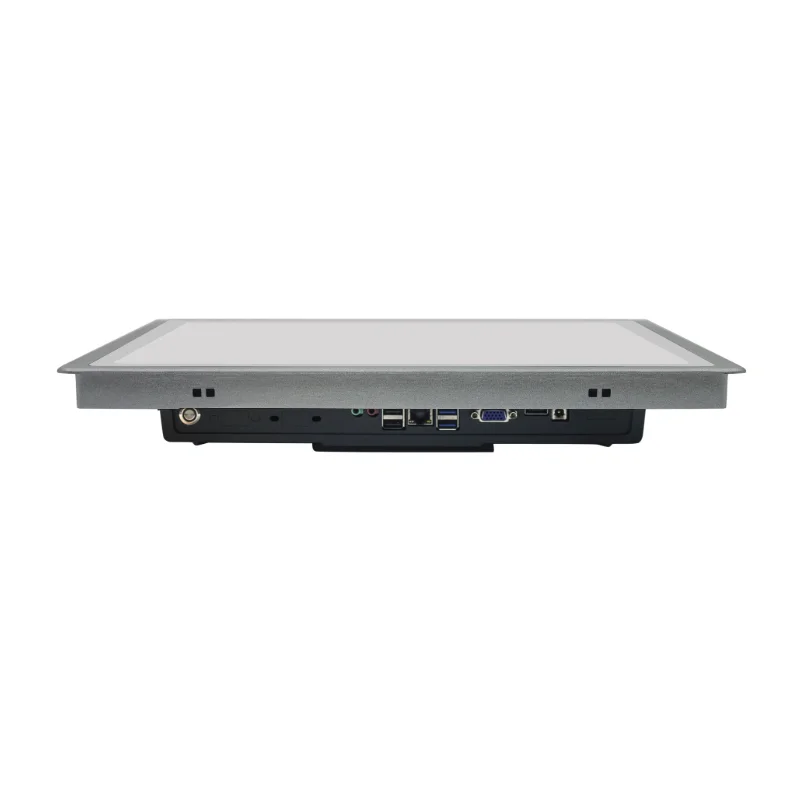

HUGEROCK PTC17A Open Frame Linux IP65 Business module Android usb cheap capacitive Industrial 17 Inch all in one Panel Pc
HUGEROCK PTC17A Open Frame Linux IP65 Business module Android usb cheap capacitive Industrial 17 Inch all in one Panel Pc
HUGEROCK PTC17A Open Frame Linux IP65 Business module Android usb cheap capacitive Industrial 17 Inch all in one Panel Pc
HUGEROCK PTC17A Open Frame Linux IP65 Business module Android usb cheap capacitive Industrial 17 Inch all in one Panel Pc
HUGEROCK PTC17A Open Frame Linux IP65 Business module Android usb cheap capacitive Industrial 17 Inch all in one Panel Pc
HUGEROCK PTC17A Open Frame Linux IP65 Business module Android usb cheap capacitive Industrial 17 Inch all in one Panel Pc
HUGEROCK PTC17A Open Frame Linux IP65 Business module Android usb cheap capacitive Industrial 17 Inch all in one Panel Pc

HUGEROCK PTC17A Open Frame Linux IP65 Business module Android usb cheap capacitive Industrial 17 Inch all in one Panel Pc

Share on (1601015706629):


Price:$310.00

Quantity:


Product Overview

Description







Hardware
CPU
Quad core Cortex-A17 1.8Hz
GPU
Mali-T764, Support AFBC, Support OpenCL ES 1.1/2.0/ 3.1, Open CL,DirectX 9.3
RAM
DDR-2G
Internal Memory
EMMC-8G
Safety
ARM TrustZone (TEE), Secure Video Path, Cipher Engine, Secure boot


Networking
WI-FI
WIFI-2.4G
BT
BT 4.1
Network
RJ45*1,100M

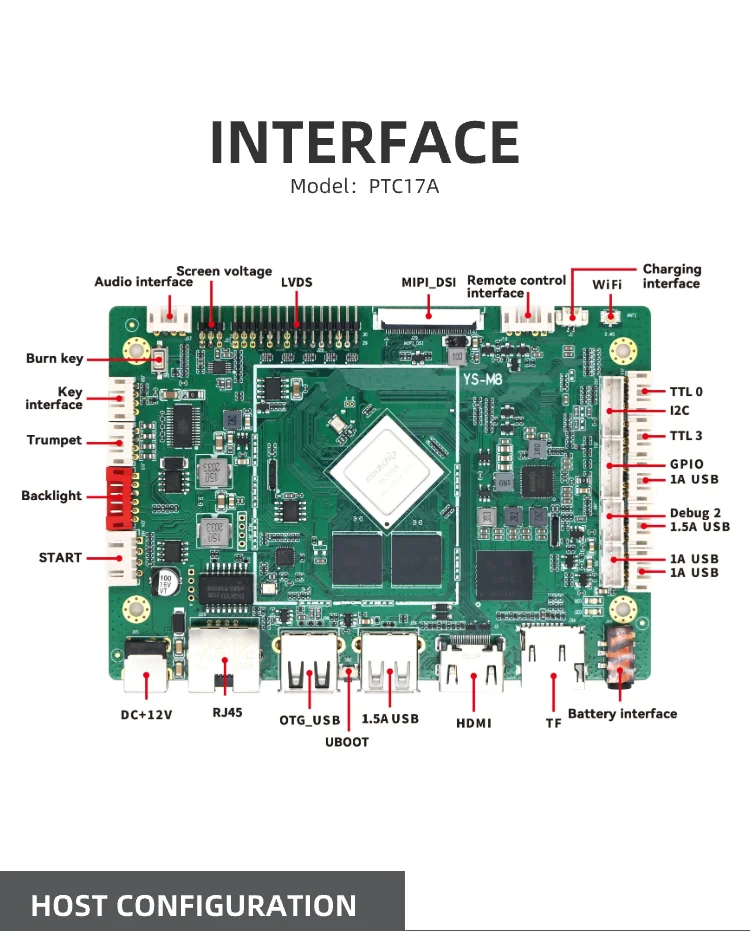

Mainboard backplane interface
Network interface
RJ45*1,100M
Audio input
Headset socket*1
Display interface
HDMI2.0*1, nax Resolution 4K@60Hz
USB
1.5A Host_USB*1, OTG_USB*1
External Memory
TF card*1


Motherboard onboard interface
I/O
TTL2, Debug serial port1, GPIO*4
Audio input
Speaker *1, Support a max of 8Ω 5W dual-channel speaker output, MIC*1
Display interface 1
LVDSx1(2x15 2.0mm Dual channel Dupont head, Max supported 1200*1920@60Hz)
Display interface 2
EDPx1 (2x15 2.0mm 24 bit Dual channel Dupont head, Max supported 1920x1080@60Hz)
Charging interface
Onboard power interface*1, Battery interface*1
USB
1.5A Host_USB*1, 1.0A Host_USB*1
Other interfaces
Remote*1, Red light*1, Green light*1


Optional/External Device
Camera
Sub Camera
Module
Barcode, NFC, RFID, Fingerprint identification
External Device
Keyboard, mouse, card reader, scanner, second display screen, external camera, relay


Certification/OS/Software

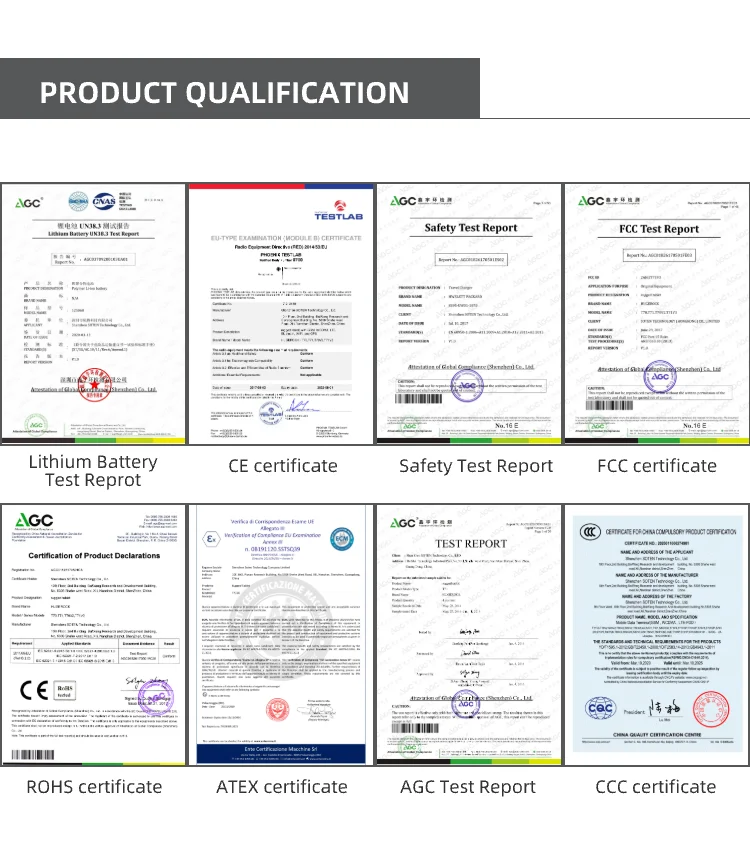

Certification
3C /FCC/CE/ROHS
Language
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc.
OS
Android 7.1/9/10


Industrial & Reliability Design
Dustproof/Waterproof
IP65 (IEC 60529)
Dropproof /IK
Procedure IV & Touch Panel IK05
Operating temperature
-20°C to 50°C
Storage Temperature
 -30°C to 80°C
Reliability
MTBF>5000h; MTTR<0.5h
RH
5% to 95%
Operating Altitude
Max: 4,500m (15,000 feet)


Package/Warranty terms/OEM
Warranty
12 months

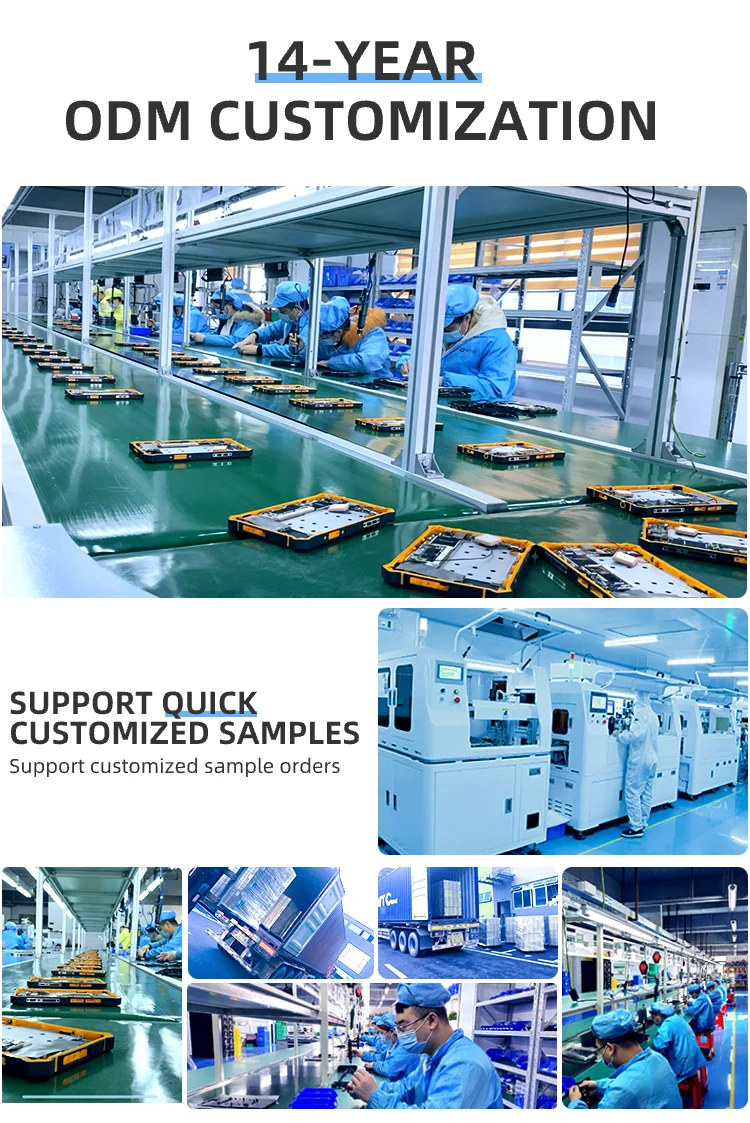

OEM/ODM
Support

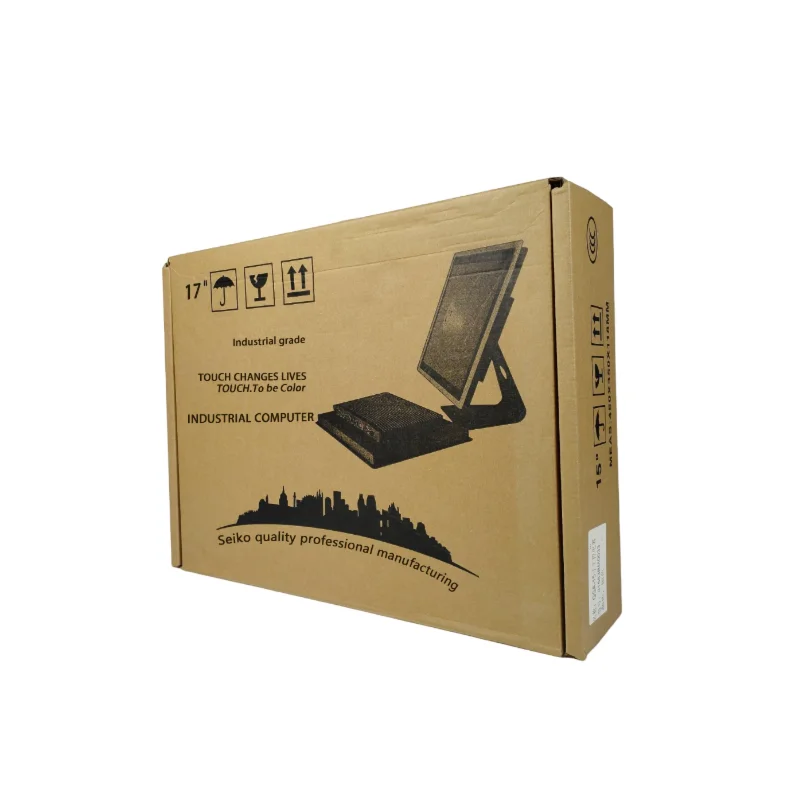

Package
Power Adapter*1 /Introduction manual*1/Packing box (Can be customized logo)*1

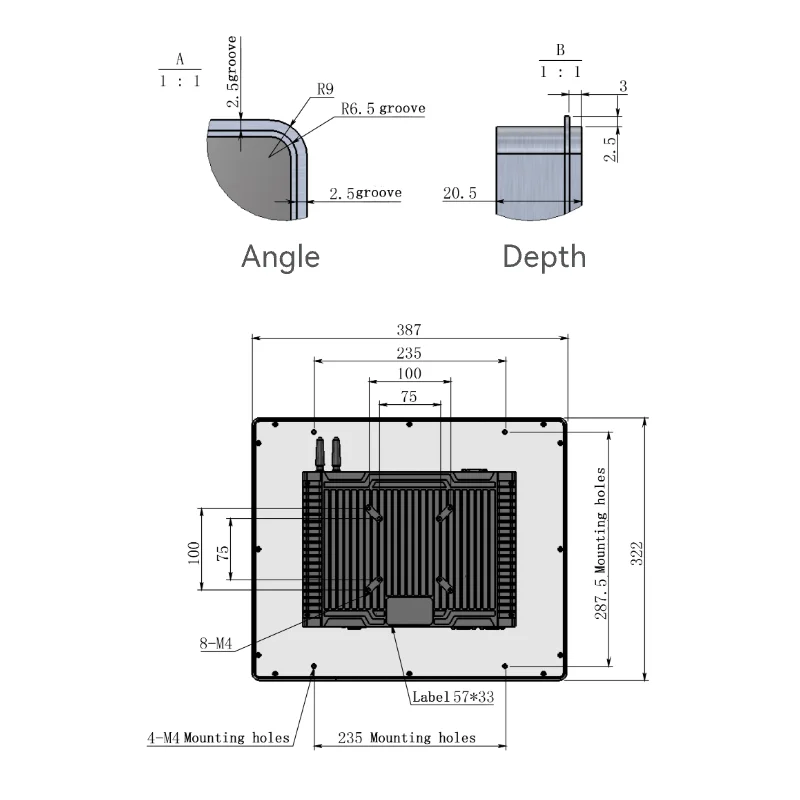

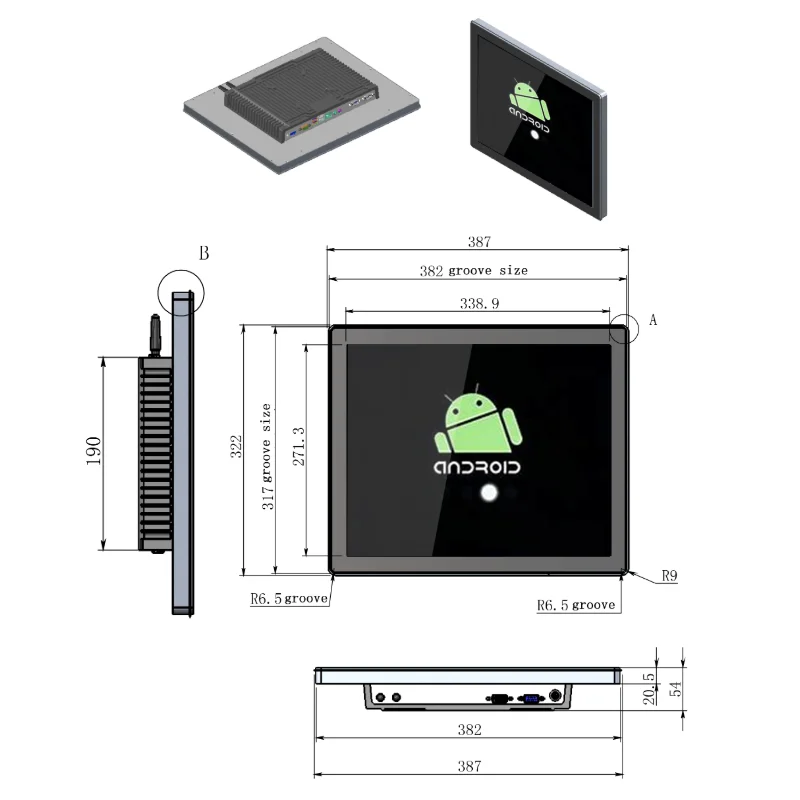

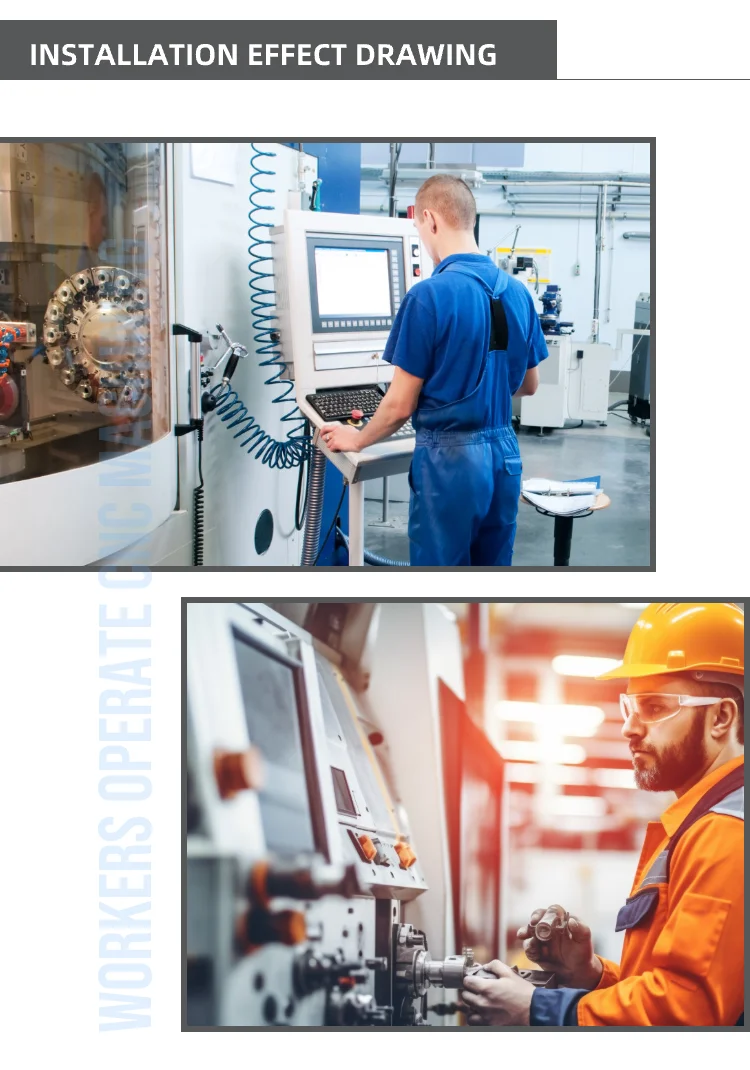

Instalar
Built-in buckle, built-in panel, wall mount bracket, left base, VESA standard interface














Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.

Q:What payment methods your company accept?
A:We accept most
ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.

Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.

Q: Why should you buy from us not from other suppliers?
A:Shenzhen Skyworth AI Technology Co., Ltd., located in Shenzhen, Nanshan district.our main products are:
Intelligent interactive whiteboard, Digital signage, advertising player, video wall, LCD LED TV etc. we have our own designers and CNC machine, this makes us supports customized design.

Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.

Q:Can I apply to be your agent?
A:Sure,we are looking for long term business cooperation.
