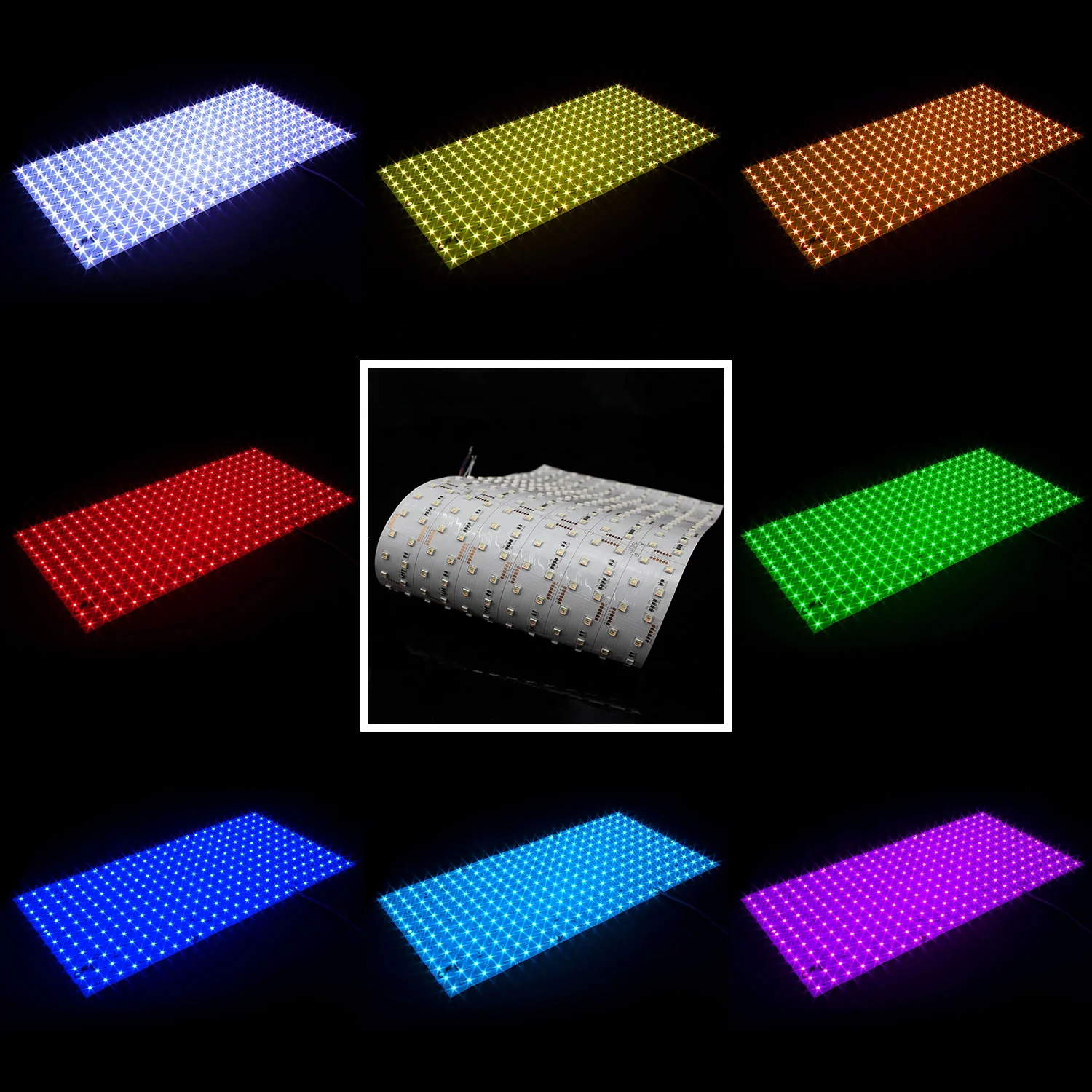

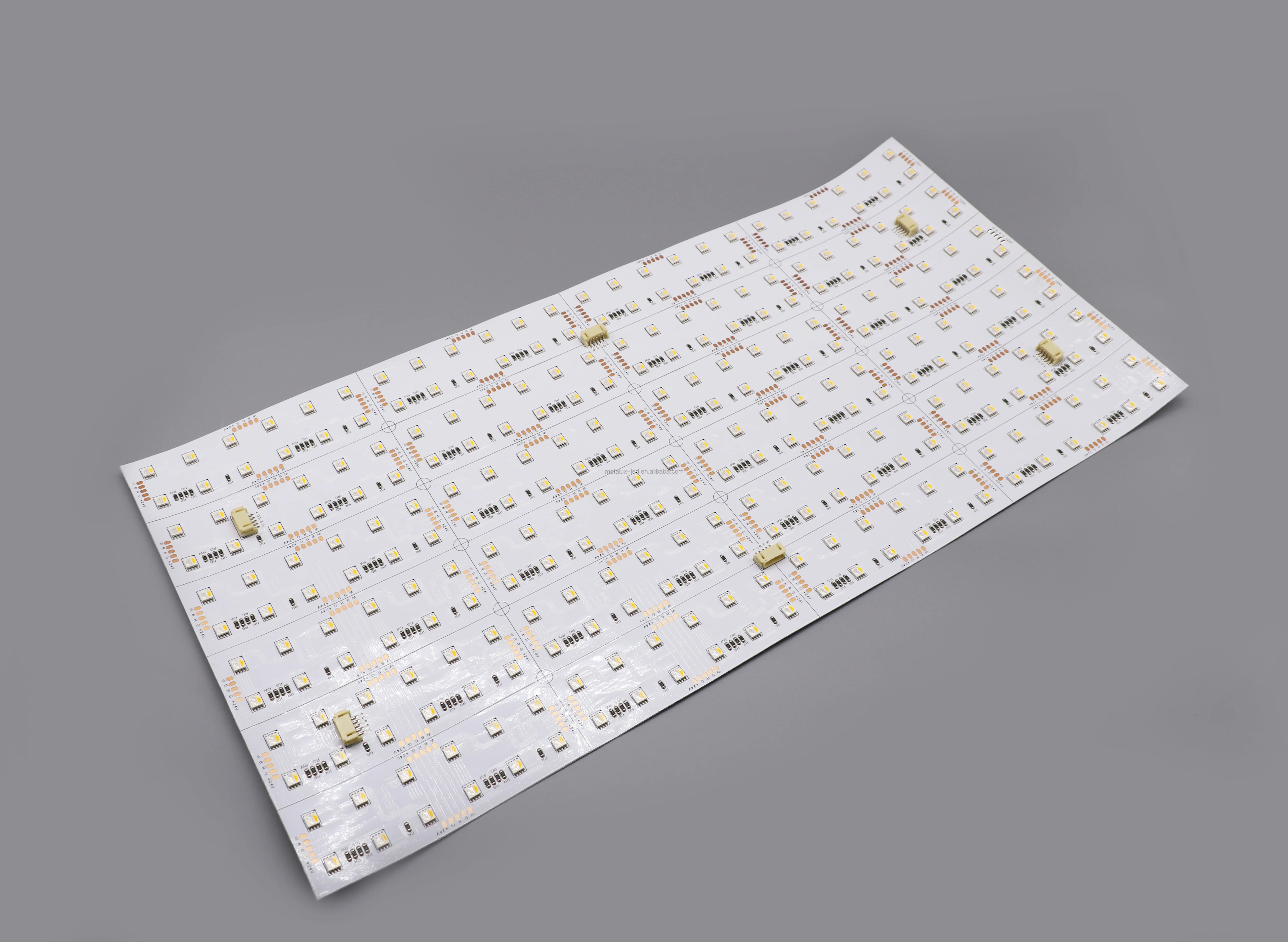

Dc24v Rgbw & Cct Soft Led Panel Color Changing Flexible Easy Cut For Diy Shapes Letter Lights Soft Led Panel Sheet
- Category: >>>
- Supplier: Guangdong Metalux Led Limited
Share on (1601015721702):
Product Overview
Description
Products Description

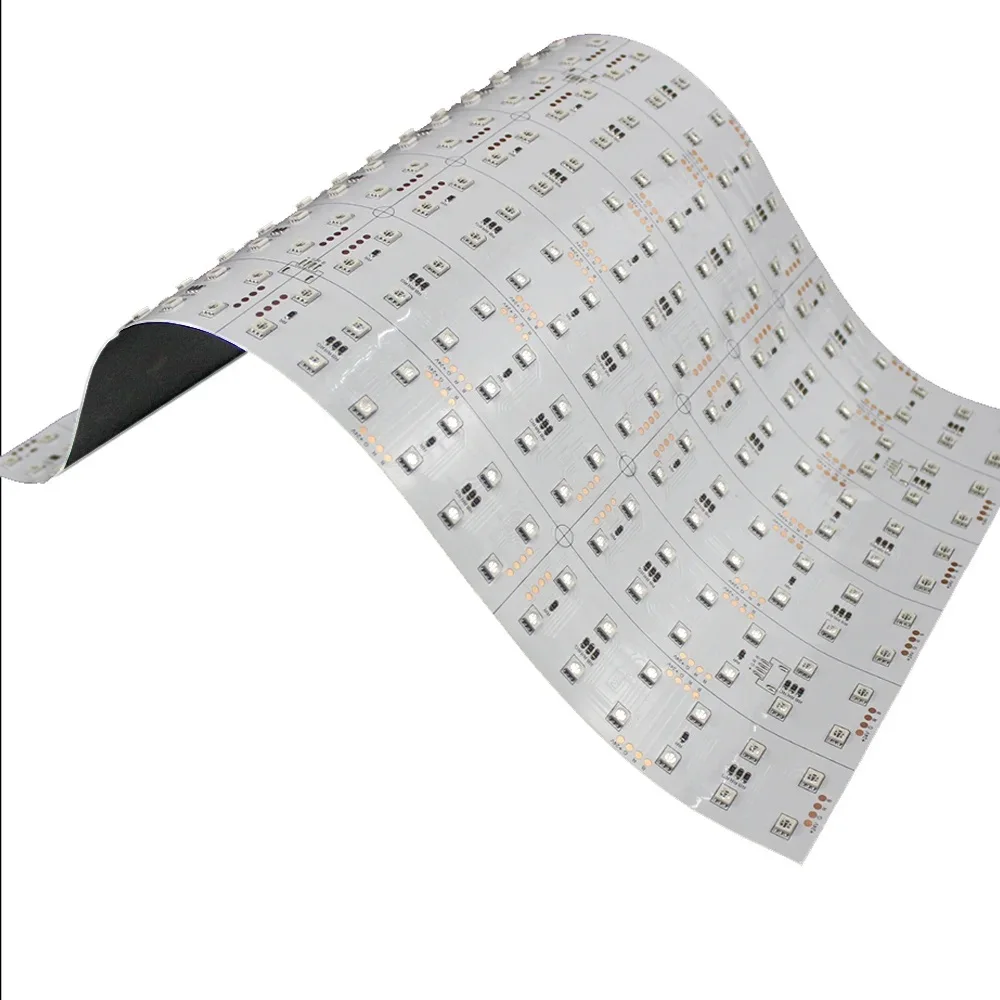

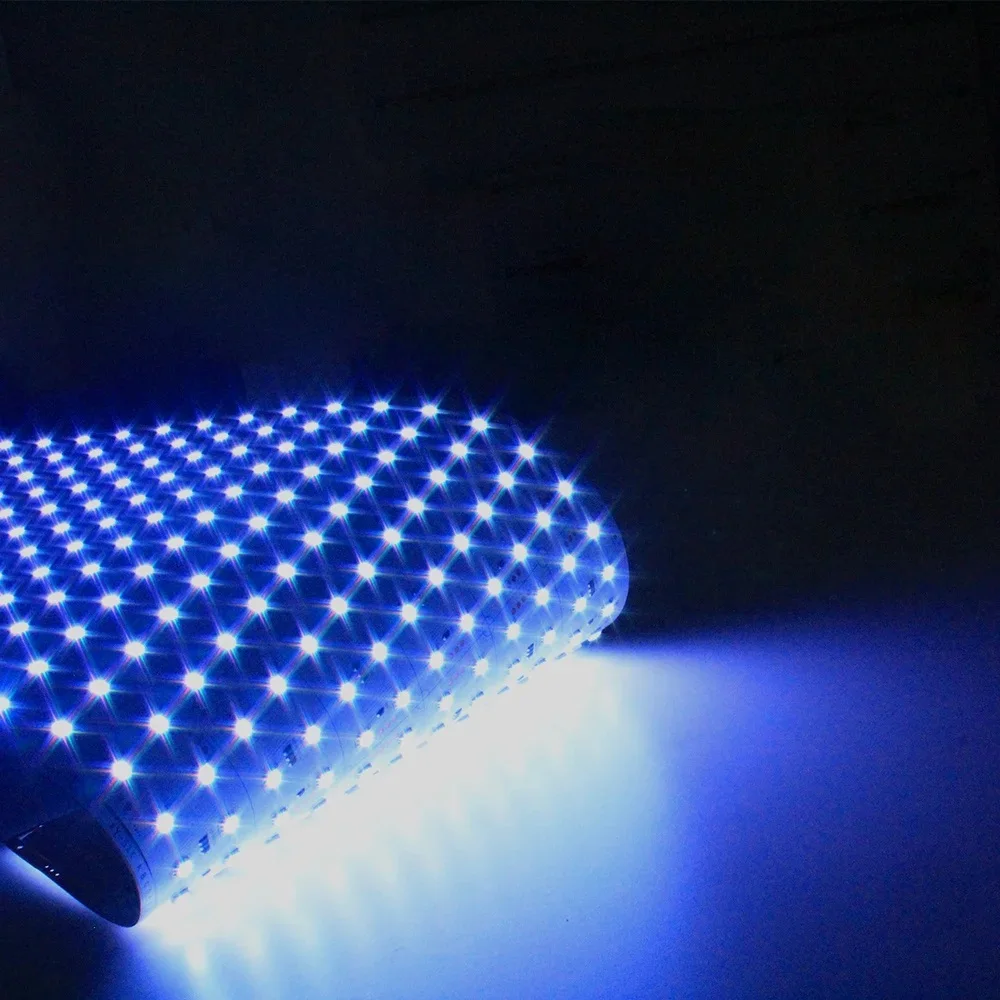

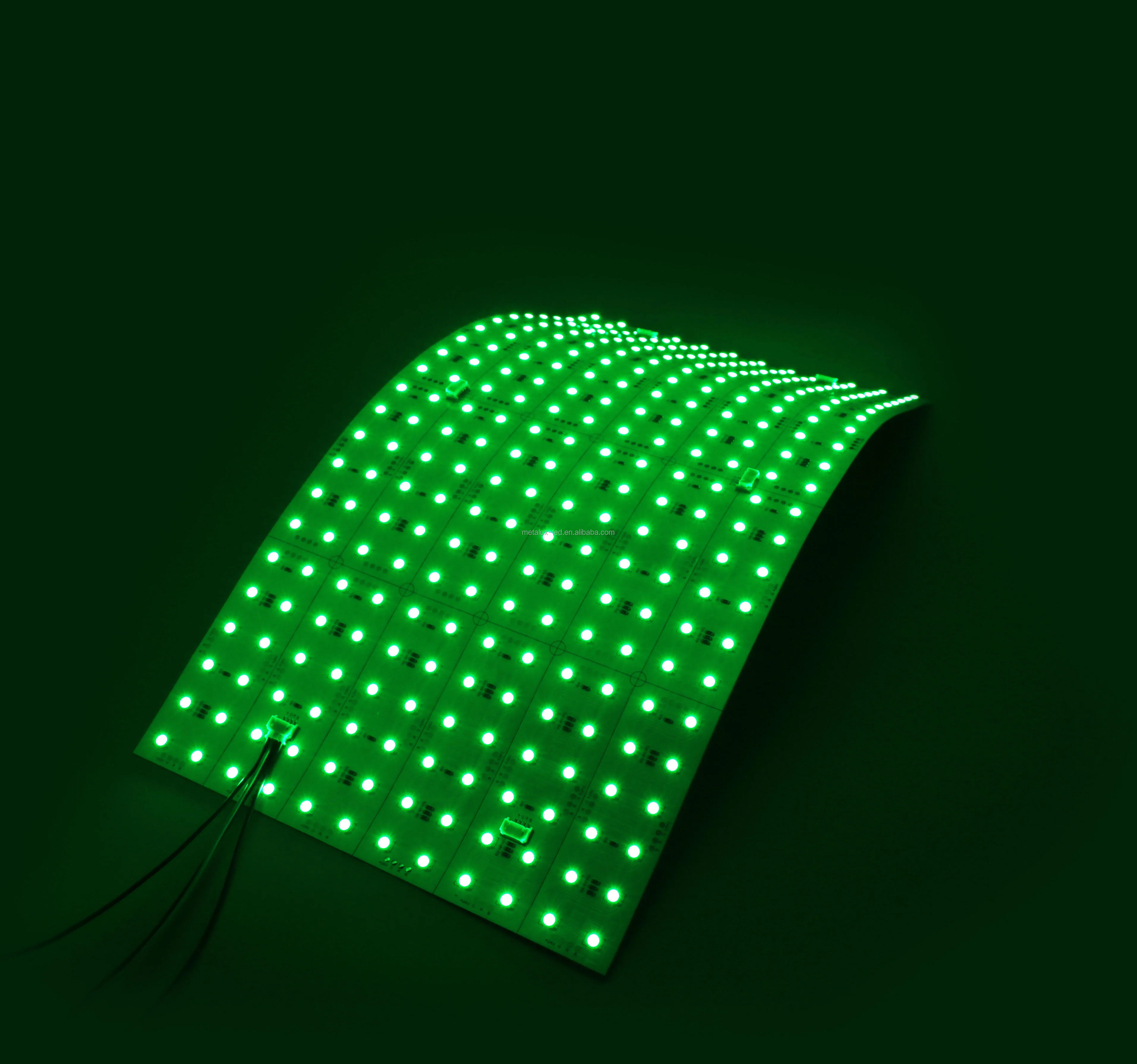

Flexible LED Sheet Light
※High color consistency, 3 Step Macadam
※High CRI, Ra>90 / Ra>95
※1800K~6500K/Red/Green/Blue/Yellow/Amber/Pink and other custom CCT available
※Dual color, multi color and addressable RGB available
※More than 50000-hour lifespan
※More than 50000-hour lifespan
※All of Materials Are Accord With RoHS & CE & EMC & ERP2.0 & REACH & FCC & ETL.
※As a manufacturer, we can customize different sizes, voltage, power, color temperature and color rendering index according to customers' requirements.
Metalux LED Limited Flexible LED Sheet Light Parameters | ||||||||
Part Number | YQ-LS5050V24 | |||||||

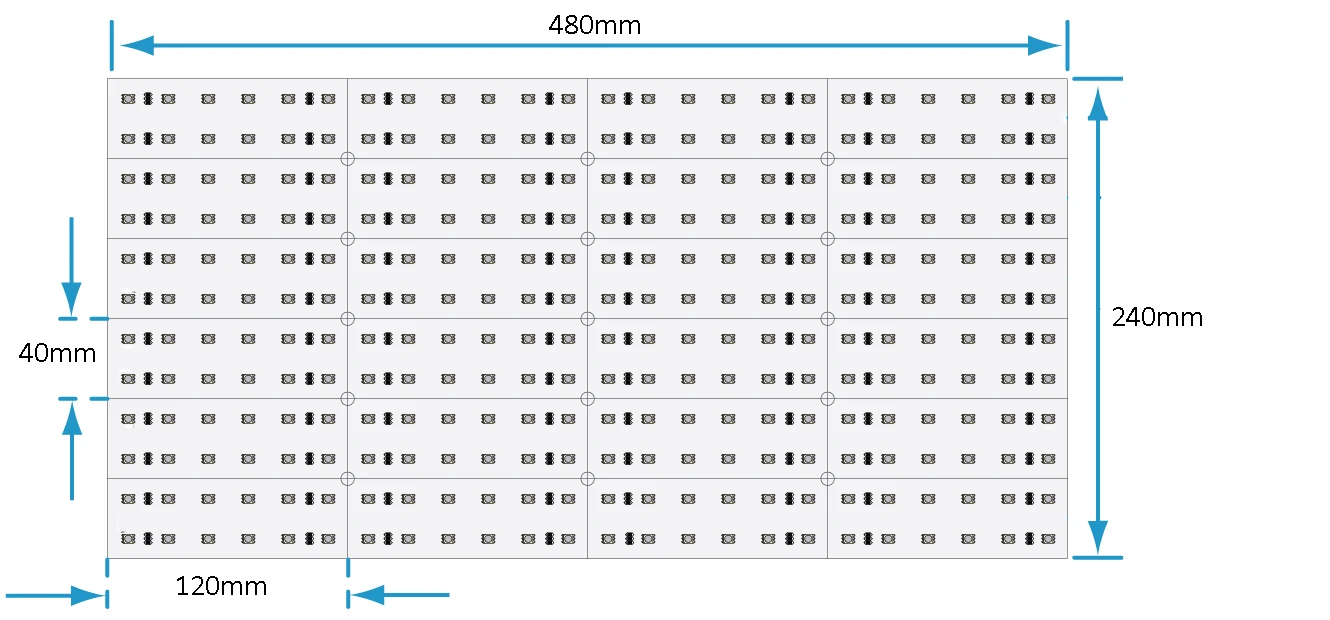

Size ( Length * Width) | 480mm × 240mm | |||||||
LED Quantity | 288 LED | |||||||
PCB & Color | 3OZ & White board | |||||||
Cutting Unit | 120mm × 40mm (12LEDs) | |||||||
Input Voltage | DC24V | |||||||
Power | 60W | |||||||
Beam Angle | 120 ° | |||||||

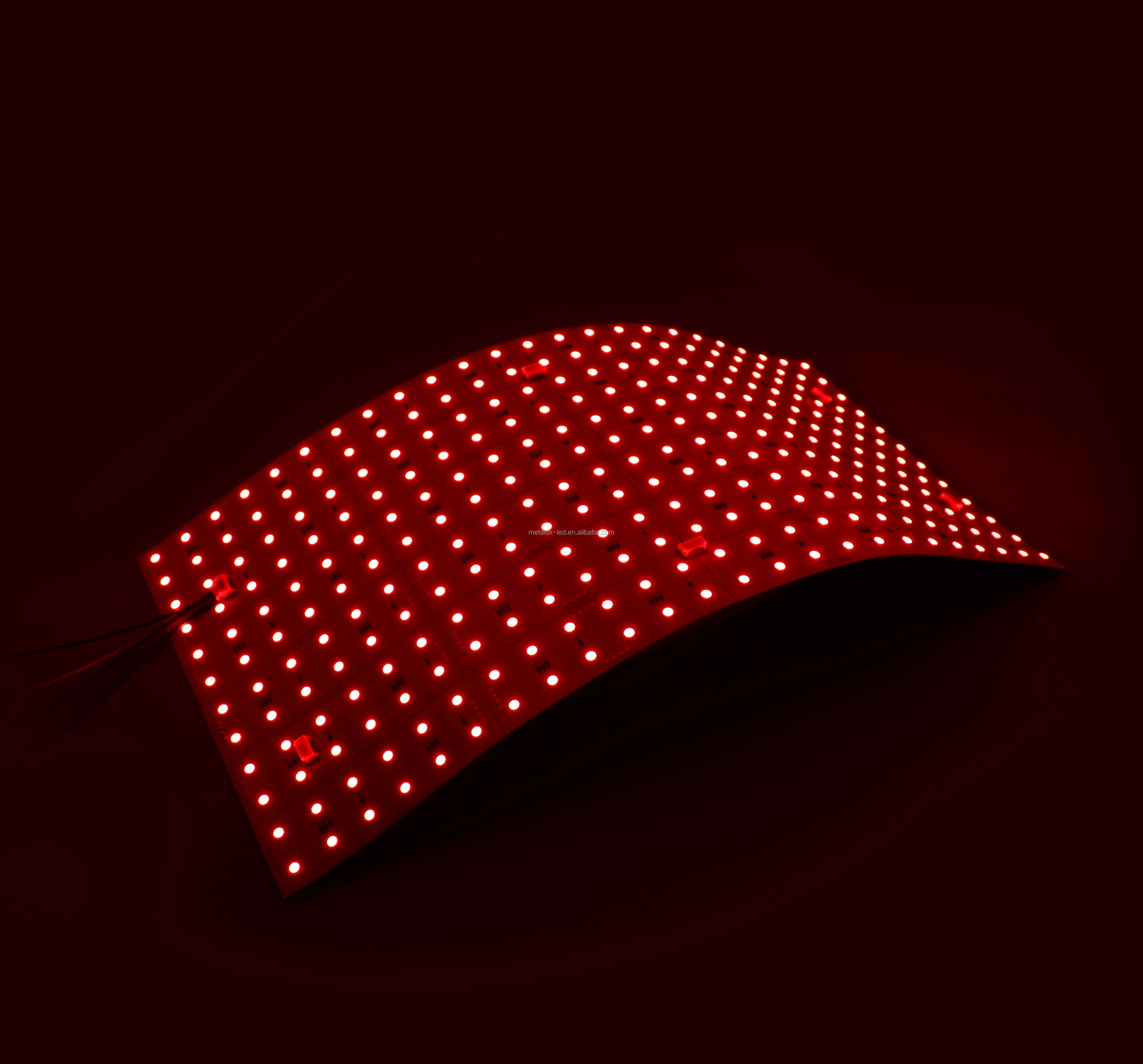

Color | Red & Green & Blue&White | |||||||

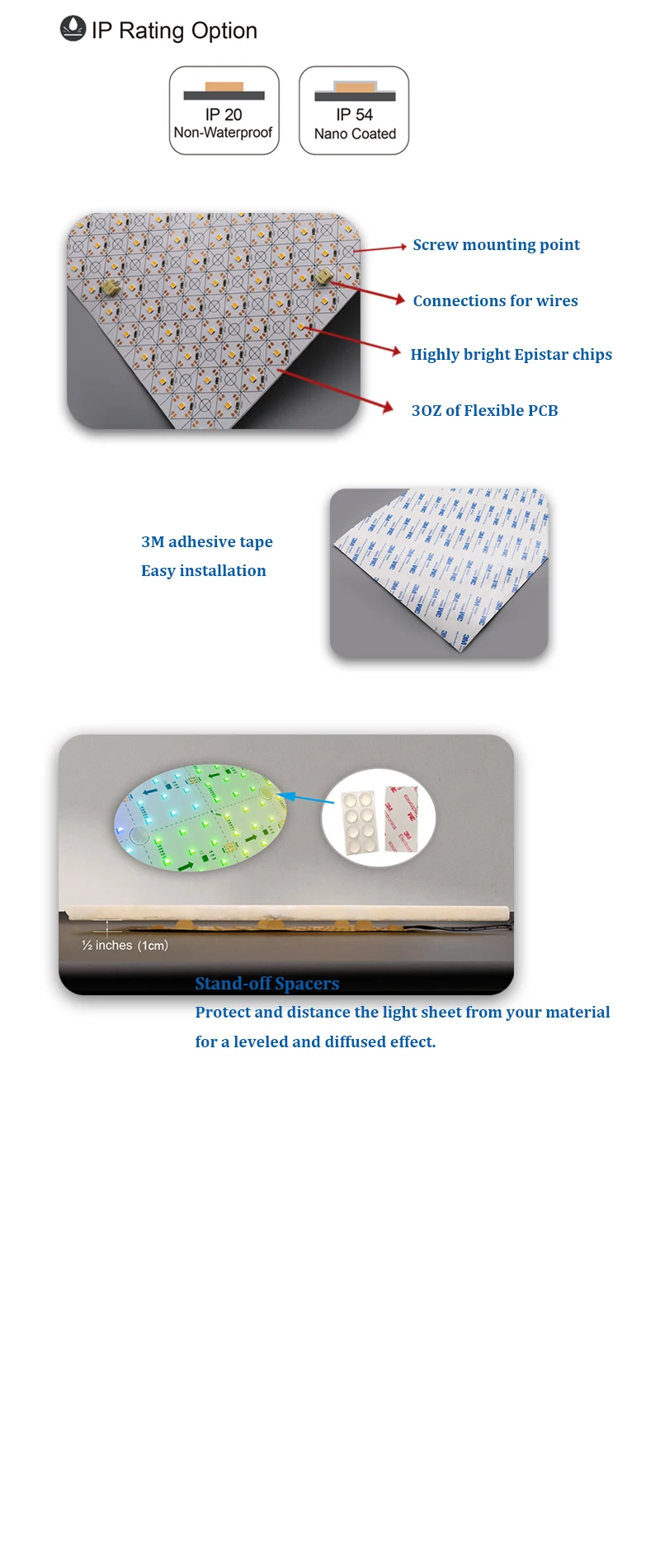

IP Grade | IP20-non waterproof | |||||||
Operating Temperature & Beam Angle | -25 to 45 ℃ & 180 ° | |||||||
Cetification | CE & LVD & EMC & RoHS & REACH & ERP2.0 & FCC & ETL | |||||||
LED Type | SMD5050 | |||||||
Package Bag Size | 510mm × 300mm | |||||||
Package Carton MEAS | ||||||||
Gross Weight | 0.2kg per piece | |||||||

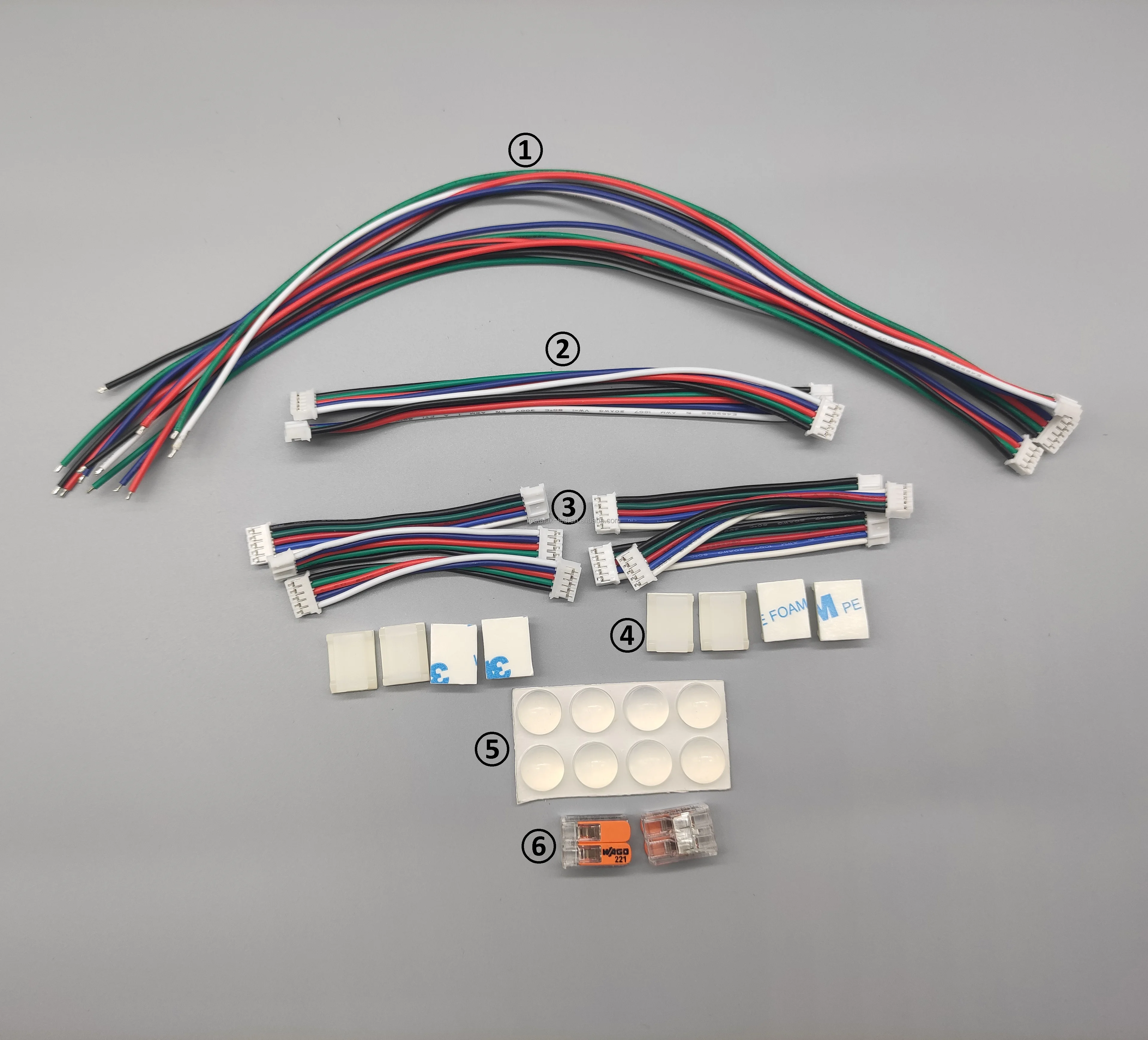

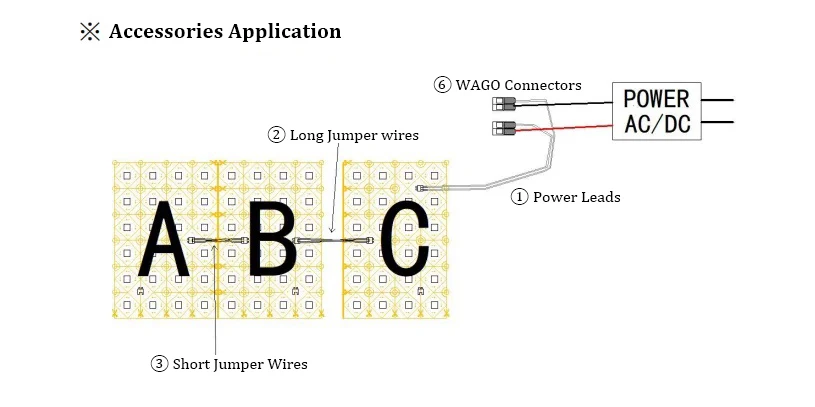

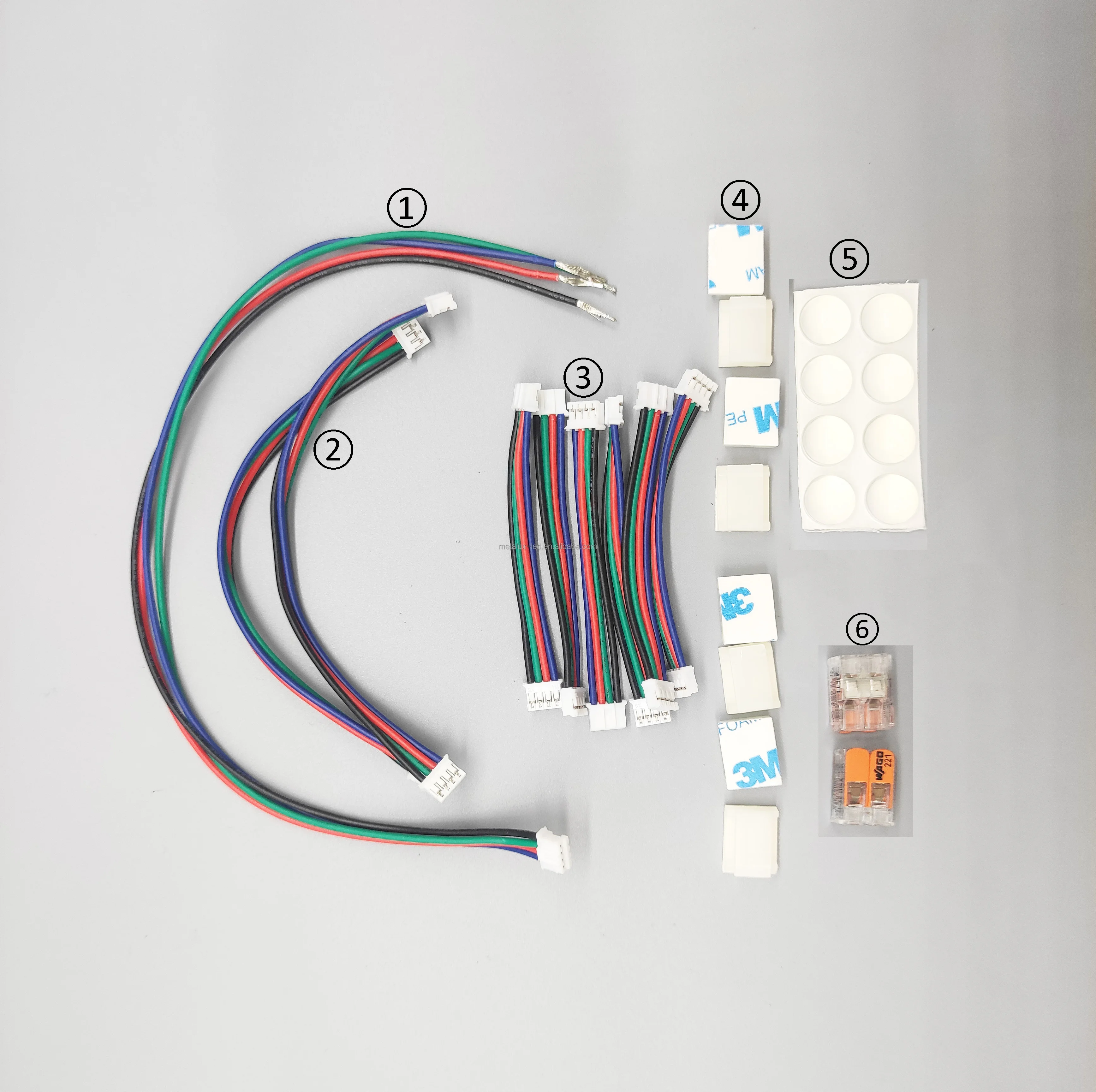

Accessories
① Power Lead
② Long Jumper Wire
③ Short Jumper Wire
④ Cable Management Clip

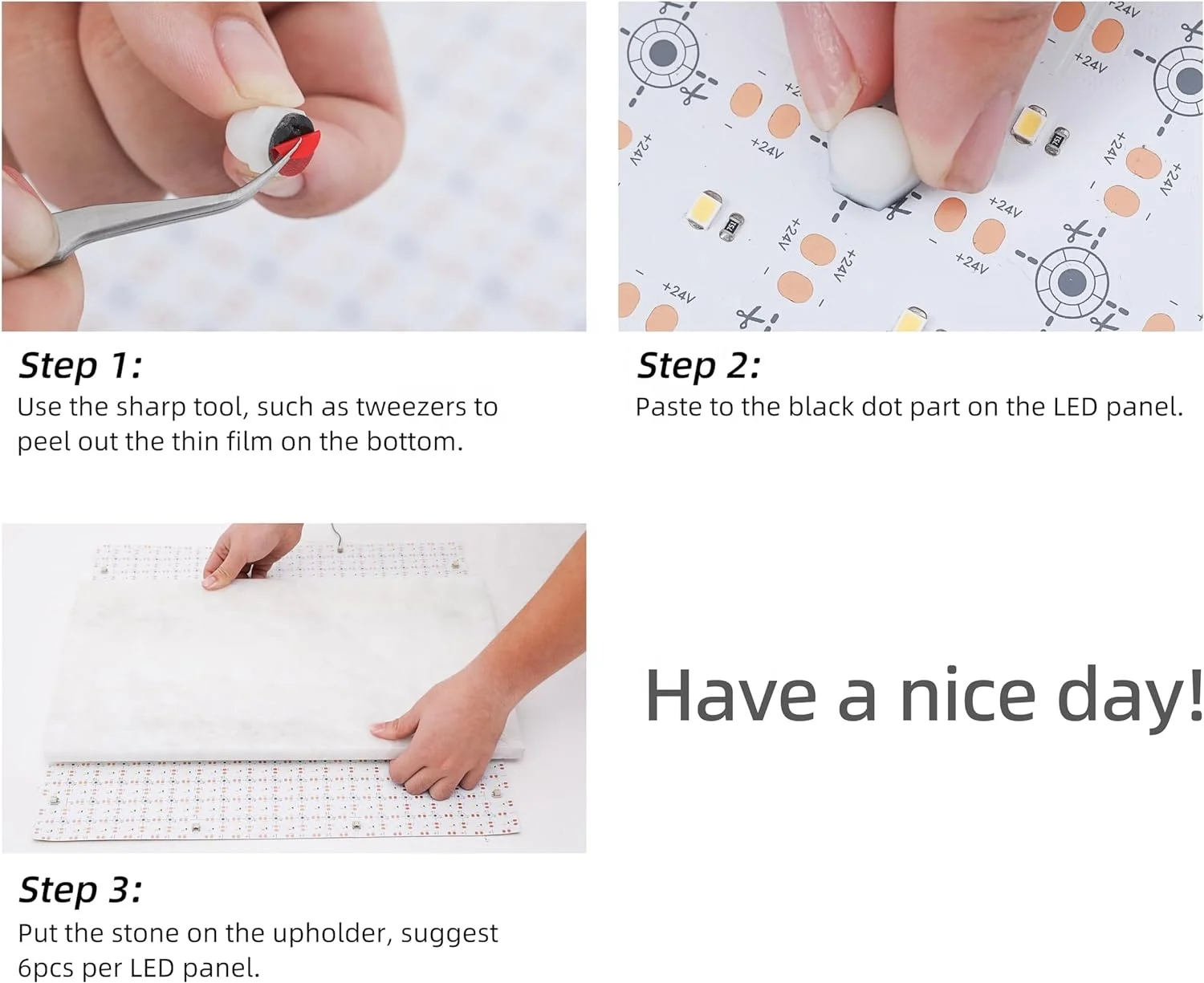

⑤ Stand-off Spacer
⑥ WAGO Connector
② Long Jumper Wire
③ Short Jumper Wire
④ Cable Management Clip
⑤ Stand-off Spacer
⑥ WAGO Connector
PRODUCT FEATURE
Cut
Flexible LED sheets can be cut into small units along cutting lines of different directions allowing on-site
DIY, which shortening the lead time
of custom orders.
Fold

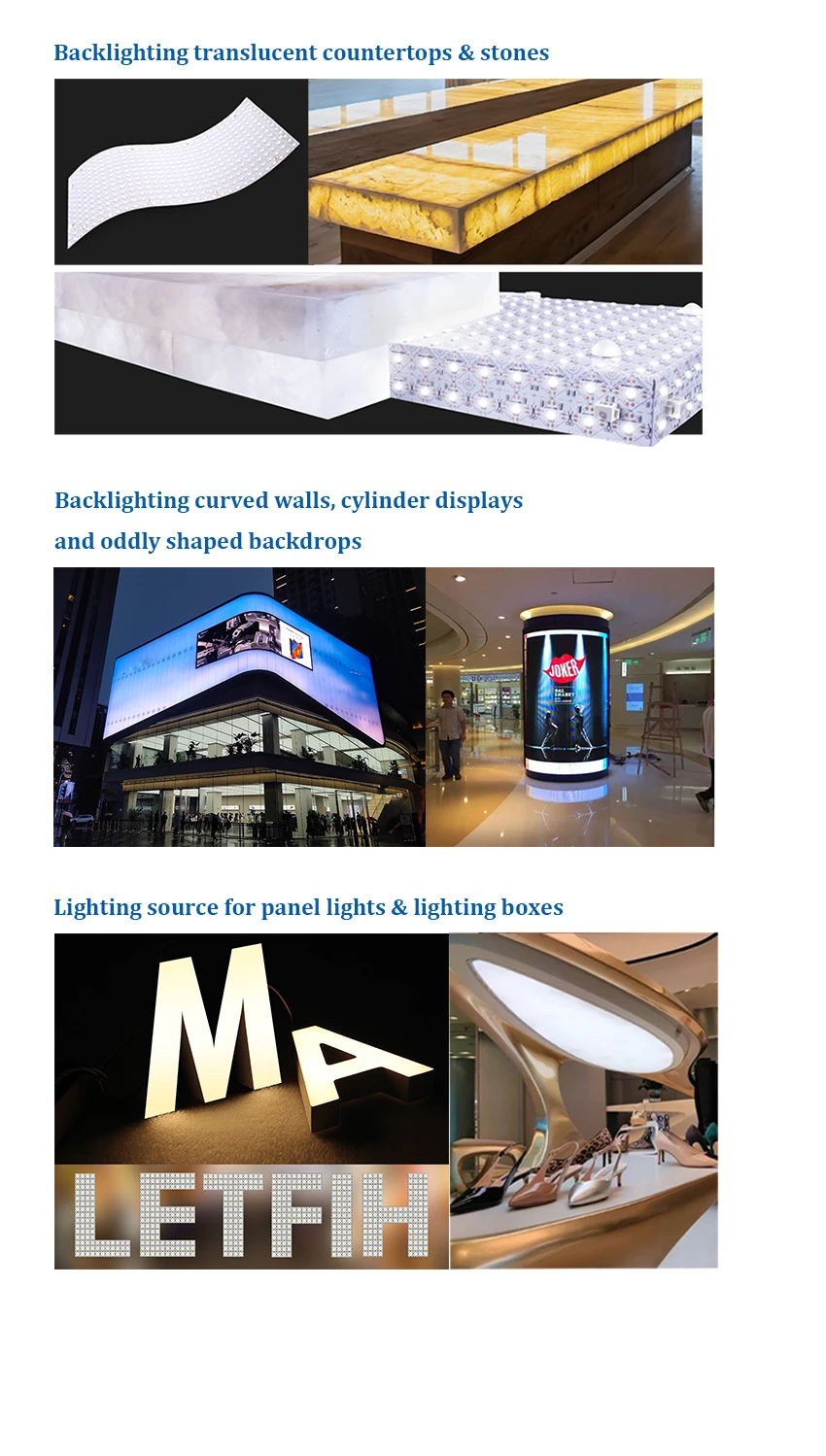

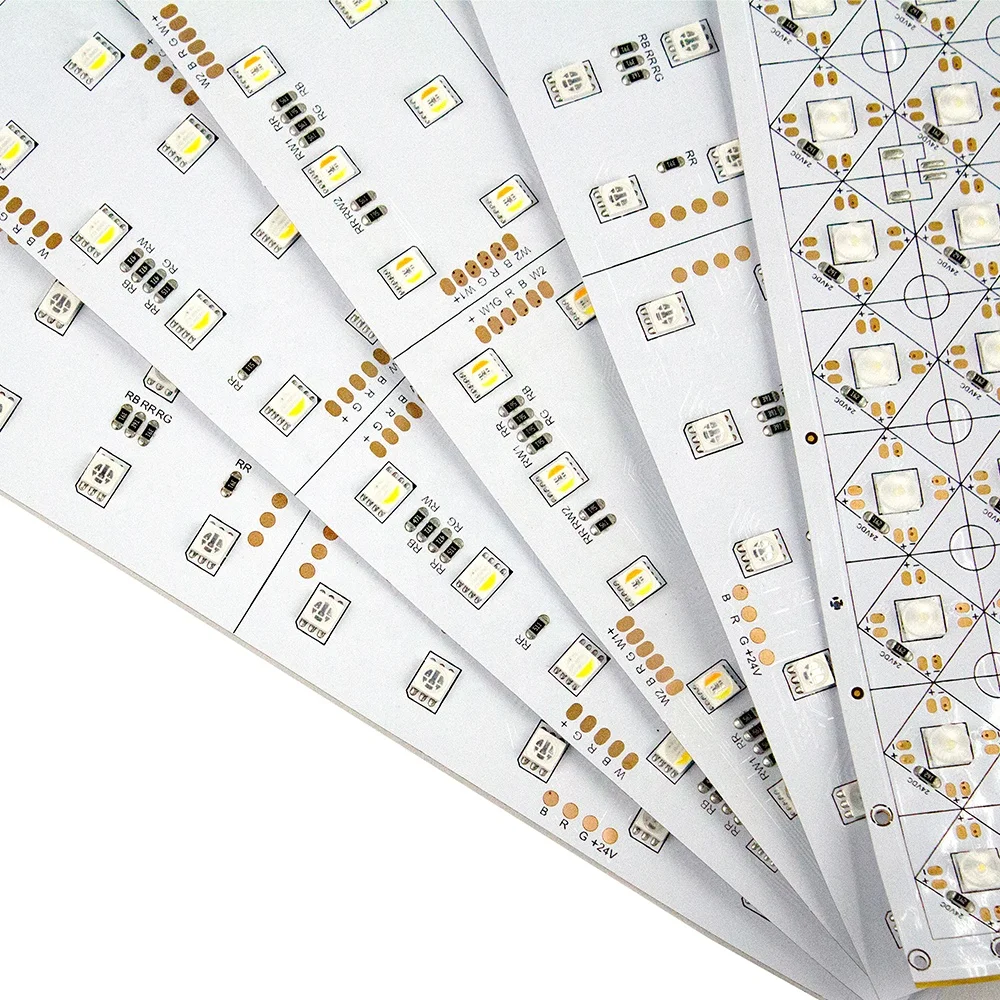

The Flexible Circuit Board (FCB) can bend along both axes and diagonally to fit various irregular shapes performing seamless and uniform backlighting effects for translucent materials.
Connect

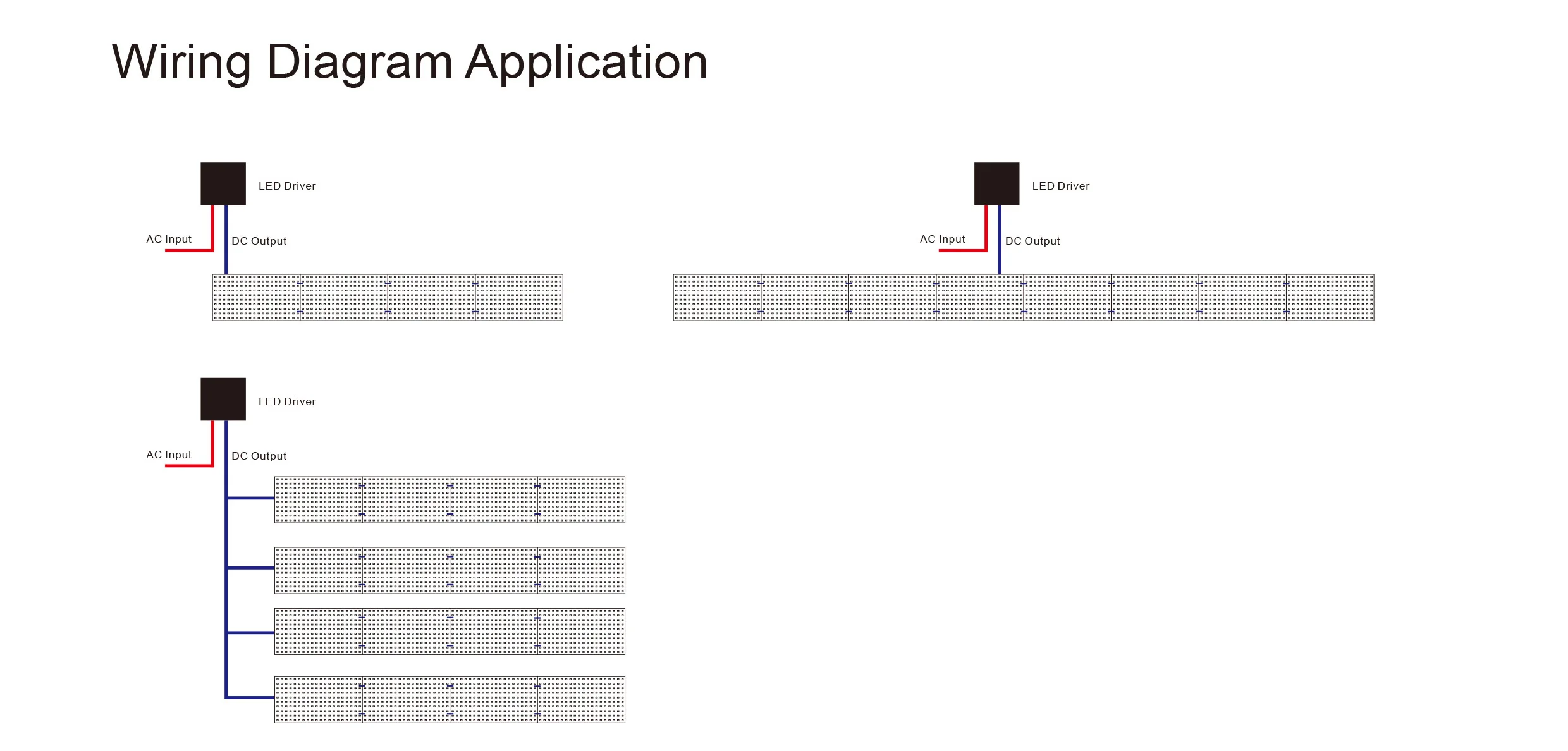

Each side of LED flexible sheets have connectors for jumper wires to interconnect quickly and easily eliminating the need to solder and thus speeding installation.
Color Temperature Customization
SDCM & Binning
Spectroscopic standard of Metalux LED Limited
Complying with international ANSI standard, Metalux divides every CCT into 2 or 3 bins, which is as
small as 2-step, to ensure customers to get the same color even for different orders.
Complying with international ANSI standard, Metalux divides every CCT into 2 or 3 bins, which is as
small as 2-step, to ensure customers to get the same color even for different orders.
SDCM <3, no visual difference between the same batch of products.
Customer-specific Bin management.
Always the same Bin for different batches.
One bin, 3-step. No visual difference forever.
Always the same Bin for different batches.
One bin, 3-step. No visual difference forever.
Color Application Guidelines
Packaging & Delivery
Delivery Time
※ SMD LED Strip delivery time will need 5-7days for normal orders.
※LED Sheet delivery time will need 5-7days for normal orders.
※ LED Module delivery time will need 3-5days for normal orders.
※ Aluminium Profile delivery time will need 3-5days for normal orders.
Remark: The delivery dates mentioned above are all in stock. For special products, please ask the customer service who serves you 24 hours a day.
FAQ
1. What is the main market for METALUNX Lighting?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new BENLED Lighting. We are also optimistic about the markets for other American and Asian regions.
2. Why Choose METALUX LED Sheets?
This LED sheet is manufactured using the highest quality components available on the market for the price making it a professional and commercial grade product. METALUX LED sheets carry a typical lifespan of 50000 Hours and come
complete with a 3-year guarantee to ensure superior quality and continued high performance.
complete with a 3-year guarantee to ensure superior quality and continued high performance.
3. Can I LED sheets?
How to cut LED sheets? To cut the sheets, you only need a pair of scissors. Of course, use a ruler to measure the size you need before cutting it. The circuit board of the sheet light has clearly marked the places that can be cut, and it can be cut along those lines.
4. Who can I contact for help or if I have any questions about LED sheet lights?
To learn more about reducing the challenges and costs associated with coordination of benefits, contact our sales representative or email: info@metalux-led.com
