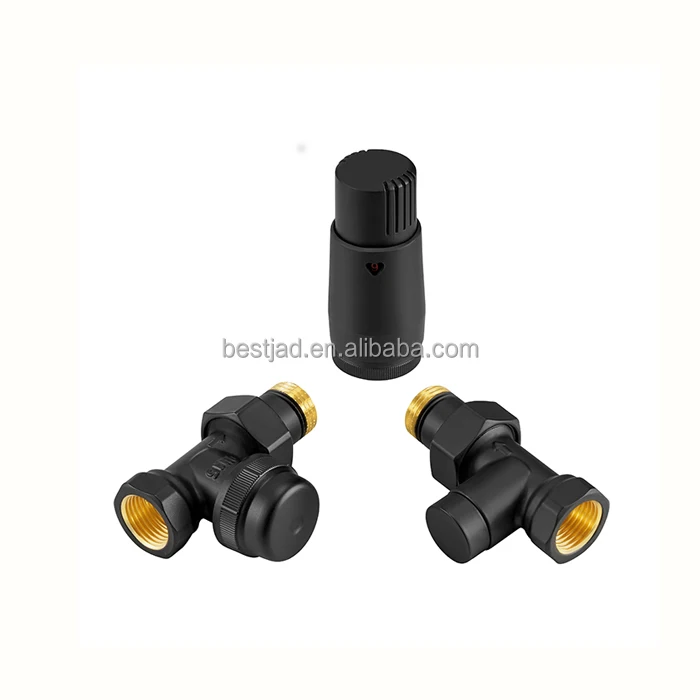

2023 New Design of TRV Straight Thermostatic Radiator Valve For Floor Heating System

Product Overview

Description







 BASIC INFORMATION



Descriptions	2023 New Design of TRV Thermostatic Radiator Valve for floor Heating System
Model No.	BJ12001B
Material	Brass
Processing	Forging, CNC Machining
Size	G1/2''/G3/4''
Color	White RAL9016/Anthracite RAL7016/Chrome
Working Medium	Hot/Cold Water
Range of Temperature Adjustment	0 ~ 28℃
Range of Scale	0 ~ 5
Max Working Pressure	10 bar
Max Pressure Difference	0.6bar
Max Working Temperature	50℃
Max Medium Temperature	≤ 100℃
Influence of Pressure Difference	0.4K
Influence of Temperature Difference	0.5K
Test Standard	EN215

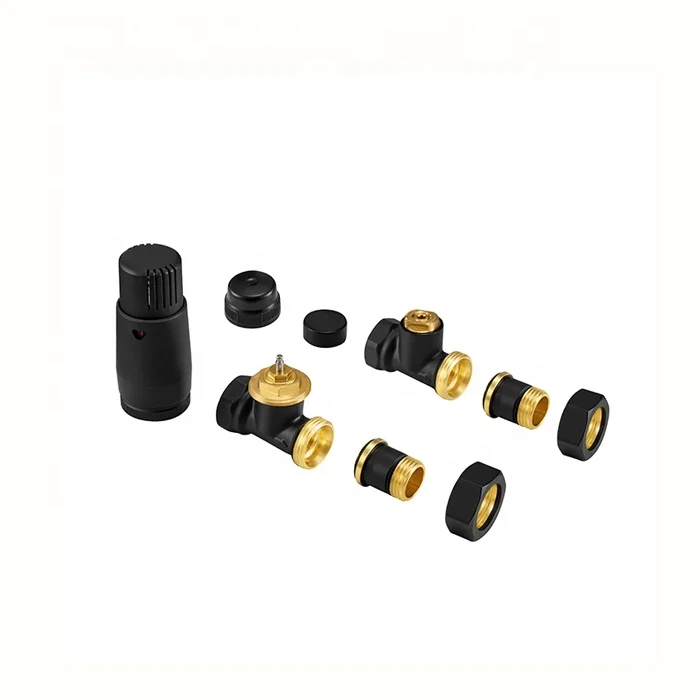

Material Details for Each Part	Brass Body, Brass Insert, Copper Sensor Element, Brass Nut&Cap, SUS631-17-7H Spring, ABS Cover



  FEATURES

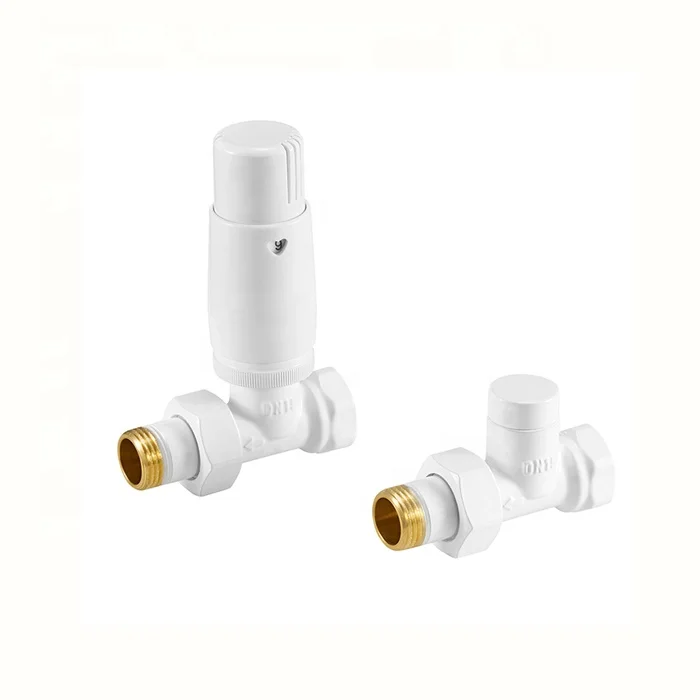

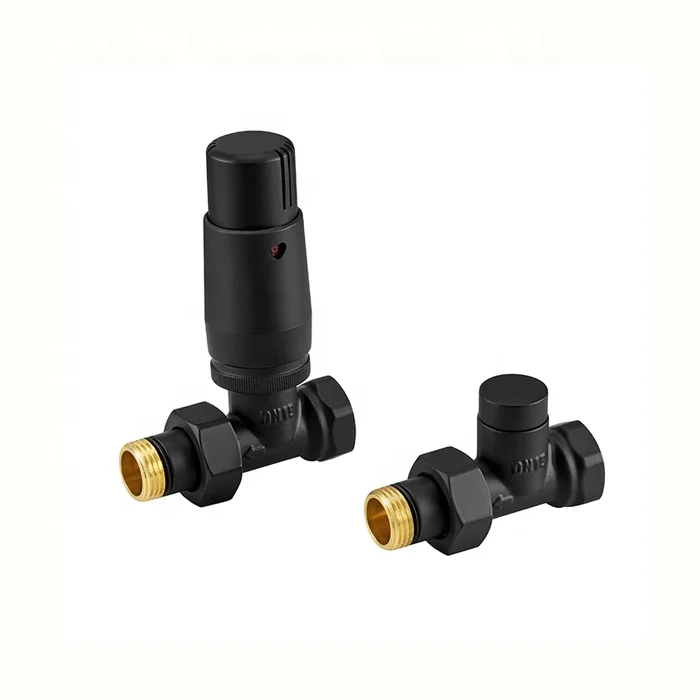

>> 3 colors for more match options-White/Anthracite/Matt Black

>> With MINI thermostat to optimize the aesthetics and heating efficiency, and down the cost

>> Forging process, 100% leakage test to eliminate the possibility of leakage

>>  High precision machining, top quality polish and chrome/paint finish

>> Sensitive Thermostat Head according to EN215 make the temperature change

simple, easy & reliable

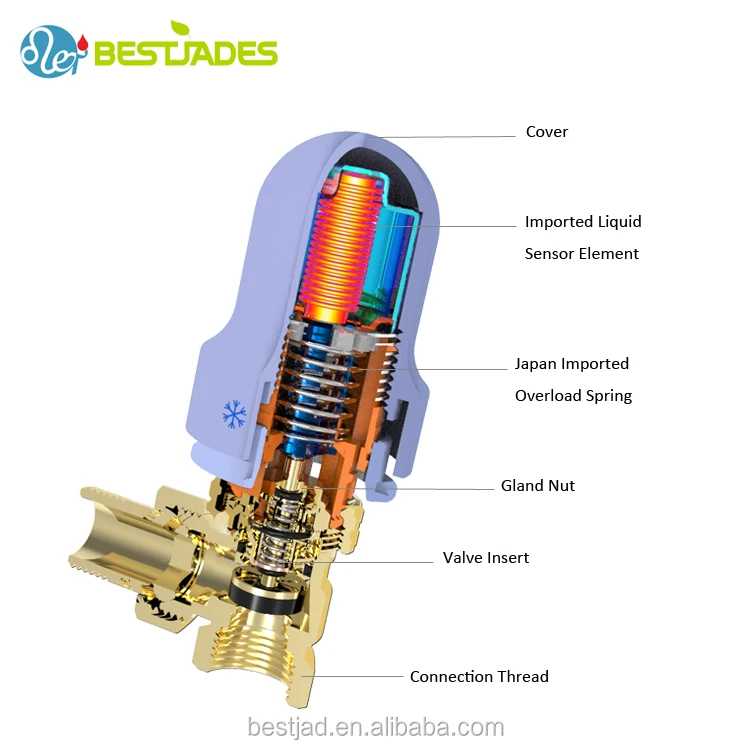

Thermostat Working Principles:

The sensor element of BEIJINSI thermostats consist of a liquid filled metal capsule with an immersed below and integral push rod. A temperature fluctuation leads to an alteration of volume of the liquid which entails a length modification of the immersed below. Then the valve is closed and opened by the push rod.



Advantages of BEIJINSI Thermostat Head:

1. Adopts Germany imported sensor element, which can detect the temperature change sensitive, lifetime is longer.

2. The Japan imported stainless steel spring SUS631-17-7H makes the resilience better, and lifetime can reach to 100000 times.

3. Professional engineered designed and produced, to give out excellent and reliable performance.

4. Test according to EN215 standard

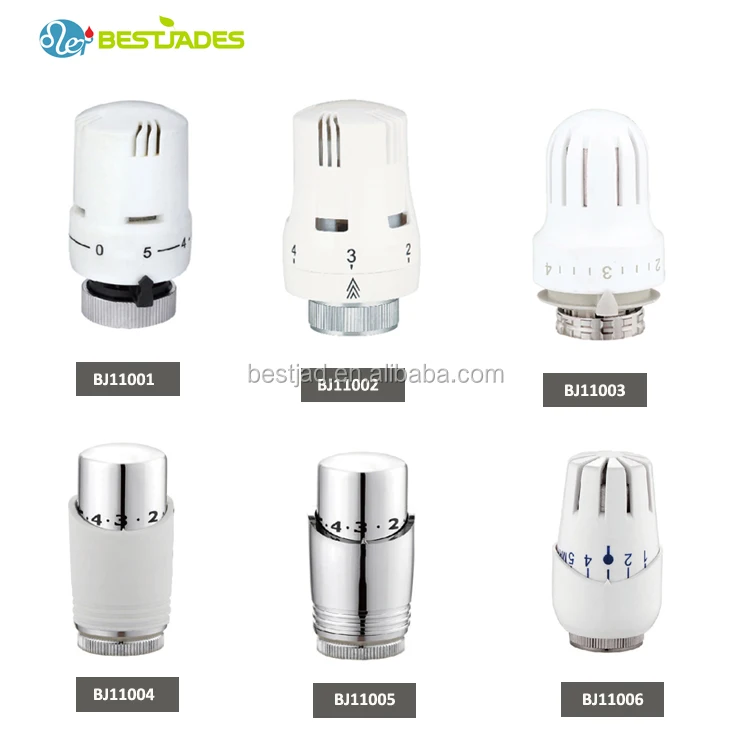

More Options for Thermostat Head
