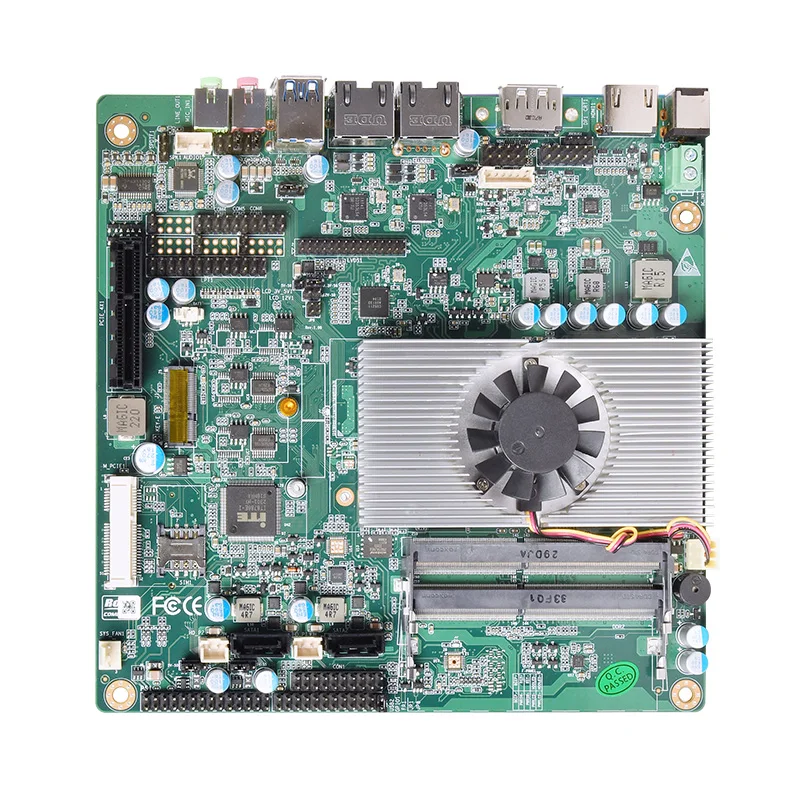

Intel Elkhart Lake J6412 J6413 X6413E Motherboard with NMVe & tpm
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (1601015807382):
Product Overview
Description
Intel Elkhart Lake J6412 J6413 X6413E Motherboard with NMVe & tpm
Products Description
◆ On board Intel Elkhart Lake series processors
◆ 2 DDR4 SO-DIMMs, with a maximum of 32GB in total
◆ HDMI, VGA/DP, LVDS/eDP display
◆ Intel 2.5G network card, optional for single and dual networks
◆ TPM2.0 (optional)
◆ DC 12V, 60W
◆ 2 DDR4 SO-DIMMs, with a maximum of 32GB in total
◆ HDMI, VGA/DP, LVDS/eDP display
◆ Intel 2.5G network card, optional for single and dual networks
◆ TPM2.0 (optional)
◆ DC 12V, 60W
CPU | On board Intel Elkhart Lake series processors, J6412/X6413E/J6413 |
Memory | 2 DDR4 SO-DIMMs, maximum 64GB |
display | HDMI2.0, 4096x2160@60Hz , supporting 4K display |
Choose between DP/VGA; 24 bit LVDS/eDP alternative | |
HDMI2.0, DP/VGA, LVDS/eDP can be displayed synchronously or asynchronously | |
storage | 2 SATA3.0, 2Pin power supply 5V |
MSATA, choose one from SATA1, default to SATA1 | |
On board eMMC, choose between SATA2 and SATA2, default to SATA2 | |
network | Intel 2.5G network (single and dual network options) |

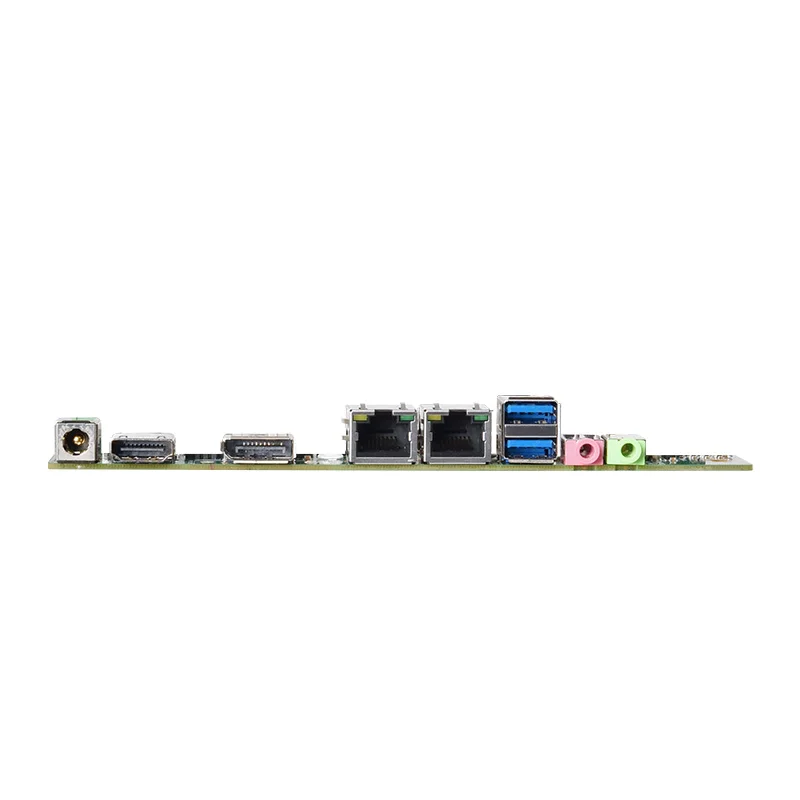

I/O Port | 1 DC JACK; 1 HDMI |
1*DP/VGA；1 | |
Single and dual network options; When using a single network: 2 USB 3.1 and 2 USB 2.0; Dual network: 2 USB 3.1 | |
1*Line out，1个Mic in | |
Other extension interfaces/functions | TPM2.0，optional |
M. 2 E-Key WIFI/BT, PCIe&USB2.0 protocol | |
MiniPCIE, PCIe, and USB2.0 protocols (with USB2.0 signal, only one set of JUSB2 pins is available, default to no USB2.0 signal) | |
1*PCIe_4X(PCIe3.0_x2) | |
1 set of LVDS/eDP pins, 2x15Pin, spacing 2.0mm | |
2 sets (4) of USB2.0 row pins, 2x5Pin, with a spacing of 2.54mm | |
6 sets of COM pins with a spacing of 2.54mm; COM1/2/3/4 is RS232/485 optional, COM5/6 is RS232 | |
8-bit GPIO pin, 2x5Pin, with a spacing of 2.54mm; 1 set of LPT pins, 2x13Pin, with a spacing of 2.54mm | |
1个SPEAK Wafer 4Pin； F_Panel，2x5Pin，Spacing 2.54mm | |
SPDIF pinheader , 1x3Pin, spacing 2.54mm | |
1 *3Pin CPU fan, 1 3Pin system fan | |
1个PS/2 pinheader，2x4Pin，spacing 2.54mm | |
Power | DC 12V，Default with fan, optional without fan |
work environment | Working temperature: -20 ℃~+60 ℃; Working humidity: 0%~90% relative humidity, no condensation |
Storage temperature: -40 ℃~+85 ℃; Storage humidity: 0%~90% relative humidity, no condensation | |
Operating system support | Windows10，Windows11，Linux |
size | 170x170 mm |
weight | 400g with radiator, 200g without radiator |
