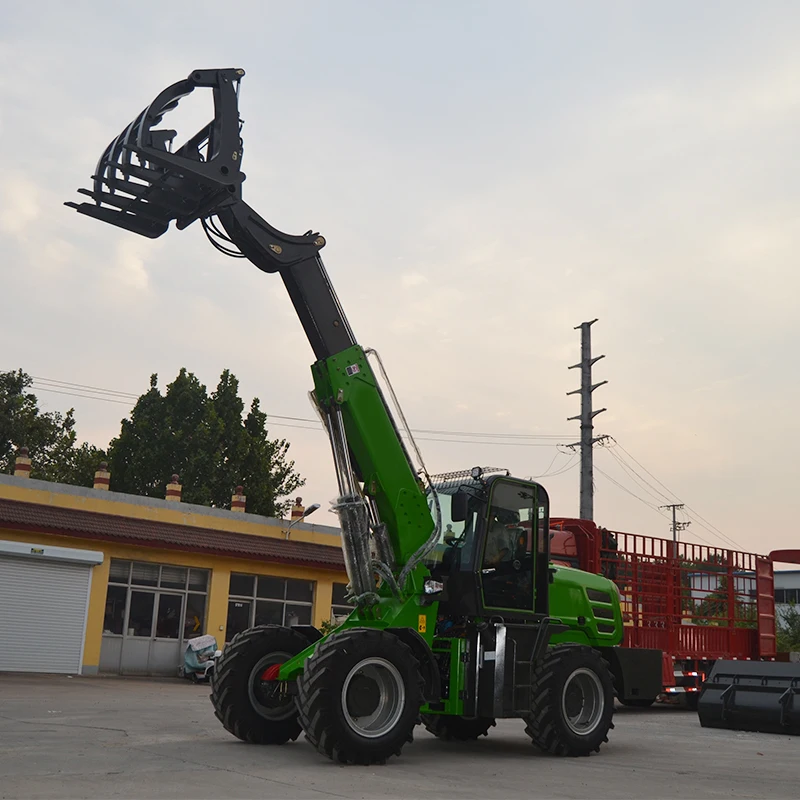

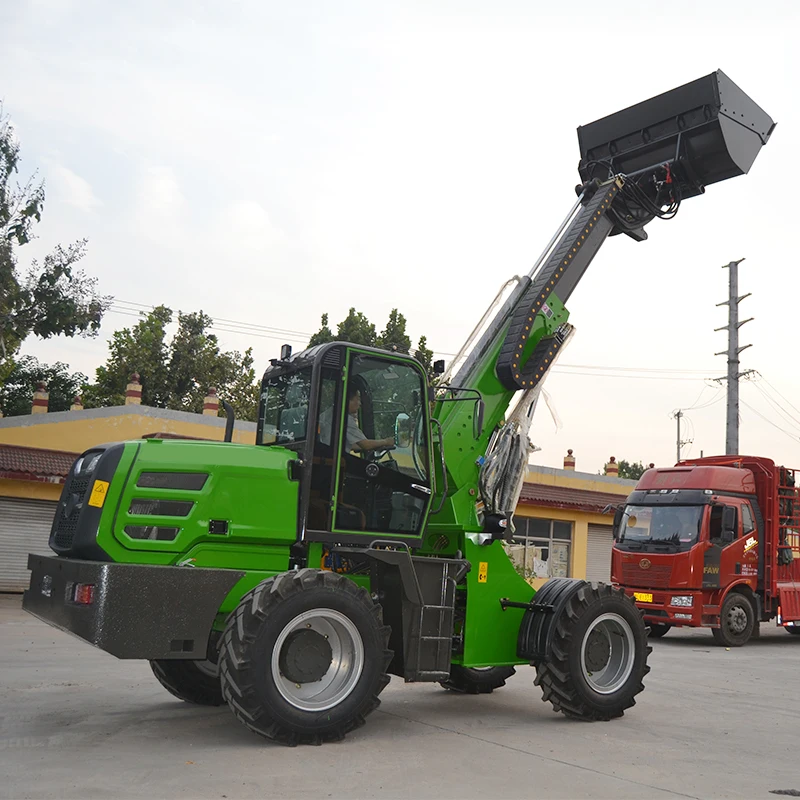

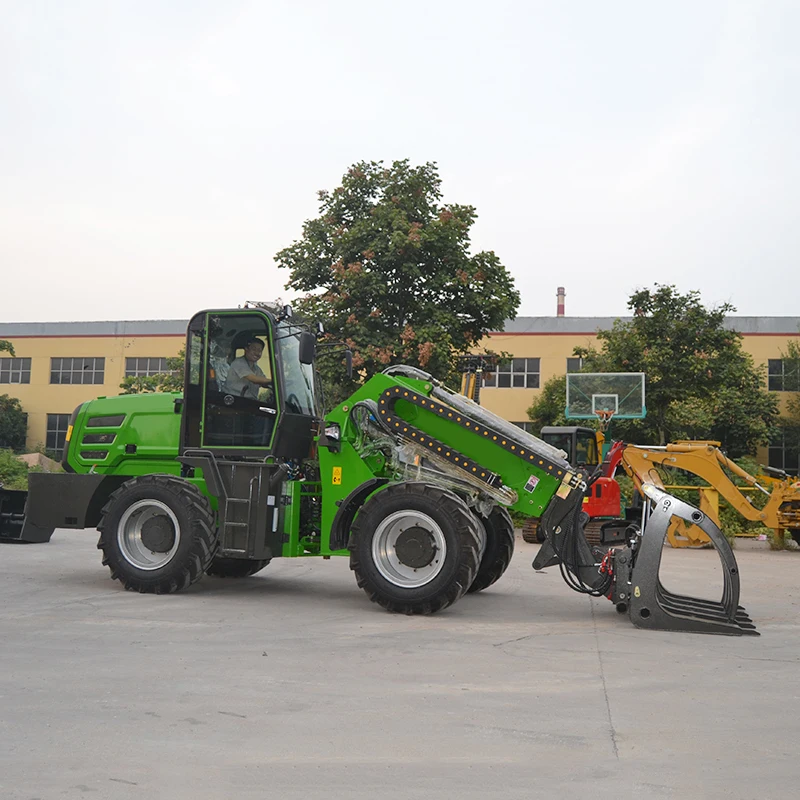

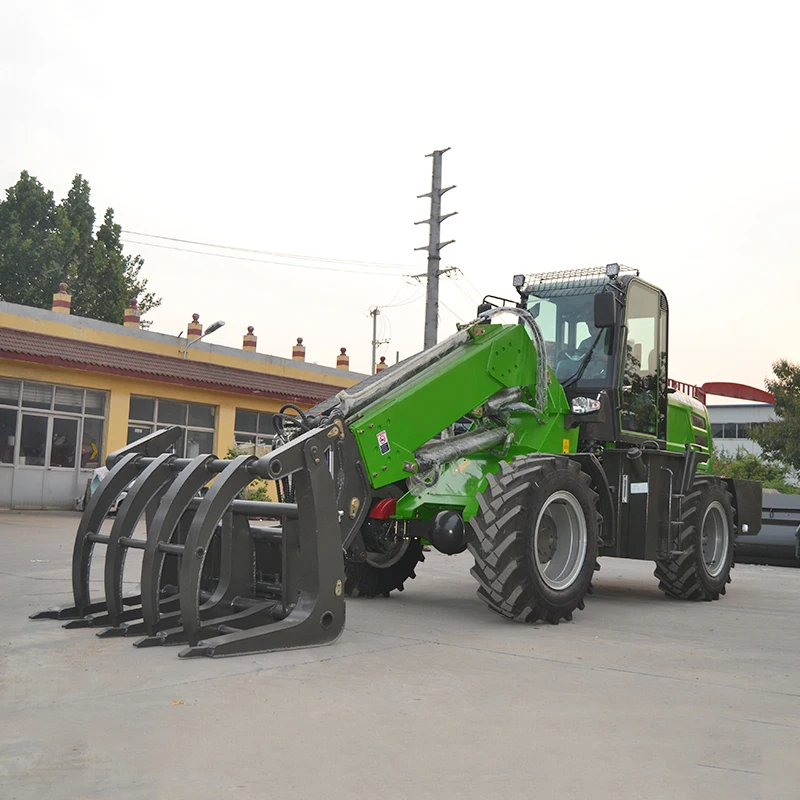

Professional Manufacturer telehandler telescopic 3ton forklift loader
- Category: >>>
- Supplier: Jining United Import And Export Co. Ltd.
Share on (1601015908905):
Product Overview
Description
1.0 Engine | |
(1) Type: | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine |
(2) Rated Power: | 85KW |
2.0 Overall Dimensions | |
(1) Overall Length: | 7200mm |
(2) Overall Width: | 2200mm |
(3) Overall Height: | 3100mm |
(4) Bucket hinge pin Height: | 5400mm |
(5)Telescopic stroke | 1330mm |
(6)Extend the arm length | 3400mm |
(7) Bucket Max.lift height | 6200mm |
(8) Bucket Max.unloading height | 4600mm |
3.0 Transmission System:Gearbox Hydraulic converter Drive shaft Hub reduction axle | |
4.0 Bucket: | |
(1) Capacity: | 1.5m³ |
(2) Width: | 2200mm |
(3) Type: | Heavy-duty bolt on teeth |
(5) Max. Load: | 3000kg including bucket or attachment |
5.0 Operating Specifications | |
(1) Steering System: | Articulated hydraulic steering |
(2) Driving System: | Four wheel drive |
(3) Hydraulic quick release | Yes |
(4) Hydraulic pilot joystick | Yes |
(5) Steady rise | Yes |
6.0 Brake System | |
(1) Service Brake: | Four wheel disc brake |
(2) Parking Brake: | Disc brake |
7.0 Tyre | |
(1) Model: | 17.5-25 Herringbone Tyre |
(2) Size: | Width: 440mm Diameter: 1280mm |
8.0 Wheel base: 2800mm | |
9.0 Track: 1750mm | |
10.System pressure: | 20Mpa |
11. Weight: | 7000KG |
Packaging: 1,Standard seaworthy packing suitable for long-distance transportation. 2,Inner packing of stretch film and the transportation packing of wooden case 3,All of the productions are inspected carefully one by one by QC before delivery. Delivery Time: 1,Conventional products:5-7 working days after prepaid payment received. 2,Customized products: 10-30 days according to detail request. Min.Order: 1,We can provide customized service for a min. order quantity of 1 unit. 2,Large quantity order price will be more favorable. Payment: A various of payment terms are optional, guarantee 100% payment security.
Jining United Import & Export Co., Ltd.founded in 1989,. We are mainly produce and sell Large and medium-sized Excavators,Wheel Loaders, Road Rollers, Bulldozers, Heavy Trucks, Special Equipment Vehicles, Mini excavators,Wheel Loaders,Road Rollers, Telescopic Boom Loader, Backhoe Loader and Etc .
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.

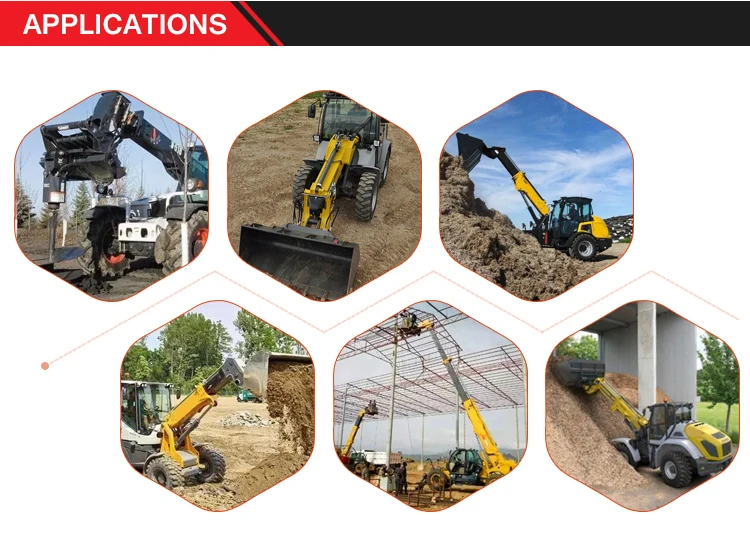

Product application widely use in the area below: railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.
Product application widely use in the area below: railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
