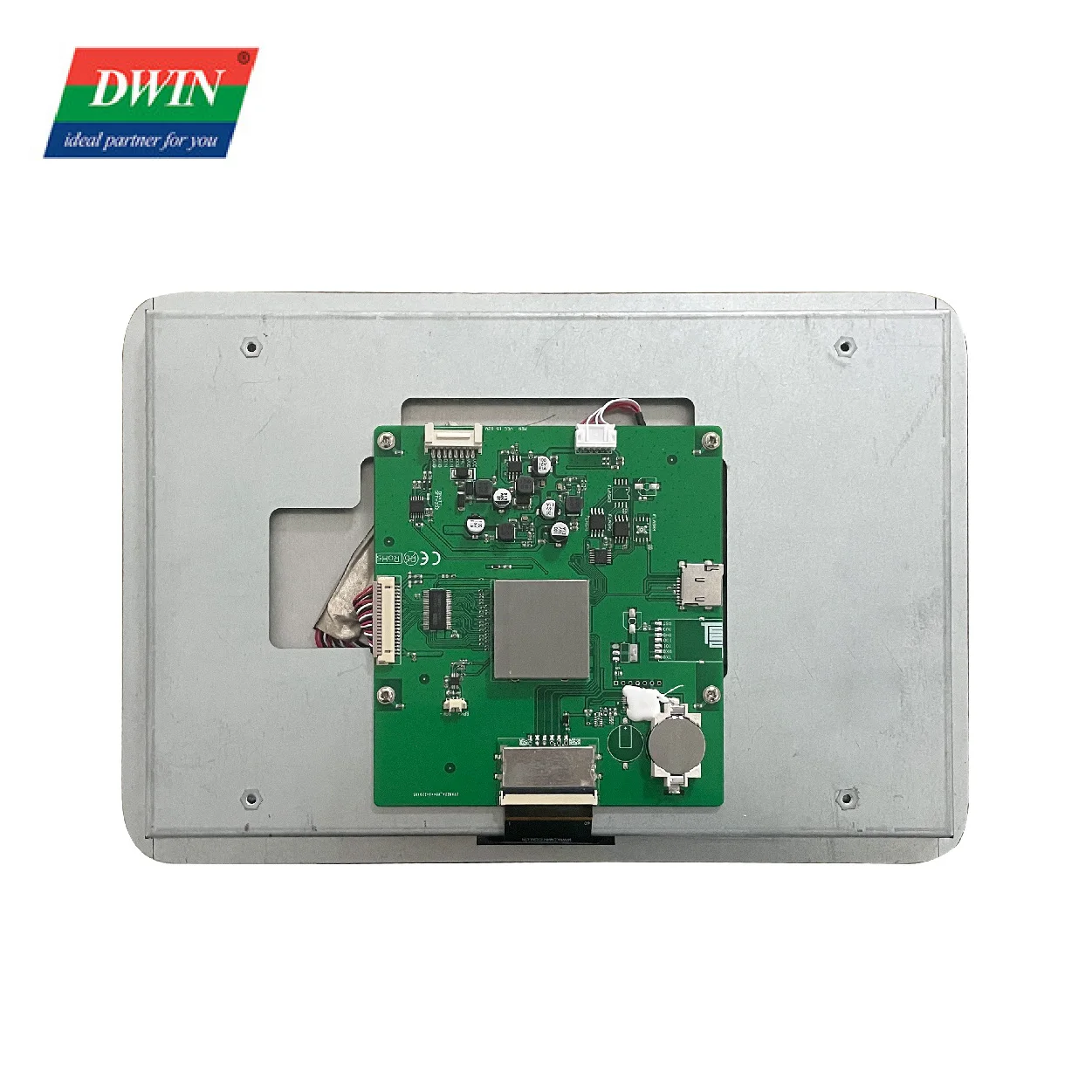

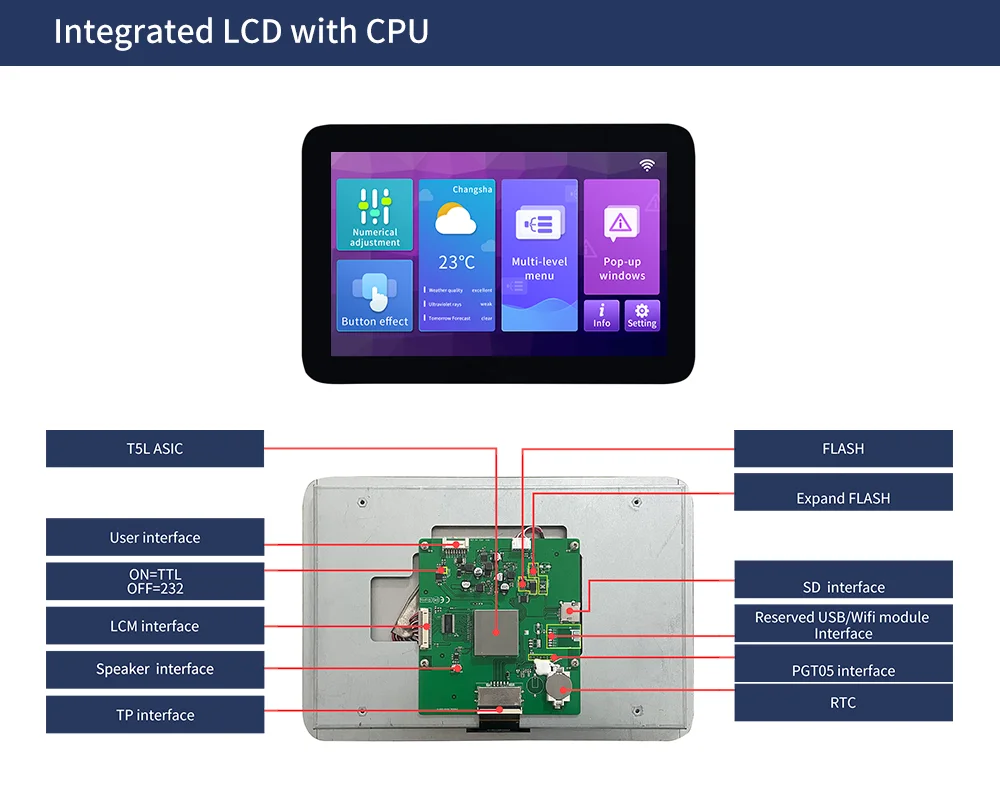

Product Overview

Description















Product Specification


Model
DMG12800C121_02WTC: Capacitive touch
LCD Type
TN, TFT LCD
Viewing Angle
Normal viewing angle, 70°/70°/50°/70°（L/R/U/D）
Resolution
1280×800 pixels (support 0°/90°/180°/270°)
Color
24-bit 8R8G8B
Active Area (A.A.)
261.12mm (W)×163.20mm (H)
View Area (V.A.)
262.70mm (W)×164.80mm (H)
Backlight Mode
LED
Backlight Service Life
>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
Brightness
400nit

Brightness Control
0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

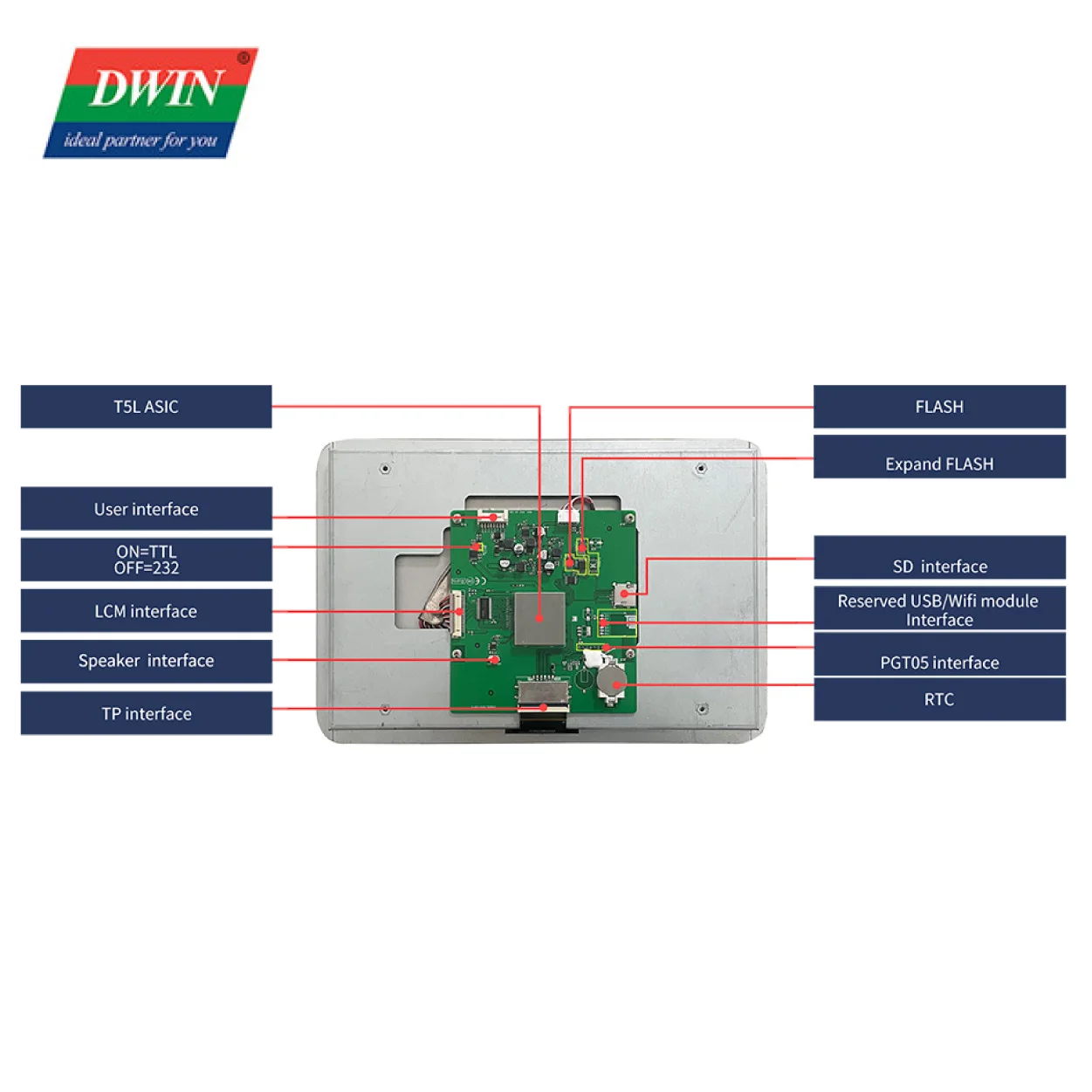

Serial interface parameters


Mode
UART2: ON=TTL/CMOS; OFF=RS232



Voltage Level
Test Condition
Min
Typ
Max
Unit
Output 1, Iout = 1mA
3.0
3.3
-
V
Output 0, Iout = -1mA
-
0
0.3
V


Input 1, Iin = 1mA
2.4
3.3
5.0
V
Input 0, Iin = -1mA
0
-
0.5
V
Baud Rate
3150~3225600bps, typical value of 115200bps
Data Format
UART2: N81
UART4: N81/E81/O81/N82, 4 modes (OS configuration)

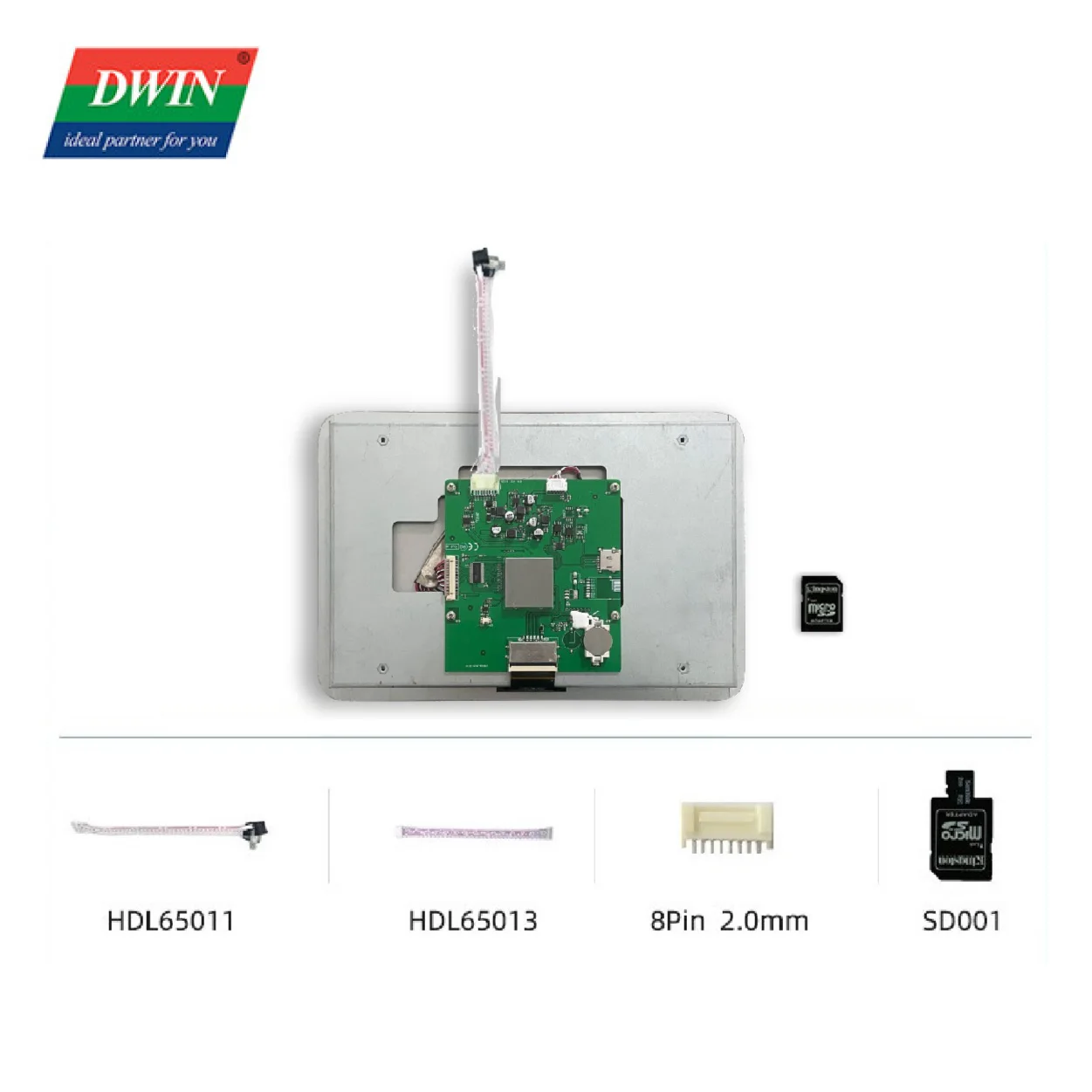

Interface Cable
8Pin_2.0mm


Electrical specifications


Rated Power
＜20W
Operating Voltage
12~36V, typical value of 12V

Operating Current
1320mA
VCC=12V, max backlight
230mA
VCC=12V, backlight off
Recommended power supply: 12V 1A DC


Operating environment


Operating Temperature
-20℃~70℃ (12V @ 60% RH)
Storage Temperature
-30℃~80℃
Conformal Coating
None
Operating Humidity
10%~90%RH, typical value of 60% RH

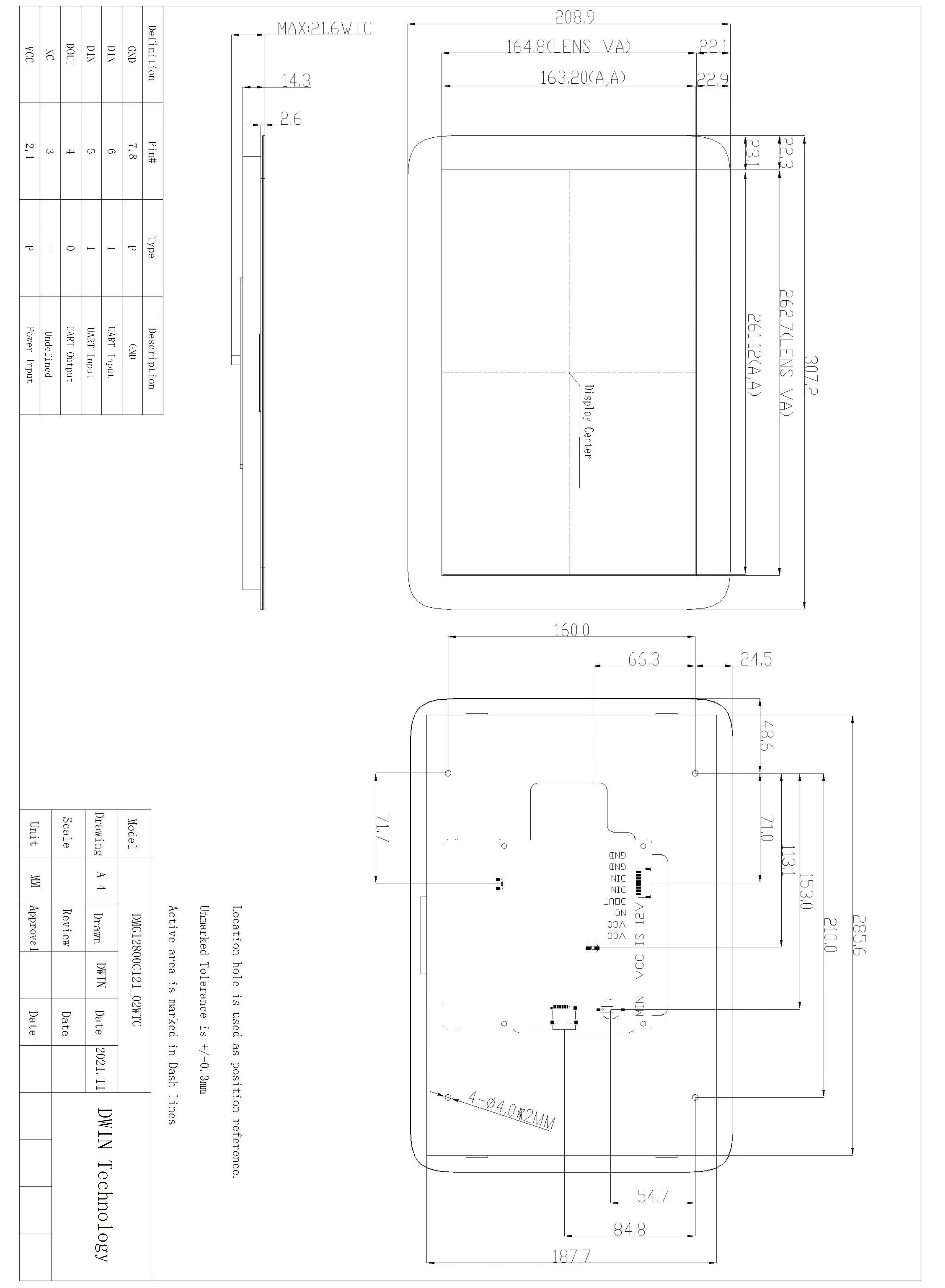

Package & Dimensions


Form Factor
307.20mm (W)×208.90mm (H)×21.60mm (T)
Installation Dimensions
Positioning hole: 285.60 (+0.3mm)×187.70(+0.3mm)
Net Weight
1381g


Disclaimer: The product design is subject to alternation and improvement without prior notice.

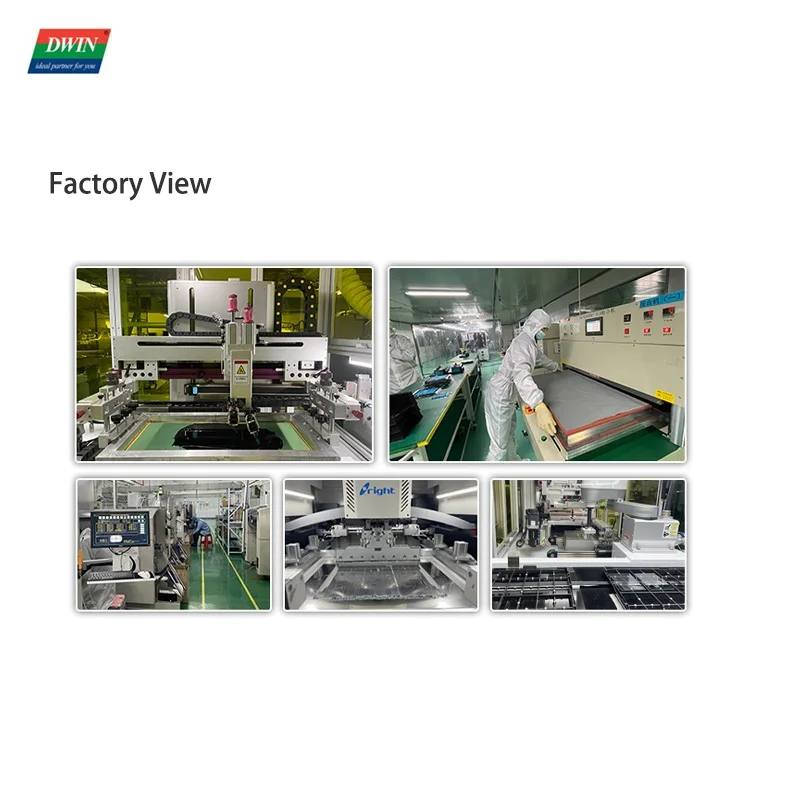

DWIN Technology is established in year 2003,always focusing on Human-machine Interaction.The headquarter is located in Beijing,China,which has 400,000 square meters production park in Hunan province,China.
The product includes the LCD module, touch panel,ASIC,Intelligent solution etc.


















Product Recommendation




FAQ




DWIN website: www.dwin-global.com


Question 1:
How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer: No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.
Question 2:
What industries are DWIN LCD used in?
Answer: Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…
Question 3:
Does DWIN product need a MOQ when purchase? I only need some samples in the first.
Answer: No MOQ for standard product, and we have free sample for application, please leave messages to us on Alibaba.com
Question 4:
Will DWIN have online technical support?
Answer: Yes of course, below ways you can get technical support.
- Whatsapp: +86 19192113166
- DWIN website: www.dwin-global.com
- DWIN Forum: https://forums.dwin-global.com/
- Leave messages to us on Alibaba.com
Question 5:
What kind of Express are supported? Trade terms is ?
Answer: DHL, TNT, UPS, Fedex. Trade terms is EXW.
