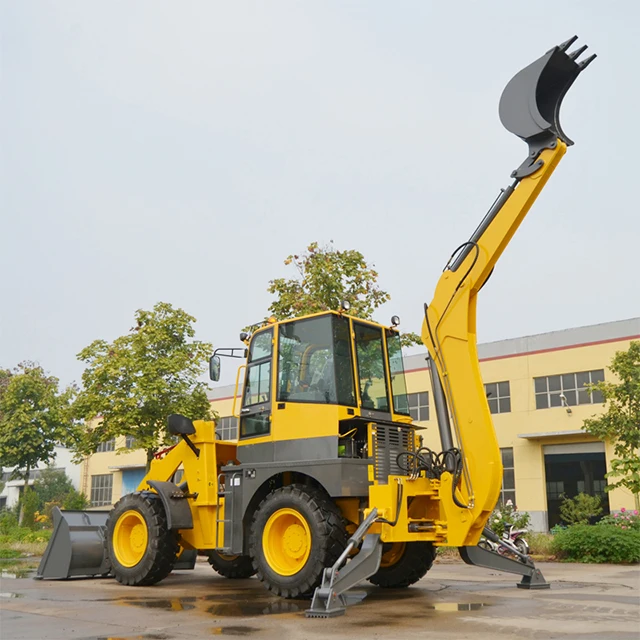

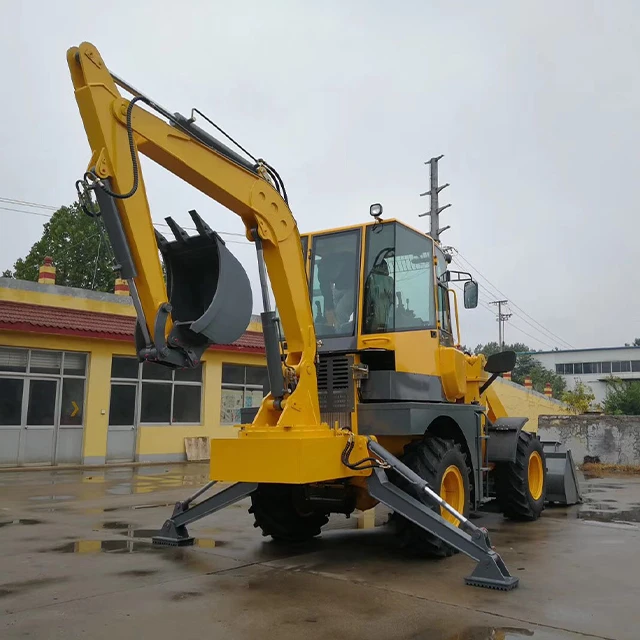

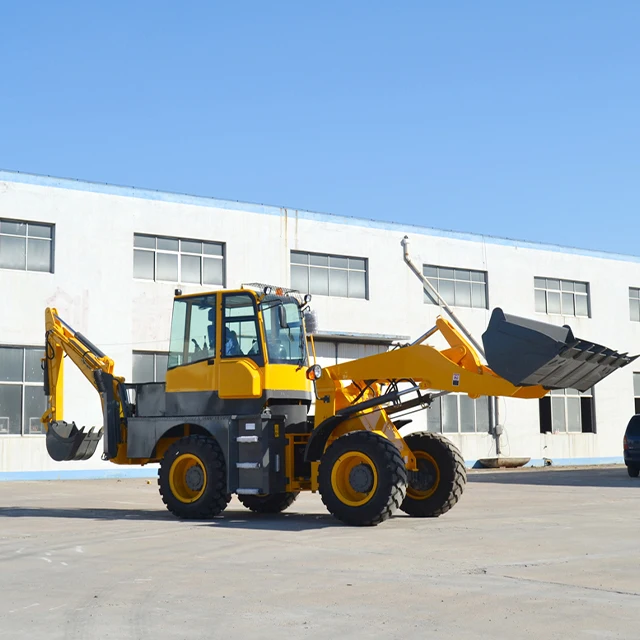

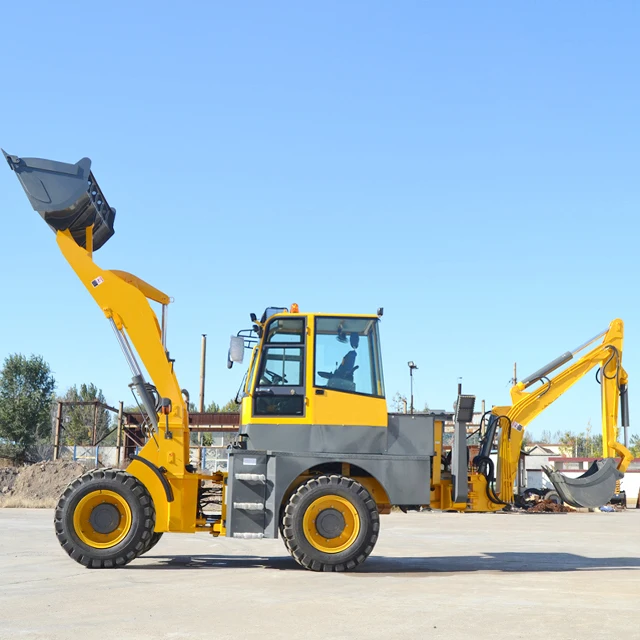

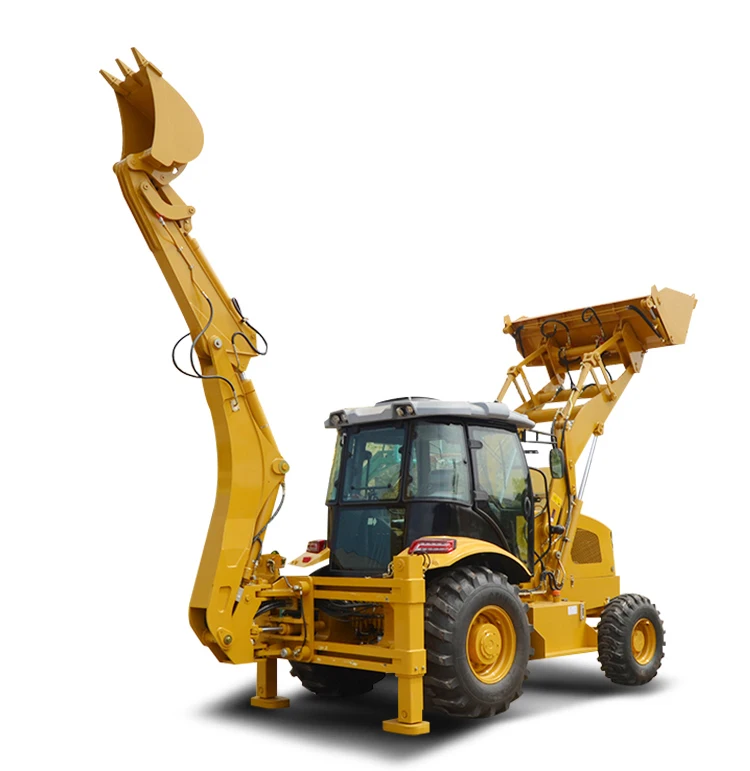

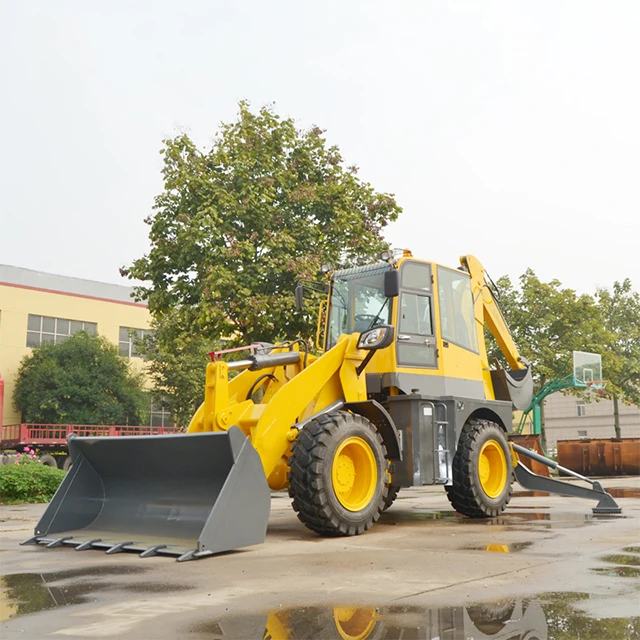

Diesel Mini Backhoe loader 8 ton CE EPA China Sale 4 wheel drive new backhoe and loader Applicable earthmoving machinery
- Category: >>>
- Supplier: Jining United Import And Export Co. Ltd.
Share on (1601015962774):
Product Overview
Description
Performance | Length x Width x Height: 8,000 x 2,300 x 3,769MM |
| Cab Roof Height: 2,900MM |
| Wheel Base: 2,250MM |
| Track: 1,640MM |
| Min. Ground Clearance: 300MM |
| Total Weight: 7,800KG |
| Maximum Speed: 22Km/h |
| Maximum Grade ability Capacity: 30° |
| Loading Bucket Capacity: 1.4CBM |
| Loading Capacity: 2,800KG |
| Maximum Articulated Height Of Bucket: 3,400MM |
| Bucket Discharge Height: 2,795MM |
| Bucket Discharge Distance: 1,048MM |
| Backhoe Bucket Capacity: 0.32CBM |
| Backhoe Discharge Height: 3,878MM |
| Maximum Digging Depth: 4,300MM |
| Minimum Turning Radius: 5,688MM |
| Bucket Slewing Angle: 190° |
| Bucket Stick Revolving Radian: 180° |
Diesel Engine | Model: Yuchai turbocharged engine |
| Engine Power:85KW |
| Type: Inline, direct injection, four-stroke, liquid cooled |
| Optional engine: Weichai turbocharged engine(83KW) Cummins engine 4BTA3.9-100(75KW) |
| Rated Speed: 2,400RPM |
Transmission System | Type of Hydraulic Pump: Fixed shaft power shift transmission |
| Gear Shift: 2 forward shift 2 reverse shift |
| Torque: YJ-280 |
| Drive Pump: CDXaf3016-IL |
| Flow: 16ML/R |
| Work Pump: CBGj2063 |
| Flow: 63ML/R |
Steering System | Type: Articulated hydraulic steering |
| Steering Control Valve: BZZ5-250 |
| Turning Control Valve: YSF25S-00 |
| Steering Angle: 36° |
| Minimum Turning Radius: 5,018MM |
Axles | Main Transmission Type: Single Reduction |
| Wheel Reduction Type: Wheel Reduction |
Tyre | Tyre Size: 16/70-24 |
| Front Wheel Pressure: 0.22MPa |
| Rear Wheel Pressure: 0.20MPa |
Brake System | Service Braking: Air over hydraulic disc on 4 wheels |
| Parking Brake: Manual parking brake |
Hydraulic System | System Flow: 140L/Min |
| Bucket Digging Capacity: 46KN |
| Bucket Stick Digging Capacity: 31KN |
| Bucket Hydraulic Translation Function: Yes |
| Bucket Lift Time: 6.8S |
| Bucket Lower Time: 2.5S |
| Bucket Dump Time: 1.2S |

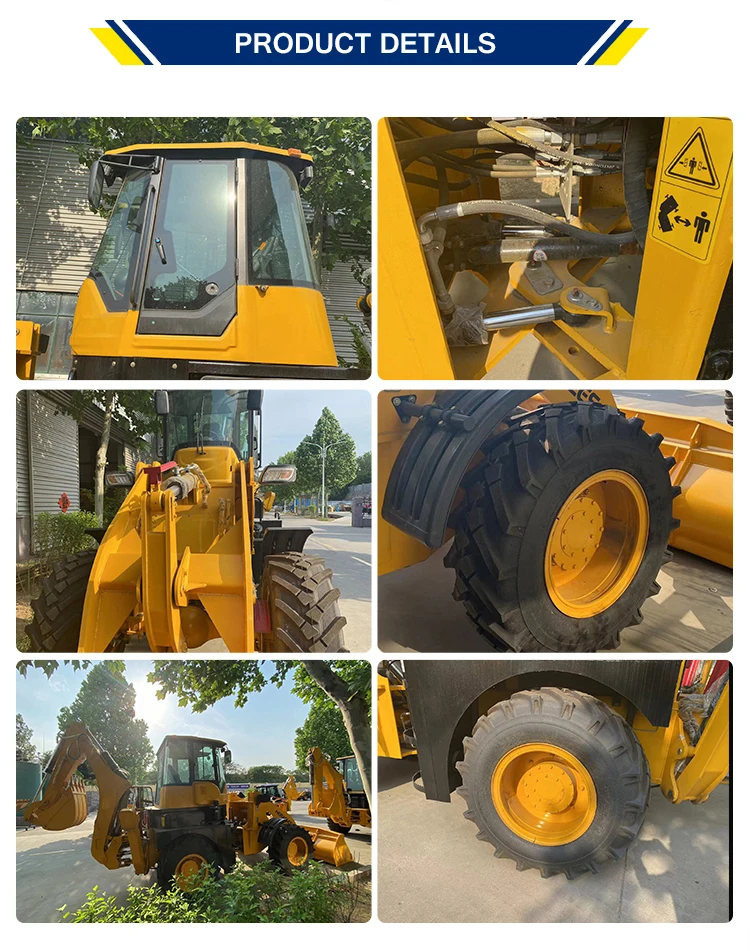

1. 1900mm all-round view enlarged cabin is with secure glass.It can open for service the engine easily.
2. Adjustable steering panel( water temperature, oil temperature, working hours are all in sight).
3. It adopt famous brand hydraulic components, two gear oil pump work together, the power for driving and front loading/unloading can change easily.
4. Adjustable seat could rotate 180 degree and be convenient and comfortable to use. Joystick control are for front bucket and backhoe.
5. Hydraulic traction, the moving arm can leveled skid and expend digging range.
6. The backhoe part have the all functions of mini type digging machines. It adopts A-leg or H-leg devices for the digging stability.
7. Ascendant performance of complete appliance, with extraordinary operation efficiency.
8.Fuel-saving,no maintenance.
9.Modern design-low noise cabin.
10.Dig deeper,reach further,load faster Daily service checks from ground level fully opening engine bonnet for ease of servicing.
11.Less moving parts on loader frame reduces requirement for maintenance and premature wear.
12.Industry leading visibility to both front and rear of the machine.
Jining United Import & Export Co., Ltd.founded in 1989,. We are mainly produce and sell Large and medium-sized Excavators,Wheel Loaders, Road Rollers, Bulldozers, Heavy Trucks, Special Equipment Vehicles, Mini excavators,Wheel Loaders,Road Rollers, Telescopic Boom Loader, Backhoe Loader and Etc .
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.

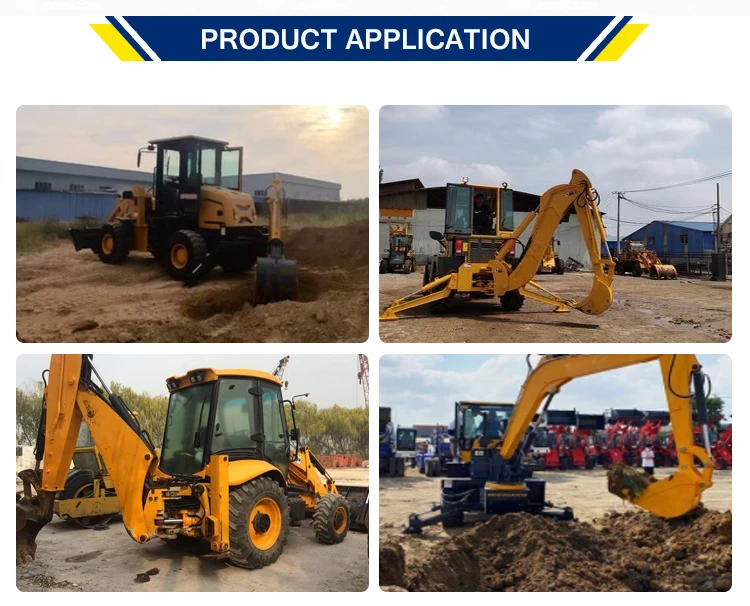

Product application widely use in the area below: railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.
Product application widely use in the area below: railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
