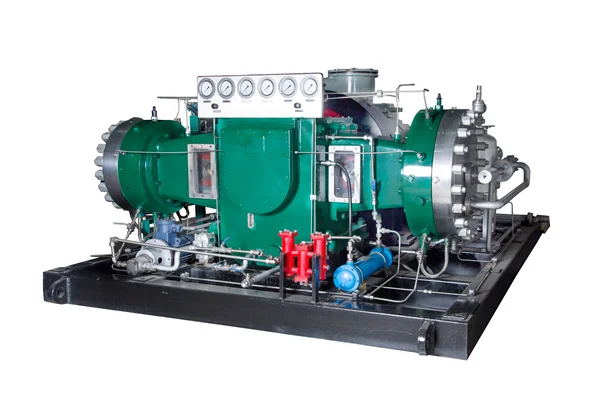

Automatic PLC Explosion Proof Control Cabinet Oil free Hydrogen Nitrogen Diaphragm Compressor
- Category: >>>
- Supplier: Xuzhou Huayan Gas Equipment Co. Ltd.
Share on (1601016029378):
Product Overview
Description

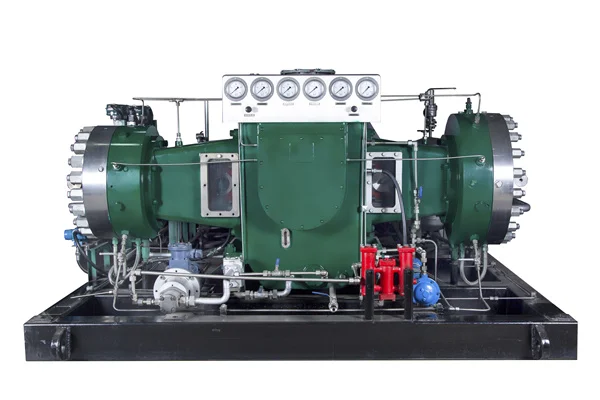

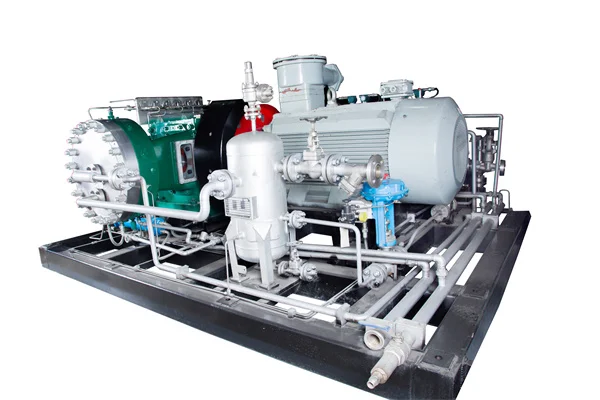

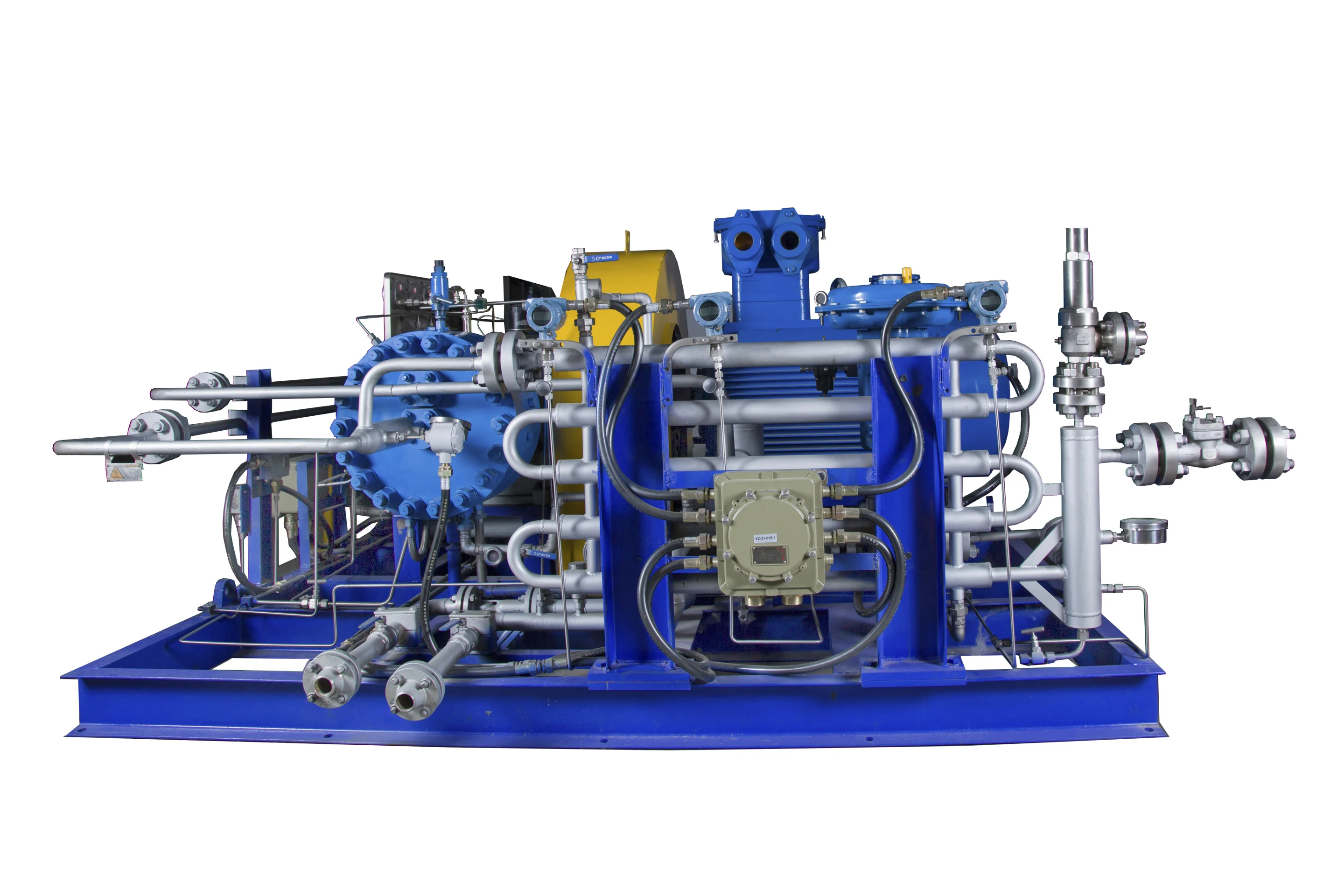

Automatic PLC Explosion-Proof Control Cabinet Oil-free Hydrogen Nitrogen Diaphragm Compressor
Product Description

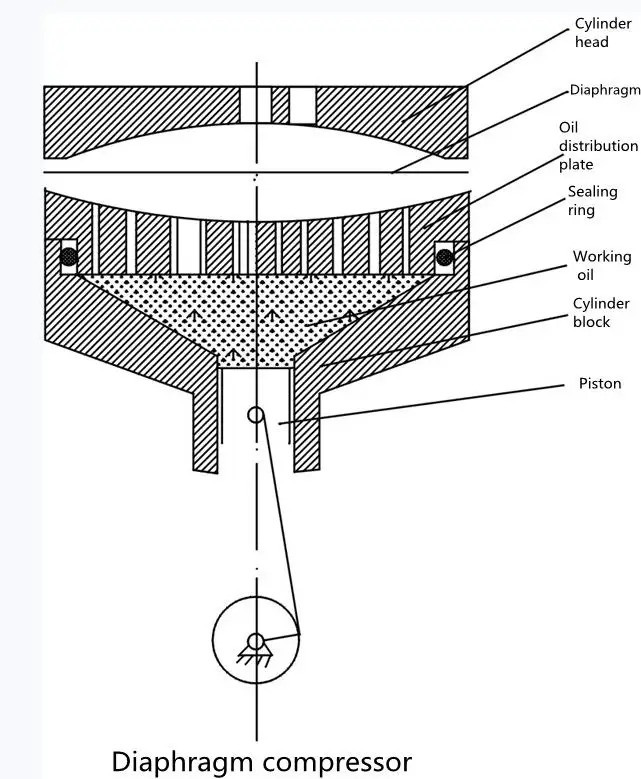

The Diaphragm Compressor is a positive displacement compressor with a special structure. It is the highest level compression method in the gas compression field. This compression method has no secondary pollution and has very good protection for the compressed gas. It has a large compression ratio, has good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic and harmful, corrosive, and high-pressure gases. This compression method is usually designated internationally to compress high-purity gases, flammable and explosive gases, toxic gases, and oxygen. and many more.
Manufacturing Technique
Diaphragm Compressor 100% purity no leakage Oil-free Oxygen Booster Compressor
No leakage: the compressor membrane head is sealed by static "O" ring. The O "ring is made of elastic material, with long service life and no dynamic seal to ensure no leakage during gas compression.
Corrosion resistance: the compressor membrane head can be made of 316L stainless steel, the diaphragm is made of 301 stainless steel. Small tightening torque: "O" ring seal, can reduce flange bolt tightening torque, reduce shutdown maintenance time.
The diaphragm compressor booster is a special structure of the volume-type compressor with high compression ratio, good leak tightness, compressed gas without lubricating oil and other solid impurities contaminated features, So it's suitable for high purity compression, rare, valuable, inflammable, explosive, toxic, harmful, corrosive, and high pressure gas
Advantages of Diaphragm compressor:
1. Oil-free compression due to the hermetic separation between gas and oil chamber.
2. Abrasion-free compression due to static seals in the gas stream
3. Automatic shutdown in case of a diaphragm failure prevents damage
4. High Compression Ratios-Discharge pressure up to 1000bar.
5. Contamination Free Compression
6. Corrosion Resistance
7. High Reliability
As a displacement compressor with special,diaphragm compressor is characterized by large compression ratio,good sealing performace ,and that the compress air will not be polluted by lubricant or other solid impurities.Therefore diaphragm compressor is applicable to compress high-purity,rare and precious,flammable and explosive,toxic and hazardous,corrosive and high pressure gases.

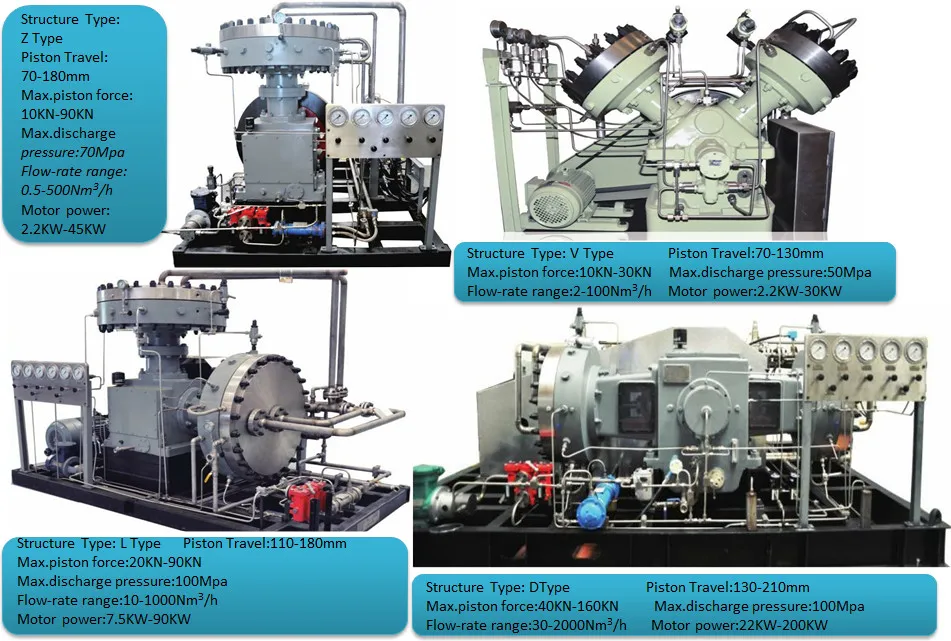

Huayan diaphragm compressors consist of four types that are Z,V,L and D type.The exhaust pressure ranges from 1.3 to 100 Mpa. The products are widely used in the industries of national defense,scientific research, petrochemical, nuclear power, parmaceutical, food-stuff and gas separation.
Product Paramenters
Model | Cooling water consumption (t/h) | Displacement (Nm³/h) | Intake pressure (MPa) | Exhaust pressure (MPa) | Weight (t) | Motor Power (kW) | |
GD-120/4-80 | 3.0 | 120 | 0.4 | 8.0 | 3000×1600×1400 | 4.0 | 30 |
GD-130/0.98-11 | 3.0 | 130 | 0.098 | 1.1 | 3000×1800×1600 | 4.0 | 30 |
GD-150/2-20 | 3.0 | 150 | 0.2 | 2.0 | 3000×1800×1600 | 4.0 | 37 |
GD-100/0.1-5 | 4.0 | 100 | 0.01 | 0.5 | 2800×1500×1500 | 3.0 | 18.5 |
GD-100/5.5-200 | 5.0 | 100 | 0.55 | 20 | 3200×2000×1600 | 4.5 | 45 |
GD-80/0.12-4 | 5.0 | 80 | 0.012 | 0.4 | 2800×1600× 1500 | 3.8 | 15 |
GD-60/0.3-6 | 4.0 | 60 | 0.03 | 0.6 | 2800×1600×1500 | 4.0 | 15 |
GD-70/0.1-8 | 3.8 | 70 | 0.01 | 0.8 | 3000×1600×1250 | 5.0 | 18.5 |
GD-40/0.02-160 | 5.0 | 40 | 0.02 | 16 | 2800×1460×1530 | 3.0 | 22 |
GD-100/0.5-6 | 2.0 | 100 | 0.05 | 0.6 | 3000×2000×1560 | 6.0 | 18.5 |
GD-36/1-150 | 4.0 | 36 | 0.1 | 15 | 3000×1500×1500 | 4.0 | 45 |
GD-35/0.7-300 | 4.0 | 35 | 0.07 | 30 | 3000×1600×1500 | 4.0 | 22 |
GD-500/15-35 | 4.5 | 500 | 1.5 | 3.5 | 3000×2000×1700 | 4.0 | 45 |
GD-150/15-210 | 4.5 | 150 | 1.5 | 21 | 3200×1700×1600 | 4.0 | 45 |
GD-120/8-220 | 4.5 | 120 | 0.8 | 22 | 3200×1700×1600 | 3.8 | 45 |
GD-100/9 | 4.5 | 100 | 0.0 | 0.9 | 3200×1700×1800 | 4.5 | 22 |
GD-100/1.5-150 | 4.5 | 100 | 0.15 | 15 | 3200×1700×1800 | 4.5 | 45 |
GD-40/30 | 4.5 | 40 | 0.0 | 3.0 | 3200×1700×1800 | 4.0 | 18.5 |
GD-200/10-15-90 | 4.5 | 200 | 1.0-1.5 | 9.0 | 3200×1800×1600 | 4.0 | 37 |
GD-100/7-150 | 4.0 | 100 | 0.7 | 15 | 3000×1800× 1600 | 4.0 | 55 |
GD-25/-0.1-47 | 4.0 | 25 | -0.01 | 4.7 | 3000×1800×1600 | 4.0 | 15 |
GD-45/0.5-100 | 4.0 | 45 | 0.05 | 10 | 3000×1800×1600 | 4.0 | 30 |
GD-30/0.1-160 | 4.0 | 30 | 0.01 | 16 | 3000×1800×1600 | 4.0 | 18.5 |
GD-120/2.5-70 | 4.0 | 120 | 0.25 | 7.0 | 3000×1800×1600 | 4.0 | 37 |
GD-135/10-210 | 4.0 | 135 | 1.0 | 21 | 3000×1600×1400 | 4.0 | 37 |
GD-60/40-350 | 4.5 | 60 | 4.0 | 35 | 3000×1800×1600 | 4.0 | 30 |
GD-95/10-350 | 4.0 | 95 | 1.0 | 35 | 3000×1600×1400 | 4.0 | 37 |
GD-220/11-90 | 4.0 | 220 | 1.1 | 9.0 | 3000×1800×1600 | 4.0 | 37 |
GD-300/15-220 | 4.5 | 300 | 1.5 | 22 | 3600×2200×1700 | 5.0 | 75 |
GD-300/13-210 | 5.0 | 300 | 1.3 | 21 | 3500×2300×1800 | 6.0 | 75 |
GD-120/12-350 | 6.5 | 120 | 1.2 | 35 | 3500×2300×1600 | 8.5 | 45 |
GD-165/10-250 | 8.0 | 165 | 1.0 | 25 | 3500×2300×1500 | 8.5 | 55 |
GD-120/8-350 | 6.5 | 120 | 0.8 | 35 | 3500×2300×1600 | 8.5 | 45 |
GD-800/210-320 | 8.0 | 800 | 21 | 32 | 3500×2300×1500 | 8.5 | 37 |
GD-420/8-39 | 6.5 | 420 | 0.8 | 3.9 | 3600×2500×1700 | 6.0 | 75 |
GD-370/20-200 | 4.5 | 370 | 2.0 | 20 | 3600×2200×1700 | 5.0 | 75 |
GD-350/18-210 | 4.5 | 350 | 1.8 | 21 | 3600×2200×1700 | 5.0 | 75 |
GD-300/8-120 | 4.5 | 300 | 0.8 | 12 | 3600×2200×1700 | 5.0 | 75 |
GD-308/4 | 10.0 | 308 | 0 | 0.4 | 4200×3200×2600 | 10.0 | 55 |
GD-180/8.5 | 5.0 | 180 | 0 | 0.85 | 4200×3200×2600 | 10.0 | 55 |
Company Profile

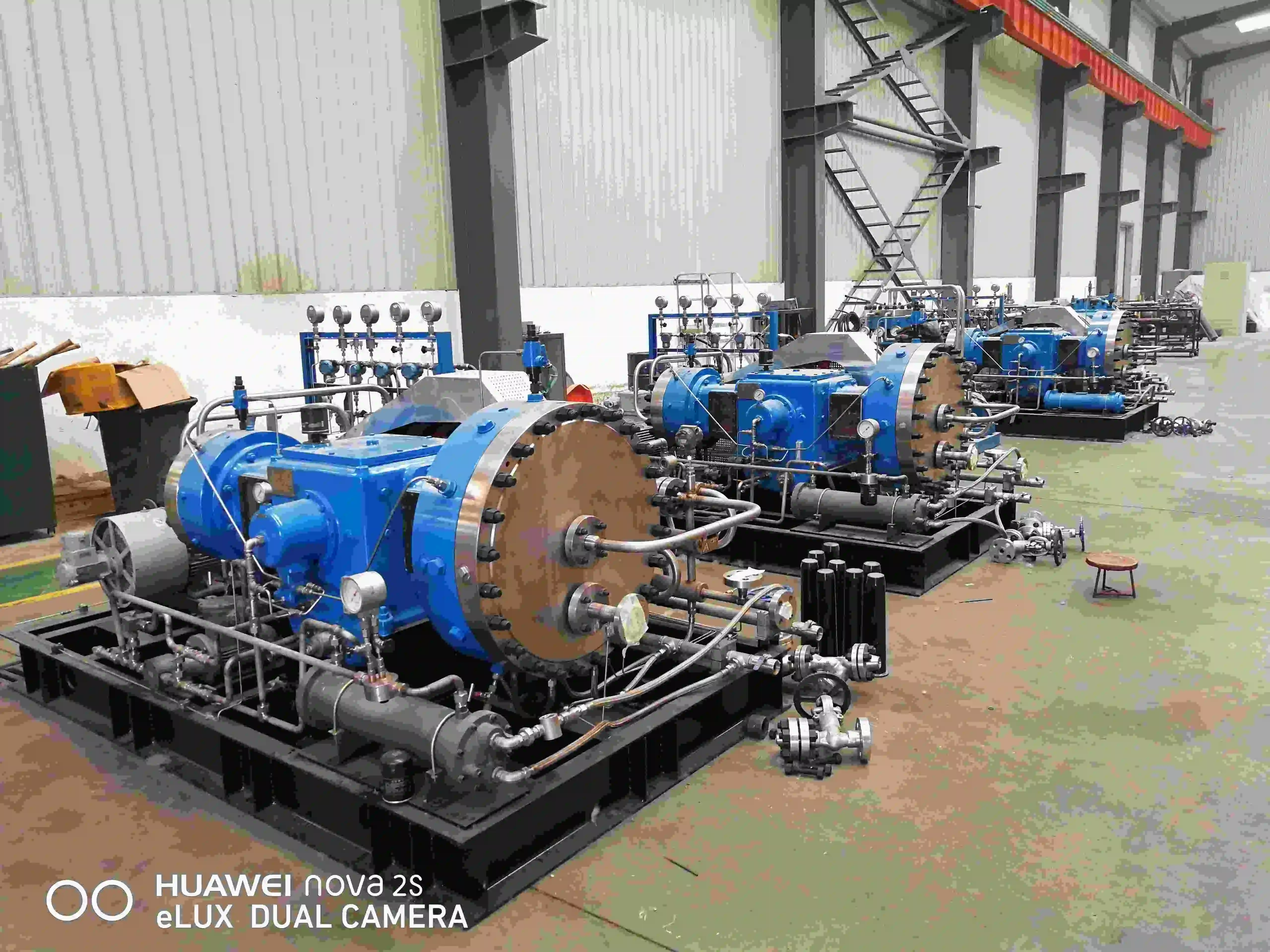

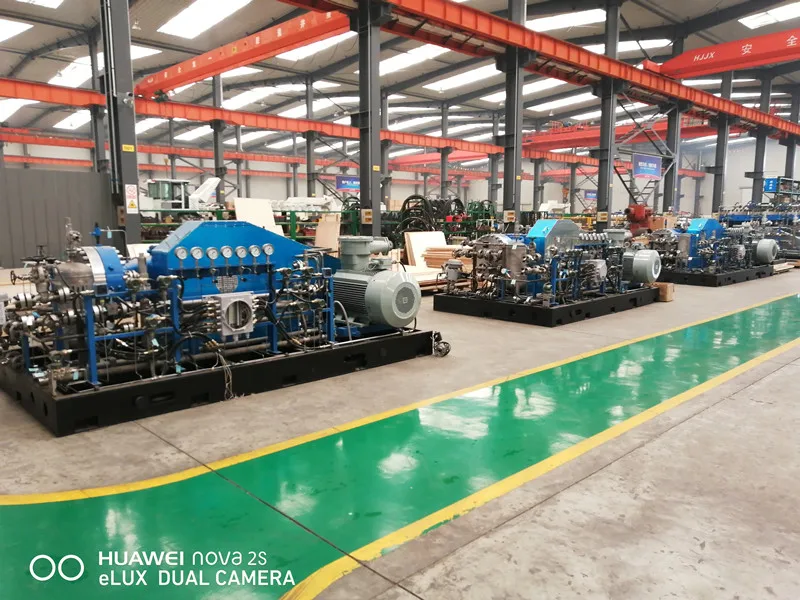

Xuzhou Huayan Gas Equipment Co., Ltd.,Is a leading gas compressors provider,Our company has accumulated rich design and manufacturing experience,Has professional forging, casting, heat treatment, welding, machining , assembly test and other production and processing capabilities, And complete technical testing equipment and methods,We can design, manufacture and install products according to the parameters of customers.
An annual output of 500 sets of various gas compressors has been formed.At present, the compressor outlet pressure produced by the company can reach up to 50MPa.Our products have been exported to dozens of countries around the world，Mainly: Indonesia, Egypt, Vietnam, South Korea, Thailand, Finland, Australia, Czech Republic, Ukraine, Russia and other countries, We can provide complete one-stop solutions for every customer around the world,Our company guarantees that every customer is assured with
high-quality products and excellent service attitude.
Packing & Delivery
Recommend Products
Certifications
FAQ
1.How to get a prompt quotation of gas compressor ?
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
