Double Inspection Camera Head Telescopic Pole Inspection Camera Handheld Video Under Vehicle Inspection System

Product Overview

Description

Double Inspection Camera Head Telescopic Pole Inspection Camera  Handheld Video Under Vehicle Inspection System



                Model : H2D-400P



Handheld Telescopic Pole camera 1080P 7 inch lcd monitor with hdmi output UVIS/ dual HD camera insepction camera is the helper for bureau of customs,public security bureau to checking in-and-out cars,trucks and other bus safety.

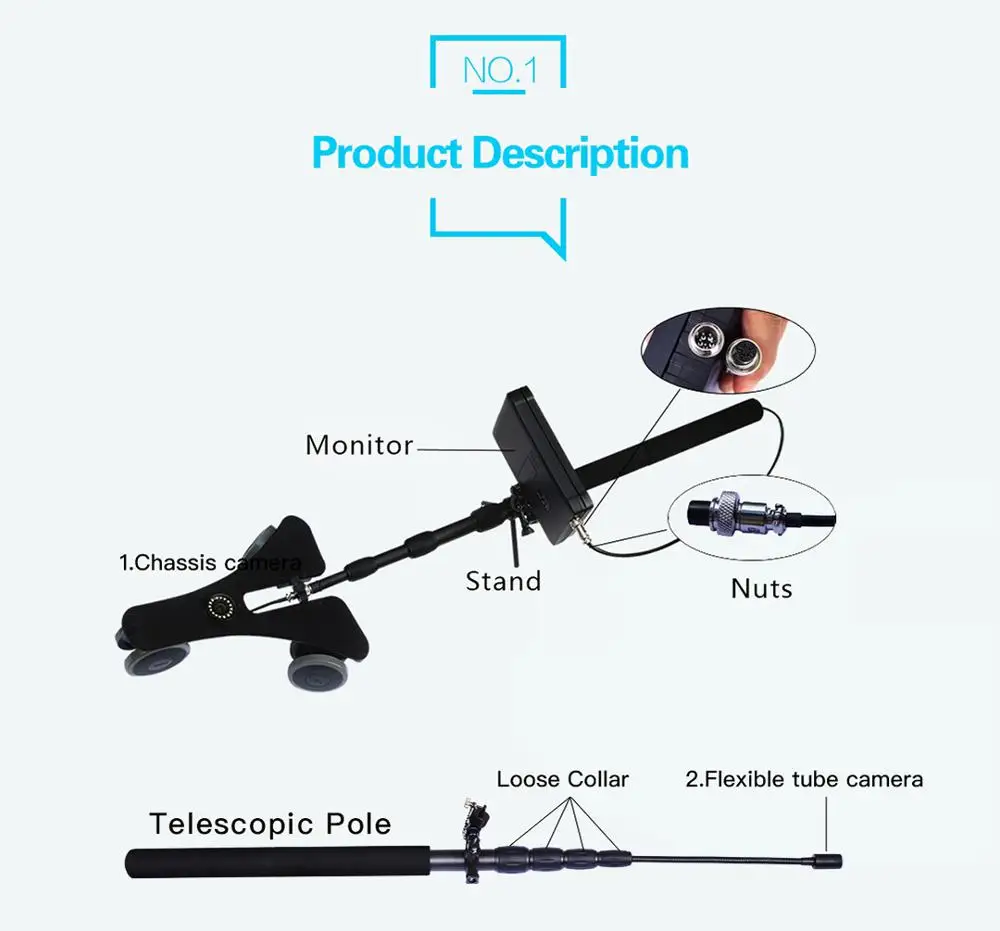

H2D-400P comes with 2 telescopic pole 2 monitors , so the 18mm camera with the pole is one unit, it is waterproof , the other camera with universal wheel and 2 m telescopic camera

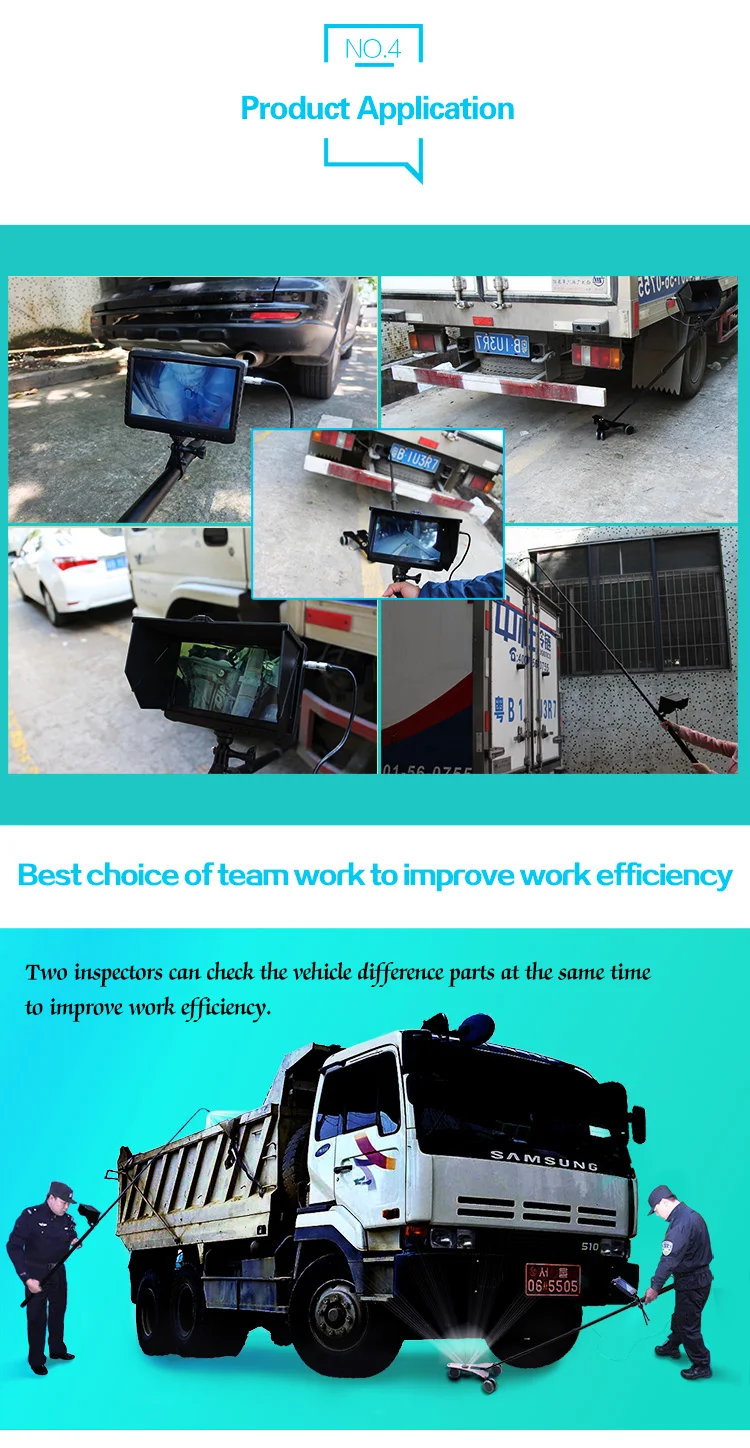

H2D-400P can be good for tean work , it can improve 2 checking staff at the same time.

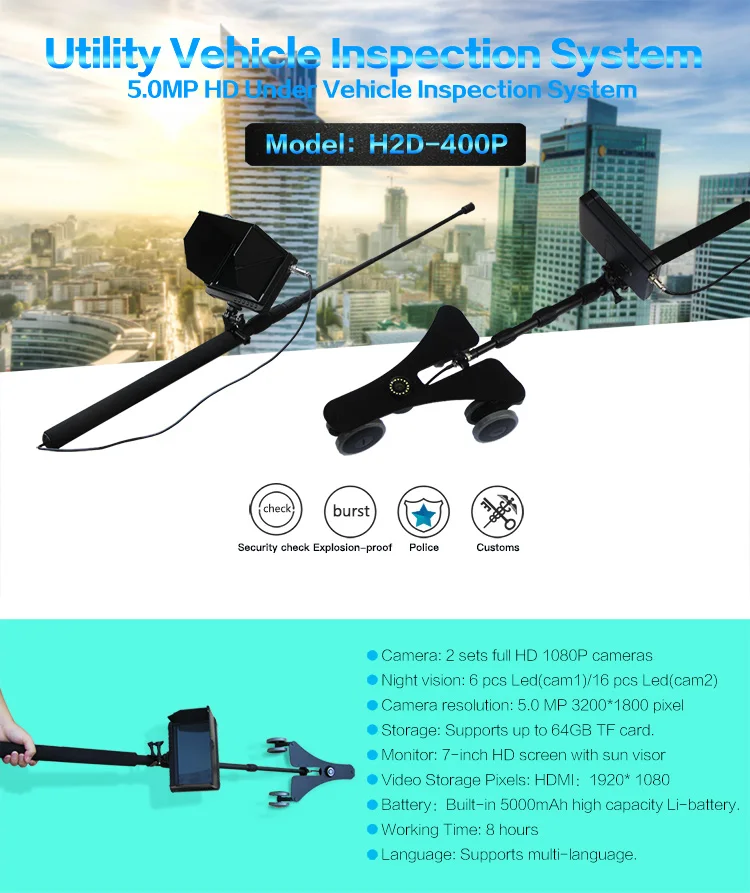

Main features:



H2D-400P

Camera:2 sets full HD 1080P cameras

Night vision: 6PCS led( CAM 1)/16PCS led (cam 2)

Camera resolution: 5.0MP 300*1800 Pixel

Storage : supports up to 64GB TF card

Monitor : 7-inch HD screen with sun visor

Video storage pixels: HDMI : 1920*1080

Battery : built-in 7500mah high capacity Li-battery

Working time : 8 hours

Language: supports multi-language







Specifications for Under vehicle inspection system





under vehicle inspection system
Optical Element	1/2.5  CMOS Sensor  SONY
Optical Total Pixels	5.0MP:3200(H)×1800(V)
CMOS Sensor Size	5.6mm(H)×3.14mm(V)
Sensitivity	0.08Lux/F1.2
Light source	16pcs LED/ IR lamps controlled on DVR
Lens & View angle	3.6mm F1.2  (H )120 °
HD Video Output Interface	FPD-LinkⅢ
Data cable	Diameter:4.0mm   Length:3m
Dimension & Weight	37 x 46mm, 35g(only camera)
Wheels on the tray	Omni-directional wheel
vehicle surveillance system
Optical Element	1/3 CMOS Sensor
Optical Total Pixels	5.0Mega:3200(H)×1800(V)
CMOS Sensor Size	5.07mm(H)×3.38mm(V)
Light source	6 pcs LED lamps hight light
Sensitivity	0.2Lux/F1.2
Lens & View angle	0.5mm F1.2 120 °
HD Video Output Interface	FPD-LinkⅢ
Dimension & Weight	18 x 28mm, 10g
Cable(5Cores High-Speed Line)	Diameter:4mm   Length:3meters
Flexible pipe lenth	25cm soft metal pipe
Telescopic Pole
Length	Constriction Length:58cm;Unfolded Length:228cm
7 inch DVR with Screen
HD Video Output	HDMI:1920* 1080;1280*720
Video Storage Pixels(16:9)	HDMI:1920* 1080;1280*720
Video Compression Format	H.264
Video compress	AVI
HD Digital Video Input Interface	FPD-LinkⅢ
Photo Format	JPG  5.0MP :3200(H)×1800(V)
Storage External SD card	TF card  1GB-64GB(Optional)
Operating system	Windows & Mac OS
Port	Standart AV-OUT, USB2.0
Language	Multiple
Current&Voltage	700mA Video mode;600mA Monitor mode / DC 12V  2A
Built-in battery	Rechargeable Li-battery 7500Mah
Standby time	≥8 hours
DVR Size&Weight	177mm x120mm x 20mm /350g

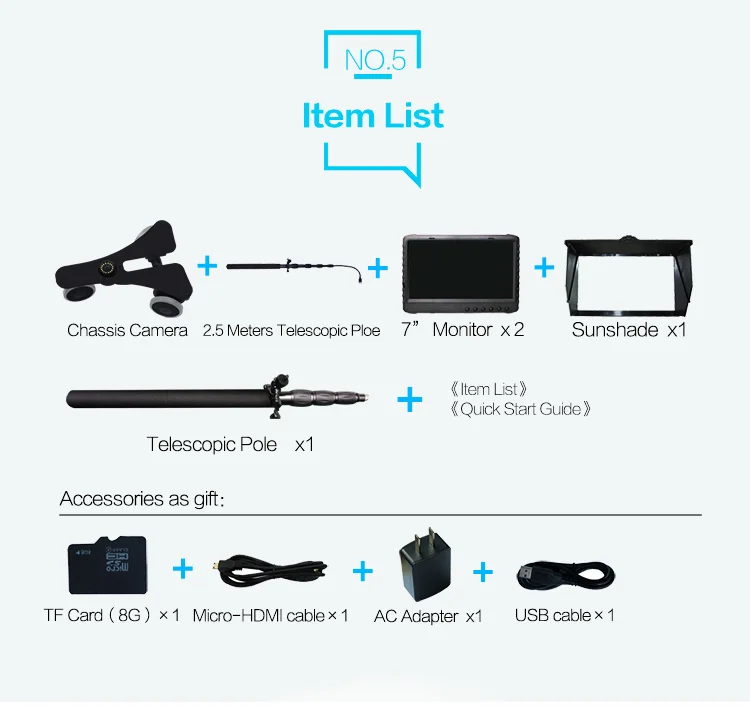

Package Contents	1*7 inch Digital DVR with sunshade;  1* wheel tray camera 1* mini flexible tube camera 1* 2m telescopic pole 1* usb cable 1*AC adapter 1*HDMI Data Cable 1* Aluminium alloy Case

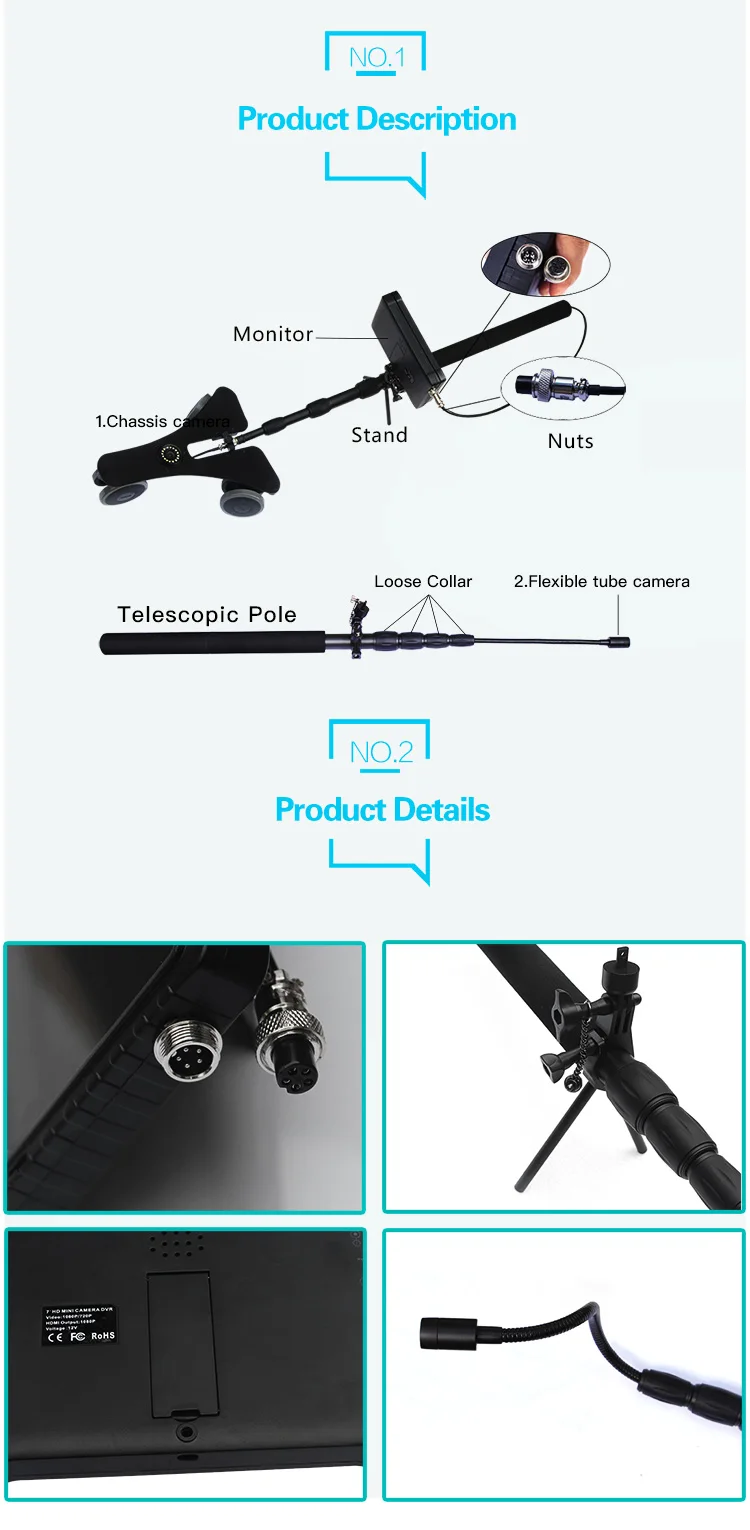

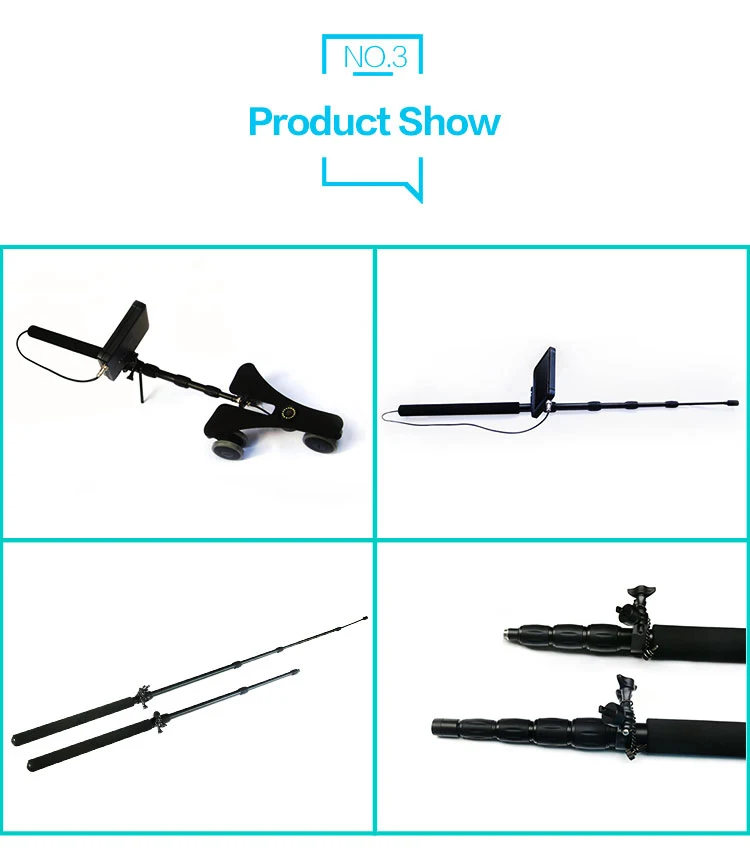

Detail pictures of H2D-400P under vehicle inspection system

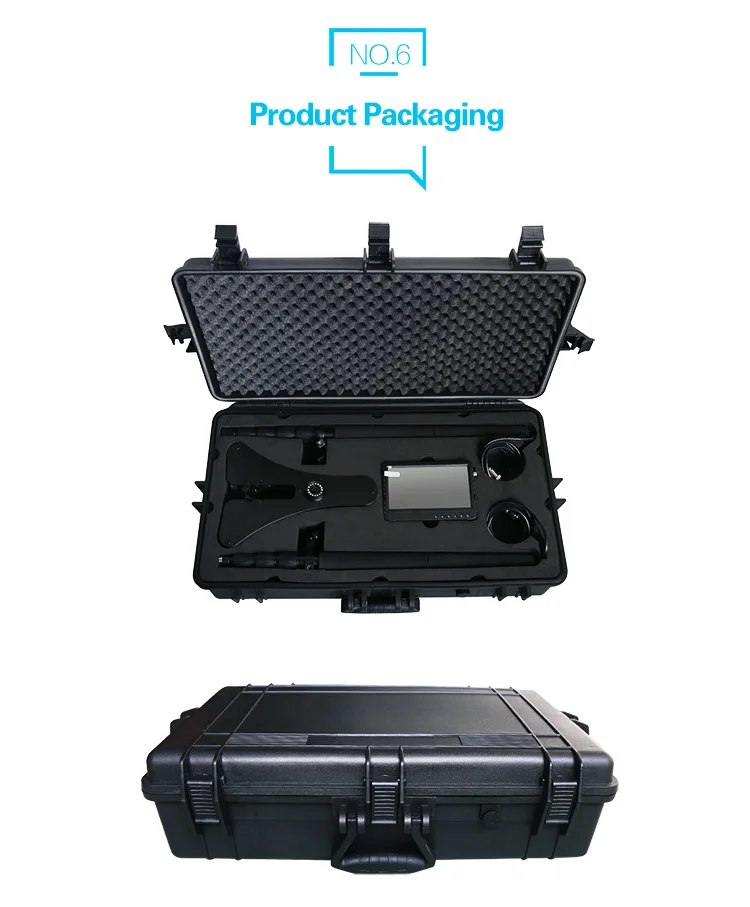

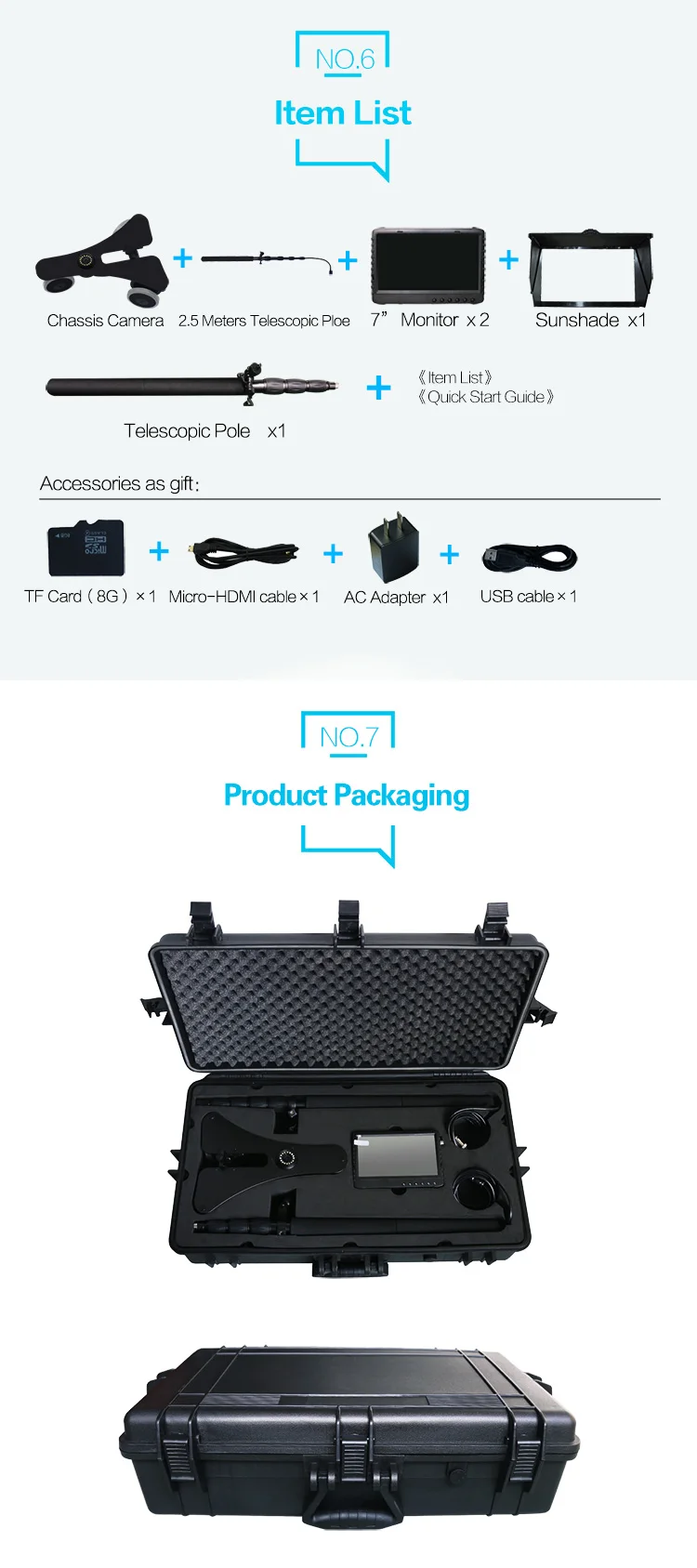

Package content

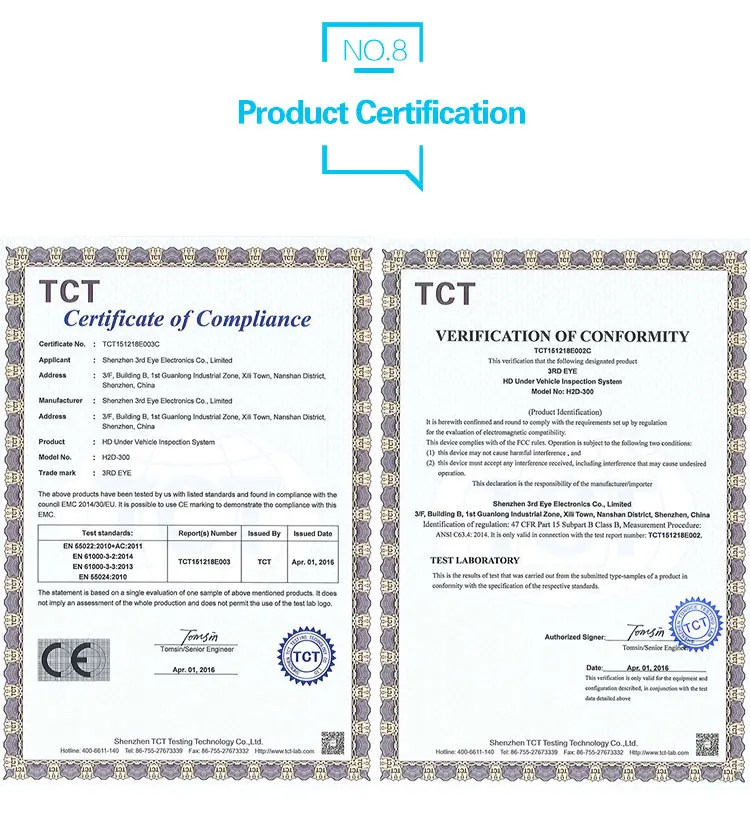

Certificates :

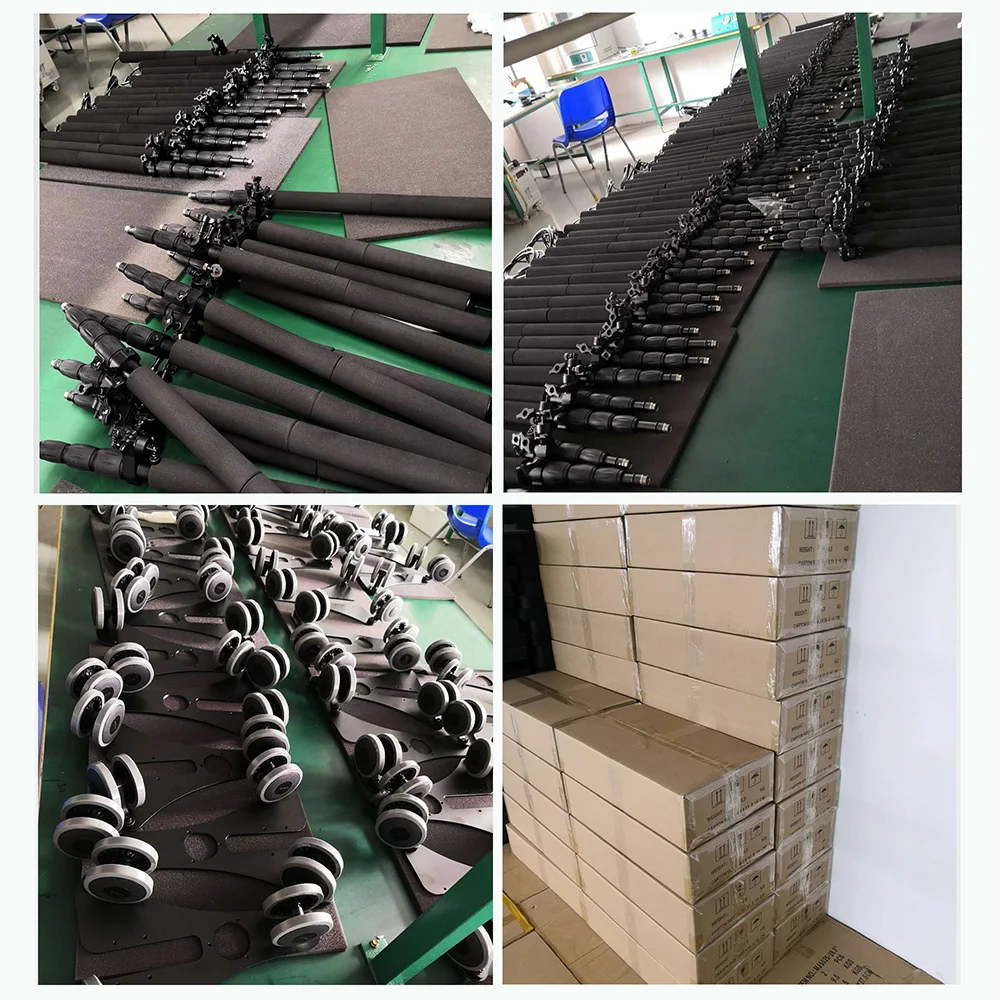

Company show





Our serveise :

OEM/ODM available:

  1) Silk print logo on the camera

  2) Customized camera housing

  3) Customized Color Box

  4) Any your idea on camera we can help you to design and put it into production


After-Sale Service:

   1) All products will be strictly Quality Checcked in house before packing

   2) All products will be well packed before shipping

   3) All our products have 1 year warranty.



FAQ:

Q: Where do you ship from?
A: We shipped from Shenzhen, China.

Q: When will you ship out the item and can I have the tracking NO.?
A: Item will be shipped within 3 working days upon payment received(Holidays excluded), and of course, tracking will be updated to you ASAP.


Q: What kind payment mode do you accept ?
A: You can do payment via Western Union, Moneygram, paypal or T/T.

Q: Do you accept small orders like 1 pcs, 2pcs, 5pcs?
A: Yes,we can start with sample order ,the unit price will be different based on different quantities.
