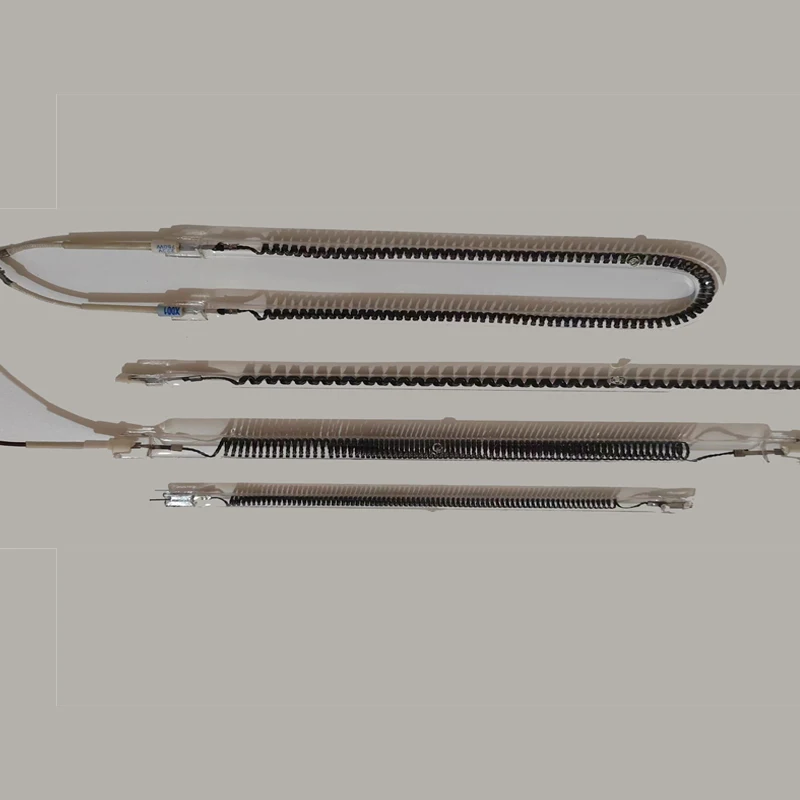

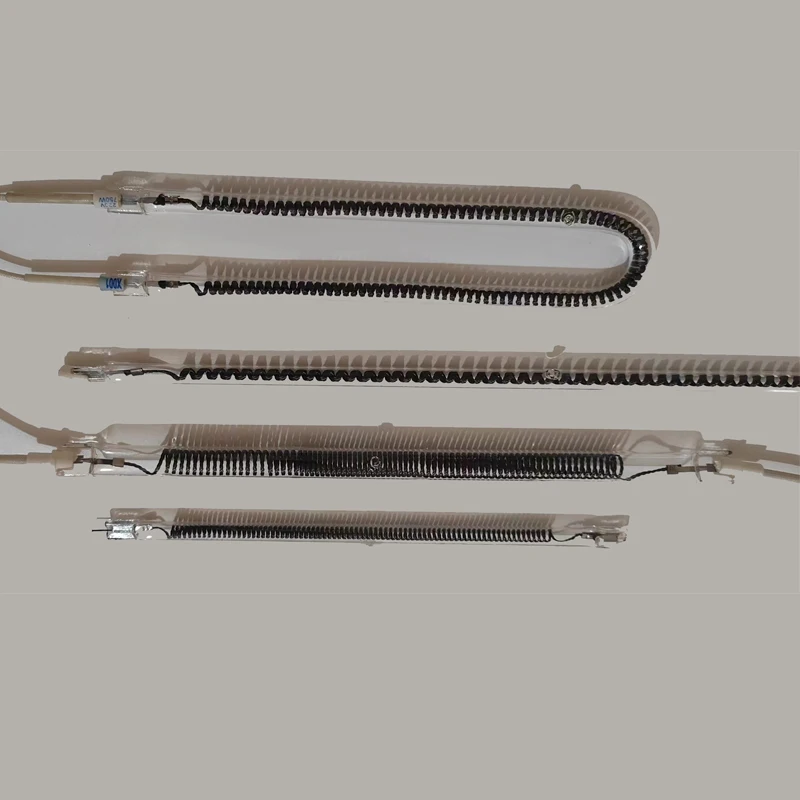

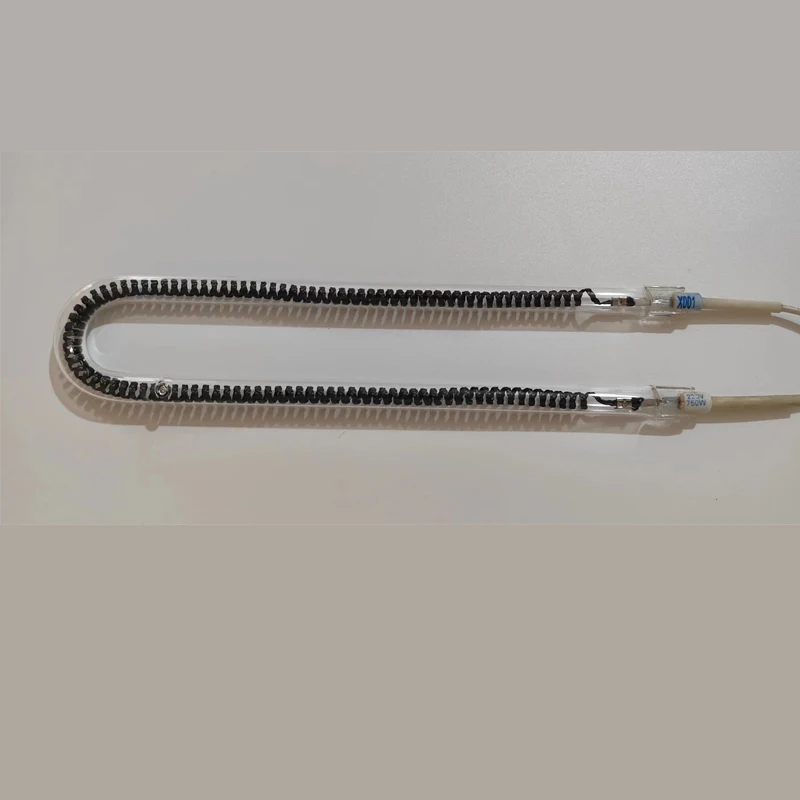

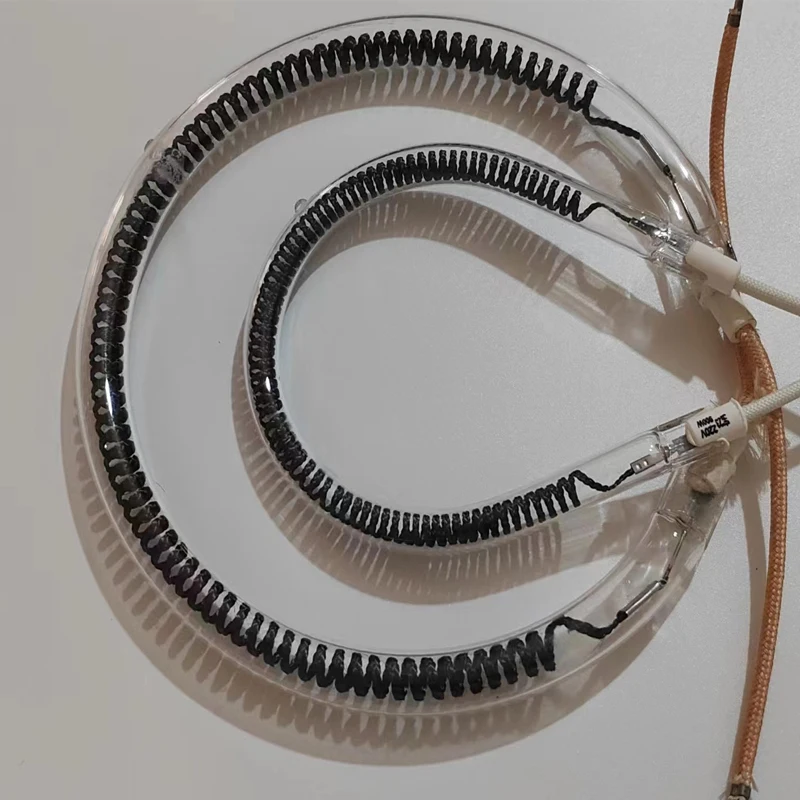

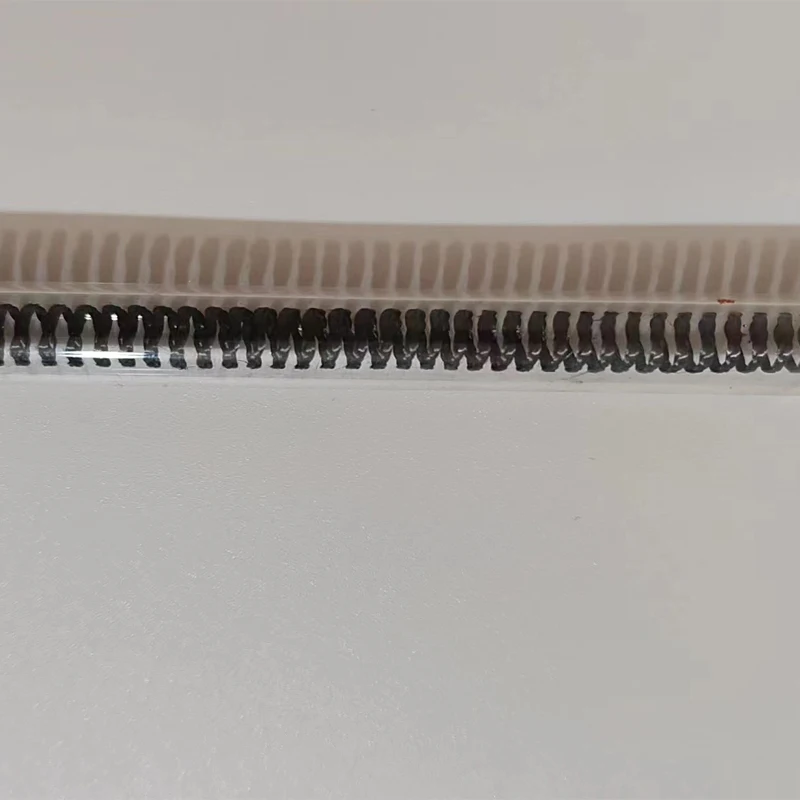

C shape Carbon fiber far infrared lamp quartz heating tube
- Category: >>>
- Supplier: Lianyungang Maigao Quartz Products Co. Ltd.
Share on (1601016162791):
Product Overview
Description
Company profile
We are specialized in the research, manufacture and sales of quartz products.
The main products are: Quartz heating tube,quartz crucible, transparent quartz glass tube, quartz glass diffusion tube, grinding mouth quartz glass tube, quartz glass slide, quartz boat, quartz ware, quartz mound, quartz rod, light building material, medical device, scientific instruments, etc.
We always remind ourselves that "Client is the Center, Quality is the key". We will do our 100% efforts to make our clients satisfied!
Heating tube characteristics:
Small volume,
Big power,
It heats up fast,
High thermal efficiency,
The thermal inertia is minimal,
Long service life,
Long service life,
The infrared effect is good,
Resistance to acid and alkali corrosion
Waterproof and explosion-proof features.
It has good permeability to flat objects.
Heating tube service equipment:
Heater,
dryer,
paint,
Acrylic production,
food processing.
physiotherapy machine,
printing machine,
shoe machine,
oven,
grill,
printer,
plastic bottle blower,
PET blister machine, etc.
Its specific radiation properties can be quickly dried and molded at a speed of 0.5-120m/min.
Heating tube classification:
Carbon fiber heating tube,
Tungsten filament heating tube,
Octagonal tungsten heating tube
Double-tube half-gold-plated heating tube,
Tungsten filament heating tube,
Octagonal tungsten heating tube
Double-tube half-gold-plated heating tube,
All gold plated heating tube.
Product display:
Customize various specifications:
Diameter : φ8 φ10 φ12 φ14 φ16 φ18 φ20 φ30.
Length : 100mm~3000mm.
Power : 36W~5000W.
Voltage : 22V 220V 380V
Technical parameters:
Model | Power (W) | Voltage (V) | Color temperature (K) | Peak wavelength (um) | DWorking life (H) | Diameter (mm) | Length (mm) |
IR-1 | 300 | 120 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 200-450 |
IR-1 | 325 | 120 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 200-450 |
IR-1 | 400 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 200-450 |
IR-1 | 500 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 200-450 |
IR-1 | 600 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 250-600 |
IR-1 | 800 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 250-800 |
IR-1 | 1000 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 10-12 | 300-1500 |
LW-1 | 300 | 100-240 | 750 | 4-9.5 | 6500 | 8-10 | 250-600 |
LW-1 | 500 | 100-240 | 980 | 3.0-9.3 | 6500 | 10-11.5 | 250-600 |
LW-1 | 600 | 100-240 | 1000 | 2.8-8 | 6000 | 10-11.5 | 250-600 |
LW-1 | 800 | 100-240 | 1050 | 2.7-7.6 | 6000 | 10-11.5 | 350-800 |
LW-1 | 900 | 100-240 | 1100 | 2.6-5.5 | 5000 | 10-11.5 | 350-800 |
LW-1 | 1000 | 100-240 | 1200 | 2.5-5 | 5000 | 10-11.5 | 350-800 |
LW-1 | 1200 | 100-240 | 1250 | 2.3-4.8 | 5000 | 10-11.5 | 550-1000 |
LW-CS | 300 | 100-120 | 700 | 4.25-5.5 | 6500 | 10-12 | 60-80 |
LW-CS | 500 | 100-120 | 800 | 4-5 | 6500 | 10-12 | 60-80 |
LW-CS | 600 | 100-120 | 900 | 3-5.5 | 6000 | 10-12 | 60-100 |
LW-CS | 900 | 100-120 | 950 | 2.5-5.5 | 5000 | 10-12 | 80-120 |
LW-CS | 1000 | 100-120 | 1050 | 2.6-5.2 | 5000 | 10-12 | 100-140 |
LW-CS | 1200 | 100-120 | 1100 | 2.5-5 | 5000 | 10-12 | 100-160 |
LW-CS | 1500 | 100-120 | 1250 | 2-4.6 | 5000 | 10-12 | 120-160 |
LW-CS | 300 | 220-240 | 850 | 3-6 | 6500 | 10-12 | 80-100 |
Recommend Products
Product packaging and transportation:
Our Services：
1. Reply to your inquiries within 24 hours.
2. Samples can be provided.
3. Ensure quality
4. Provide support for problem solving during application or sales.
2. Samples can be provided.
3. Ensure quality
4. Provide support for problem solving during application or sales.
FAQ
Q:Are you a factory?
A:Yes.
Q:Sample is free or not ?
A:Free is ok ,but it is only the small cost .When cost is high ,you will afford it ,sample cost and shipping cost.
Q:How long will I get the sample ?
A:Sample is in stock ,it takes 3days .OEM or ODM ones ,it should take 10days .
Q:What's your delivery time?
A:It depends on the quantity you order
A:Yes.
Q:Sample is free or not ?
A:Free is ok ,but it is only the small cost .When cost is high ,you will afford it ,sample cost and shipping cost.
Q:How long will I get the sample ?
A:Sample is in stock ,it takes 3days .OEM or ODM ones ,it should take 10days .
Q:What's your delivery time?
A:It depends on the quantity you order
