American and European market PP pipe waterproofing membrane

Product Overview

Description

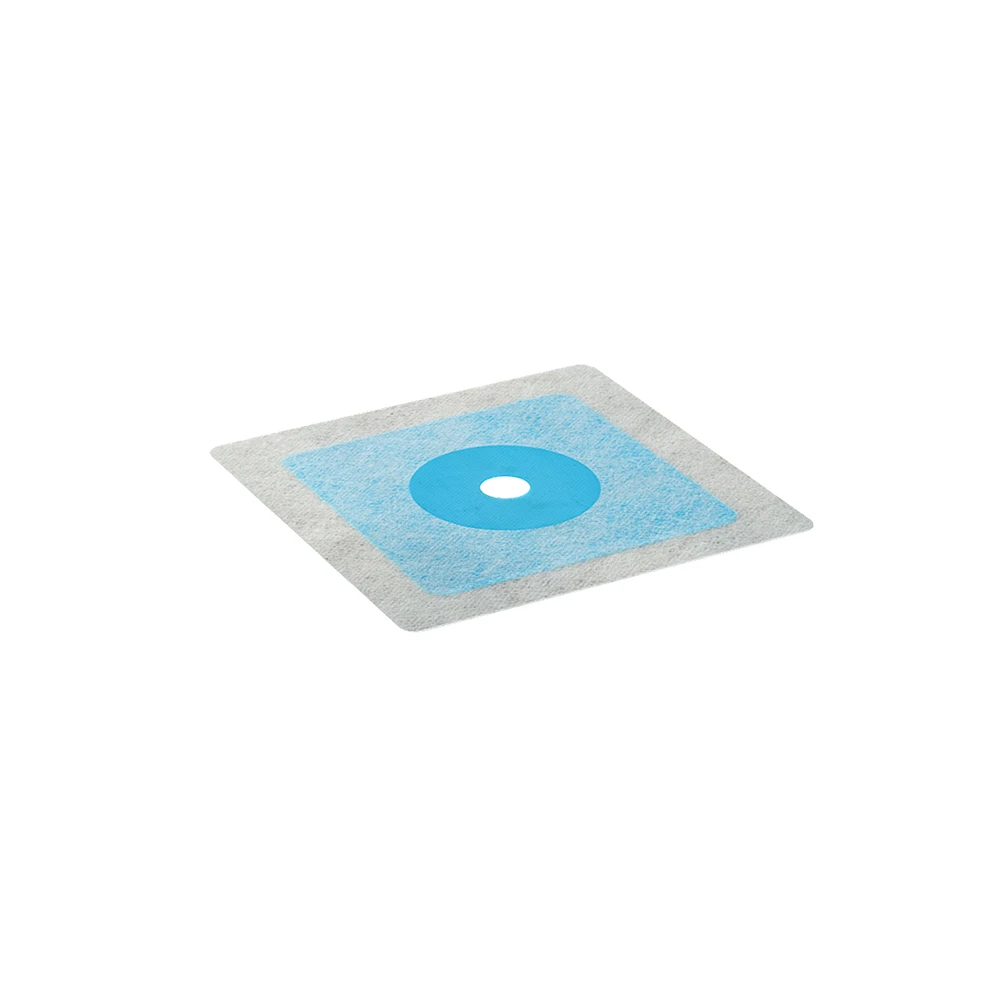

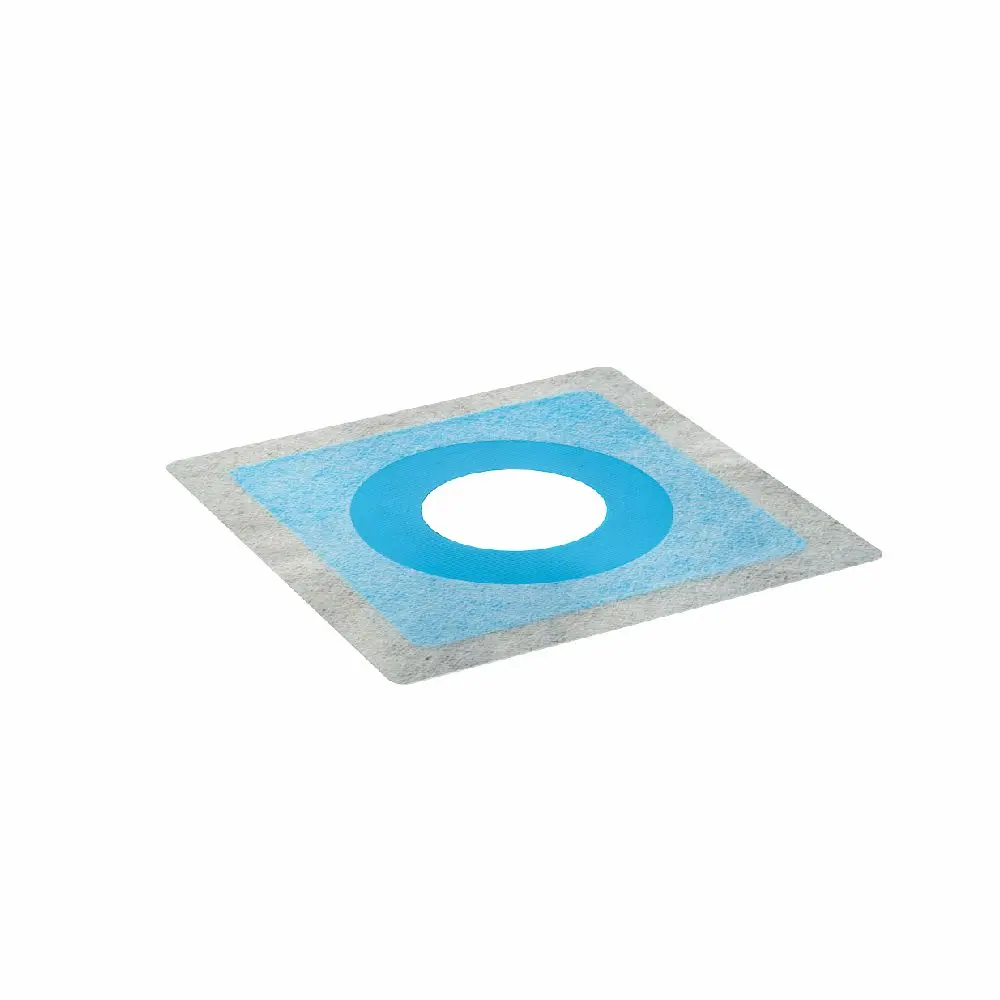

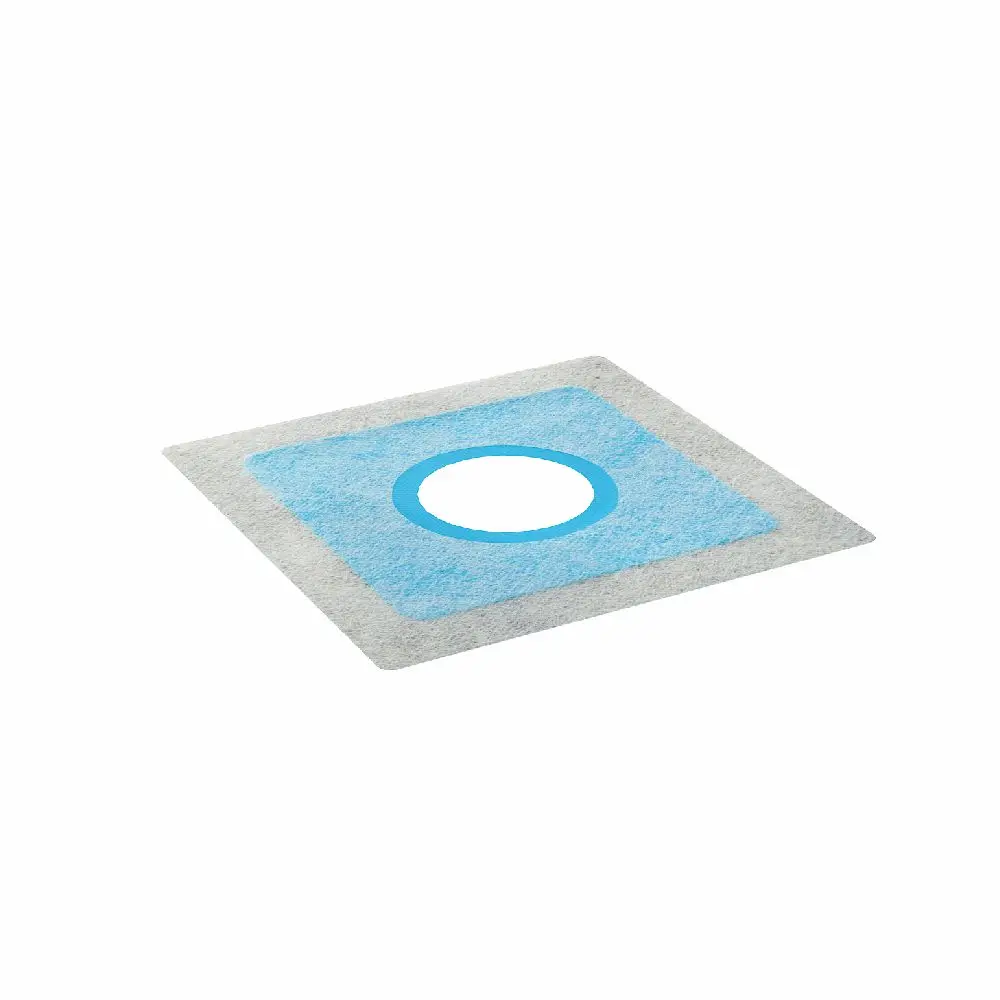

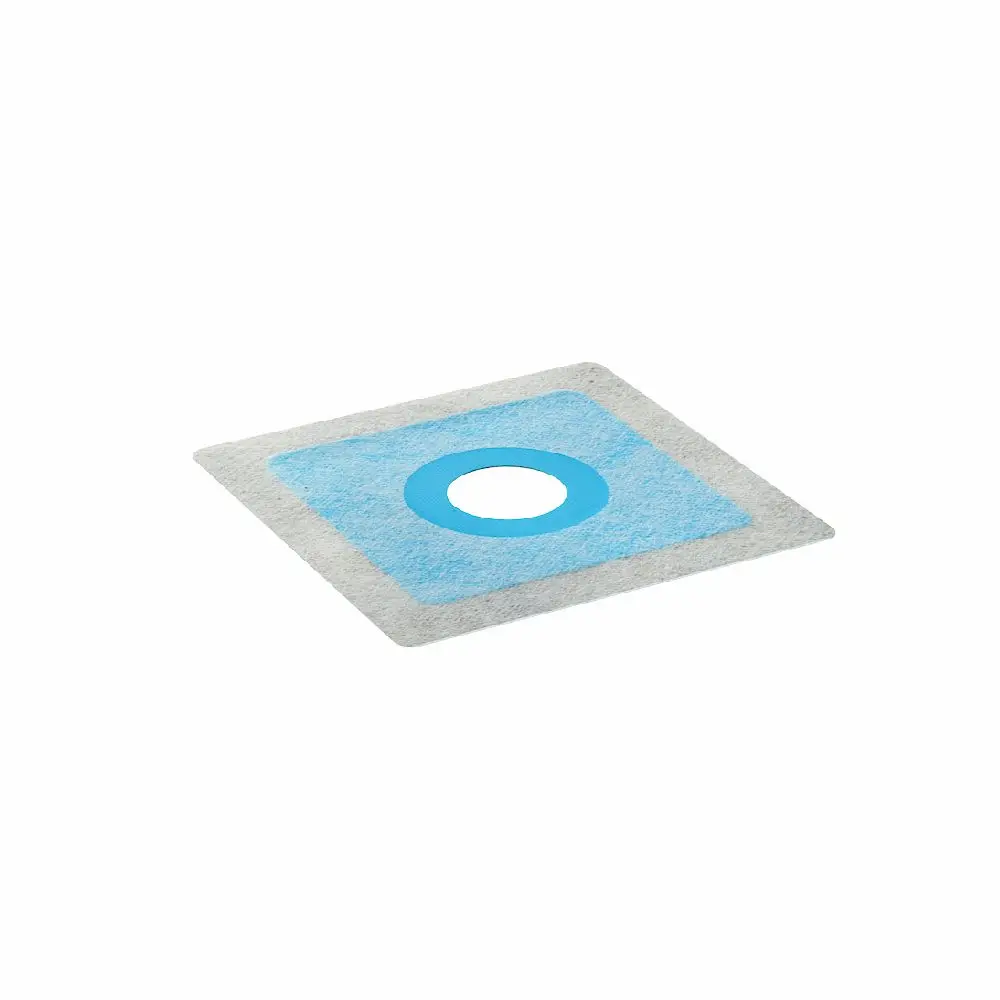

Mondeway waterproof pipe root sleeve is a waterproof sealing component with super toughness, which can form a sealed waterproof barrier at the intersection of various drainage pipes and grassroots nodes in buildings.



Product features

Simple and time-saving installation, easy to follow construction

Elastic reinforcement of critical motion zone

High strength while maintaining high elasticity

Compatible with waterproof coatings and cement-based adhesives

Resist cracks at the junction of the base layer and water pipes to prevent water leakage



Usage

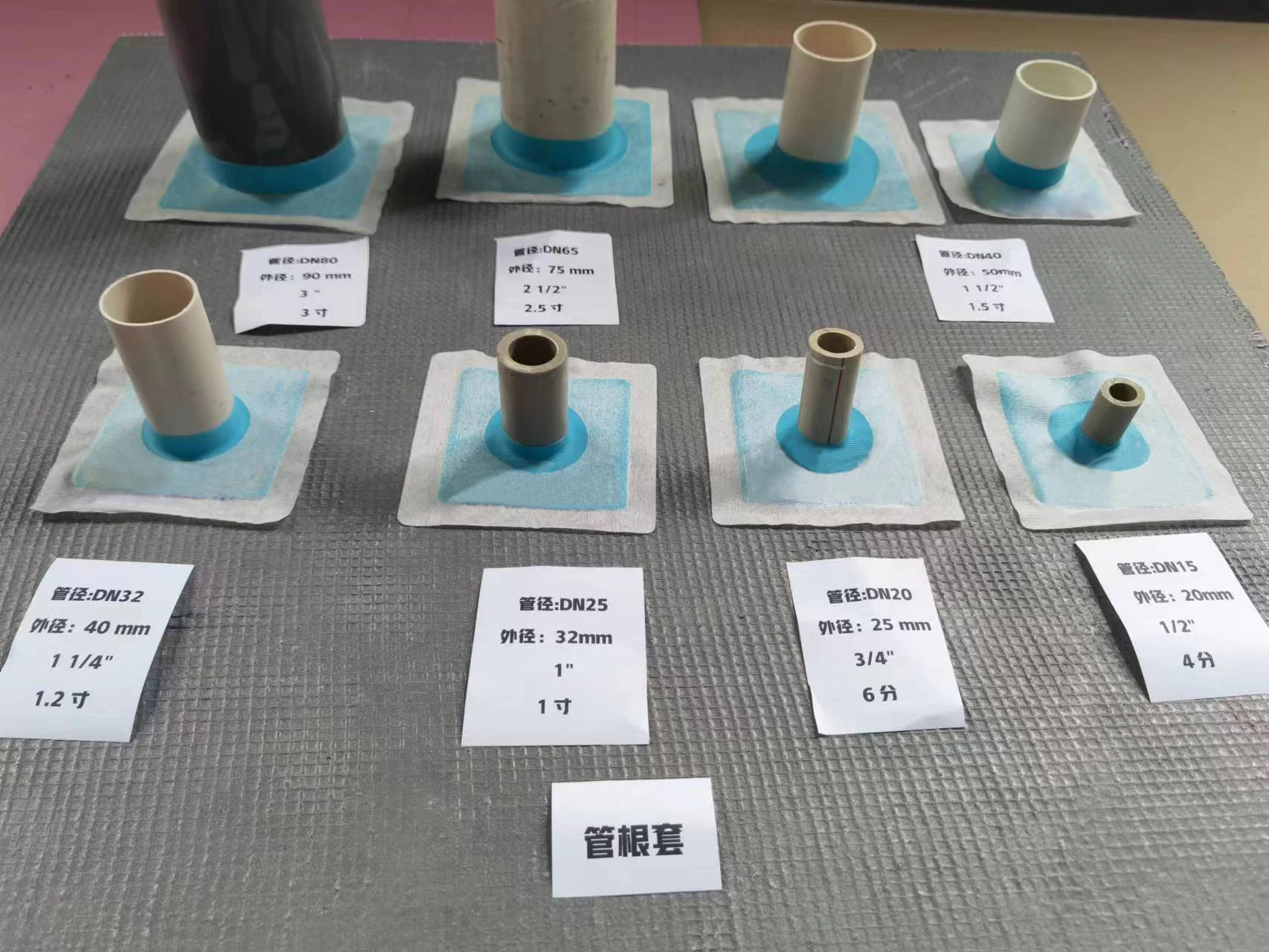

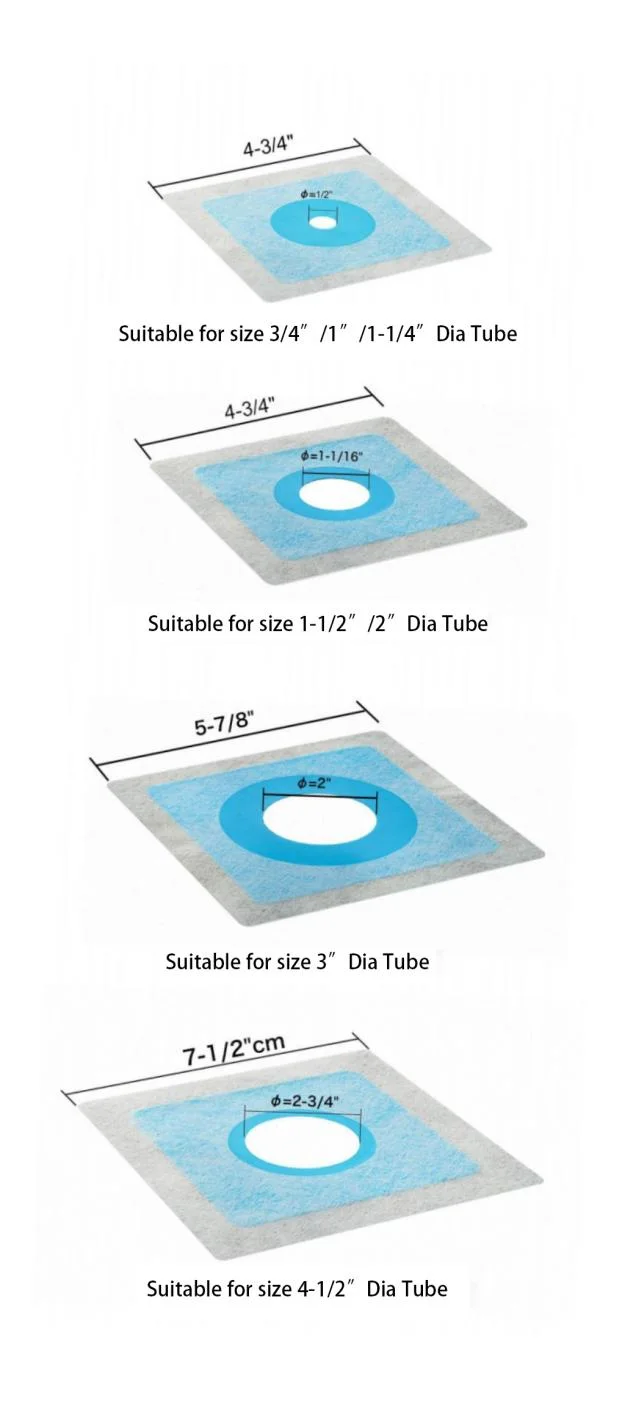

*Suitable for 75mm diameter hot and cold water inlet and outlet pipes or other similar diameter water pipes.

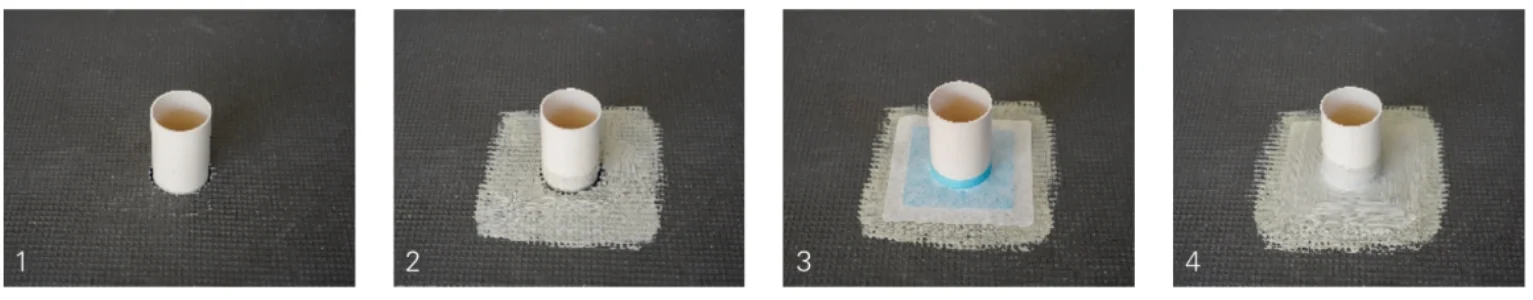

Step 1- Clean the base layer at the root of the pipe and any dirt and dust adhering to the surface of the water pipe.

Step 2- Use a brush to evenly apply the Mengwei 520 waterproof rubber film or other waterproof film that meets the requirements around the pipe root. The coating surface should exceed the total width of the Mengwei waterproof pipe root sleeve (hereinafter referred to as the pipe root sleeve), and apply waterproof coating with a height of about 2-3cm along the outer wall of the pipe.

Step 3- Insert the root sleeve into the top of the drainage pipe, press it down from top to bottom, and ensure that the root sleeve is located in the middle of the joint of the pipe root. Use a brush or shovel to lightly press the root sleeve to ensure that it is completely attached to the waterproof film, without arching or flipping, and forms a flipping edge of about 1cm with the root of the water pipe.

Step 4- Apply another layer of waterproof film evenly on the surface of the root canal sleeve, ensuring that the non-woven fabric around the root canal sleeve and the junction of the water pipe root are completely covered by the waterproof rubber film.

Step 5- After the first layer of waterproof film is completely dry, apply a thin layer of waterproof film for reinforcement.



*Notes:

The surface of the base layer should be sturdy and clean, without any dust, oil stains, coatings or other substances that affect adhesion

When overlapping with other waterproof cloths, the waterproof cloth should be overlapped as much as possible to the edge of the pipeline, completely covering the pipe root sleeve

Storage and transportation: This product must be stored in a dry and ventilated indoor environment to prevent exposure to sunlight.

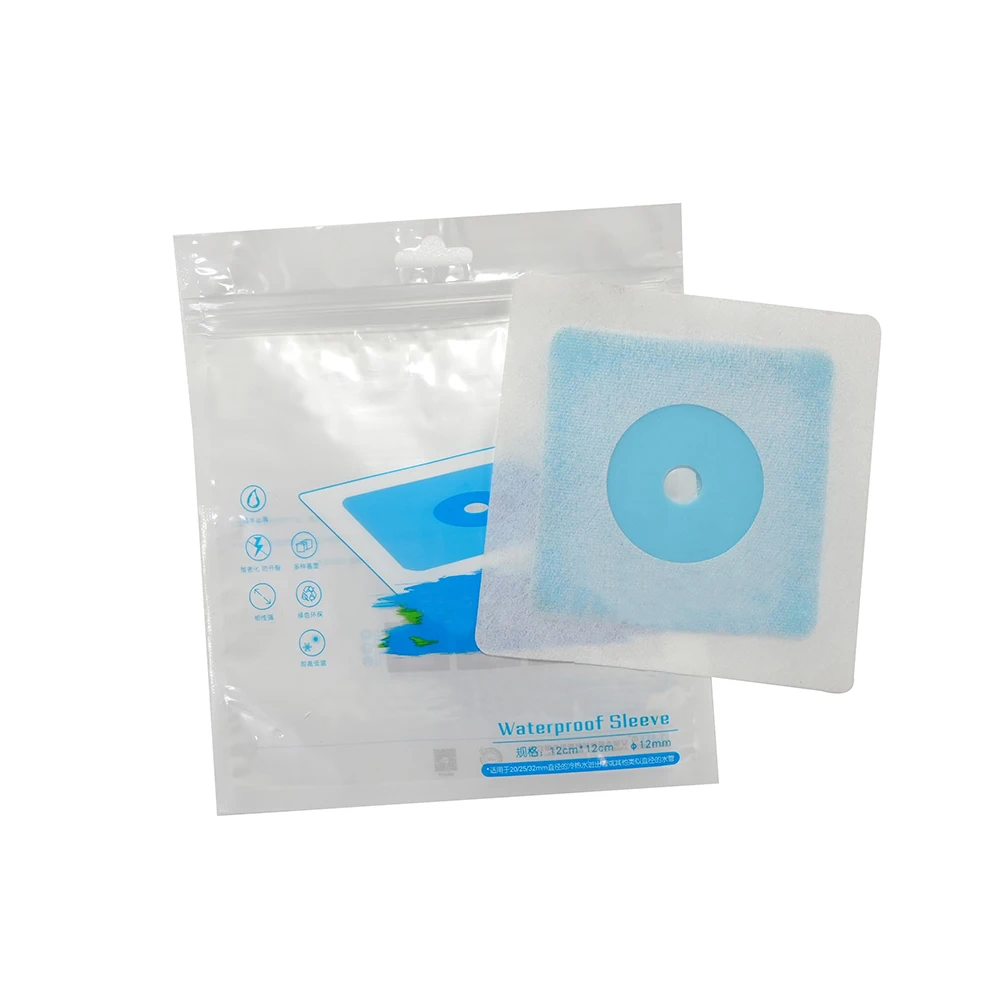

Packaging specification: 1 piece

Executive standard: EN 13967:2012

Life Time: Shelf life at room temperature is 2 years.





Brand Name:	Mondeway®
Price Term:	Based on RMB/USD FOB Ningbo.
Payment terms:	30% TT deposit, 70% balance against copy of BL or before shipment.
Delivery date:	1 to 5 weeks depends on order quantity.
Packing details:	Each into a polybag,single box package and then pack on pallets







More information

1) How can I place order?

A: You can contact us by email about your order details, or place order on line.



2) How can I pay you?

A: After you confirm our PI. we will request you to pay T/T and Paypal. Western Union are the most usual ways we are using.



3) What's the order procedure?

A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pre-paid full payment or 30% deposit before we go into production. After we get the deposit, we start to process the order. We usually need 1-5 weeks if we dont have the items in stock. Before production has been finished, we will contact you for shipment details, start to prepare the shipment for you, and the balance payment should be settled at the sight of copy of BL.



4)How do you take care when your clients received defective products?

A: replacement. If there are some defective items, we usually credit to our customer or replace m next shipment.



5)How do you check all the goods in the production line?

A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure. And all the goods will be tested after welding, assure 100% no leaking problems.
