SSD 3g 4g Wifi Gsm 4glte Mdvr Camera 8 Channels 1080p Hdd Gps 4g Mobile Dvr Mdvr
- Category: >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (1601016360501):
Product Overview
Description
Direct order default send:

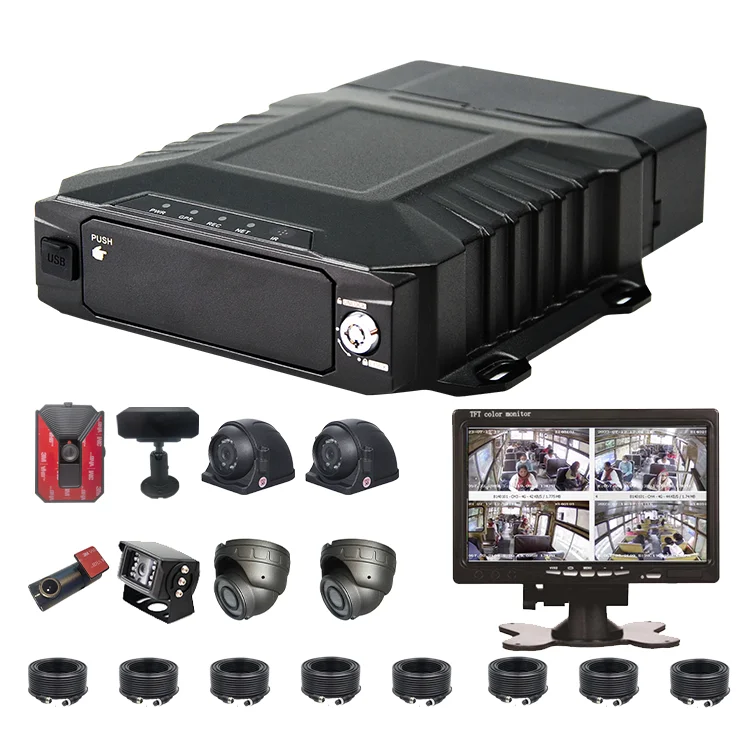

An 8ch mdvr with 4g + gps,order only contains the mdvr;
The camera and display and other accessories need to be purchased separately, please contact customer service for details!
The camera and display and other accessories need to be purchased separately, please contact customer service for details!
Details Images
Products Description

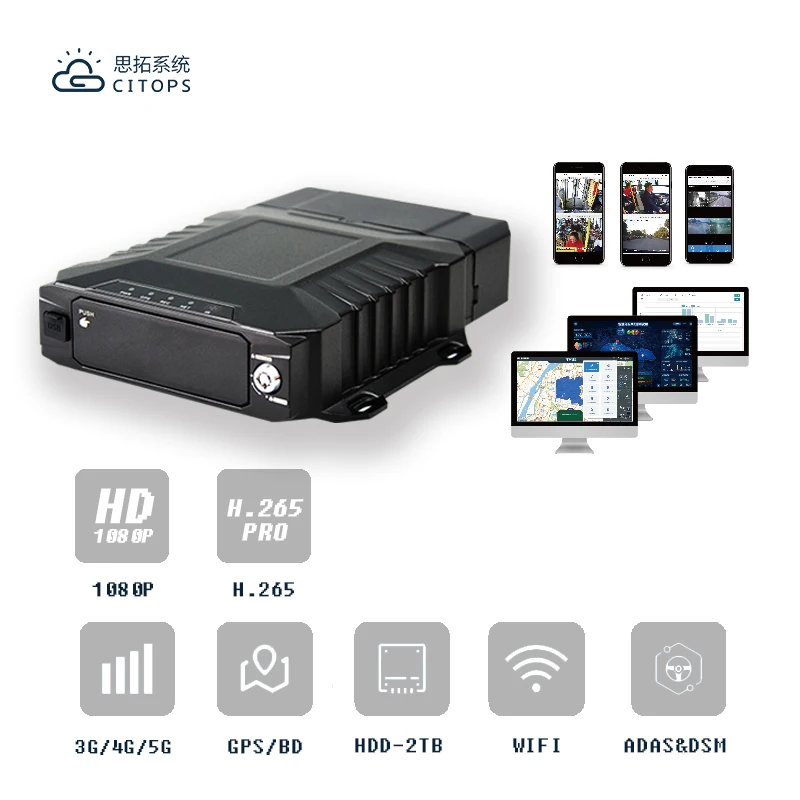

SSD 3g 4g Wifi Gsm 4glte Mdvr Camera 8 Channels 1080p Hdd Gps 4g Mobile Dvr Mdvr It adopts a self-pop-up structure design of hard disk, high-speed processor NT98323 and embedded operating system, and integrates IT cutting-edge field H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning and other technologies.
* The interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G WIFI and GPS functional modules
* Supports a 2.5-inch optional SSD/HDD hard disk
* Supports one SD card
* Rich peripheral interfaces
* Support external UPS battery life
* High scalability
* The interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G WIFI and GPS functional modules
* Supports a 2.5-inch optional SSD/HDD hard disk
* Supports one SD card
* Rich peripheral interfaces
* Support external UPS battery life
* High scalability
Item | parameters | ||
Audio and Video Inputs | video input | 8ch AHD audio input | |
audio input | 4ch audio input | ||
Audio and Video outputs | video output | Default 1-way CVBS output (VGA output optional) | |
speech output | 1ch audio output | ||
Audio and video parameter coding | video coding | H.264 Main Profile/H.265 | |
Resolution | 1080P/720P/D1 optional | ||
audio coding | Default G.726,G.711A optional | ||
storage space | HDD | 1 2.5-inch optional: SSD/HDD hard disk | |
SD | Support 1 SD card | ||
wireless network | 4G | Supports 1 SIM card, optional: all major communication modules in the world | |
WIFI | 2.4/5.8G optional | ||
locate mode | BD/GPS | Support for mixed positioning, speed detection, time synchronization | |
interface | USB | USB2.0 interface, support export data, external engineering treasure | |
serial port | Support 2 RS232, 1 RS485, can be connected with external sensor | ||
I/O | 4 level inputs, 2 analog inputs, 2 alarm outputs | ||
network interface | Support external IPC, support hybrid NVR function | ||
Intercom | 1 special intercom handheld mark interface | ||
Physical Specifications | size | 176.9mm（L）*186.8mm（W）*54mm（H） | |
weight | NW：1.4kg GW：2kg（M52Hv-DGNE1-L as a standard） | ||
work environment | operating temperature | -20〜+70℃ | |
operating humidity | 8%〜90%（No condensation） | ||
Other | operator schema | remote control、APP、WEB | |
· Gravity sensor | Built-in G-Sensor | ||
