Product Overview
Description
Product Description

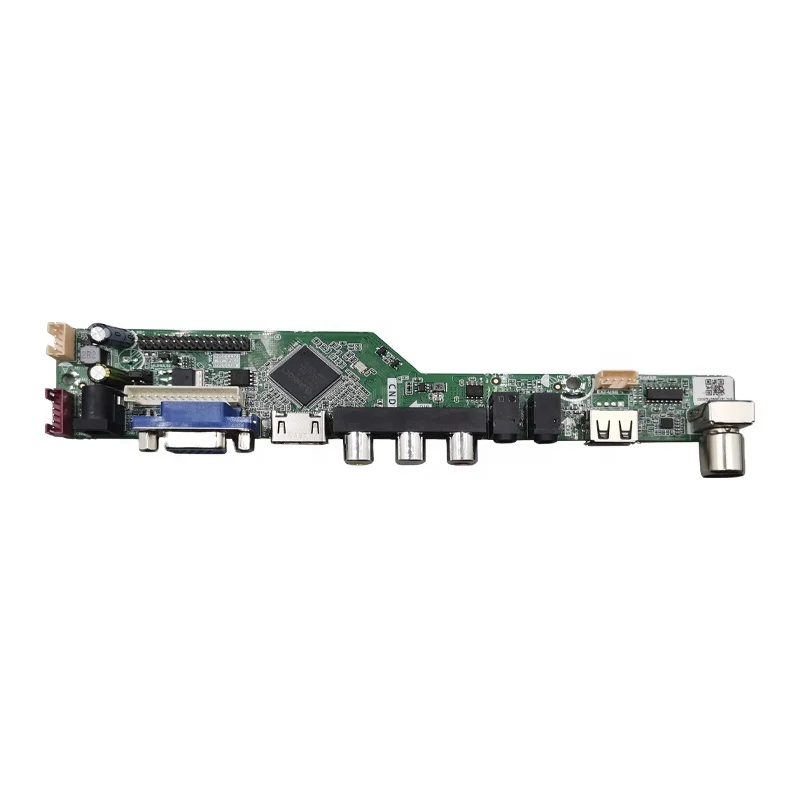

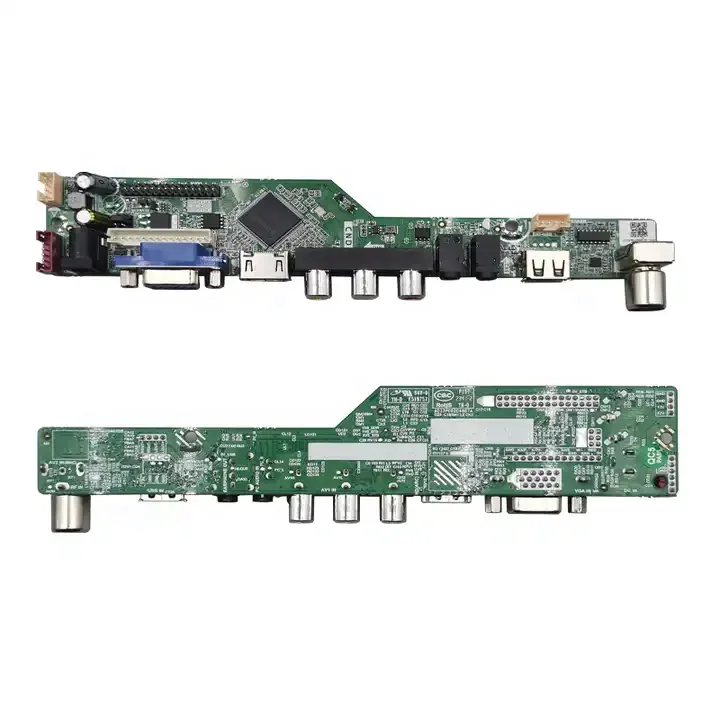

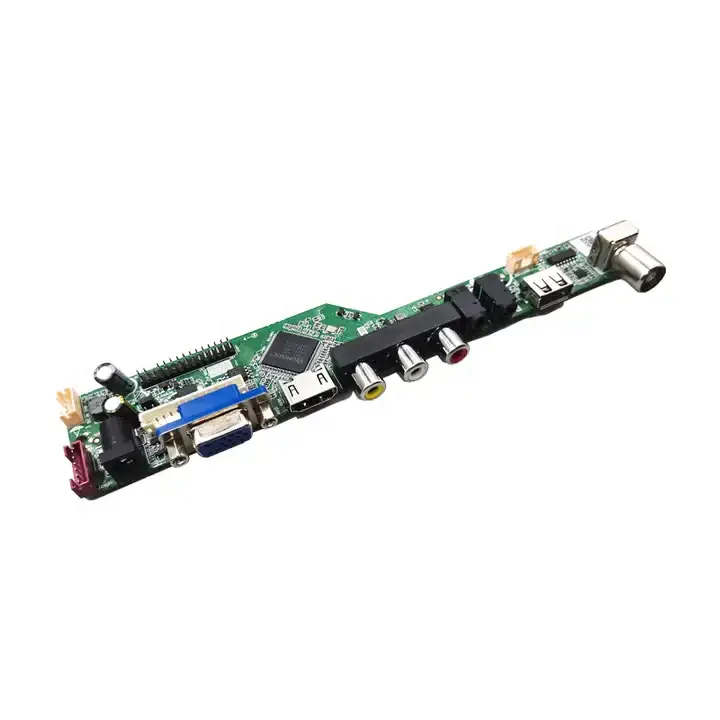

Product model:universal tv v56 motherboard led tv motherboard sony 50 inch
Model: CND-V56-S
Key Features:
1. Compatible With Various analog TV system PAL/NTSC/SECAM
2. 3D boardsupport
3. Reliable EMC and anti-static treatment;
4. Automatically detecting input video format;
5. VGA +DVI +HDMI+USB inputs;
6. Built-in superior quality stereo speakers;
7. Multi OSD languages support;
8. Full HD 1920X1080 resolution TFT-LCD screen max support
9. Expanded port board supports 1~2 AV input,1AV output,1YPBPR input;
If you are interested in universal analog V56 LCD TV Board, please click here
BOOT LOGO SETTING
Step 1: Put your logo into the U disk
Step 2: connect your U disk with mainboard
Step 3: Find your logo in Multi-media File
Step 4: Select your logo
Step 5: Press No."6 " on remote control to change to fullscreen play,then press "ok" on
the remote control, on the bottom of the option items, there is a " catch", choose it.
Done
Product Specification:
MODEL | universal lcd led tv mother board | ||
OSD LANGUAGE | Default Chinese/English, French, German, Italian , Spanish , Portuguese | ||
PANEL | Interface | Single Dual LVDS,2X15 pins | |
| Resolution | Max 1920x1080@60Hz | |
Video Input | TV | Received frequency | 49MHz – 863MHz |
Input impedance | 75 | ||
Color system | PAL, SECAM/NTSC | ||
Sound system | BG, DK, I, L/M,N | ||
PC Input | R,G,B+H/V | Max 1920x1080@60Hz | |
HDMI | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | ||
USB | USB document support format | ||
Video | Color system | PAL/SECAM/NTSC | |
Video range | 1.0 Vp-p ±5% | ||
Audio input | Computer | Earphone input | 0.2 – 1.5 Vrms |
Video | L/R RCA Input | 0.2 – 1.5 Vrms | |
Audio output | Frequency Response | 100Hz - 15000Hz @±3dB (1KHz 0dB benchmark signal) | |
Power | Loudspeaker output | 2x2W(8 ohm) THD+N<10% | |
Input requirement | Single +12v | ||
Screen power supply | 3.3V,5V, 12V | ||
Power management | Low power consumption mode, stand by <1W(depending on the power supply) | ||

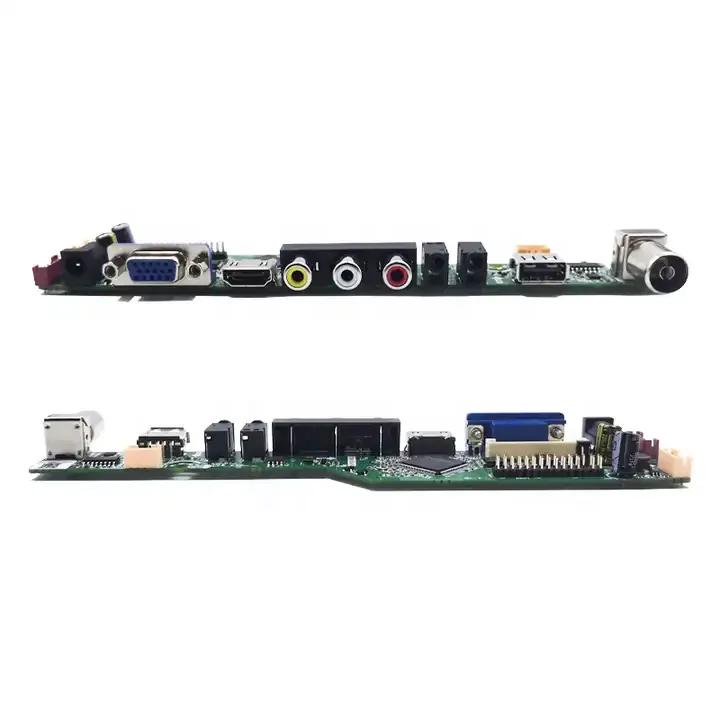

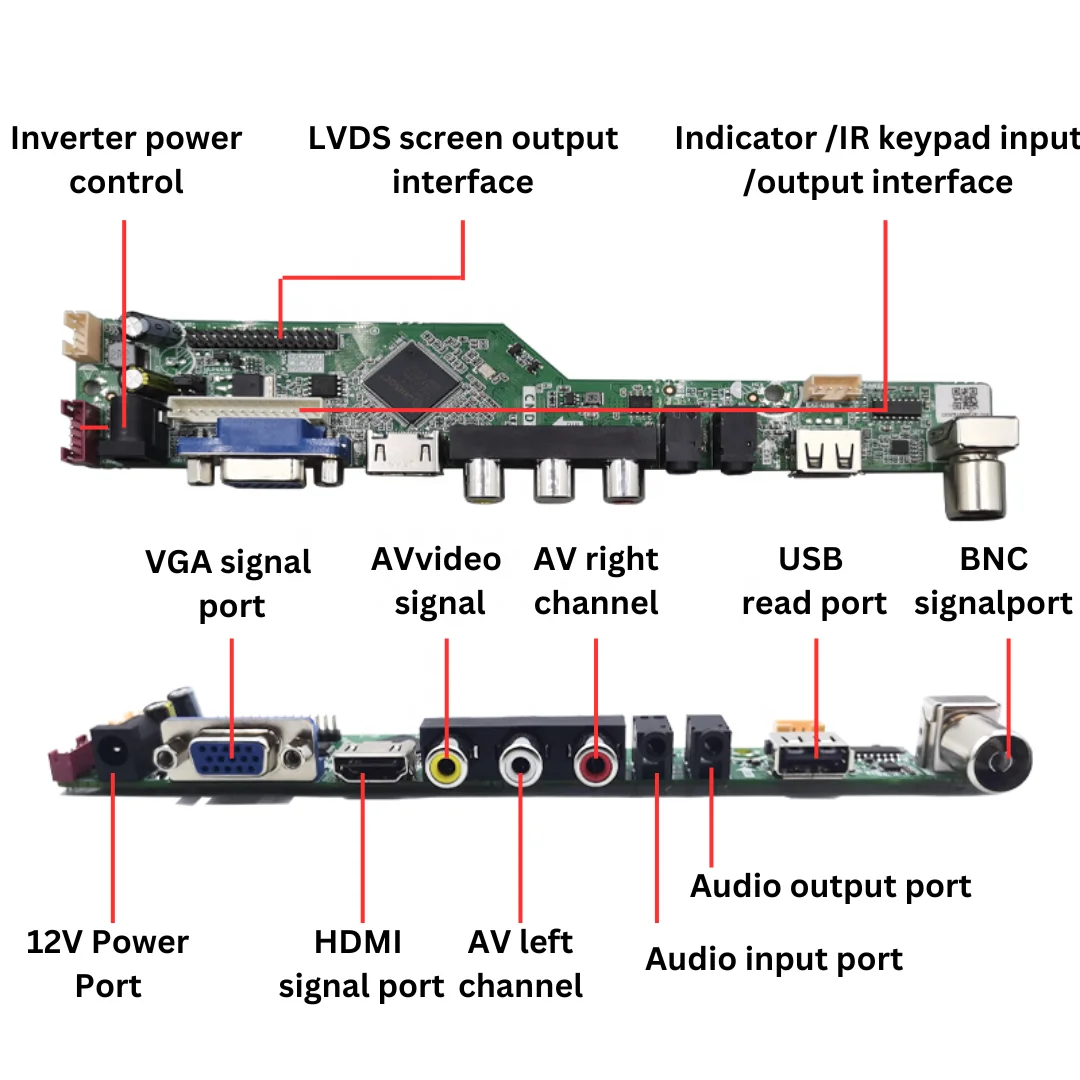

Port | Input | USB | 1 USB horizontal socket |
HDMI | 1 HDMI terminal | ||
Computer | 1 D-SUB 15 pin terminal | ||
PC-RGB Audio | 1 earphone socket(black) | ||
Video | 1 RCA terminal(yellow) | ||
Audio | 2 RCA terminals(white, red) | ||
TV | 1 IEC connector 75 | ||
Aberration | No | ||
Packaging & Shipping
Company Information
FAQ
Question: Are you manufacturer?
Answer: Yes, we are professional manufacturer lcd controller board, lcd android board, lcd android touch monitor since established in 2006
Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.
Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 15-35 days for mass production orders(based on different quantities, OEM, etc.)
Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT
to enable our customers to get their goods rapidly.
Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express.
Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.
Question: What service do you have?
Answer: We have full-technique support and software support.
Question: What is your warranty?
Answer: Our warranty is 1 year after delivery.
