15T board dock leveler hydraulic container leveler container ramp for forklift
- Category: >>>
- Supplier: Shandong Chufeng Heavy Industry Machinery Co. Ltd.
Share on (1601016447152):
Product Overview
Description
Product Description

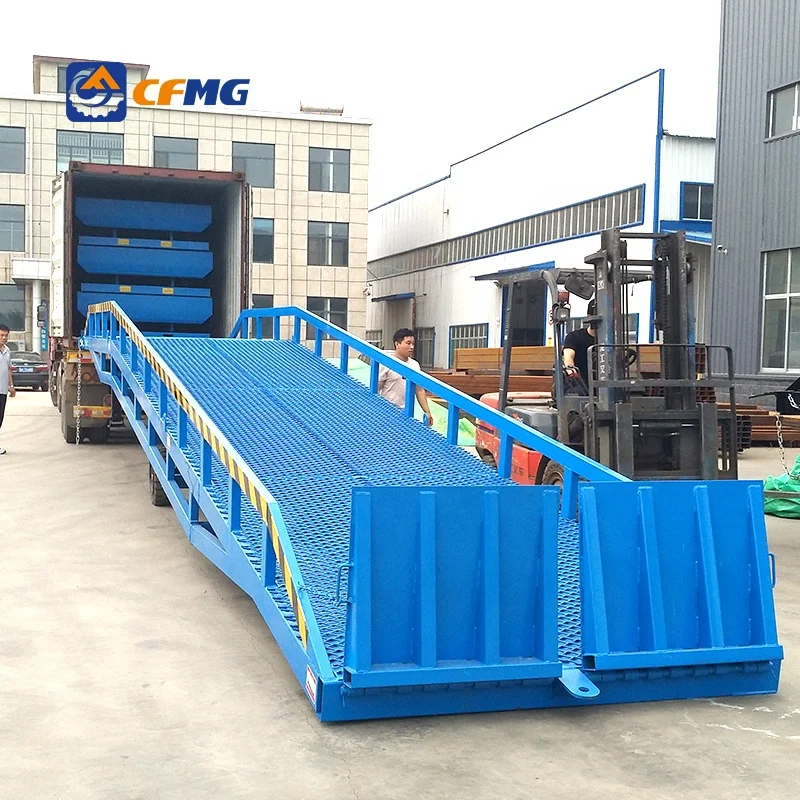

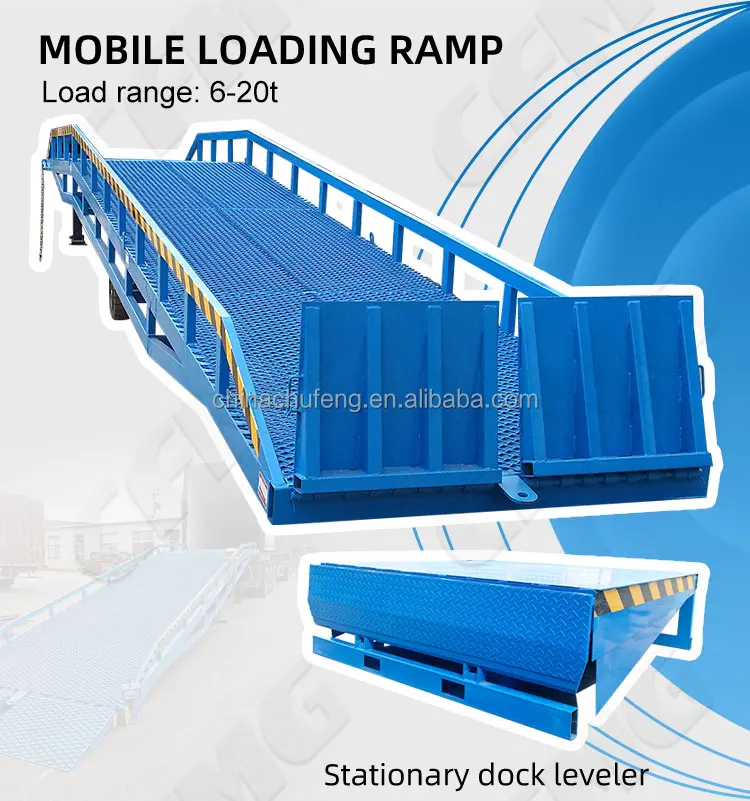

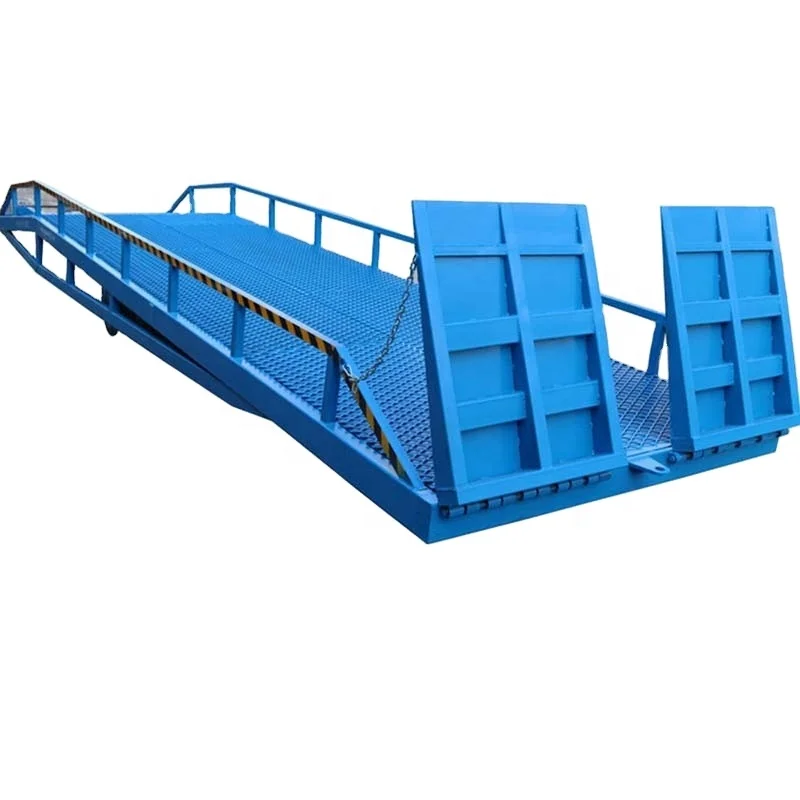

6-15 ton adjusted mobile boarding customization hydraulic loading dock ramp manual container loading platform
Mobile container load ramp is designed with load capacity 6-15 tons, making the goods loading and unloading easier from container by forklift, is widely used in the wharf,the platform,warehouse and also according to the different needs of users, its dimension and load bearing can be customized.
--- It can be designed and produced according to customers' requirements.
--- The ramp using the hydraulic pump as lifting power, and no need electric power source, can easily adjust the height by hand-cranked.
--- Adopting anti-slip checkered steel plate to guarantee good anti-slip performance of the platform
--- We use solid tyres instead of the pneumatic tyres which will be more safety and easy to control during operation, it will extend the tyres and the ramps service life.
--- Adopting imported sealing member to guarantee good sealing performance of the hydraulic system.
Product Details
Specification
Model | Capacity (t) | Adjustable Range (m) | Overall Dimension (mm) | Main beam | Lip plate | Net weight (kg) |
DCQY-6 | 6 | 1.1-1.8 | 11150*2100*1100 | 160*80*4(4) | 14mm | 2450 |
DCQY-8 | 8 | 1.1-1.8 | 11150*2100*1100 | 160*80*4(4) | 14mm | 2650 |
DCQY-10 | 10 | 1.1-1.8 | 11150*2100*1100 | 160*80*5(5) | 14mm | 2850 |
DCQY-12 | 12 | 1.1-1.8 | 11500*2200*1100 | 200*100*5(5) | 16mm | 3600 |
DCQY-15 | 15 | 1.1-1.8 | 11500*2400*1100 | 250*100*6(5) | 20mm | 4500 |
Product Features
1.Manual hydraulic elevator system
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
2.Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
3.Adjustable length Hinge
Chains hook vehicles, make cllimbing and vehicles even shift always close together.
4.Heavy-duty mobile tyre
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
5.Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
6.Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body : compound high strength, the characteristics of large carrying capacity.
7.Antiskid steel nets
Adopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb. Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
2.Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
3.Adjustable length Hinge
Chains hook vehicles, make cllimbing and vehicles even shift always close together.
4.Heavy-duty mobile tyre
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
5.Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
6.Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body : compound high strength, the characteristics of large carrying capacity.
7.Antiskid steel nets
Adopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb. Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.

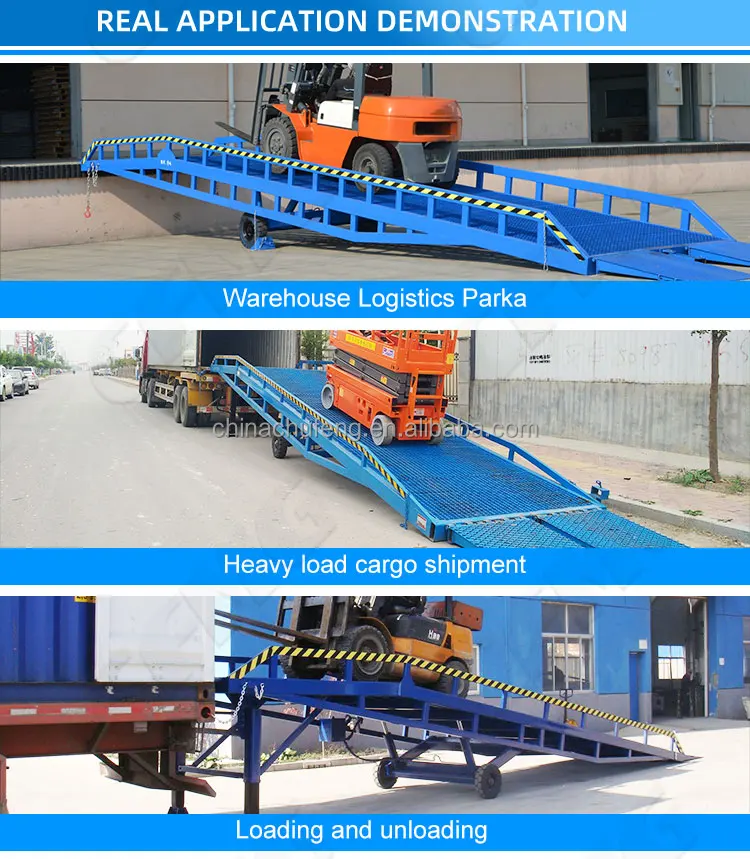

Application
Our company
Shandong Chufeng Heavy Industry Machinery Co., Ltd.
Over the years, CFMG has been providing strong expertise in the manufacturing of aerial work platforms in Jinan, where the origin and biggest production base of lifting industry initialized as early as 1972.
CFMG has achieved a reputation as being a reliable partner within the international market place for aerial work platforms. Our product range varies from scissor lifts, boom lifts, aluminum alloy lifts, car lifts, dock leveler, to wheelchair lift, etc., totally more than 20 types.
CFMG is ISO9001 and CE certified. Extra-special attention is paid to quality, service and reliability at each step of the process from engineering, purchasing, and assembly, to the testing and final approval.
Over the years, CFMG has been providing strong expertise in the manufacturing of aerial work platforms in Jinan, where the origin and biggest production base of lifting industry initialized as early as 1972.
CFMG has achieved a reputation as being a reliable partner within the international market place for aerial work platforms. Our product range varies from scissor lifts, boom lifts, aluminum alloy lifts, car lifts, dock leveler, to wheelchair lift, etc., totally more than 20 types.
CFMG is ISO9001 and CE certified. Extra-special attention is paid to quality, service and reliability at each step of the process from engineering, purchasing, and assembly, to the testing and final approval.
Our customers
Exhibition
Our advantage
1.Competitive price
We are the manufacturer,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much cheaper price which will directly effects the price of the lifting machines.
2.Reliable quality
a.Material.The thickness of the material is 32mm,and the material anti-skid density space is 30*25mm which make the whole machine more steady and durable.
b.Ramp platform. We use anti-skid steel grate plate which is durable,not easy to be ponding,and not easy to deformation.
c.Tyre used.We use solid Tyre instead of pneumatic Tyre which can adapt to variety of road conditions.
3.Good service
We assure you reply the email within 1 hours.
We assure you 24 mouth quality warranty time.
4.Keep innovations
We welcome every recommendation and opinion from you and make progress together with you.
We can design a new machine as your requirements,until to your satisfaction.
We are the manufacturer,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much cheaper price which will directly effects the price of the lifting machines.
2.Reliable quality
a.Material.The thickness of the material is 32mm,and the material anti-skid density space is 30*25mm which make the whole machine more steady and durable.
b.Ramp platform. We use anti-skid steel grate plate which is durable,not easy to be ponding,and not easy to deformation.
c.Tyre used.We use solid Tyre instead of pneumatic Tyre which can adapt to variety of road conditions.
3.Good service
We assure you reply the email within 1 hours.
We assure you 24 mouth quality warranty time.
4.Keep innovations
We welcome every recommendation and opinion from you and make progress together with you.
We can design a new machine as your requirements,until to your satisfaction.
Our Service
1.Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's maintenance and reparations.
4. Quick responses:
We have a complete service network, and assist you to solve the problem in a short time.
5. Parts supply:
We have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
