Automatic Car Motorcycle Rim Straight Seam Welding Machine
- Category: >>>
- Supplier: Platinum Overseas Trade Inc.Platinum Inc.
Share on (1601016507874):
Product Overview
Description
Product Description

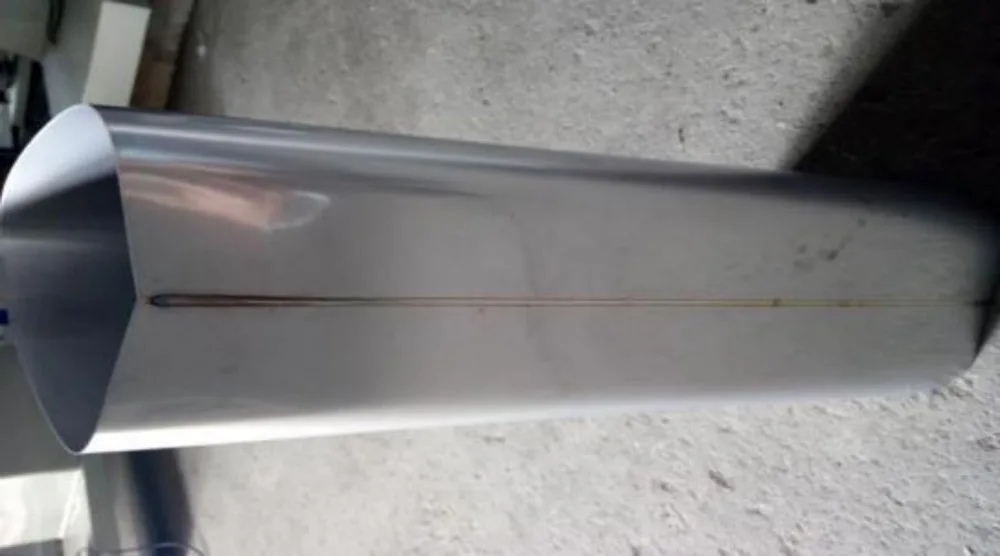

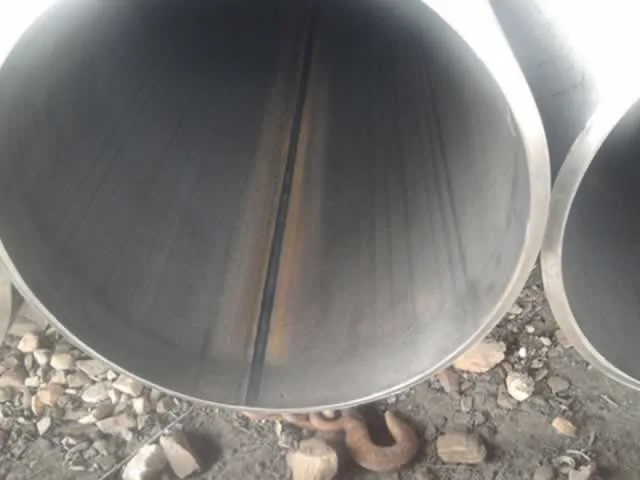

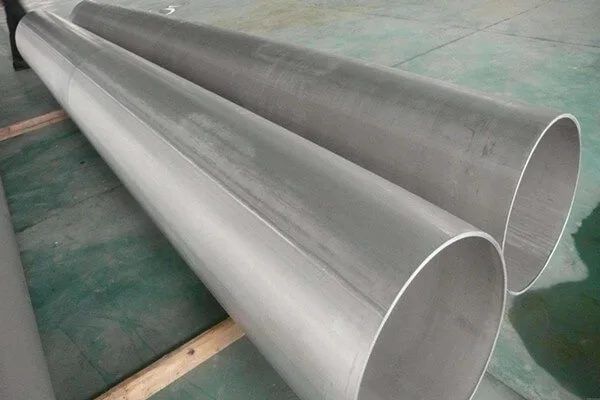

The automatic straight seam welding machine is mainly used for kinds of barrel type or flat panel longitudinal seam welding, such as fire drencher, solar water heater, water storage tank, car muffler, etc. The suitable material can be carbon steel, low alloy steel, stainless steel, aluminum, etc., and the welding power source can be Argon arc welding, MIG welding, plasma welding and submerge arc welding to suitable for different material and purpose.
Specification
Model | HF- 1000 | |
Welding seam length | Up to 1000mm | |
Welding thickness | 0.4-3 .0mm | GI/ SS |
Work piece diameter | 100-800mm | |
Slider moving precision | 0.2mm | |
Slider moving speed | 100-2200mm/min | |
Welding torch moving stroke | 100mm | Moving up and down |
Welding torch adjustment stroke | 40mm | Both for X and Y axis |
Control power | AC 200V, 50Hz, single phase | |
Air pressure | 0.3-0.6MPa | |
Air pressure |
Details Images

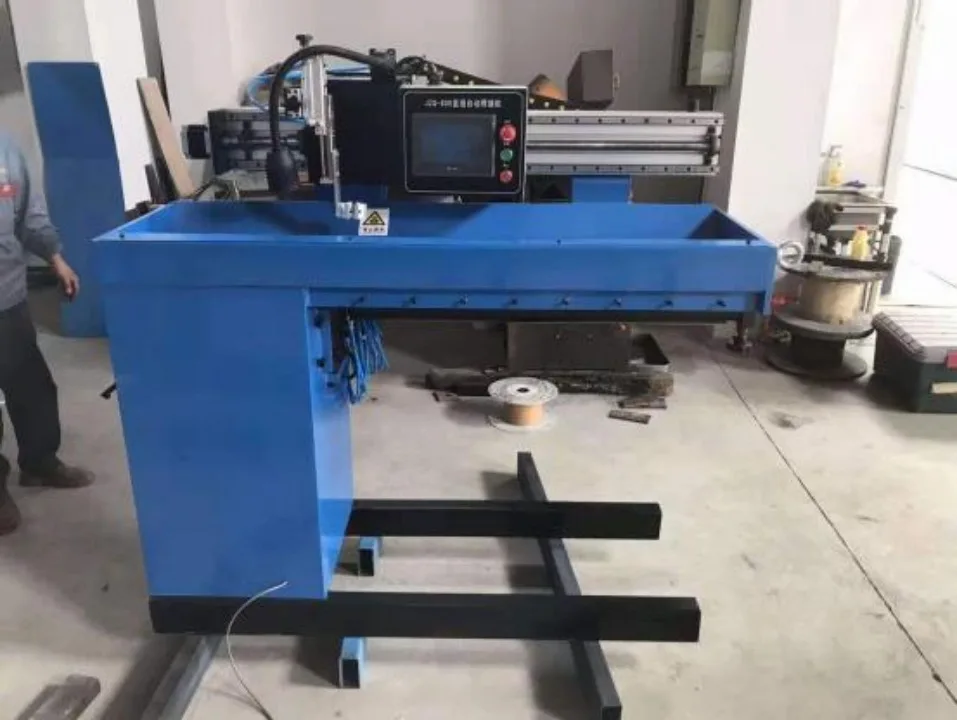

1- Main machine

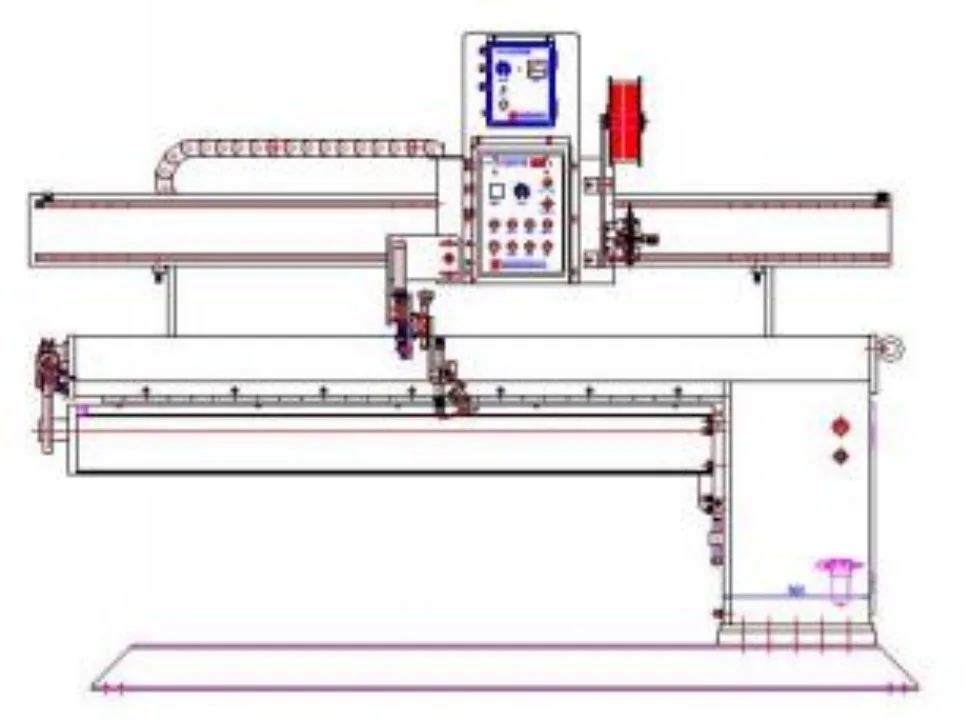

The main machine is composed from main frame, beam guiding device, welding torch dolly, pneumatic welding fixture, welding core rod, core rod moving device, welding seam centering device, welding torch moving device (up and down), welding torch adjustment device and the air circuit control system, etc.
2- Control system
The control system is based on PLC controller for different kinds of welding source. Designed with “Manual” and “Automatic” working mode, equipped with indicator to display welding data.

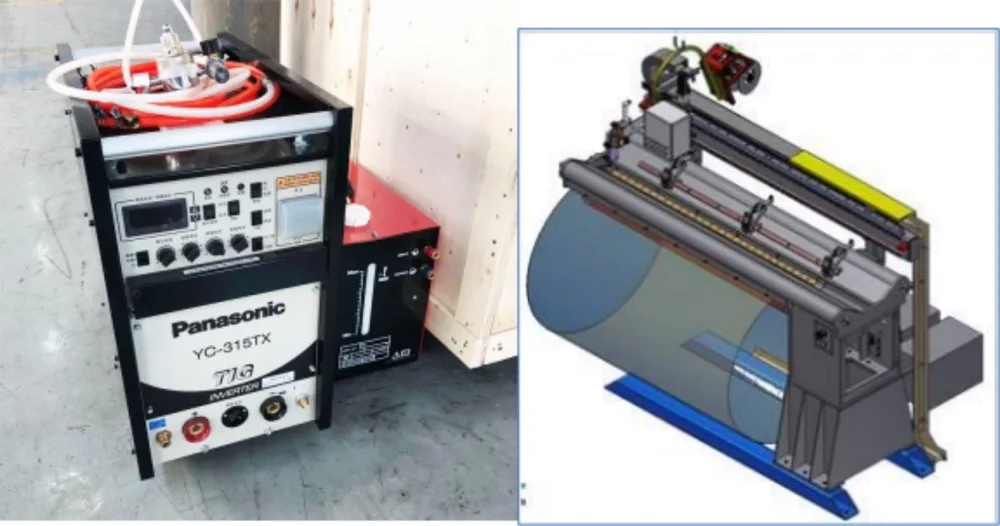

3- Welding power source
Equipped with MR315T welding power from Panasonic, Japan.
Model | CPVE-500 |
Input power | 380V, 50/60Hz, 3Phase |
Rated output current | 315A |
Rated input current | 5~315A |
Weight | 120KG |
4- Welding torch
The welding torch can be the water-cooling type argon arc type, or MIG type from famous brand.
Our Advantages
1- Controlled by PLC for stable and reliable performance.
2- The worktable is adjustable according to the size of work piece.
3- Automatic centering and positioning for flat panel welding.
4- Pneumatic driven welding torch, adjustable welding speed
5- Welding process can be complete or partial with high precision work
6- Welding power source can be changed according to raw material.
2- The worktable is adjustable according to the size of work piece.
3- Automatic centering and positioning for flat panel welding.
4- Pneumatic driven welding torch, adjustable welding speed
5- Welding process can be complete or partial with high precision work
6- Welding power source can be changed according to raw material.
Company Profile
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
