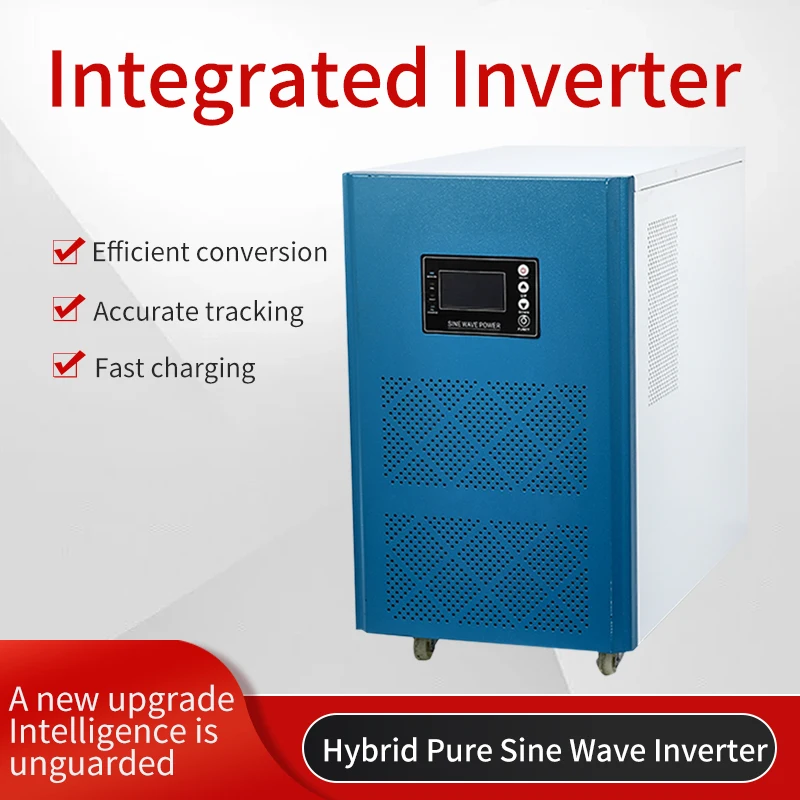

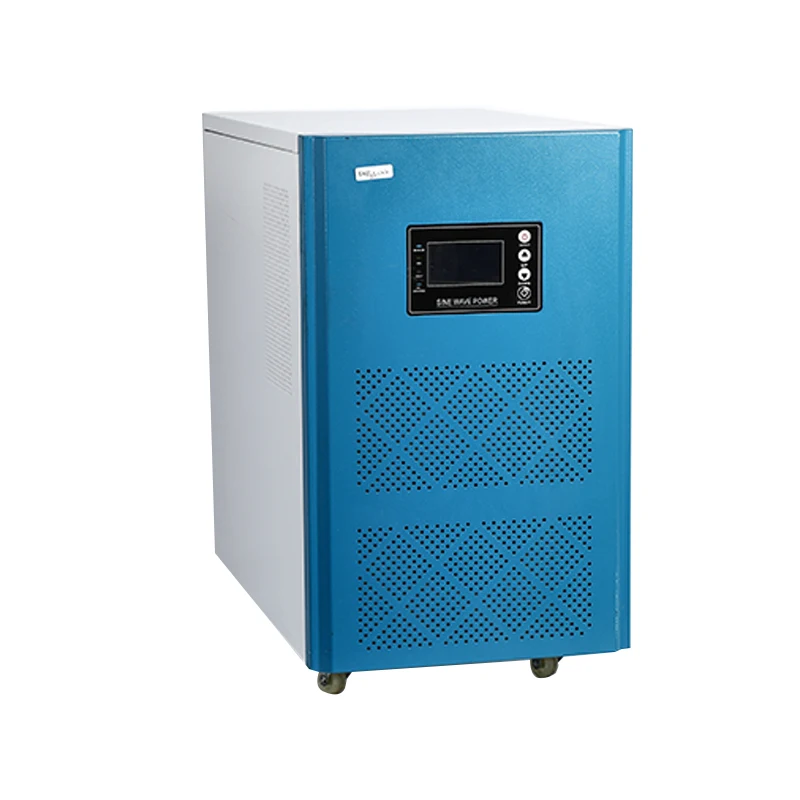

5kw 8kw 10kw 48v 96v 12v smart hybrid solar Inverter with MPPT solar charger
- Category: >>>
- Supplier: Foshan Yingke Intelligent Electronic Technology Co. Ltd.
Share on (1601016576271):
Product Overview
Description
Products Description
Technical Parameter | ||||||||||||
Model No. | HN-4002 | HN-5002 | HN-6002 | HN-7002 | HN-8002 | HN-10K02 | ||||||
Rated Power | 4KW | 5KW | 6KW | 7KW | 8KW | 10KW | ||||||
Battery | ||||||||||||
Rated Voltage | 48VDC/96VDC | |||||||||||
Charge Current | 15A-30A(Adjustable) | |||||||||||
Battery Type | Lead-acid, GEL, LiFeP04 | |||||||||||
Input | ||||||||||||
Voltage Range | 165-275VAC | |||||||||||
Frequency | 45-65Hz | |||||||||||
Output | ||||||||||||
Voltage Range | 220VAC;±3% (Inverter Mode) | |||||||||||
Frequency | 50/60Hz ±1% (Inverter Mode) | |||||||||||
Output Wave | Pure Sine Wave | |||||||||||
Convertion Time | <8mS (Typical Load) | |||||||||||
Efficiency | >85% (80%Resistive Load) | |||||||||||
Overload | 110-120%/30S; >160%/300mS | |||||||||||

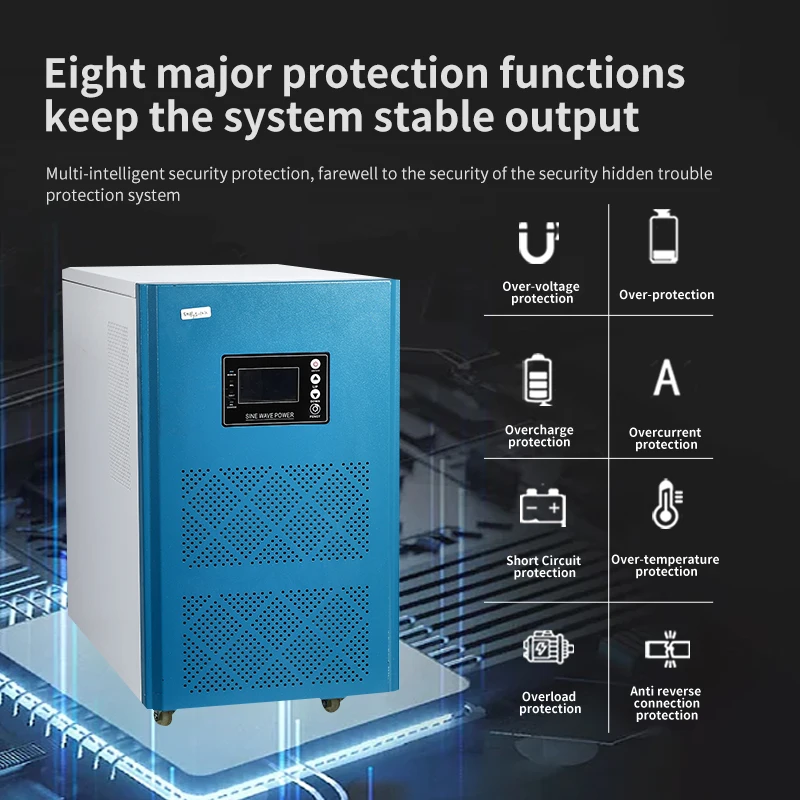

Protection Function | Battery Overvoltage Protection, Battery Undervoltage Protection, Overload Portection, Short Circuit Protection, Overtemperature Protection etc. | |||||||||||
Solar Controller (optional) | ||||||||||||
Voltage Range | 12VDC:18V~170VDC; 24VDC: 34V~170VDC; 48VDC: 65V~170VDC | |||||||||||
PV Power | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A (3200W) | |||||||||||
Rated Charge Current | 30A / 60A | |||||||||||
MPPT Efficiency | >99% | |||||||||||
Boosting Charge Voltage | 48V/56.8VDC; 96V / 113.6VDC | |||||||||||
Floating Charge Voltage | 48V/55VDC; 96V/110VDC | |||||||||||
Physical Parameter | ||||||||||||
Operation Temperature | -0 - +40℃ | |||||||||||
Storage Temperature | -15 - +50℃ | |||||||||||
Operation/Storage Ambient | 0-90% No Condensation | |||||||||||
Net Weight (kg) | 28 | 32 | 35 | 40 | 45 | 60 | ||||||

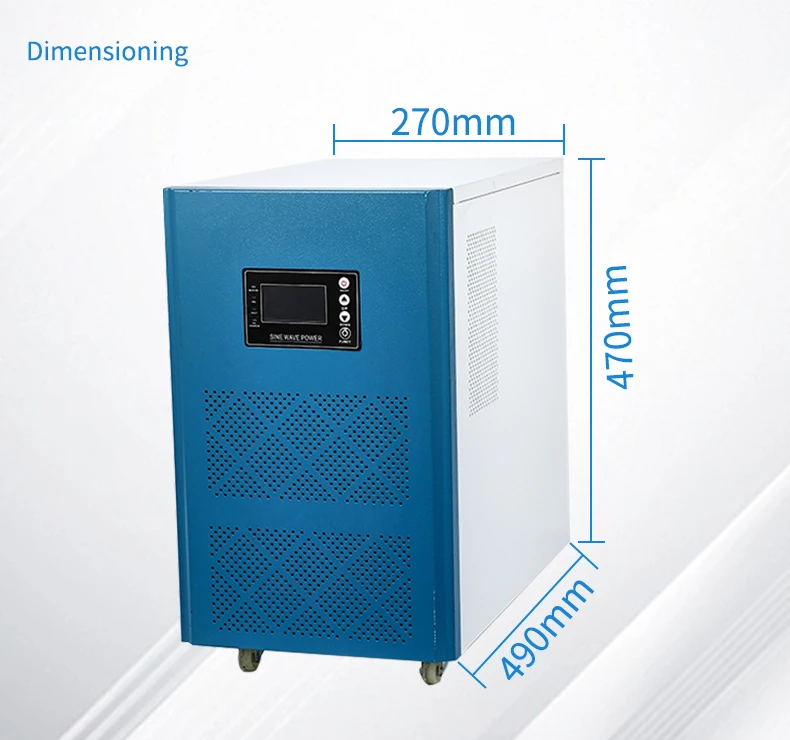

Product Size: D*W*H (mm) | 490 x 272 x 435 | |||||||||||
Package Size: D*W*H (mm) | 560 x 340 x 480 | |||||||||||
Products Specification are subjected to changed without further notice. | ||||||||||||
Why Choose Us
Foshan Yingke Intelligent Electronic Technology Co., Ltd. is a professional solar controller, Inverters and other solar products supply supplier, which located in Chancheng District, Foshan City with convenient transportation. We provide the Solar Controllers, Solar Inverters supply are widely used for home, schools, streets, frontier, defense, military, pasturing areas etc. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss customer's requirements and ensure full customer satisfaction.
Our solar controllers are passed the C E and other authoritative international certification. We can provide O E M and O D M services. These Solar Controllers, Solar Inverters have the short circuit protection, over-load protection, over voltage protection and over temperature protection.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia, Turkey, Russia, U S A, Mexico, Brazil, India, Thailand ,Middle east and South Africa.
We are Solar Controllers and Solar Inverters reliable supplier; our products have 3 years warranty. Our aim is customer-oriented, providing comprehensive technical guidance and after-sales service. We are looking forward to get more cooperation. We can supports one-piece order, O E M processing services, delivery on time. Our goal is the same quality with lowest price, the same price with best quality, sincerely welcomes you visiting our company and contacting us for cooperation.
FAQ
Q1: Does your company also provide other solar products except MPPT Solar Controller?
A1: Yes, we also provide other solar products, like Pure Sine Wave Inverter, poly solar panel, off grid solar inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q2:What is our advantage ?
A2:We have professional R&D team, can customized the products you want.
Q3: How to choose a right inverter?
A3: Tell us your demand, then our sales manage will recommend a suitable inverter to you.
Q4: How about the delivery time?
A4: 3 days for sample; 5-15 days for bulk order.
Q5: What is the warranty of inverter?
A5: 3 year warranty.
Q6: How can we guarantee quality? How to solve the technical problem?
A6: Always a pre-production sample before mass production;Always final Inspection before packing.
24 hours after-service consultancy just for you and to make your problem to solve easily.
