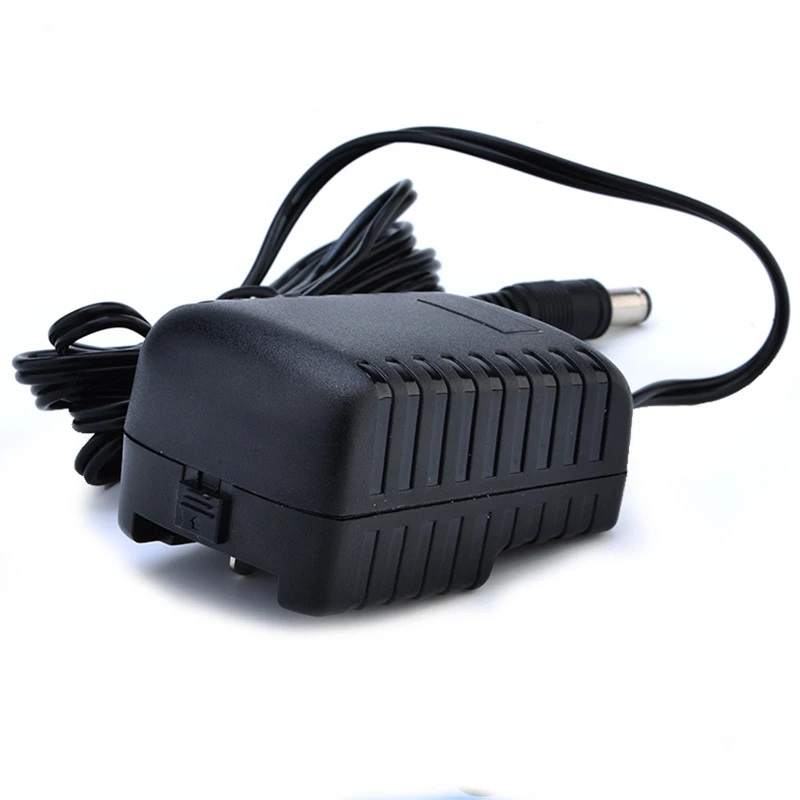

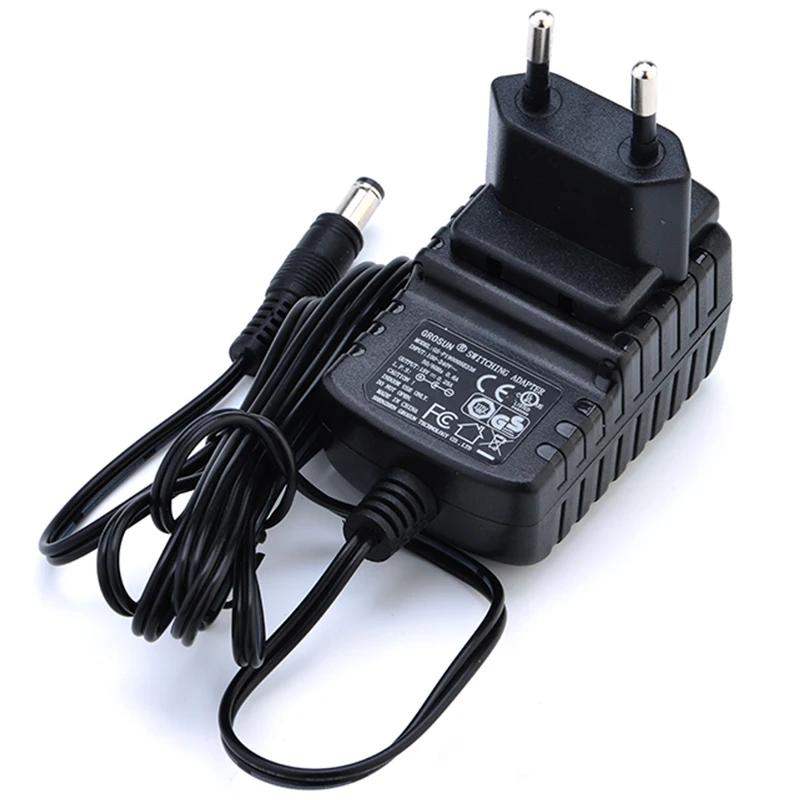

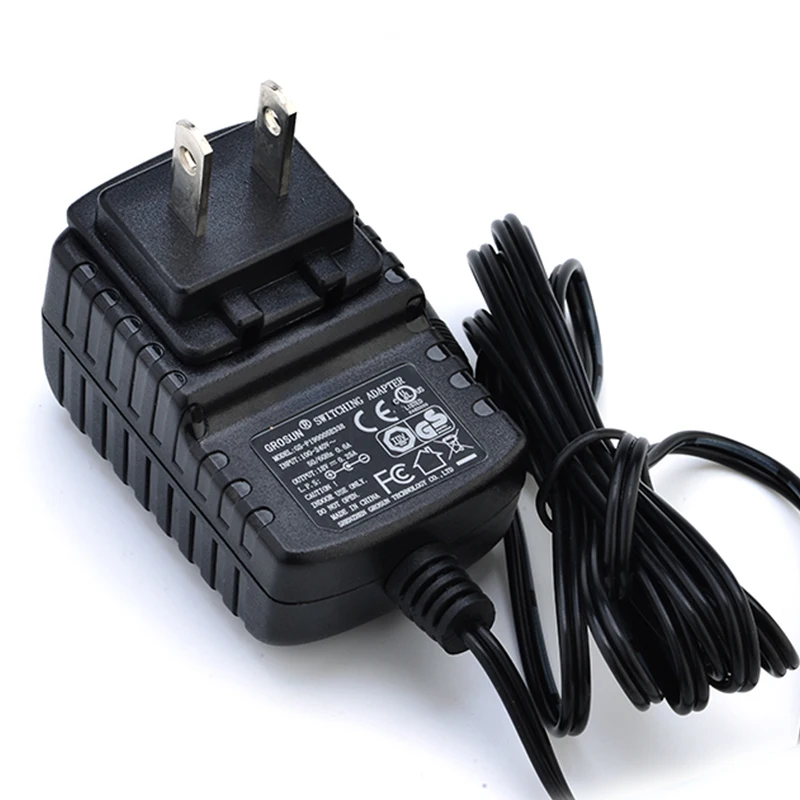

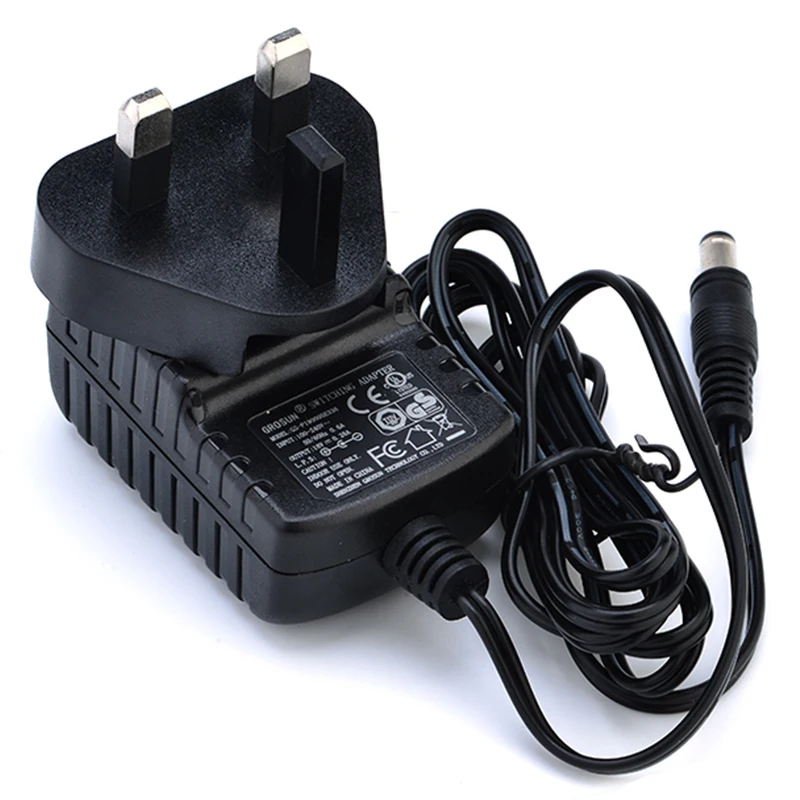

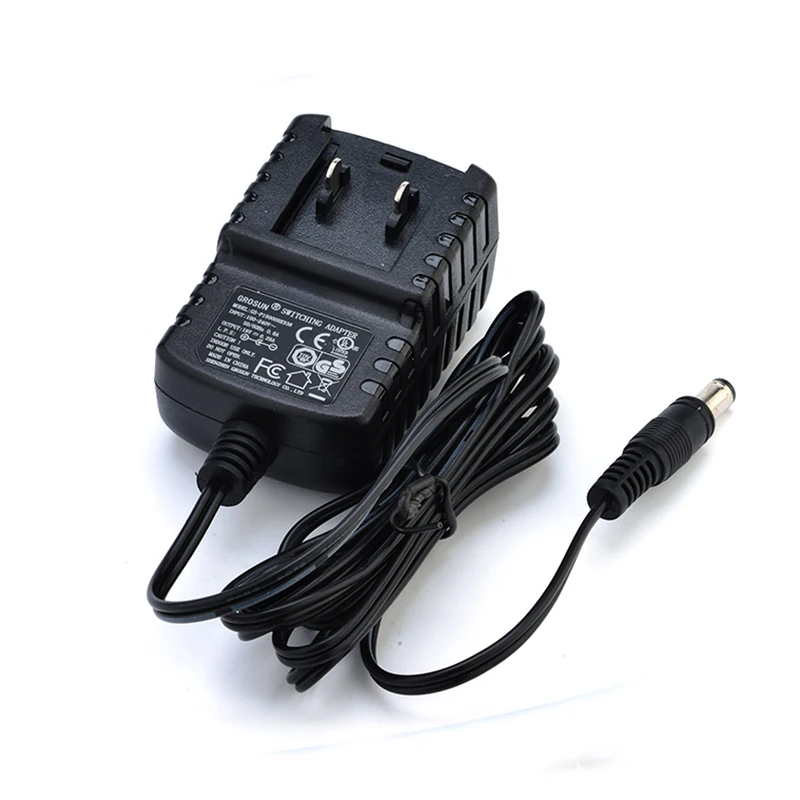

CCTV Camera Tv Adapter 12V 1A 12W Travel And Converter Ac Dc US/UK/AU/EU Adaptor
- Category: >>>
- Supplier: Shenzhen Highfly Technology Co. Limited
Share on (1601016670542):
Product Overview
Description
Product Description
| Input | Input voltage | AC 100~240V |
| Frequency | 50/60Hz | |
| Output | Output voltage | 5~12v |
| Output current | 0.5~4A | |
| Output power | 12W | |
| Input Plug Type | EU/US/UK/AU/South Korea/South African Plugs | |
| Out Plug Type | DC jack, XLR, JST, Cigar Lighter, Alligator Clips, Viation Plug, Din Plug.etc | |
| DC Jack Size | 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm,3.5*1.0mm,4.0*1.7mm,2.5*0.7mm.etc | |
| Safety Protection | Over voltage protection | 120% |
| Over current protection | 120% | |
| Short circuit protection | auto recovery | |
| Over hot protection | auto recovery | |
| Electronic Characteristics | Operating Temperature | -40~50°C |
| Storage Temperature | -40~85°C | |
| Humidity | 10%~95%RH | |
| Efficiency | 86% | |
| Ripple And Noise | Output voltage 1%, Ripple&Noise≤120mv | |
| Turn-on Delay Time | 3 second max | |
| Overshoot at Turn-on | 10%max when turn on or off | |
| AC leakage Current | 0.25mA max at AC 240V voltage | |
| Load Regation | ±5% | |
| Line Regation | ±5% | |
| Hi-Pot test | Primary to secondary:3kV/5mA60S | |
| Drop Test | 0.75mdrop test, 6 times | |
| Burn-In Test | 100% load, 5 hours | |
| Application | CD/DVD, MP3/MP4, Digital camera, Comunication Terminals Etc | |
| Safe Certificate | CE,ROHS,FCC,CB,BS,SAA,C-tick ,PSE ,KC,KCC | |
BUILD SAFETY PROTECTIONS
Designed with Safety in mind
⇒ ⇒⇒
Certificate
⇒⇒ ⇒

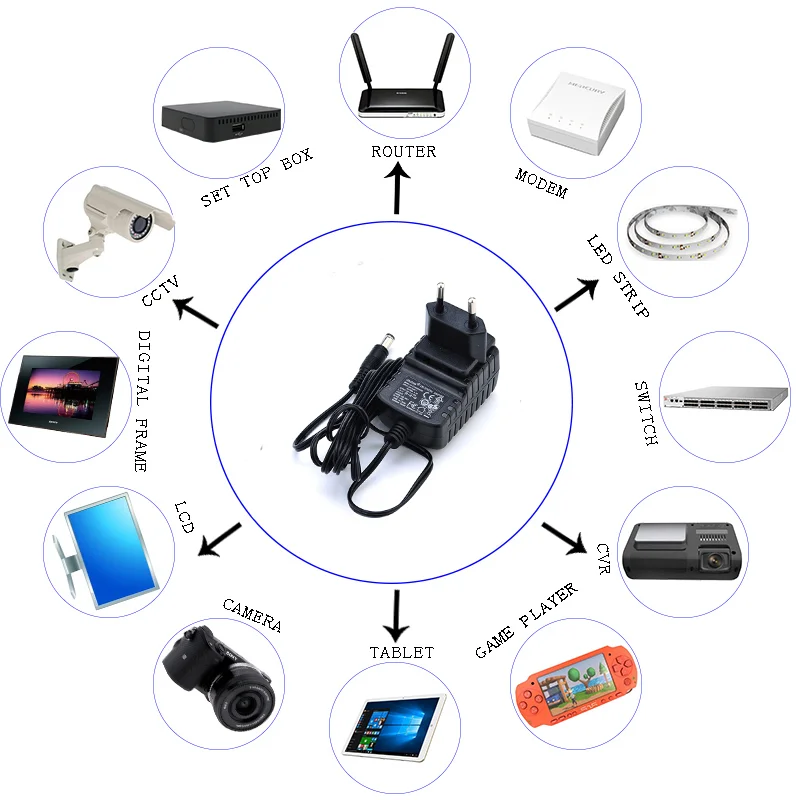

Broad Compatibility
