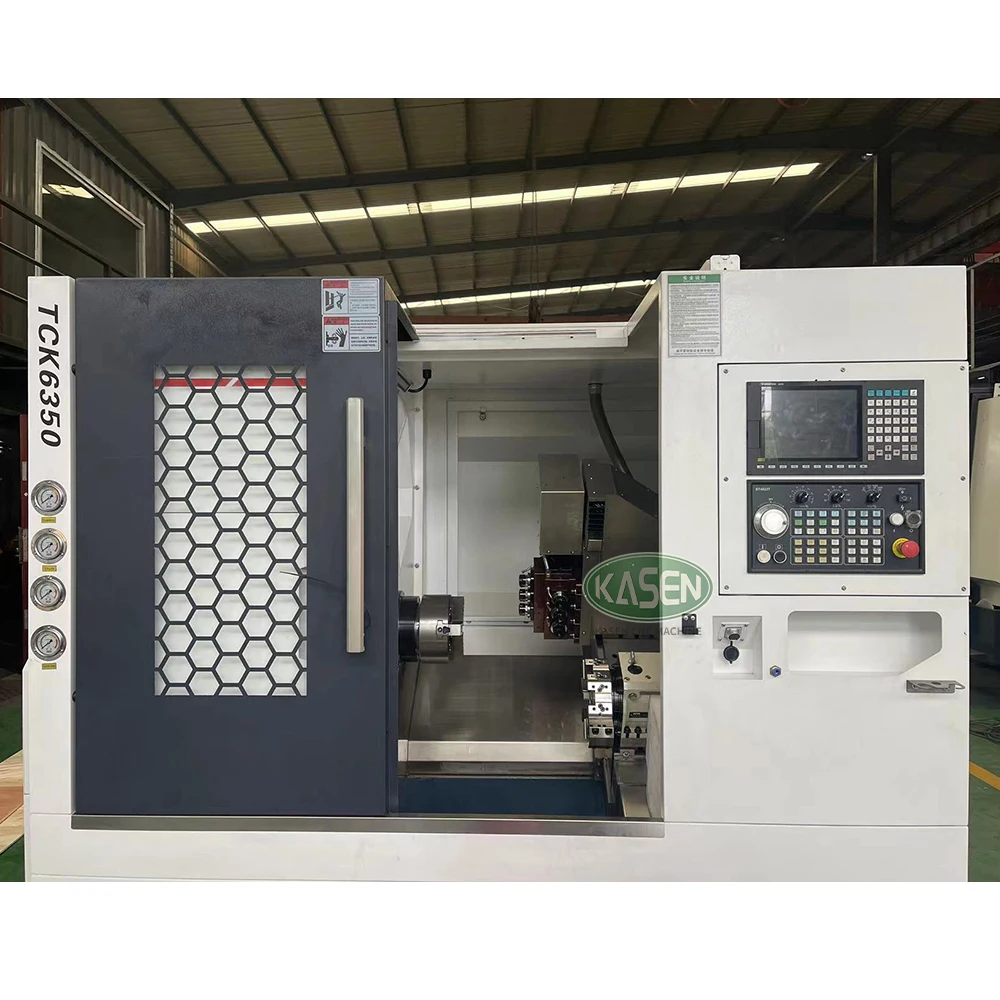

Factory Supply Attractive Price TCK6350 4 4 living tools Cnc Lathe Machine Lathe Slant Bed CNC Lathe
- Category: >>>
- Supplier: Jinan Kasen Cnc Equipment Co. Ltd.
Share on (1601016730558):
Product Overview
Description
Specification
Features:

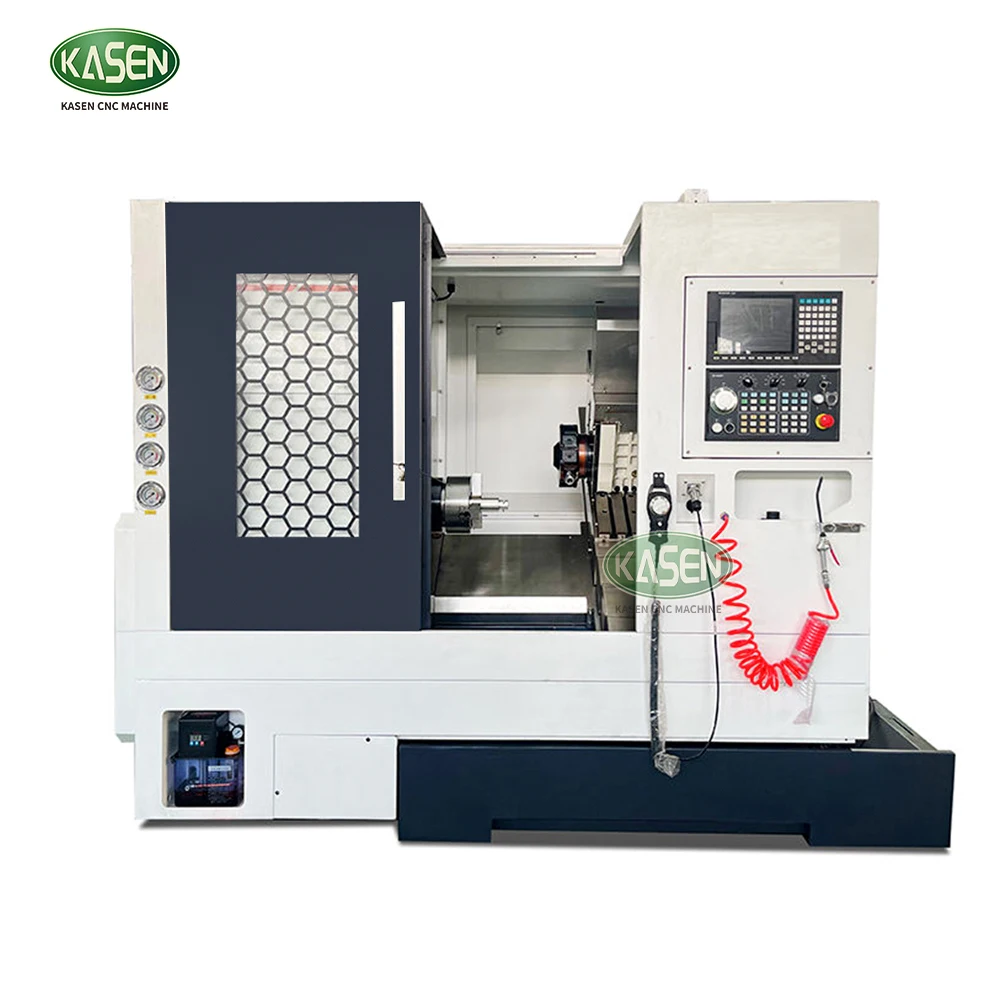

45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear
Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back

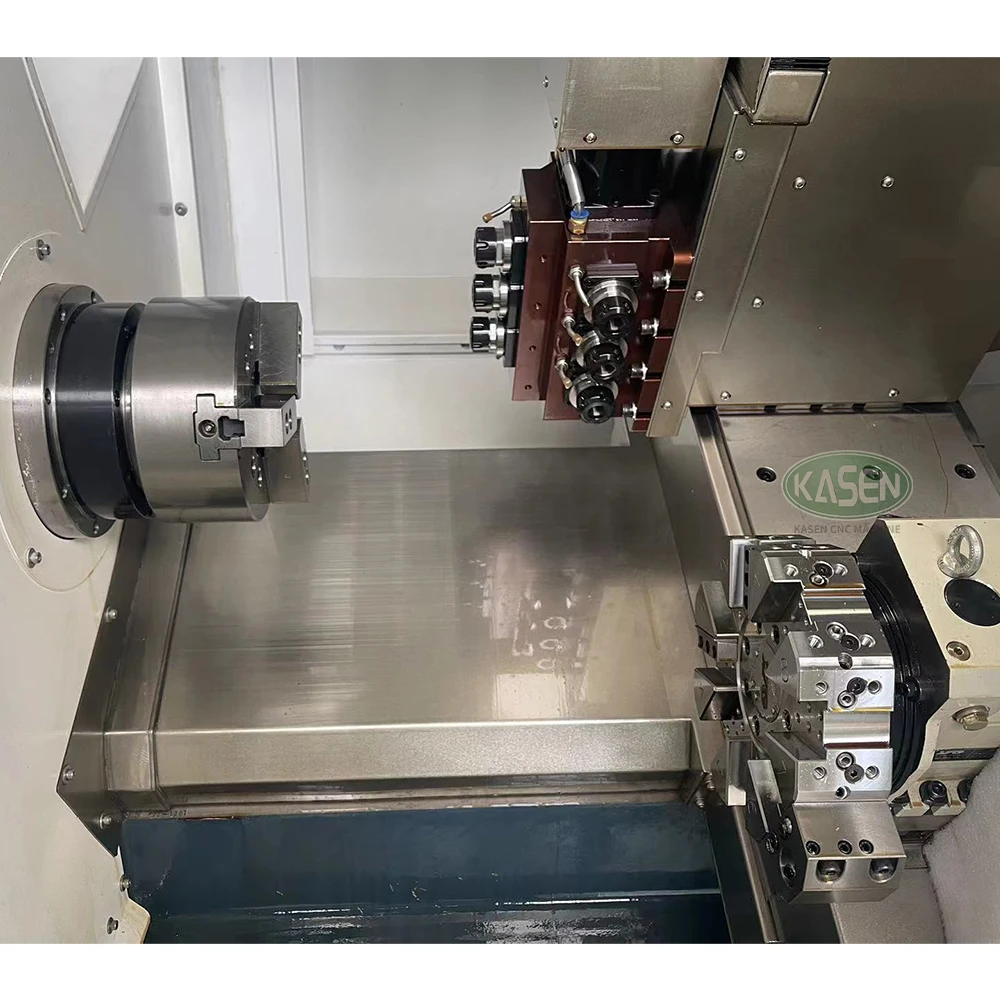

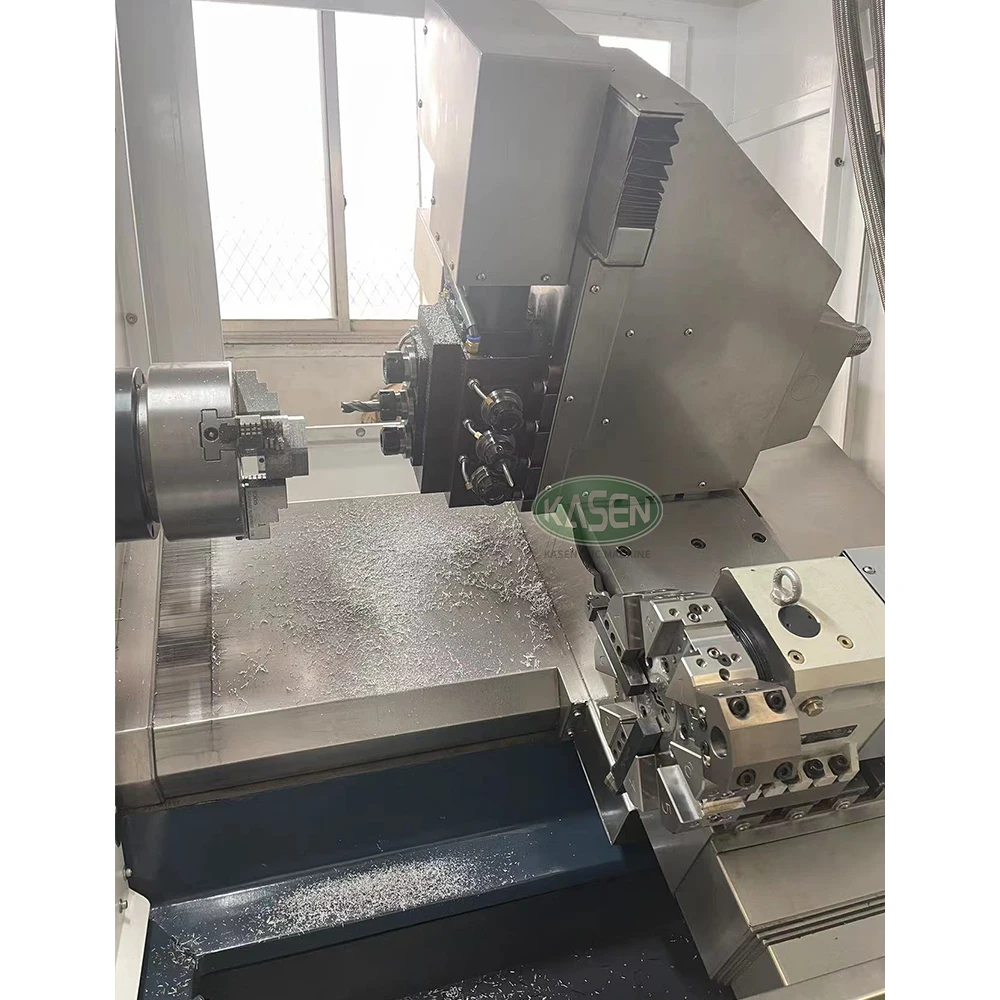

Screw pre-stretching structure Gang type tool post
45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear
Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
Screw pre-stretching structure Gang type tool post
Standard configuration | Optional configuration |

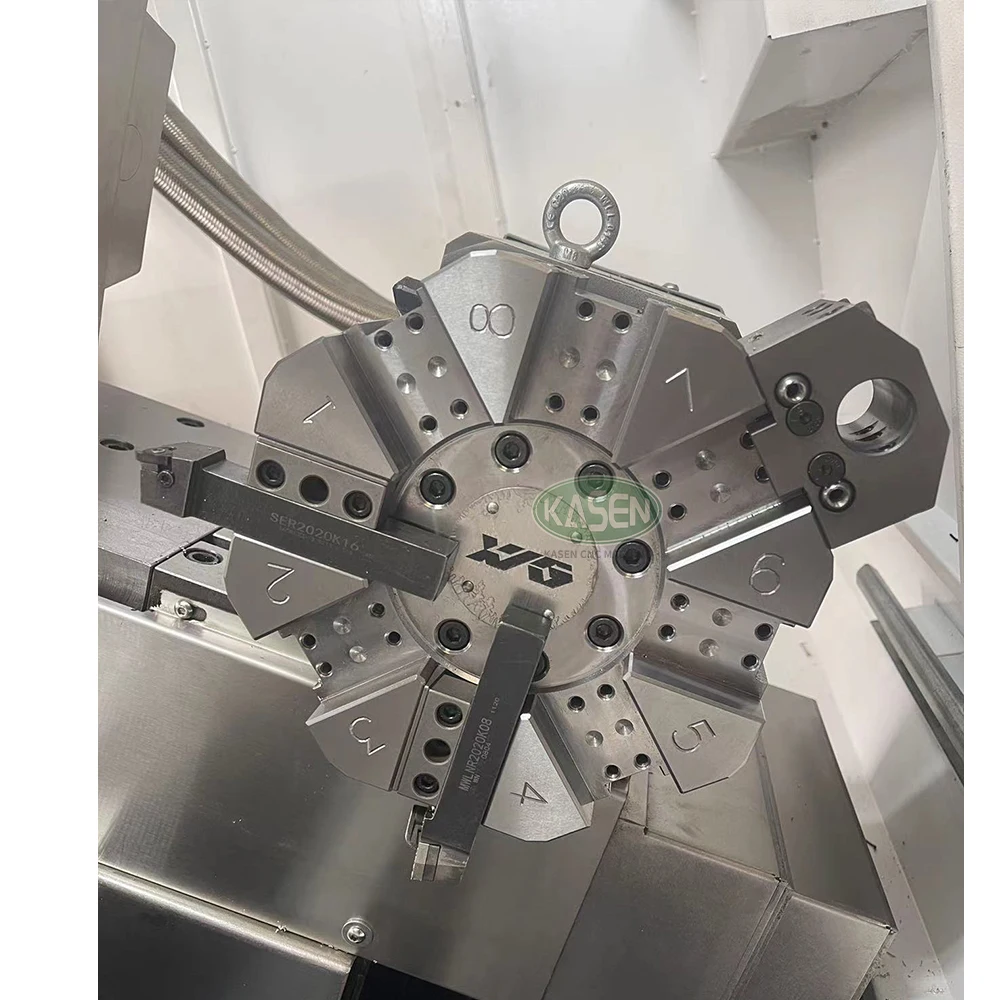

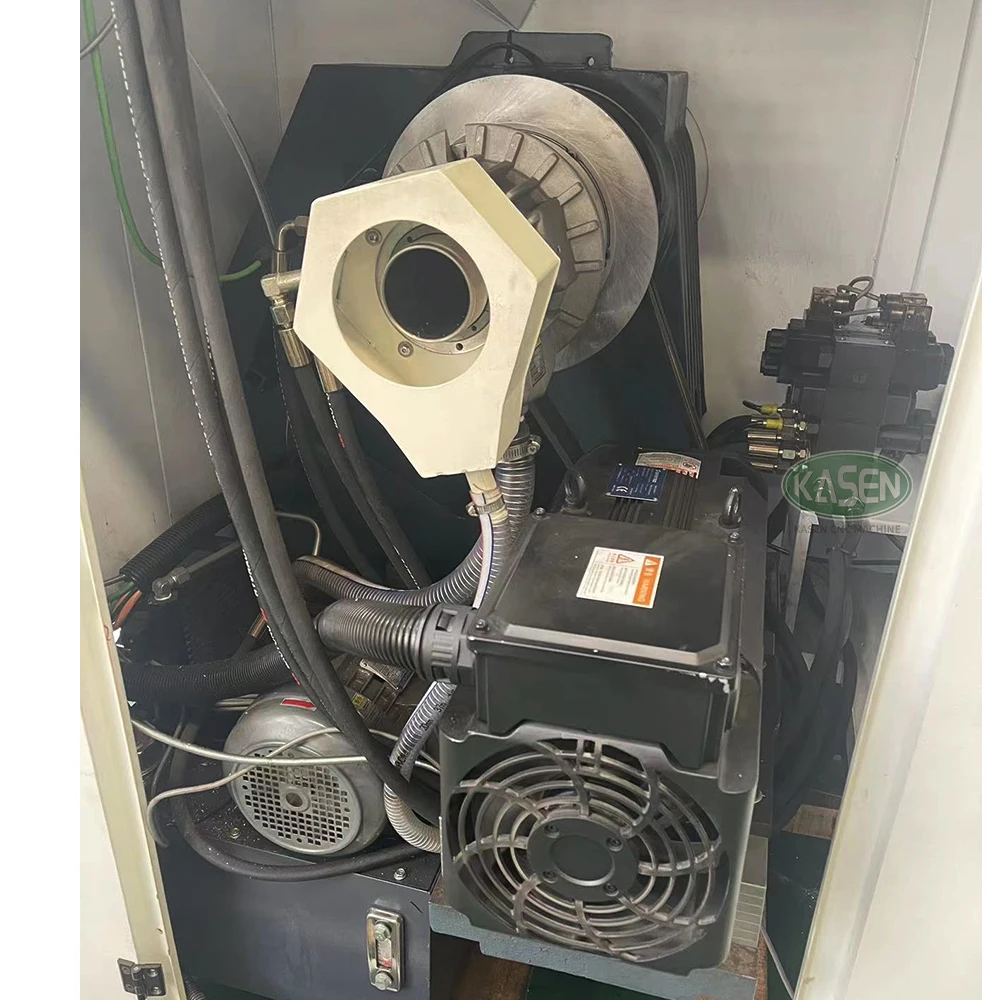

Servo main motor 140mm spindle units (3000 rpm) Taiwan linear Railway Ball screw Gang type Hydraulic collet | Taiwan spindle units Taiwan ball screw 6/8 Electric turret 8/12 Hydraulic turret Hydraulic chuck Chip conveyor |
Specification | Unit | TCK6340 | TCK6340S | TCK6350 |
Max.swing over bed | mm | 400 | 400 | 520 |
Max.swing over cross slide | mm | 140 | 140 | 220 |
Max. Processing length | mm | 200(gang type tool post) | 400(gang type tool post)/ 300(turret) | 410(gang type tool post)/ 310(turret) |
Max. Bar capacity | mm | 45 | 45 | 55 |
Max.processing diameter of plate type of workpiece | mm | 400 | 400 | 500 |
Spindle nose type | A2-5 | A2-5 | A2-6 | |
Spindle bore | mm | 56 | 56 | 66 |
Spindle speed range | r/min | 50-3500 | 50-3500 | 50-3000 |
Main motor power | kw | 5.5 | 5.5 | 7.5 |
Chuck form | Hydraulic collet/ chuck | Hydraulic collet/ chuck | Hydraulic chuck | |
Chuck size | inch | 8 | 8 | 10 |
X axis rapid traverse | M/min | 24 | 24 | 24 |
Z axis rapid traverse | M/min | 24 | 24 | 24 |
X axis servo motor torque | N.m | 6 | 6 | 7.5 |
Z axis servo motor torque | N.m | 6 | 6 | 7.5 |
X axis travel | mm | 400 | 400 | 500 |
Z axis travel | mm | 300 | 500 | 500 |
Guide rail type | Linear rail | Linear rail | Linear rail | |
Tool post type | Gang type tool post | Gang type tool post | Gang type tool post | |
Tool shank size | mm | 20x20/dia.25 | 20x20/dia.25 | 25x25/dia.32 |
Total rated power | kw | 10 | 12 | 13 |
Total rated current | A | 21 | 26 | 28 |
Machine weight | kg | 2300 | 2600 | 3000 |
Machine dimension | mm | 2200X1530X1780 | 2390X1530X1780 | 2500X1620X1890 |
Product Description
Company Profile
Exhibition
Certifications
Customer visiting
Packing & Delivery
FAQ
1: Where is your company?
A: Our company is located in JInan City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.se
