New type mini corn puffs extruder machine rice maize maker puff corn snack making machine small corn snack food extruder machine

1.New corn puffs extruder machine puff corn snack making machine Main Features:

2. Raw materials: Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.

For filling: cream, chocolate, fruit paste, date paste, jelly, etc.



3. Products:

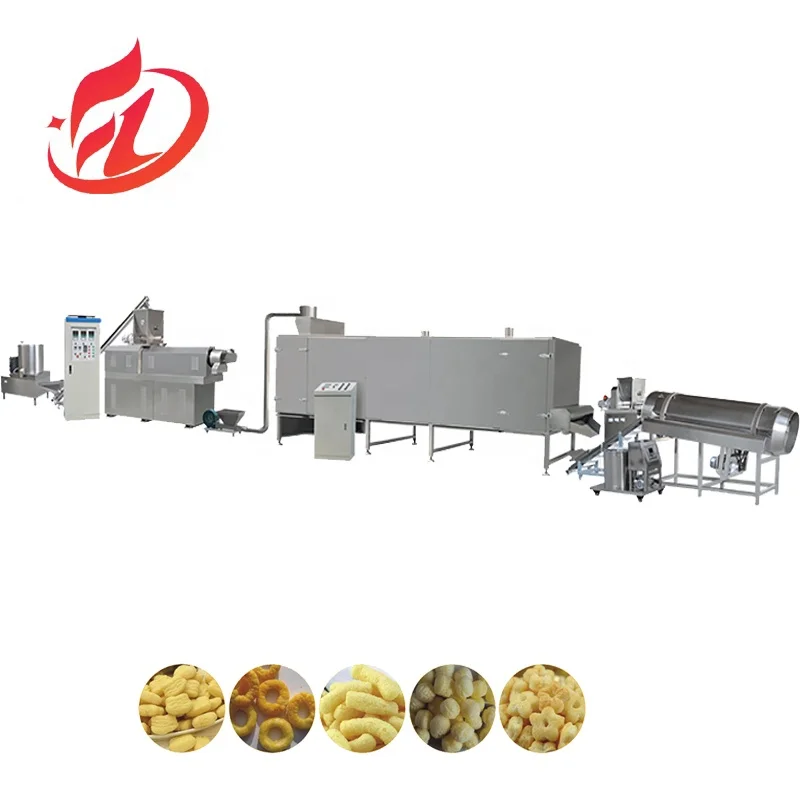

Mixer→screw conveyor→twin screw extruder→cuttermachine→hoister→dryer→hoister→

flavoring drum and oil sprayer→cooling machine→packing machine

4.Corn Puff Food Making Machine Advantages

1.We specialize in high capacity extruder which can reach 500kg/h



2.The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting. With good self-cleaning ability, it’s unnecessary to remove the barrel and screws for cleaning.



3.SIMENS (China) Motor



4.It adopts speed-adjusted converter on feeding system, extrusion system and cutting system.
Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the whole food process.

5.Adopted the Delta inverters, ensure the extruder better running.

6.The gearbox has automatic lubrication function, which prolong service life of gears.

7.Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.



8.Running in a high automatization and intellectualization,no pollution



5.Technical Parameter

Model	FLD-SLG65-III	FLD-SLG70-III	FLD-SLG85-III
Install Power	76KW	95kw	178kw
Power Consumption	54KW	66kw	125kw
Capacity	120-150KG/H	240-260kg/h	300-500kg/h
Dimension	17×2×2.5m	22×2×2.5m	26×2×3.5m



6.Main equipment of Puffed Corn Snacks Food Machine:

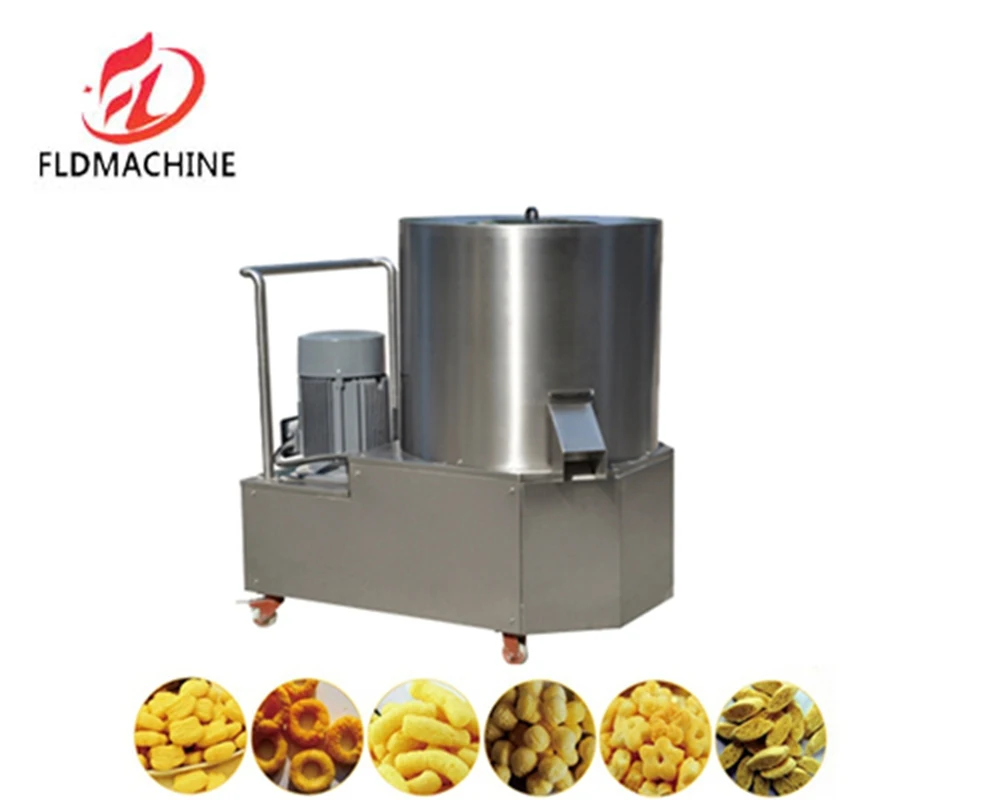

	Mixer To mix the raw materials evenly, fast speed, no leakage. Type: Vertical and horizontal type Motor: 3kw, 4kw, 7.5kw etc. Material: stainless steel, carbon steel
	Extruder To extrude the raw materials and make them to the required shape and size of the puff snacks food by mould. Model: SLG65, 70, 85 Capacity: 100kg/h to 500kg/h Material: Screw materials 38CrMoAlstainless steel, carbon steel

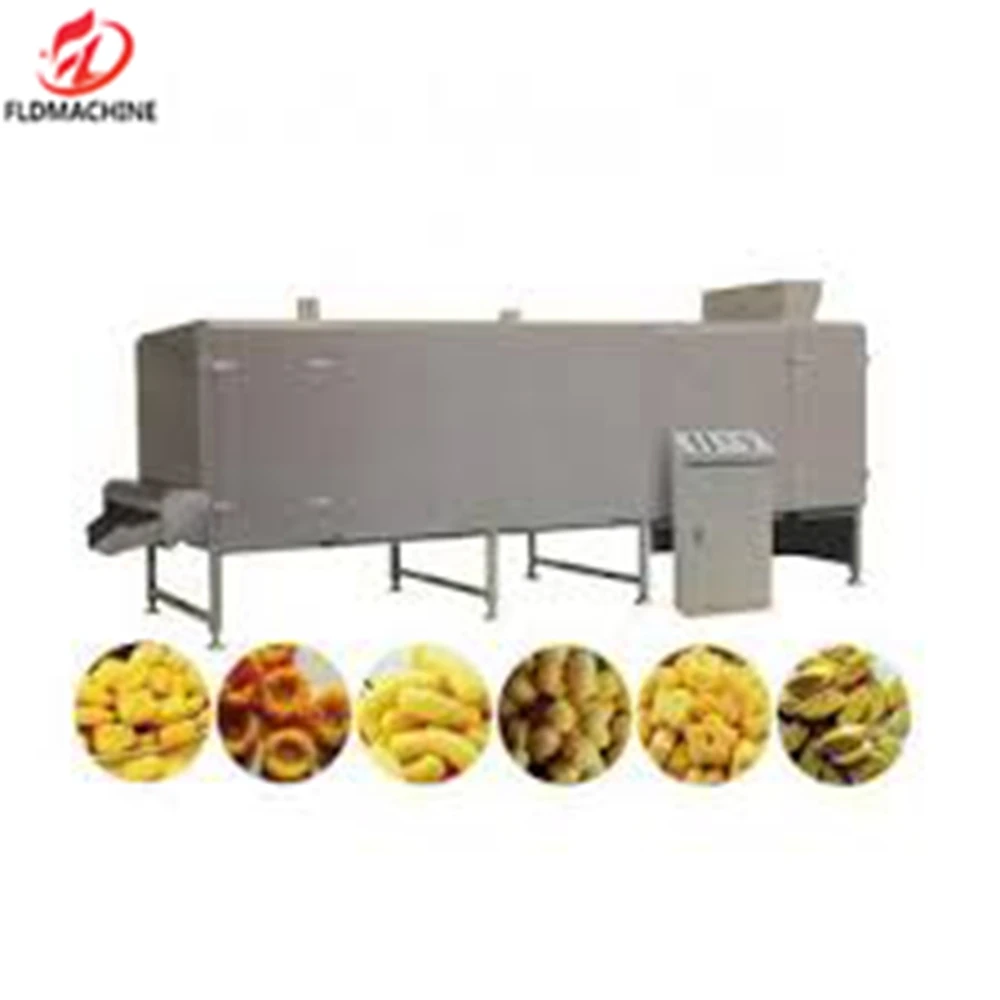

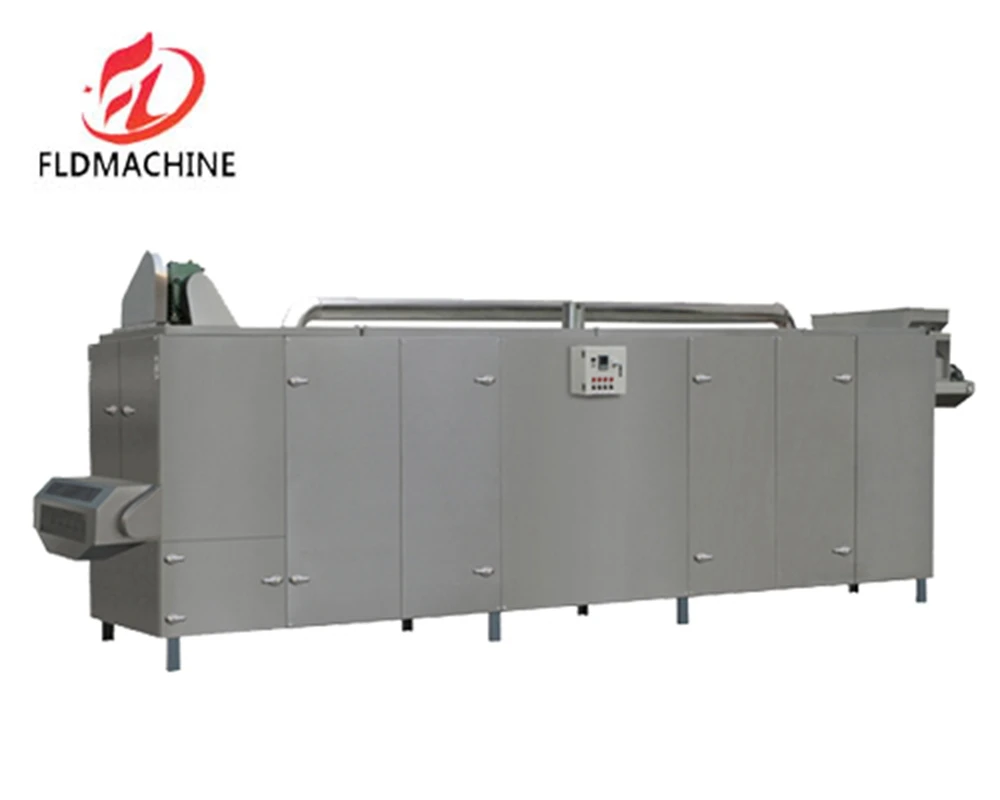

	Dryer Baking puff snacks food. Type: electrical, steam, gas fired, diesel fired heating type Model: KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 Capacity: 100kg/h to 10 ton/h Material: stainless steel, carbon steel

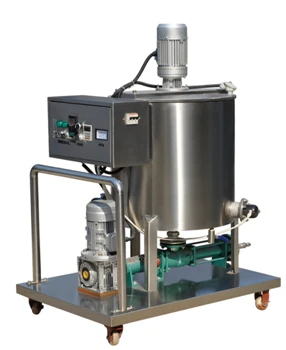

	Name:core filling machine Usage:The colloidal core material is heated, insulated and stirred evenly.The screw pump will inject the core material continuously and evenly into the bulging shell. Motor:1.5kw Capacity:100kg/h to 500kg/h Material:stainless steel

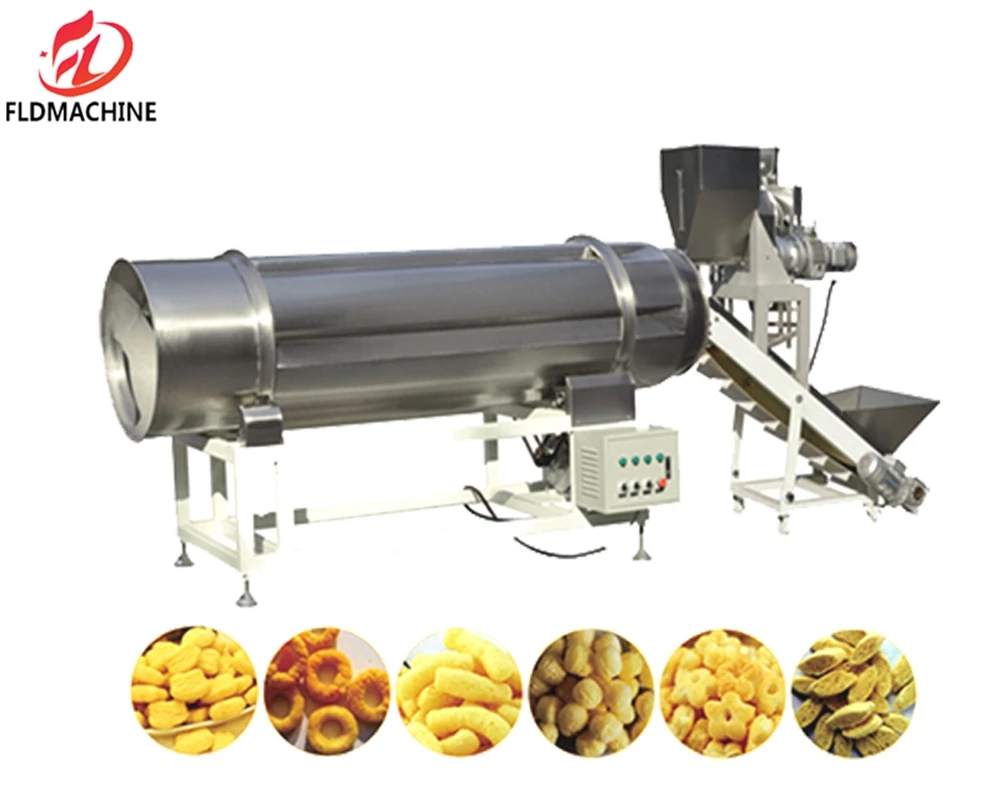

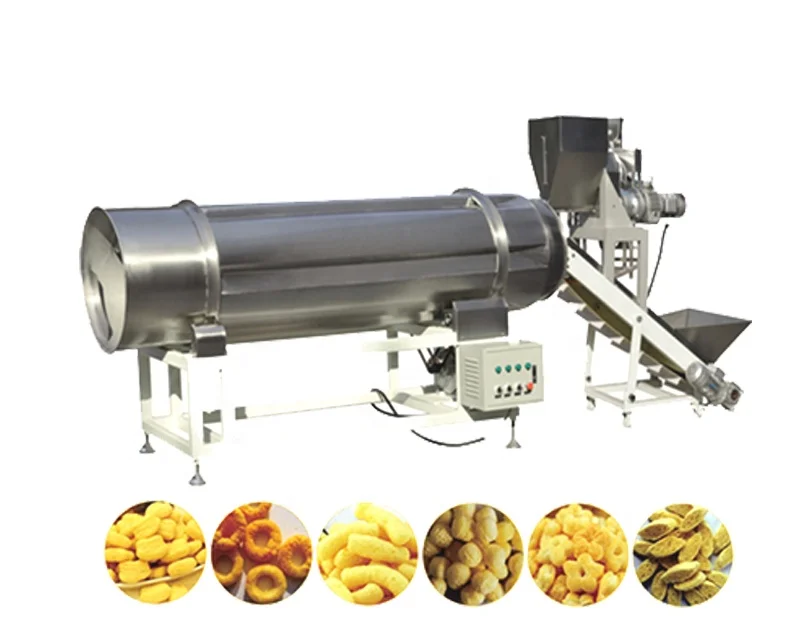

	Flavoring roller To mix the oil and flavors on the surface of the snacks food. Type: single and double flavoring drum Motor: 0.75kw Capacity: 100kg/h to 500 kg/h Material: stainless steel

Jinan FLD Machinery Co., Ltd.is a leading manufacturer for snack food extruder. We have many years' experience of making extruder machines and providing special customize service.

It is covering mainly machinery and equipment for corn filling processing line, corn flakes/breakfast cereal processing line , baby food processing line, puff snacks processing line, 3d pellets processing line, nutrition rice processing line, textured soy protein processing line, as well as pet food/fish food processing line.

 •  Inside package is plastic film, outside is wooden or plywood case(based on the customers'

     need).

 •  Only plastic film nude packing with wooden pallet.

 •  We can supply fumigation package and certificate.

 •  Shipping, train, express or upon clients' demands.

 Q: How long is your delivery timre?

 A: Generally speaking, it is 7 days if the machines are in stock. Or it is 25 days if the goods are out of stock.
Q: Could you supply all the parameters about the machines?
A: Of couse. We are delighted to supply all the informtion that you want to know.

Q: How about the after sale service?
A:  We will send our engineers to your factory for installation and training.

Contact with us:

If you have any questions about Corn Puff Food Making Machine  mini corn puffs extruder machine, don't hesitate to contact with us.
