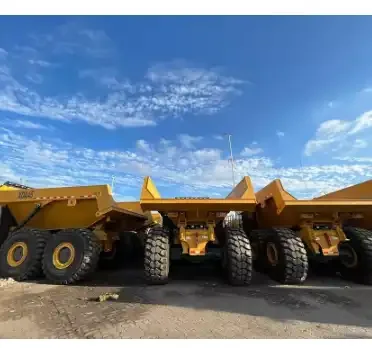

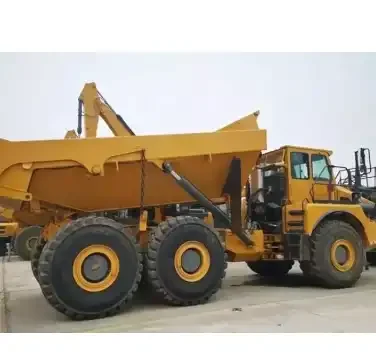

30 Ton Dump Truck XDA30 Articulated Dump Truck with Best Prices Mining Dump Truck for Sale
- Category: >>>
- Supplier: Xuzhou Jiu Fa Construction Machinery Co. Ltd.
Share on (1601016770165):
Product Overview
Description
Product Overview
Since non-ferrous metal mining and water conser-vancy works are of special construction environment,mining equippments are required to have excellent cross-country performance to ensure the durability inoperational. Thanks to its strong technical support, it is dedicated to providing customers with complete construction solutions. By virtue of its strong power,super excellent performance,excessively low maintenance cost, the product is bound to bring you higher working efficiency and handsome return on investment
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Item | Model | Unit | XDA30 | ||||
Size Specs | Overall length | mmm | 10355 | ||||
Overall width | mmm | 3195 | |||||
height | mm | 3780 | |||||
Front centre wheelbase | mmm | 4160 | |||||
Rear centre wheelbase | mm | 1700 | |||||
Wheel center distance | Front wheel | mm | 2455 | ||||
Rear wheel | mm | 2455 | |||||
Weight Specs | Total weight of the vehicle | kg | 57000 | ||||
Rated load | kg | 30000 | |||||
Unladen weight | kg | 27000 | |||||
Mass distribution | Unladen | Tront axle | kg | 13 500(50%) | |||
Rear axle | kg | 13500(509%6) | |||||
Fully loaded | Tront axe | kg | 17000(3 0%6) | ||||
Rear axle | kg | 40000(70%) | |||||
Power Specs | Engine model | / | YCK11400-T300 | ||||
Rated engine power | kW/rpm | 290/2100 | |||||
Maximum engine torquel | Nm/rpm | 1900/1100-1400 | |||||
Type of drive | / | 6x6 | |||||
Tyre | / | 750/65R25 | |||||
DrivingSpecs | Maximum speed | km/h | 56 | ||||
Minimum access circle radius | mm | 8600 | |||||
Maximum gradient | % | 45 | |||||
Maximum steering anglel | 42 | ||||||
Minimum ground clearancel | mmm | 430 | |||||
Operating Specs | Loading height | mm | 2975 | ||||
Lifting time | s | 12 | |||||
Lifing angle | 70 | ||||||
Tank volume | loading | m3 | 13.6/14 | ||||
2:1Stacking | m | 17.5/18.1 | |||||
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
