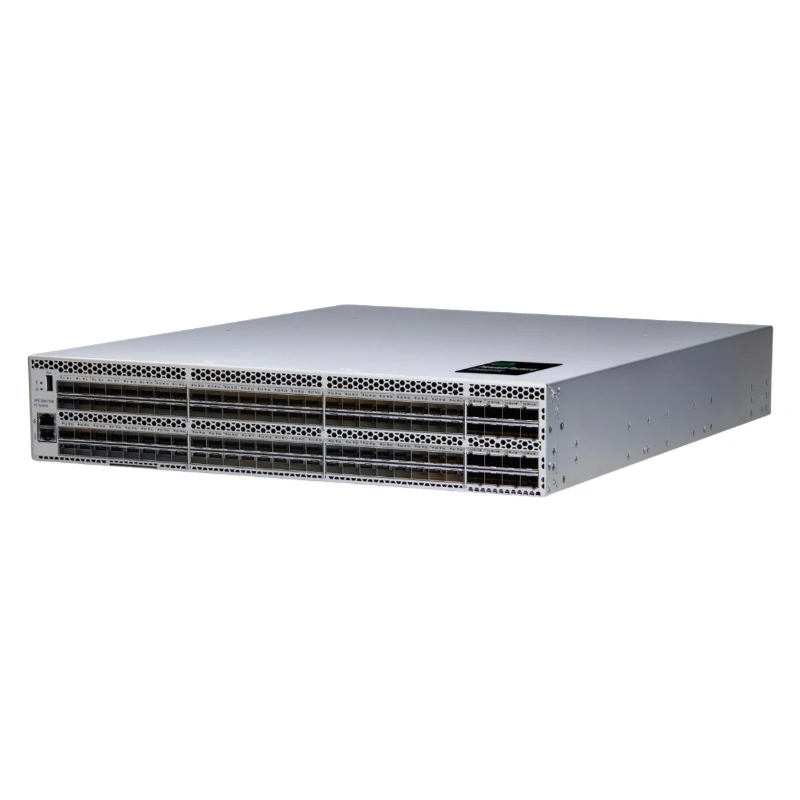

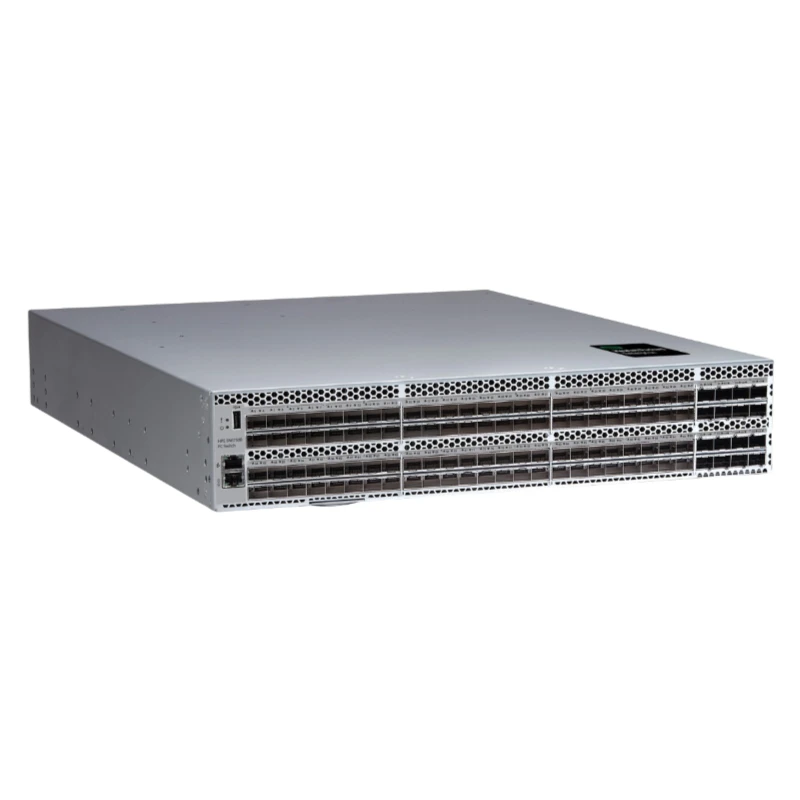

HPE B series SN6750B 48/128 48 port 64Gb Short Wave SFP56 Port Side Intake Integrated FC Switch R8U62A

Product Overview

Description

HPE B-series SN6750B 48/128 48-port 64Gb Short Wave SFP56 Port Side Intake Integrated FC Switch R8U62A



Are you struggling to meet the I/O demands of hyper-scale virtualization, large cloud infrastructures, and growing flash-based storage environments?

The HPE B-series SN6750B Fibre Channel Switch is an ultra-dense, high-performance, highly scalable, enterprise-class storage networking switch delivering Gen7 64Gb Fibre Channel capabilities. It is designed to support data growth, demanding workloads, and data center consolidation in large scale enterprise infrastructures. Delivering 64Gb performance and high port density, it accelerates data access, adapts to evolving requirements, and drives 24x7 businesses. It can scale from 48 to 128 ports with Port On Demand (POD) upgrades in a 2U package enabling organizations to create high-scale fabrics in less space. In addition, with a 50% latency reduction compared to the previous generation and no oversubscription, the switch improves performance of NVMe storage and high-transaction workloads.¹



What's New

·Features switch offerings with 64Gb optics as well as Port-on-Demand upgrade kits bundled with 64Gb optics or 64Gb double-density (DD) optics, enabling scaling from 48 to 128 ports.

·HPE B-series Gen7 64Gb Fibre Channel Switch technology enables organizations to realize a self-learning, self-optimizing, and self-healing autonomous SAN.

Enhanced Security

With enhanced security and autonomous SAN technology, the HPE B-series SN6750B FC Switch takes the guesswork out of protecting and managing a network.

It enables a cyber-resilient network that protects against security threats, enables nonstop operations, and increases management automation.

Increase Performance for Application and Solid State Storage Architectures

The HPE B-series SN6750B Fibre Channel Switch delivers increased performance through a combination of improved throughput and low latency across 64Gb links in hyper-scale virtualization, large cloud infrastructures, and growing flash-based storage environments.

Improved performance of NVMe storage with 50% lower switching latency than 32Gb. Latency for locally switched ports is 460 ns including forward error correction (FEC).¹

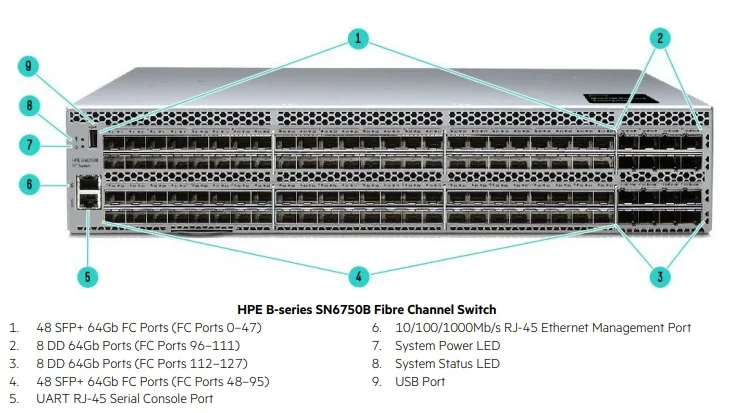

With 96 SFP+ ports and 16 DD ports, it can scale up to 128 device ports for an aggregate throughput of 8.192Tbps.¹

Ultra-dense and Highly Scalable

The HPE B-series SN6750B Fibre Channel Switch scales up to 128 device ports in an efficiently designed 2U form factor, delivering increased port density and space utilization for simplified scalability.

Each of the 96 SFP+ ports and 16 DD ports supports 8, 10, 16, 32, and 64Gb FC speeds.

Provides flexibility to utilize high-speed 64Gb, 64Gb DD, 32Gb, 10Gb optics on demand to meet growing data center needs and provide backward compatibility to older infrastructures.
