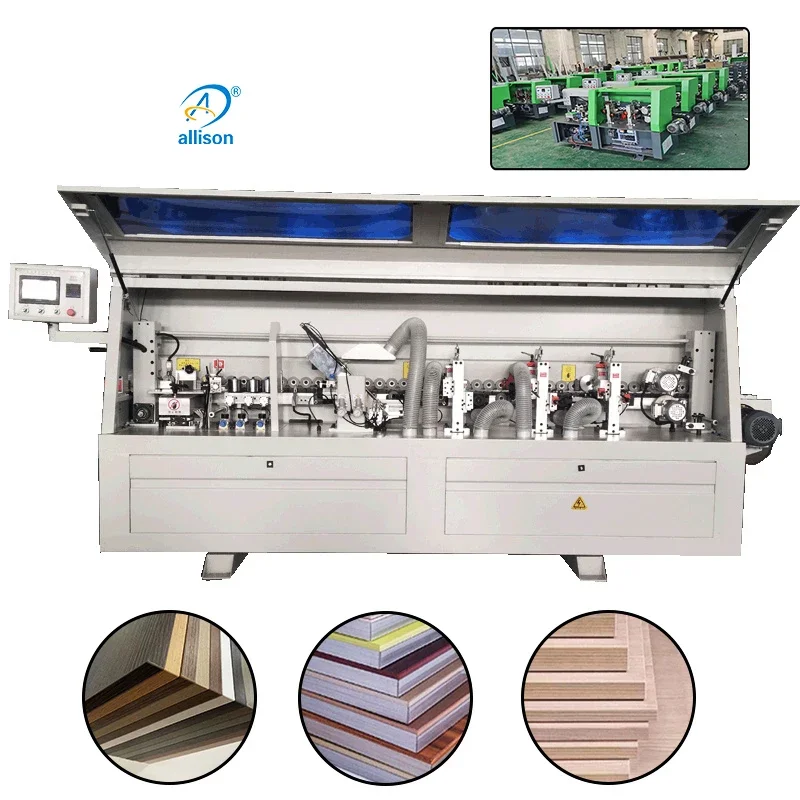

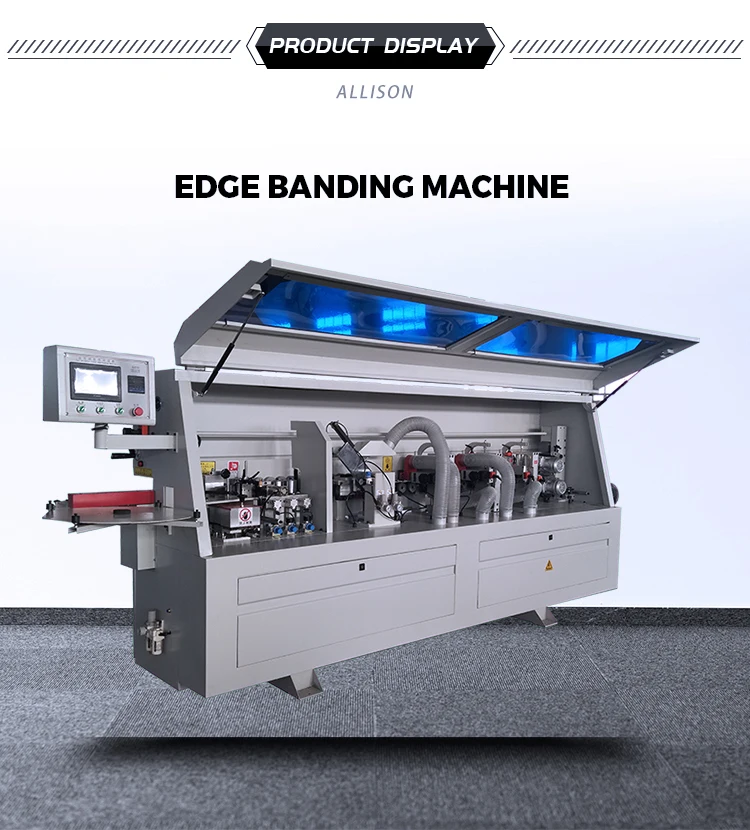

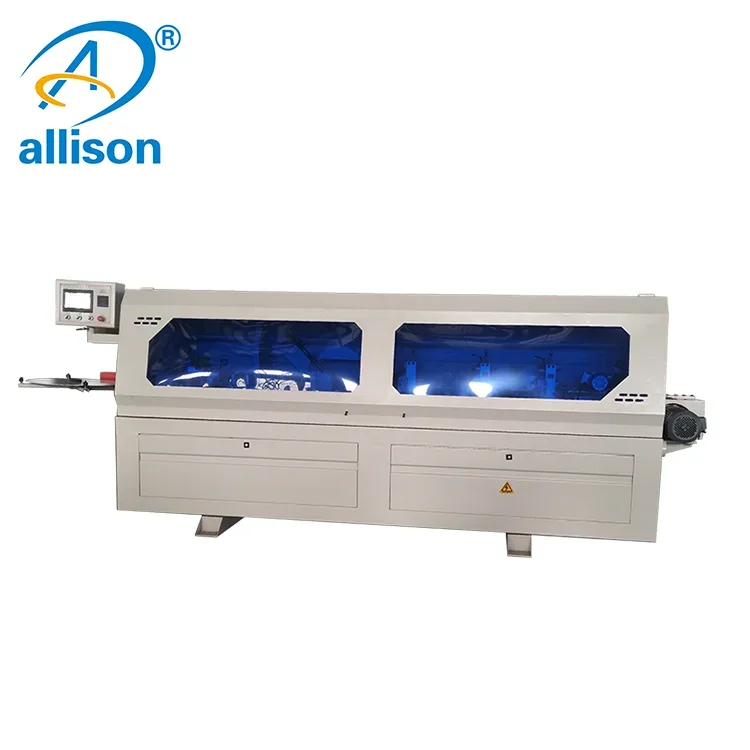

Qingdao Woodworking Machinery Wooden Door Cabinet MDF Automatic Edge Banding Machine for Plywood and Wholesale Furniture
- Category: >>>
- Supplier: Qingdao Allison Machinery Technology Co. Ltd.
Share on (1601016777867):
Product Overview
Description
Functions
Gluing :
Use spiral structure to send glue, and evenly glue the plate and edge banding.
End cutting:
Providethe cutting collision protection function to avoid damage caused by incorrect operations.
Fine trimming:
Remove the redundant materials on the upper and lower parts of the board edge sealing
Scraping:
Edges reduces ripples, making the upper and lower parts of the plate more smooth and tidy.
Buffing：
The cotton polishing wheel cleans the processed plate and makes the edge sealing smoother through polishing.
Advantage

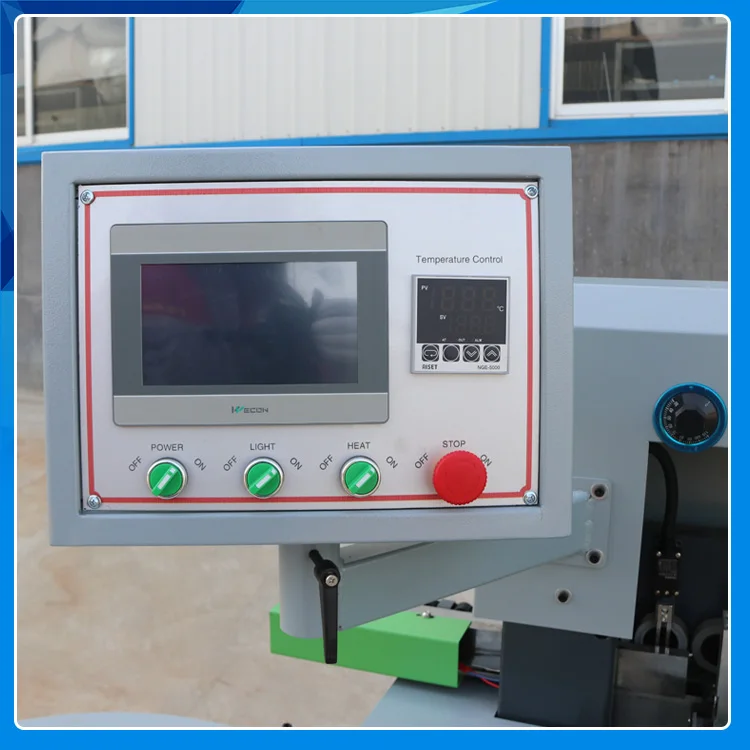

control system
Push button control system, simple operation, data display, and meter counter can be added. You can customize the touch screen as required,All functions can be controlled separately.

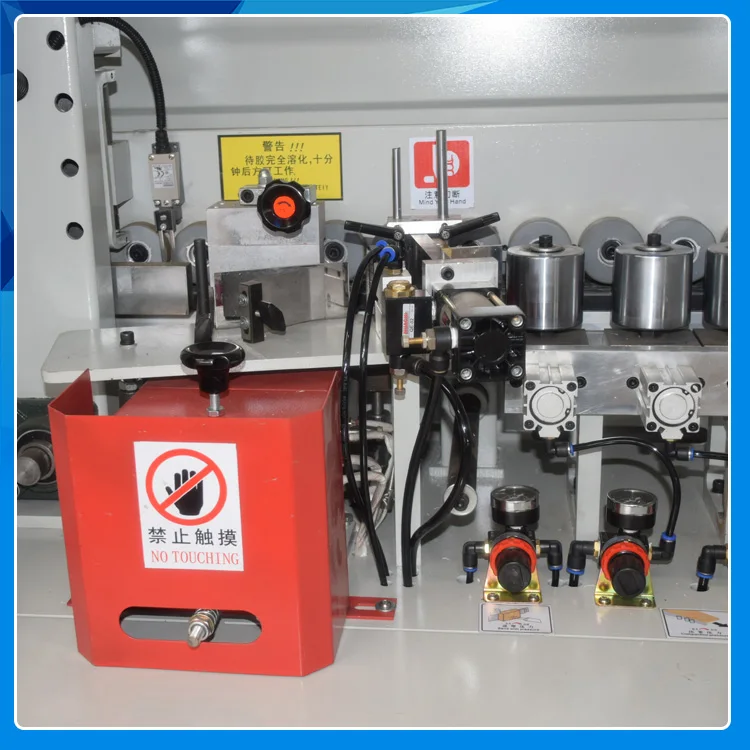

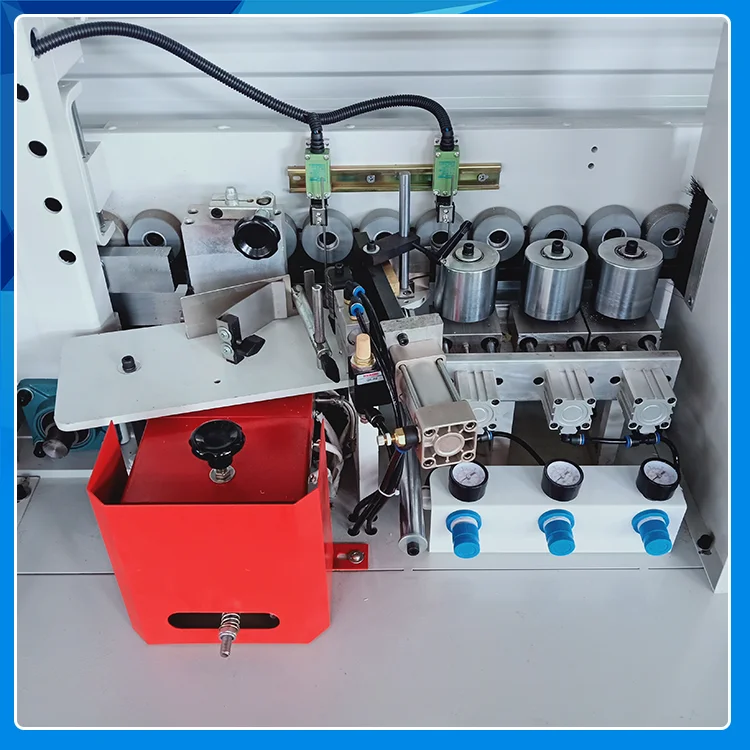

Gluing and snaping
through the special structure, the double-sided gluing of edge sealing plate and edge sealing material is
uniform to ensure more firm adhesion.
uniform to ensure more firm adhesion.

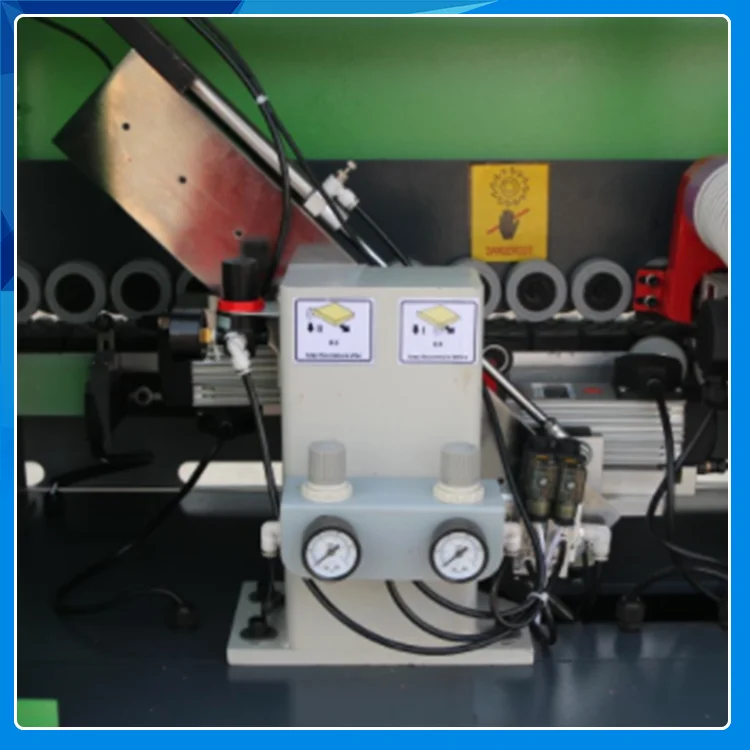

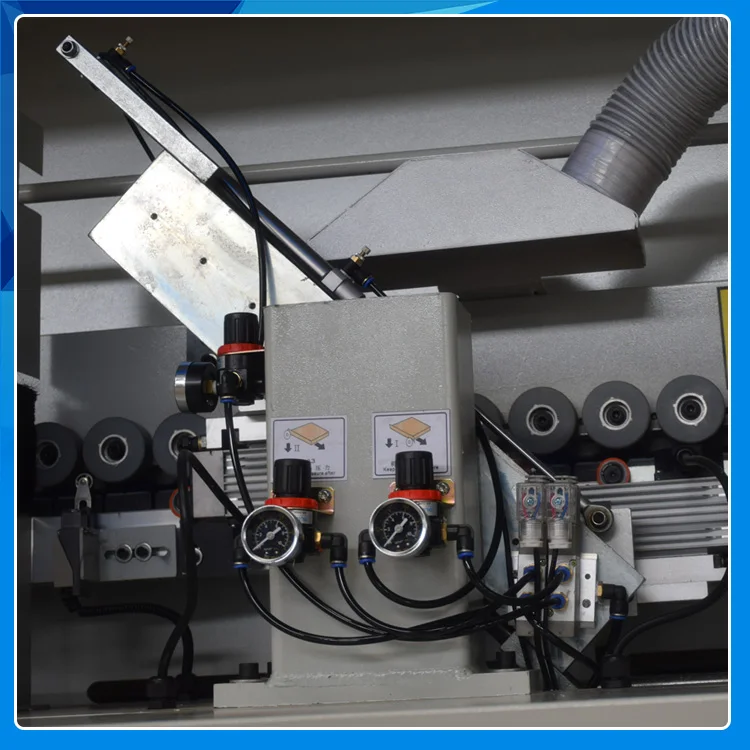

End cutting
Through precise linear guide motion, automatic mold tracking and high-frequency high-speed motor fast cutting
structure are used to ensure that the cut surface is flat and smooth.
structure are used to ensure that the cut surface is flat and smooth.

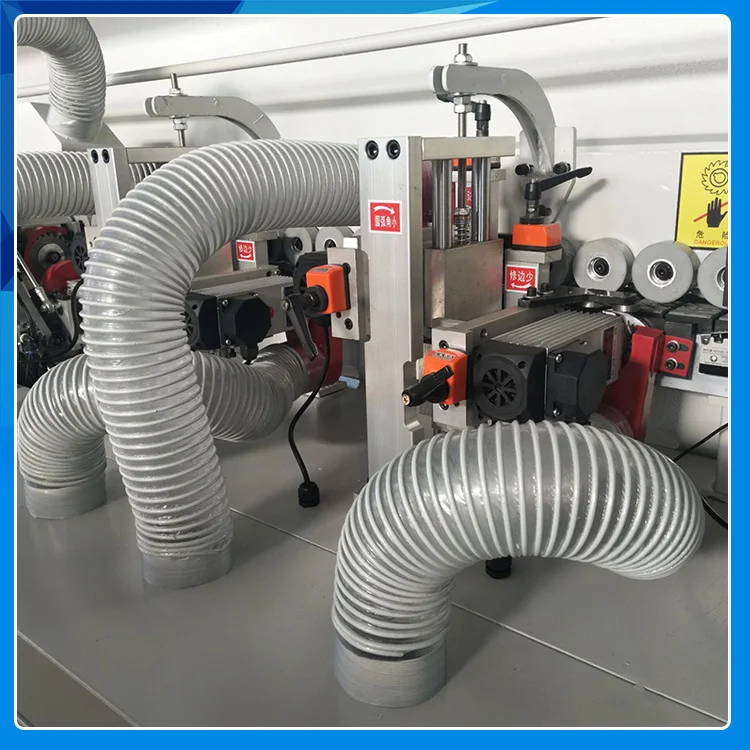

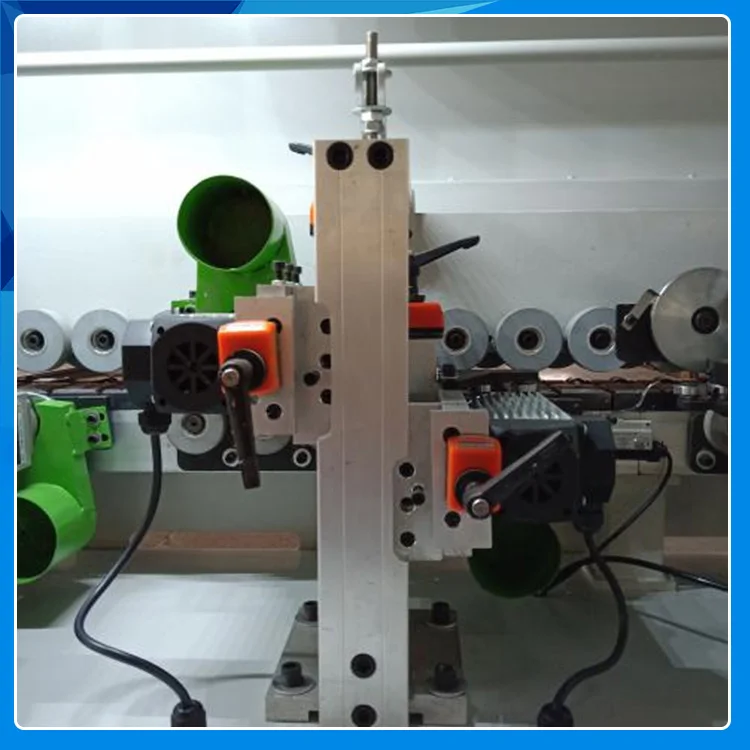

Rough trimming
the rough trimming knife is a flat knife. It can deal with the trimming of the surplus part when sealing the
veneer, and can also be used for the first leveling process when sealing PVC and acrylic.
veneer, and can also be used for the first leveling process when sealing PVC and acrylic.

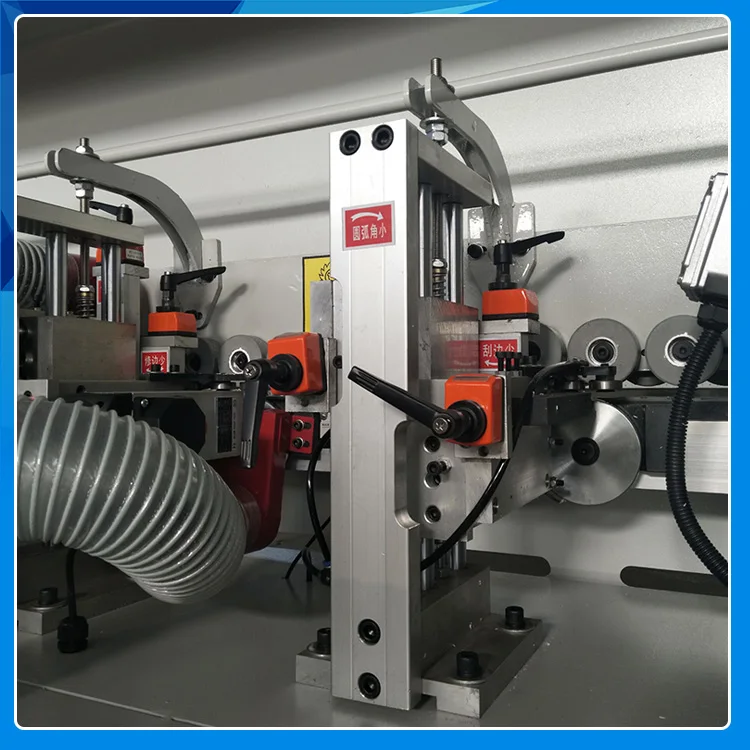

Fine trimming
The finishing knife is an R-shaped knife. It is mainly used for PVC and acrylic edge banding of panel furniture,
and the edge banding with a thickness of more than 0.8mm is preferred.
and the edge banding with a thickness of more than 0.8mm is preferred.

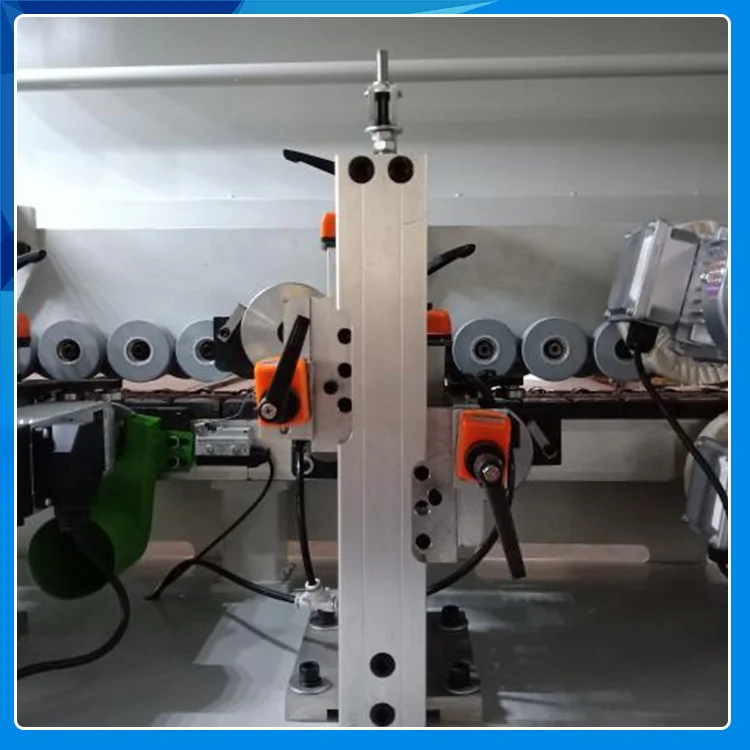

scraping
it is used to eliminate the ripple marks caused by the cutting process of non-linear movement of trimming, so as to
make the upper and lower parts of the plate more smooth and tidy.
make the upper and lower parts of the plate more smooth and tidy.

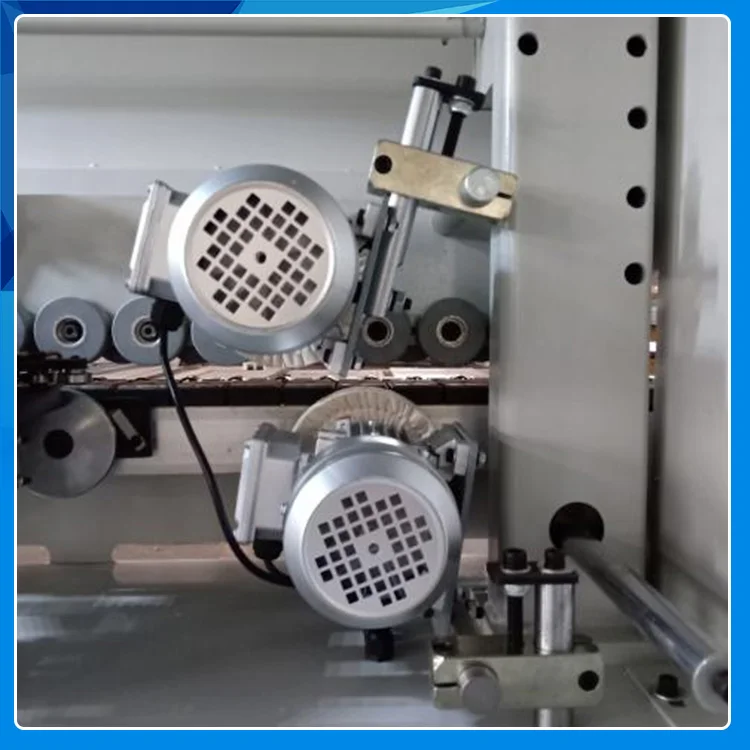

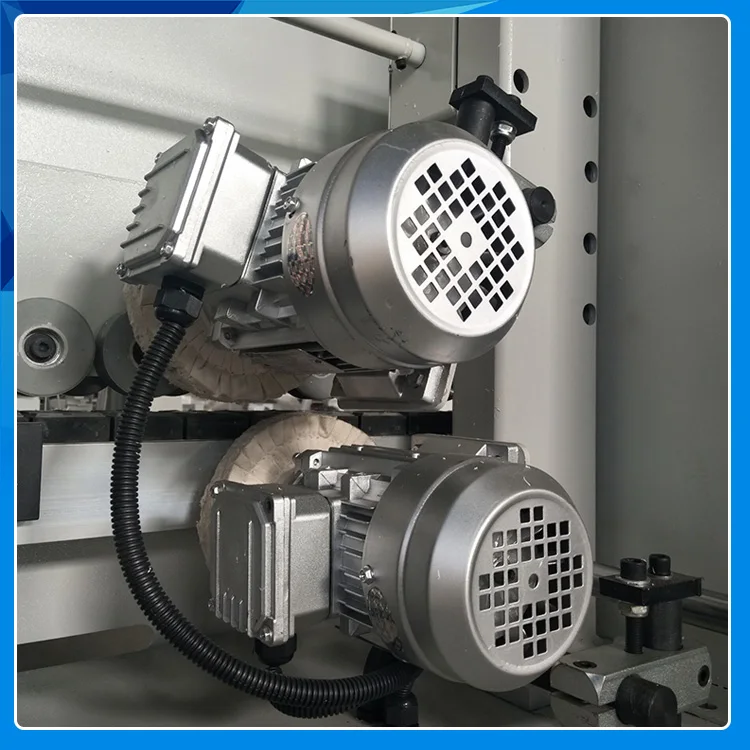

buffing
clean the processed plate with cotton polishing wheel, and make the edge sealing end face more smooth through
polishing.
polishing.
Product Description
Functions | Gluing edge,Snipping,End cutting,Rough trimming Finetrimming, Scraping, Buffing |
Overall Size | 4000*750*1500mm |
Total Weight | 1000kg |
Total Power | 8.13KW |
Minedge band Width | ≧50mm |
Min edge band Length | ≧60mm |
Plate thickness | 10-60mm |
Edge band width | 10-65mm |
Edge band thickness | 0.4-3mm |
Conveyor Speed | 15m\\min |
Working pressure | 0.7Mpa |
Related Products
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Design
Blanking cutting
Bend
Weld
Polish
Spray, Paint
Install
Install
Debugging
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
clean machine
rust prevention

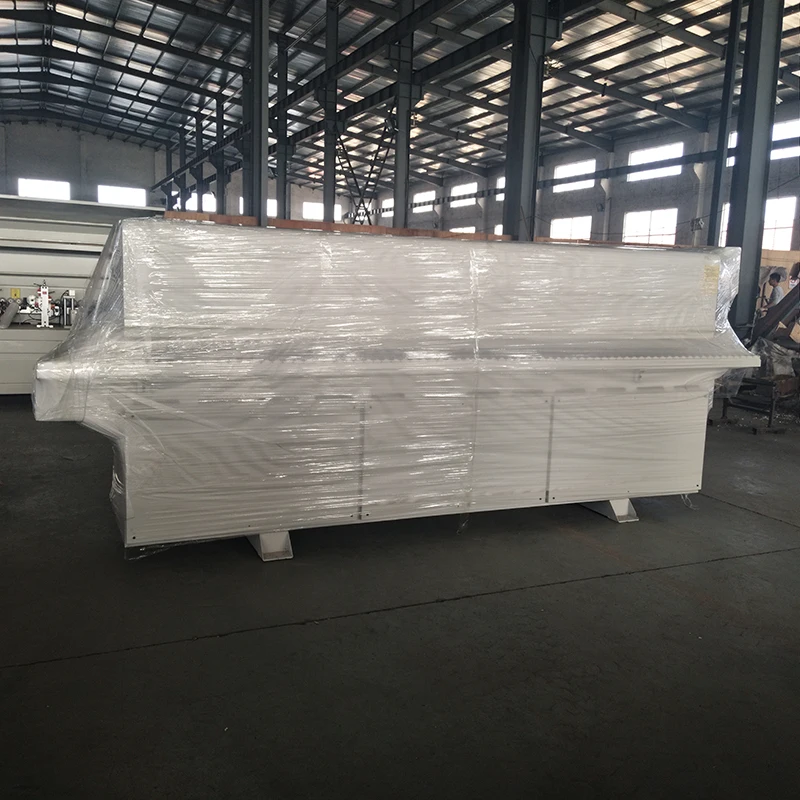

Packing film
Packed in LCL reinforced wooden cases
Packed in LCL reinforced wooden cases
FCL can be stacked as long as the machine length allows, saving space and saving freight
Stuffing
Stuffing

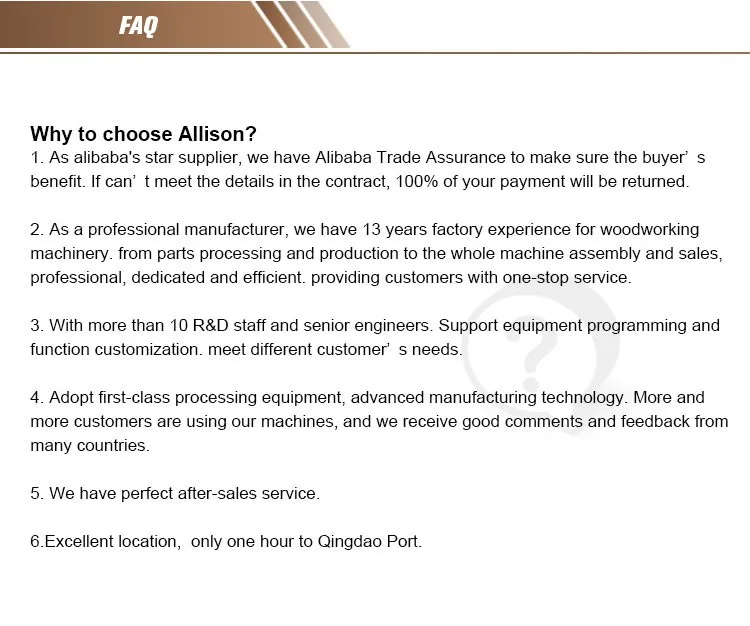

FAQ
