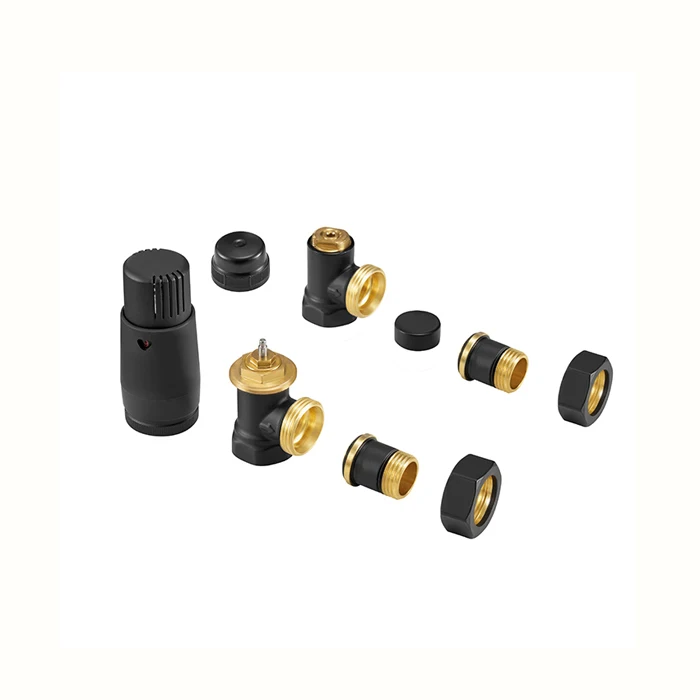

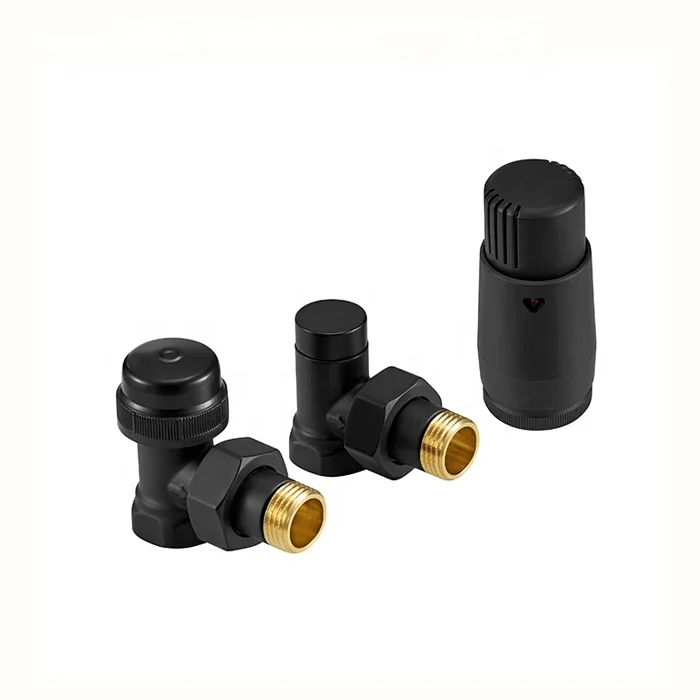

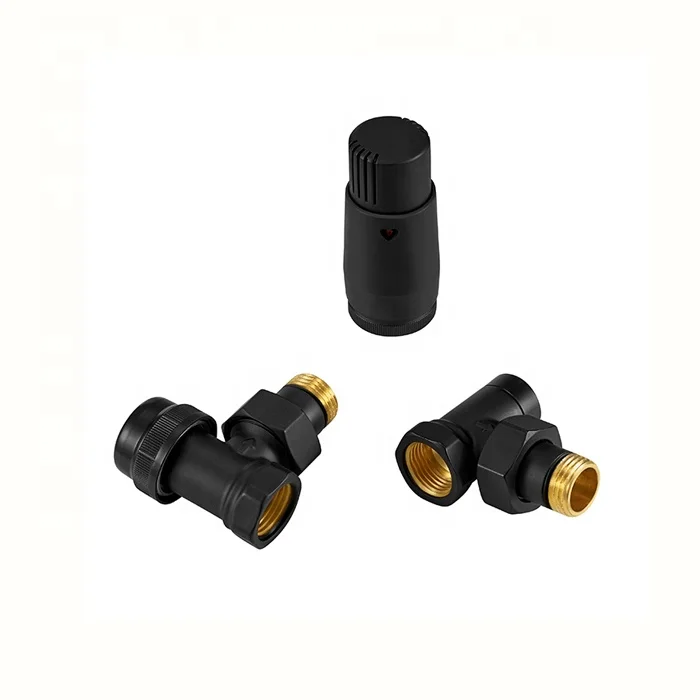

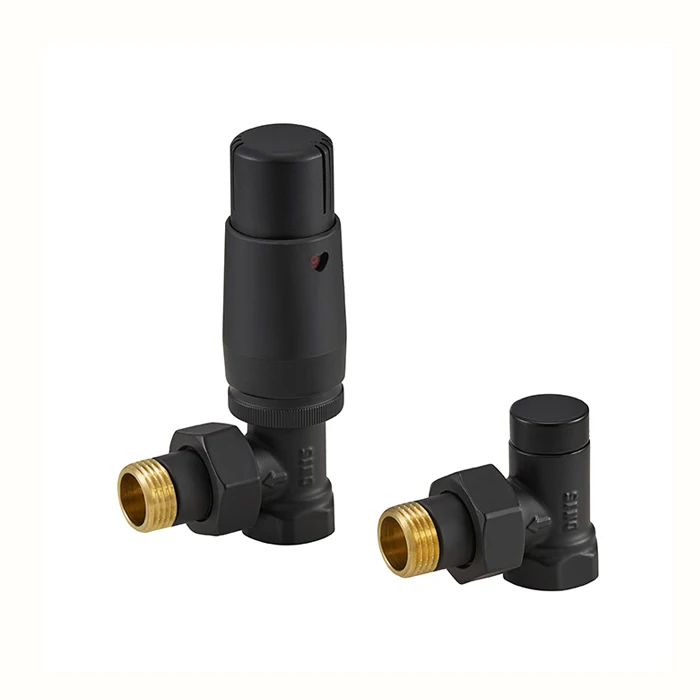

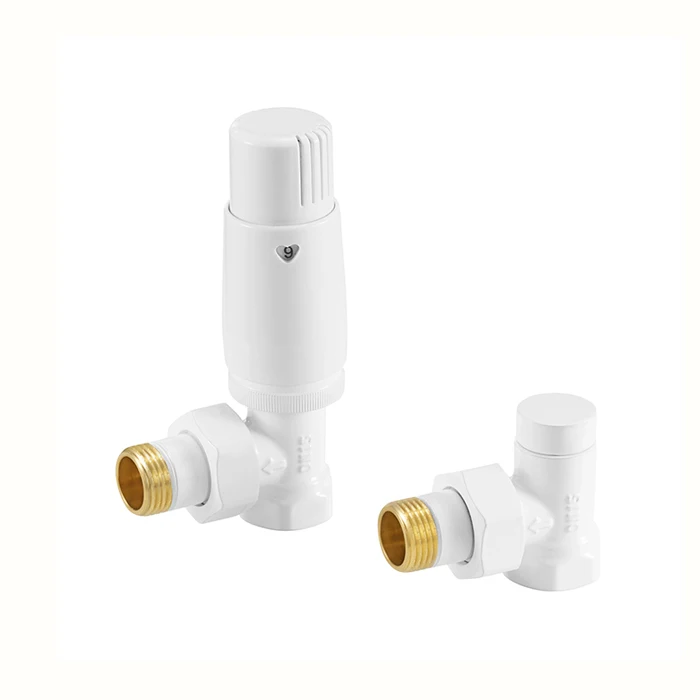

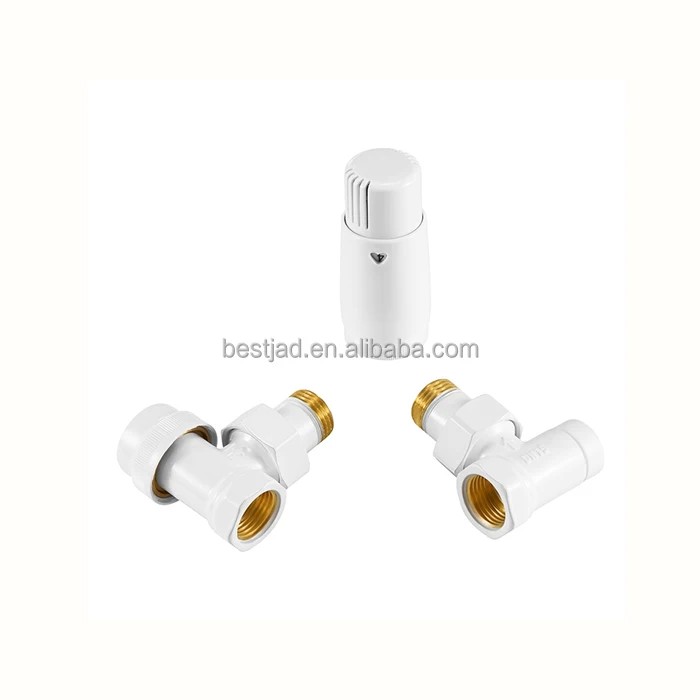

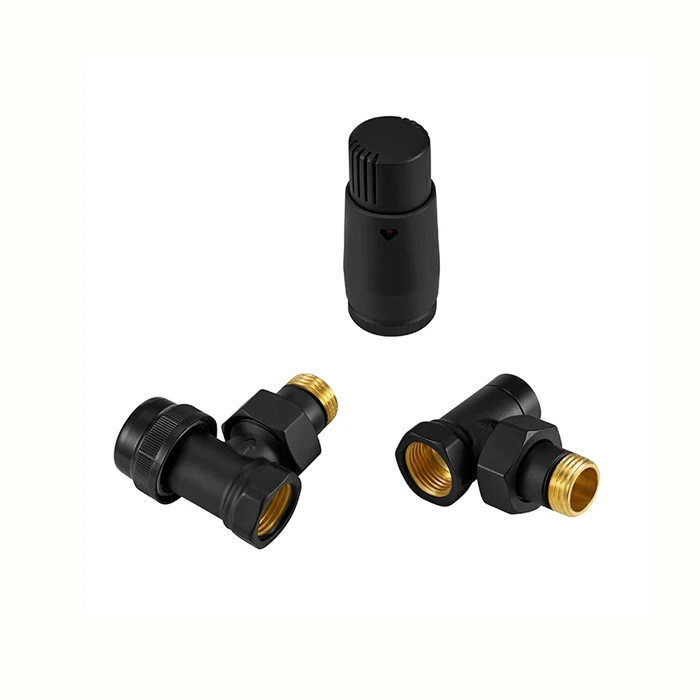

Heated Towel Rack Thermostatic Radiator Heating Valve Smart Home TRV Angled Valve

Product Overview

Description







 BASIC INFORMATION



Descriptions	2023 New Design of TRV Thermostatic Radiator Valve for floor Heating System
Model No.	BJ12001-JB
Material	Brass H58-3 or CW617N
Processing	Forging, CNC Machining
Size	G1/2''/G3/4''
Color	white RAL 9016/Anthracite RAL7016/Chrome
Working Medium	Hot/Cold Water
Max Working Temperature	≤110℃
Max Working Pressure	10 bar
Max Pressure Difference	0.6bar
Max Working Temperature	50℃
Influence of Pressure Difference	0.4K
Influence of Temperature Difference	0.5K
Test Standard	EN215
Material Details for Each Part	Brass Body, Brass Cartridge, Brass Handle



  FEATURES & ADVANTAGES

>> 3 colors for more match options-White/Anthracite/Matt Black

>> With MINI thermostat to optimize the aesthetics and heating efficiency, and down the cost >> Forging process, 100% leakage test to eliminate the possibility of leakage

>> High precision machining, top quality polish and chrome/paint finish >

> Sensitive Thermostat Head according to EN215 make the temperature change simple, easy & reliable

Thermostat Working Principles:

The sensor element of BEIJINSI thermostats consist of a liquid filled metal capsule with an immersed below and integral push rod. A temperature fluctuation leads to an alteration of volume of the liquid which entails a length modification of the immersed below. Then the valve is closed and opened by the push rod.
