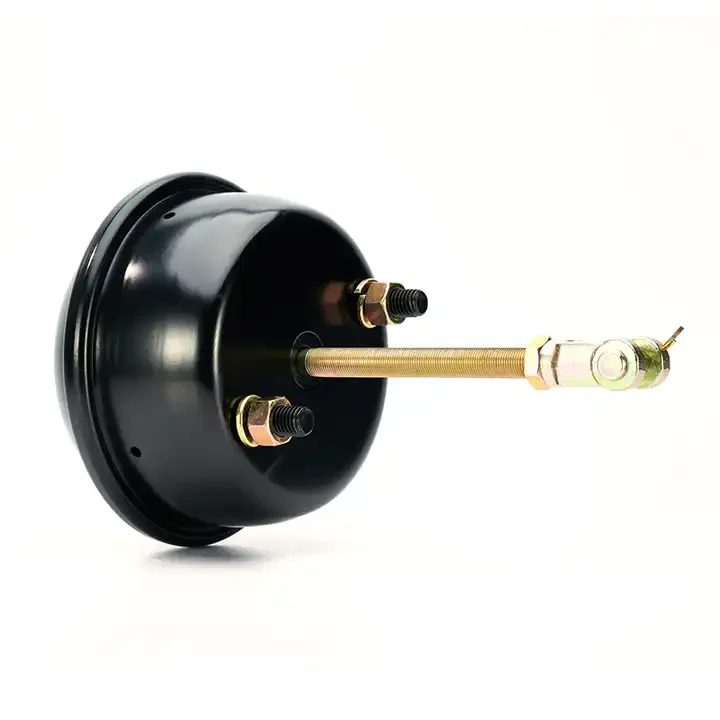

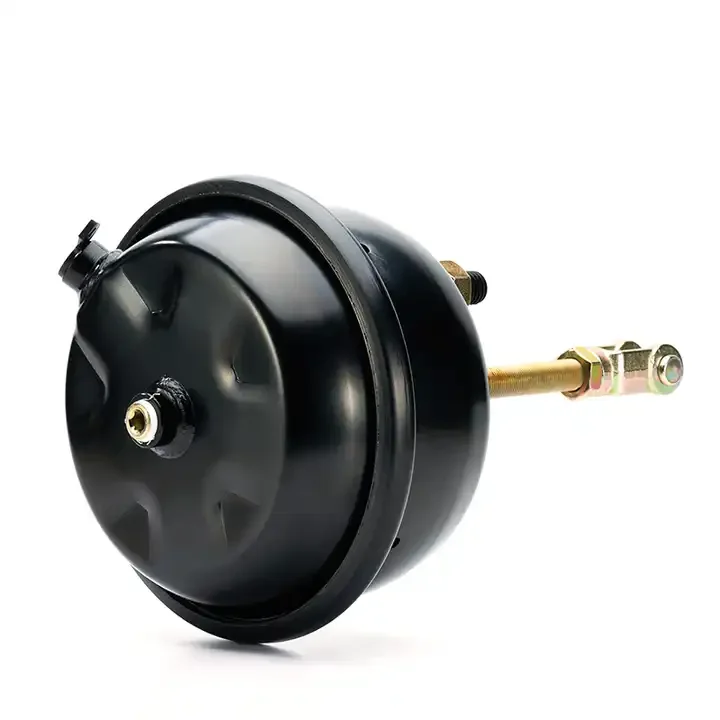

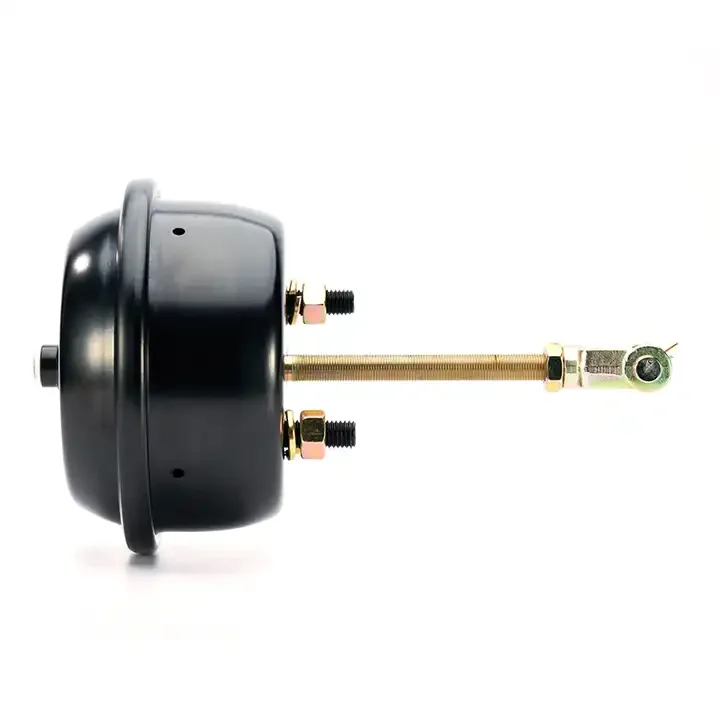

Steel Pressure Housing Type 30 Special Air Chamber sealed S Cam Spring Brake Chamber 30RPC2
Steel Pressure Housing Type 30 Special Air Chamber sealed S-Cam Spring Brake Chamber 30RPC2
Steel Pressure Housing Type 30 Special Air Chamber sealed S-Cam Spring Brake Chamber 30RPC2
Steel Pressure Housing Type 30 Special Air Chamber sealed S-Cam Spring Brake Chamber 30RPC2
Steel Pressure Housing Type 30 Special Air Chamber sealed S-Cam Spring Brake Chamber 30RPC2
Steel Pressure Housing Type 30 Special Air Chamber sealed S-Cam Spring Brake Chamber 30RPC2
Steel Pressure Housing Type 30 Special Air Chamber sealed S-Cam Spring Brake Chamber 30RPC2

Steel Pressure Housing Type 30 Special Air Chamber sealed S Cam Spring Brake Chamber 30RPC2

Share on (1601016903256):


Price:$10.50 - $13.00

Quantity:


Product Overview

Description





Product Description
Type 30 Special Air Chamber sealed
Part Number
TB-SC30RL
Stroke
2.5" (63.5mm Standard Stroke)
Pushrod Length when caged
6.8"
Pushrod Thread
5/8“-18UNF
Chamber Style
Double Diaphragm
Port Size
3/8"-18 NPTF
Distance Between Bolts
120.7mm
Rating Working Pressure
0.8Mpa
Max Working Pressure
1.03Mpa
Working temperature
-40℃～+80℃
Leading Standard
SAE J1469
Service chamber
above 1,000,000 times
Parking chamber
above 200,000 times
Finish
E-coating/Zinc-plated
Adaptation Truck Type
Trailer with Meritor Axle
Direct AftermarkeAt Replacement For OEM
TSE :30RPC2
Meritor:30RPC2
