Parker SSD AC890 Series AC Drive 890SD 532390D0 B00 1A000 Product Export to Southeast Asia
- Category: >>>
- Supplier: Anhui Tailaide Automation Technology Co. Ltd.
Share on (1601016956180):
Product Overview
Description
Product Description
The AC890 is a compact, modular systems AC drive engineered to control speed and position of open-loop and closed-loop, single- or multi-motor AC induction or servo motor applications, up to 500HP.
Brand | Parker | Product Type | AC Drive |
Drive Axis Type | Single Axis Technology Multi Axis Technology | Product Series | AC890 |
Input Voltage | 3*230VAC 3*380-480VAC 3*500-690VAC 320-705VDC(Common Bus) | Output Power | 0.75 - 1500 HP |
Compatible Motor Type | Brushless Servo Frameless Servo Induction Spindle Torque PMAC | Compatible Feedback Device | Resolver Incremental Encoder |
Modes of Control | V/Hz Sensorless Vector Closed Loop Vector Active Front End Speed Control of Permanent Magner Motor | Communication Interface | RS232 / RS485 CANopen ControlNet DeviceNet Profibus Profinet Ethernet TCP/IP |
Operating Temperature | 0-45 °C for Frames B-F / derateup to max 50 °C 0-40 °C for Frames G-K / derate up to max50°C, 32-113F for Frames B-F(derate up to 122F max)32-104F for Frames G-K (derateup to 122F max)°F | Operating Altitude | Up to 1000m ASL (derate >1000m) |
Overload Rating | Heavy Duty Rating (ConstantTorgue) : 150% for 60sNormal Duty Rating (VariableTorque) : 110% for 60sServo Mode Rating (Frames BD) : 200% for 4sServo Mode Rating (Frames E J): 150% for 60s | Specifications Met | CE(EMC & LVD) UL Listed cUl listed |

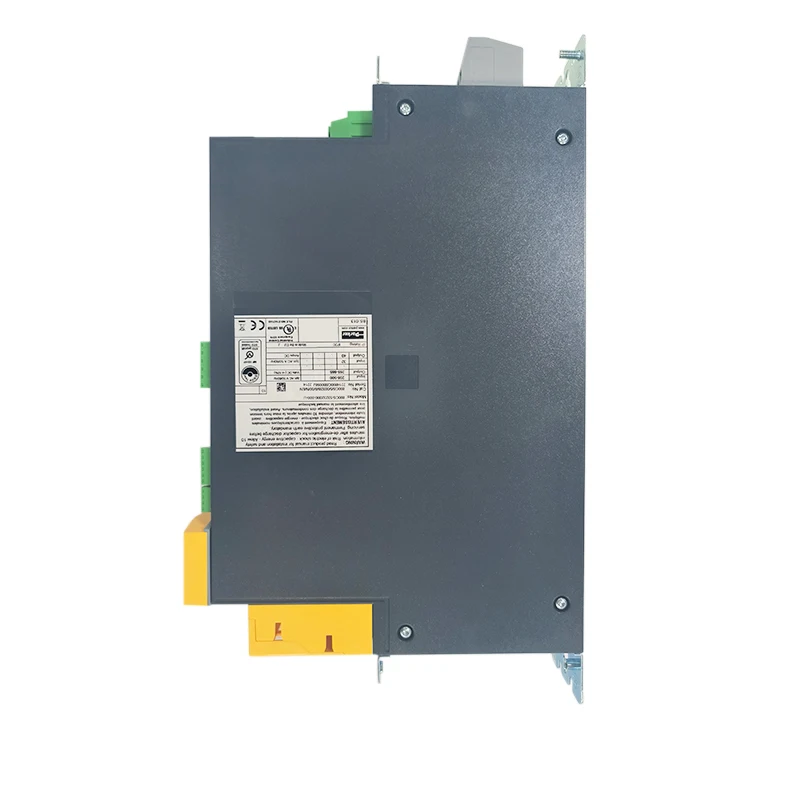

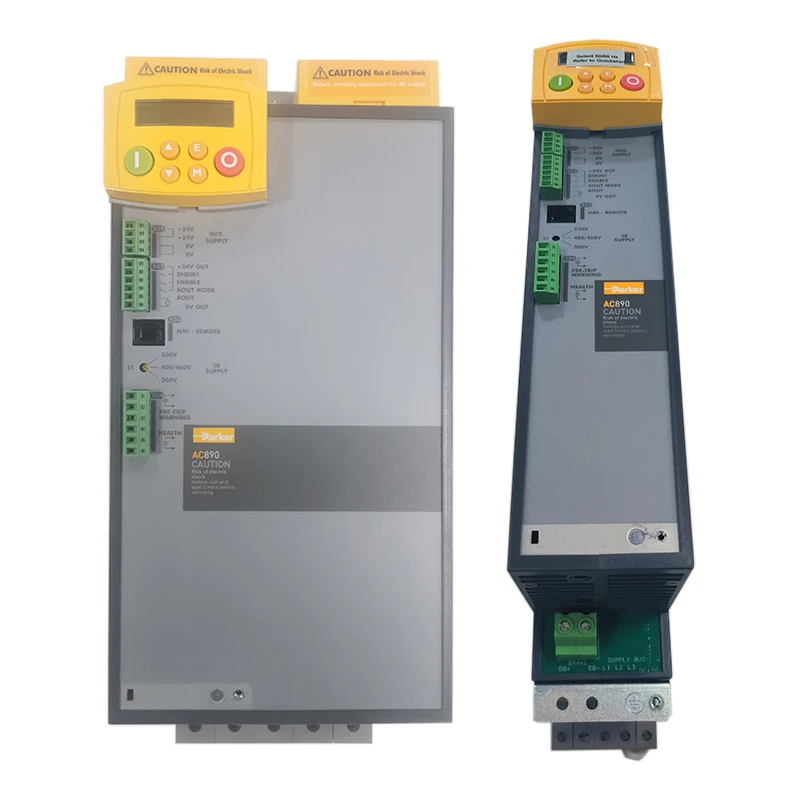

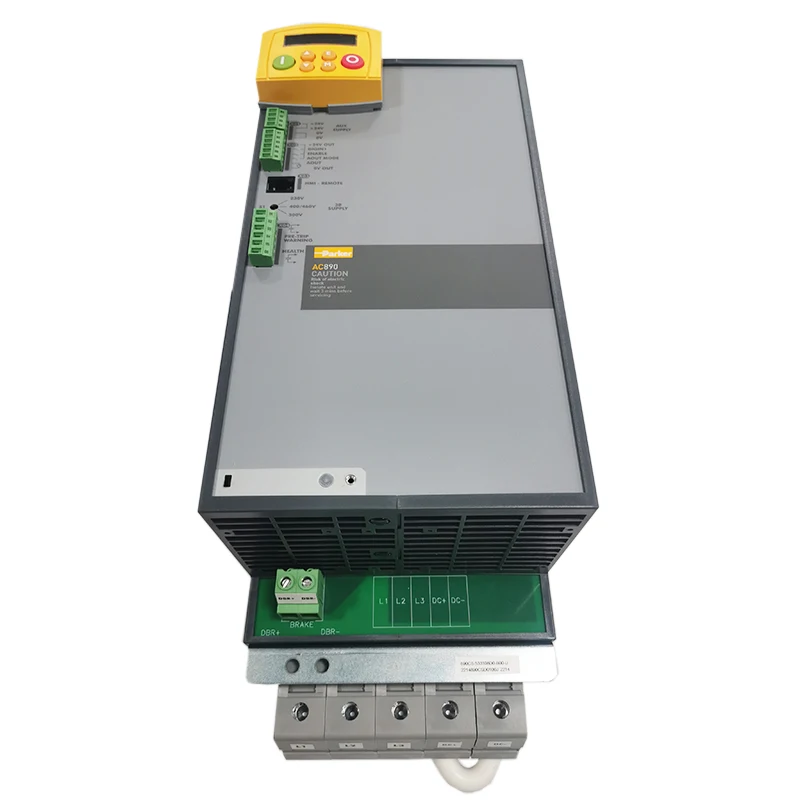

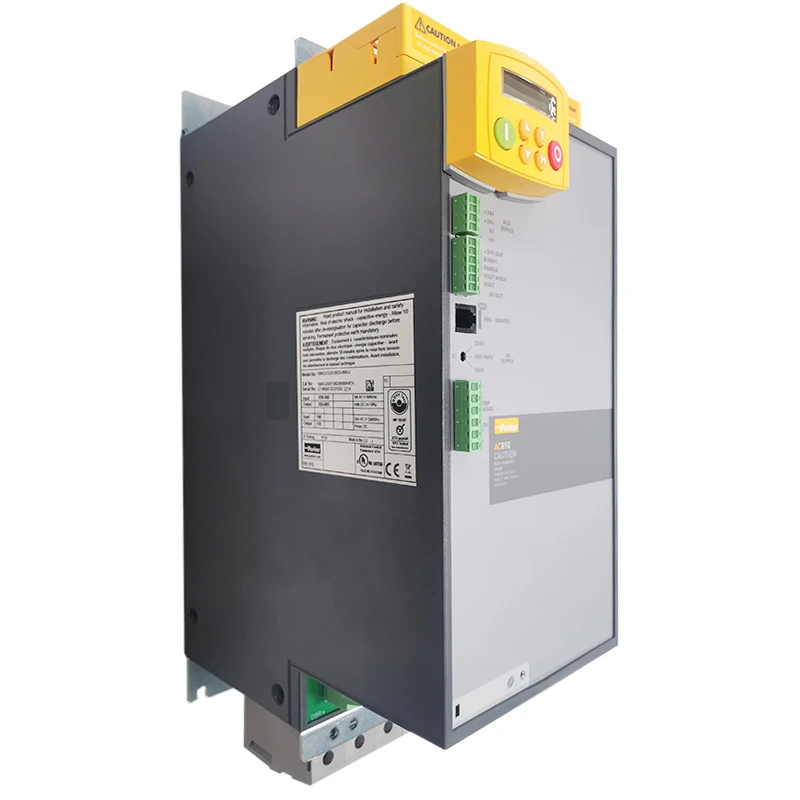

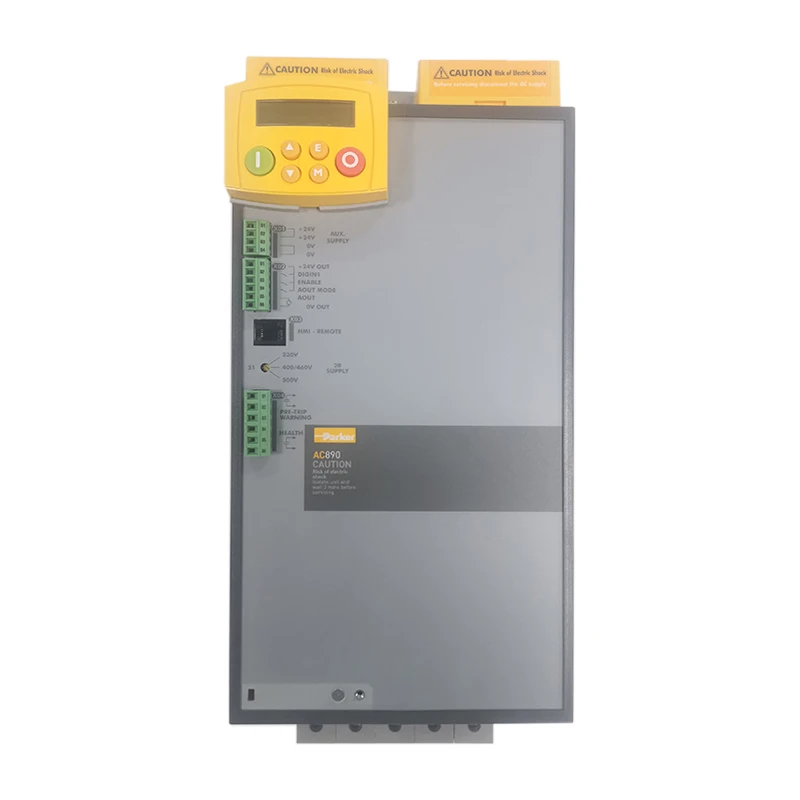

Detailed Images
