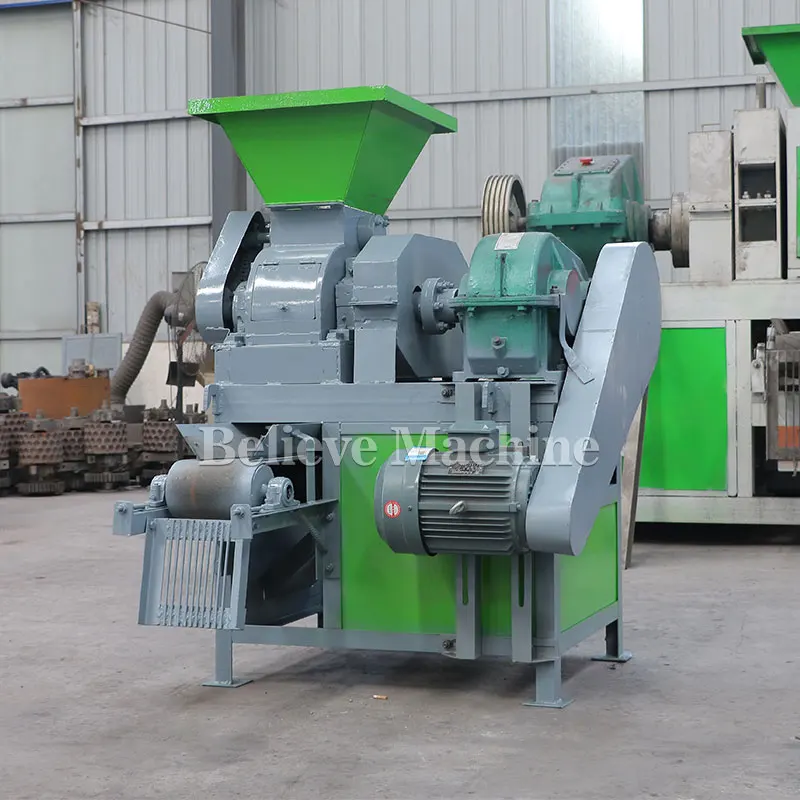

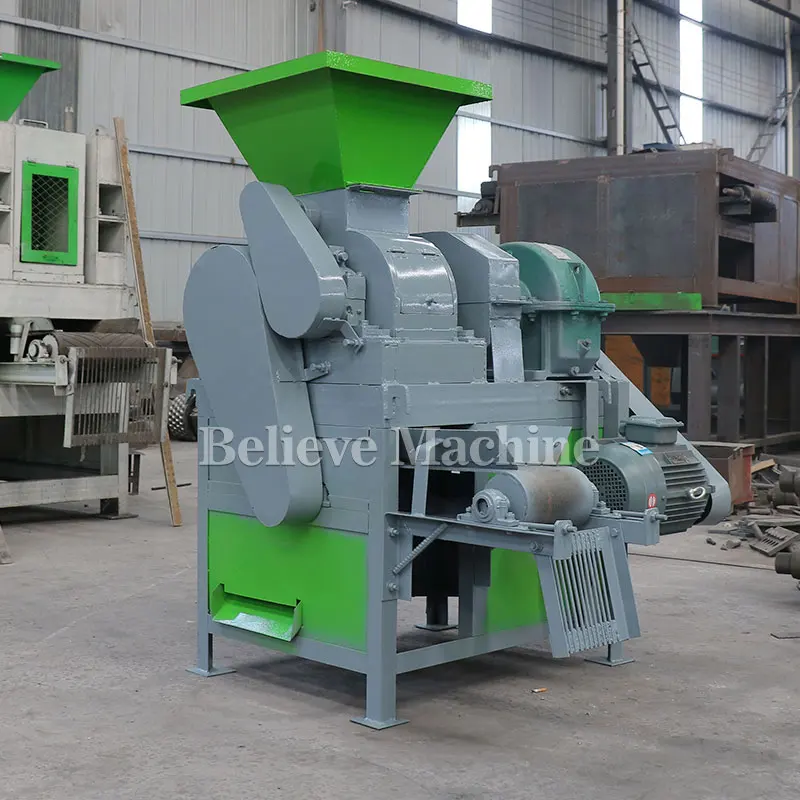

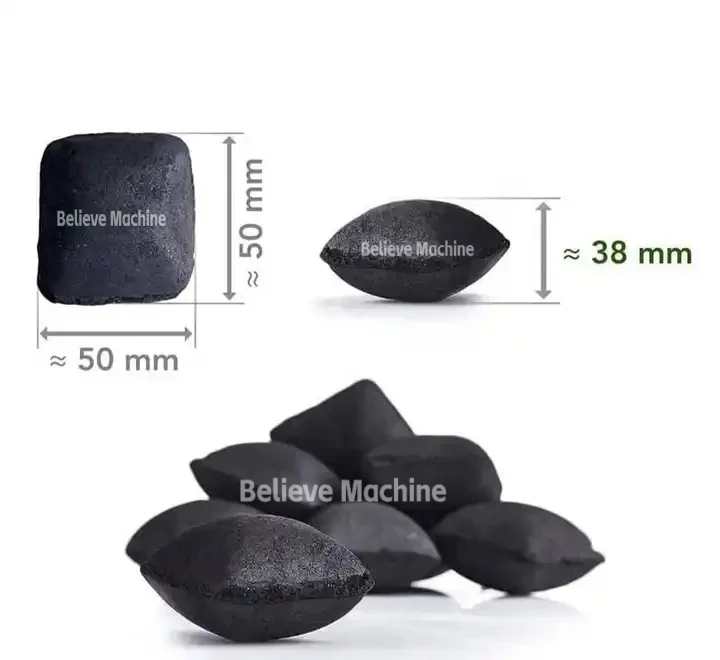

Hot sale pillow shape charcoal briquette machine mini charcoal briquettes machine complete set charcoal briquette making machine
- Category: >>>
- Supplier: Henan Believe Machinery Manufacturing Co. Ltd.
Share on (1601016969162):
Product Overview
Description
Product Description

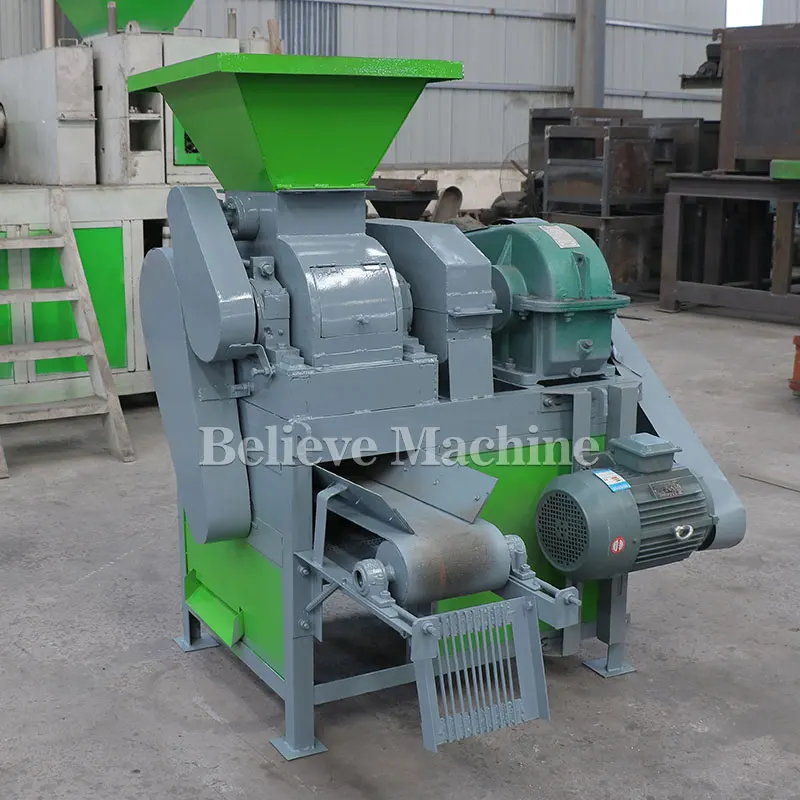

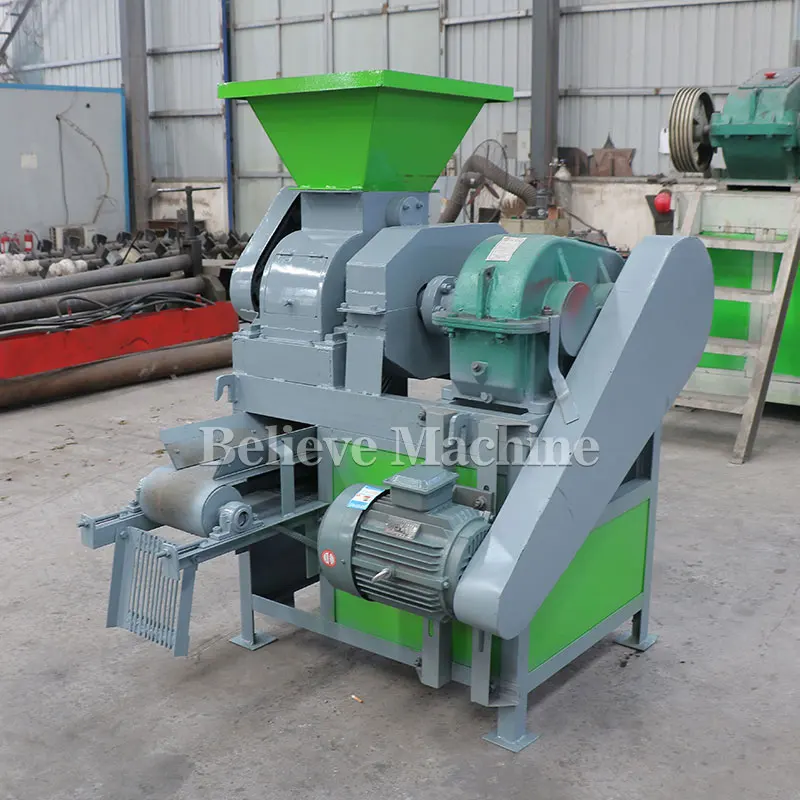

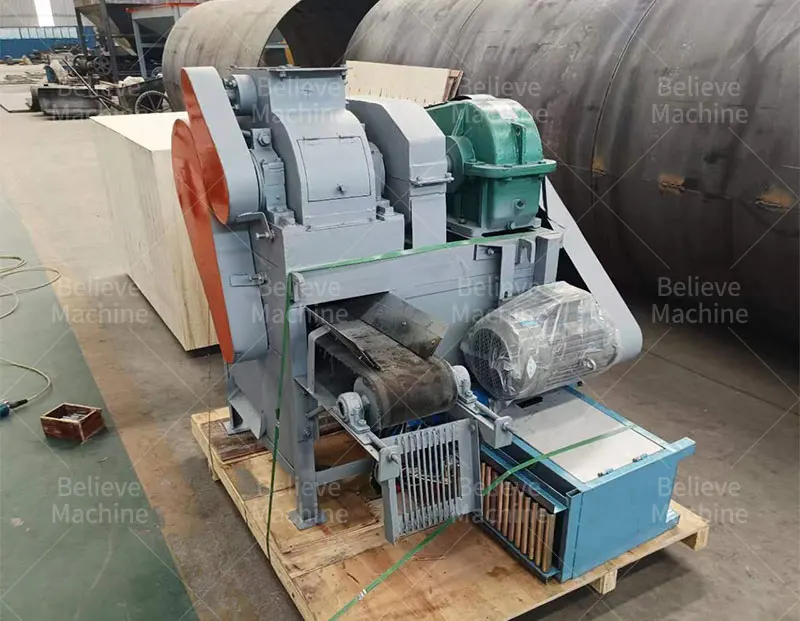

The Ball Press Machine can press coal powder, charcoal powder, metal powder and other difficult to form powder into spherical shape, widely used in refractory materials, metallurgy, energy, heating and other industries, the material formed by the ball press, less dust and environmental protection, easy to transport, improve the utilization rate of waste materials, has good economic and social benefits.
Product Details

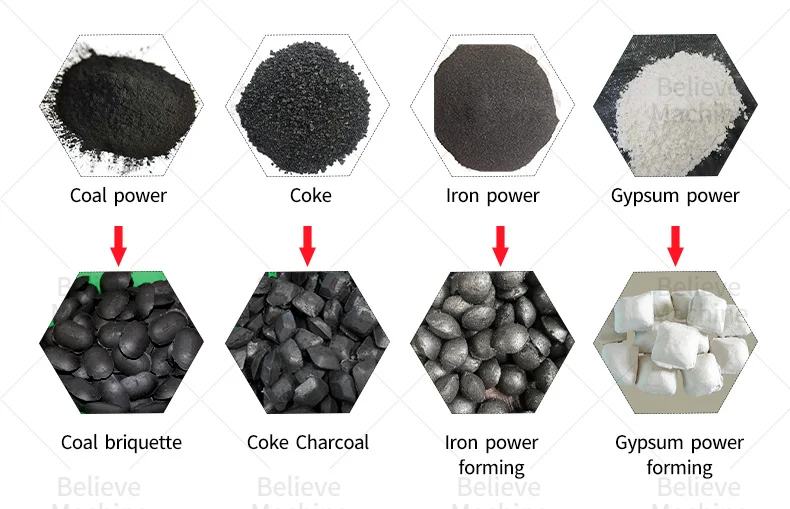

Raw materials & final products

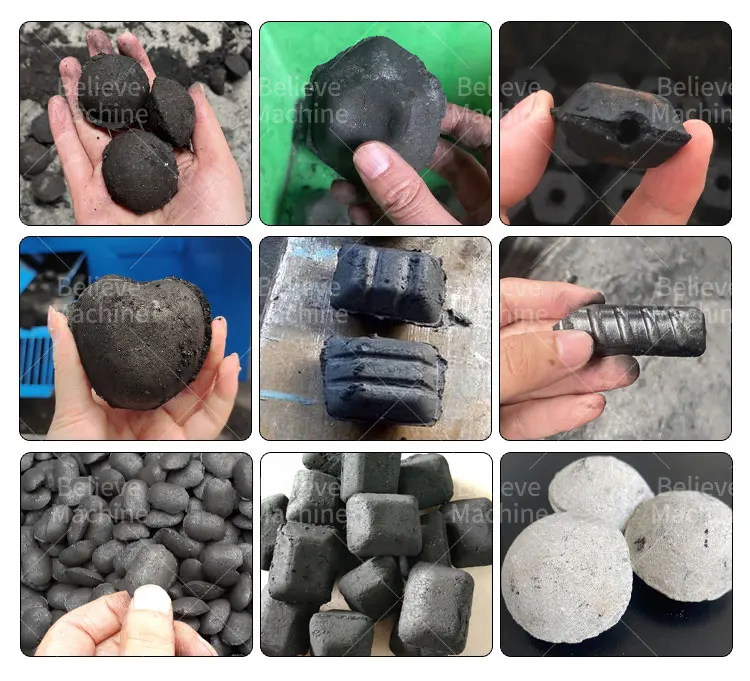

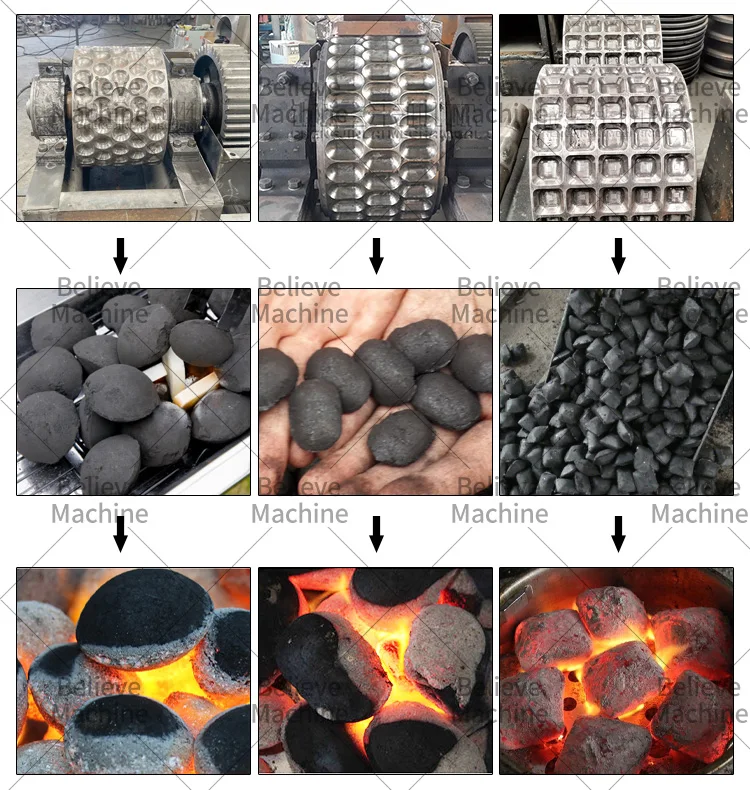

The machine presses coal powder, metal powder, coke powder and other materials into desired shapes. The final product can be made into different shapes such as egg, pillow, oval, round, sphere, column and square by using special molds. We can also customize shapes for our customers.

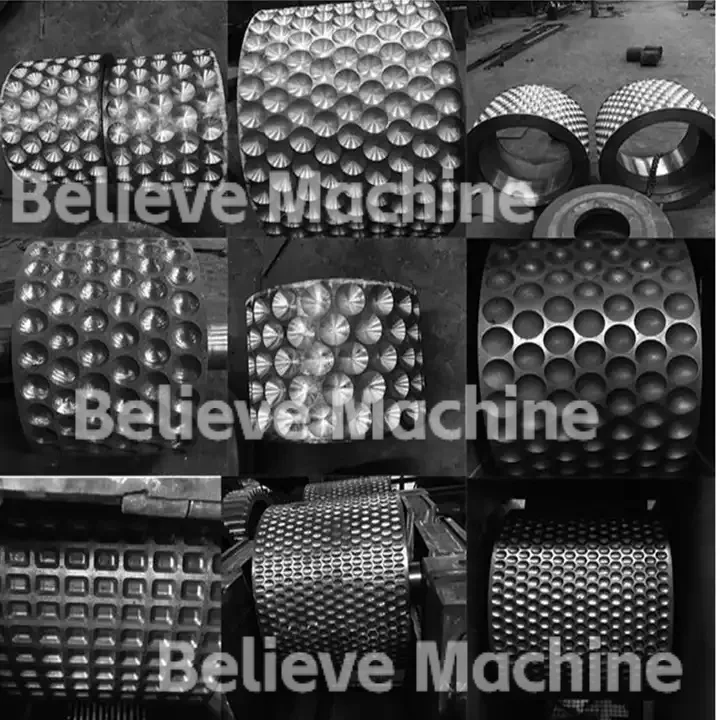

The final briquettes are characterized by high density, high strength, high hardness and high performance, and the main rollers are made of hard wear-resistant material, which greatly improves the service life of the rollers.
The final briquettes are characterized by high density, high strength, high hardness and high performance, and the main rollers are made of hard wear-resistant material, which greatly improves the service life of the rollers.
1. Smooth operation, high efficiency and energy saving
2. Simple operation, high rate of ball formation
3. Low noise, no pollution, widely used.
2. Simple operation, high rate of ball formation
3. Low noise, no pollution, widely used.
Work Process
1. The screw feeding part :
It is driven by an electromagnetic speed-regulating motor and rotates through the pulley and worm reducer to force the pressed
material into the main feed port.
2. The transmission part:
The main transmission system is: motor-triangle belt-reducer-open gear-roll.
3. The forming part:
It mainly refers to the host part, and the core part is the drum. When too much material is fed between the two pressure rollers, increase the gap between the pressure rollers to allow hard objects to pass through the pressure rollers.
It is driven by an electromagnetic speed-regulating motor and rotates through the pulley and worm reducer to force the pressed
material into the main feed port.
2. The transmission part:
The main transmission system is: motor-triangle belt-reducer-open gear-roll.
3. The forming part:
It mainly refers to the host part, and the core part is the drum. When too much material is fed between the two pressure rollers, increase the gap between the pressure rollers to allow hard objects to pass through the pressure rollers.

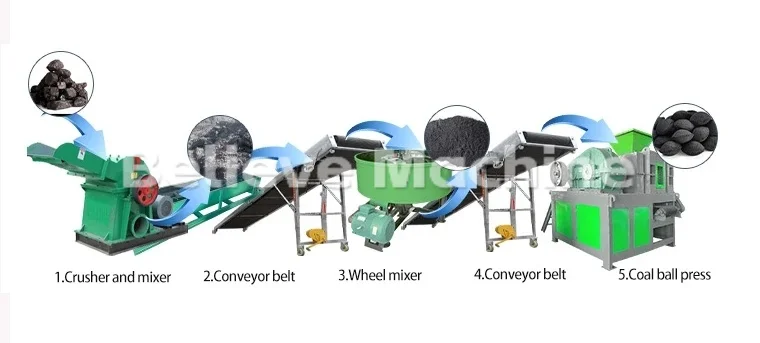

We can customize the production line according to customers' requirements and meet them for free. The following picture is an example of a customized production line for a customer.
Product Paramenters
Here are some product parameters of our products,if you don't know how to choose the model,you can contact us,we will give the best choice for you.

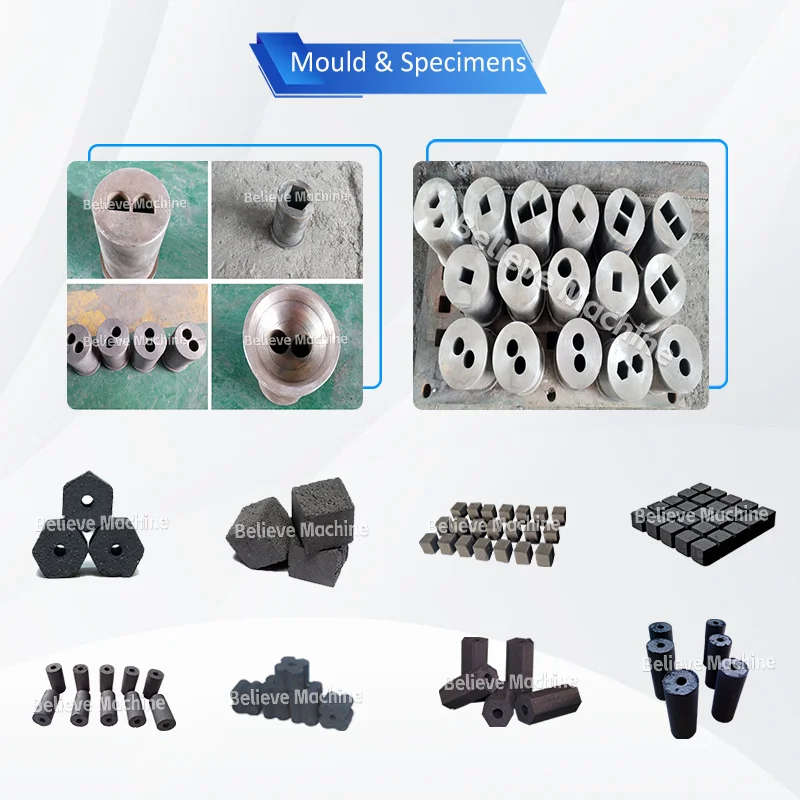

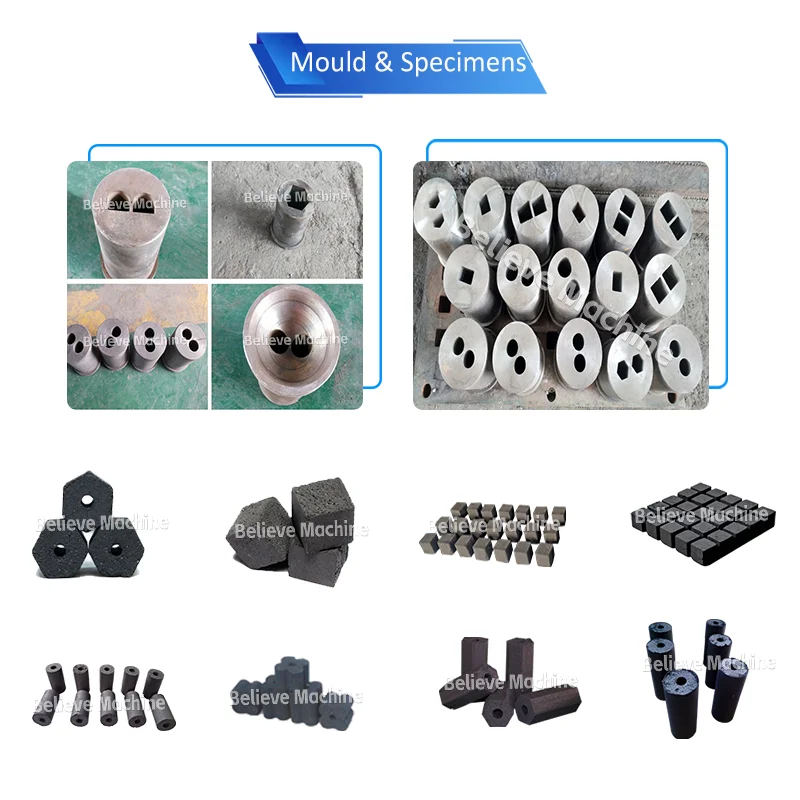

（We can also customize shapes for customers, such as heart, egg, pillar, etc.）
Model | Motor（Kw） | Capacity（t/h) | Dimension(mm ) |
A-290 | 5.5 | 1-2 | 1500x1200x1600 |
A-360 | 7.5-11 | 2-3 | 1700x1200x1600 |
A-430 | 22 | 5 | 1800x1900x2200 |
A-450 | 22 | 4-5 | 1800x1900x2200 |
A-650 | 45-55 | 8-10 | 2600x2200x2500 |

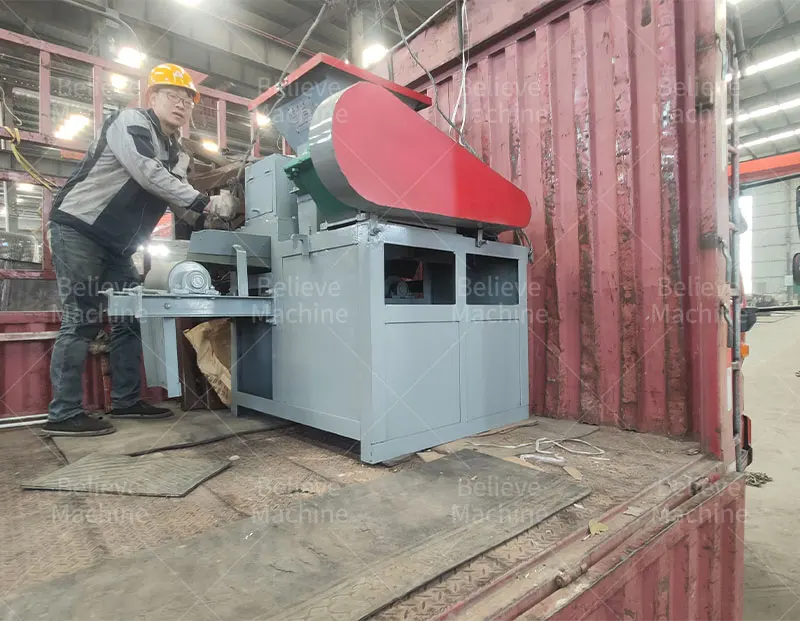

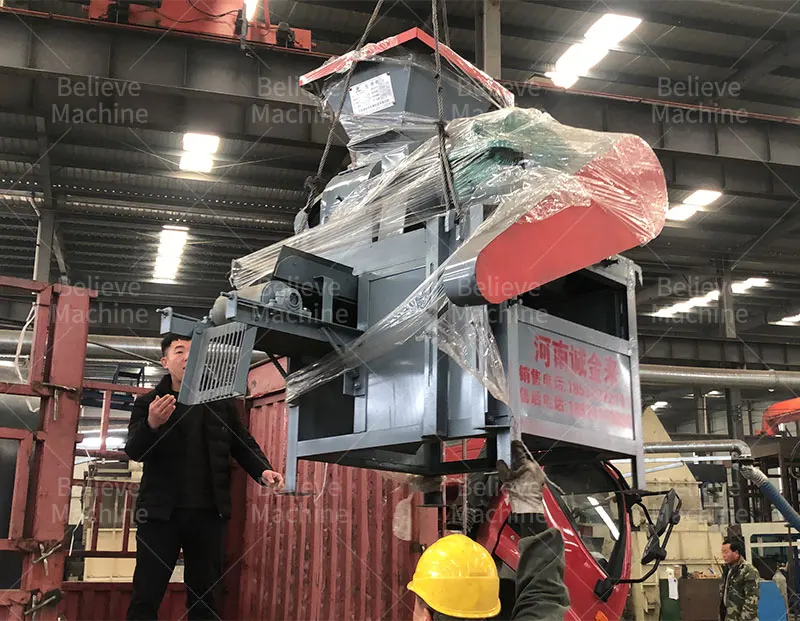

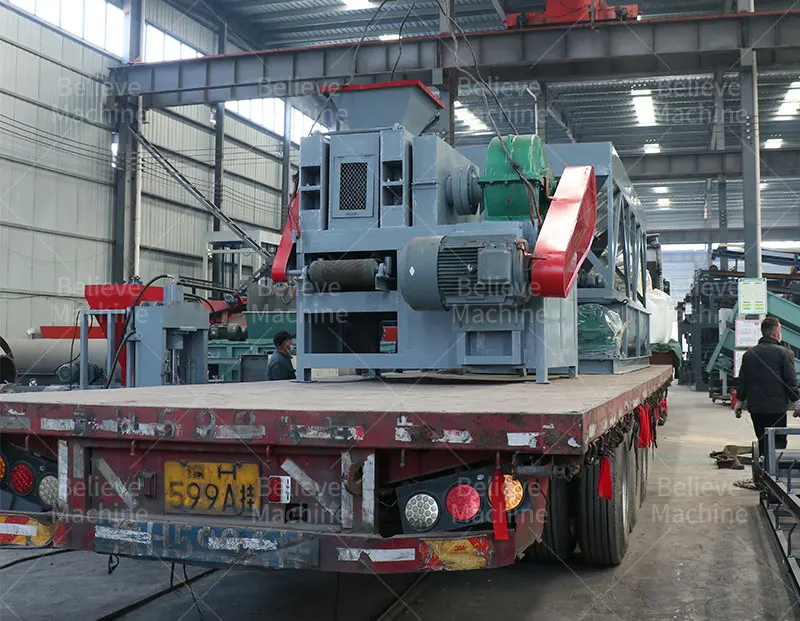

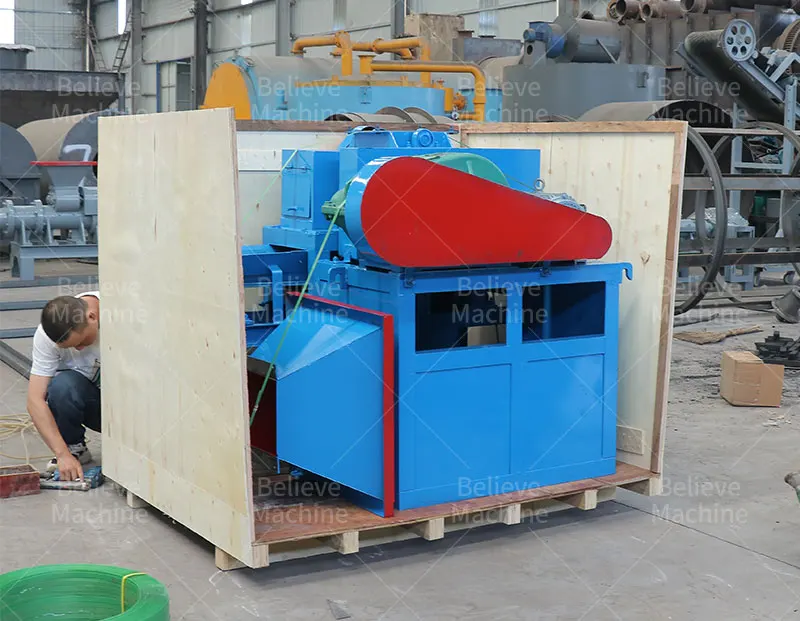

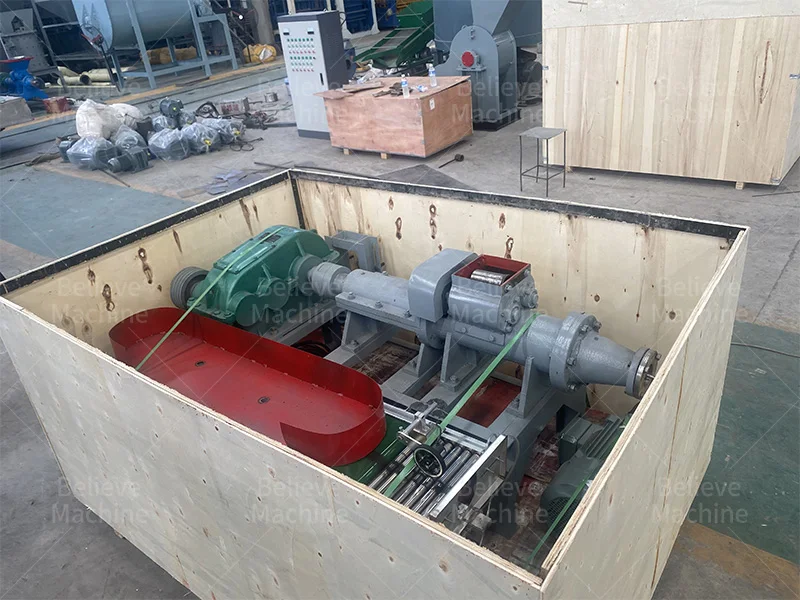

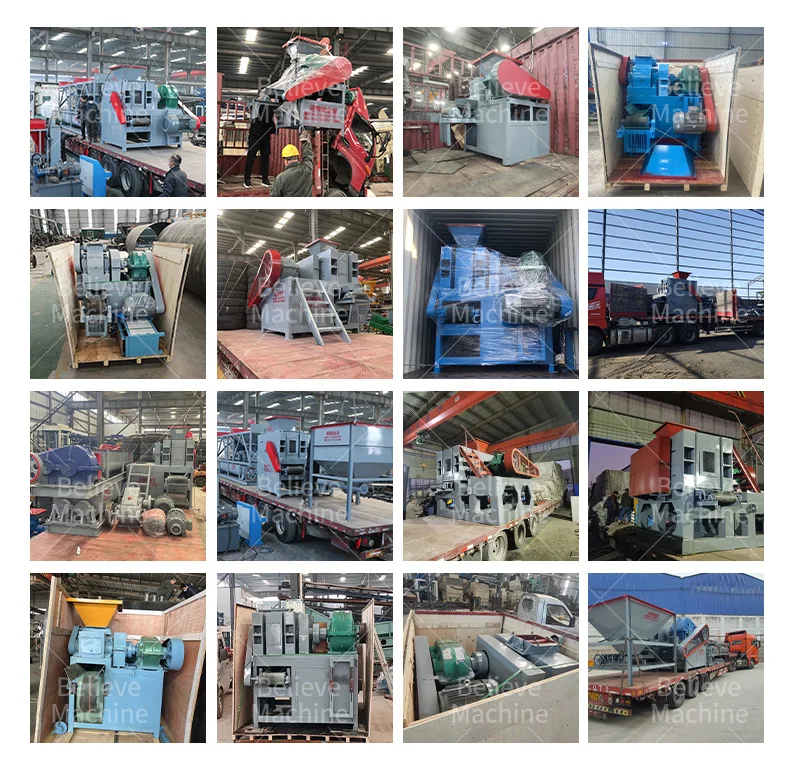

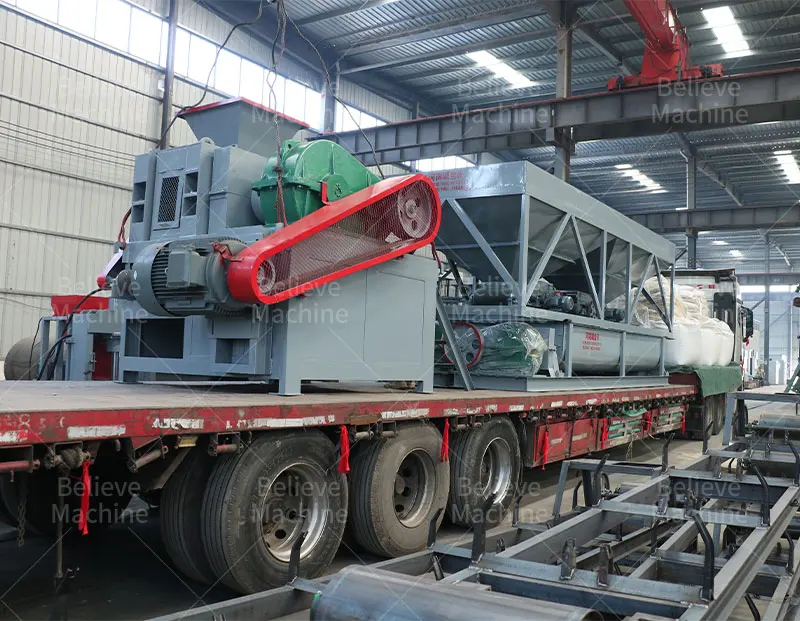

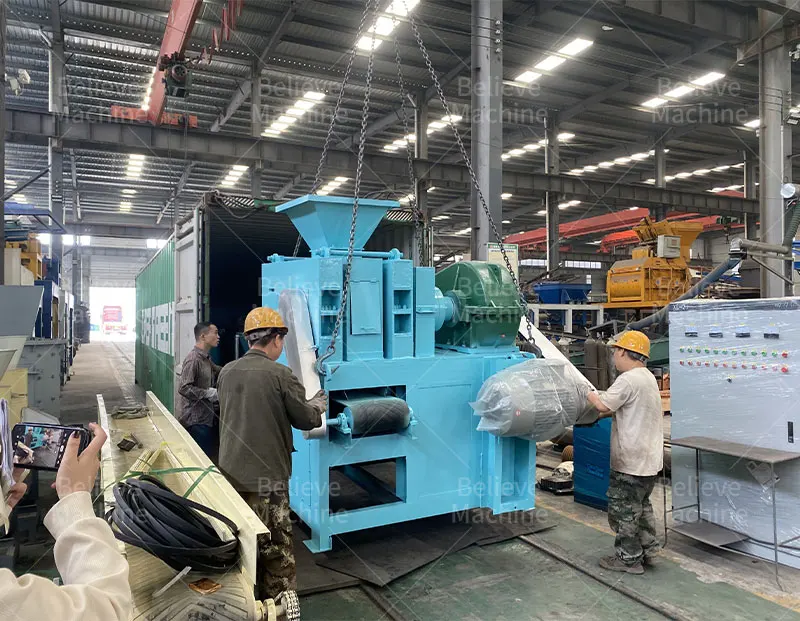

Packing & Delivery
1. Our company has a strict quality management system. There is a quality inspection department. Only the products that pass the inspection can be shipped out. Welcome to visit our company.
2.In addition, we can produce different sizes of products according to your requirements and give appropriate discounts according to the quantity you order.
3.Finally, we have stock and can ship immediately!
2.In addition, we can produce different sizes of products according to your requirements and give appropriate discounts according to the quantity you order.
3.Finally, we have stock and can ship immediately!

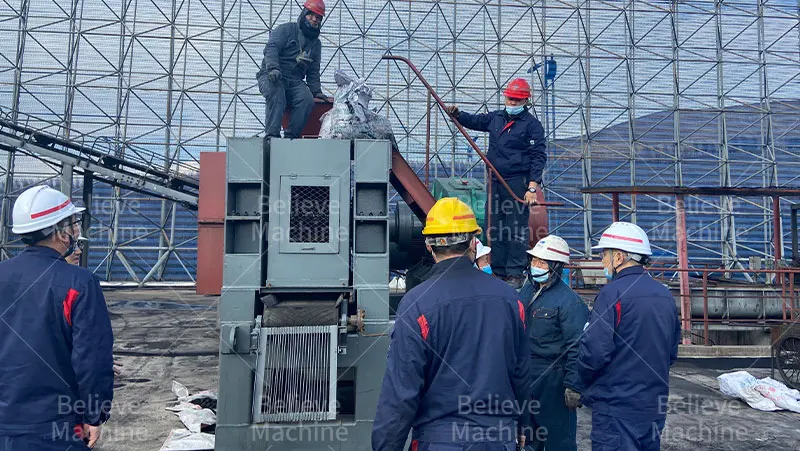

Customer Visit
Until now, we have customers more than 130 countries, Indonesia, India, Malaysia, Laos, Myanmar, Thailand, Vietnam,Philippines,Pakistan, Sri Lanka, Lebanon, Georgia, Turkey, Poland, Czech, Mongolia, South Korea, Romania, Egypt, Sudan, Tunis,Algeria, Ethiopia, Tanzania Equatorial Guinea, Zambia, Mexico, South Africa, etc.
You're welcome if you'd like to visit our factory! You can contact us now!
You're welcome if you'd like to visit our factory! You can contact us now!

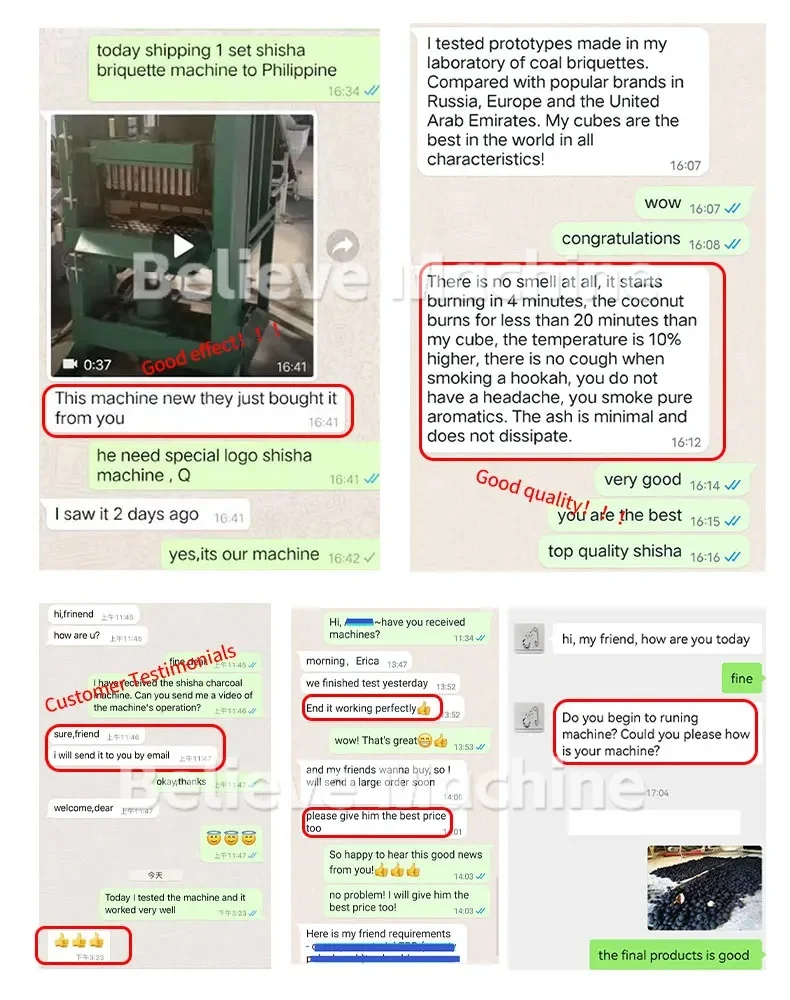

The quality of our products is good, the price is favorable, praised by many users and repurchase!
About us

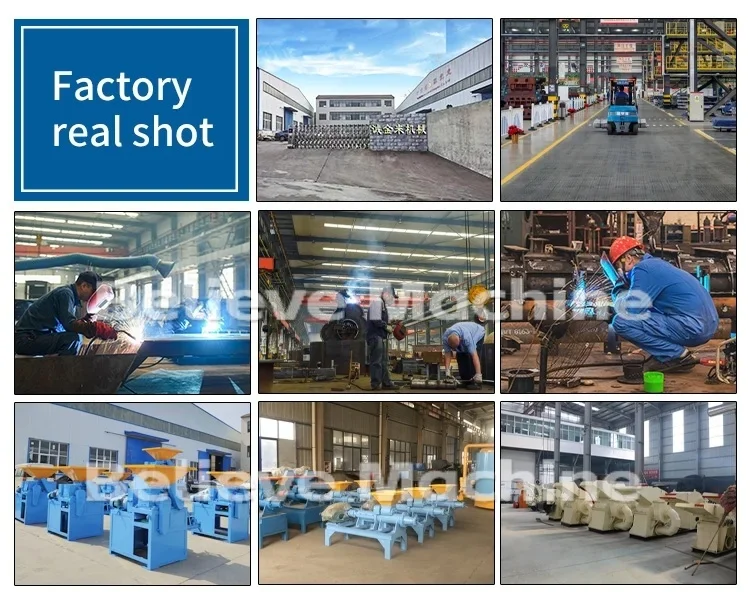

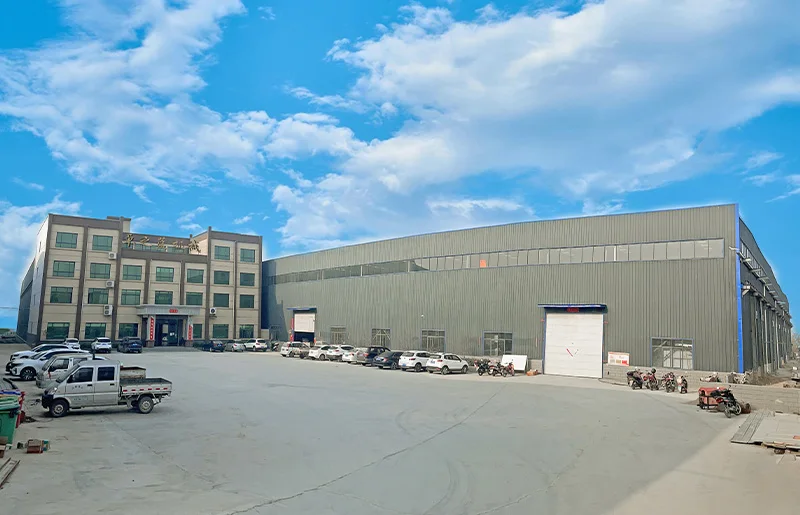

Our company has built a plant of more than 10,000 square meters, is a mechanical equipment manufacturer specializing in research and development, production and sales as a whole. So far, the company's products have passed more than 20 national patents, but also passed ISO, TUV, CE and other quality system certification. The company adheres to the business philosophy of quality and service, dedicated to new and old customers to provide quality products and services, to maximize customer satisfaction.
