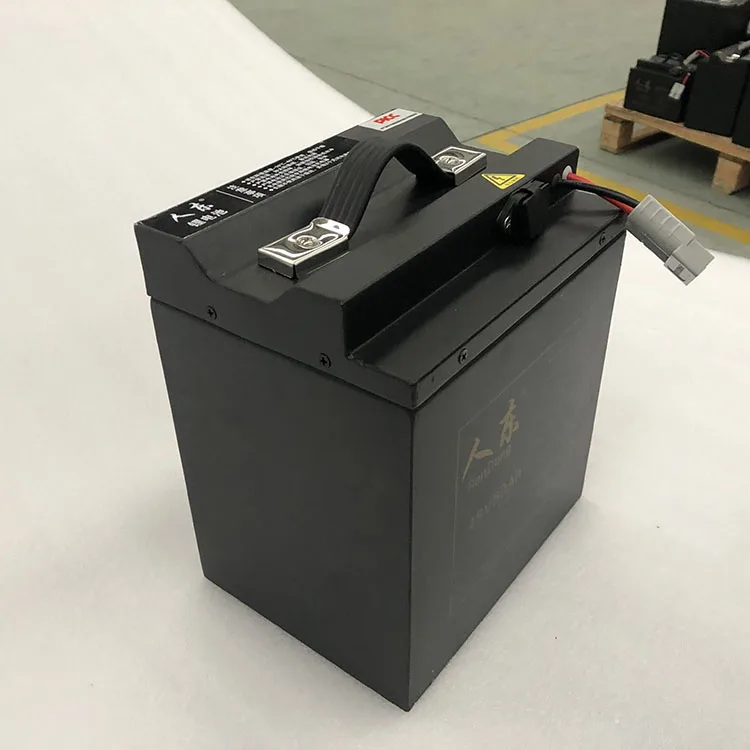

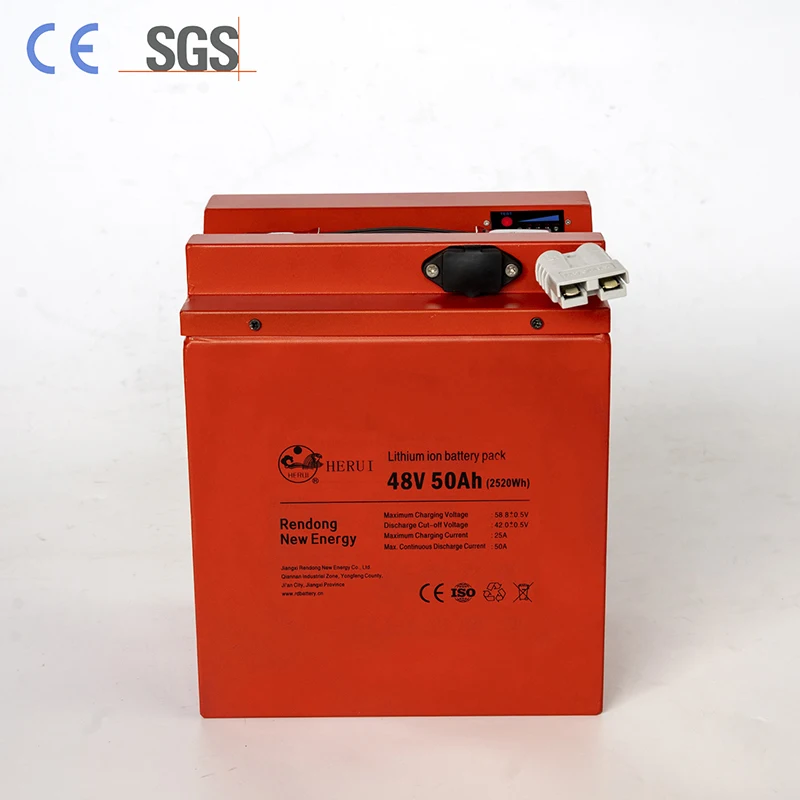

Customized Electric Scooter Lithium Battery 48v 20ah 30ah 40ah 45ah 5kwh 10kwh lithium ion solar battery 48v 50ah
- Category: >>>
- Supplier: Jiangxi Rendong New Energy Co. Ltd.
Share on (1601017003773):
Product Overview
Description
Product Description
Item | General Parameter | ||||
Model | ITP-50000mAh-14S1P | ||||
Standard capacity(0.5C) | Typical:50Ah Min:50Ah | ||||
Rated voltage | 48V | ||||
Max.Charge voltage | ≤ 58.8V(standard:58.8V) | ||||
Discharge Cut-off voltage | 42V | ||||
Standard charge current | ≤ 8.0A | ||||
Rated Continuous discharge current | 50A | ||||
Max continuous discharge current | ≤ 50A | ||||

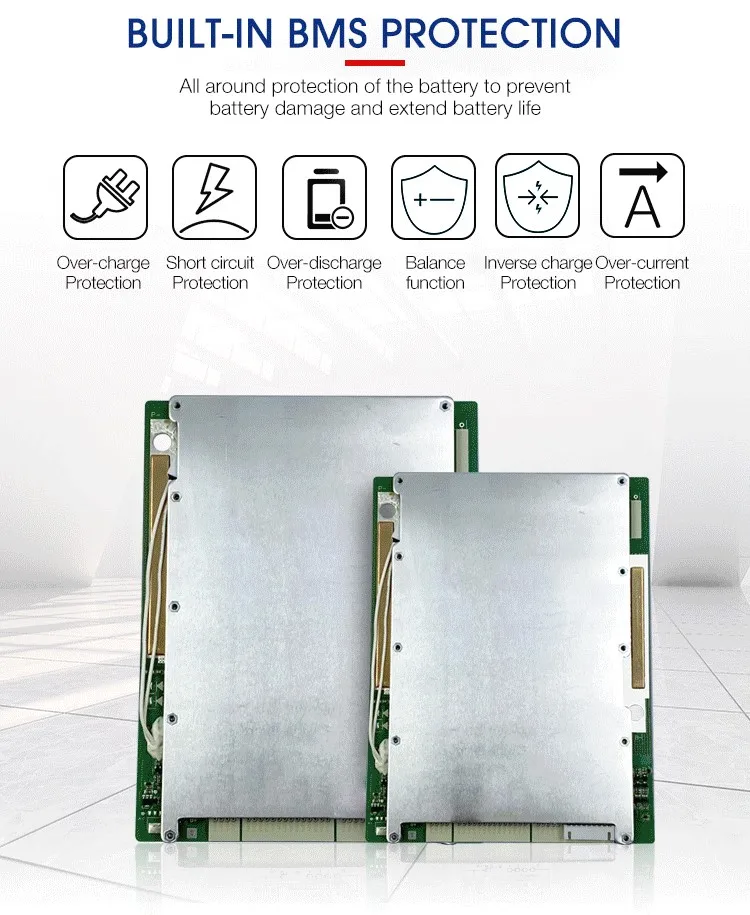

Over-Current Protection value | Continuous working current | ≤50.0A | |||
Time-delay discharge current | 50A≤ I ≤70A | ||||
Max Instantaneous discharge current | 70A≤ I ≤100A | ||||
Single cell charge protection voltage | 4.2V±0.05 | ||||
Single cell cut-off voltage | 3.0V±0.05V | ||||
Impedance(Max,at 1000Hz.) | ≤ 150mΩ | ||||
Battery dimension | MAX L 215×W165×H250mm | ||||
Weight(approx) | 14.7kg | ||||
Mass Ratio of Energy | 193Wh/Kg | ||||

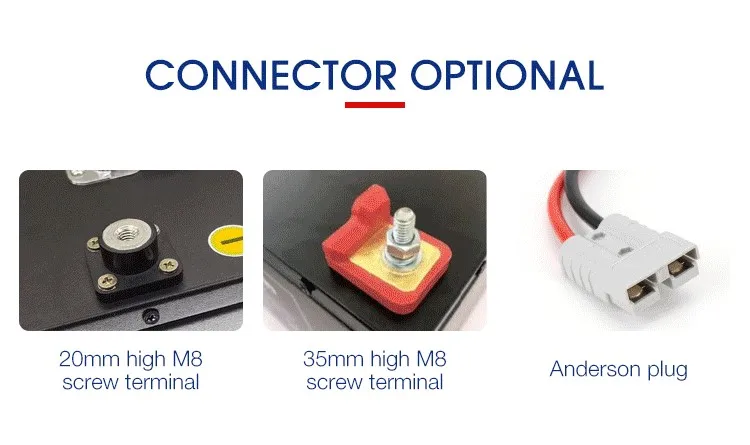

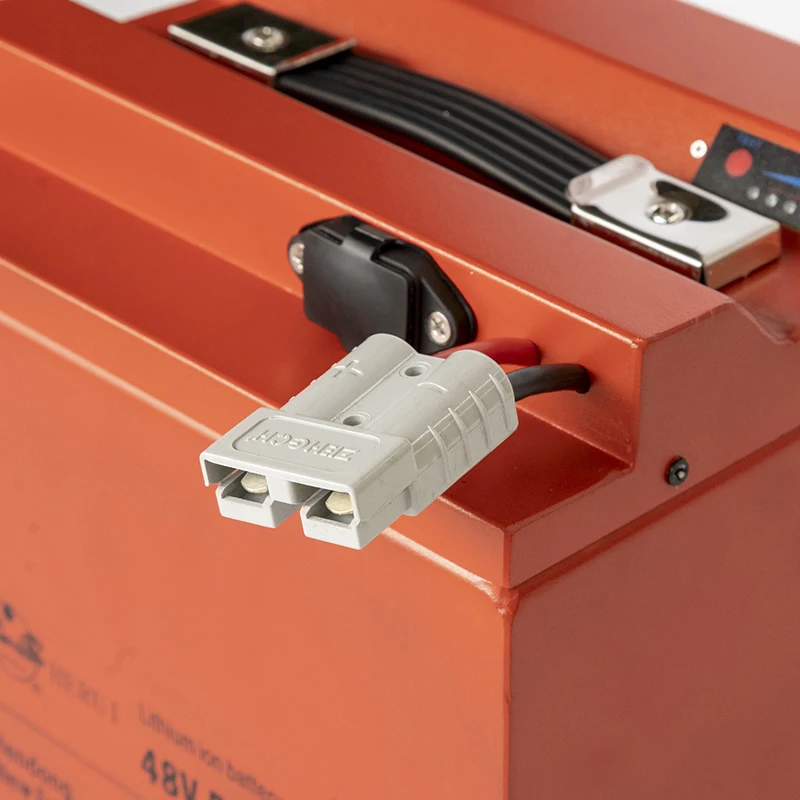

Interface | charge/discharge: 3 pins socket & Anderson plug | ||||
Working Condition (CC/CV) | Standard | -20℃~60℃ | |||
Humidity | 50%~80% | ||||
Storage | 0℃~40℃ | ||||
If you need a matching lithium charger, please directly contact us for more details. click here>>>
