dental instruments dental Digital Intra oral Sensor Chairside Intraoral Imaging Solution dental equipments dental sensor
- Category: >>>
- Supplier: Medsinglong Co. Ltd.Medsinglong Ltd.
Share on (1601017005842):
Product Overview
Description
Product Description

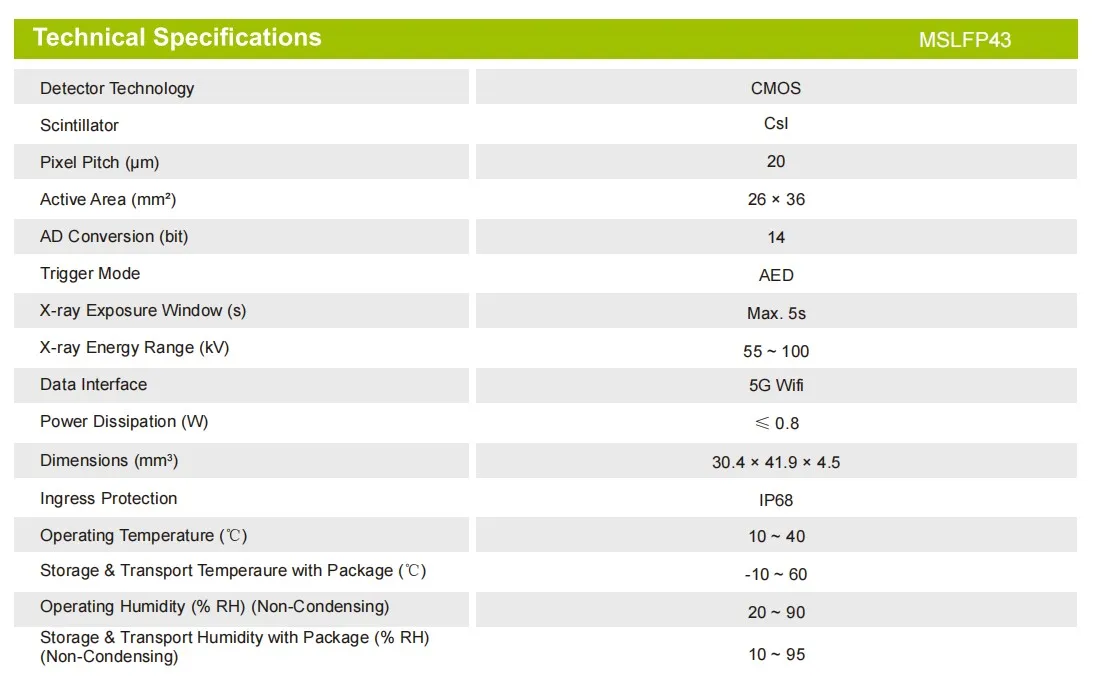

MSLFP43 Digital Intra-oral Sensor dental sensor
Detector Technology | CMOS | |||
Scintillator | CsI | |||
Pixel Pitch (μm) | 20 | |||
Active Area (mm²) | 26 × 36 | |||
AD Conversion (bit) | 14 | |||
Trigger Mode | AED | |||
X-ray Exposure Window (s) | Max. 5s | |||
X-ray Energy Range (kV) | 55 ~ 100 | |||
Data Interface | 5G Wifi | |||
Power Dissipation (W) | ≤ 0.8 | |||
Dimensions (mm3 ) | 30.4 × 41.9 × 4.5 | |||
Ingress Protection | IP68 | |||
Operating Temperature (℃) | 10 ~ 40 | |||
Storage & Transport Temperaure with Package (℃) | -10 ~ 60 | |||
Operating Humidity (% RH) (Non-Condensing) | 20 ~ 90 | |||
Storage & Transport Humidity with Package (% RH) (Non-Condensing) | 10 ~ 95 |
Innovative and Affordable X-ray Source
Handheld, camera-shaped design 70kV/2mA oil-cooled tube
Display: 7” LCD touchscreen for control and image review Light weight for easy operation
Memory: Storage for 2,000 images Wireless interface with Pluto-XW
Handheld, camera-shaped design 70kV/2mA oil-cooled tube
Display: 7” LCD touchscreen for control and image review Light weight for easy operation
Memory: Storage for 2,000 images Wireless interface with Pluto-XW

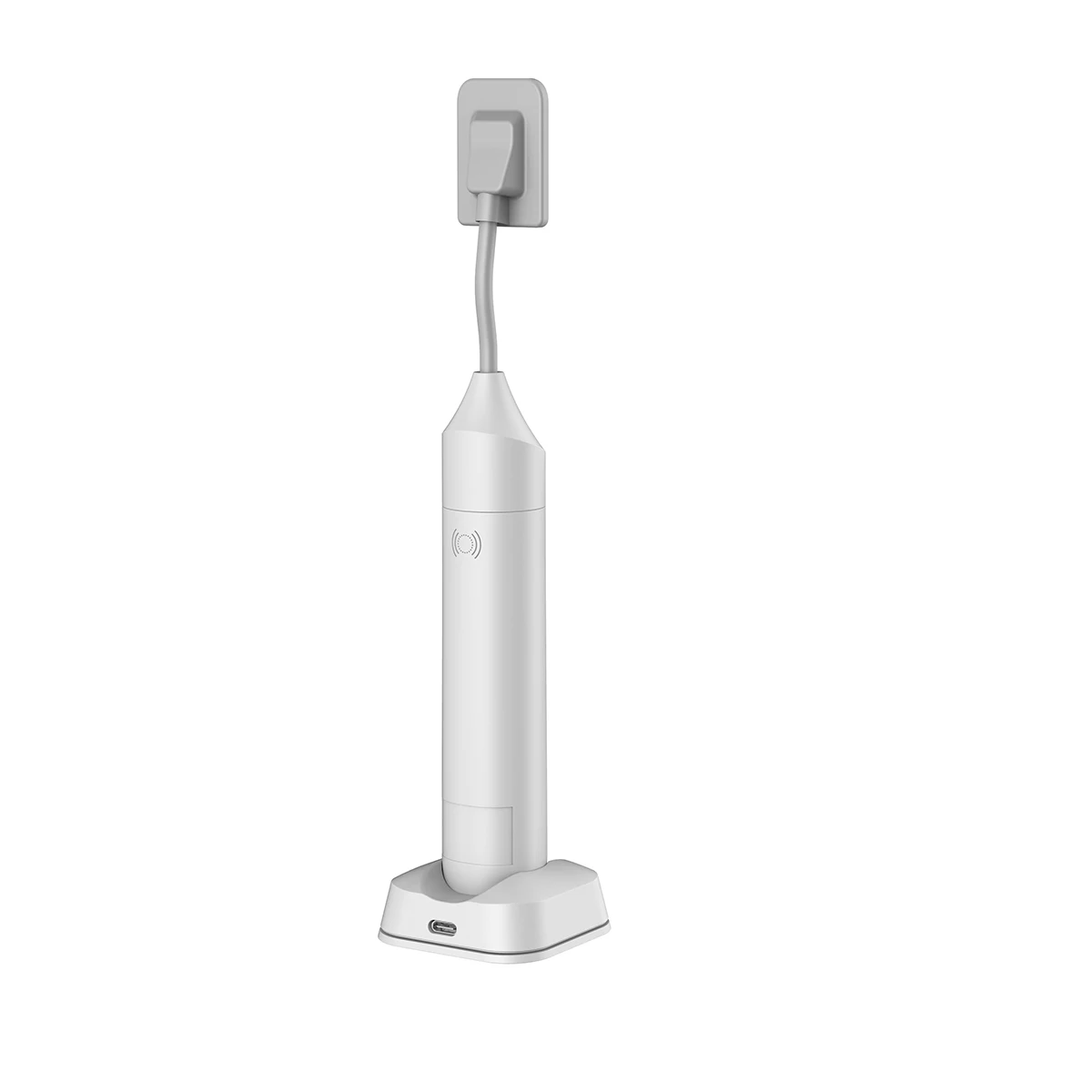

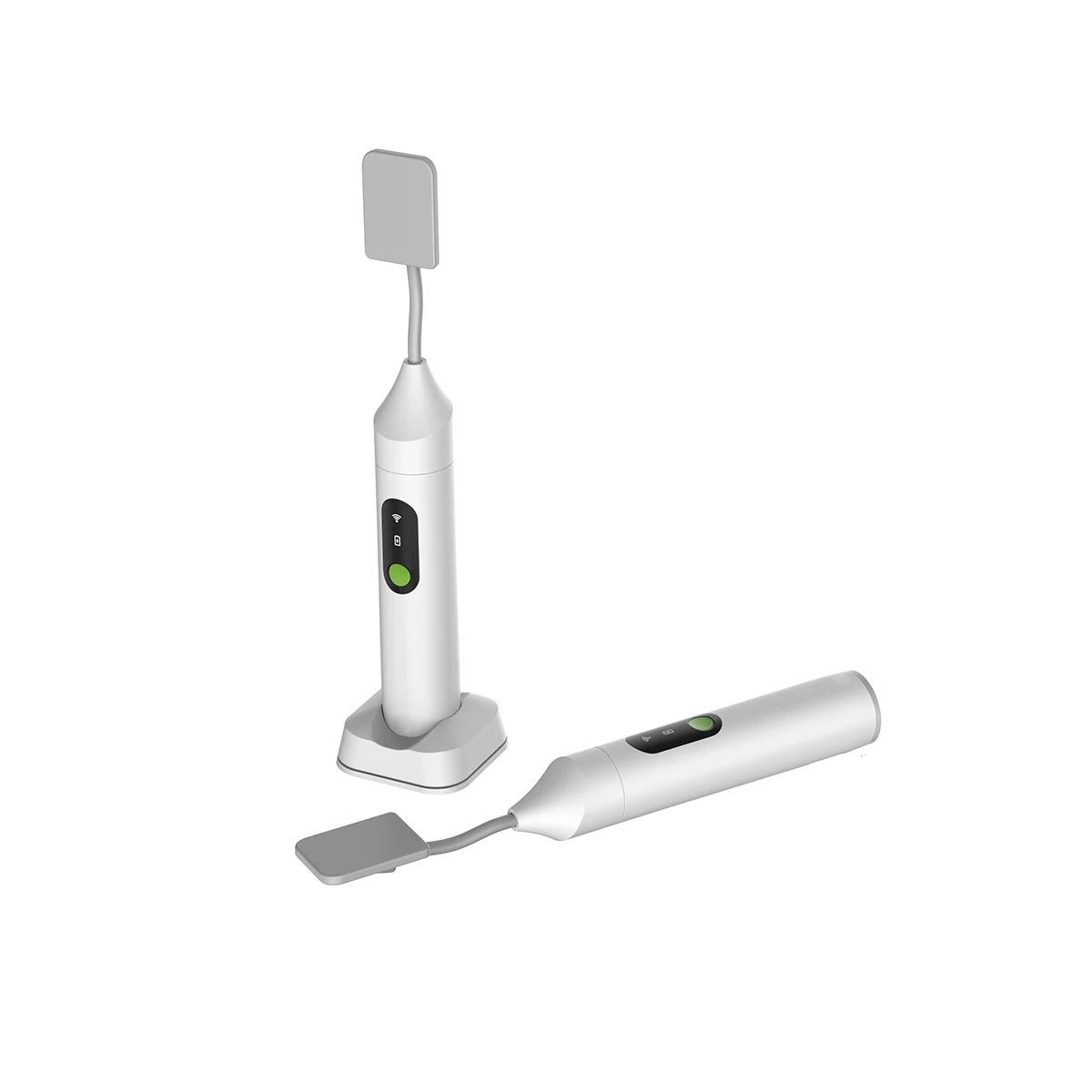

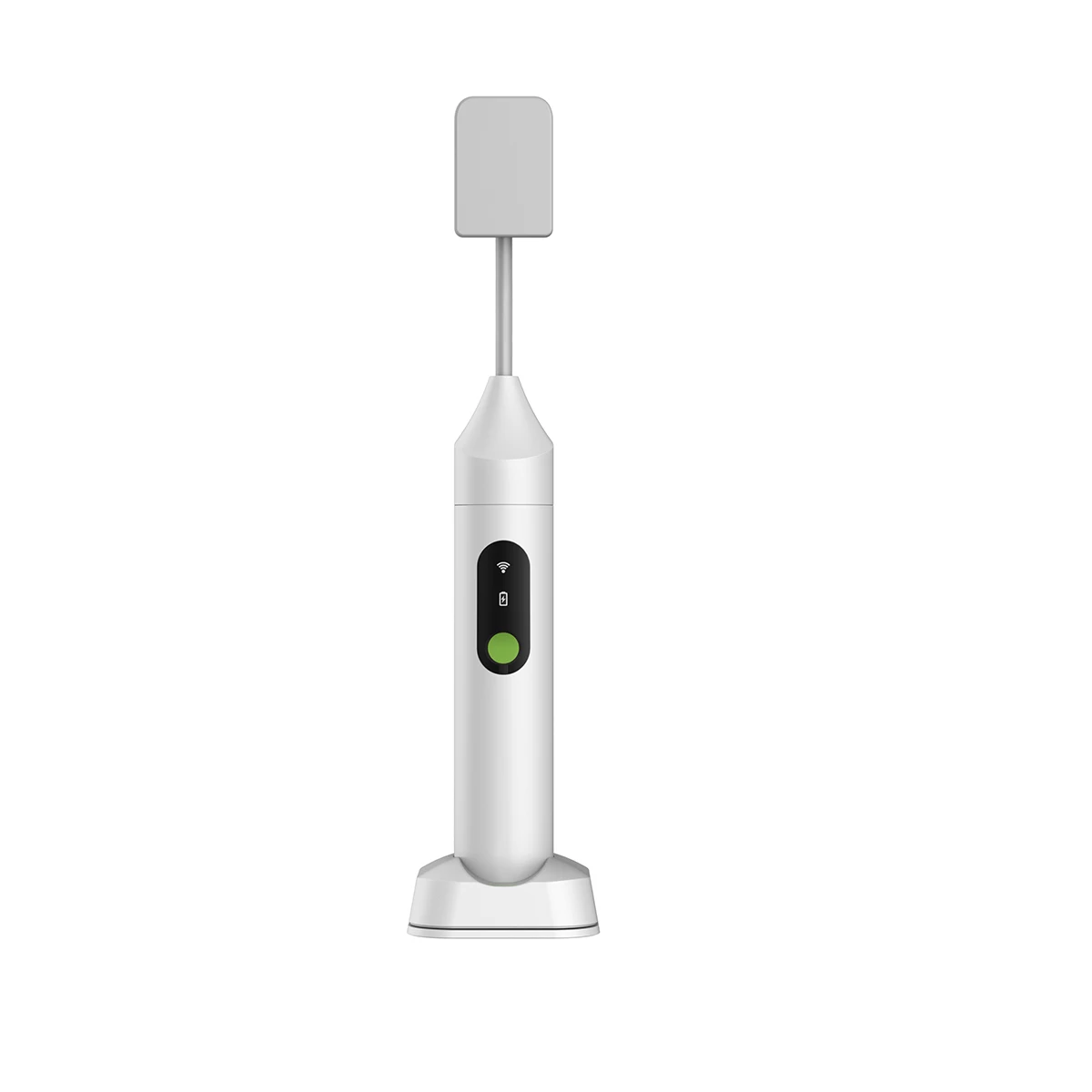

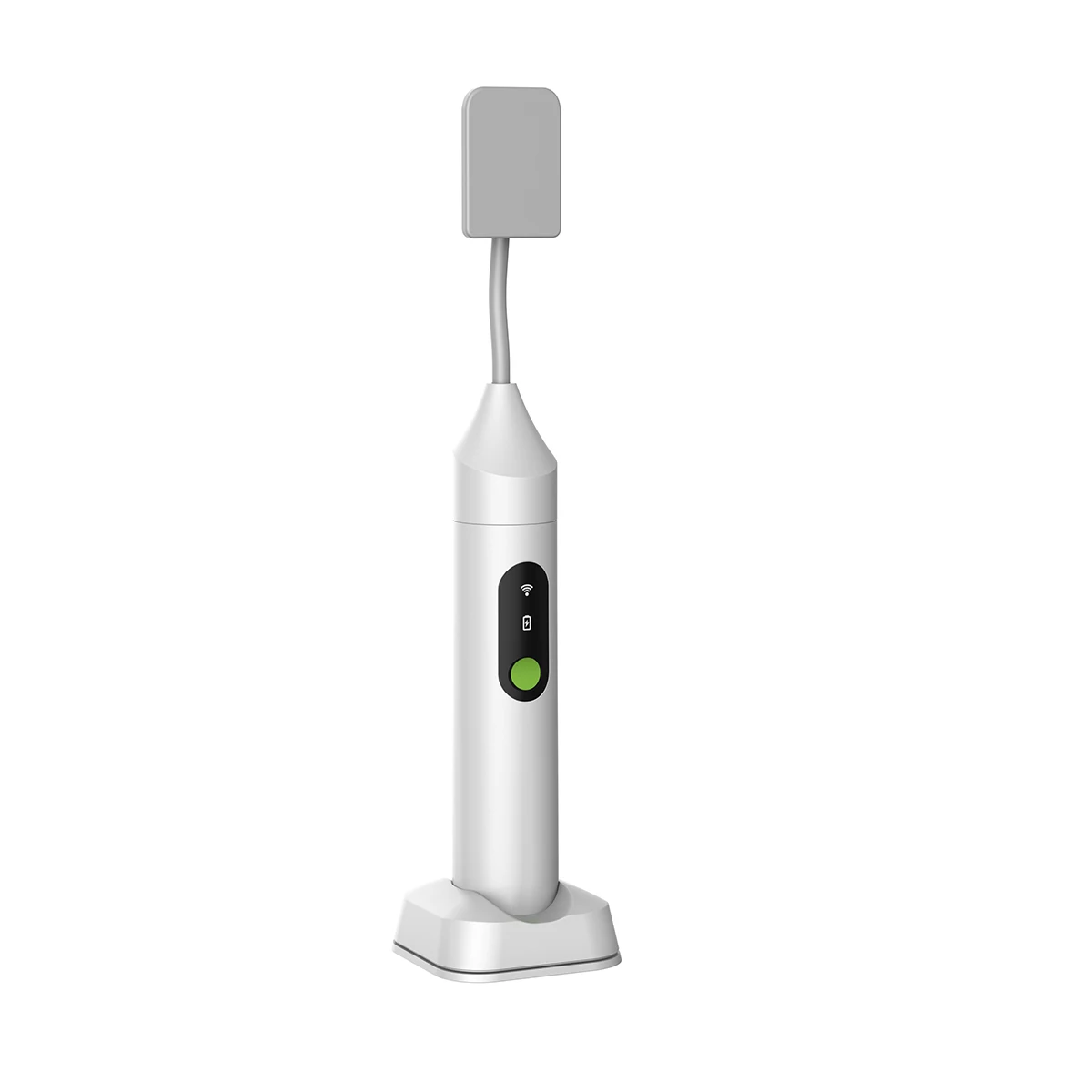

Handheld Sensors
Wireless communication Replaceable sensor heads with #1 #1.5 #2
Interface with Canis handheld X-ray source
Battery power sensor with over 400 continuous exposures
Wireless communication Replaceable sensor heads with #1 #1.5 #2
Interface with Canis handheld X-ray source
Battery power sensor with over 400 continuous exposures
