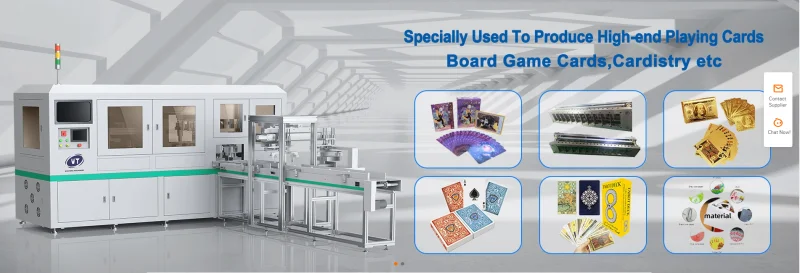

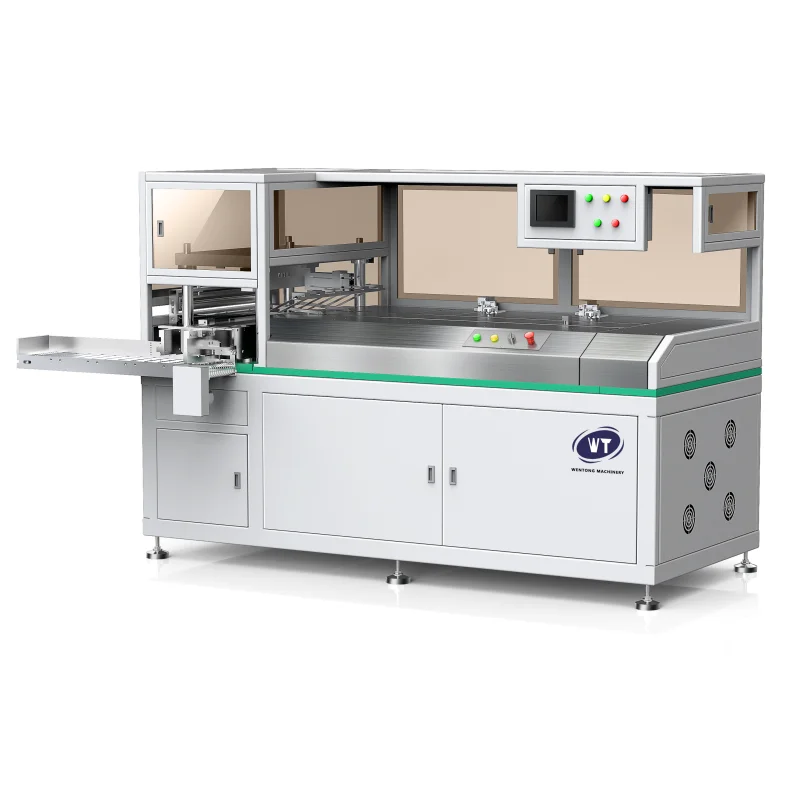

A4 PVC Smart Card Automatic Die Cutter RFID PVC Cards Punching Machine
- Category: >>>
- Supplier: Shenzhen Wentong Machinery Co. Ltd.
Share on (1601017006318):
Product Overview
Description

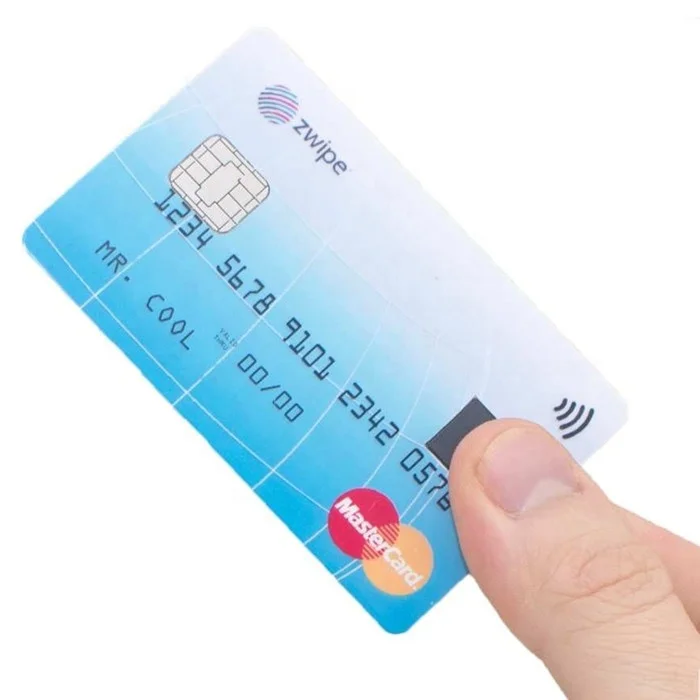

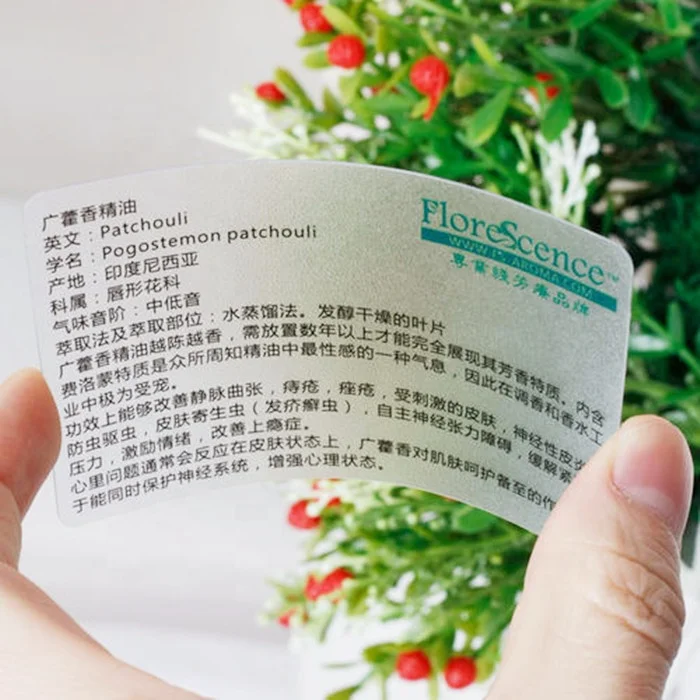

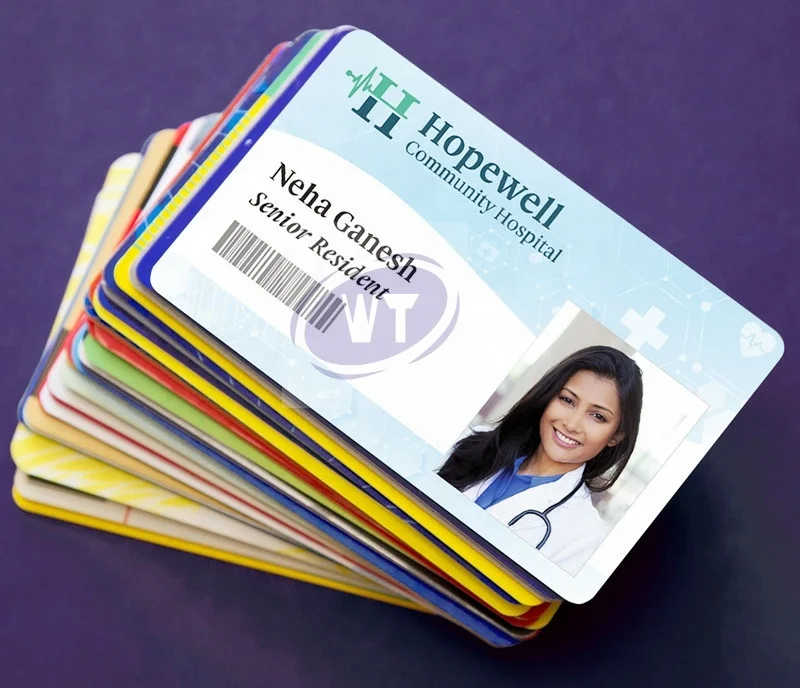

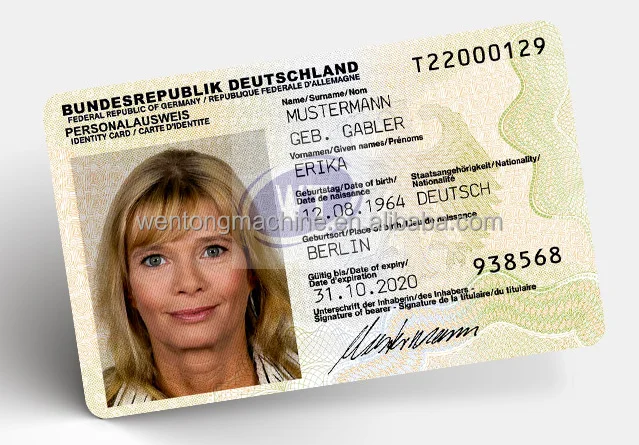

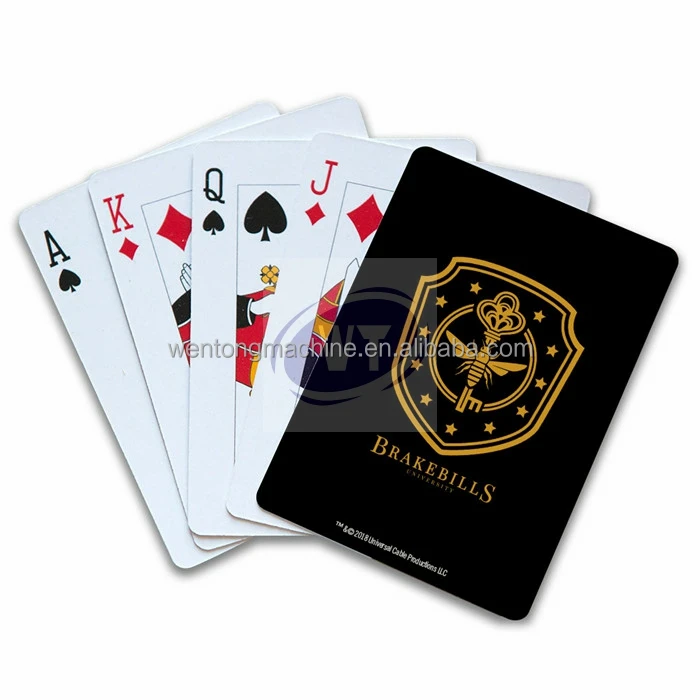

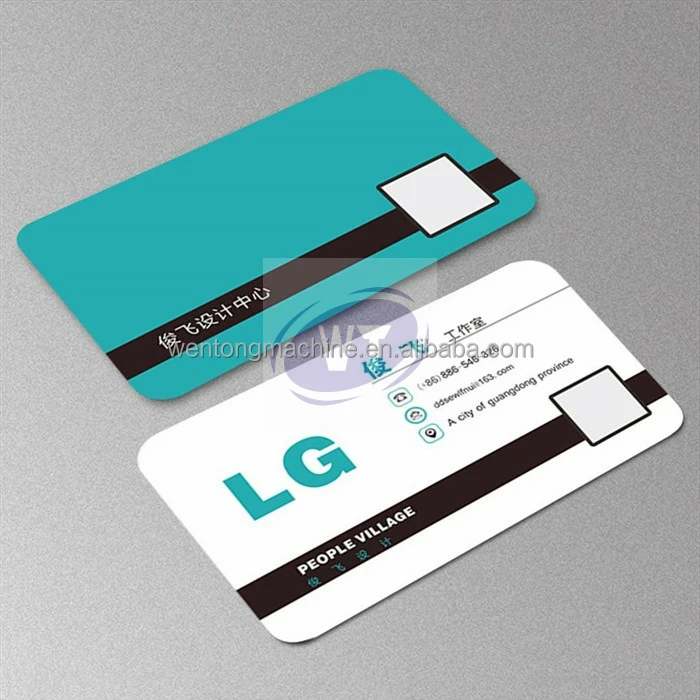

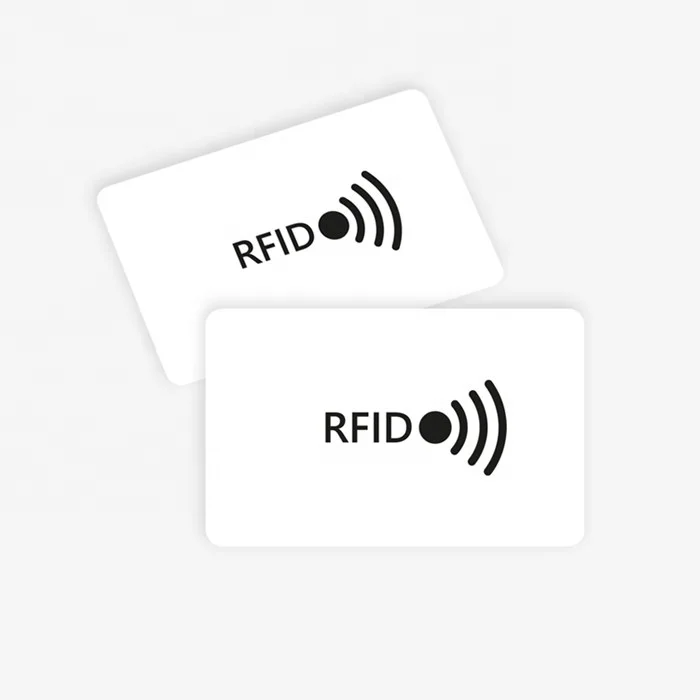

Finished Cards Sample
Product Description
Wentong designs and manufactures card punching machines suited to produce paper and plastic cards from materials in roll or sheet. These paper and plastic card punching machines are typically suitable for making membership cards, name cards, game cards, ID cards, access control cards, attendance cards, IC cards, special shaped cards, playing cards, children’s books, etc.
Power supply | AC 380V/50 HZ |
Total power | 6.5KW |
Air source | 6 kg/cm2 |
Air consumption | Approx. 30L/min |
Punching pressure | 2T-6T |
Weight | Approx. 1000KG |
Punching accuracy | ±0.10mm |

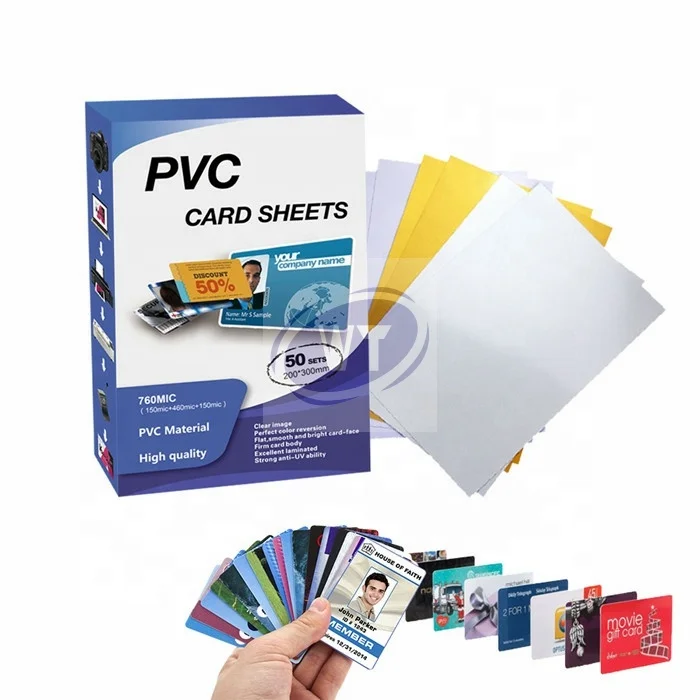

Applicable card materials | Paper card, PVC, ABS, PET, PP, etc. |
Sheet format | Max. 1100*700MM Min. 297*210MM |
Control | PLC control + servo/hydraulic system |
Operators needed | 1 |
Dimension | L2400*W1500*H1700MM |
Drive | Servo/hydraulic system |
Punched card size | Max. 210*210MM Min. 54*54MM |
Productivity | 15000~30000PCS/H |
Product features
A: The servo motor drives the screw to feed automatically, and the sensor is accurately positioned.
B: The servo motor cooperates with the synchronization to achieve fast and stable card collection. Punching and card collection can be performed simultaneously.
C: The machine integrates feeding, punching, collecting and discharging waste, realizing automatic production.
Packing&Shipping
Packaging and shipping methods
1. First wrap the machine with a plastic protective film;
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.

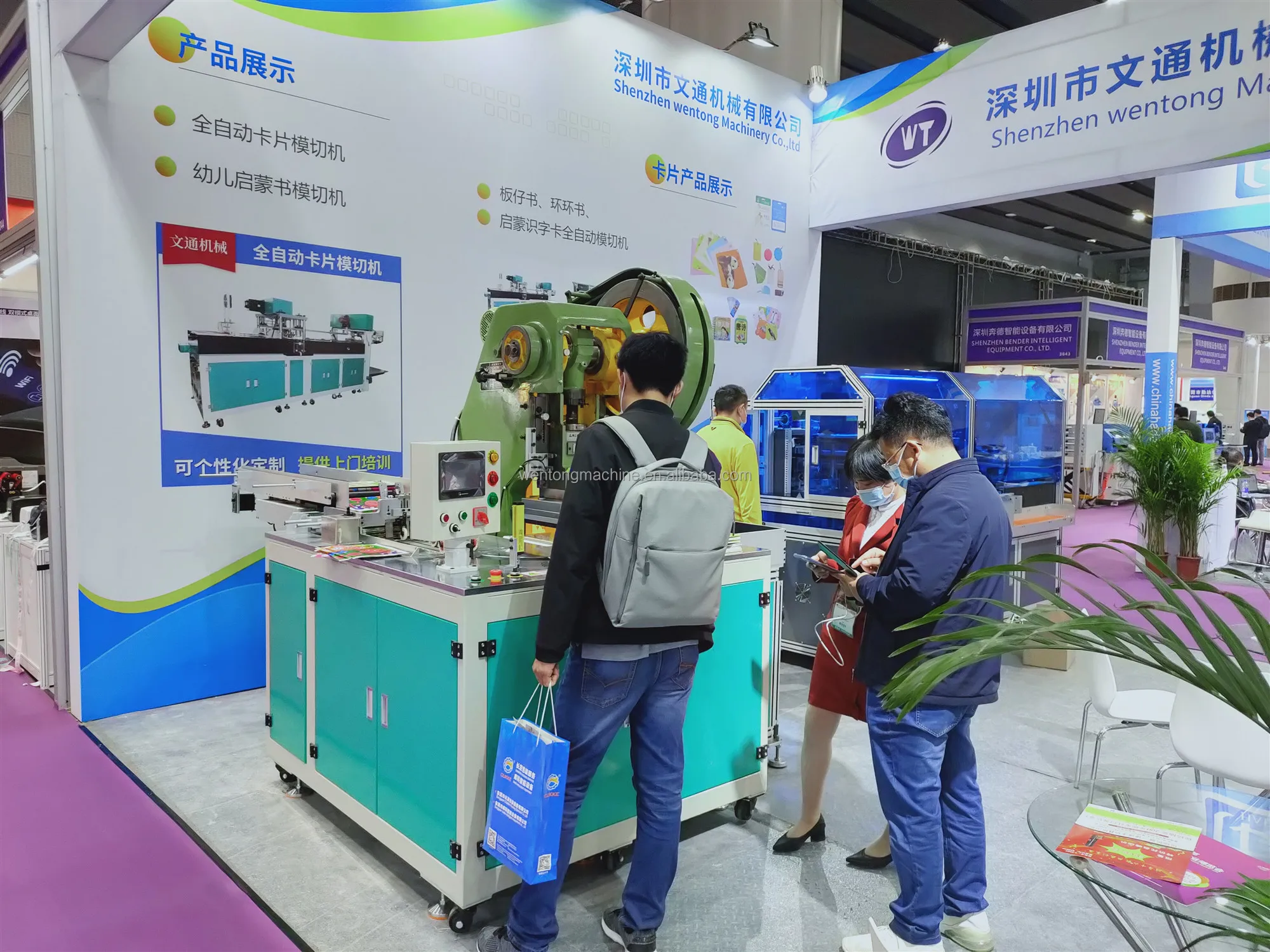

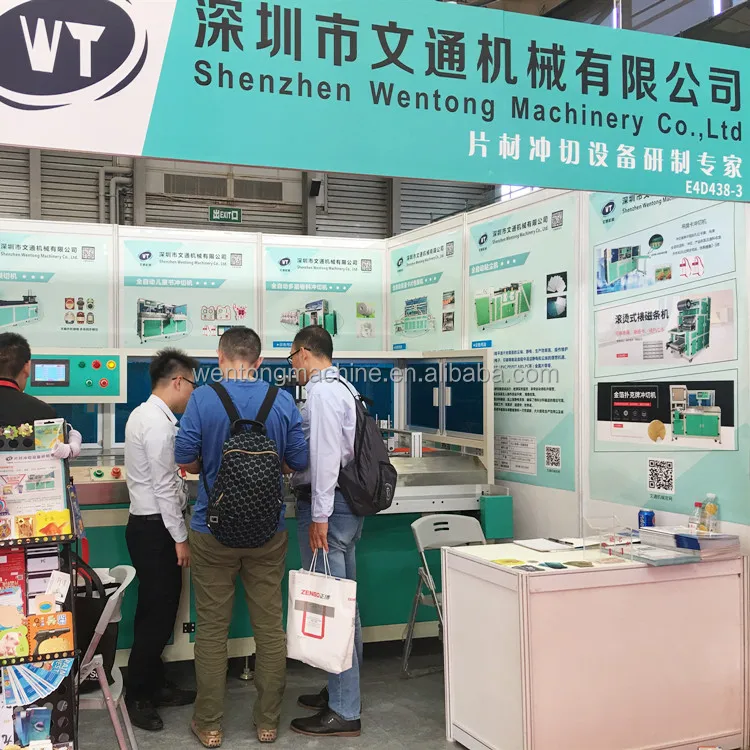

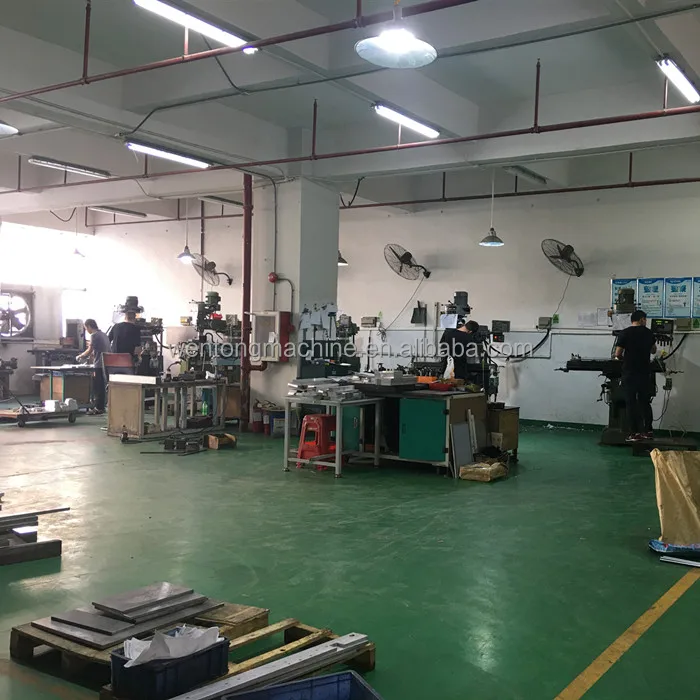

Company Profile
Established in 1996, Wentong has over 20 years of experience in developing and manufacturing of smart card machines and post-press equipment. We have been committed to constantly growing and improving our products and service to meet all our customer’s requirements for production of children’s books, board books, paper cards and plastic cards. Our wide range of products includes die cutting machine, card collating machine, card punching machine, SIM card production machine, board book mounting and gluing machine, automatic packaging machine, ultrasonic welding system, magnetic tape laying machine, sheet cleaning machine, etc. which are widely applied in a variety of industries such as card production, printing & packaging, children’s book, paper products, etc.
FAQ
1.Q: How to order a card punching machine?
A:If you want to order a machine ,You need to provide some of the following information
1: Maximum and Minimum size of product
2: Thickness and specification of materials
3: The layout of the product
2.Q: Can you provide on-site installation services for your machine?
A: Yes, we have professional engineers to provide on-site training and commissioning services until you learn how to operate the machine. If you have any questions, we will have a technician to answer your questions.
