Product Overview
Description
Hammer Crusher
Description
A hammer crusher is a crusher in which a hammer hits the material that is being crushed. In the hammer crusher, crushing takes place by impact between the hammers and breaker plates. The hammer crusher has pivoted hammers on a horizontal shaft.
The Structure

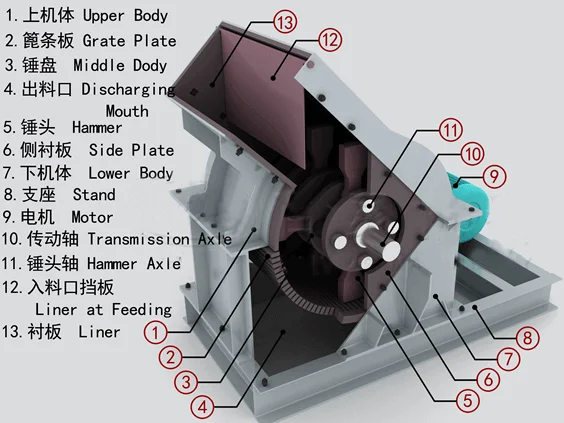

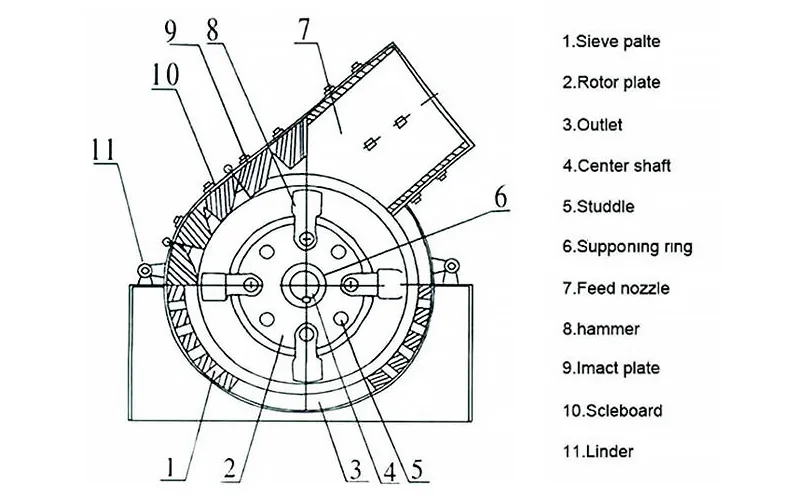

HC small hammer rock crusher is mainly composed of transmission device, rotor, impact liner plate, grate screen and housing, etc. As shown in the figure below.
The outside of the hammer crusher frame is welded by wear-resistant steel plates, and the inside of the shell is made of manganese steel, which can be replaced after wear.
The rotor is the main part of hammer break. The motor drives the rotor through the shaft coupling, and the rotor drives the hammer to run at high speed when it rotates. The material enters the crushing chamber and is crushed by the action of the hammers and the impact liner plate.
The main function of the main shaft is to support the rotor. During the crushing process, it has to bear the impact force and weight of the rotor and hammer head, so Daswell uses high strength and toughness material to produce the main shaft.
The hammer frame and hammer head are susceptible to wear and impact from the ore during the crushing process, so we use wear-resistant materials to produce our machine. And the quality of hammer head is the key factor to affect the output of hammer crusher, we pay special attention to the wear resistance of key wearing parts
The Working Principle
The material entered into the working area of the crusher is crushed by high-speed hammers. The crushed material obtains kinetic energy from the hammers, and then it impacts the crushing plate and grate screen at high speed and is broken for the second time.
Application Field Of A Hammer crusher
HC hammer crusher machine is suitable for mining, coal mining, power plant desulfurization, concrete mixing plant, building materials, chemical industry, metallurgy and other industries
The hammer crusher is a type of ore crushing equipment. It can be used to crush medium-hard brittle materials with low water content, such as limestone, gypsum, slag, coke, coal, etc. It is widely used in cement manufacturing, chemical, electric power, metallurgy, and other industries.
Techinical Parameters
| Model | Input Size (mm) | Output Size (mm) | Capacity(t/h) | motor ratio(kw) | Dimensions(m) | Weight(t) |
| PC200*300 | <=100 | <=10 | 3-5 | 7.5 | 0.8*0.5*0.8 | 0.5 |
| PC400*300 | <=100 | <=10 | 5-10 | 11 | 0.9*0.6*0.8 | 0.8 |
| PC600*400 | <=120 | <=15 | 10-25 | 18.5 | 1.2*1.05*1.2 | 1.5 |
| PC800*600 | <=120 | <=15 | 20-35 | 55 | 1.3*1.2*1.3 | 3.1 |
| PC800*800 | <=160 | <=13 | 20-30 | 95 | 1.5*1.08*1.25 | 3.5 |
| PC1000*800 | <=200 | <=13 | 20-40 | 115 | 1.6*1.4*1.6 | 7.9 |
| PC1000*1000 | <=200 | <=15 | 30-80 | 132 | 1.8*1.6*1.8 | 8.5 |
| PC1300*1200 | <=250 | <=19 | 80-200 | 240 | 2.1*1.6*1.9 | 13.5 |

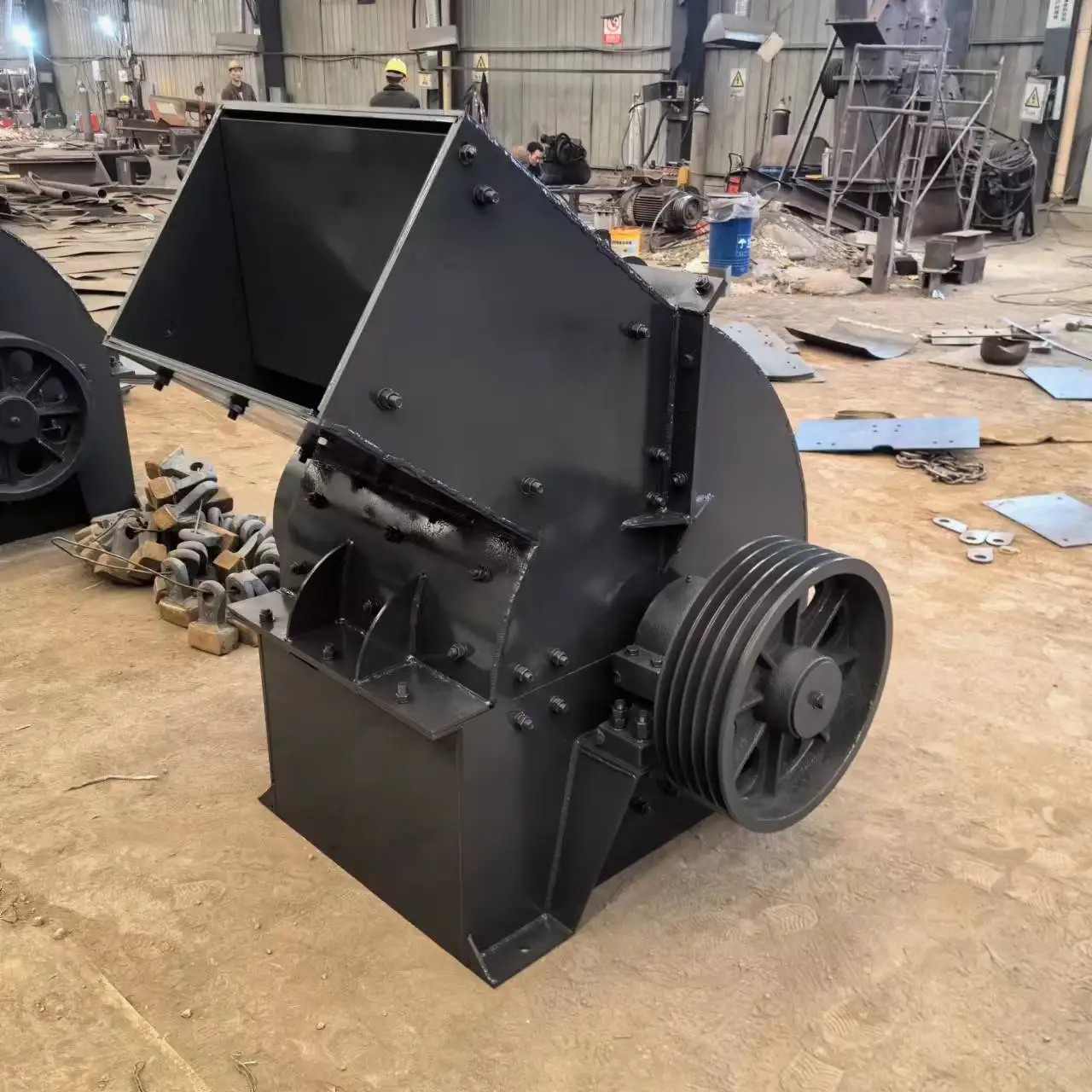

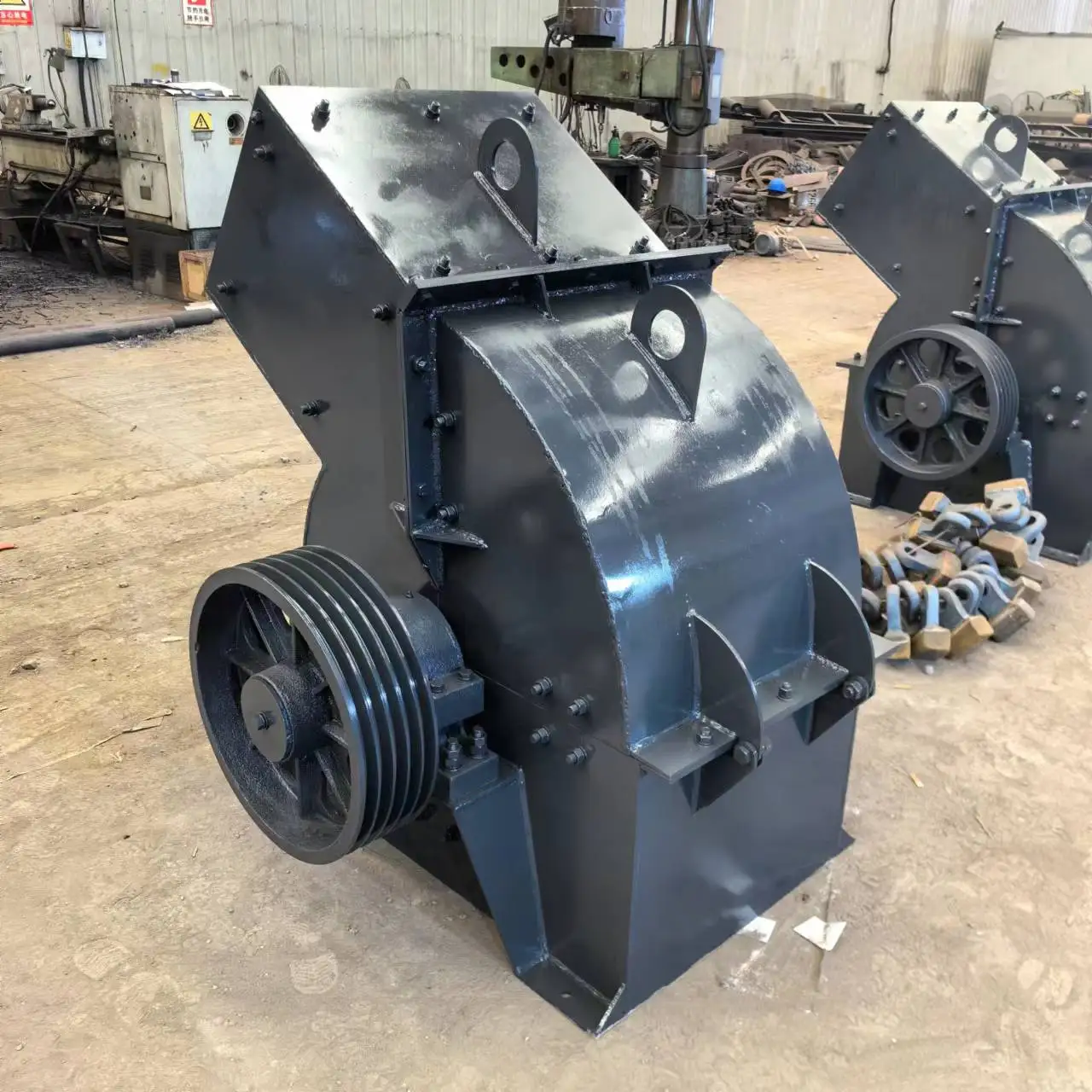

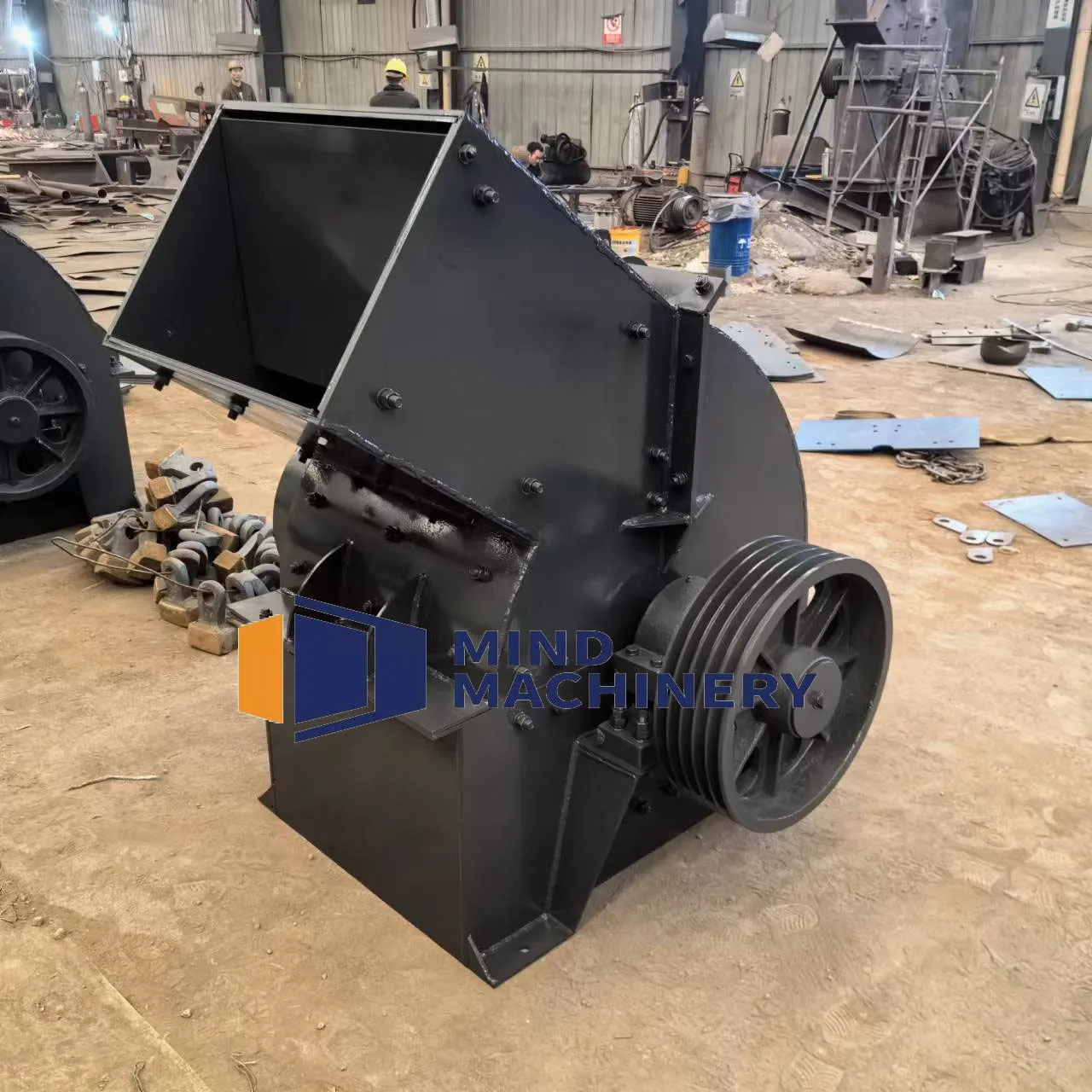

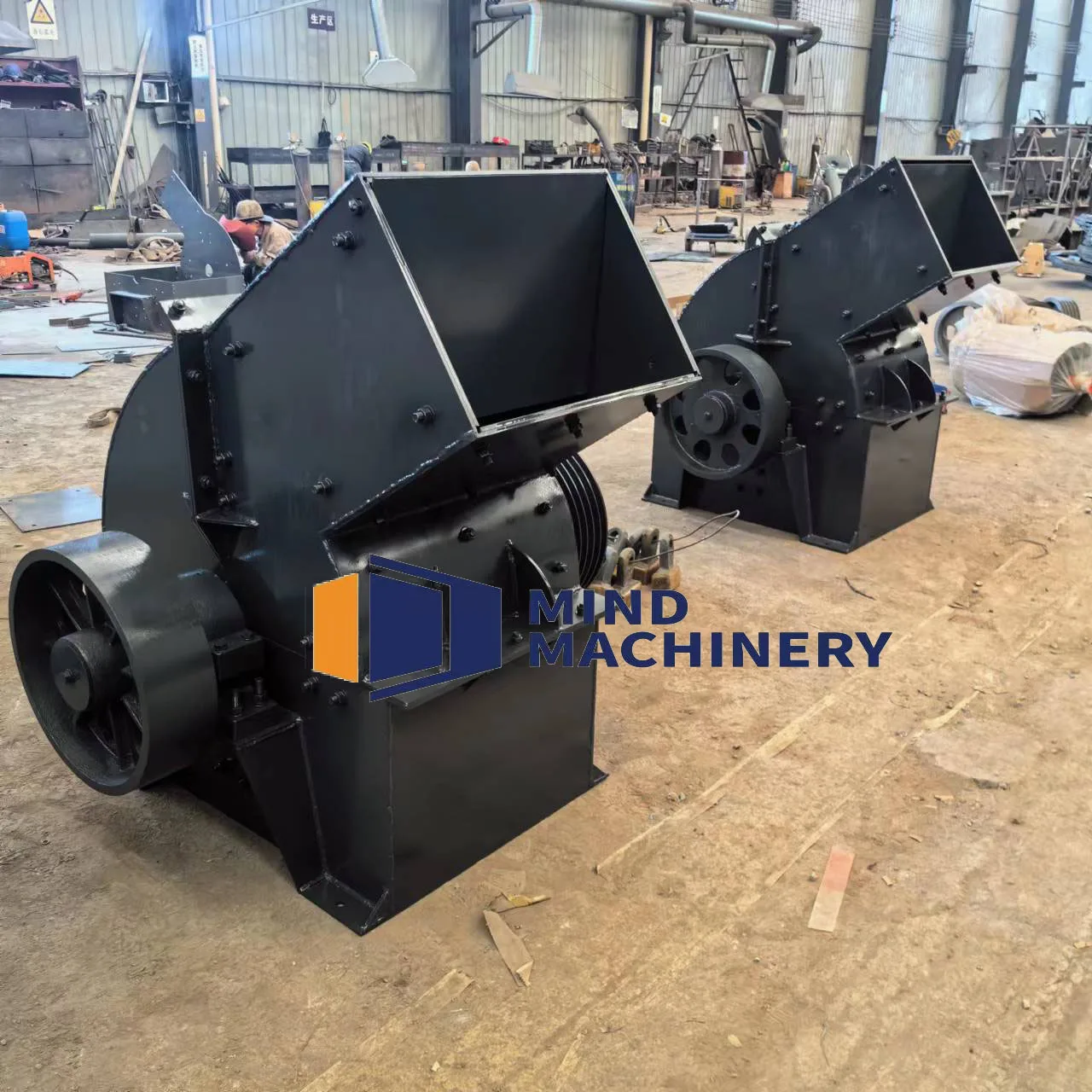

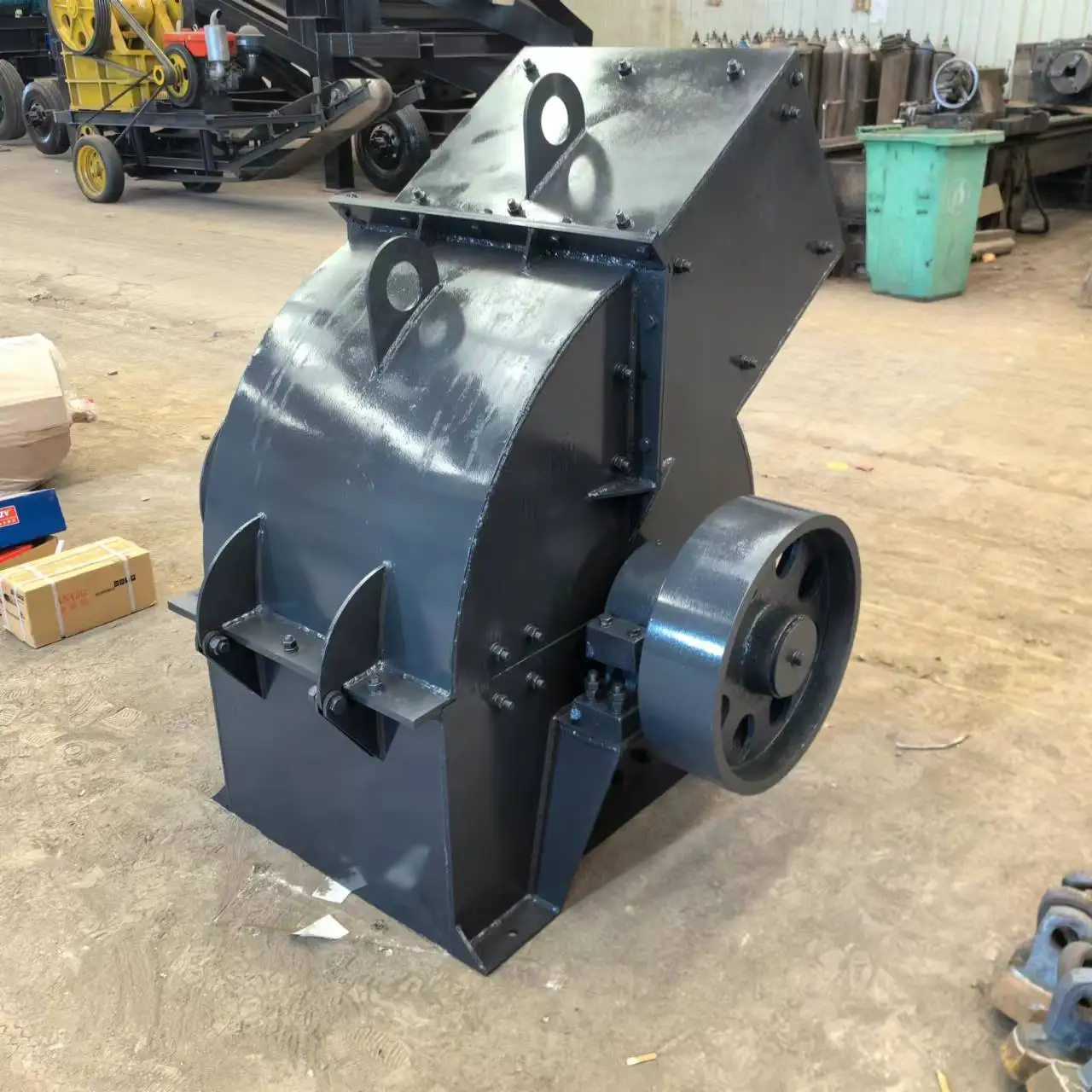

Detailed Images
Diesel engine or motor type is also available .
Shipping
Packing & Delivery
Delivery time: Within 5-7 days after receiving clients' payment
Payment Terms: T/T; L/C; Western Union; D/P; D/A; Paypal
Packing: wooden box free of fumigation for cassava starch processing machine potato corn starch making machine
Quality Guarantee: Our Quality guarantee term is for one year, Malfunctions which are caused by operation mistakenly will be responsible for customers
about us
Henan Mind Machinery Equipment Co., Ltd. has been designing, developing, manufacturing and marketing Machinery for more than 12 years.
After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect aftersales service system.
So choose us, equaling to choose the competitive price and stable quality both.
Q and A
Q1. How to place an order?
A:Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent ------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirm
Q2. How long is the delivery date?
A:Generally, the goods will be sent to our customers within 30-45 days after receiving the payment. Of course, it also depends on your quantity.
Q3. Is it possible to visit your factory?
A:Sure,welcome to visit our factory and we will pick you up at the airport or railway station and show you around our factory.
Q4.Do you have stock for all items?
A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
How to contact us

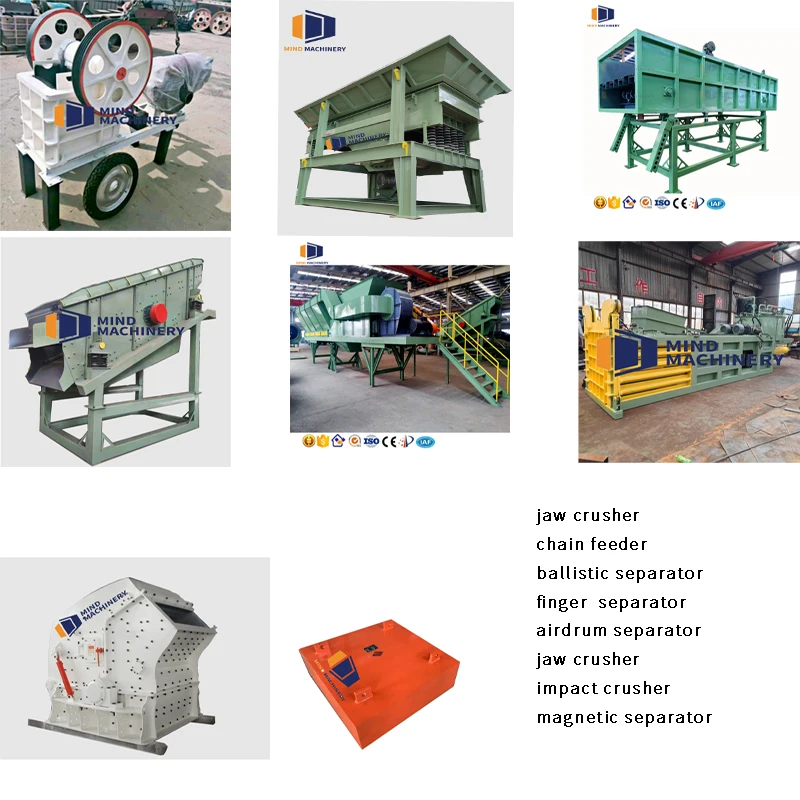

Related products
