Pilot type laboratory vacuum pump controller rotary evaporator
- Category: >>>
- Supplier: Shanghai Yuanhuai Intelligent Technology Co. Ltd
Share on (1601017037590):
Product Overview
Description
Technical Specification
Model | RE-501 | RE-502 | RE-503 | RE-505 | RE-510 | RE-520 | RE-530 | RE-550 |
Evaporation Rate (Water L/h) poration Rate (Water L/h) | ≥1.2 | ≥1.2 | ≥2.2 | ≥2.2 | 0-3.2 | 0-5 | 0-7 | 0-9 |
Rotary Bottle Volume (L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
Collection bottle volume (L) | 1 | 1 | 2 | 3 | 5 | 10 | 20 | 20 |
Heating power (W) | 2 | 2 | 2 | 3 | 3 | 3 | 5 | 5 |
Speed Range (rmp) | 0-180 rmp | |||||||
Operating Pressure (MPa) | -0.095 MPa | |||||||
Working temperature (°C) | RT-200 °C | |||||||
PRODUCT DESCRIPTION
YHchem RE Series Rotary Evaporator is made up of rotary motor, distillation flask,heating bath, condenser,etc. lt was used for continuous distillation of volatile solvents under reduced pressure. lt is an equipment used for evaporation,concentration, crystallization, drying, separation, solvent recovery, etc. in the scientific research and production process of chemical, biological products and other industries. lt is also developed based on the principle of constant temperature heating and film evaporation under vacuum and negative pressure.

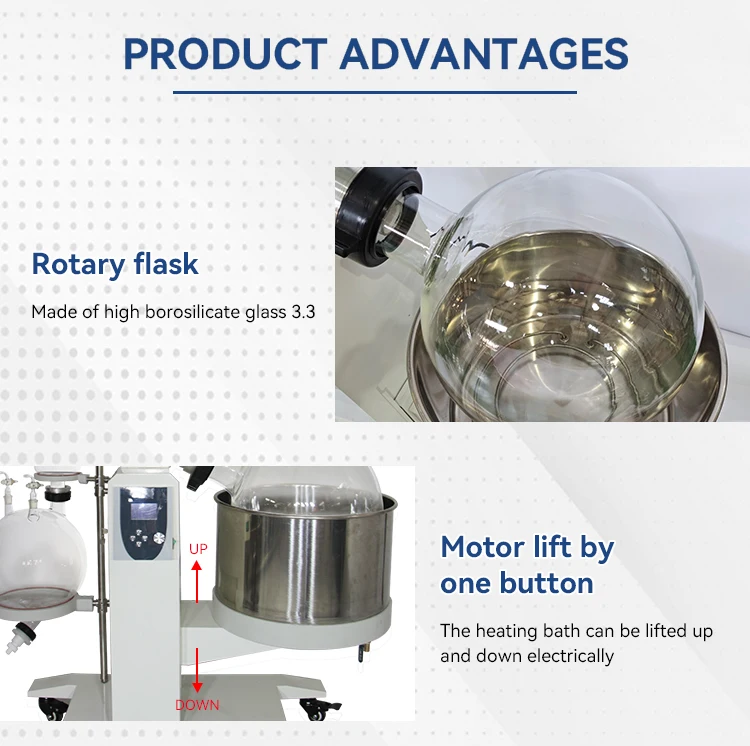

PRODUCT ADVANTAGES
♣1.Rotary flask
Made of high borosilicate glass 3.3
♣2.Motor lift byone button
The heating bath can be lifted upand down electrically

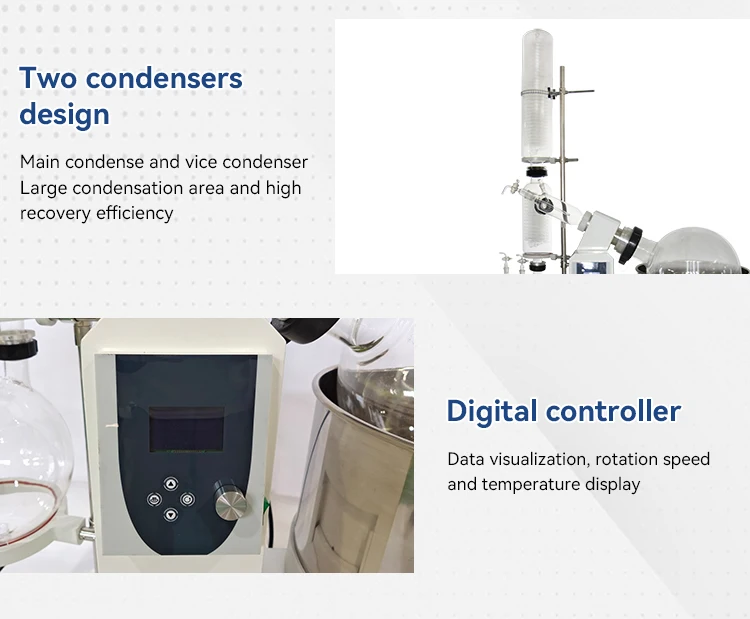

♣3.Two condensers design
Main condense and vice condenser_arge condensation area and high recovery efficiency
♣4.Digital controller
Data visualization, rotation speed and temperature display
PRODUCT FEATURE
♣1.HIGH BOROSILICATE GLASS 3.3
♣2.MODULAR DESIGN
♣3.STAINLESS STEEL 304
♣4.CONTINUOUS FEEDING
♣5.ANTI-SHOCK AND ANTI-CORROSION
♣6.SMOOTH OPERATION
APPLICATION FIELDS
♣1.Biopharmaceuticals
♣2.Chemicals
♣3.Environmental Recycling
♣4.Biodiesel
♣5.Food&Beverage
♣6.Plants Extraction

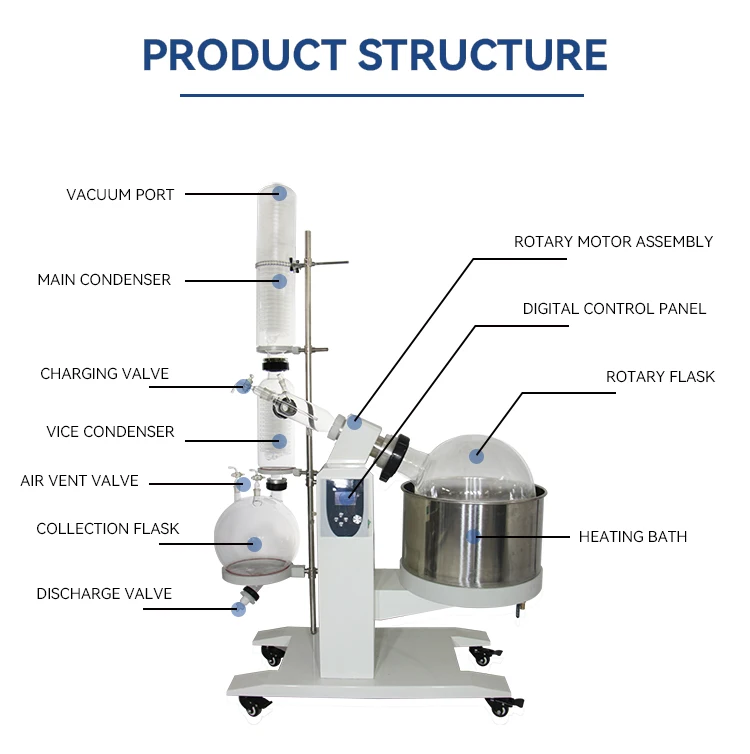

PRODUCT STRUCTURE
♣1.VACUUM PORT
♣2.ROTARY MOTOR ASSEMBLY

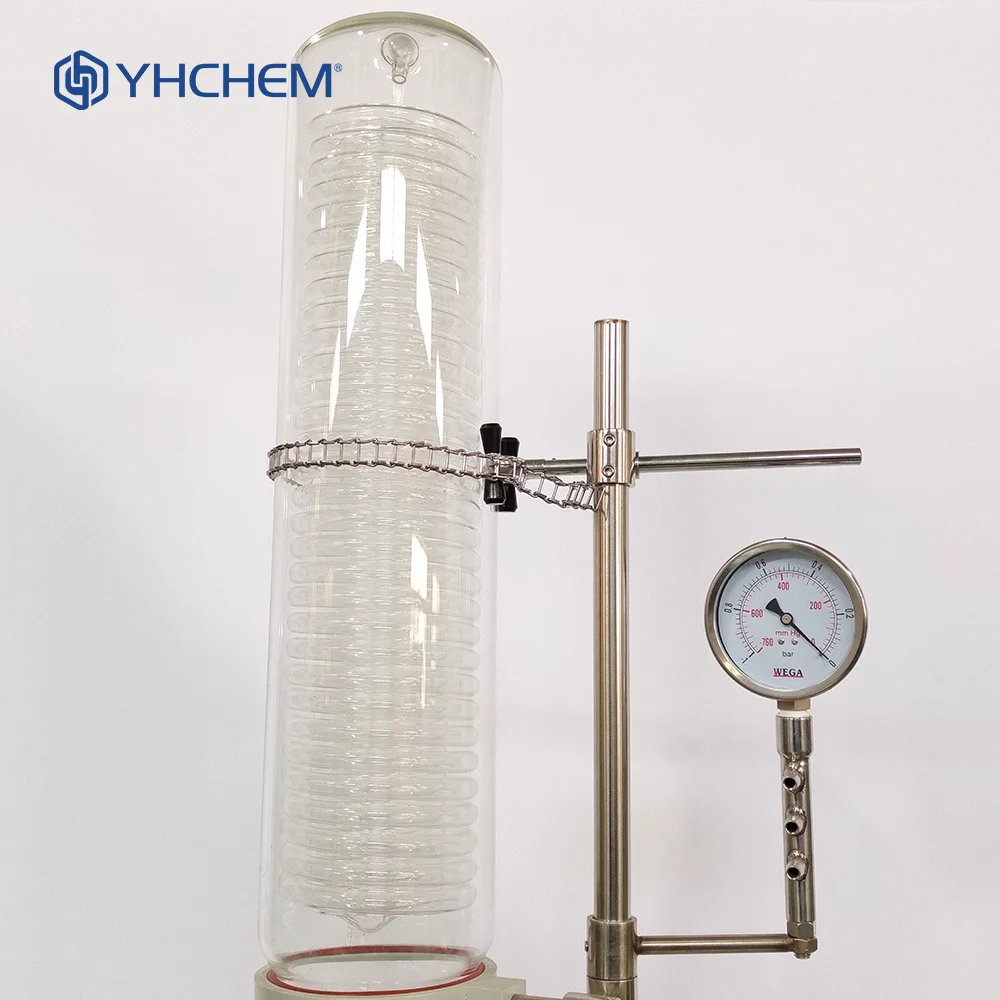

♣3.MAIN CONDENSER
♣4.DIGITAL CONTROL PANEL
♣5.CHARGING VALVE
♣6.ROTARY FLASK
♣7.VICE CONDENSER
♣8.AIR VENT VALVE
♣9.COLLECTION FLASK
♣10.HEATING BATH
♣11.DISCHARGE VALVE

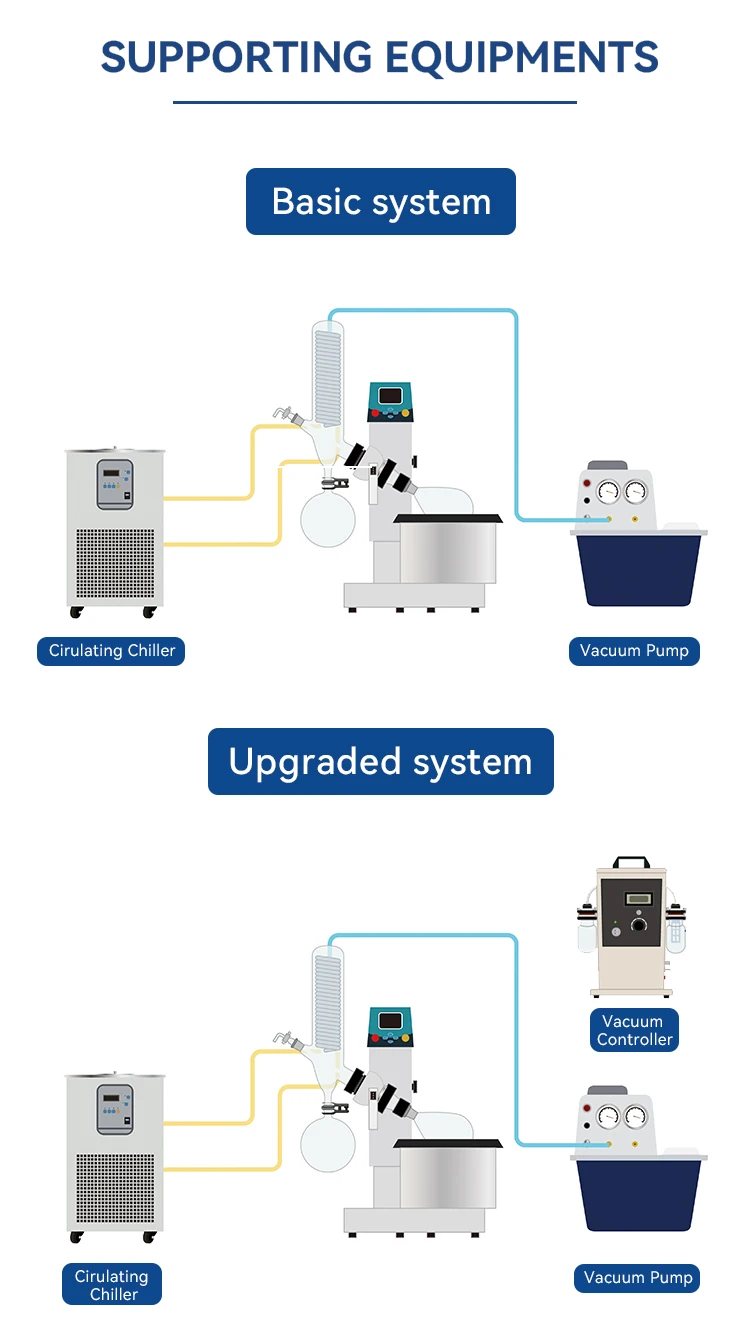

SUPPORTING EQUIPMENT
♣1.Basic system
Cirulating Chiller
Vacuum Pump

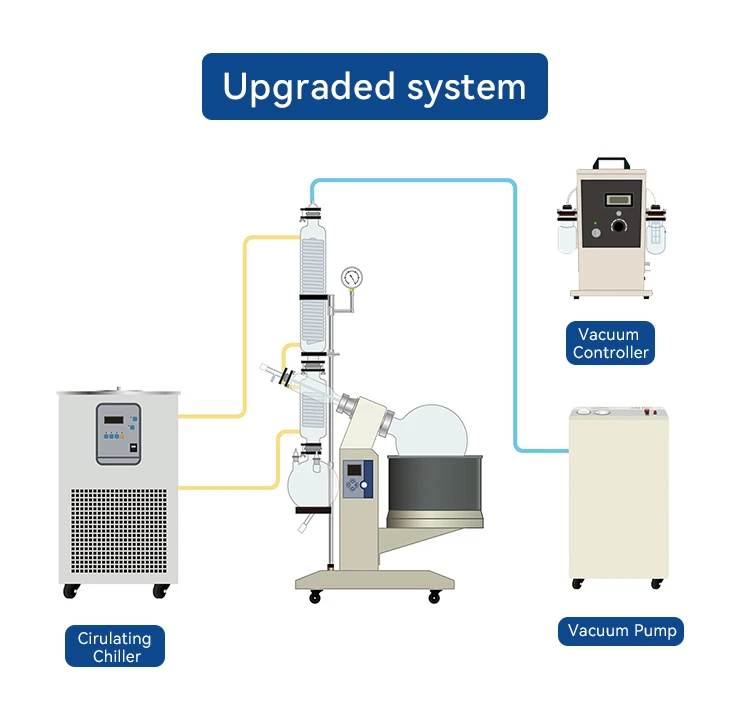

♣2.Upgraded system
Vacuum Controller
Cirulating Chiller
Vacuum Pump

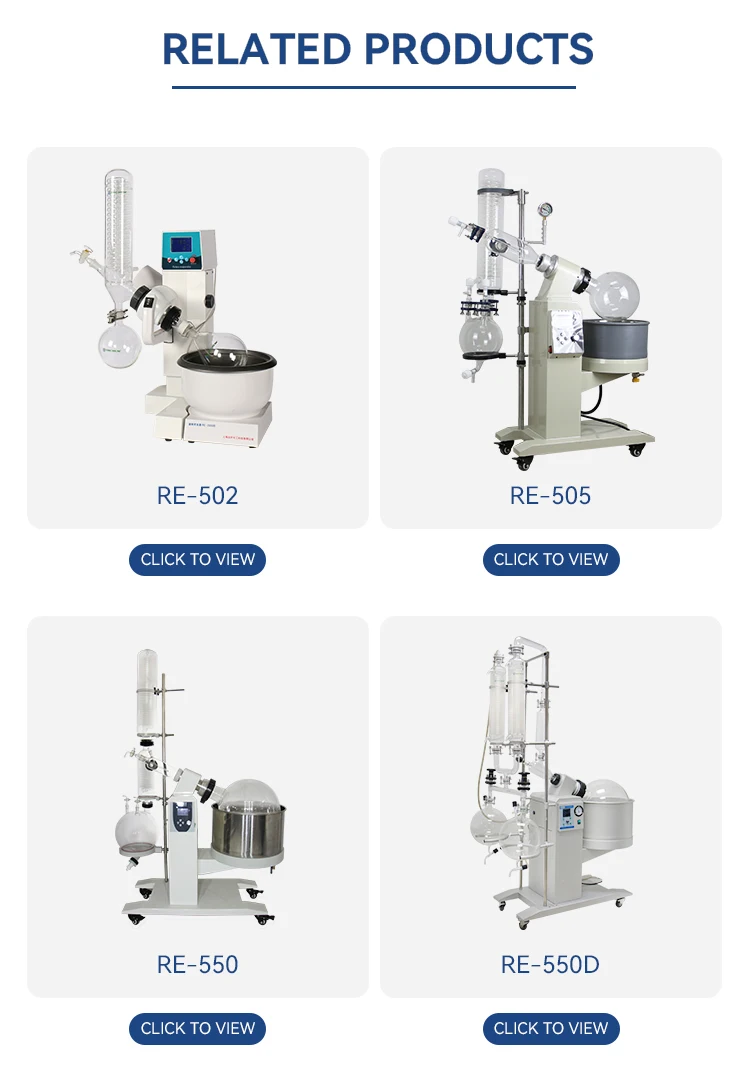

PRODUCT SERIES

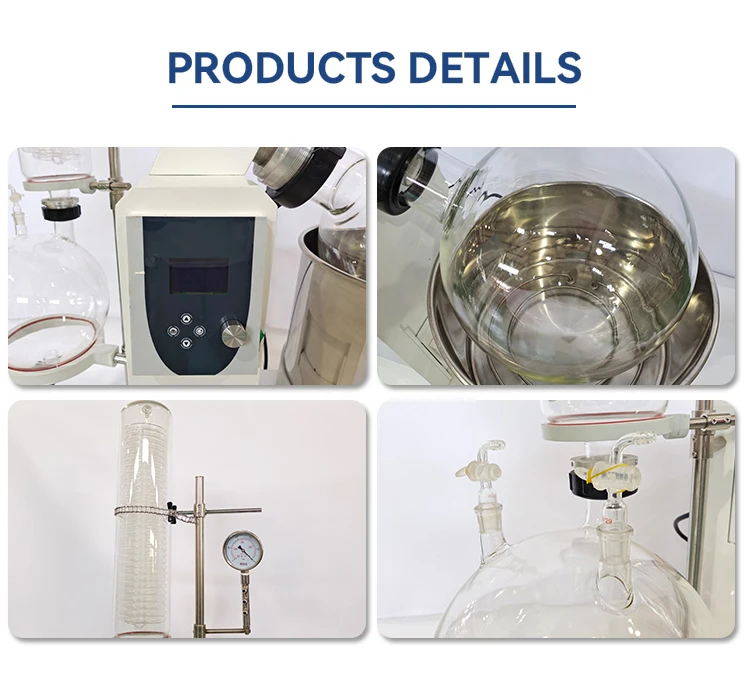

PRODUCT DETAILS

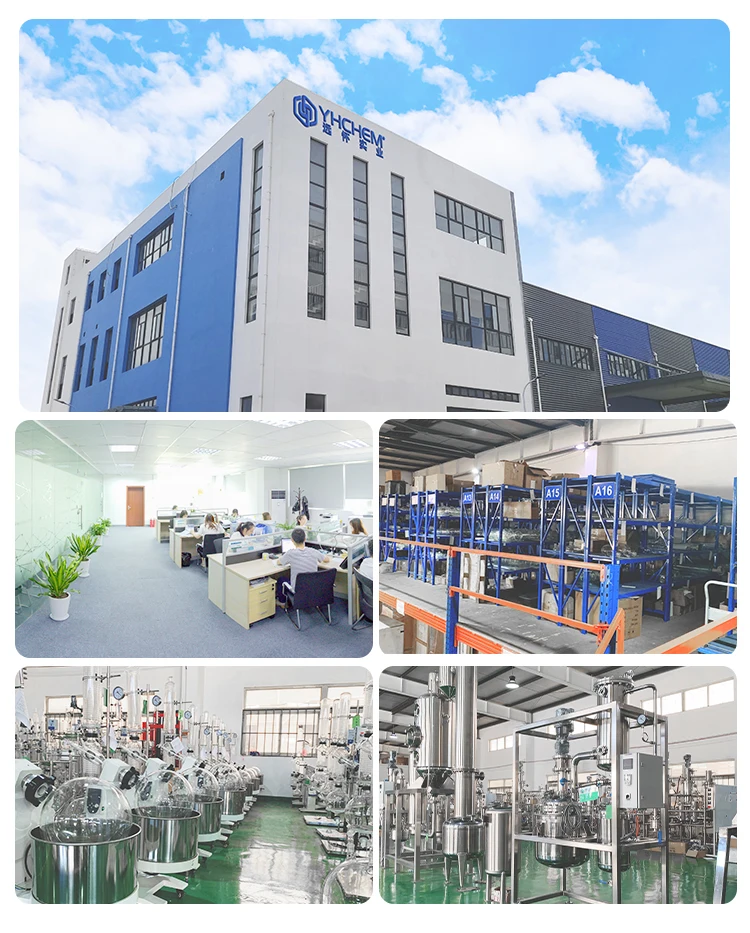

Company Information
YHCHEM, a high-tech enterprise, was established in 2009 and head quartered inShanghai with more than 50 employees both at home and abroad and an area of 5,000 square meters. We have a globally competitive production base of modern equipment, which attributes us to be a equipment and process provider of automatic system of synthesis, extraction, separation, and purificationfor global companies With over 10-year hard work, passion and win-win spirit,YHCHEM provides more than 8,000 equipment for hundreds well-known companies in more than 100 countries and regions around the world and has successfully entered Western Europe, North America and other high-level regulatory market, and solutions are widely used in bio engineering, chemical, food, environmental protection and other fields
