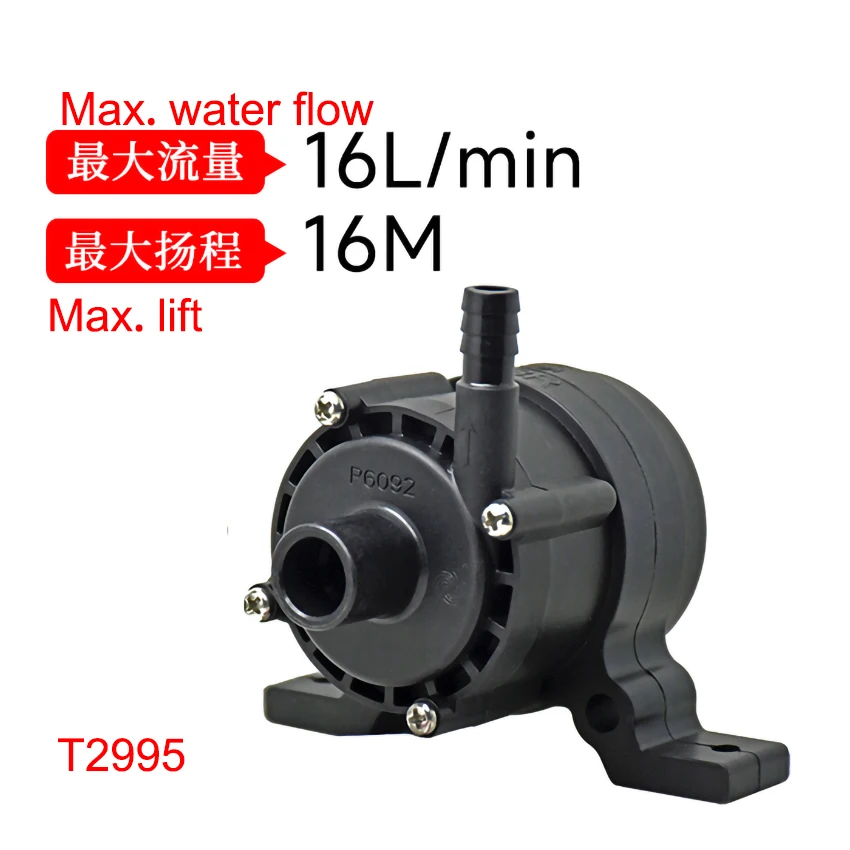

brushless DC pump P6092, DC24V, 48W, flow 16L/min, head 16m, for our IPL SHR yag machines from Nov., 2023
- Category: >>>
- Supplier: Hangzhou Sg Electronic Technology Co. Ltd.
Share on (1601017065508):
Product Overview
Description
| T2995 |
Brushless DC pump for our IPL SHR yag machines from Nov., 2023.
| NAME | FULL DESCRIPTION OF GOODS | SG SKU |
| Brushless DC pump | P6092, DC24V, 48W, flow 16±15% L/min, head 16±1.5m | T2995 |
24V pump combined with 24V swithing power supply to replace similar result problematic DS12150S
1. Product features
| 1 | product name | Brushless DC pump |
| 2 | model | P609224H00 |
| 3 | weight | 490 g |
| 4 | longevity life | Working continuously for 20,000 hours |
| 5 | pigment | black |
| 6 | Environmental level | Meet the R o HS environmental protection requirements |
| 7 | Frame material | PPA |
| 8 | chirp sound | At 40 dBA @ 1 m, the head is at 2m |
| 9 | levels of protection | IPX7 |
| 10 | insulation grade | Grade F (155℃) |
| 11 | operational principle | centrifugal pump |
2. Range of application
| 1 | Use ambient temperature | -20-70℃ |
| 2 | Use the ambient humidity | Below the 90% RH |
| 3 | Use type | branch water |
| 4 | Use temperature | 0-70℃ |
| 5 | Power site | Direct direct sunlight and direct ultraviolet light |
3. Essential parameter:
| 1 | rated voltage | DC 24(V) | |
| 2 | Operating voltage range | 12-28 V | The water pump in this range can be used normally |
| 3 | rated current | 2.0±15% A | At the maximum flow state |
| 4 | input power | 48W | At the maximum flow state |
| 5 | maximumflow | 16±15% L/min | The maximum flow rate of the pump at the rated voltage |
| 6 | Maximum elevation | 16±1.5m | Maximum head of the pump at rated voltage |
