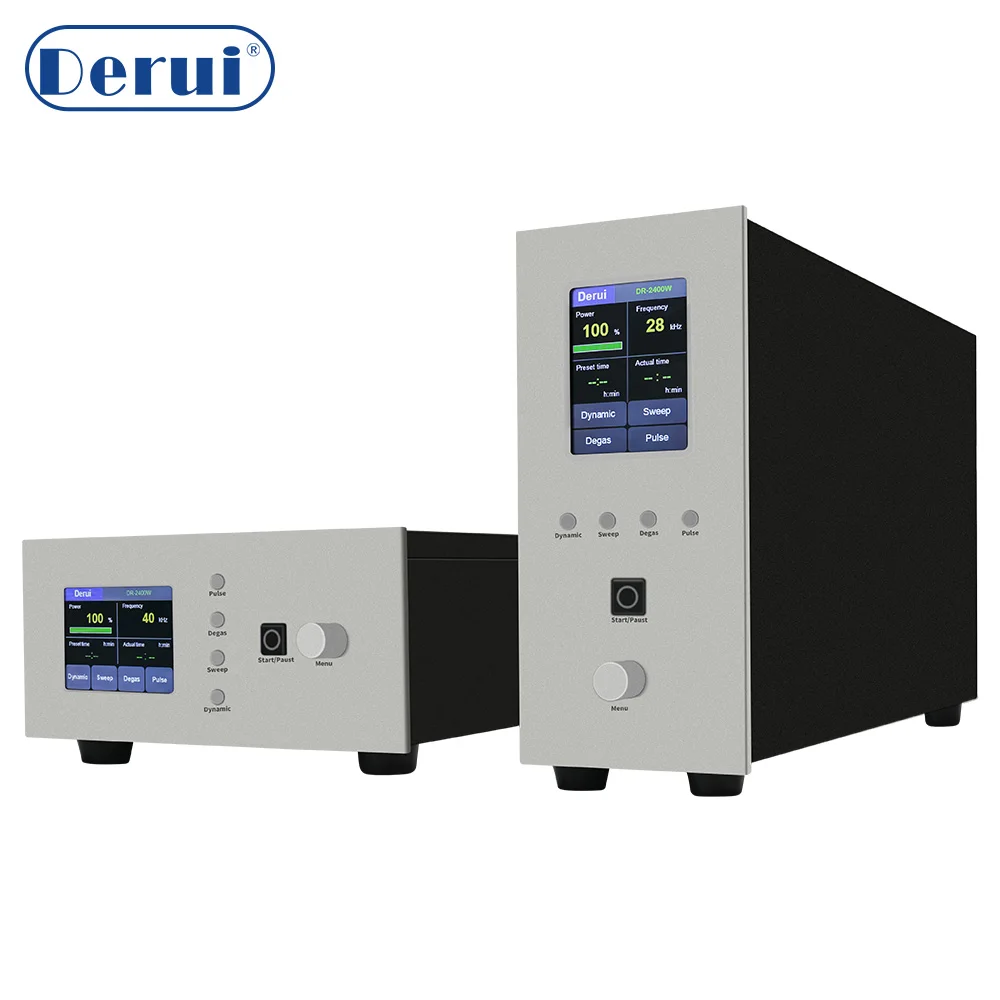

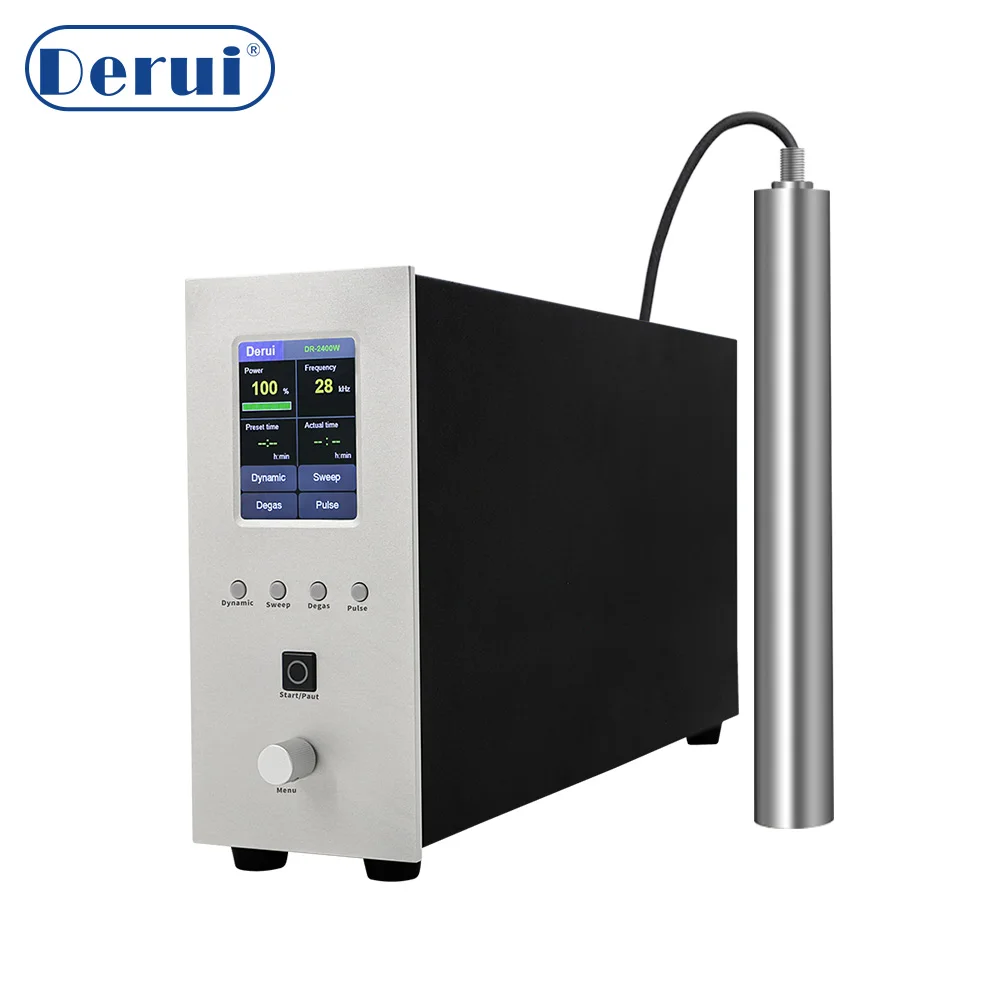

Customized Power Adjustable Frequency Optional Ultrasonic Generator Can Be Equipped With Ultrasonic Vibration Plate
- Category: >>>
- Supplier: Shenzhen Derui Ultrasonic Equipment Co. Ltd.
Share on (1601017090799):
Product Overview
Description
Product Description
ULTRASONIC GENERATOR
● There are two types of vertical U type and horizontal H type to choose from
Our factory supports customization and sample services.
working voltage of the generator,so that we can ship it.
lf you are interested in further details and applicability of the generator,please
contact us at derui-ultrasonic.com.
contact us at derui-ultrasonic.com.
This link only includes ultrasonic generators. If you want a transducer, vibrator, or vibration plate, please contact us at derui-ultrasonic.com.
PRODUCT PARAMETERS
Ultrasonic Frequency | 17KHz、20kHz、25KHz、28KHz、33kHz、40KHz | ||||||
Ultrasonic Power(supply voltage) | 200W-2600W (220-240VAC) | ||||||
Power Adjustable | 20%-100% | ||||||
Ultrasonic Mode | Dynamic、sweep、Degas、Pulse、Standard | ||||||
Full Bridge Phase Shift | Yes | ||||||
Constant Power Control | Yes | ||||||
Automatic Frequency-tracking | Yes | ||||||
Load Self-adaption | Yes | ||||||
Remote Control | Yes | ||||||
Communication Interface | RS485(MODBUS RTU) | ||||||
Working Temperature | 0-40°℃/0-90%RH | ||||||
Protection Class | IP21 | ||||||

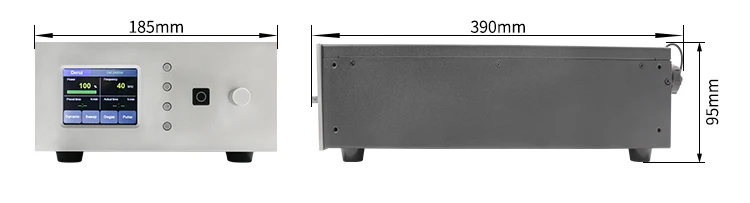

Size | U:185*390*95 mm/H:85*390*195 mm(L*W*H) | ||||||
weight | 7kg | ||||||
Self Protection | overcurrent、Overtemperature、Overvoltage、Short Circuit | ||||||
Our Advantage
1.The factory integrating R&D, design, production and sales has better product
adaptability, longer service life, faster after-sales service and lower maintenance
costs.Optimum performance, fit and controllability.
2.Low resistance,high conversion performance,low parameter change with
temperature change.
3.The ultrasonic circuit board is fully upgraded and adopts the V1.3 all-digital
control system, stronger vibration and more stable power.

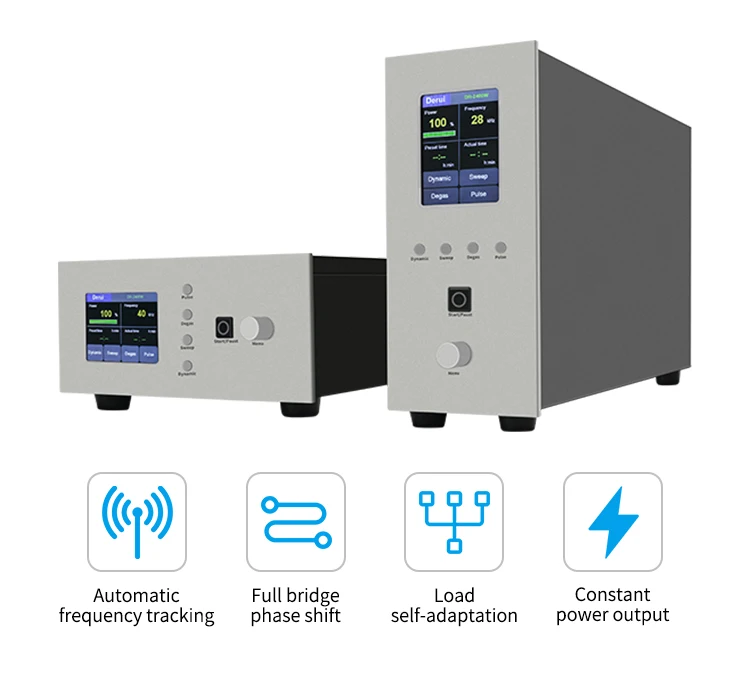

TU series generator is an ultrasonic generator located in the field of industrial cleaning
developed by Derui after more than ten years of experience. Developed with v1.3 new
technology, it is an ultrasonic technology product with full-bridge phase shifting,
constant power output,automatic frequency tracking and automatic impedance
change, which can further improve the adaptability and stability of the generator for
different working conditions.
PRODUCT DETAIL

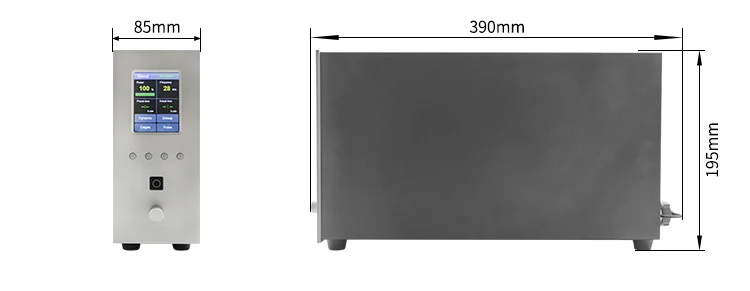

Shape
VERTICAL U
HORIZONTAL H

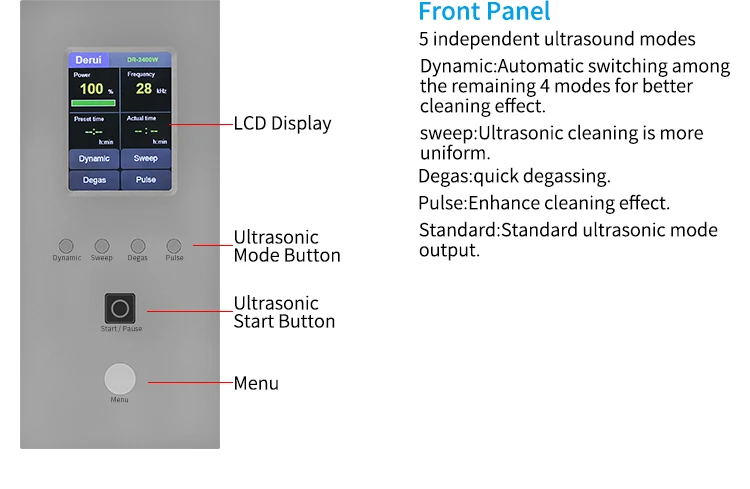

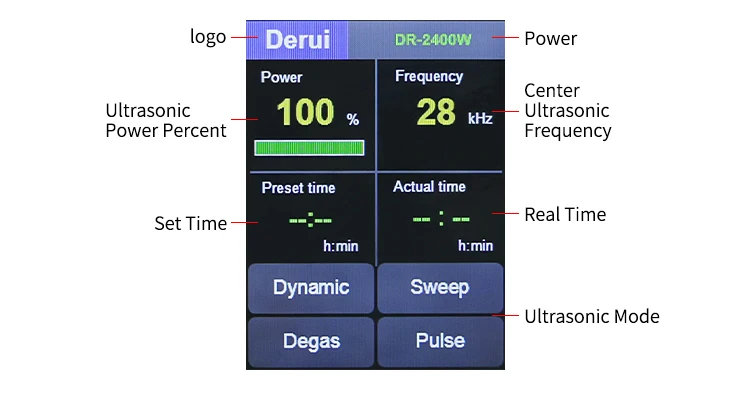

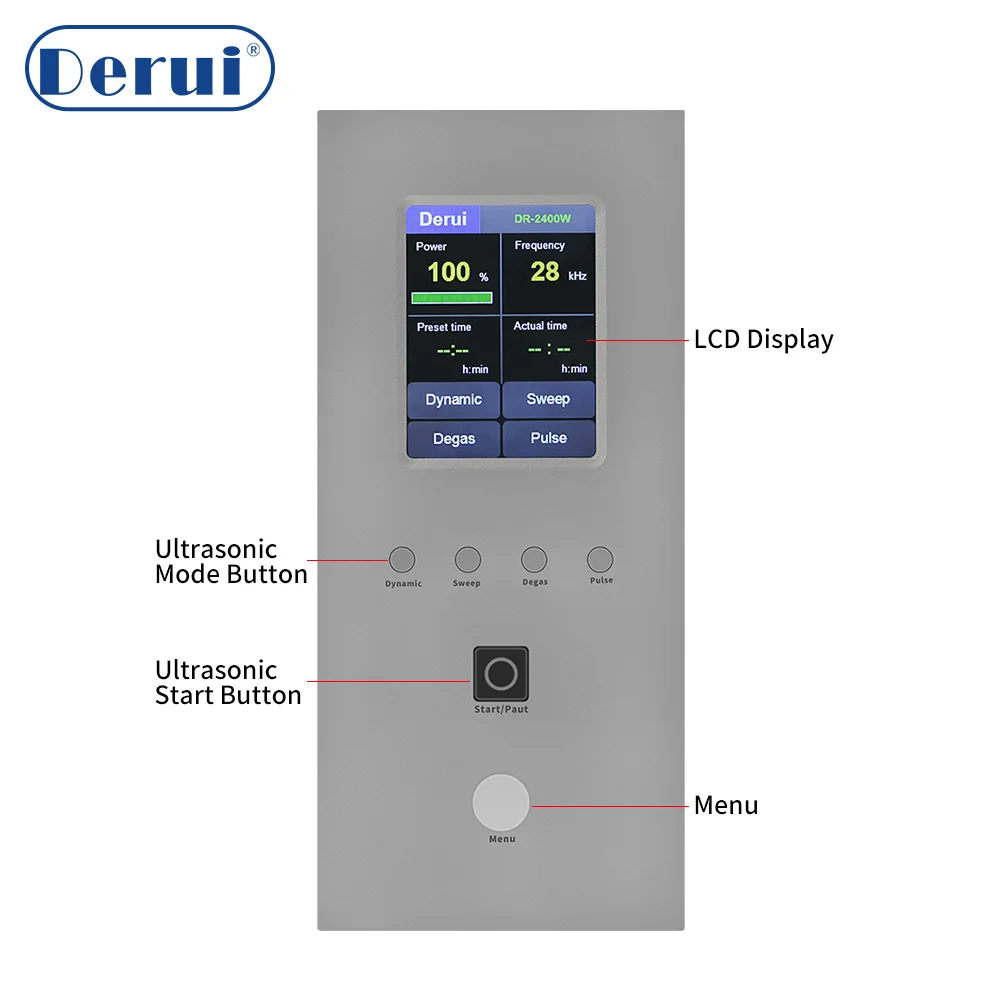

LCD Dispiay
PRODUCT APPLICATION
Features
1.DeruiV1.3 system uses digital intelligent technology, and has 4 working
modes: degas, sweep,Pulse and column wave.
2.Develop compound cleaning working mode for stubborn stains.
3.IGBT full bridge phase shift technology,20-100% power adjustable linearly.
2.Develop compound cleaning working mode for stubborn stains.
3.IGBT full bridge phase shift technology,20-100% power adjustable linearly.
4.Constant power output for different working conditions.
5.Automatic frequency tracking and impedance change technology to ensure
5.Automatic frequency tracking and impedance change technology to ensure
that the generator works at a suitable frequency point.
6.1.2 Times peak power technology which has better cleaning effect to stubborn stains.
7.Frequency sweep function which can effectively eliminate stand wave and improve
6.1.2 Times peak power technology which has better cleaning effect to stubborn stains.
7.Frequency sweep function which can effectively eliminate stand wave and improve
ultrasonic performance.
8.Conversion efficiency up to 95%.
9.LCD touch screen, support parameter setting and status monitoring.
8.Conversion efficiency up to 95%.
9.LCD touch screen, support parameter setting and status monitoring.
10.Internal protection for over current,over voltage and short circuit.
11.Remote control,connectable to PLC and HMl etc.
12.Support RS485 and MODBUS RTU communication.
12.Support RS485 and MODBUS RTU communication.
13.Can be integrated into 19’' cabinet.
FAQ
COMPANY PROFILE

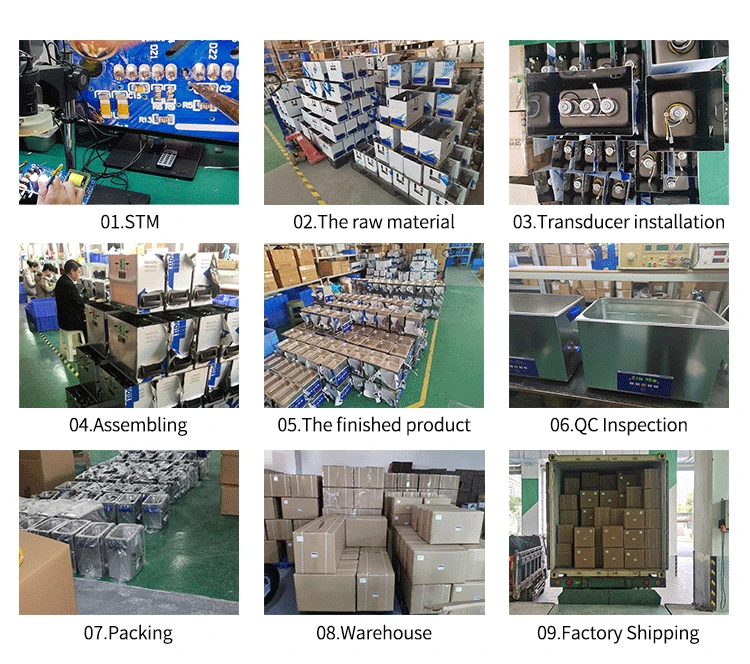

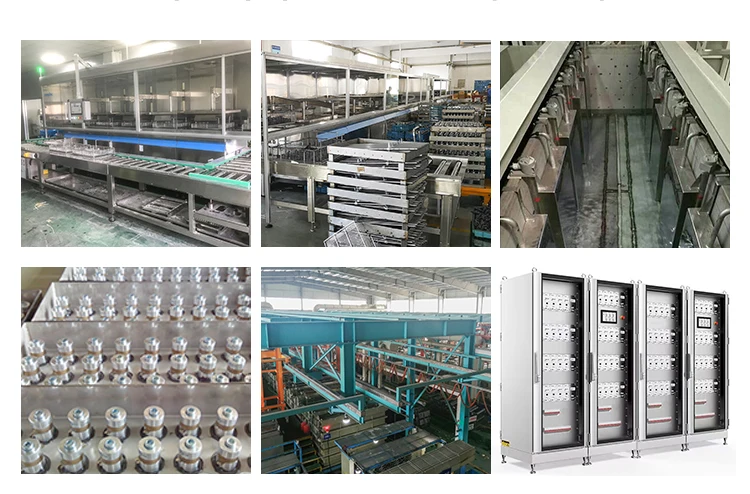

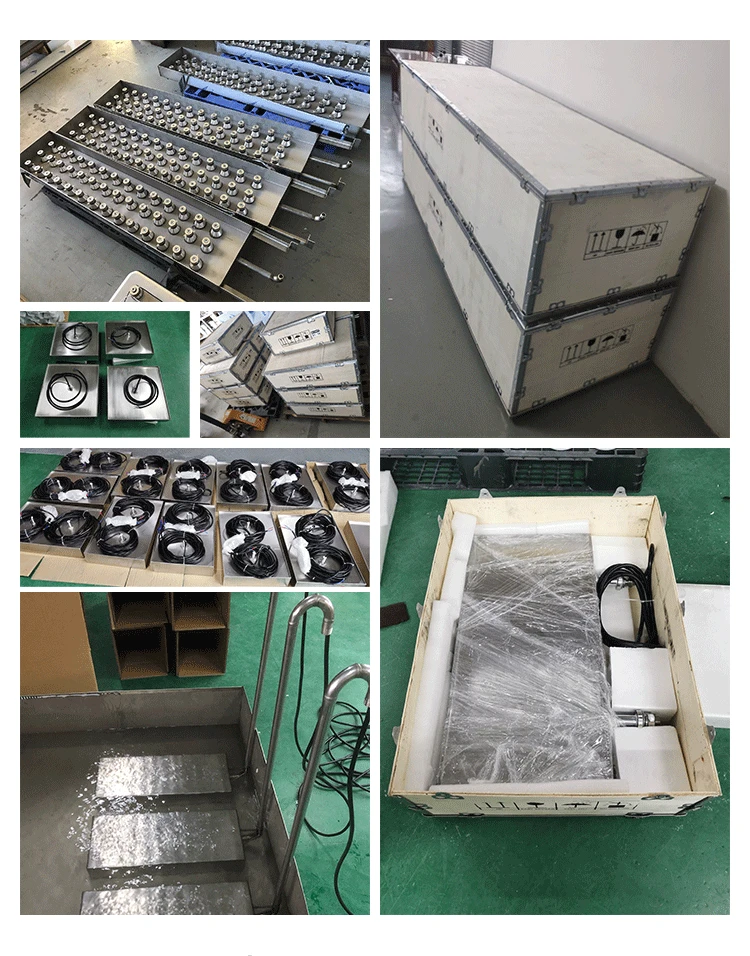

Process of production

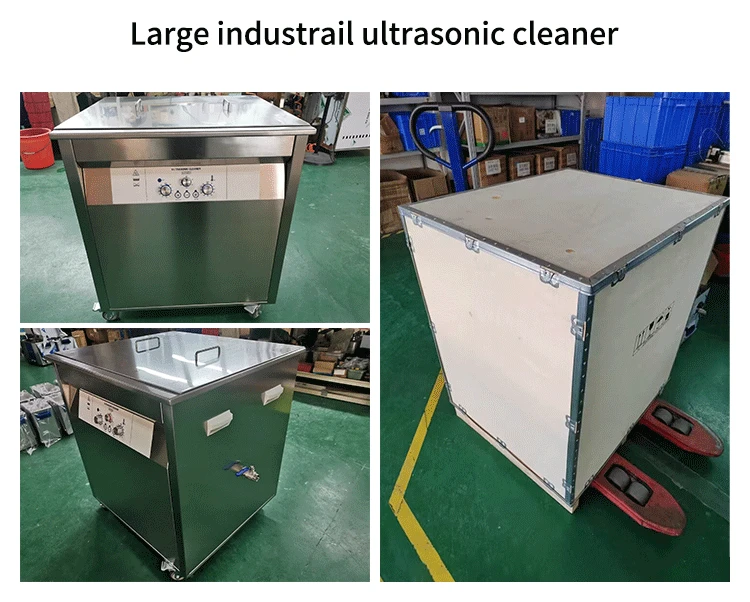

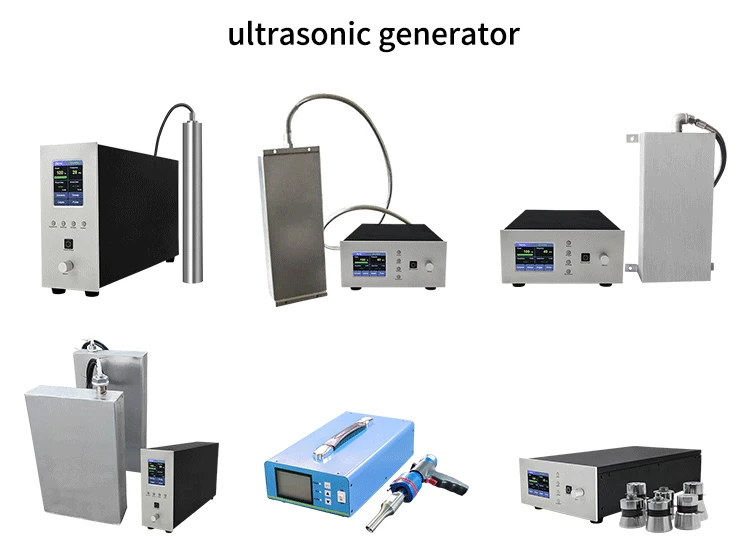

OTHER SERIES PRODUCTS

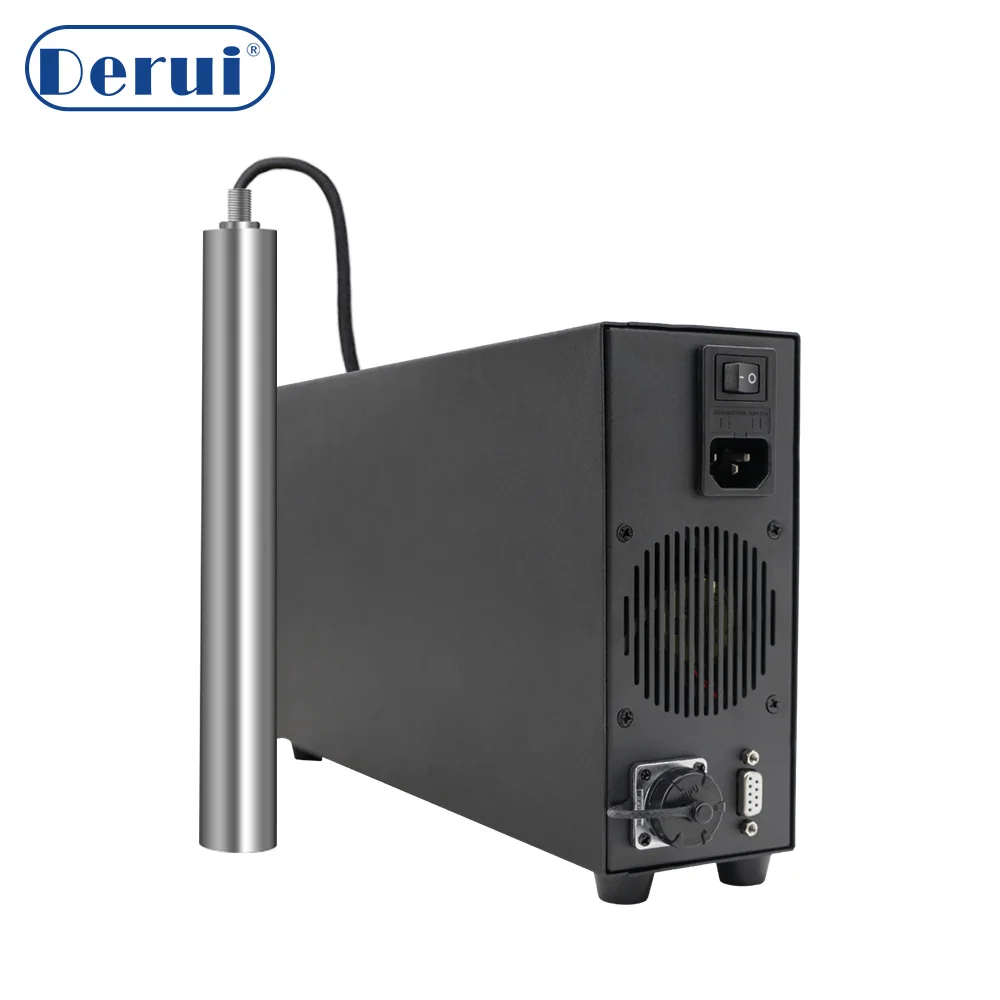

Submersible transducer and
ultrasonic generator
Power and frequency and size can be customized
according to customer requirements
according to customer requirements
