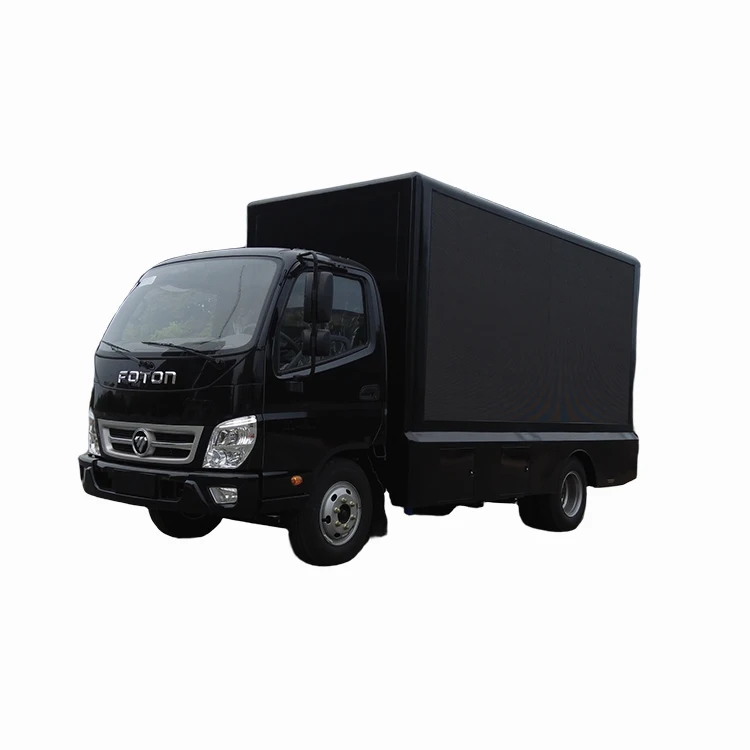

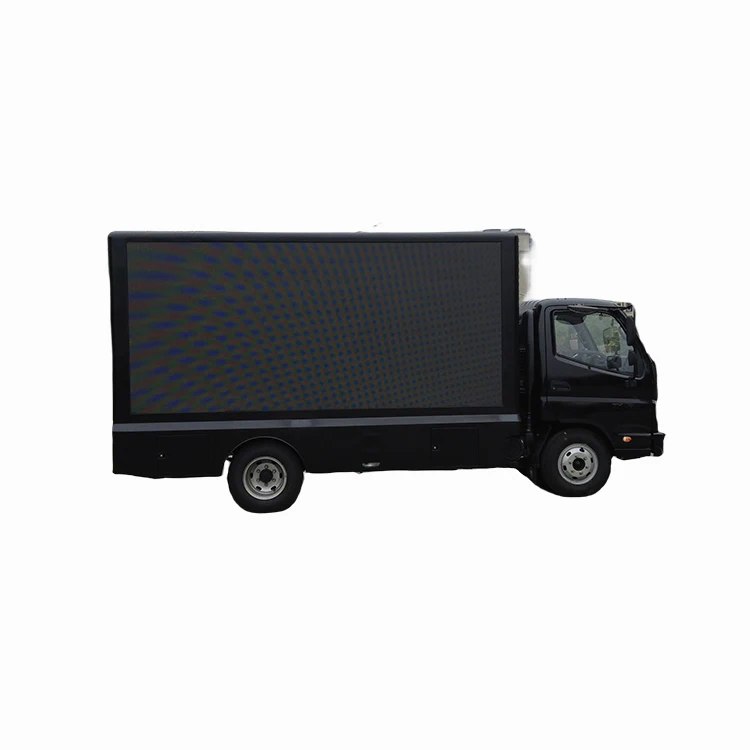

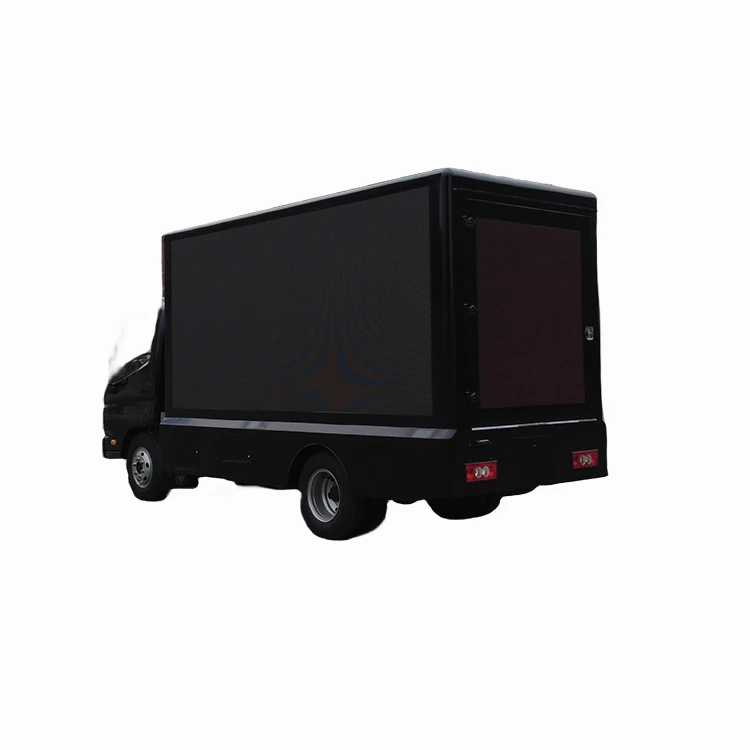

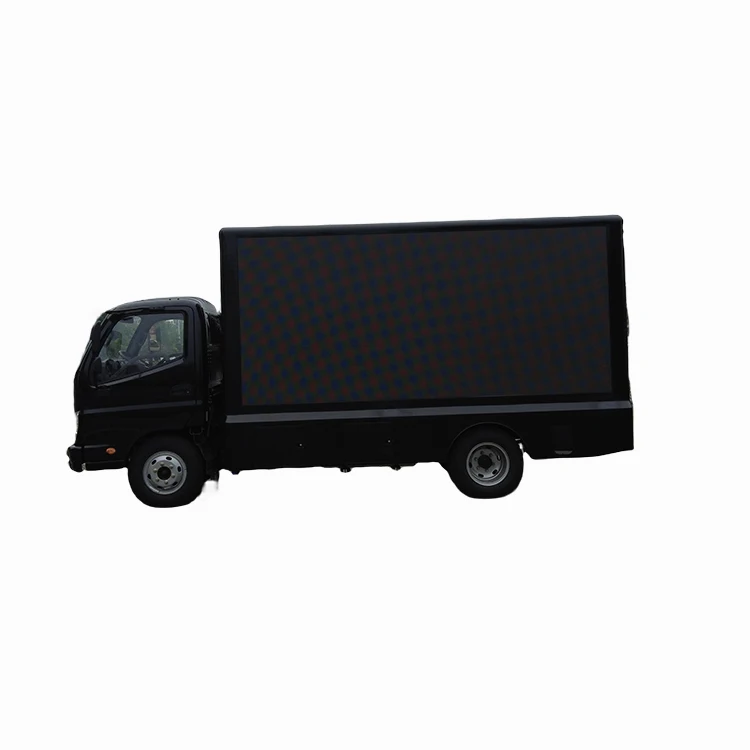

2024 Hot Sale Mobile Led Advertising Truck Stage Led TV Screen Truck
2024 Hot Sale Mobile Led Advertising Truck Stage Led TV Screen Truck
2024 Hot Sale Mobile Led Advertising Truck Stage Led TV Screen Truck
2024 Hot Sale Mobile Led Advertising Truck Stage Led TV Screen Truck
2024 Hot Sale Mobile Led Advertising Truck Stage Led TV Screen Truck
2024 Hot Sale Mobile Led Advertising Truck Stage Led TV Screen Truck
2024 Hot Sale Mobile Led Advertising Truck Stage Led TV Screen Truck

2024 Hot Sale Mobile Led Advertising Truck Stage Led TV Screen Truck

Share on (1601017117245):


Price:$24,000.00 - $24,800.00

Quantity:


Product Overview

Description



Product Description




Specification


Vehicle Parameters
General
Vehicle Model
YZR5040XXCB6
Vehicle Brand
XDR
Chassis Brand
Dongfeng
Overall Dimension(mm)
5995×2250×3230
GVW/Curb Weight(kg)
4495/4300
Chassis Parameters
Cab
Cab Seat
3
Air Conditioner
Yes
Engine
Fuel Type
Diesel
Engine Model
BJ493ZLQV1
Engine Brand
Foton cummins
Power(kw)
80/109
Displacement(cc)
2770
Emission Standard
Euro3
Chassis
Drive Type
4*2
Wheelbase(mm)
3360
Tyre Specification
7.00R16
Tyre No.(pcs)
6+1
Max Speed(km/h)
99
Paint
Customized


Superstructure parameters:
Truck Dimension (mm)
5995×2250×3230
Box Dimension (mm)
4200x2020x2100
Left Screen Size(cbm)
3840x1728=6.64
Right Screen(cbm)
3840x1728=6.64
Rear Screen Size(cbm)
1440x1280=1.84
Screen Display System
1. P6 full color LED screen size for left side 3840x1728mm

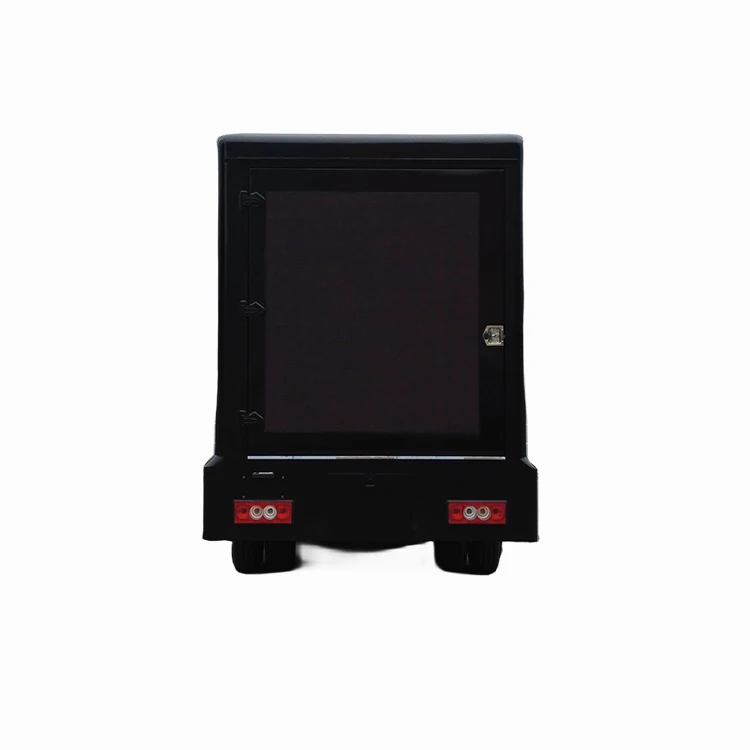

2. P6 monochrome red for rear side 1440x1280mm open door
Material
1.galvanized steel pipe for the wagon overall, rust-proof treatment for decade
2. the full color led screen : waterproof, quake proof, dust proof
3.patent design for the generator exit, saving and cooling energy in summer days

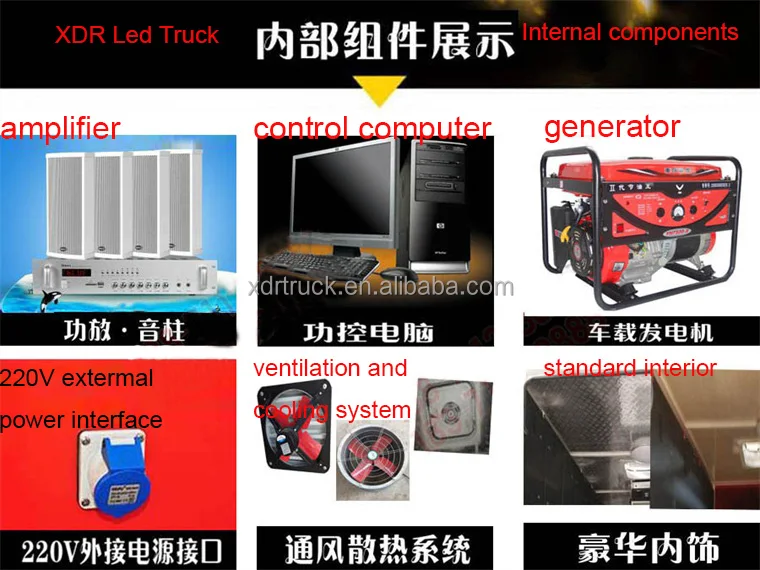

Multi Media System
Water proof loud speaker box
Structure system
Luxury decoration for inside, good quality aluminium floor with slide proof
2. 15 kw generator with diesel type
3. 220V output power cable,player
4. LED PC controller , power amplifier
5.. air spring one piece, shutter, inner door lock,air exhaust fan and exhaust window
Optional
Two sides with lifting function and Mobile stage are available

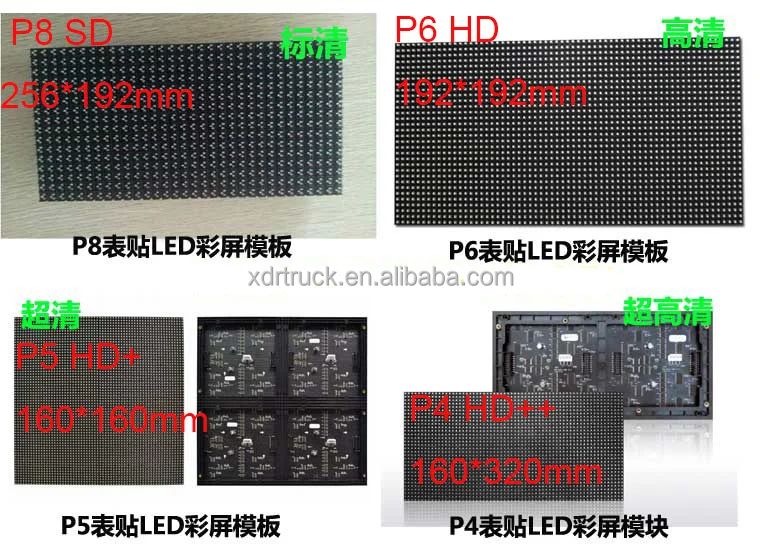

LED display parameters (details for your reference )
Display specifications
Display size(mm)
Display area(cbm)
Module size(mm)
P8 full color
3840* 1792
6.88
256*192
P6 full color
38404 * 1728
6.64
192*192
P5 full color
3840 * 1760
6.8
160*160


Superstructure configuration
Color screen material:
Fully waterproof and shockproof outdoor high-definition color screen
Monochrome screen material:
Single red, single white
Audio brand:
Wanshengda Waterproof Sound Column
Power amplifier:
Yvette broadcast-level power amplifier
Cabinet material:
5CM steel frame box
Floor material:
Anti-slip aluminum floor
Interior material:
High temperature resistant aluminum pattern plate
Electric control system:
Fully intelligent internal and external network automatic switching
Electric control safety:
Leakage protection system/lightning protection system
Roller light box:
Tempered glass LED row light
Media control system:
Gigabit LAN Amethyst Player
ventilation system:
Powerful exhaust fan, ceiling exhaust skylight
Function control system:
I4 high-end industrial computer
power supply system:
Optional high-performance on-board generator set or battery power supply system plus 220V external power supply












Company Profile

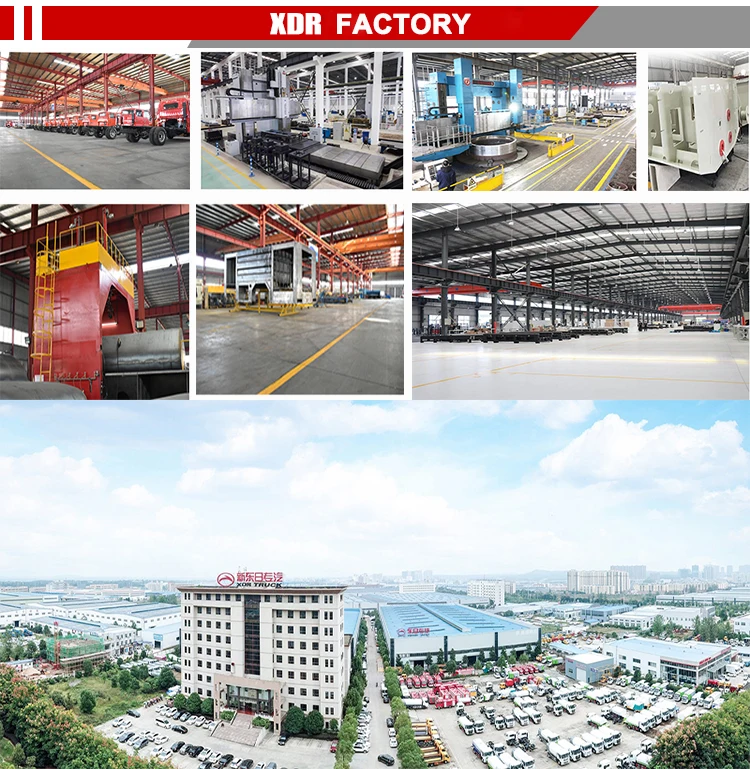

Factory Show
