Good Quality Ce Approved Direct Acting 3 Way General Purpose 12vdc 24vdc Solenoid Valve
- Category: >>>
- Supplier: Dongguan Yanlun Electric Co. Ltd.
Share on (1601017153440):
Product Overview
Description

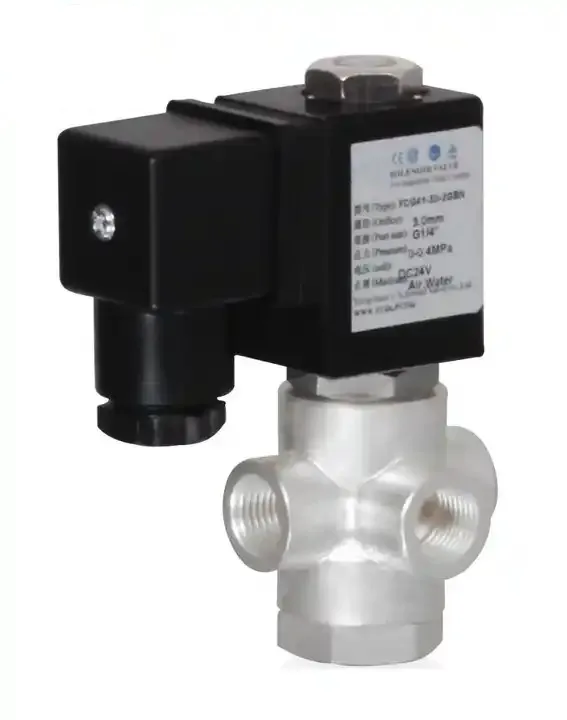

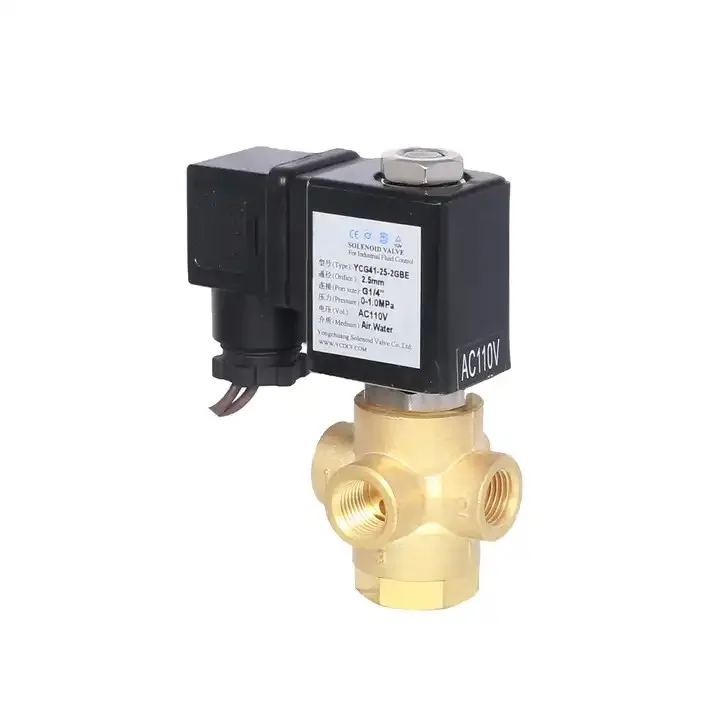

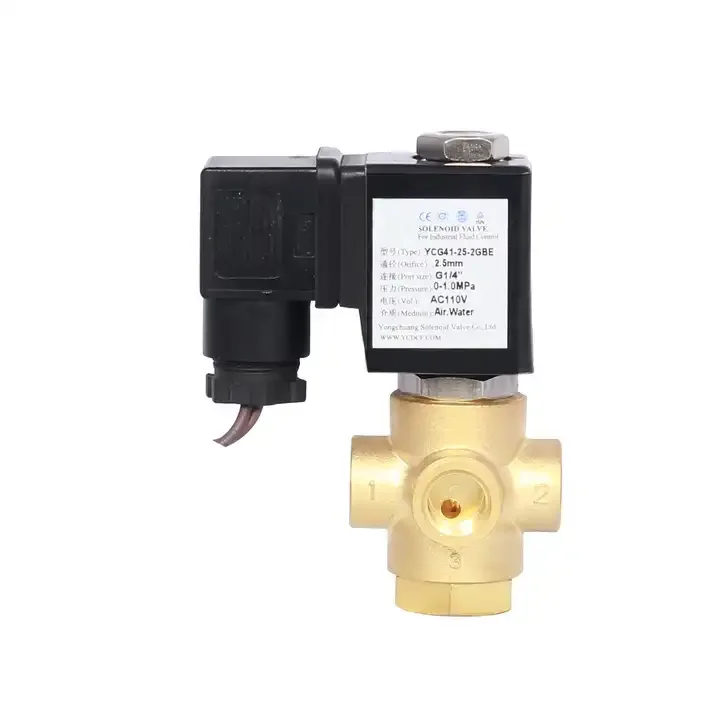

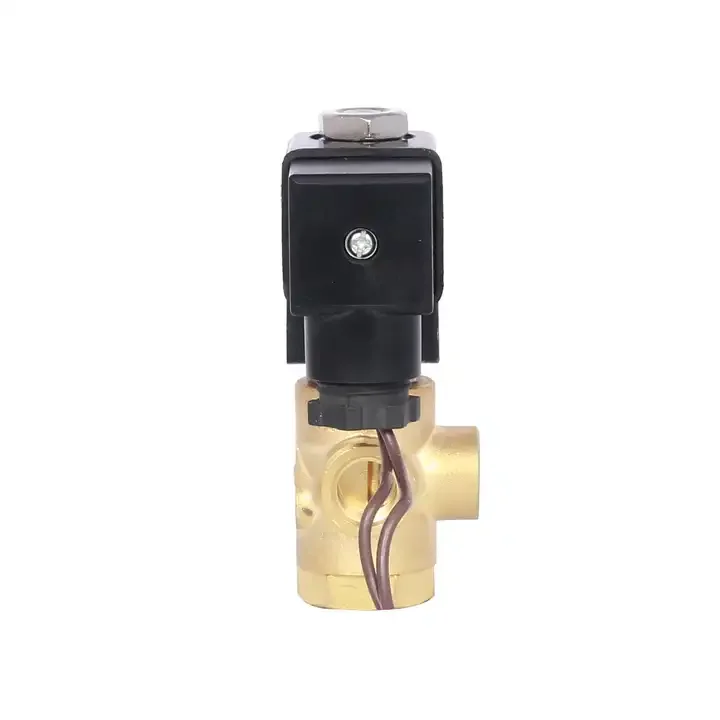

Good Quality Ce Approved Direct Acting 3 Way General Purpose 12vdc 24vdc Solenoid Valve
1. Level: Class H

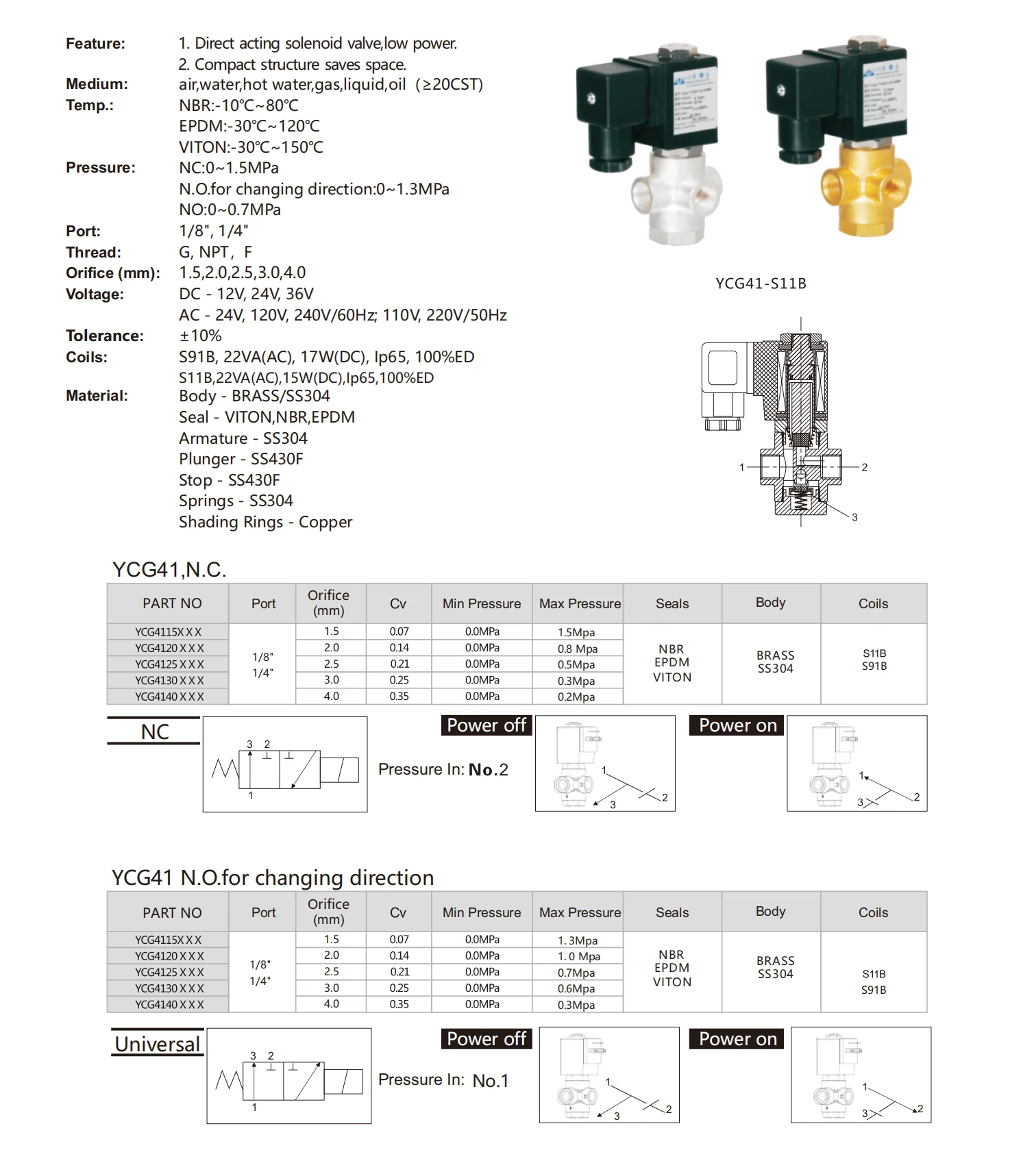

2. Dimension:As below drawing
3. Style Name:Solenoid Valve, Water Valve Steam Valve YCG41
4. Certification: CE
5.Application: coffee machine, electric iron, steam cleaner, auto application
Product Name | Solenoid Valve, Water Valve ,Steam Valve ,Air Valve YCG41 |
Station and Ways | 2 Station and 3 Ways |
Body Material | Brass/Stainless Steel |
Construction | Normal Close |
Orifice Size | 1.5mm,2.0mm,2.5mm,3.0mm ,4.0mm |
Rated Voltage | DC12V, DC24V,DC36, AC24V,AC110V, 120V,AC220V,AC240V |
Connection | G 1/8",G1/4" |
Enviromental Temperature | -30°C-+150°C |
Fluid Temperature | +150°C(FKM Gaskets for Oil, Water, Steam,Air) |
M.O.P.D. | 0-15Bar |
DONGGUAN YANLUN ELECTRIC CO., LTD
is the factory of SHENZHEN BAOKEZHEN ELECTRONICS CO., LTD and BKZ(HK) INDUSTRIAL LTD. SHENZHEN BAOKEZHEN ELECTRONICS CO., LTD establish in July 2001, it passed the ISO9001,ISO14001 international system . Main products are micro switches, rocker switches,rotary switches, push button switches,keyboard switches, slide switches, lever switches, solenoid pumps and solenoid valves, power
sockets, power tools, which compliant with CQC, UL, VDE, DERKA(KEMA),SEMKO,ENEC,CB,TUV certification.In 2023,micro switch obtained the certification of IATF 16494:2016 in auto industry.
In 2012,another factory DONGGUAN KALUN ELECTRONICS CO.,LTD was established.Which professional engaged in research,manufacture of solenoid pumps and solenoid valves,which have obtained the certificate of TUV,CE,LFGB and CQC. After years of development and growth,our company has become a number of world famous brand parts suppliers and strategic partners.
Our existing independent plant 12000 square meters,the annual output of about 100 million.
After Many Years of development and growth, we have now become a number of world-renowned brands of accessories' supplier andstrategic partners.
Now we have the following equipment: Injection molding machines, high- speed presses, automated production machines, printing and hot stamping machine, pneumatic presses and riveting presses, ultrasonic welding machine,laser machines. Mold processing equipment: Precision Sodick wire walking machine, sparks machine,cutting, grinding machines,lathes, milling, drilling, EDM drilling machines. Testing equipment: RoHS detector, hexavalent chromium tester, Vickers hardness tester, Pressure/Insulation
resistance tester,contact resistance tester, image-based mapping instrument,projectors, elasticity coefficient tester, push pull test, torque tester, automated testing machine products, as well as life test, salt spray test, the ball pressure test, resistance to tracking index test, the glow-wire test, drop test, vibration test, temperature and humidity testing laboratory full equipped.
Laboratory can be tested periodically CQC,UL routine sample testing and KEMA,ENEC,CB Certification test.
We have prefect product design and development team with mature and stable from the molding, stamping, injection molding,printing, automated assembly production to a combination of manufacturing , inspection and testing and quality control.
Our company have been registered trademark BAOKEZHEN and Cnkalun.
sockets, power tools, which compliant with CQC, UL, VDE, DERKA(KEMA),SEMKO,ENEC,CB,TUV certification.In 2023,micro switch obtained the certification of IATF 16494:2016 in auto industry.
In 2012,another factory DONGGUAN KALUN ELECTRONICS CO.,LTD was established.Which professional engaged in research,manufacture of solenoid pumps and solenoid valves,which have obtained the certificate of TUV,CE,LFGB and CQC. After years of development and growth,our company has become a number of world famous brand parts suppliers and strategic partners.
Our existing independent plant 12000 square meters,the annual output of about 100 million.
After Many Years of development and growth, we have now become a number of world-renowned brands of accessories' supplier andstrategic partners.
Now we have the following equipment: Injection molding machines, high- speed presses, automated production machines, printing and hot stamping machine, pneumatic presses and riveting presses, ultrasonic welding machine,laser machines. Mold processing equipment: Precision Sodick wire walking machine, sparks machine,cutting, grinding machines,lathes, milling, drilling, EDM drilling machines. Testing equipment: RoHS detector, hexavalent chromium tester, Vickers hardness tester, Pressure/Insulation
resistance tester,contact resistance tester, image-based mapping instrument,projectors, elasticity coefficient tester, push pull test, torque tester, automated testing machine products, as well as life test, salt spray test, the ball pressure test, resistance to tracking index test, the glow-wire test, drop test, vibration test, temperature and humidity testing laboratory full equipped.
Laboratory can be tested periodically CQC,UL routine sample testing and KEMA,ENEC,CB Certification test.
We have prefect product design and development team with mature and stable from the molding, stamping, injection molding,printing, automated assembly production to a combination of manufacturing , inspection and testing and quality control.
Our company have been registered trademark BAOKEZHEN and Cnkalun.
Production Equipment
Production Workshop
Laboratory Equipment
Assembly Workshop
Packing Details : blister/carton
Delivery Details : by sea, by air, by UPS, DHL, FEDEX, up to customer request.
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.Our Sales Team will try our best to support you
Q:.Why choose us?
A:OEM/ODM Accept.
Specialized in this line for 30 years.
sample order can be accepted.
Factory supply directly, cheap price quality assurance.
Professional after -sale service.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample But with charges on it.
Q: What about Minimum order quantity ?
A: Generally Our MOQ for solenoid pumps is 10pcs, you can place a trial order at first without limit for MOQ.
Q: Can customize,modify and develop products according to the design drawing?
A: Yes,We provide OEM service and can customize products according to drawing.
Q: How will you control product quality?
A: We strictly control every detail of production, and every product is inspected by our QC team before delivery, moreover, our production have got CQC, CE,TUV, LFGB certification.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below or send inquiry to us.
A: Any inquiries will be replied within 24 hours.Our Sales Team will try our best to support you
Q:.Why choose us?
A:OEM/ODM Accept.
Specialized in this line for 30 years.
sample order can be accepted.
Factory supply directly, cheap price quality assurance.
Professional after -sale service.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample But with charges on it.
Q: What about Minimum order quantity ?
A: Generally Our MOQ for solenoid pumps is 10pcs, you can place a trial order at first without limit for MOQ.
Q: Can customize,modify and develop products according to the design drawing?
A: Yes,We provide OEM service and can customize products according to drawing.
Q: How will you control product quality?
A: We strictly control every detail of production, and every product is inspected by our QC team before delivery, moreover, our production have got CQC, CE,TUV, LFGB certification.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below or send inquiry to us.
