Product Overview

Description




Product Series










Electrical Ballast




Antron has established reputation in fluorescent ballasts in the market on T5, T8, T10, T12, CFL, Biax PLL and UV lamp ballasts. Our ballast meet UL, CE, FCC and RoHs regulations.

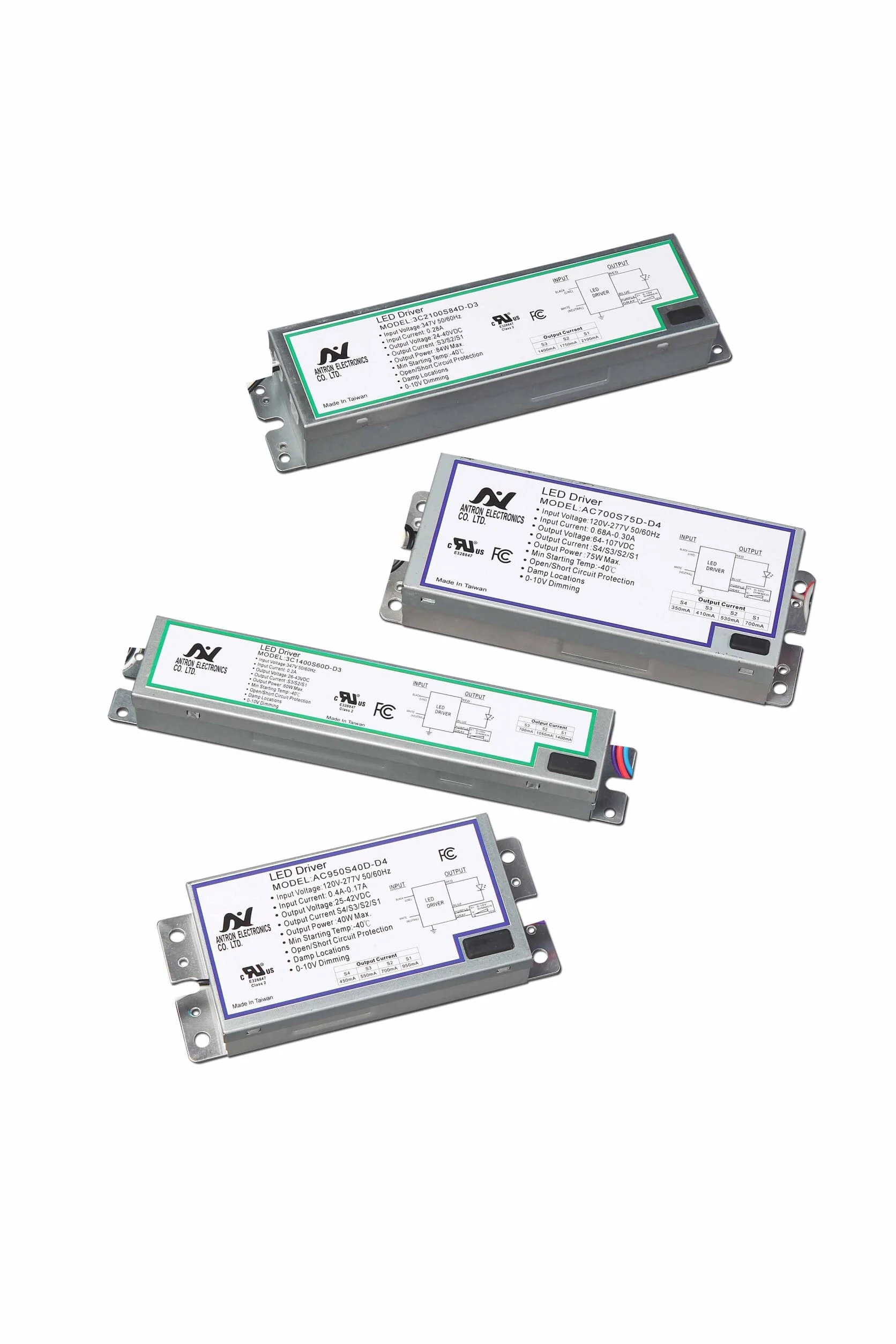

LED Driver



Antron developed, manufactured and customized LED drivers that were highly valued by worldwide customers. Our driver meet UL, CE, CEC, FCC and RoHs regulations.








Emergency LED Driver




Antron provided multiple solutions on emergency backup system recent years. It is our hot sale product in the market. Our emergency pack meet UL, CEC, FCC and RoHs regulations.
























































Product Features








- Universal input voltage 120-277, 347, 120-347 Vac
- Flicker Free, PFC and Isolated design
- High efficiency up to 87%
- 3-in-1 dimming (PWM/1-10V/Resistor)
- Open/Short/Over-Voltage/Over-Temperature protection


- Suitable for UL dry and damp loaction
- 5 years warranty

































Electrical Spec














































































































































































































































































Model Series




JBX-40W




JBX-42W




JBX-48W




JBX-50W




JBX-60W
















AC Input






Input Voltage






120-347 Vac






120-277 Vac

347 Vac






120-347 Vac








120-277 Vac




120-277 Vac

347 Vac

120-347 Vac




Input Frequency




60Hz




60Hz




60Hz




60Hz




60Hz




Leakage Current




<0.75mA




<0.75mA




<0.75mA




<0.75mA




<0.75mA




Turn On Time




<1s




<1s




<1s




<1s




<1s




Inrush Current




<25A




<35A




<35A




<35A




<35A




Power Factor




>0.9




>0.9




>0.9




>0.9




>0.9




THD




<20%




<20%




<20%




<20%




<20%












DC Output




Output Current




1.0A




1.05A




1.2A




1.25A




1.5A




Output Voltage




25-42V




25-42V




25-42V




25-42V




25-42V




Output Power




40W




42W




48W




50W




60W




Output Current Tolerance




±5%




±5%




±5%




±5%




±5%




Output Current Ripple




<5%




<5%




<5%




<5%




<5%




Efficiency

@Highest Vin




87%




87%




87%




87%




87%










Protection




Short Circuit




Hiccup mode, recovers automatically after fault condition is removed.





Over-Voltage




Output current decade mode, recovers automatically after fault condition is removed.





Over-Temperature




Shut down o/p voltage, re-power on to recover.





Surge




2kV




2kV




2kV




2kV




2kV








Environment




Operation Temperature




Tcase

-40°C~90°C




Tcase
-40°C~90°C




Tcase

-40°C~90°C




Tcase

-40°C~90°C




Tcase

-40°C~90°C




Storage Temperature




Tcase
-40°C~90°C




Tcase
-40°C~90°C




Tcase

-40°C~90°C




Tcase

-40°C~90°C




Tcase

-40°C~90°C




Humidity




 10%~90%




 10%~90%




 10%~90%




 10%~90%




 10%~90%












Safety




Safety Approval




UL8750

 UL1310




UL8750

 UL1310




UL8750

 UL1310




UL8750

 UL1310




UL8750
 UL1310




UL/cUL Class 2




V




V




V




V




V




UL/cUL Class P




V




V




V




V




V




Withstand Voltage




I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac





Isolation Resistance




I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD





Noise




Sound Rating Class A







EMC




EMI




FCC Part 15 class A, UL8750, CSA C22.2 No. 250.13-14, ICES-005 Issue 4





EMS




FCC Part 15 class A, UL 8750, ICES-005 Issue 4

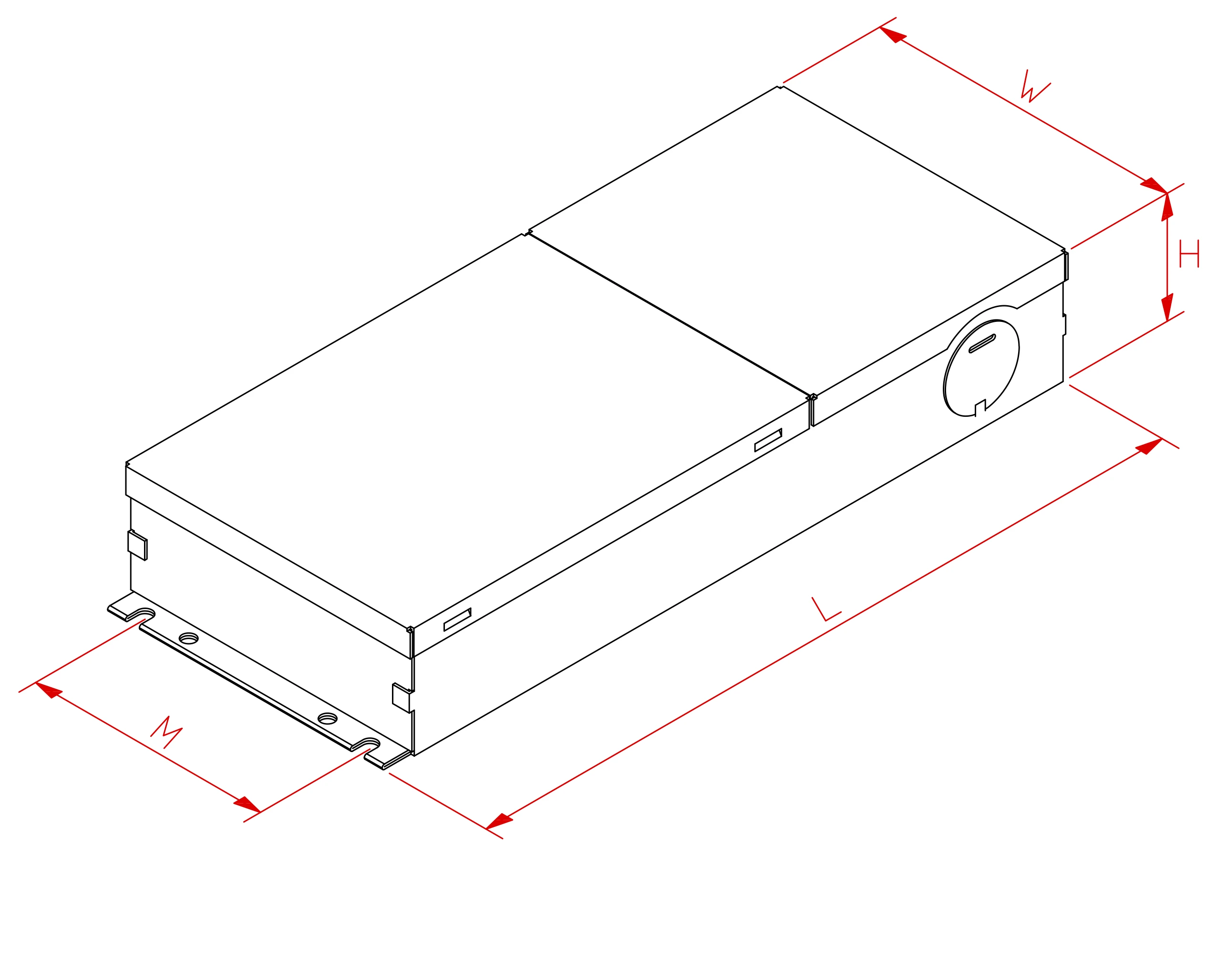

Model Series




Case Code




L




W




H




Unit




JBX-40W ~ 60W




AM175




206




87




34.5




mm




























Packing & Delivery




















Packing Information





5-10 pieces per carton.
Individual packing is optional.
