Product Overview
Description
Product Description
Haokebang 5H-KB low temperature batch circulation grain dryer is an ideal drying equipment for drying grains. It adopts multifunctional machine design, indirect hot air heating, large capacity, and increases the drying layer area. Due to the ingenious structural design, the required power is reduced, and the drying efficiency is improved on the basis of saving space and energy for users. The use of the grain drying equipment can effectively reduce the drying rate of grain and grain, and improve the grain accuracy, thereby improving the quality of grain.
Application
Grain dryer is suitable for efficient drying all cereals, grains, beans and seeds of all crops such as corn, wheat, rice, soybean, sorghum, rapeseed, cashew, barley, etc. It is suitable to all kinds of farm.
Features
- Dry different materials without replacing parts; electrostatic spray.
- High thermal efficiency, low unit energy consumption and high productivity.
- Uniform heat, low thermal damage, low breakage rate, full and complete particles, high seed germination rate.
- Environmentally friendly hot blast stove, low noise, weak vibration, fuel saving, low cost (rice husk, corn cob, diesel, coal, etc. can be used as its fuel) and long service life.
- Easy to disassemble and ship, occupying a small area and low labor operation intensity.
- Simple structure, high quality and low price, low investment cost and no site restrictions.
- The combustion chamber is made of 310s high temperature resistant stainless steel.
- PLC control box, fully automatic control system, touch screen display, easy to operate.
- High thermal efficiency, low unit energy consumption and high productivity.
- Uniform heat, low thermal damage, low breakage rate, full and complete particles, high seed germination rate.
- Environmentally friendly hot blast stove, low noise, weak vibration, fuel saving, low cost (rice husk, corn cob, diesel, coal, etc. can be used as its fuel) and long service life.
- Easy to disassemble and ship, occupying a small area and low labor operation intensity.
- Simple structure, high quality and low price, low investment cost and no site restrictions.
- The combustion chamber is made of 310s high temperature resistant stainless steel.
- PLC control box, fully automatic control system, touch screen display, easy to operate.

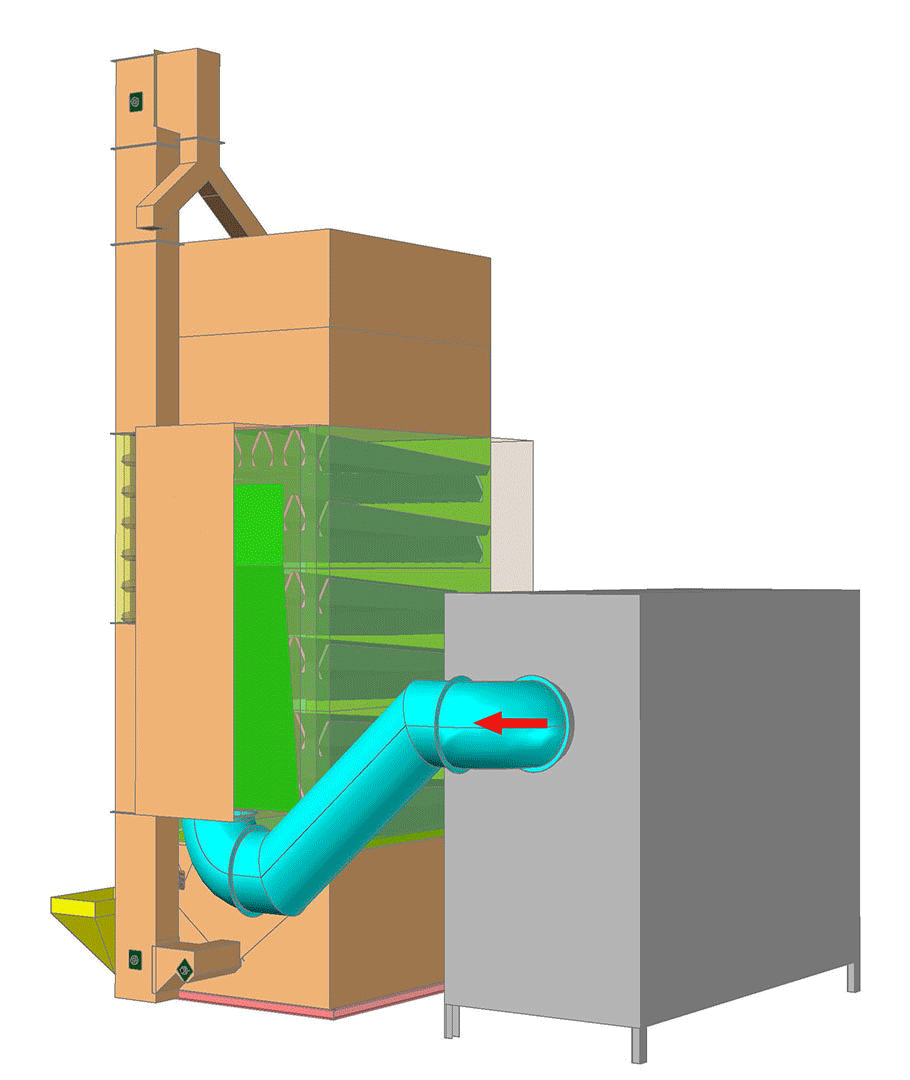

Working Principle

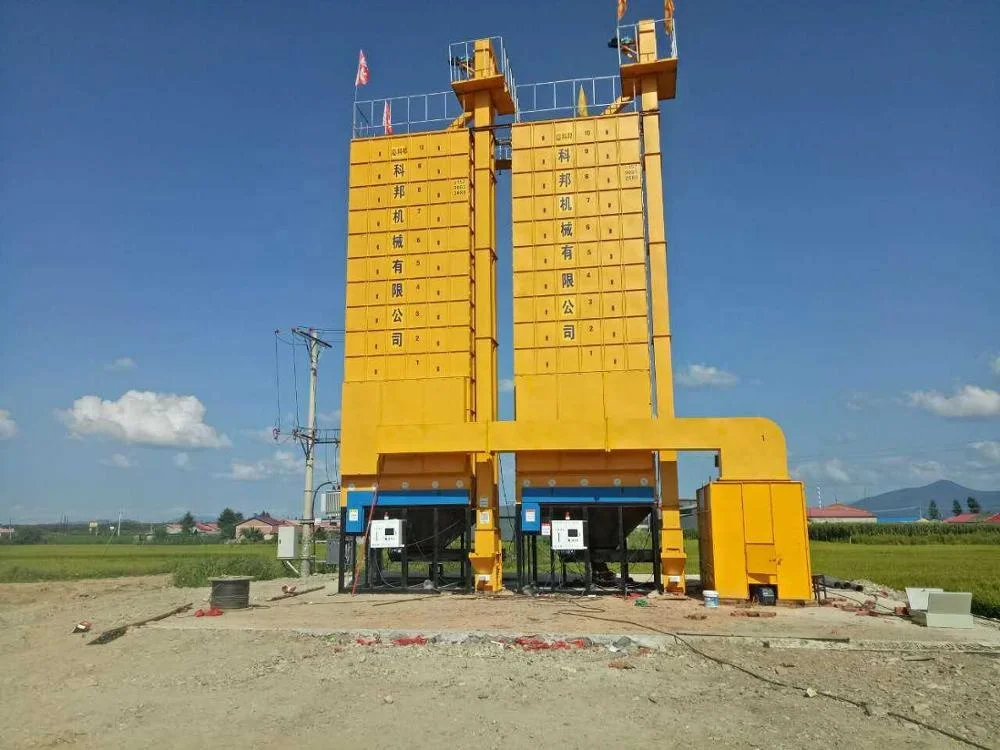

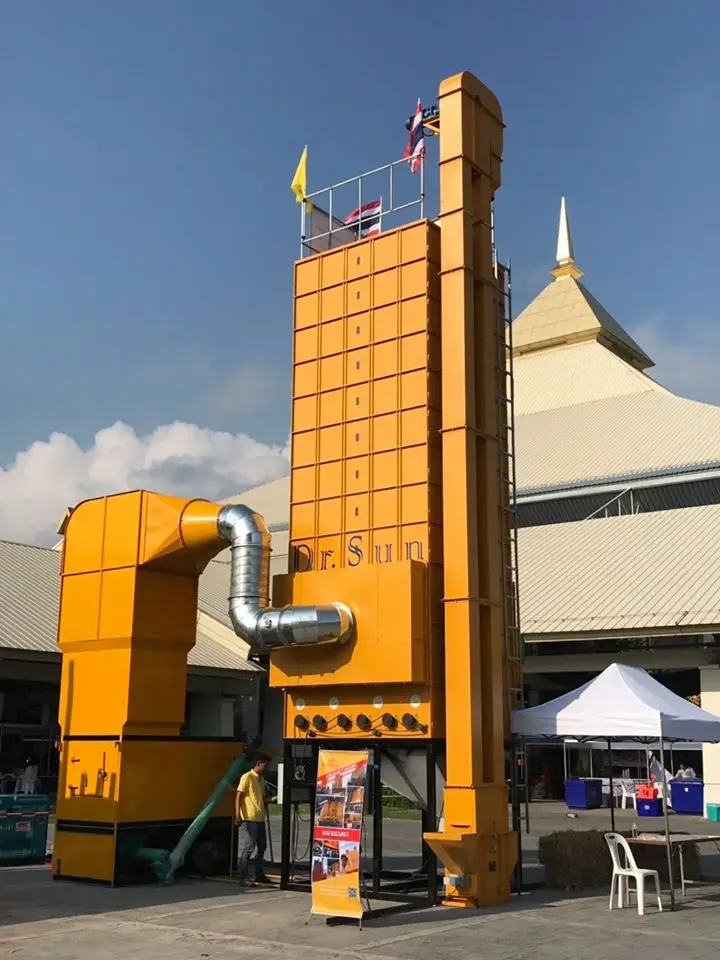

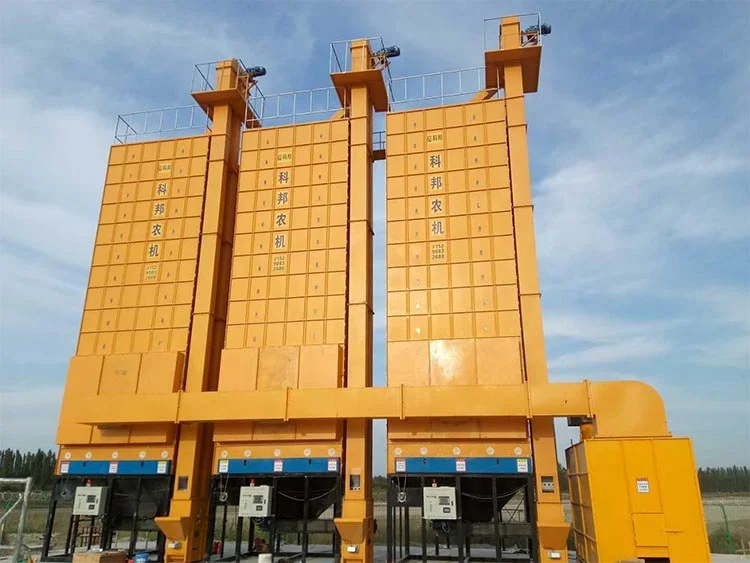

5H-KB Series Grain Dryer
The crops are input from the top of the tower through the bucket elevator, and through the distribution device to ensure that the equipment is always in a full load state during operation. The induced draft fan introduces the hot air into the inside of the tower body, and the rice crops are combined with the bottomless V-shaped baffles that are turned inward and the multi-row V-shaped baffles arranged staggered for processing, so that the rice crops can be mixed with the hot air, and also serve as a The inlet and outlet channels of drying air, most of the drying air can be recycled, and the water vapor generated when the material is dried is discharged from the dryer exhaust system, so the fuel consumption is very small.
Sturcture

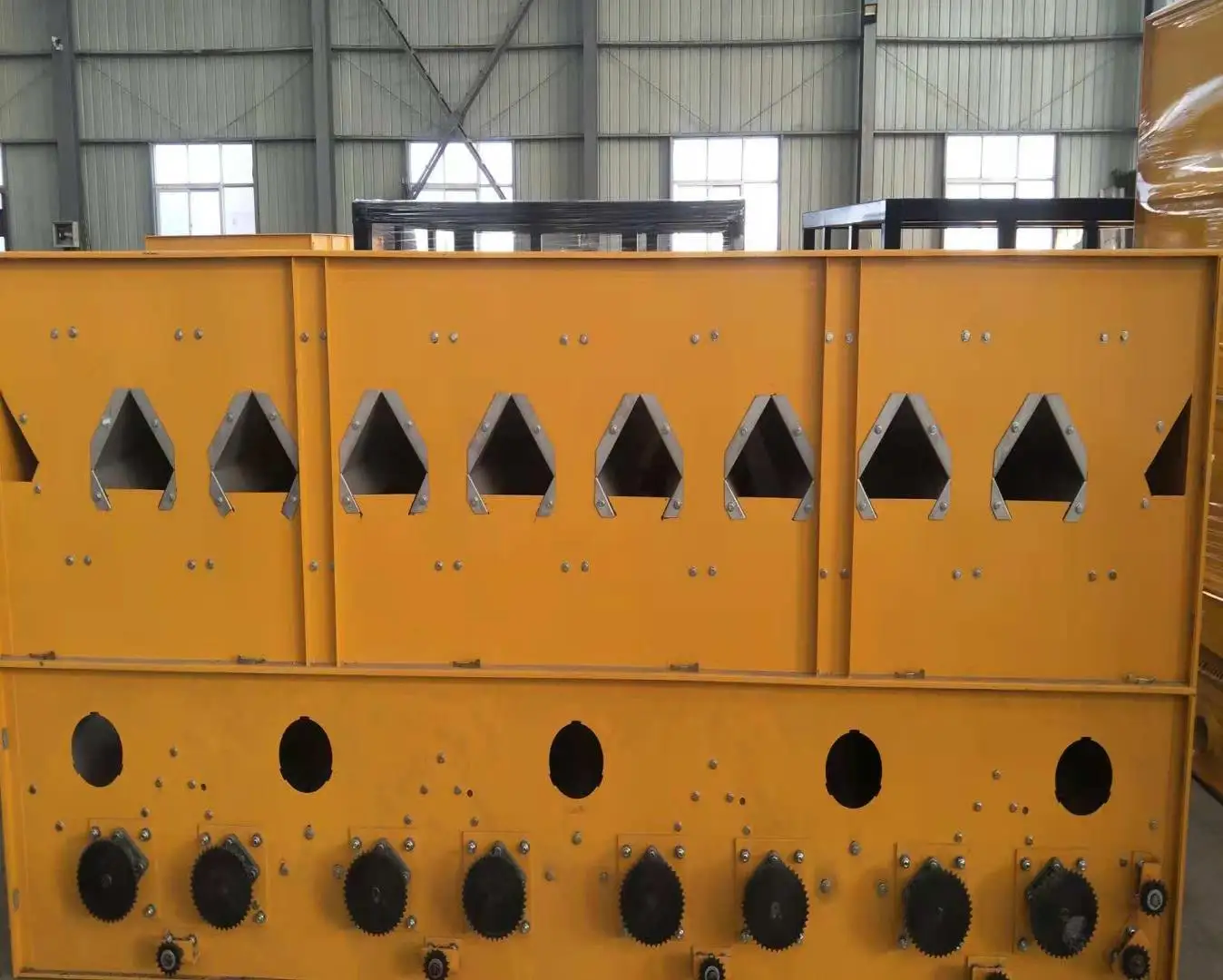

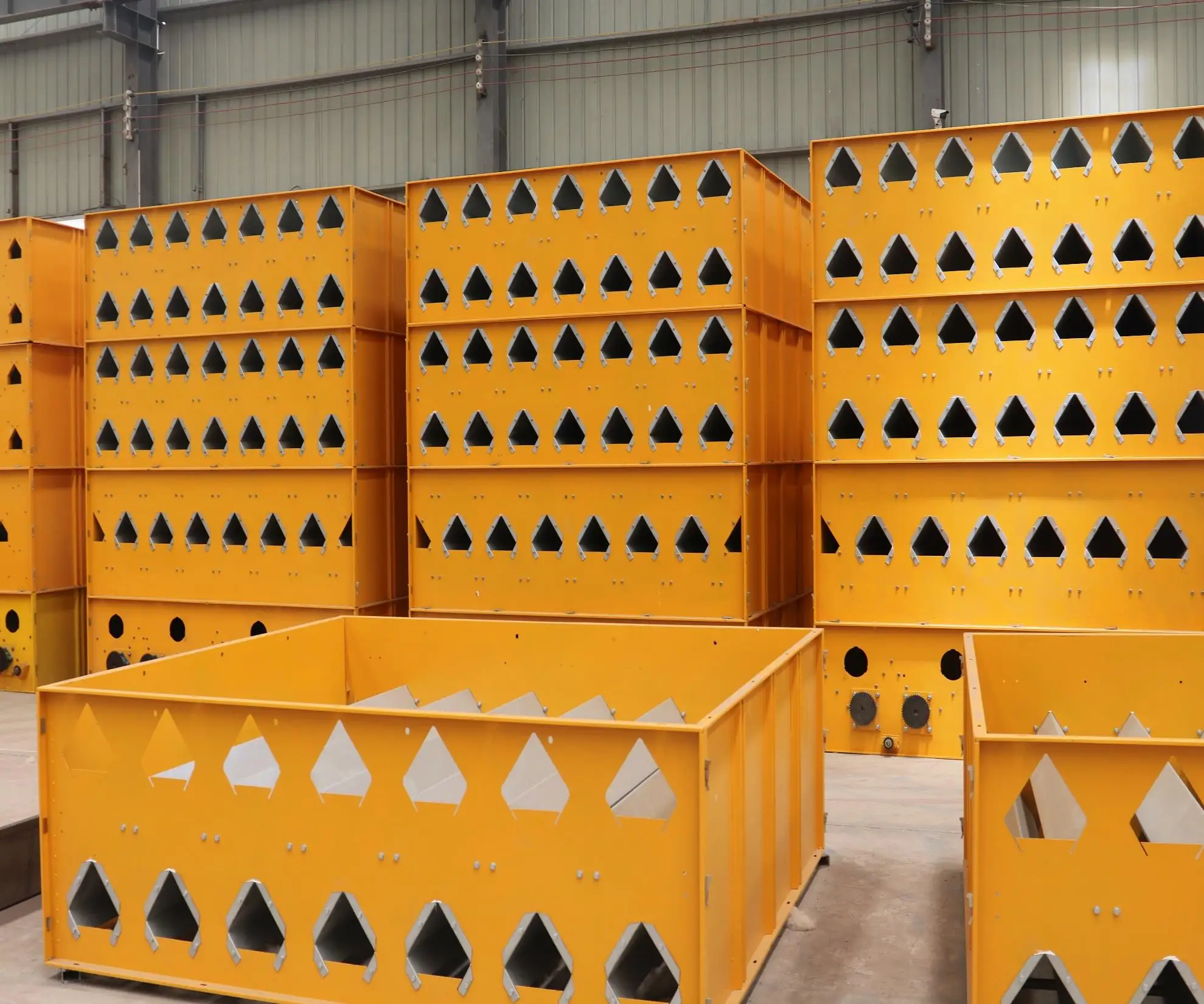

Cross matrix drying layer
The use of galvanized steel heating system and heating pipe air intake can effectively penetrate the hot air into the grain, and the cross-shaped matrix arrangement can maximize the turnover of the grain, make the drying more uniform. The hourly precipitation efficiency is 10%~20% higher than similar products. The dryer is designed so that the grain can be fully turned over, the sundries and dust in the grain can be fully removed, and the cleanliness is high.
The grain-distributing system
The grain-distributing system adopts multiple rounds of grain-distribution, uniform grain distribution, small resistance during the grain-distribution process, reduced bearing capacity of a single grain-distributing wheel, reduced power required, low grain breakage rate, and long service life.

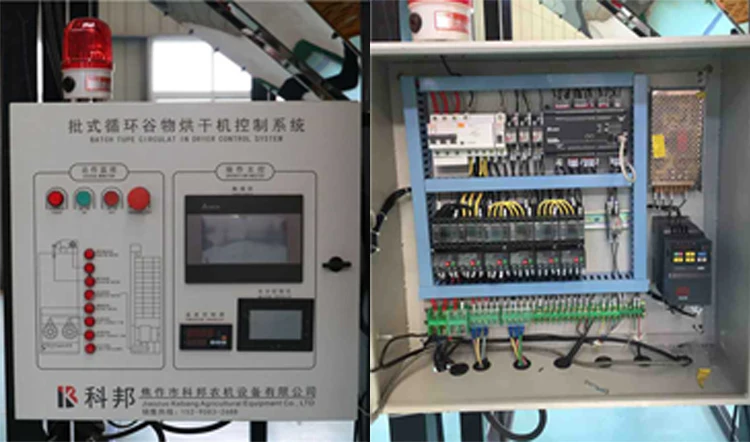

PLC automatic control system
The PLC automatic control system has two modes: one-key start and manual operation, and real-time computer monitoring of temperature and grain moisture, fault alarm and positioning display.

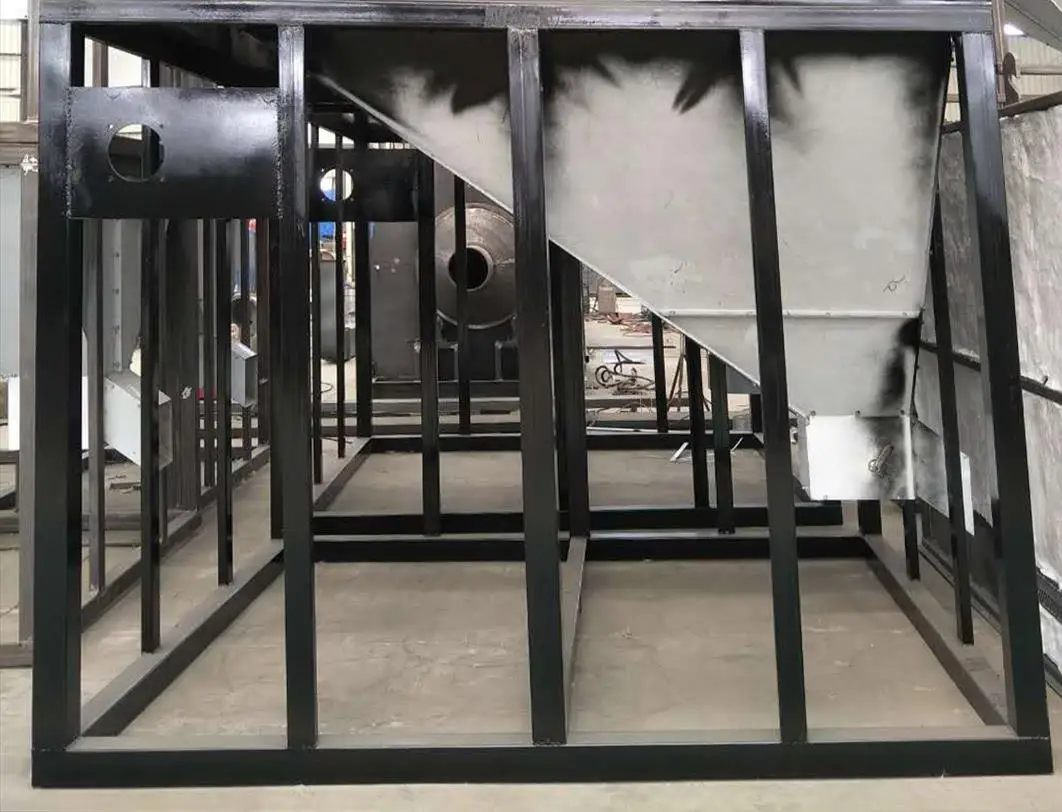

Self-flow discharge & Base
Self-flow discharge can reduce the breaking rate of grain when it collides with the conveying blade, and the effect is better when drying larger grain corn. The stainless steel bottom bin is adopted to reduce the friction coefficient of grains and improve the service life of the dryer.
The base is welded by high-strength rectangular tube, which is corrosion-resistant, high compressive strength.
The base is welded by high-strength rectangular tube, which is corrosion-resistant, high compressive strength.

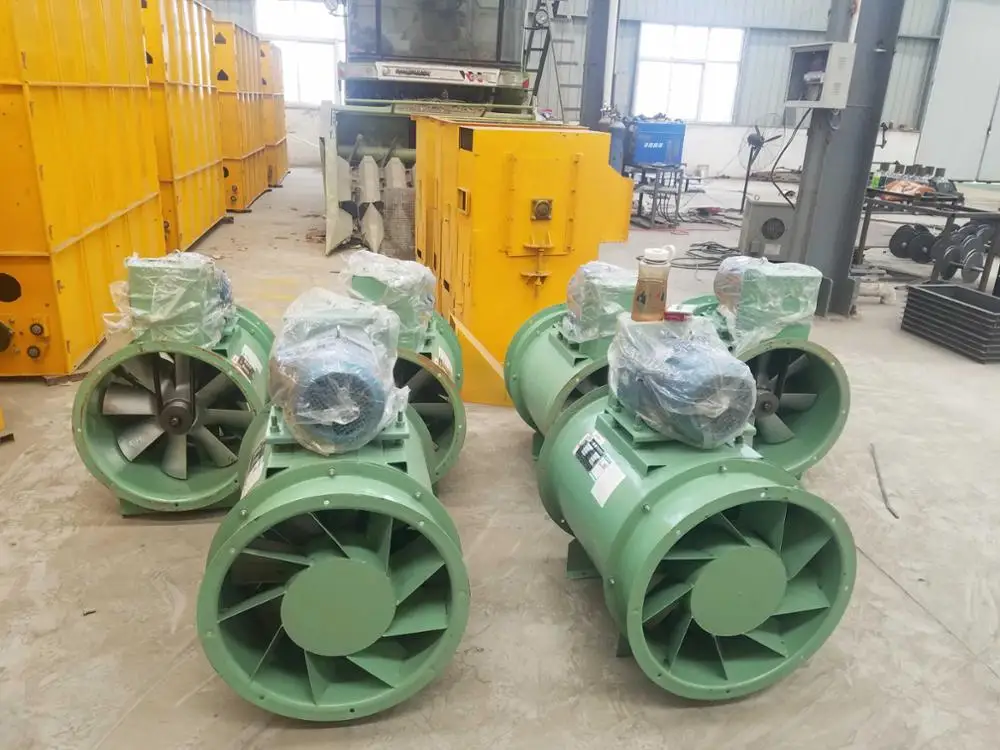

Mixed flow double impeller fan
The SWF series mixed flow double impeller fan is developed and manufactured by combining the characteristics of axial flow fan and centrifugal fan. Axial fans have the advantages of large air volume and centrifugal fans, so they are called "mixed flow" fans. The fan has the advantages of large air volume, smooth exhaust, low noise, low energy consumption, high dehumidification efficiency, and good stability.
Specification
Model Specification | 5H-KB-15 | 5H-KB-20 | 5H-KB-35 | |||
Structural Style | Circulatory Type | |||||
Size(mm) | 2900*4500*10800 | 2900*4500*10800 | 2900*4500*13330 | |||
Capacity | 15 tons/batch | 20 tons/batch | 35 tons/batch | |||
Overall Weight | 3075kg | 3350kg | 8000kg | |||
Drying Rate(%/h) | 0.5~1.2 | 0.5~1.5 | 0.5~1.2 | |||
Installed Capacity | 28m³ | 37m³ | 63m³ | |||
Type Of Fuel | Biomass pellet rice husk dual-purpose furnace(independent research and development)/natural gas/liquefied petroleum gas | |||||
The above data is for reference only. For more information, please contact us. | ||||||
Packing & Delivery
Related Products
Company Profile
Henan Haokebang Machinery Equipment Co., Ltd. is specializes in the production of grain dryers, silos, tubular dryers, mesh belt dryers, grain cleaning screens and other grain processing equipment. Our company has more than 100 management personnel and engineering and technical personnel with intermediate and senior professional titles. It is a modern enterprise integrating R&D, production, sales and maintenance.
The company has a large number of skilled technicians, professional overseas installation teams and experienced after-sales service teams, which can provide users with solutions and equipment from a single equipment to a complete set of grain cleaning, drying, storage, and selected systems. And professional customized service technical support, reliable spare parts supply and high-quality after-sales service.
Products have passed ISO, CE and other certifications, attracting customers from all over the world with efficient sales team and competitive price advantage, we have exported to more than 50 countries, including the United States, Russia, South Korea, Nigeria, Tanzania, Uganda , Colombia, Thailand, Philippines, Zimbabwe, Kenya and other countries and regions.
After-sales Services
- Provide multi-form installation services, including remote guidance, such as telephone and video with installation engineers. And provide installation drawings, door-to-door installation and other services. Customers can easily choose according to their own situation.
- Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
- 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guarantying the whole system long-lasting safety and reliability.
- HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the grain drying system well.
- Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
- 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guarantying the whole system long-lasting safety and reliability.
- HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the grain drying system well.
